  1. Policy Development in RIPE & the RIPE NCC Mirjam Kühne RIPE NCC

  2. Overview • RIPE • in the global context • RIPE NCC • in the global context • Policy development • how can you participate • IPv4 & IPv6 Allocation Policies

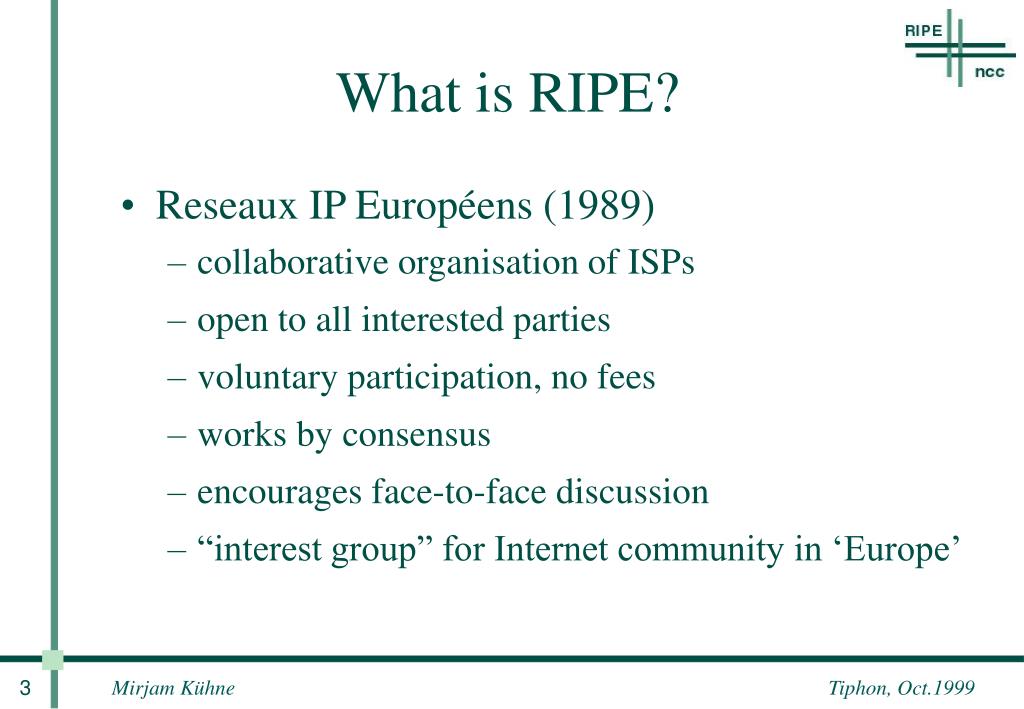

  3. What is RIPE? • Reseaux IP Européens (1989) • collaborative organisation of ISPs • open to all interested parties • voluntary participation, no fees • works by consensus • encourages face-to-face discussion • “interest group” for Internet community in ‘Europe’

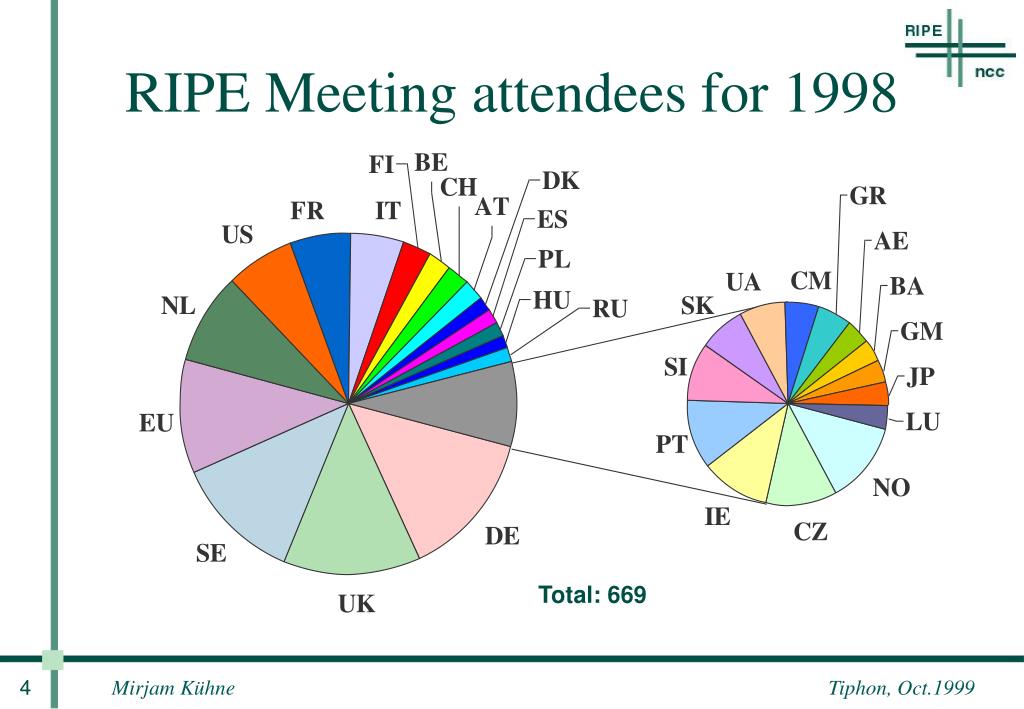

  4. RIPE Meeting attendees for 1998 Total: 669

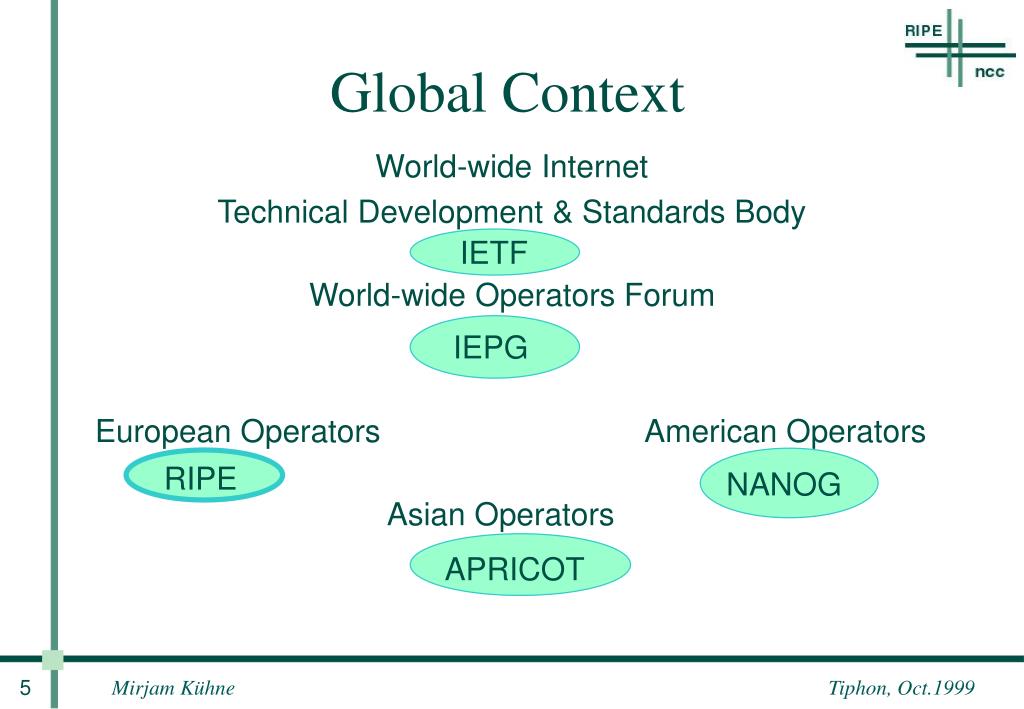

  5. Global Context • World-wide Internet • Technical Development & Standards Body • World-wide Operators Forum • European Operators American Operators • Asian Operators IETF IEPG RIPE NANOG APRICOT

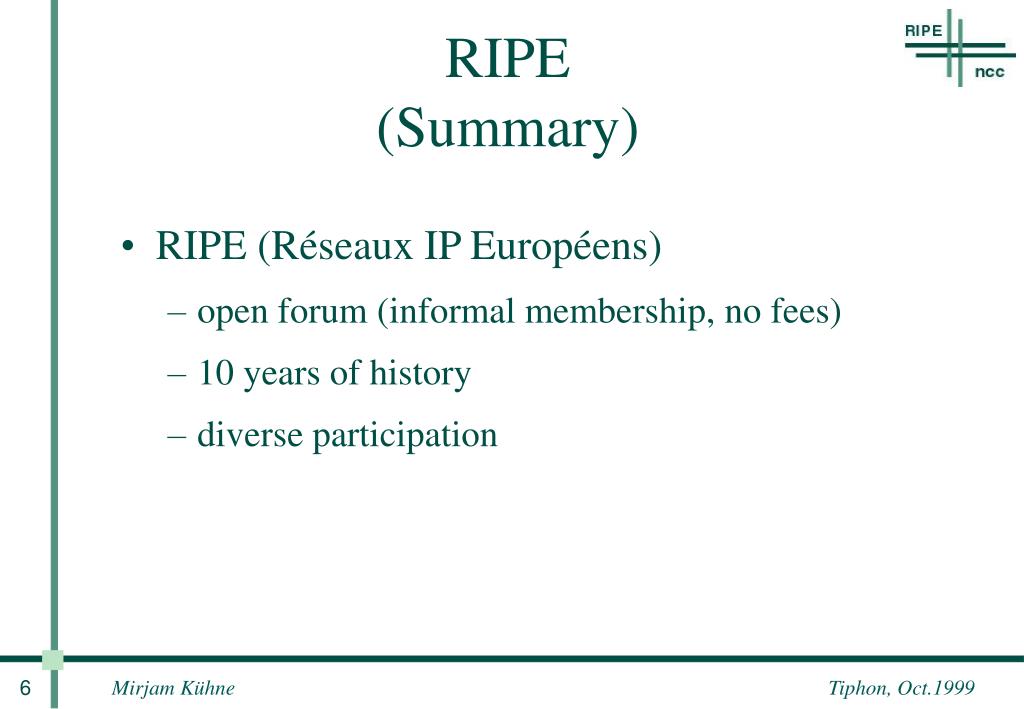

  6. RIPE (Summary) • RIPE (Réseaux IP Européens) • open forum (informal membership, no fees) • 10 years of history • diverse participation

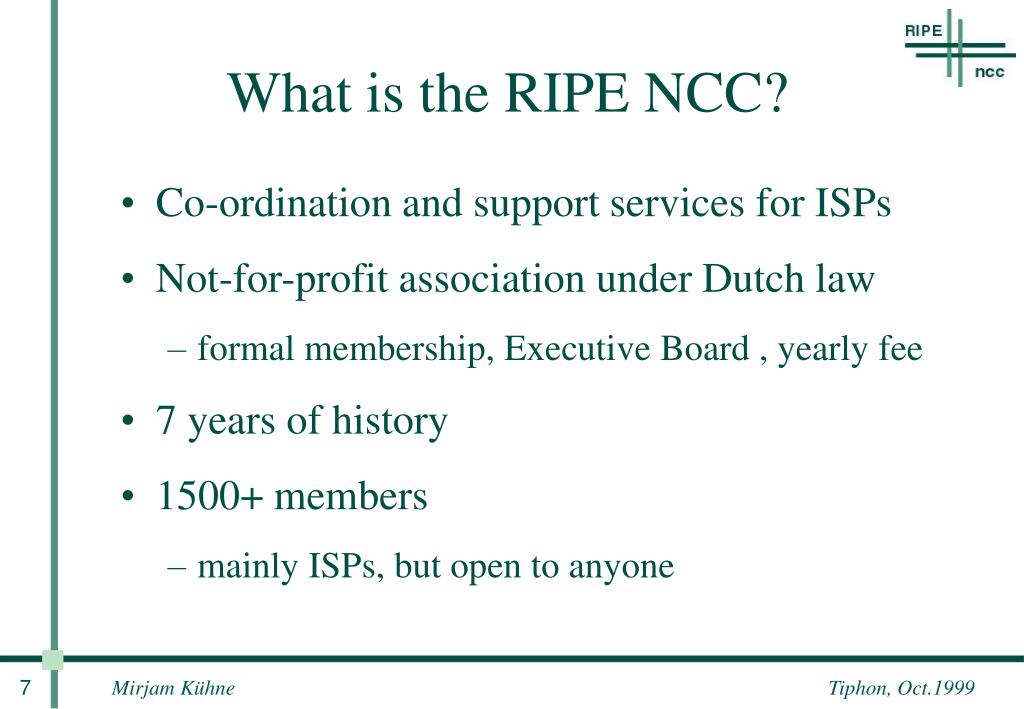

  7. What is the RIPE NCC? • Co-ordination and support services for ISPs • Not-for-profit association under Dutch law • formal membership, Executive Board , yearly fee • 7 years of history • 1500+ members • mainly ISPs, but open to anyone

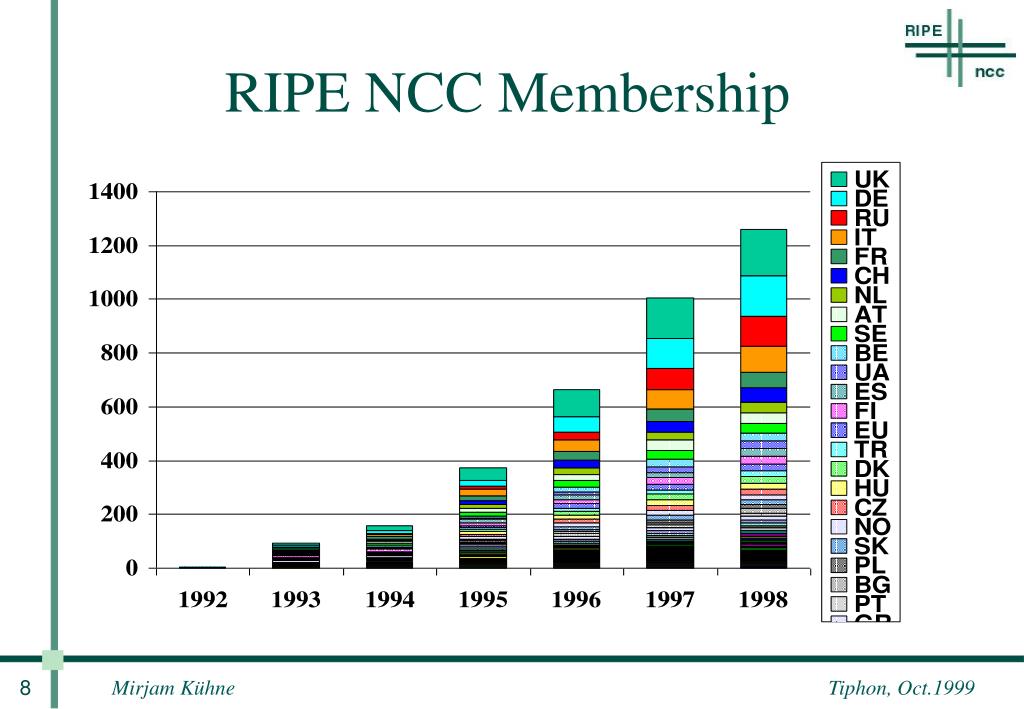

  8. RIPE NCC Membership

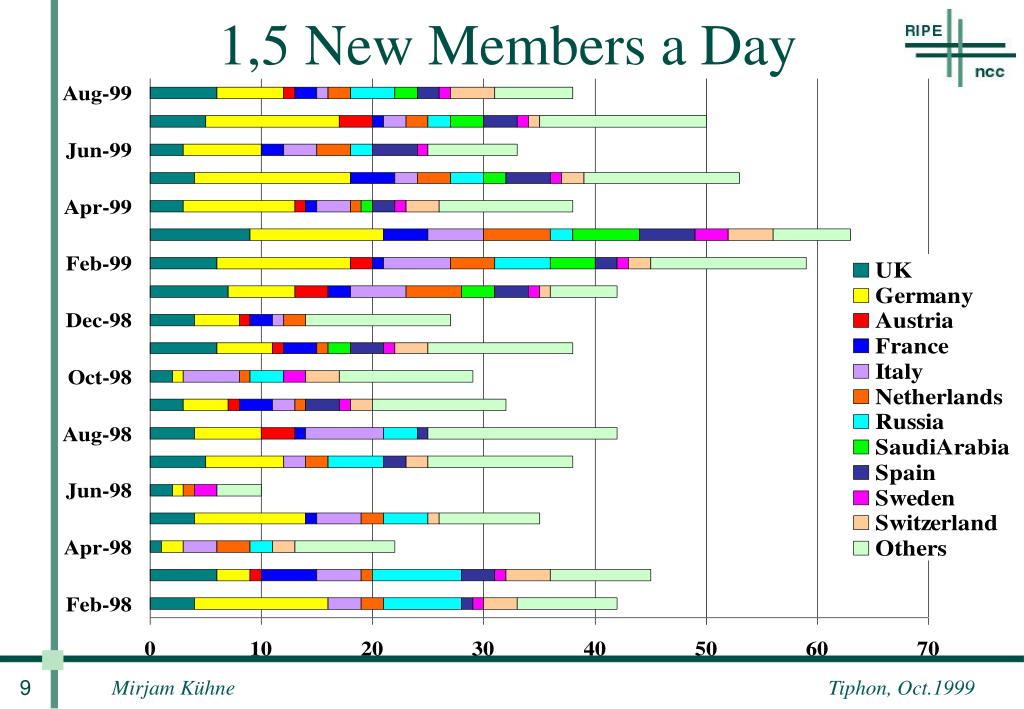

  9. 1,5 New Members a Day

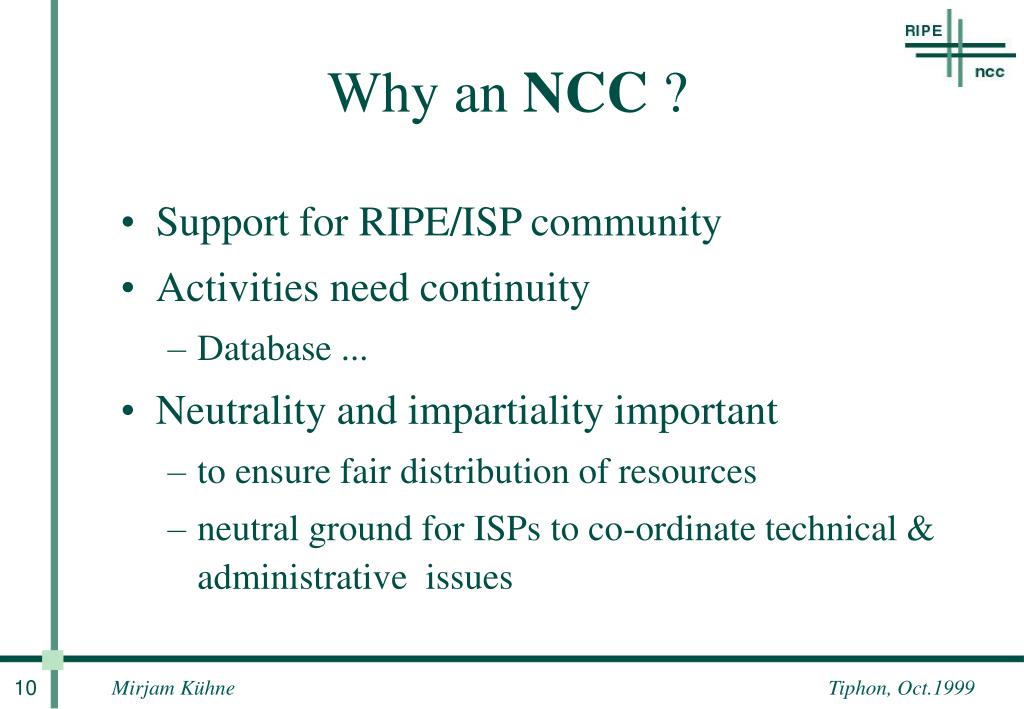

  10. Why an NCC ? • Support for RIPE/ISP community • Activities need continuity • Database ... • Neutrality and impartiality important • to ensure fair distribution of resources • neutral ground for ISPs to co-ordinate technical & administrative issues

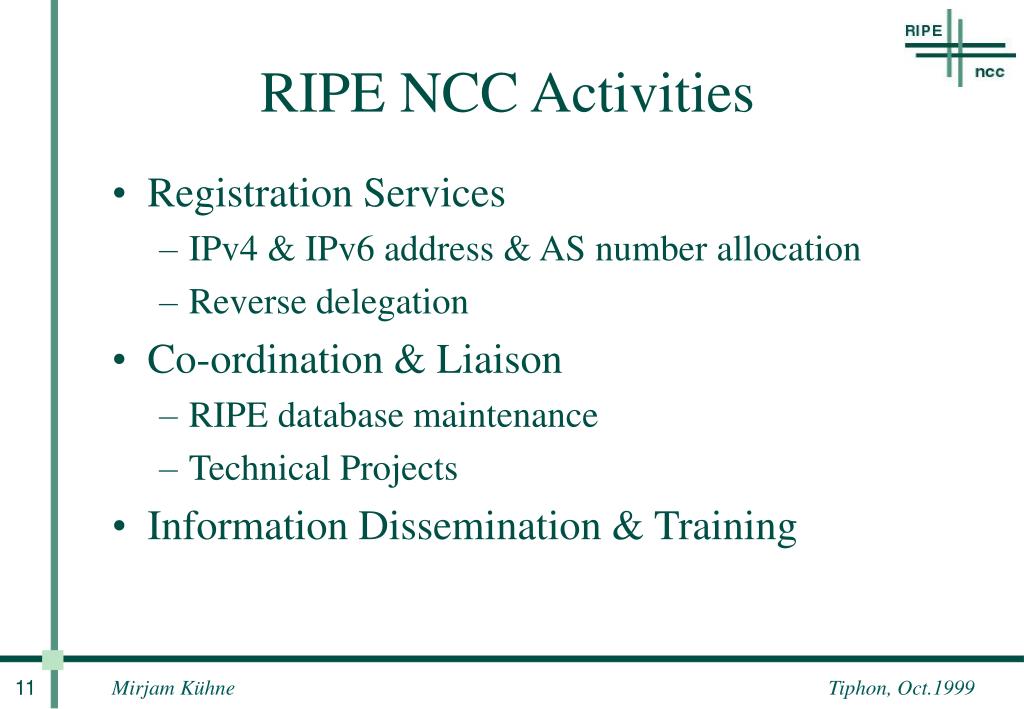

  11. RIPE NCC Activities • Registration Services • IPv4 & IPv6 address & AS number allocation • Reverse delegation • Co-ordination & Liaison • RIPE database maintenance • Technical Projects • Information Dissemination & Training

  12. Activity Development Process RIPE Working Groups • define requirements, suggest activities RIPE NCC Staff • produces activity plan & budget RIPE NCC Executive Board • submits to membership RIPE NCC Membership • approves and sets fees

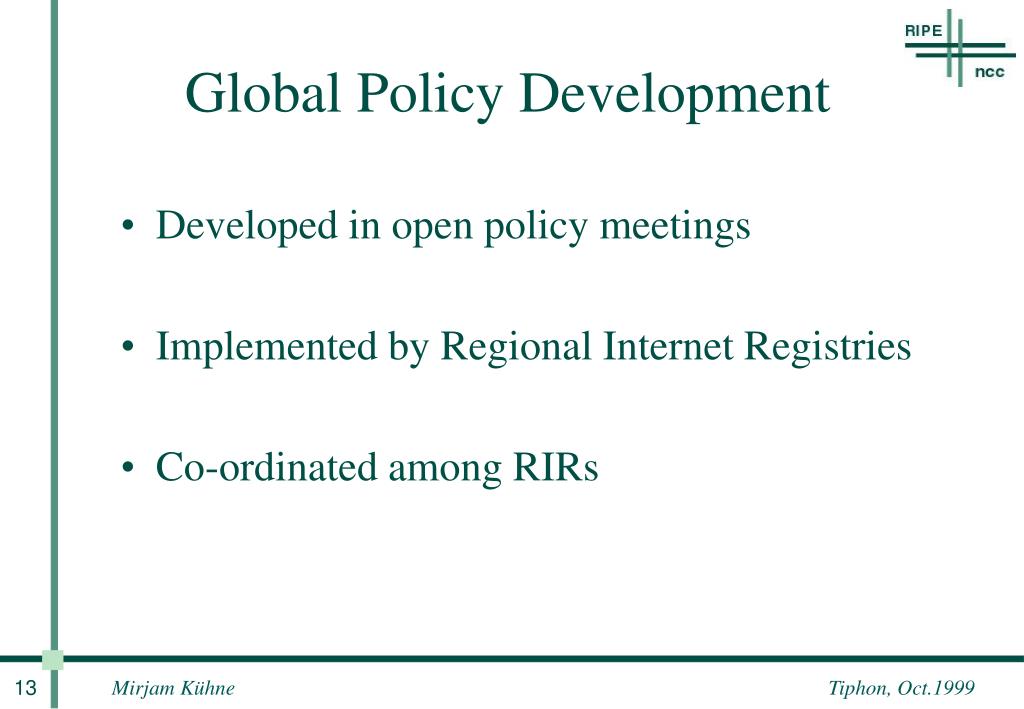

  13. Global Policy Development • Developed in open policy meetings • Implemented by Regional Internet Registries • Co-ordinated among RIRs

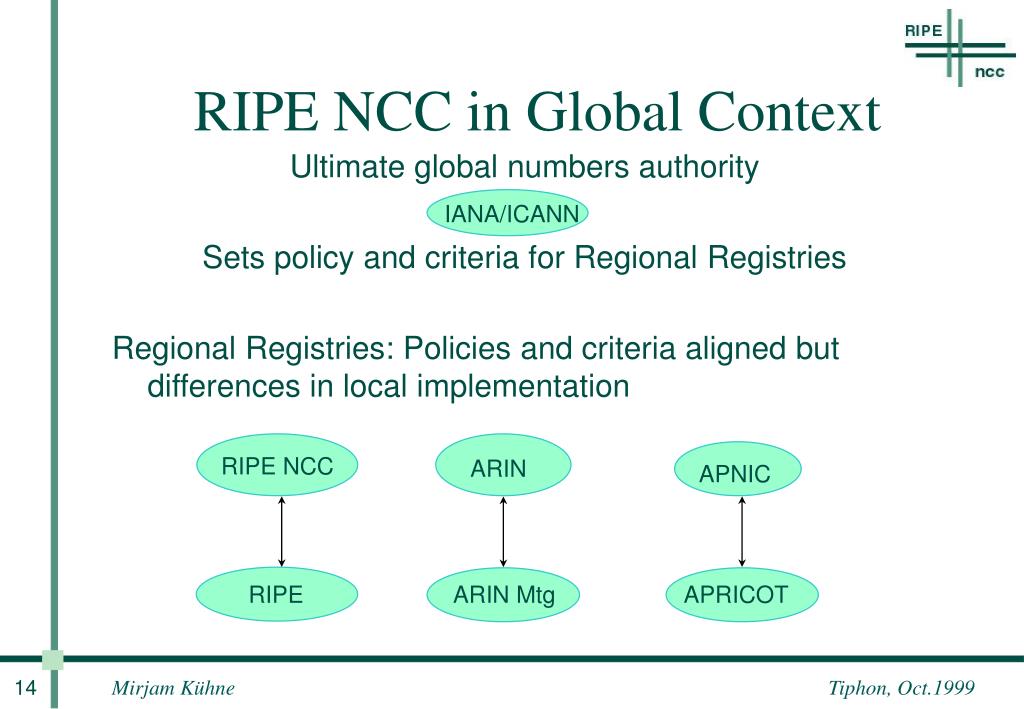

  14. RIPE NCC in Global Context Ultimate global numbers authority Sets policy and criteria for Regional Registries Regional Registries: Policies and criteria aligned but differences in local implementation IANA/ICANN RIPE NCC ARIN APNIC RIPE ARIN Mtg APRICOT

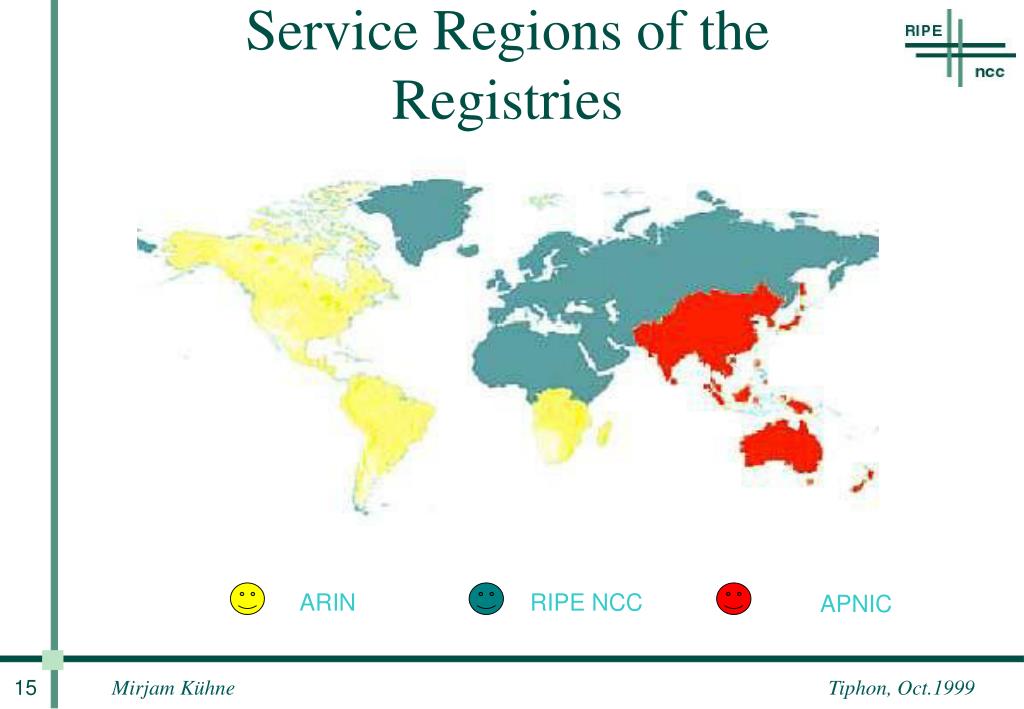

  15. Service Regions of the Registries ARIN RIPE NCC APNIC

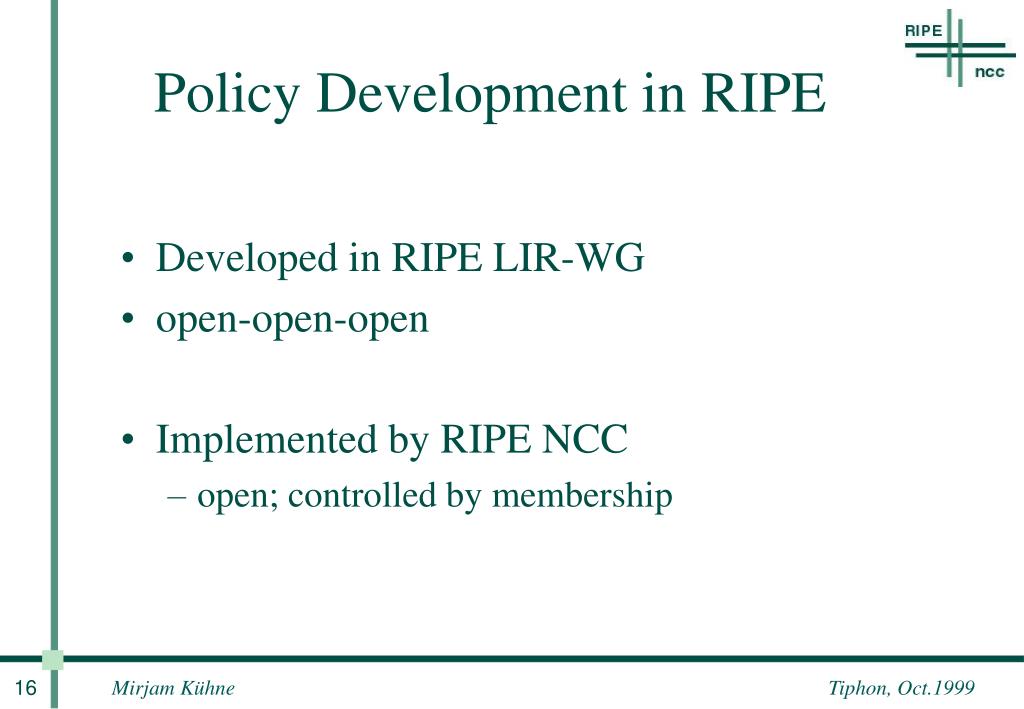

  16. Policy Development in RIPE • Developed in RIPE LIR-WG • open-open-open • Implemented by RIPE NCC • open; controlled by membership

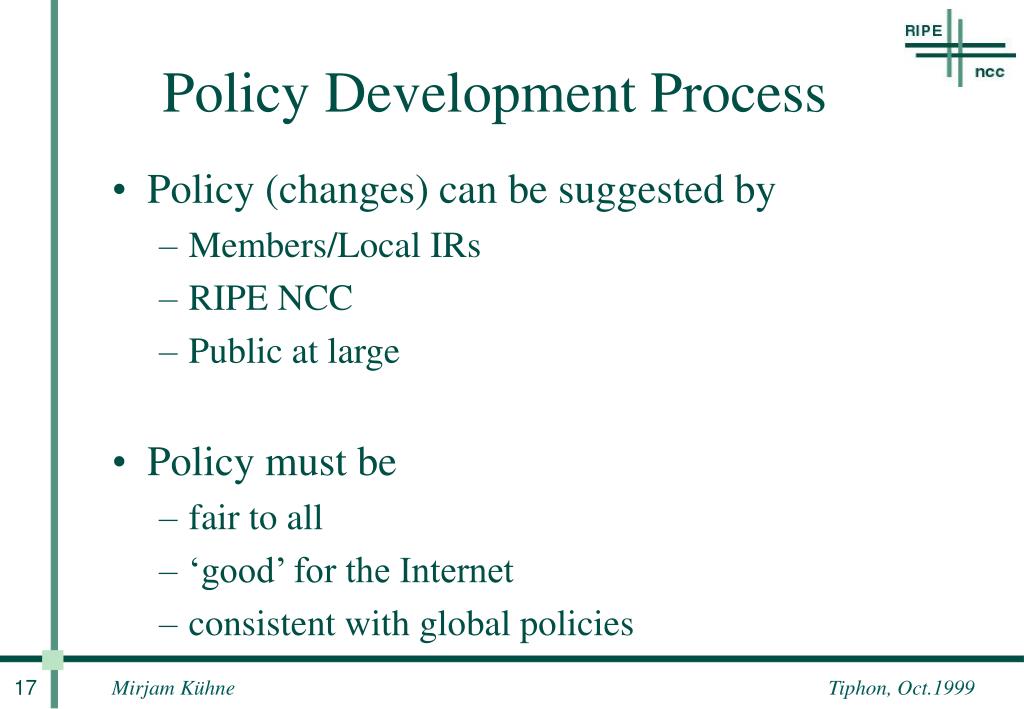

  17. Policy Development Process • Policy (changes) can be suggested by • Members/Local IRs • RIPE NCC • Public at large • Policy must be • fair to all • ‘good’ for the Internet • consistent with global policies

  18. How Can You Participate • RIPE Working Groups • LIR-WG • Open Mailing Lists • <majordomo@ripe.net> • Public Meetings • next meeting in Amsterdam - February 1999 • RIPE NCC membership • AGM http://www.ripe./net/meetings

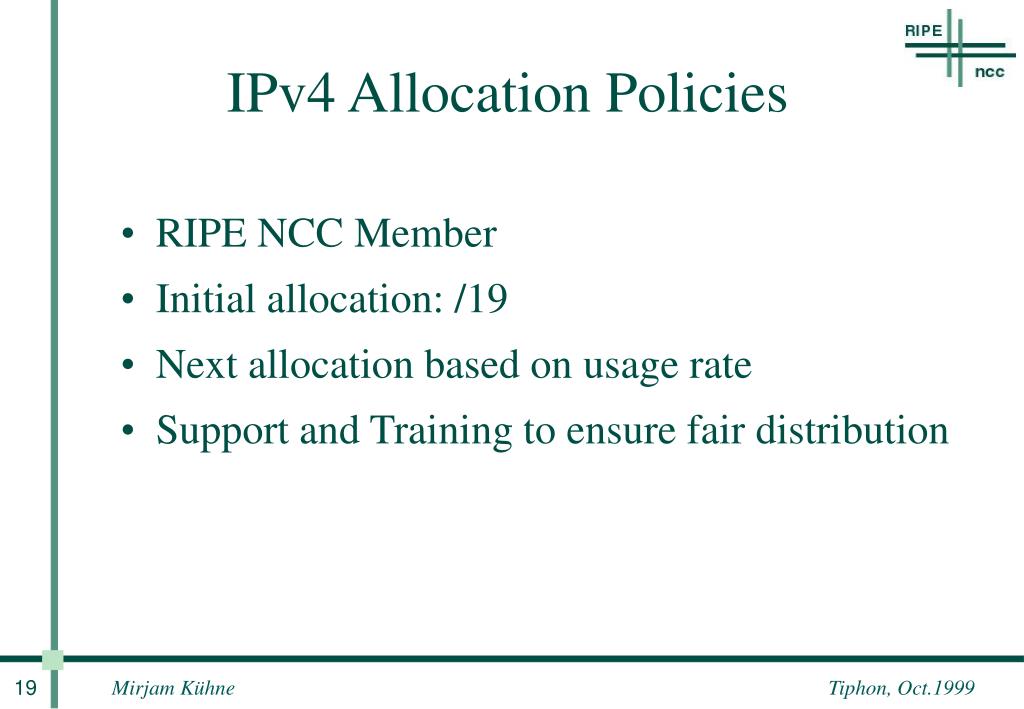

  19. IPv4 Allocation Policies • RIPE NCC Member • Initial allocation: /19 • Next allocation based on usage rate • Support and Training to ensure fair distribution

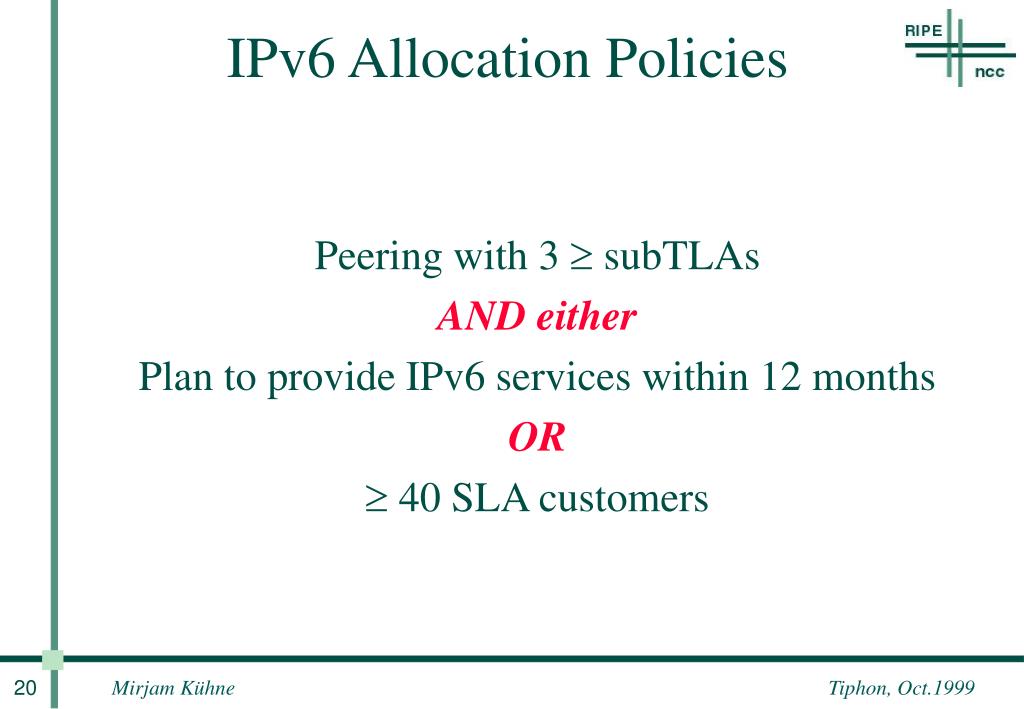

  20. IPv6 Allocation Policies Peering with 3  subTLAs AND either Plan to provide IPv6 services within 12 months OR  40 SLA customers

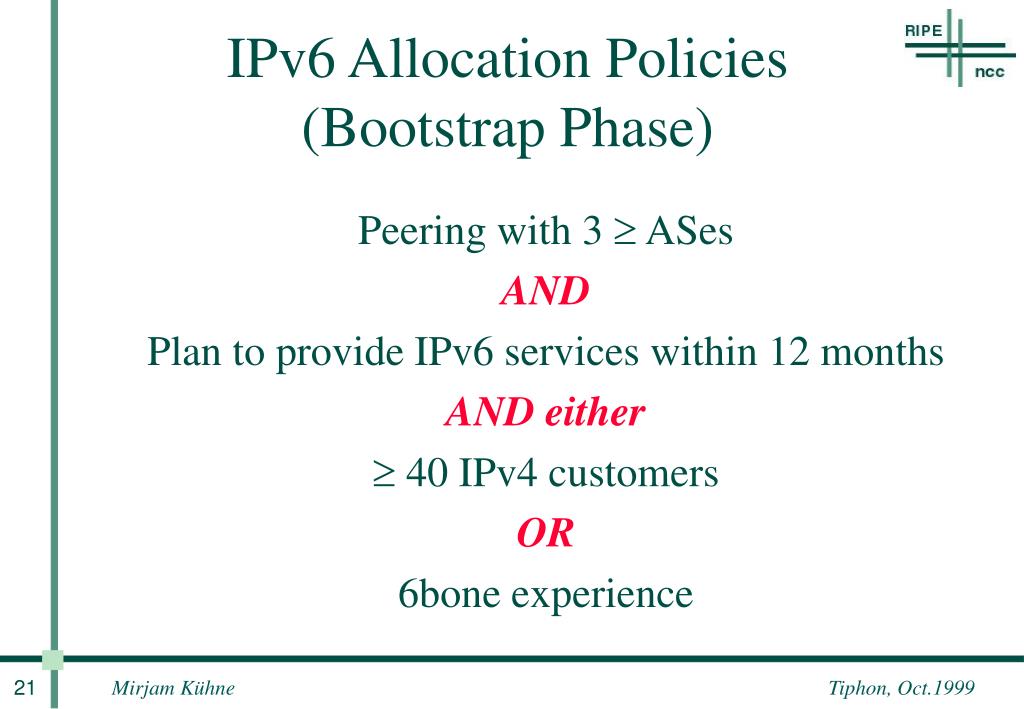

  21. IPv6 Allocation Policies(Bootstrap Phase) Peering with 3  ASes AND Plan to provide IPv6 services within 12 months AND either  40 IPv4 customers OR 6bone experience

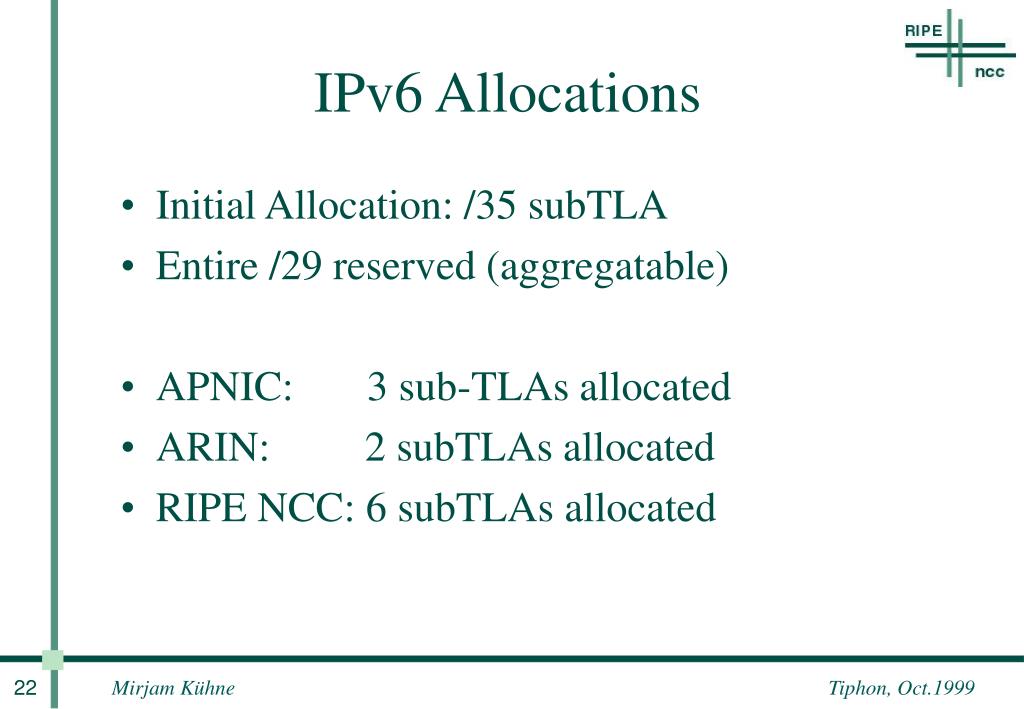

  22. IPv6 Allocations • Initial Allocation: /35 subTLA • Entire /29 reserved (aggregatable) • APNIC: 3 sub-TLAs allocated • ARIN: 2 subTLAs allocated • RIPE NCC: 6 subTLAs allocated

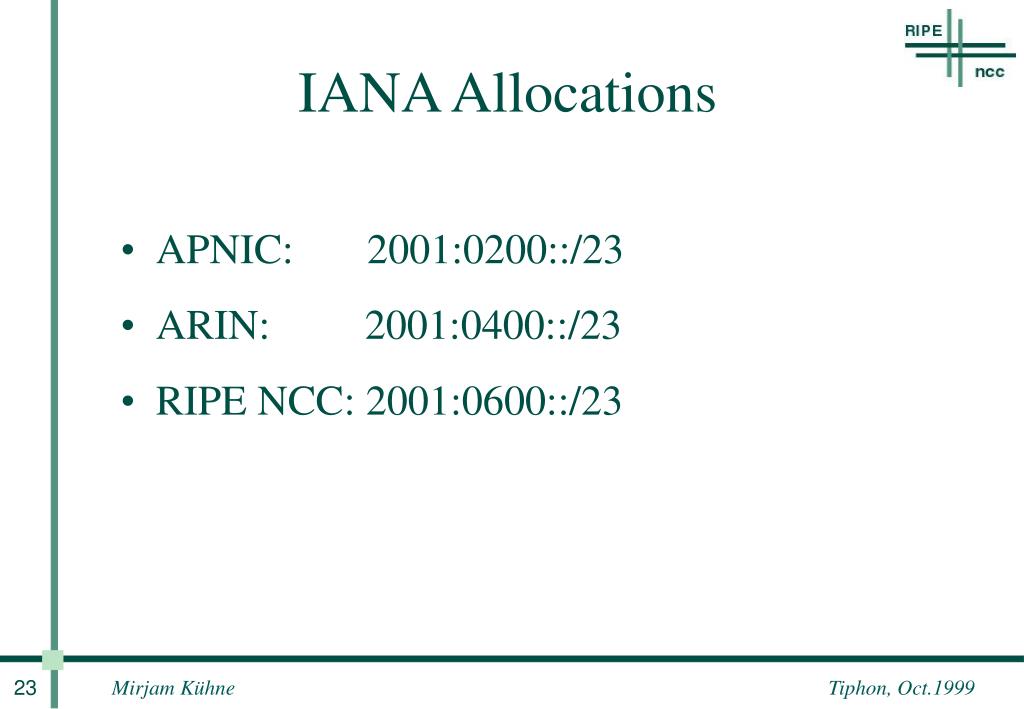

  23. IANA Allocations • APNIC: 2001:0200::/23 • ARIN: 2001:0400::/23 • RIPE NCC: 2001:0600::/23

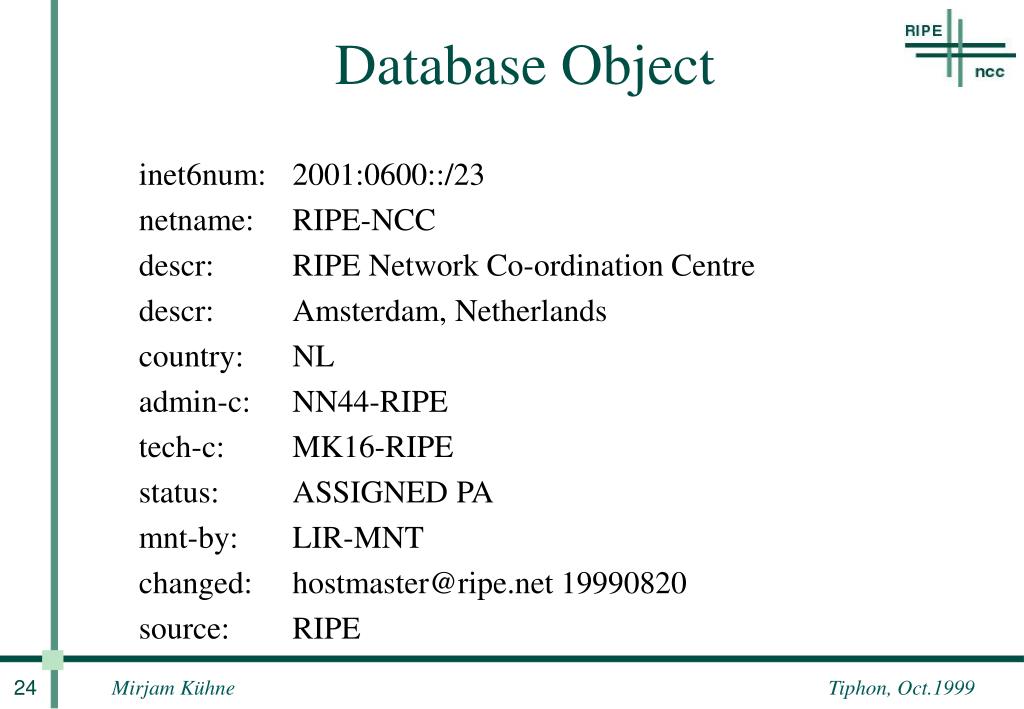

  24. Database Object • inet6num: 2001:0600::/23 netname: RIPE-NCC descr: RIPE Network Co-ordination Centre descr: Amsterdam, Netherlands country: NL admin-c: NN44-RIPE tech-c: MK16-RIPE status: ASSIGNED PA mnt-by: LIR-MNT changed: hostmaster@ripe.net 19990820 source: RIPE

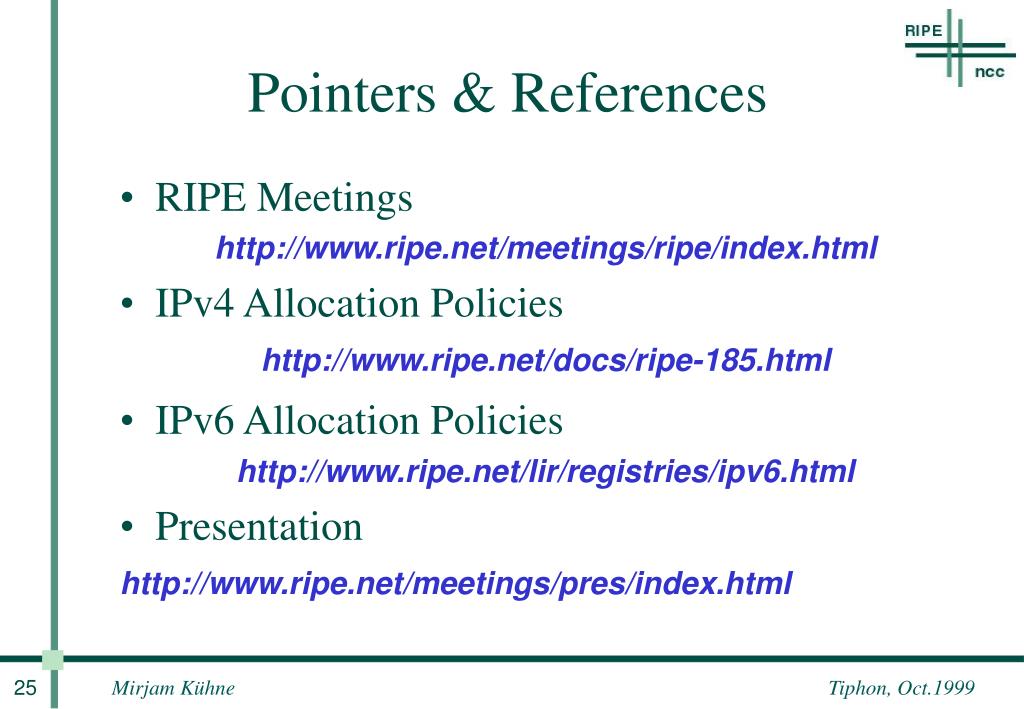

  25. Pointers & References • RIPE Meetings http://www.ripe.net/meetings/ripe/index.html • IPv4 Allocation Policies http://www.ripe.net/docs/ripe-185.html • IPv6 Allocation Policies http://www.ripe.net/lir/registries/ipv6.html • Presentation http://www.ripe.net/meetings/pres/index.html

  26. QUESTIONS? http://www.ripe.net
