  1. CT 320: Network and System Administration Network file system (NFS) Colorado State University Computer Science Department Chris Wilcox Fall 2012 Original slides from Dr. James Walden at Northern Kentucky University.

  2. Topics • NFS Versions • Using NFS • NFS Services • Server and Client Configuration • Automounter • Security • Performance CT320: Fall Semester 2012

  3. NFS Verions v2 (1984) UDP 32-bit v3 (1992) TCP 64-bit. v4 (2000) Distributed, x-platform, security. CT320: Fall Semester 2012

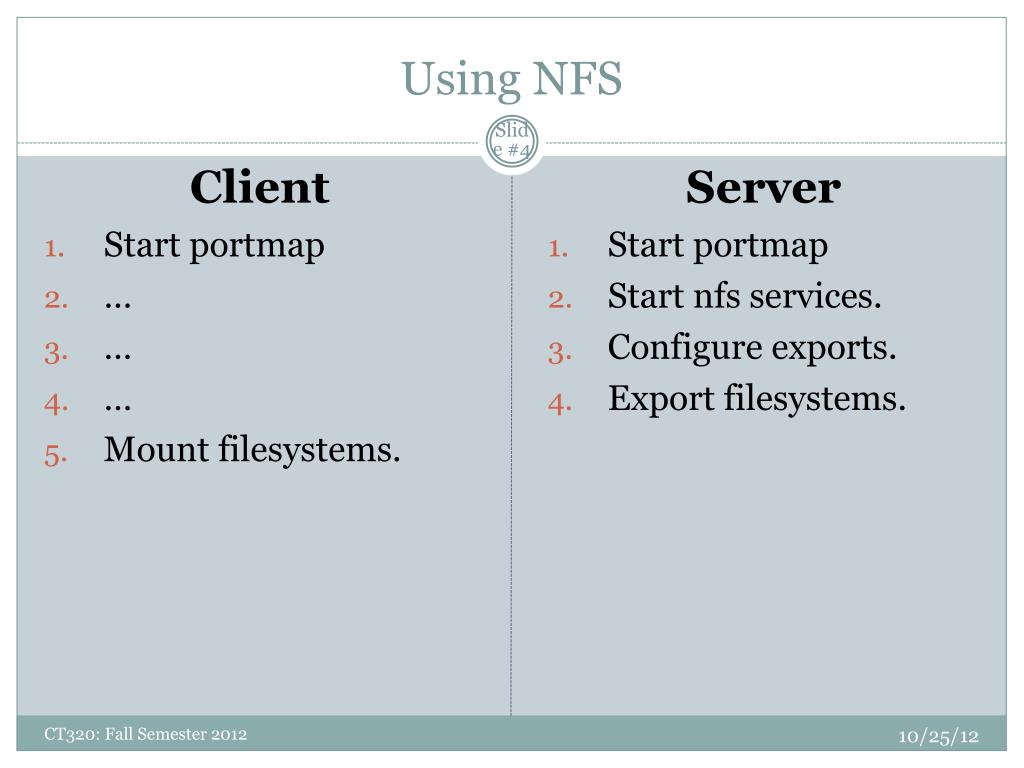

  4. Using NFS Client • Start portmap • … • … • … • Mount filesystems. Server • Start portmap • Start nfs services. • Configure exports. • Export filesystems. CT320: Fall Semester 2012

  5. NFS Services • portmap — RPC service for Linux • portmap • nfs — NFS file server processes. • rpc.mountd • rpc.rquotad • nfsd • nfslock — Optional file locking service. • rpc.statd CT320: Fall Semester 2012

  6. NFSv2/3 Processes rpc.mountd — Handles client mount requests. rpc.nfsd — NFS server processes. rpc.lockd — Process for optional nfslock service. rpc.statd — Handles server crashes for nfslock. rpc.rquotad — Quotas for remote users. CT320: Fall Semester 2012

  7. rpcinfo > rpcinfo -p program vers proto port 100000 2 tcp 111 portmapper 100000 2 udp 111 portmapper 100021 1 udp 32774 nlockmgr 100021 1 tcp 34437 nlockmgr 100011 1 udp 819 rquotad 100011 2 udp 819 rquotad 100011 1 tcp 822 rquotad 100011 2 tcp 822 rquotad 100003 2 udp 2049 nfs 100003 3 udp 2049 nfs 100003 2 tcp 2049 nfs 100003 3 tcp 2049 nfs 100005 2 udp 836 mountd 100005 2 tcp 839 mountd 100005 3 udp 836 mountd 100005 3 tcp 839 mountd CT320: Fall Semester 2012

  8. NFSv4 Processes nfsd — NFSv4 server processes. Handles mounts. rpc.idmapd — Maps NFSv4 names (user@domain) and local UIDs and GIDs. Uses /etc/idmapd.conf. rpc.svcgssd — Server transport Kerberos auth. rpc.gssd — Client transport Kerberos auth. CT320: Fall Semester 2012

  9. Server Configuration • Configure /etc/exports List filesystems to be exported. Specify export options (ro, rw, etc.) Specify hosts/networks to export to. • Export filesystems. exportfs • Start NFS server (if not already started) service portmap start service nfs start CT320: Fall Semester 2012

  10. /etc/exports • Format: directory hosts(options) • Options • ro, rw Read-only, read-write. • async Server replies before write. • sync Save before reply (default) • all_squash Map all users to anon UID/GID. • root_squash Map root to anon UID (default) • no_root_squash Don’t map root (insecure.) • anon{uid,gid} Set anonymous UID, GID. • Examples: • /home *.example.com(rw,sync) • /backups 192.168.1.0/24(ro,all_squash) • /ex/limited foo.example.com CT320: Fall Semester 2012

  11. Client Configuration • Manual mounting • mount -t <nfs-type> -o <options>server:/remote/export/local/directory • Mounting via /etc/fstab • server:/remote/export/local/directory<nfs-type><options> 0 0 • NFS Type is either nfs or nfs4. CT320: Fall Semester 2012

  12. Mount Options hard or soft — Error handling hard: NFS requests will uninterruptible wait until server back. soft: NFS requests will timeout and report failure. intr — NFS requests can be interrupted if server unreachable. nfsvers=2,3— NFS protocol version (not 4) noexec — Prevents execution of binaries. nosuid — Disables setuid for security. rsize,wsize=# — NFS data block size (default 8192) sec=mode — NFS security type. sys uses local UIDs and GIDs. krb5 uses Kerberos5 authentication. krb5i uses Kerberos5 authentication + integrity checking krb5p uses Kerberos5 auth + integrity checking + encryption. tcp, udp — Specifies protocol to use for mount. CT320: Fall Semester 2012

  13. Automounter • Manages NFS mounts • Automounter maps vs /etc/fstab. • Mounts filesystems only when needed: • Makes administering many filesystems easier. • Improves startup speed. • Provides uniform namespaces. • Ex: mounts /home/home7 as /home on login. • /etc/auto.master points to maps • /home /etc/auto.home • Maps describe mounts • * -fstype=nfs4,soft,intr,nosuid server:/home CT320: Fall Semester 2012

  14. Security • Limit which hosts have access to fs. • Specify hosts in /etc/exports. • Use iptables to limit which hosts can use nfs. • Use read-only mounts unless need writes. • Disable suid and execution unless needed. • Map root to nobody. • Map all users to specific user by default. • Block NFS at network firewalls. • Use NFSv4 with Kerberos. CT320: Fall Semester 2012
