  1. Lab. IR Dyeing Machine 115, 2Ba, Jeongwang-Dong, Shihung-Si, Kyungki-Do, Korea. Tel:82-31-499-6446, Fax:82-31499-6448E-Mail : dl1001@hitel.net , Homepage : www.daelimlab.co DaeLimStarlet co.,LTD

  2. Definition of IR Dyeing Machine? Lab. IR Dyeing Machine Definition of IR Dyeing Machine? -Infrared Ray Dyeing Machine is a Sample DyeingTester Which Use Electricity to Dye. It tests with 2g-100g of Fabric, Yarn, etc Before Main Production Dyeing In order to Know How much Dyestuff, Auxiliary, Water to be need For Proper Color. IR Machine has Some Advantage Points Compare with Traditional Lab. Dyeing Machine (Glycerin, Steam Machine) ① Accurate Dyeing - IR Dyeing Machine have Temperature Sensor in Pot Which is Controlled by Micro Processor, so that it check Temperature of Actual Dyeing Liquid Exactly. ② Affinity Environment –IR Dyeing Machine do not use PEG to heat. So that it is very Clean around Machine and very easy to clean dye pot。 ③ Economic–No Necessary Utilities Except Power Supply。 ④ Free of Harm - IR do not use PEG. So it is free From Smell and gas which is harmful to human. ⑤ High Economic Efficiency – It is possible to work right after cooling bath. But PEG Machine have to wait for bath to be cooled.- Save Time & Running Cost.

  3. Specification of IR Dyeing Machine 2）Specification of IR Dyeing Machine ①Controller - Micro Processor Controls Temperature and time very precisely ②Movement – Machine Operates Pot to reverse forward & backward Regularly which brings to dye evenly though well moving of fabric & yarn. ③Pot - Pot is made by Press mold with 9 frames so that it is same quality with best material SUS#316L。 Inside of Pot have been done Electrolytic Polishing Treatment to eliminate any chemical to protect Contamination ④Body- This is a Part Which Supports Other Parts. Outside is Strong Steel to be Powder Coating and Inside is Stainless Steel to be Polished and equip Heater, fan, Geared motor, Inverter, various electronic component which is mainly made in Japan. Especially, Starlet-2 has high density of glass wool for good insulation. It is touchable outside of machine even high temperature.

  4. Sorts of IR Dyeing Machine 3) Sorts of IR Dyeing Machine About 5 kinds of IR Machine have been sold World Widely。 Starlet(KOREA), Mathis(SWISS), Ahiba(U.S.A), Rapid(TAIWAN), Roches(U.K) • 1. Mathis 2. Abiba 3.Rapid • 4）Special Feature of Starlet • ①Perpect Dyeing Testing – • Micro Processor DTC-6000 is Equipped Exclusively For Starlet. • It is able to Save 120 Dyeing Pattern and Control Accurate Temperature & • Time. And The Graph of Dyeing Process is Indicated in LCD Monitor. • (There are English, Chinese, Korean Language) • （Reservation、Preventing Overheating、Process Check） • ②Guarantee Equal Dyeing – • Pots are Attached to the Rotating Axis in order to make pot rotate Forward • & Backward. • In this Regards, This Rotation System Can Show more Superior Equal Dyeing • Than Disk Rotation System. • ③Quality of Dyeing Pot – • SUS#316L Pots are made by Delicate Press Mold with 9 Frames so that • all pots are same quality (size, thickness).

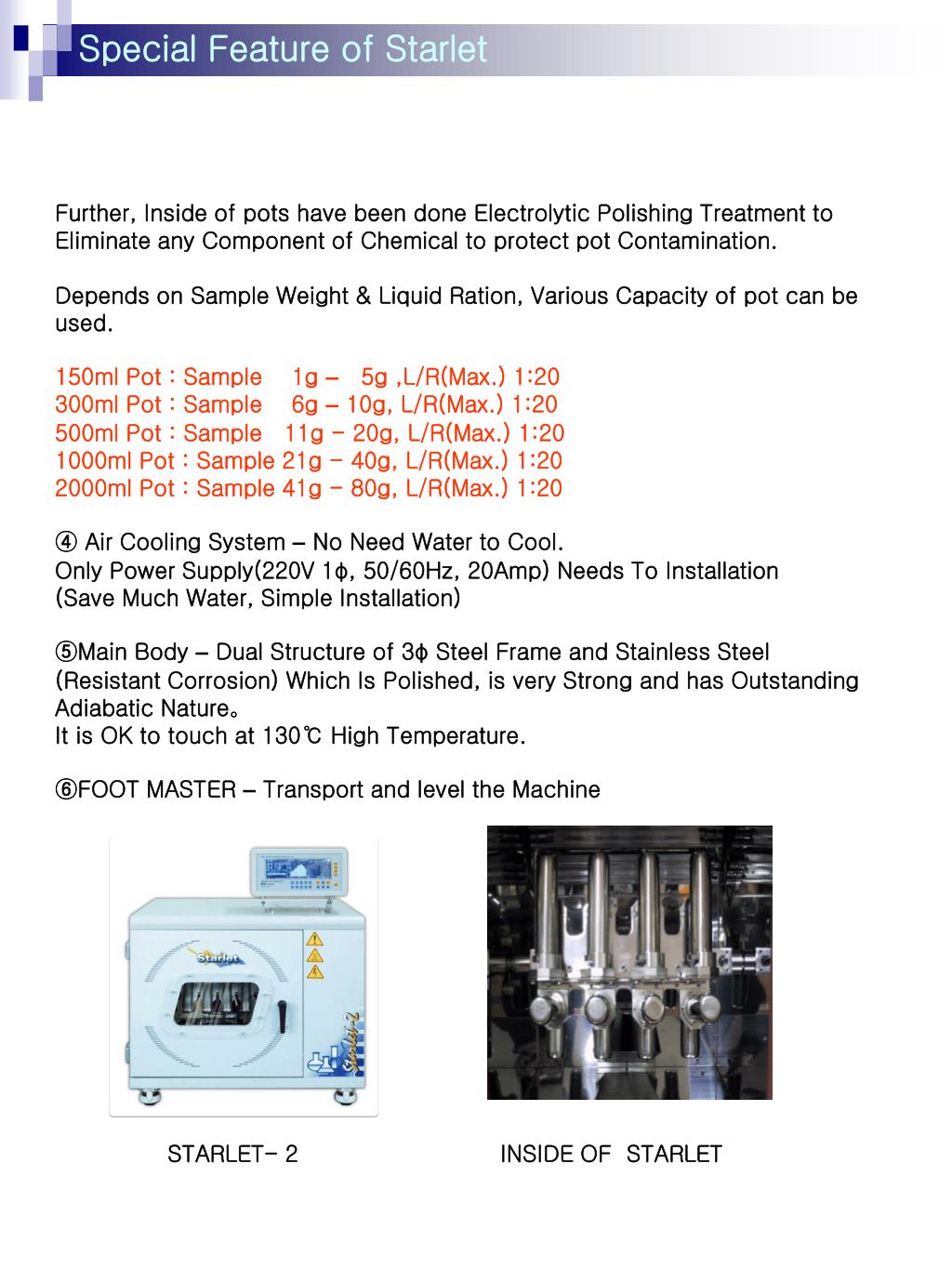

  5. Special Feature of Starlet Further, Inside of pots have been done Electrolytic Polishing Treatment to Eliminate any Component of Chemical to protect pot Contamination. Depends on Sample Weight & Liquid Ration, Various Capacity of pot can be used. 150ml Pot : Sample 1g – 5g ,L/R(Max.) 1:20 300ml Pot : Sample 6g – 10g, L/R(Max.) 1:20 500ml Pot : Sample 11g - 20g, L/R(Max.) 1:20 1000ml Pot : Sample 21g - 40g, L/R(Max.) 1:20 2000ml Pot : Sample 41g - 80g, L/R(Max.) 1:20 ④ Air Cooling System – No Need Water to Cool. Only Power Supply(220V 1φ, 50/60Hz, 20Amp) Needs To Installation (Save Much Water, Simple Installation) ⑤Main Body – Dual Structure of 3φ Steel Frame and Stainless Steel (Resistant Corrosion) Which Is Polished, is very Strong and has Outstanding Adiabatic Nature。 It is OK to touch at 130℃ High Temperature. ⑥FOOT MASTER –Transport and level the Machine STARLET- 2 INSIDE OF STARLET

  6. Sales Record 5）Sales Record(Total over 1,500sets)-Since 1998 1.Korea – About 850 sets ex）KITECH – 12 SETS 2.Oversea – About 650 sets ex)Vietnam – 20sets,Thailand- 100 Sets,China - 350sets, Indonesia,U.S.A, Pakistan, India, Mexico, Peru. etc
