  1. Guide to using Strucad’s drawing viewer Provided By Network Drafting Service Pty Ltd

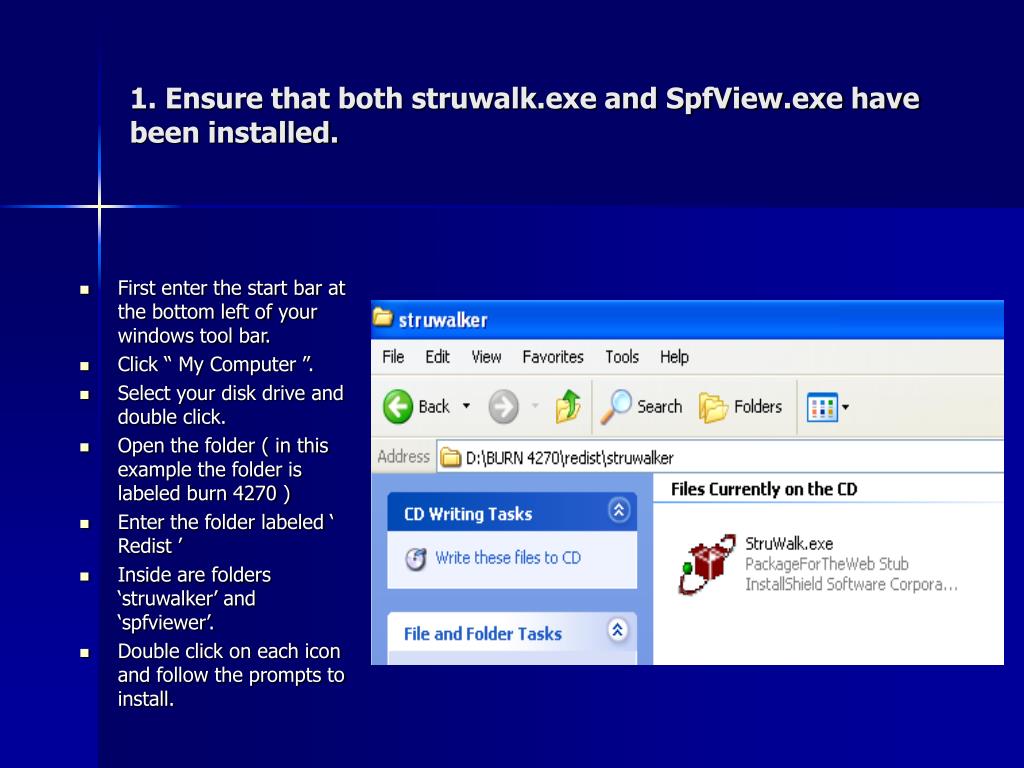

  2. 1. Ensure that both struwalk.exe and SpfView.exe have been installed. • First enter the start bar at the bottom left of your windows tool bar. • Click “ My Computer ”. • Select your disk drive and double click. • Open the folder ( in this example the folder is labeled burn 4270 ) • Enter the folder labeled ‘ Redist ’ • Inside are folders ‘struwalker’ and ‘spfviewer’. • Double click on each icon and follow the prompts to install.

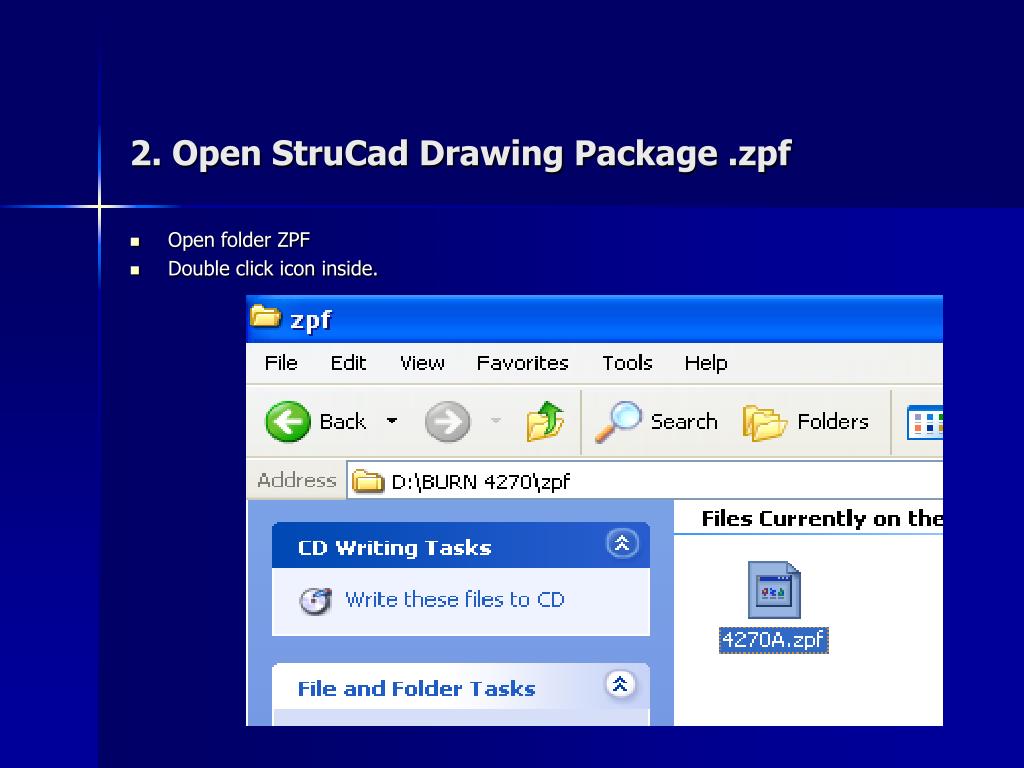

  3. 2. Open StruCad Drawing Package .zpf • Open folder ZPF • Double click icon inside.

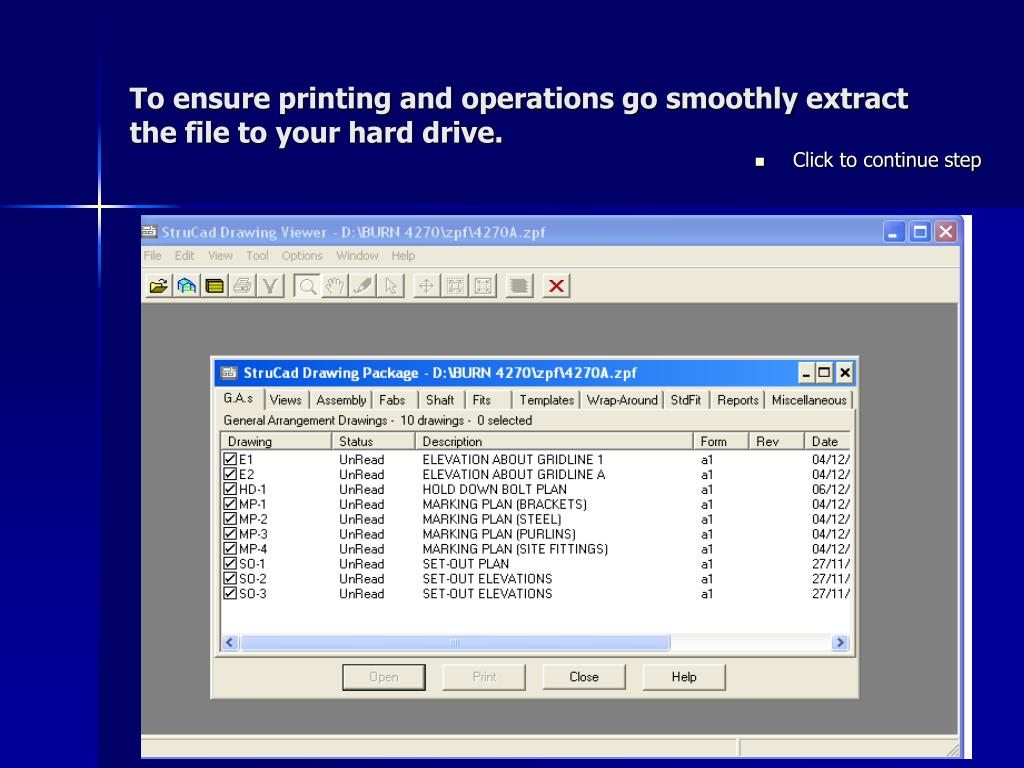

  4. To ensure printing and operations go smoothly extract the file to your hard drive. • Click to continue step

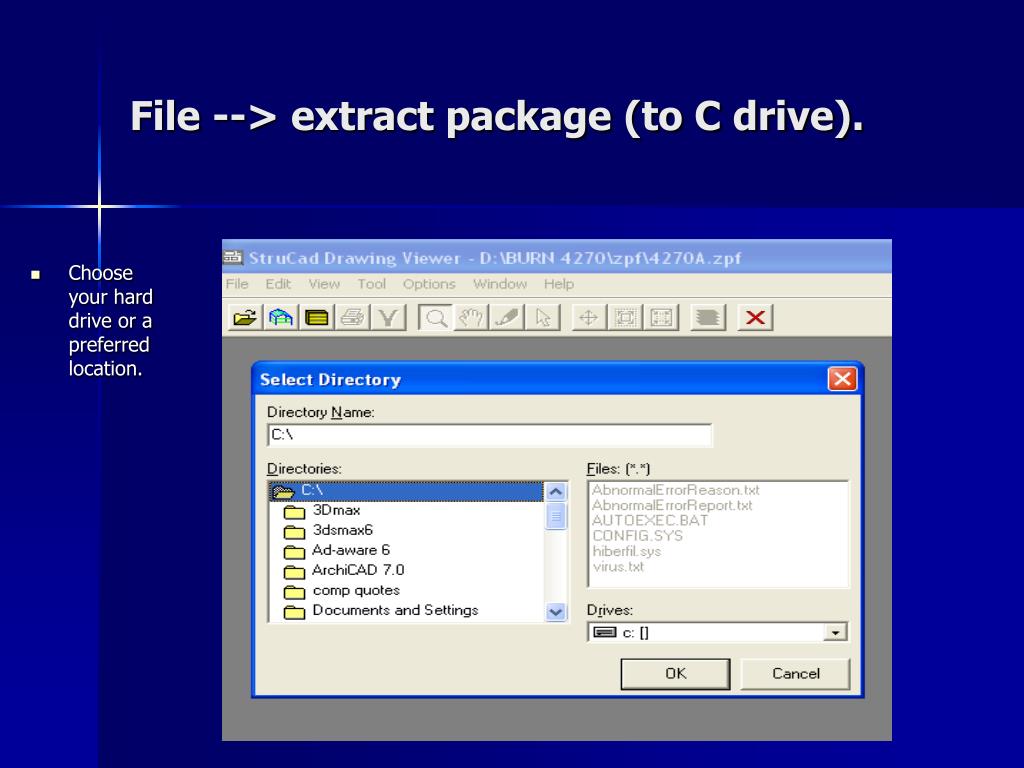

  5. File --> extract package (to C drive). • Choose your hard drive or a preferred location.

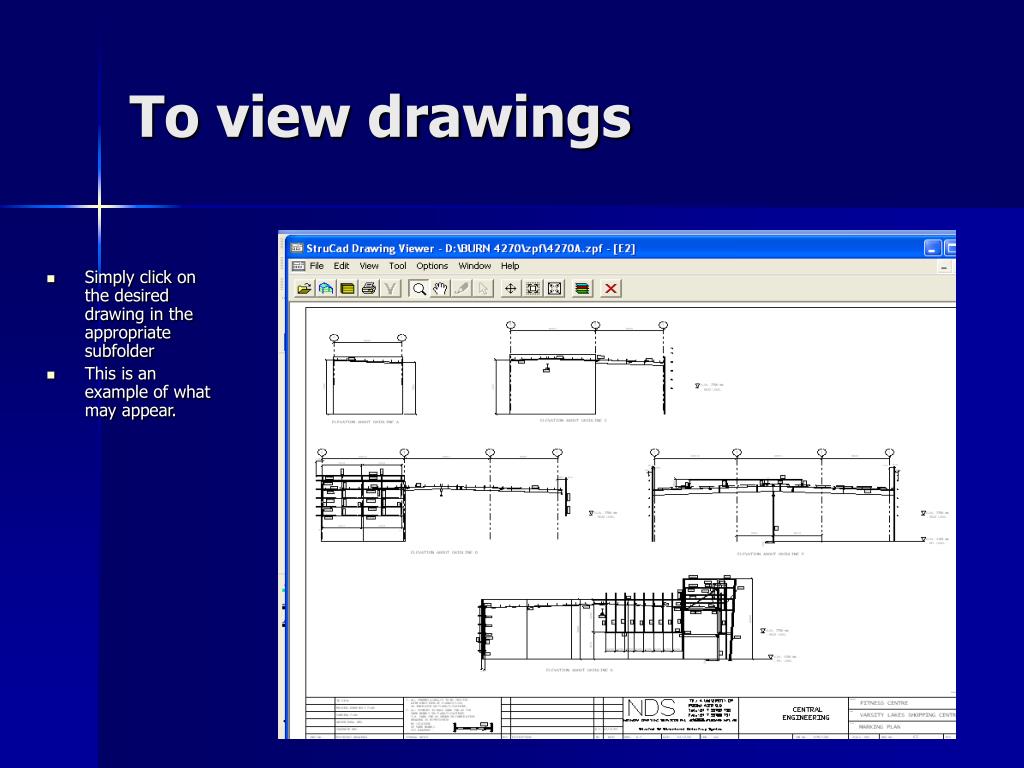

  6. To view drawings • Simply click on the desired drawing in the appropriate subfolder • This is an example of what may appear.

  7. To Print Drawings • The most time efficient way is to hold down the shift key select the top drawing so it is highlighted. • Then select the last drawing in that sub folder. • They should then all appear high lighted (like example) • Continue this step in all drawing sub folders (GA’s, Views etc.) • Once all are highlighted press the print button. • * not possible to print reports from this program*

  8. Created for your Convenience • Network Drafting Services Pty Ltd 13 / 4 University Drive Robina 4226 QLD Australia PH : 07 55 788 736 FAX : 07 55 788 731 MOB : 0410 440 393 Email : nds888@netspace.net.au Thank you . . .
