LINEAR EQUATIONS

walden avatar
walden
28 diapositives · 522 Views · Sep 14, 2014

LINEAR EQUATIONS. MSJC ~ Menifee Valley Campus Math Center Workshop Series Janice Levasseur. Equations of the Line. Write the equation of a line given the slope and the y-intercept: m and (0, b) Write the equation of a line given the slope and a point

LINEAR EQUATIONS - slide 1
01 / 28LINEAR EQUATIONS
1 / 17

Télécharger la présentation

LINEAR EQUATIONS
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

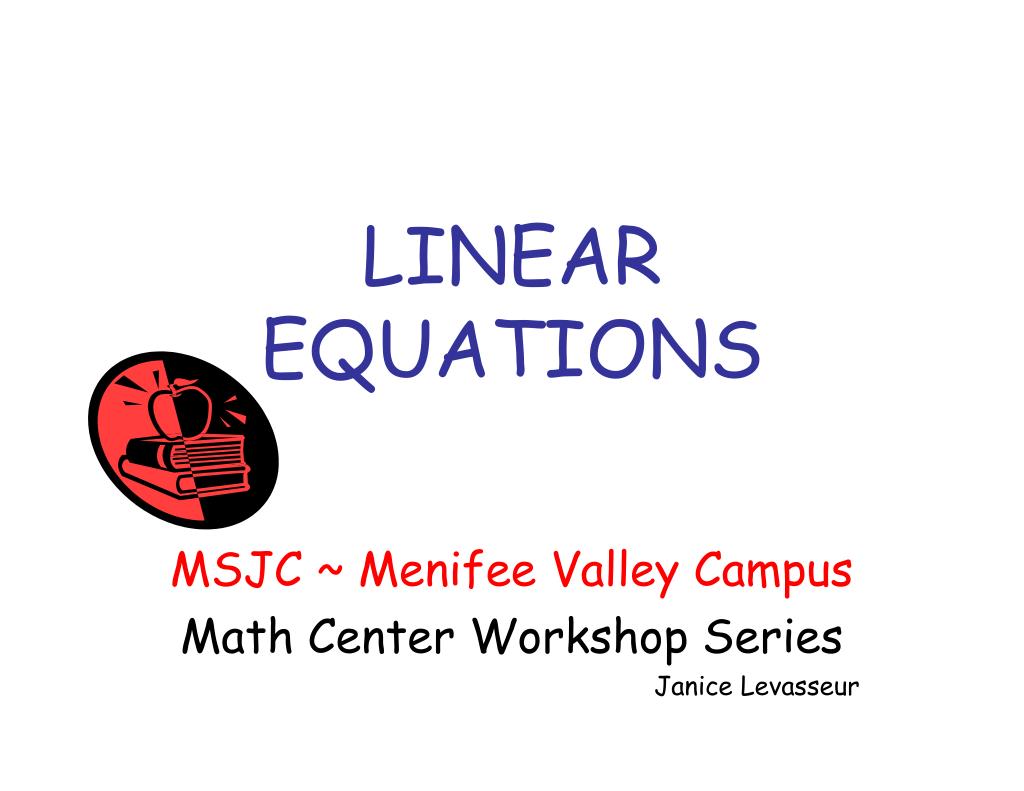

  1. LINEAR EQUATIONS MSJC ~ Menifee Valley Campus Math Center Workshop Series Janice Levasseur

  2. Equations of the Line • Write the equation of a line given the slope and the y-intercept: m and (0, b) • Write the equation of a line given the slope and a point • Write the equation of a line given two points

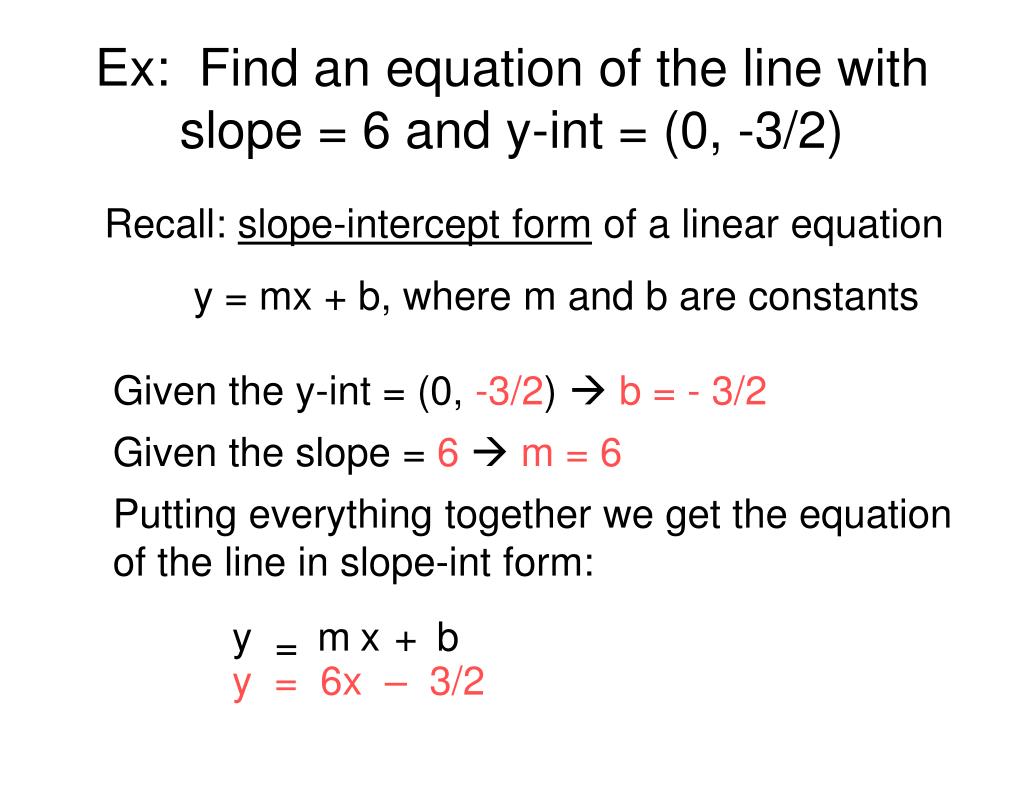

  3. Ex: Find an equation of the line with slope = 6 and y-int = (0, -3/2) Recall: slope-intercept form of a linear equation y = mx + b, where m and b are constants Given the y-int = (0, -3/2)  b = - 3/2 Given the slope = 6 m = 6 Putting everything together we get the equation of the line in slope-int form: y m x + b = y = 6x – 3/2

  4. Ex: Find an equation of the line with slope = 1.23 and y-int = (0, 0.63) Recall: slope-intercept form of a linear equation y = mx + b, where m and b are constants Given the y-int = (0, 0.63)  b = 0.63 Given the slope = 1.23 m = 1.23 Putting everything together we get the equation of the line in slope-int form: y = m x + b y = 1.23x + 0.63

  5. Equations of the Line • Write the equation of a line given the slope and the y-intercept • Write the equation of a line given the slope and a point: m and (x1, y1) • Write the equation of a line given two points

  6. Ex: Find an equation of the line with slope = -3 that containsthe point (4, 2) Start with the slope-intercept form of a linear equation y = mx + b Slope = - 3 y = - 3x + b What is b, though? What is b, though? Use the given point (4, 2) x = 4 and y = 2 y = - 3x + b  2 = - 3(4) + b put it together 2 = -12 + b we have m and b 14 = b y = - 3 x + 14

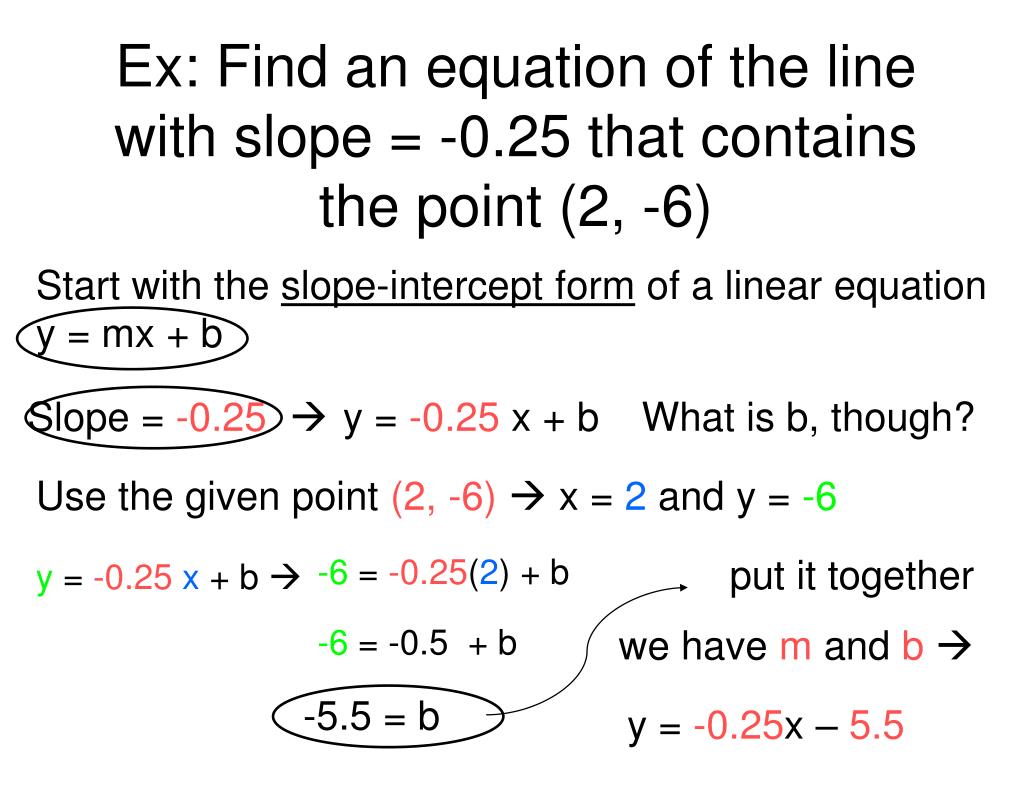

  7. Ex: Find an equation of the line with slope = -0.25 that contains the point (2, -6) Start with the slope-intercept form of a linear equation y = mx + b Slope = -0.25  y = -0.25 x + b What is b, though? Use the given point (2, -6) x = 2 and y = -6 y = -0.25 x + b  -6 = -0.25(2) + b put it together -6 = -0.5 + b we have m and b -5.5 = b y = -0.25x – 5.5

  8. Equations of the Line • Write the equation of a line given the slope and the y-intercept • Write the equation of a line given the slope and a point • Write the equation of a line given two points: (x1, y1) and (x2, y2)

  9. Ex: Find an equation of the line containing the points (-2, 1) and (3, 5) Point 2 Point 1 First, find the slope of the line containing the points: Slope = m = rise = y1 - y2= 1 – (5)run x1 - x2 -2 – 3 Now we have m = 4/5 and two points. Pick one point and proceed like in the last section.

  10. We have m = 4/5, the point (-2, 1), and y = mx + b Slope = 4/5  y = 4/5x + b What is b, though? Use the given point (-2, 1) x = -2 and y = 1 y = 4/5x + b  1 = 4/5(-2) + b 1 = (-8/5) + b 13/5 = b put it together  we have m and b y = 4/5x + 13/5

  11. Ex: Find an equation of the line containing the points (-4, 5) and (-2, -3) Point 1 Point 2 First, find the slope of the line containing the points: Slope = m = rise = y1 - y2= 5 – (-3) run x1 - x2 -4 – (-2) = -4 Now we have m = -4 and two points. Pick one point and proceed like in the last section.

  12. We have m = -4, the point (-4, 5), and y = mx + b Slope = -4  y = -4x + b What is b, though? Use the given point (-4, 5) x = -4 and y = 5 y = -4x + b  5 = -4(-4) + b 5 = 16 + b -11 = b put it together  we have m and b y = -4x – 11

  13. Ex: Find an equation of the line containing the points (0, 0) and (1, -5) Point 1 Point 2 First, find the slope of the line containing the points: Slope = m = rise = y1 - y2= 0 – (-5) run x1 - x2 0 – (1) = -5 Now we have m = -5 and two points. Pick one point and proceed like in the last section.

  14. We have m = -5, the point (0, 0), and y = mx + b Slope = -5  y = -5x + b What is b, though? Use the given point (0, 0) x = 0 and y = 0 y = -5x + b  0 = -5(0) + b 0 = 0 + b 0 = b put it together  we have m and b y = -5x + 0 y = -5x

  15. Equations of the Line • Write the equation of a line given the slope and the y-intercept • Write the equation of a line given the slope and a point • Write the equation of a line given two points

  16. Parallel & Perpendicular Lines • When we graph a pair of linear equations, there are three possibilities: • the graphs intersect at exactly one point • the graphs do not intersect • the graphs intersect at infinitely many points • We will consider a special case of situation 1 and also situation 2.

  17. Perpendicular Lines (Situation 1) • Perpendicular lines intersect at a right angle • Notation: • L1: y = m1x + b1 • L2: y = m2x + b2 • L1^ L2

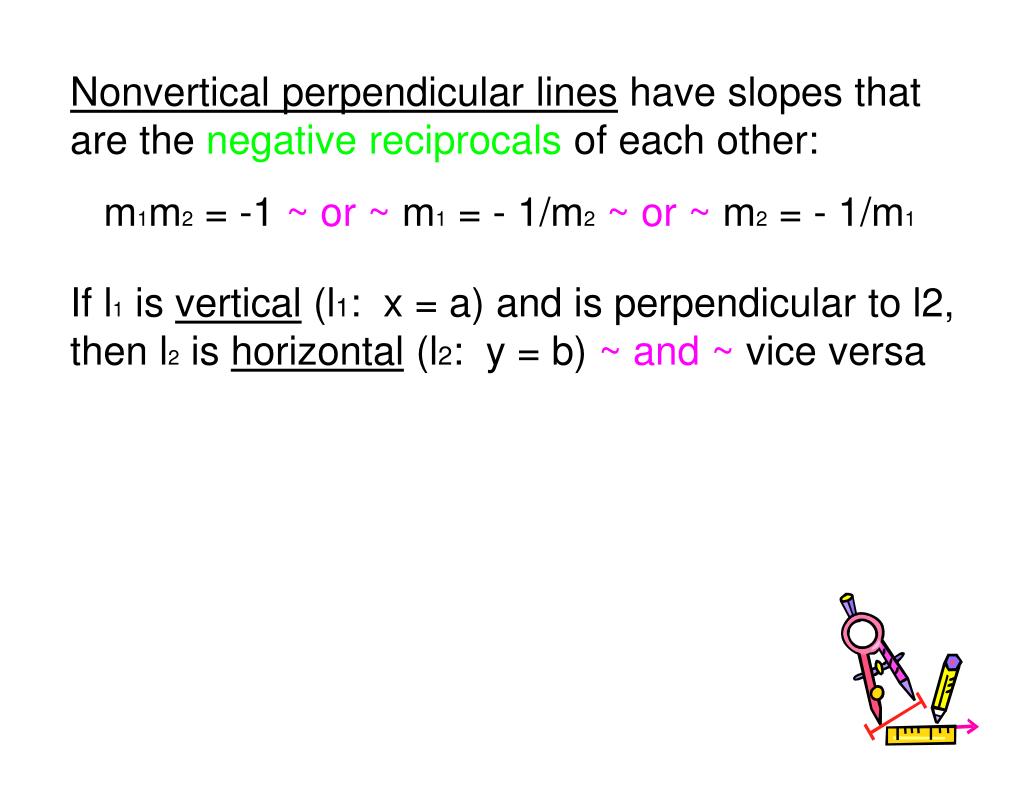

  18. Nonvertical perpendicular lines have slopes that are the negative reciprocals of each other: m1m2 = -1 ~ or ~ m1 = - 1/m2~ or ~ m2 = - 1/m1 If l1 is vertical (l1: x = a) and is perpendicular to l2, then l2 is horizontal (l2: y = b) ~ and ~ vice versa

  19. Ex: Determine whether or not the graphs of the equations of the lines are perpendicular:l1: x + y = 8 and l2: x – y = - 1 First, determine the slopes of each line by rewriting the equations in slope-intercept form: l1: y = - x + 8 and l2: y = x + 1 1 1 m1 = and m2 = -1 1 Since m1m2 = (-1)(1) = -1, the lines are perpendicular.

  20. Ex: Determine whether or not the graphs of the equations of the lines are perpendicular:l1: -2x + 3y = -21 and l2: 2y – 3x = 16 First, determine the slopes of each line by rewriting the equations in slope-intercept form: l1: y = (2/3)x - 7 and l2: y = (3/2)x + 8 m1 = and m2 = 2/3 3/2 Since m1m2 = (2/3)(3/2) = 1 = -1 Therefore, the lines are not perpendicular!

  21. Parallel Lines (Situation 2) • Parallel lines do not intersect • Notation: • L1: y = m1x + b1 • L2: y = m2x + b2 • L1|| L2

  22. Nonvertical parallel lines have the same slopes but different y-intercepts: m1 = m2~ and ~ b1 = b2 Horizontal Parallel Lines have equations y = p and y = q where p and q differ. Vertical Parallel Lines have equations x = p and x = q where p and q differ.

  23. Ex: Determine whether or not the graphs of the equations of the lines are parallel:l1: 3x - y = -5 and l2: y – 3x = - 2 First, determine the slopes and intercepts of each line by rewriting the equations in slope-intercept form: l1: y = 3x + 5 and l2: y = 3x - 2 m1 = and m2 = 3 3 b1 = and b2 = 5 -2 Since m1 = m2 and b1 = b2 the lines are parallel.

  24. Ex: Determine whether or not the graphs of the equations of the lines are parallel:l1: 4x + y = 3 and l2: x + 4y = - 4 First, determine the slopes and intercepts of each line by rewriting the equations in slope-intercept form: l1: y = -4x + 3 and l2: y = (-¼)x - 1 m1 = and m2 = -4 - ¼ Since m1 = m2 the lines are not parallel.
