Localization Mechanisms of Cell Division Proteins in Bacteria: The Role of Curved Membranes

1. binding to negatively curved membranes

3. Cell biology with bacteria? 5 µm

4. Localization of cell division proteins

6. Rut Carballido-López

7. GFP-MinD

8. How do proteins localize to cell poles ?(DivIVA as model system) DivIVA-GFP

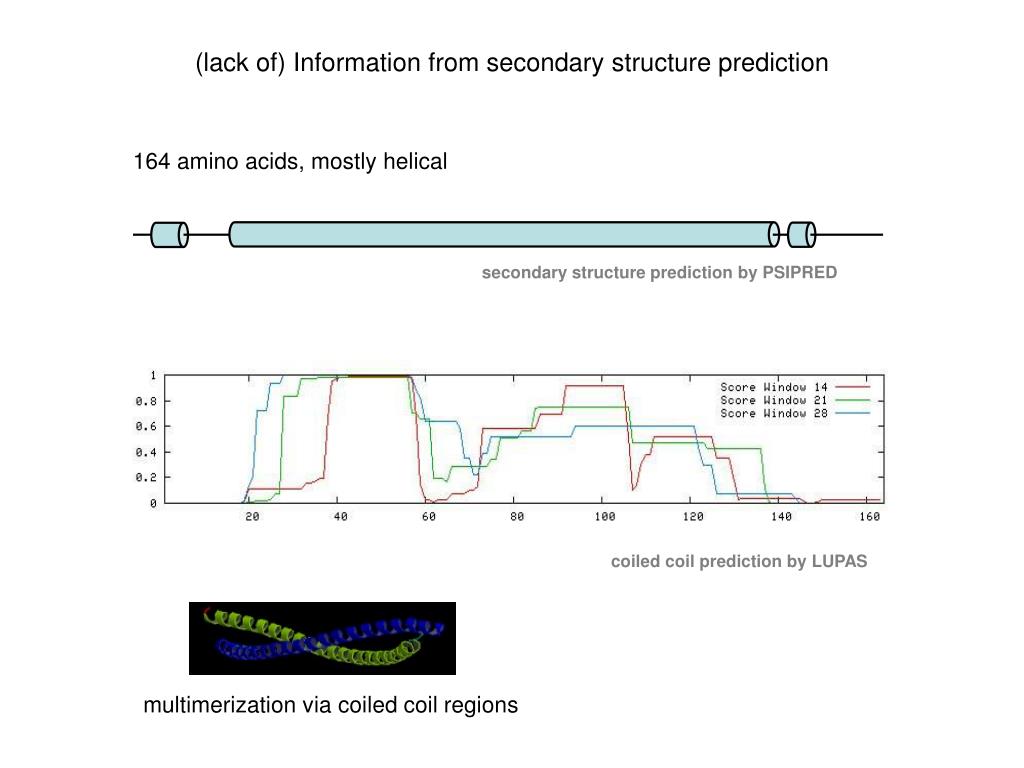

9. (lack of) Information from secondary structure prediction 164 amino acids, mostly helical secondary structure prediction by PSIPRED coiled coil prediction by LUPAS multimerization via coiled coil regions

10. Possible mechanisms: 1) binding to another (cell division) protein 2) binding to a specific lipid species 3) affinity for curved membranes

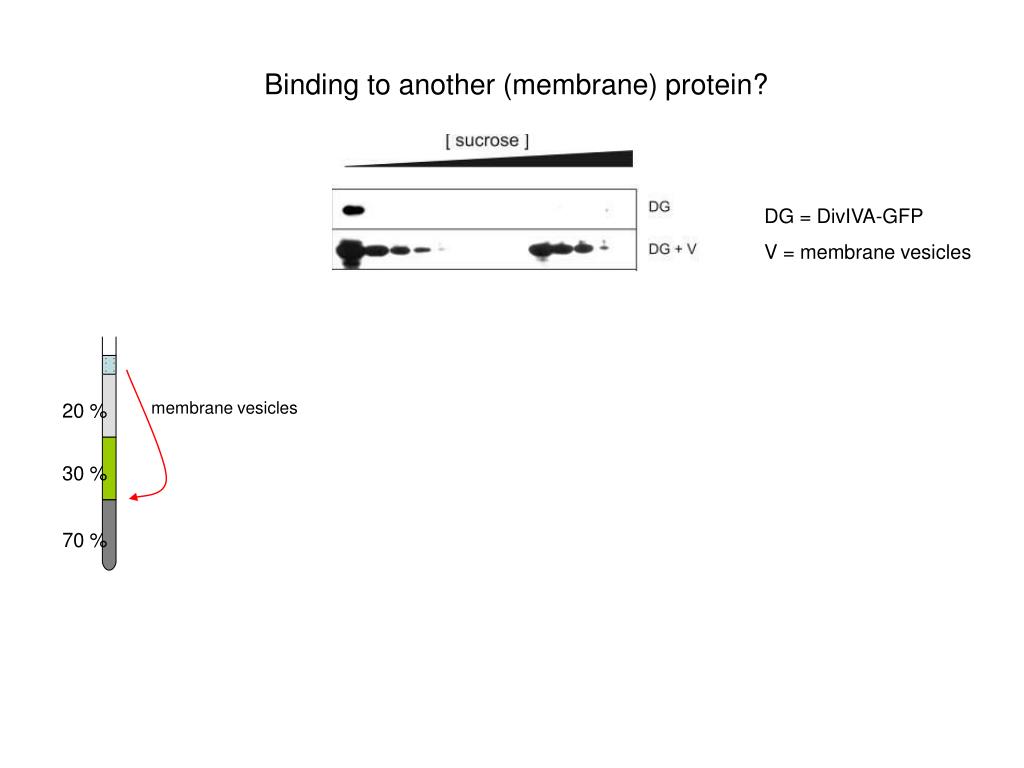

11. 20 % membrane vesicles 30 % 70 % Binding to another (membrane) protein? DG = DivIVA-GFP V = membrane vesicles Lip = liposomes D = DivIVA G = GFP

12. amphipathic helix of N-terminus (60 aa) Biacore (surface plasmon resonance) with L1-chip T = min

13. Possible mechanisms: 1) binding to another (cell division) protein 2) binding to a specific lipid species 3) affinity for curved membranes Edwards, 2000, EMBO

14. Cardiolipin Domains in Bacillus subtilis Kawai, 2003, J. Bac.

15. DivIVA localization in B. subtilis strains lacking certain lipids wt - PG -PE - CL

16. Possible mechanisms: 1) binding to another (cell division) protein 2) binding to a specific lipid species 3) affinity for curved membranes

17. Affinity for curvature = induces curvature ‘BAR domains as sensors or membrane curvature’ Peter et al., 2004, Science

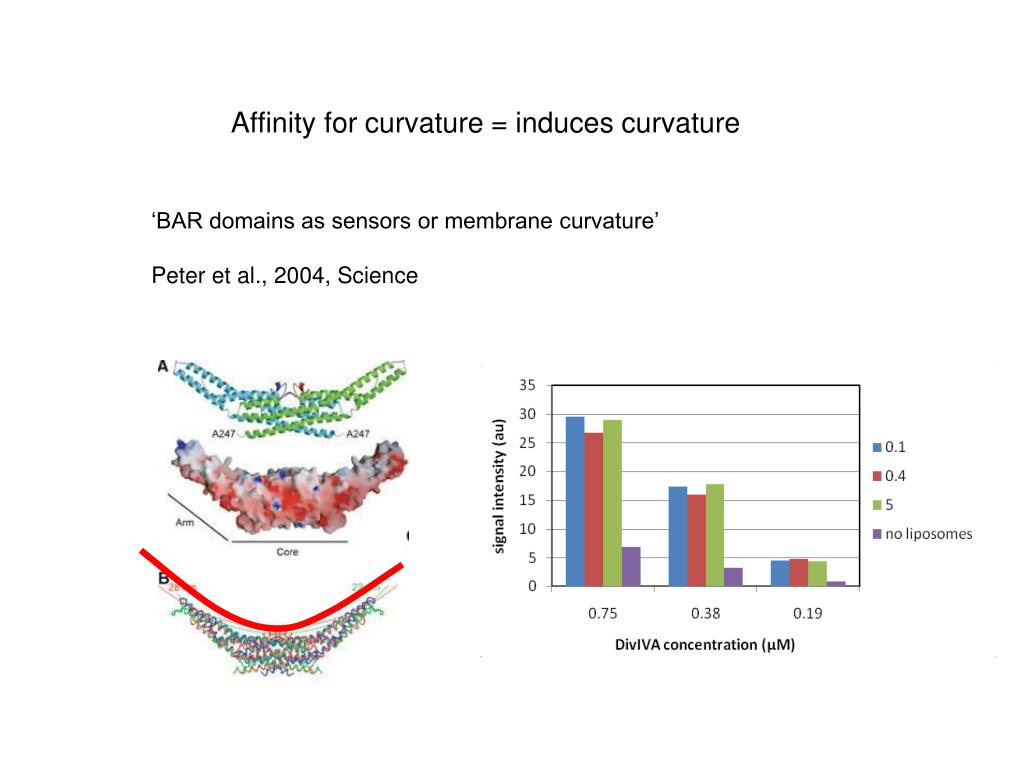

18. Affinity for curvature = induces curvature ‘BAR domains as sensors or membrane curvature’ Peter et al., 2004, Science

19. DivIVA D D D D D D D D D liposomes Induction of curved membranes ? liposomes + DivIVA liposomes 200 nm

20. Induction of curved membranes ? 200 nm

21. 100 nm

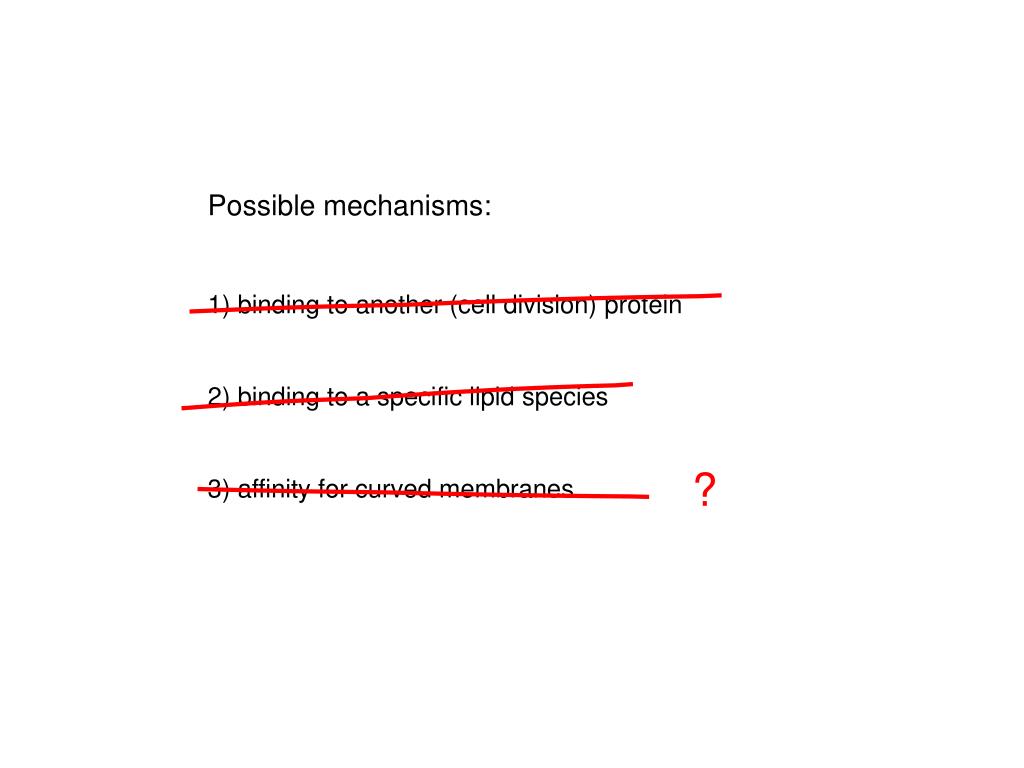

22. Possible mechanisms: 1) binding to another (cell division) protein 2) binding to a specific lipid species 3) affinity for curved membranes ?

23. Does curvature really not play a role? B. subtilis E. coli

24. E. coli division mutant MHD63

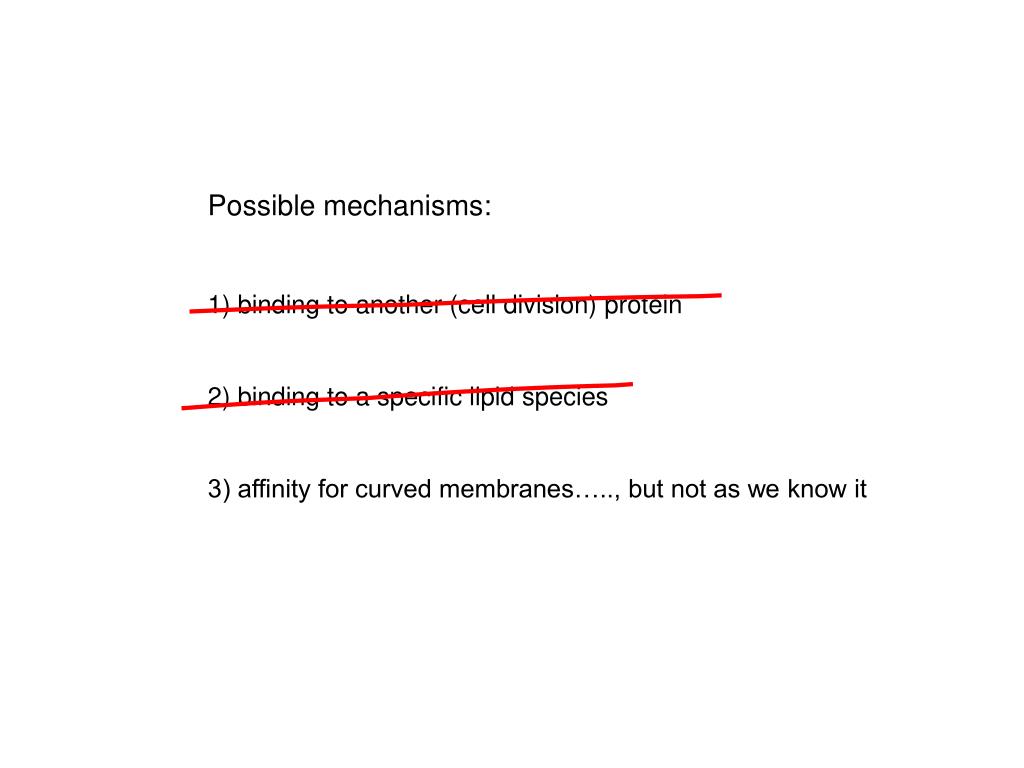

25. Possible mechanisms: 1) binding to another (cell division) protein 2) binding to a specific lipid species 3) affinity for curved membranes….., but not as we know it

26. Ø ~ 25 nm Higher order DivIVA structures ‘Doggy bones’ Stahlberg, 2004, Mol. Mic. ( Cryo-negative stain EM )

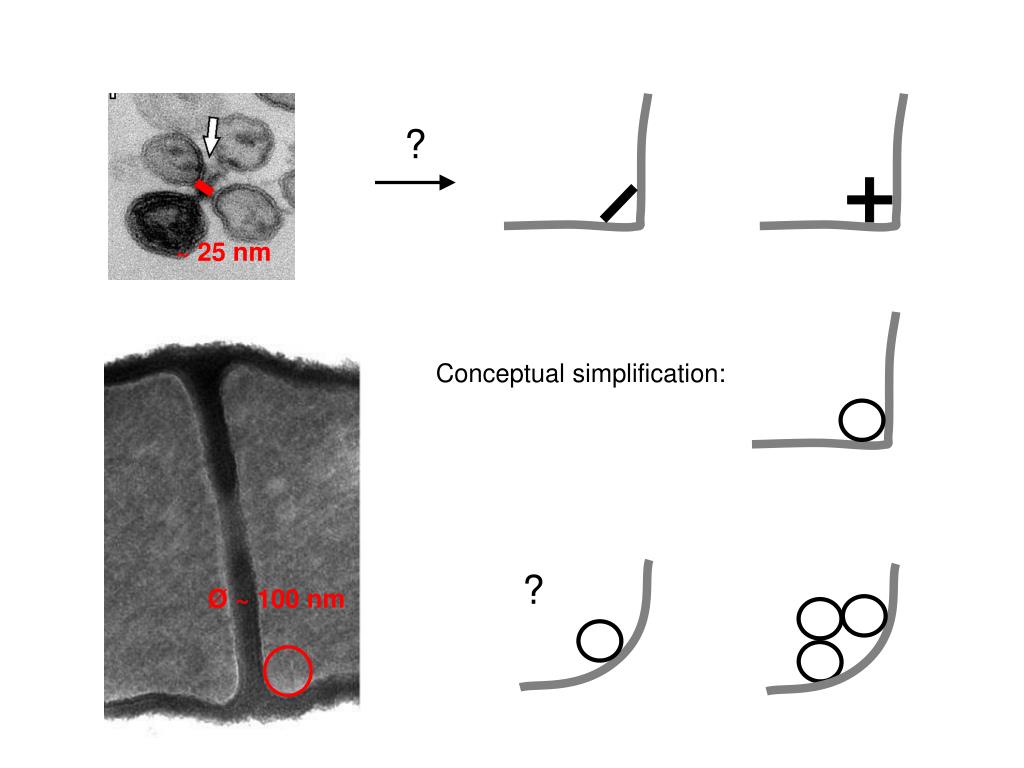

27. ? ~ 25 nm ? Ø ~ 100 nm Conceptual simplification:

28. ‘Molecular Bridging’ 1) self interaction (clustering) of subunits 2) subunits should be large (relative to curvature) 3) membrane interaction (weak) - no other proteins / lipids / or curved proteins necessary -

29. Monte Carlo simulation

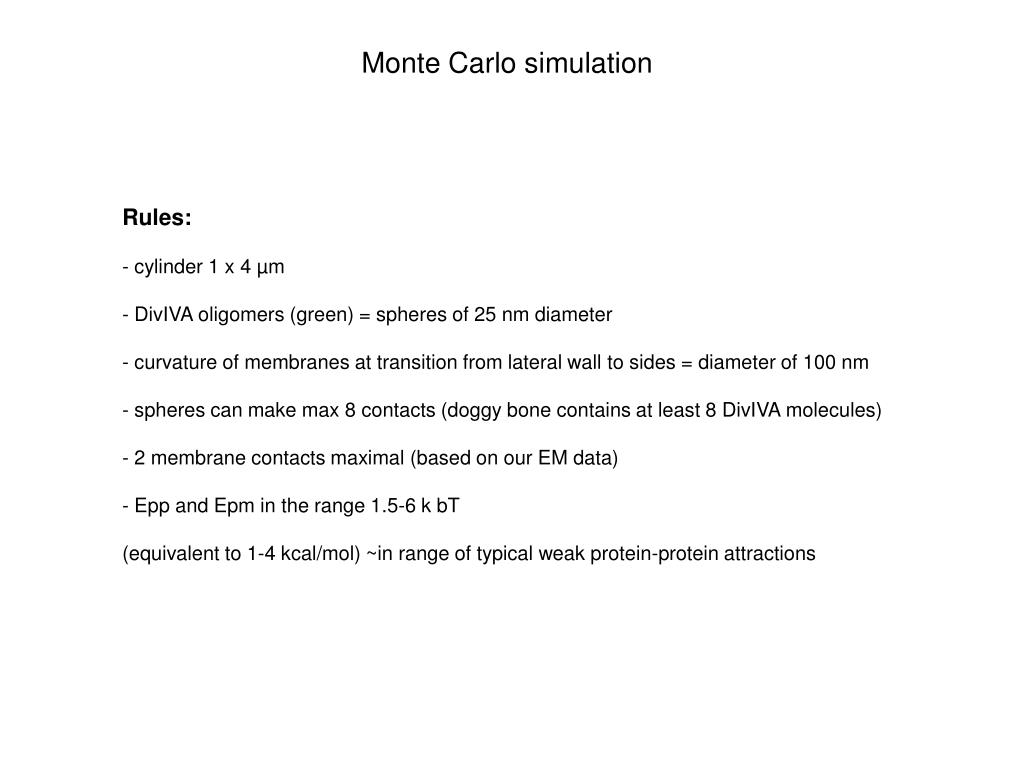

30. Monte Carlo simulation • Rules: • - cylinder 1 x 4 µm • - DivIVA oligomers (green) = spheres of 25 nm diameter • - curvature of membranes at transition from lateral wall to sides = diameter of 100 nm • - spheres can make max 8 contacts (doggy bone contains at least 8 DivIVA molecules) • 2 membrane contacts maximal (based on our EM data) • Epp and Epm in the range 1.5-6 k bT • (equivalent to 1-4 kcal/mol) ~in range of typical weak protein-protein attractions

31. - spheres can make 8 contacts - 2 membrane contacts maximal - spheres can make 4 contacts - no limitations in membrane contacts

32. d = 50 nm d =100 nm - No restrictions in nr. of interactions Epp = 2 k bT Epm = 6 k bT - 4 pp bonds - membrane contact = 1 pp contact Epp = 2.5 k bT Epm = 5.5 k bT

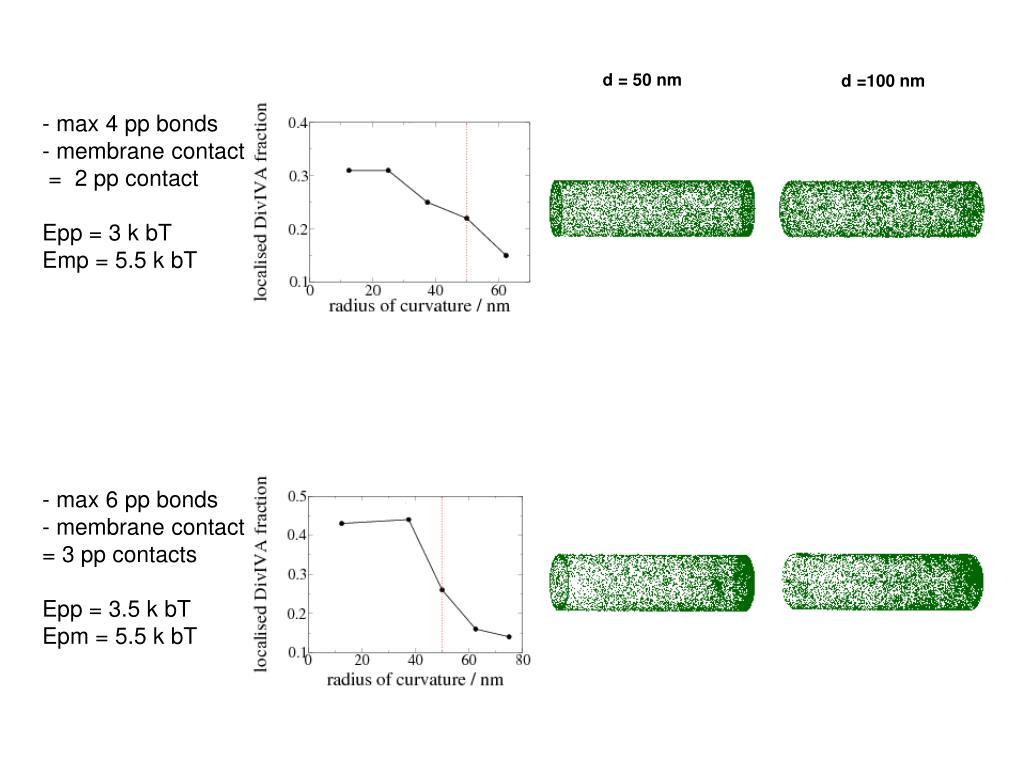

33. d = 50 nm d =100 nm • - max 4 pp bonds • - membrane contact • = 2 pp contact • Epp = 3 k bT • Emp = 5.5 k bT • max 6 pp bonds • membrane contact • = 3 pp contacts • Epp = 3.5 k bT • Epm = 5.5 k bT

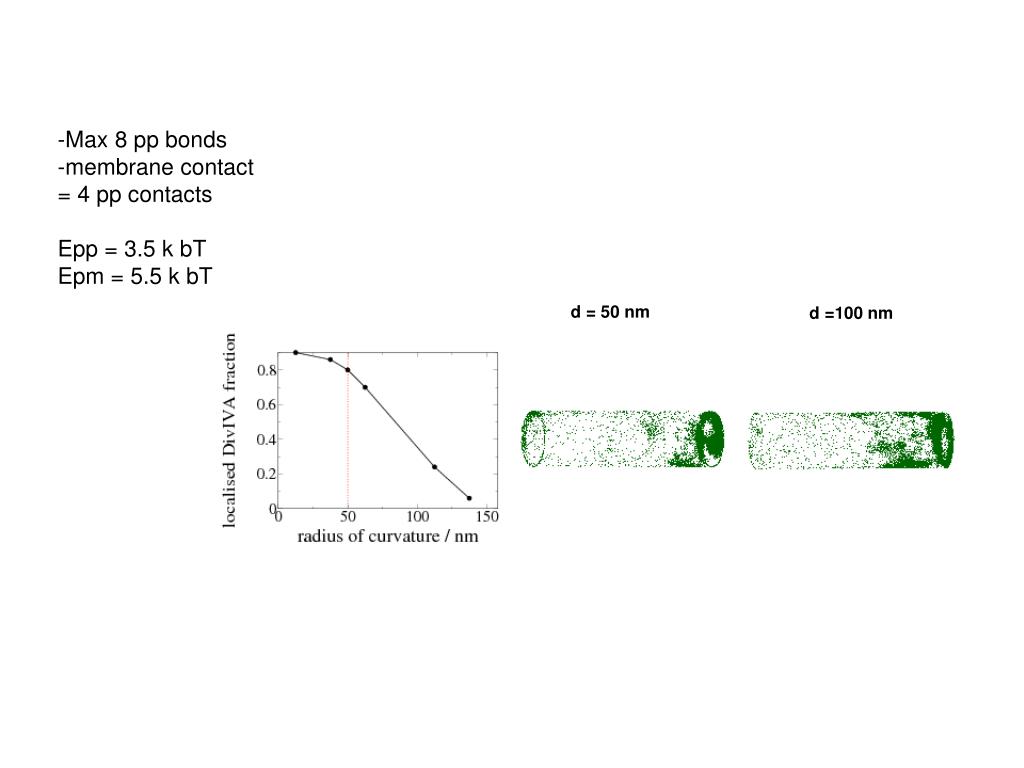

34. Max 8 pp bonds • membrane contact • = 4 pp contacts • Epp = 3.5 k bT • Epm = 5.5 k bT d = 50 nm d =100 nm

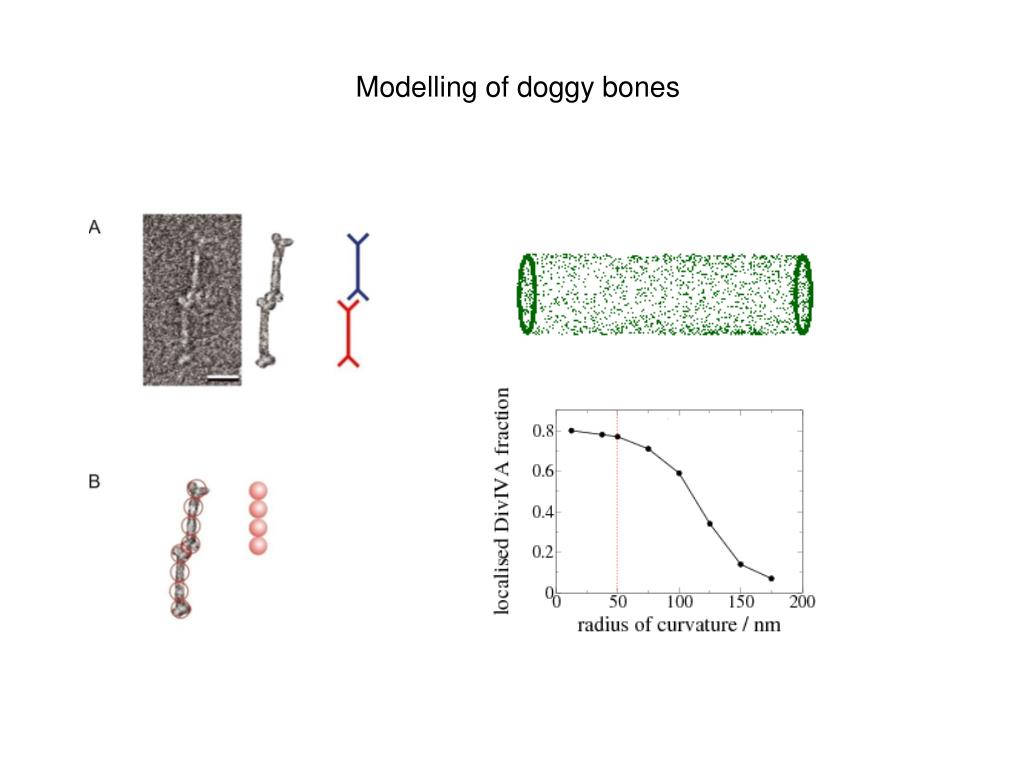

35. Modelling of doggy bones

36. CBCB - Newcastle University Rok Lenarcic Ling Wu Jeff Errington Sven Halbedel University of Oxford Wouter de Jong LoekVisser Michael Shaw University of Edinburgh Davide Marenduzzo
