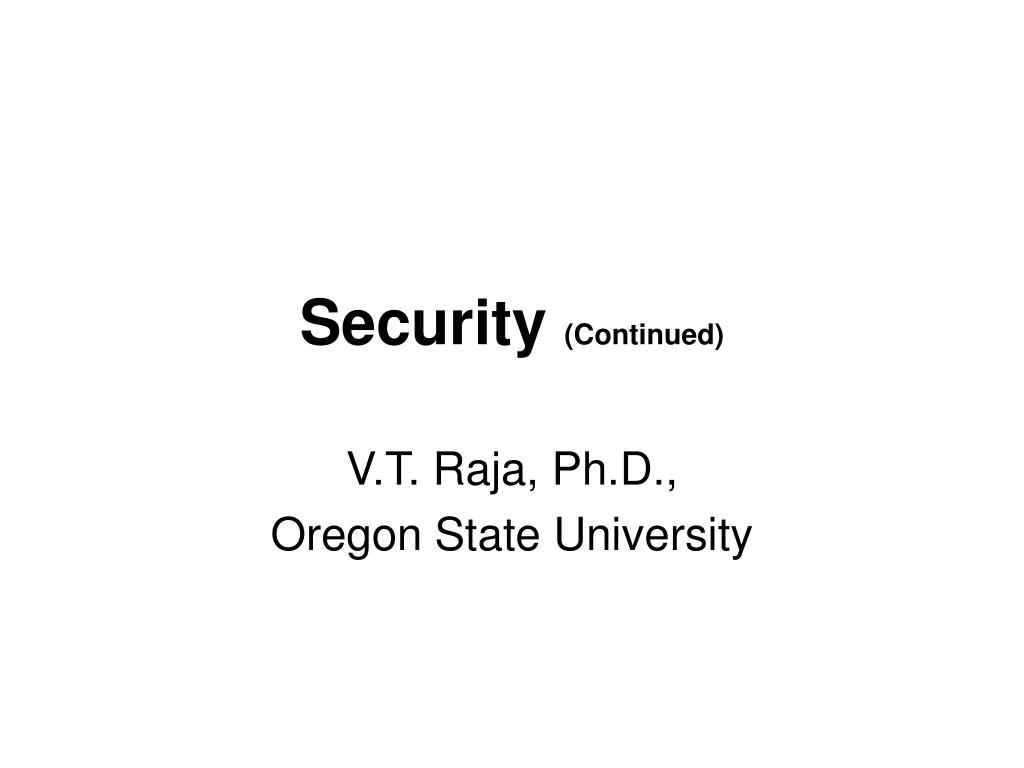

  1. Security (Continued) V.T. Raja, Ph.D., Oregon State University

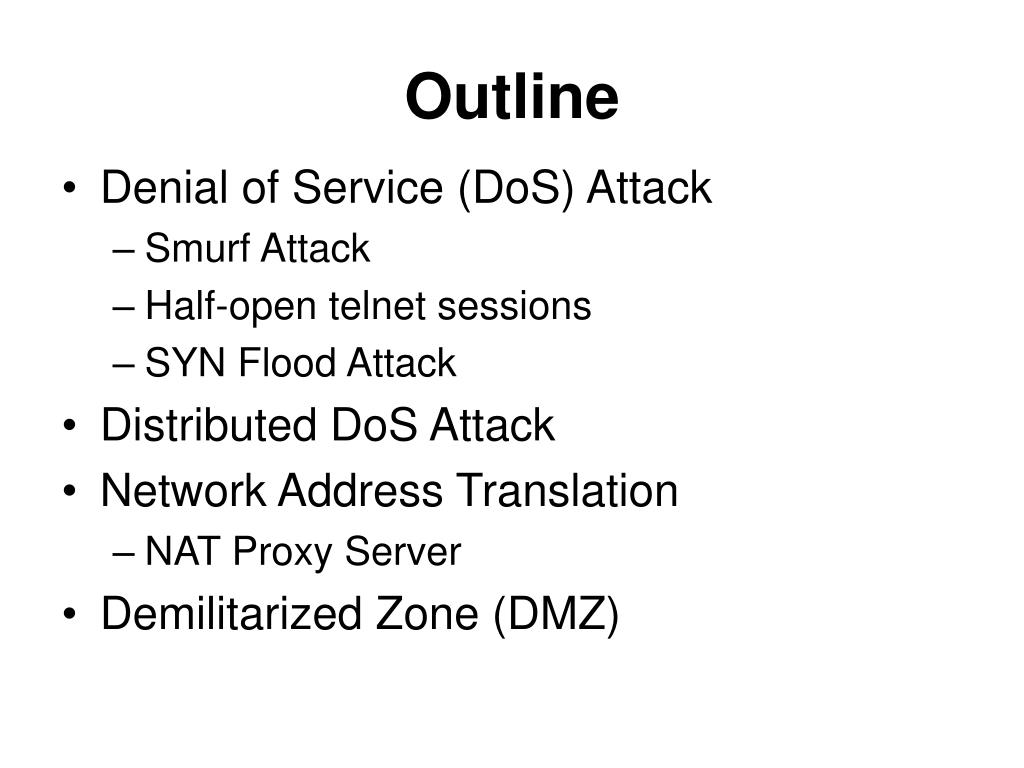

  2. Outline • Denial of Service (DoS) Attack • Smurf Attack • Half-open telnet sessions • SYN Flood Attack • Distributed DoS Attack • Network Address Translation • NAT Proxy Server • Demilitarized Zone (DMZ)

  3. Denial of Service (DoS) Attacks • Denial of Service attacks • “Ping” attacks • Smurf attack • SYN flood attack • Half-open telnet sessions • Distributed Denial of Service attacks

  4. Denial of Service (DoS) Attack • Hacker attempts to disrupt the network by flooding the network with messages so that the network cannot process messages from legitimate users • Examples: 1. Hacker’s program continuously pings target computer. • Consequence: • Solution: 2. Hacker’s program continuously send “ping” requests to the target that list the target as the sender • Consequence: • Solution: 3. Smurf attack: What is a smurf attack? What is the consequence of a smurf attack? 4. SYN Flood attack: What is a SYN flood attack? What is the consequence of such an attack?

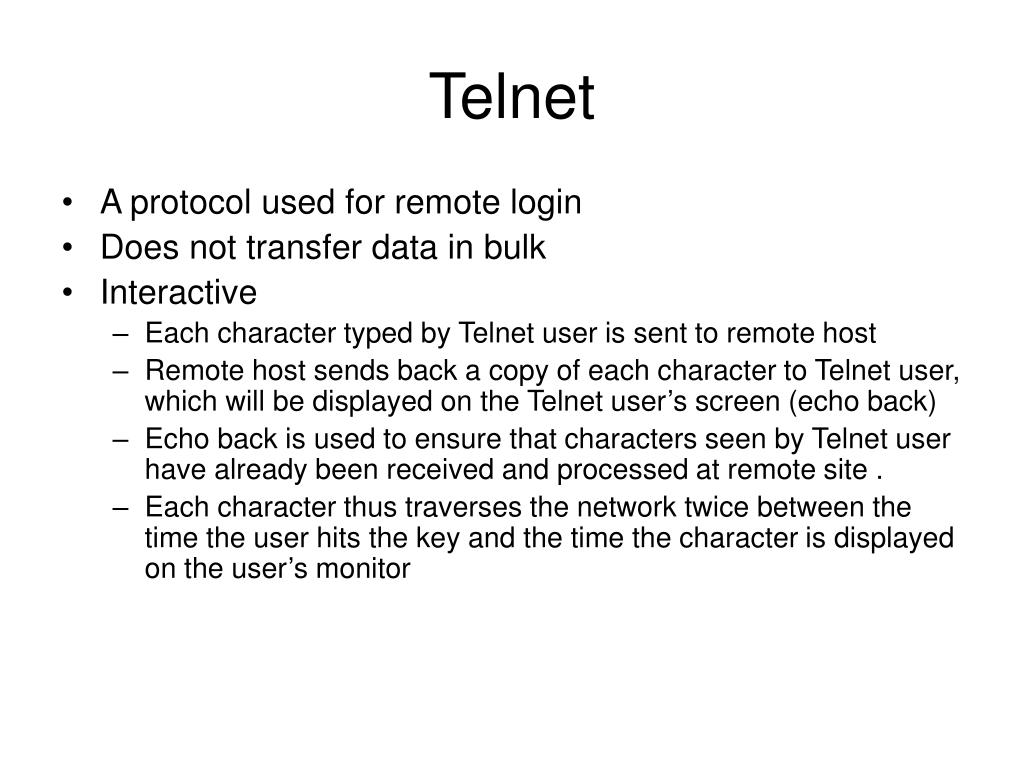

  5. Telnet • A protocol used for remote login • Does not transfer data in bulk • Interactive • Each character typed by Telnet user is sent to remote host • Remote host sends back a copy of each character to Telnet user, which will be displayed on the Telnet user’s screen (echo back) • Echo back is used to ensure that characters seen by Telnet user have already been received and processed at remote site . • Each character thus traverses the network twice between the time the user hits the key and the time the character is displayed on the user’s monitor

  6. Half-open Telnet sessions Client Server

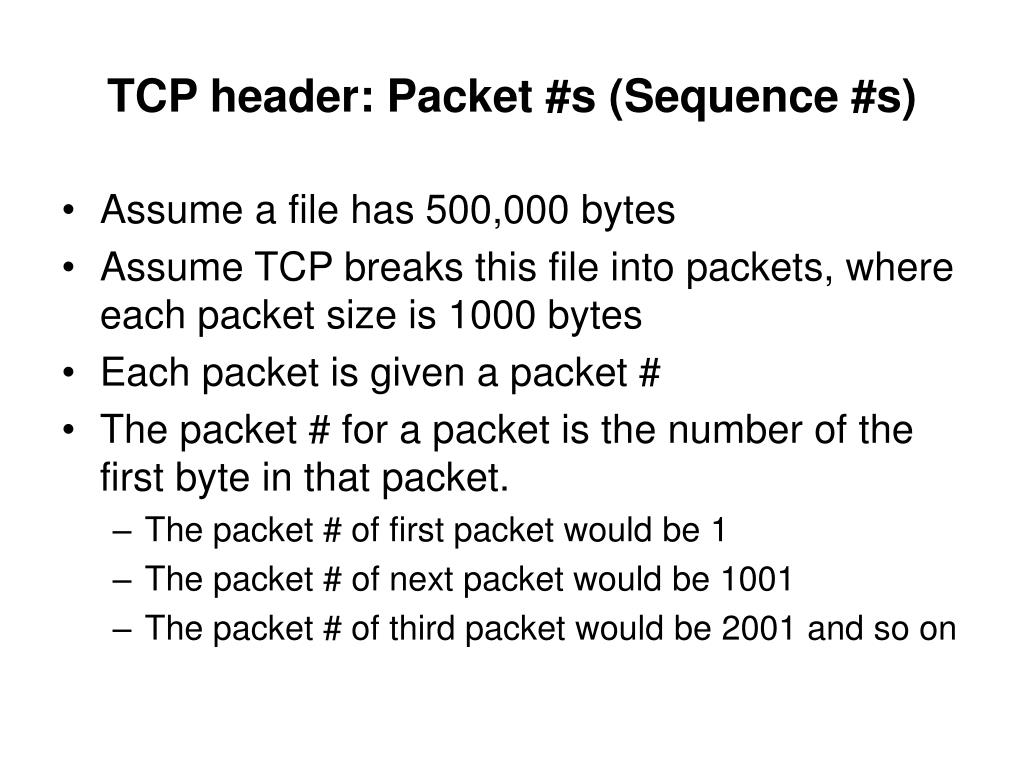

  7. TCP header: Packet #s (Sequence #s) • Assume a file has 500,000 bytes • Assume TCP breaks this file into packets, where each packet size is 1000 bytes • Each packet is given a packet # • The packet # for a packet is the number of the first byte in that packet. • The packet # of first packet would be 1 • The packet # of next packet would be 1001 • The packet # of third packet would be 2001 and so on

  8. TCP: Acknowledgement # • Assume A transmits to B • B acknowledges receipt of A’s message, by specifying an acknowledgment #. • The ACK # sent by B is the packet # of the next packet that B is expecting from A. • Example: • After A sends first packet, B sends an acknowledgment to A by specifying ACK# 1001. • After A sends second packet, B acknowledges by specifying ACK# 2001.

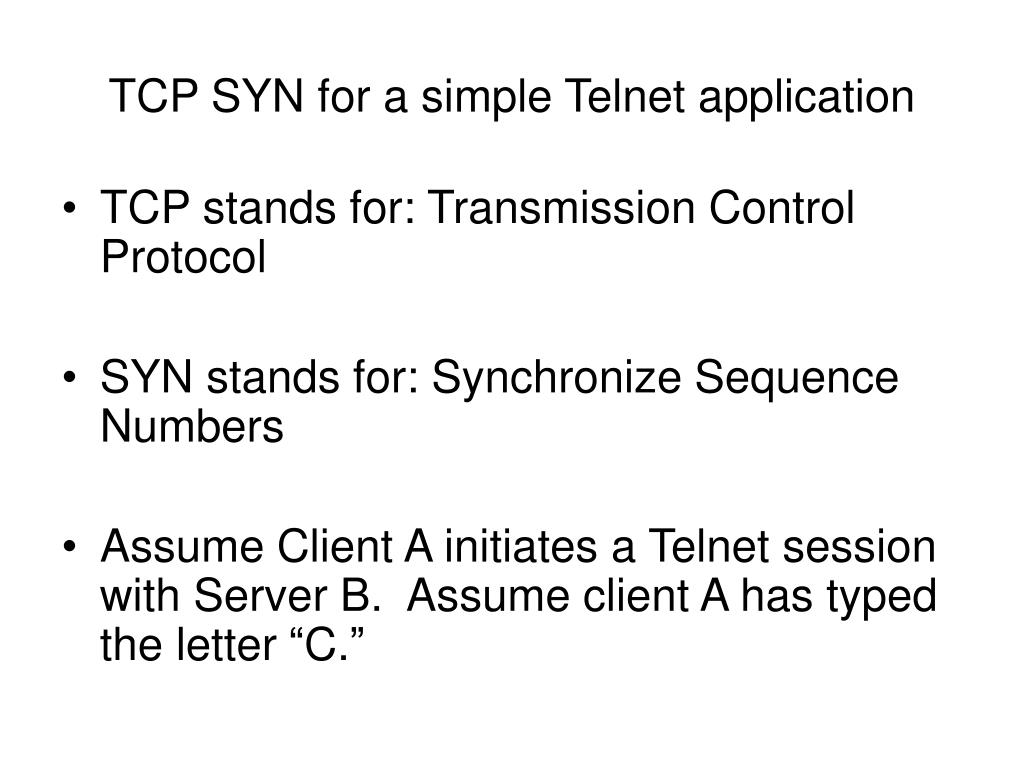

  9. TCP SYN for a simple Telnet application • TCP stands for: Transmission Control Protocol • SYN stands for: Synchronize Sequence Numbers • Assume Client A initiates a Telnet session with Server B. Assume client A has typed the letter “C.”

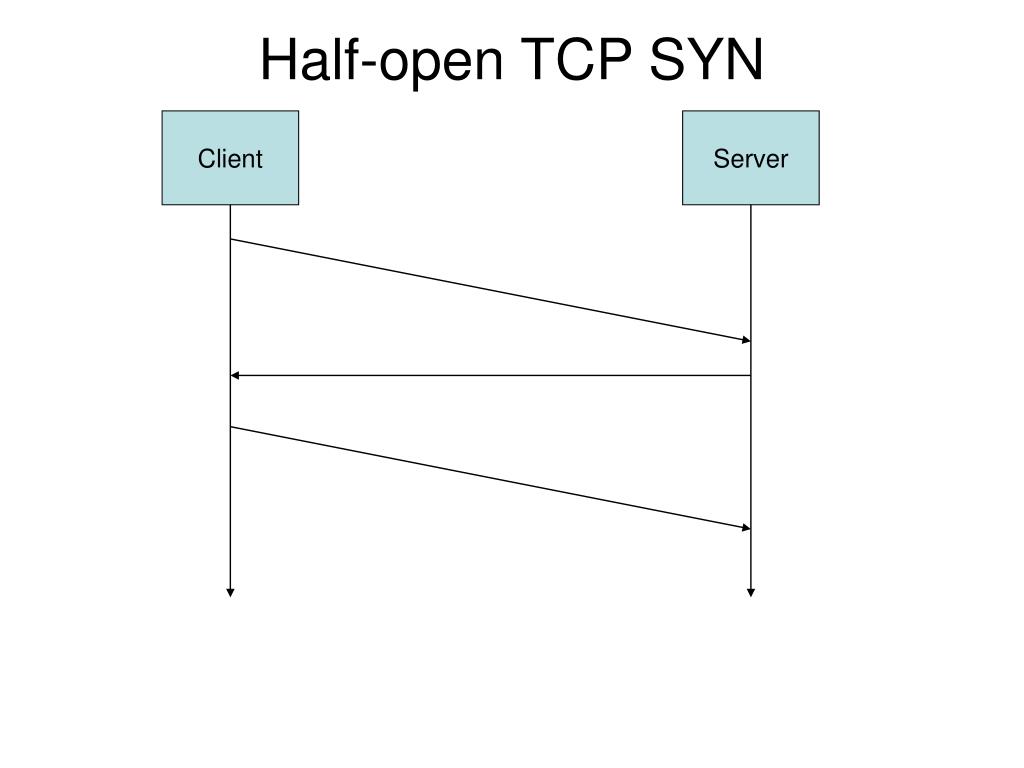

  10. Half-open TCP SYN Client Server

  11. SYN Flood Attack • Attacker (client) sends a TCP SYN (Synchronize Sequence/Packet Number) request to server. • The server responds by sending a TCP SYN/ACK packet. • The attacker does not respond – resulting in half-open session using up server resources. • The attacker sends a flood of such TCP SYN requests without responding. • Requests from other legitimate clients are unable to reach the server due to multiple half-open sessions

  12. Distributed DoS (DDos) attack • In A DDoS attack, a hacker first gains control of hundreds/thousands of computers. • Plants software referred to as DDoS agent on each of the slaves (Zombies) • Hacker then uses software referred to as DDoS handler (master zombie) to control the agents (slave zombies) • Attacker launches attacks from all the slaves so that it is difficult to trace hacker

  13. High Profile Victims of DDoS • Yahoo, eBay, Amazon and eTrade websites were rendered inaccessible to legitimate visitors after being flooded with traffic from hundreds of hijacked system • www.msn.com; www.expedia.com; www.carpoint.com sites were flooded with DDoS attack for almost one day • DDoS attack high-level DNS servers on the Internet

  14. Network Address Translation • Network address translation (NAT) is used to shield a private network from outside interference. • An NAT proxy server uses an address table, translating network addresses inside the organization into aliases for use on the Internet. So, internal IP addresses remain hidden. • It is common to combine DMZ, firewalls and proxy servers. (See Figure).

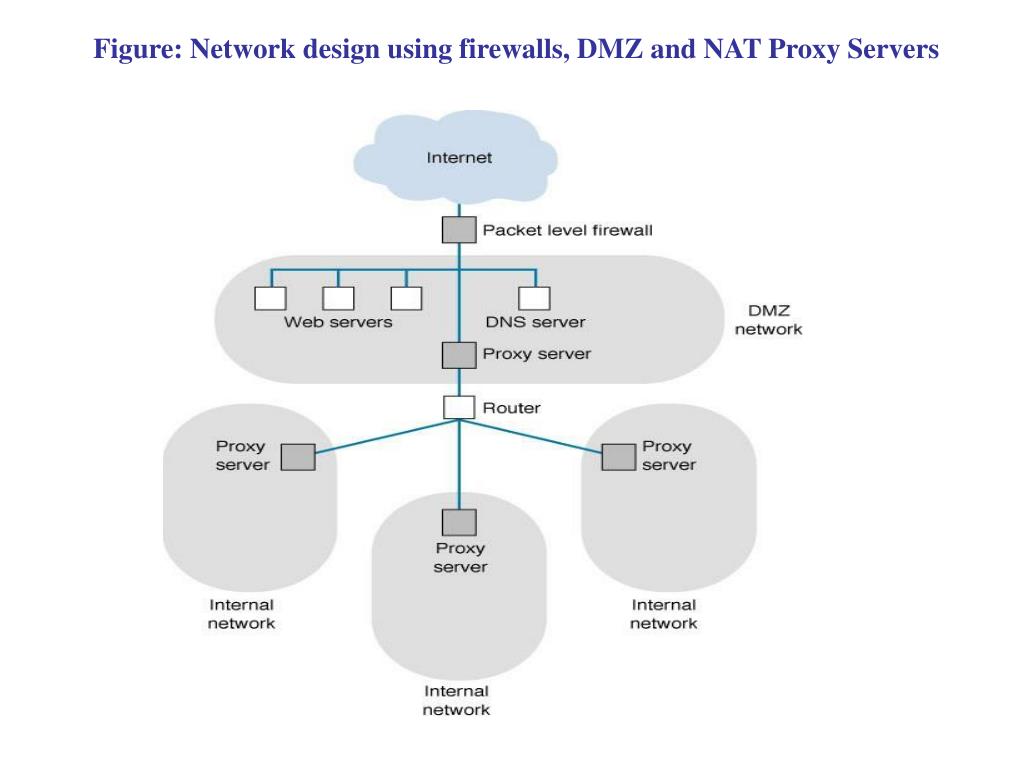

  15. Figure: Network design using firewalls, DMZ and NAT Proxy Servers
