Understanding Electrical Unit Conversions with Prefixes

This guide outlines the conversion of electrical units using metric prefixes such as Mega, Kilo, Milli, Micro, Nano, and Pico. It emphasizes the significance of whole values, which do not have prefixes and retain their original decimal placements. Examples illustrate how to convert units, enabling clear understanding of how to switch between different measurements. Learn how to effectively convert values like 5.32 MΩ to kΩ, 0.0000135 A to μA, and more, ensuring precise calculations in your electrical projects.

wang-reilly
Télécharger la présentation

Understanding Electrical Unit Conversions with Prefixes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Conversions Using prefixes

  2. Copy the chart Symbol place name • M +6 Mega • K +3 Kilo • Whole • m -3 milli • u -6 micro • n -9 nano • p (uu) -12 pico Whole values have NO prefixes, and have all of the zeros and original decimal locations.

  3. Examples of a prefix and whole value used together:

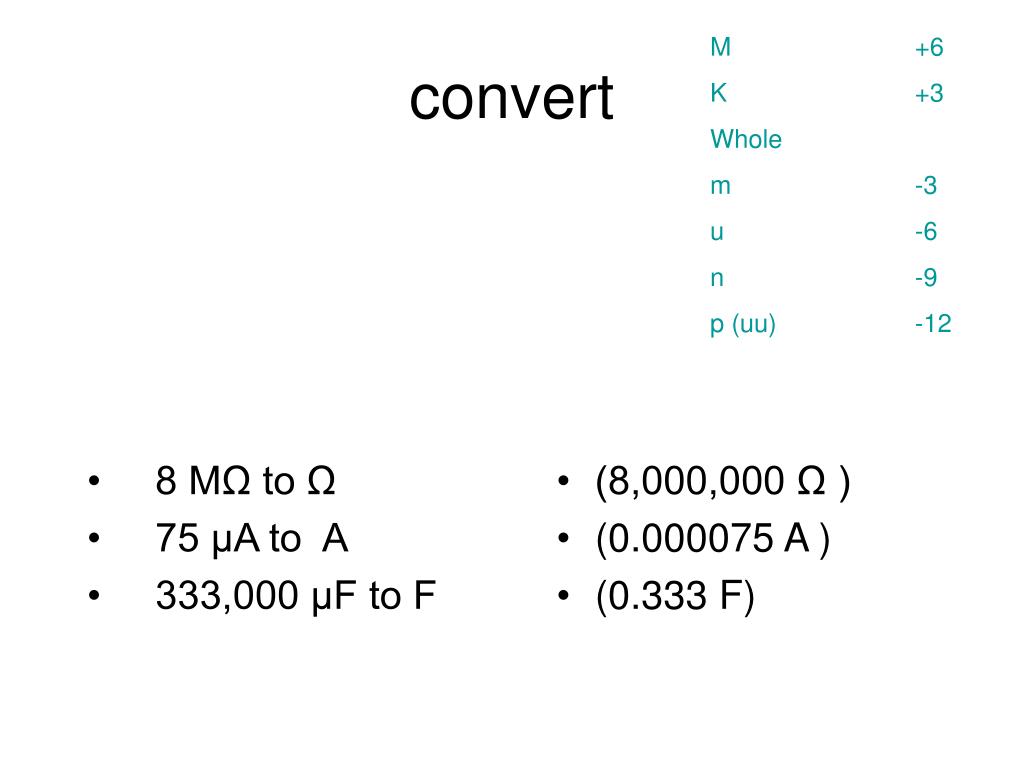

  4. 8 MΩ to Ω 75 μA to A 333,000 μF to F (8,000,000 Ω ) (0.000075 A ) (0.333 F) M +6 K +3 Whole m -3 u -6 n -9 p (uu) -12 convert

  5. 5.32 MΩ to kΩ 0.0000135 A to μA 472,000,000 μF to F ( 5320 kΩ ) (13.5 μA ) (472 F) M +6 K +3 Whole m -3 u -6 n -9 p (uu) -12 convert
