Differential Scanning Calorimetry

Differential Scanning Calorimetry. DPPC. 0 0 C for 3 days. Trapped kinetic states. Structure of lipid –head group and acyl chains Degree of hydration T, P, pH, ionic strength. Polymorphic Structure Depends:. DSC for DPPH as a function of water hydration. CHAIN LENGTH. DxPC. DxPC.

warner
Télécharger la présentation

Differential Scanning Calorimetry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Differential Scanning Calorimetry DPPC 00C for 3 days Trapped kinetic states

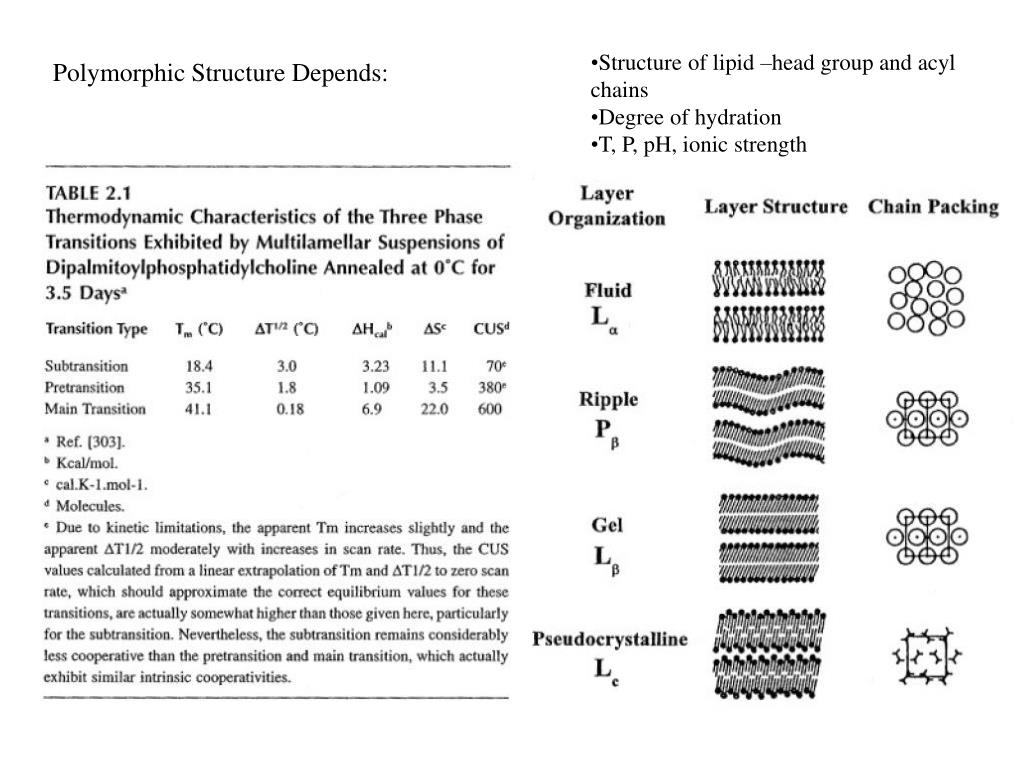

  2. Structure of lipid –head group and acyl chains • Degree of hydration • T, P, pH, ionic strength Polymorphic Structure Depends:

  3. DSC for DPPH as a function of water hydration CHAIN LENGTH

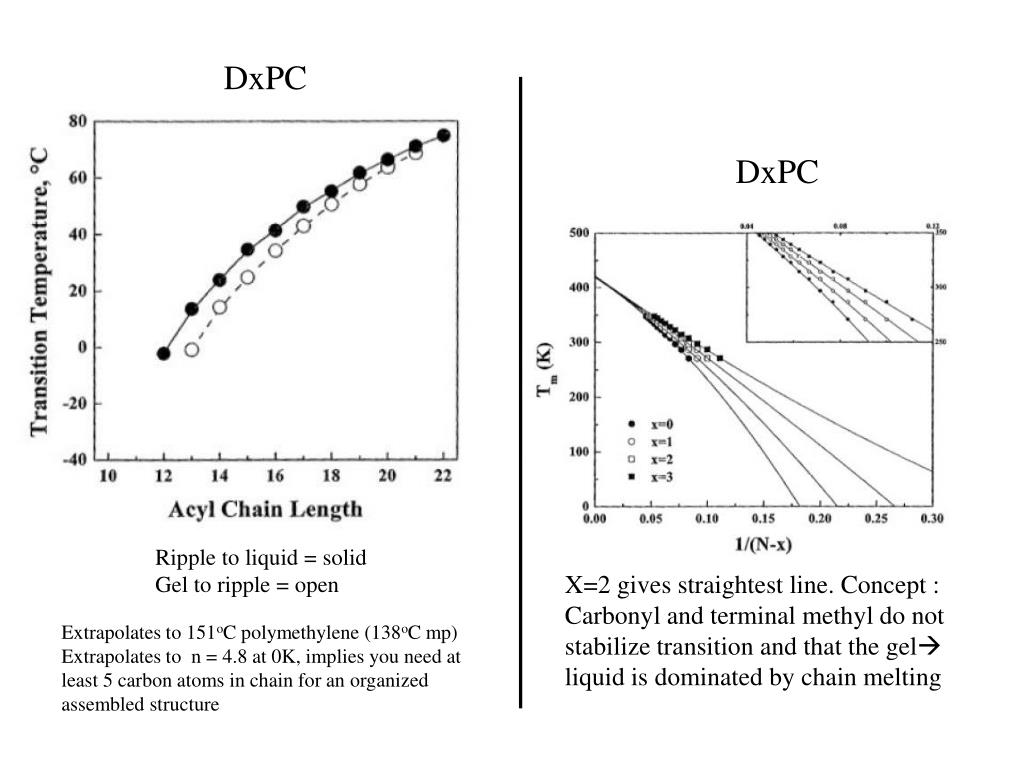

  4. DxPC DxPC Ripple to liquid = solid Gel to ripple = open X=2 gives straightest line. Concept : Carbonyl and terminal methyl do not stabilize transition and that the gel liquid is dominated by chain melting Extrapolates to 151oC polymethylene (138oC mp) Extrapolates to n = 4.8 at 0K, implies you need at least 5 carbon atoms in chain for an organized assembled structure

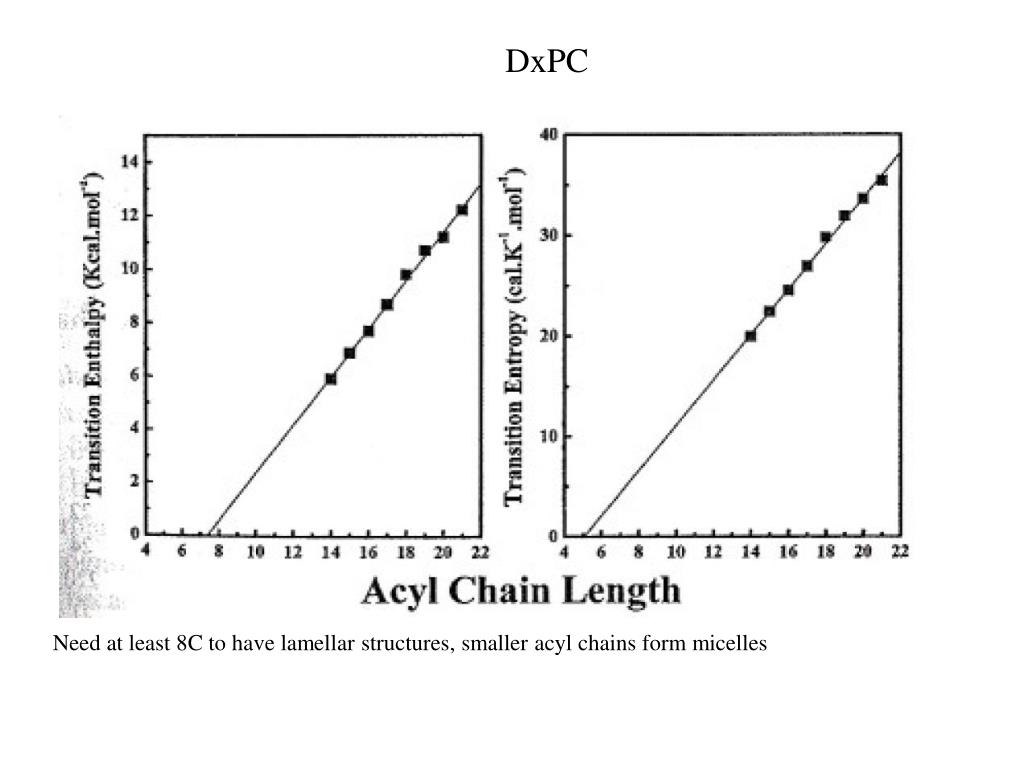

  5. DxPC Need at least 8C to have lamellar structures, smaller acyl chains form micelles

  6. POPC vs OPPC
