  1. Synchronization ofcomplex systems Jordi Cortadella Universitat Politecnica de Catalunya Barcelona, Spain Thanks to A. Chakraborty, T. Chelcea,M. Greenstreet and S. Nowick

  2. Multiple clock domains CLK1 f1/f0 CLK (f0) f2/f0 CLK2 CLK0 CLK f3/f0 CLK3 Independent clocks (plesiochronousif frequenciesclosely match) Single clock (Mesochronous) Rational clock frequencies

  3. The problem: metastability D Q D Q ФT ФR ФR setup hold D Q ?

  4. D D D D Q Q Q Q Classical “synchronous” solution ФT ФR Example Mean Time Between Failures fФ: frequency of the clock fD: frequency of the data tr: resolve time available W: metastability window : resolve time constant

  5. How to live with metastability ? • Metastability cannot be avoided, it must be tolerated. • Having a decent MTBF ( years) may result in atangible impact in latency • Purely asynchronous systems can be designedfailure-free • Synchronous and mixed synchronous-asynchronous systems need mechanisms with impact in latency • But latency can be hidden in many cases …

  6. Different approaches • Pausible Clocks (Yun & Donohue 1996) • Predict metastability-free transmission windows for domains with related clocks (Chakraborty & Greenstreet 2003) • Use the waiting time in FIFOs to resolve metastability(Chelcea & Nowick 2001) • And others … • The term “Globally Asynchronous, Locally Synchronous” is typically used for these systems (Chapiro 1984)

  7. Mutual exclusion element 0 ack1 req1 1 0 req2 1 0 ack2 0

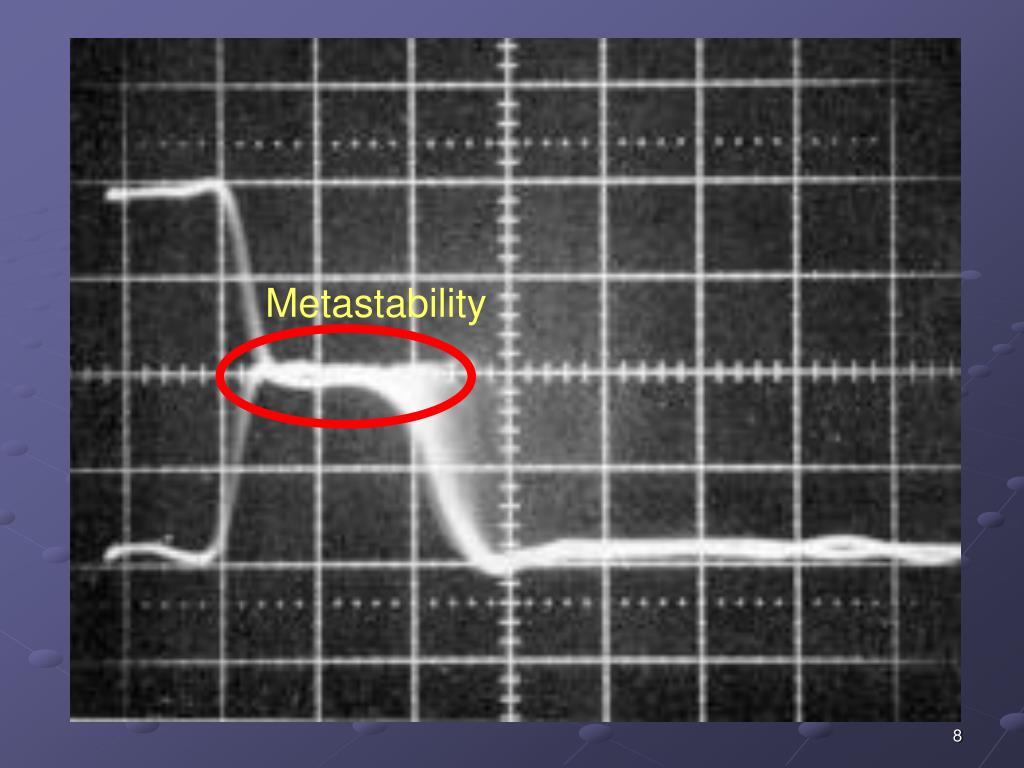

  8. Metastability

  9. Mutual exclusion element Metastability resolver 0 1 0 ack2 req1 req2 ack1 1 0 0 An asynchronous data latch with MS resolver can be built similarly

  10. Abstraction of the MUTEX R1 G1 MUTEX R2 G2

  11. Environment MUTEX [δ1, δ2] delay A pausible clock generator

  12. Cntr delay Pausible clocks Req Ack FF ME MUTEX [δ1, δ2] CLK Yun & Dooply, IEEE Trans. VLSI, Dec. 1999 Moore et al., ASYNC 2002

  13. STARI (Self-Timed At Receiver’s Input) • Both clocks are generated from the same source • The FIFO compensates for skew between transmitter and receiver • M. Greenstreet, 1993

  14. A Minimalist Interface • FIFO reduces to latch-X and a latch controller • Φx can always be generated in such a way as to reliably transfer data from input to output • Chakraborty & Greenstreet, 2002

  15. A Minimalist Interface: 3 scenarios Latch-X setup & hold Latch-R setup & hold Фx Permitted The scenario is chosenat initialization

  16. A Minimalist Interface: latch controller The controller detects which transition arrives first (from ΦT and ΦR) and generates ΦX accordingly

  17. A Minimalist Interface: rational clocks

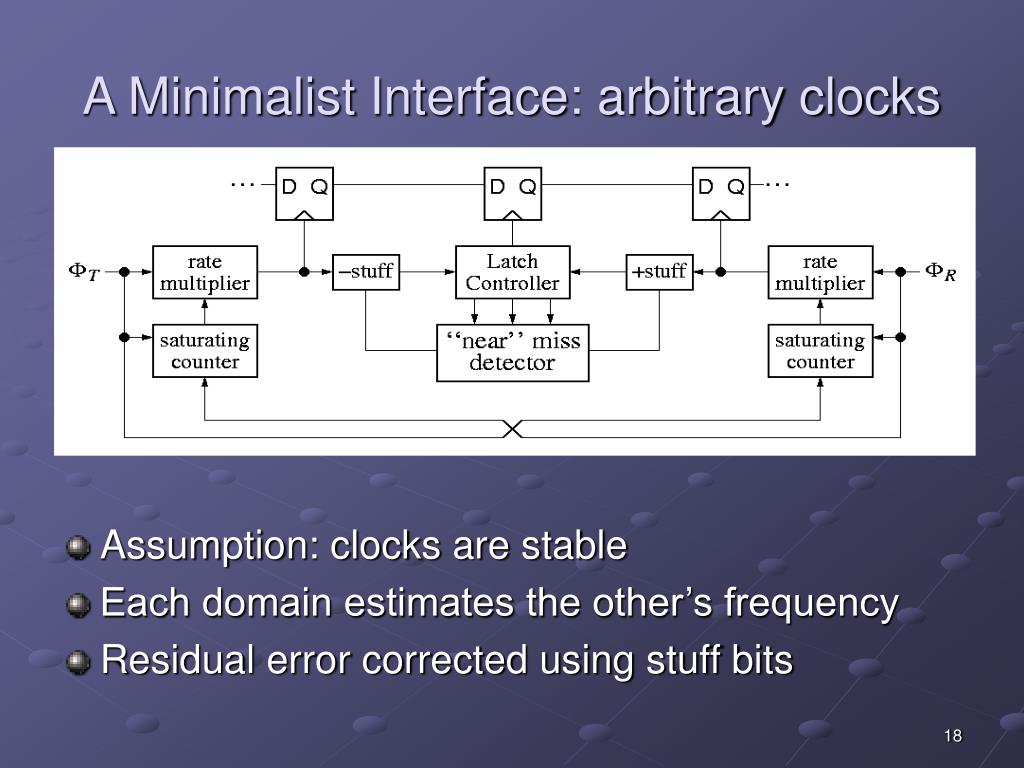

  18. A Minimalist Interface: arbitrary clocks • Assumption: clocks are stable • Each domain estimates the other’s frequency • Residual error corrected using stuff bits

  19. Asynchronous Domain Synchronous Domain 2 Synchronous Domain 1 Mixed-Timing Interfaces Async-Sync FIFO Async-Sync FIFO Sync-Async FIFO Mixed-Clock FIFO’s Chelcea & Nowick, 2001

  20. Mixed-Clock FIFO: Block Level full req_get valid_get req_put synchronous get interface Mixed-Clock FIFO synchronous put inteface empty data_put data_get CLK_put CLK_get

  21. Controls get operations Mixed-Clock FIFO: Block Level Initiates put operations Initiates get operations Bus for data items Bus for data items full req_get valid_get req_put synchronous get interface Mixed-Clock FIFO synchronous put inteface empty data_put data_get CLK_put CLK_get Controls put operations

  22. Mixed-Clock FIFO: Block Level Indicates data items validity (always 1 in this design) Indicates when FIFO full full req_get valid_get req_put synchronous get interface Mixed-Clock FIFO synchronous put inteface empty data_put data_get CLK_put CLK_get Indicates when FIFO empty

  23. cell cell cell cell cell Mixed-Clock FIFO: Architecture full Full Detector req_put Put Controller data_put CLK_put CLK_get data_get req_get valid_get Get Controller Empty Detector empty

  24. En SR En Mixed-Clock FIFO: Cell Implementation CLK_put en_put req_put data_put ptok_out ptok_in f_i REG e_i gtok_out gtok_in CLK_get en_get valid data_get

  25. En SR En Mixed-Clock FIFO: Cell Implementation CLK_put req_put en_put data_put ptok_out ptok_in PUT INTERFACE f_i REG e_i GET INTERFACE gtok_out gtok_in data_get CLK_get en_get valid

  26. Synchronization: summary • Resolving metastability implies latency • Latency can be often hidden (FIFOs, Chelcea & Nowick) • Clock frequencies can be estimated and clock edges predicted under the assumption of stable clocks (Chakraborty & Greenstreet) • Pausible clocks are also possible (Yun & Donohue 1996) • But still the nicest solutions are totally asynchronous • As presented by Fulcrum Microsystems in the last lecture
