Presentation Transcript

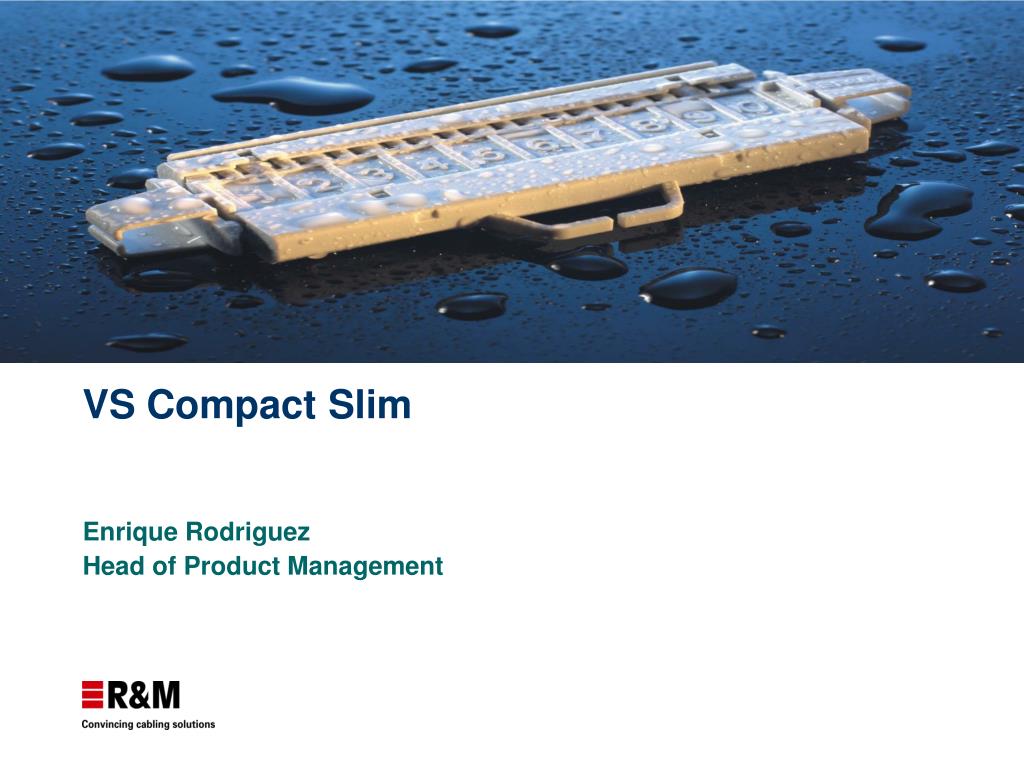

  1. VS Compact Slim Enrique RodriguezHead of Product Management

  2. VS Compact Slim………..more compactness • Features: • Only 10 pair connection module • Up to double number of pairs in same grid size as a regular 10 pair VS Compact module • Cable side rear / jumper side front • Insertion tool = VS Compact • Mounting profile = VS Compact • Cat. 5e • Gel fill set as accessories

  3. VS Compact Slim………..space saving • Double capacity • 50 pairs on 100mm height • 50 pairs on 50mm height • See also installation recommendation.

  4. VS Compact Slim………..modularity • Mix and Match • Same BMF as VS Compact • VS Compact “regular” • VS Compact SLIM • Same Termination Tool

  5. VS Compact Slim……Environment protection • Gel Set • Improve Environment protection • Simple application on site • Retrofit able • Immersion Test 14 days acc. • Bellcore TR-NWT-000795

  6. VS Compact Slim……Transmission Securty • Category 5e performance • Reach Category 5e • Transmission performance

  7. VS Compact Slim Connection Module • Components • Label Cap (front cover) • 10 pair connection module • Cable Cap (rear cover)

  8. VS Compact Slim Planed Basic Product Range 1x + 10x • Connection module • incl. cable cap • PN: R312544 • Packing Unit: • 10 pcs. Module • 10 pcs. Cable Cap • 1 pc. Mini Tool • Front / Label Cap • PN: R312728 • Packing Unit: • 10 pcs. Label Cap • Gel “Softpolymer” Set • PN: R312727 • Packing Unit: • 10 pcs. Label Cap • 1 pc. Tube of Softpolymer • 10 complete cable and label caps can be filled at minimum

  9. VS Compact Slim How to Terminate Cable • Cables coming from bottom • Starting at pair 1 from left to right • Cables coming from top • Starting at pair 1 from right to left • OR • Fit cable cover • Fit cable cover

  10. VS Compact Slim How to Terminate Jumper • Fit the cable terminated • modules on the frame • Terminate the jumper wires • Starting at pair 1 from left to right • Optional Fit front cover • Pass jumper wires through the jumper guides

  11. VS Compact Slim Gel Option • Fill cable cover from one side to the other • Fit the cable cover on the module • Fill front cover from one side to the other • Fit the cable cover on the module • Finish

  12. VS Compact Slim Accessories • Tools • Mini Tool (incl.) • Comfort Tool • Same tools as already • used for “regular” • VS Compact • Mounting Profile, BMF and Accessories for Frames • All existing VS Compact mounting profiles (except 17.5 mm grid) can be used. • All existing VS Compact 10 pair BMF’s (except 17.5 mm grid) can be used.

  13. VS Compact Slim Main Data For more details see technical data sheet

  14. VS Compact Slim Dimensions

  15. VS Compact Slim Dimensions Example for 50 pairs block Depth is variable
