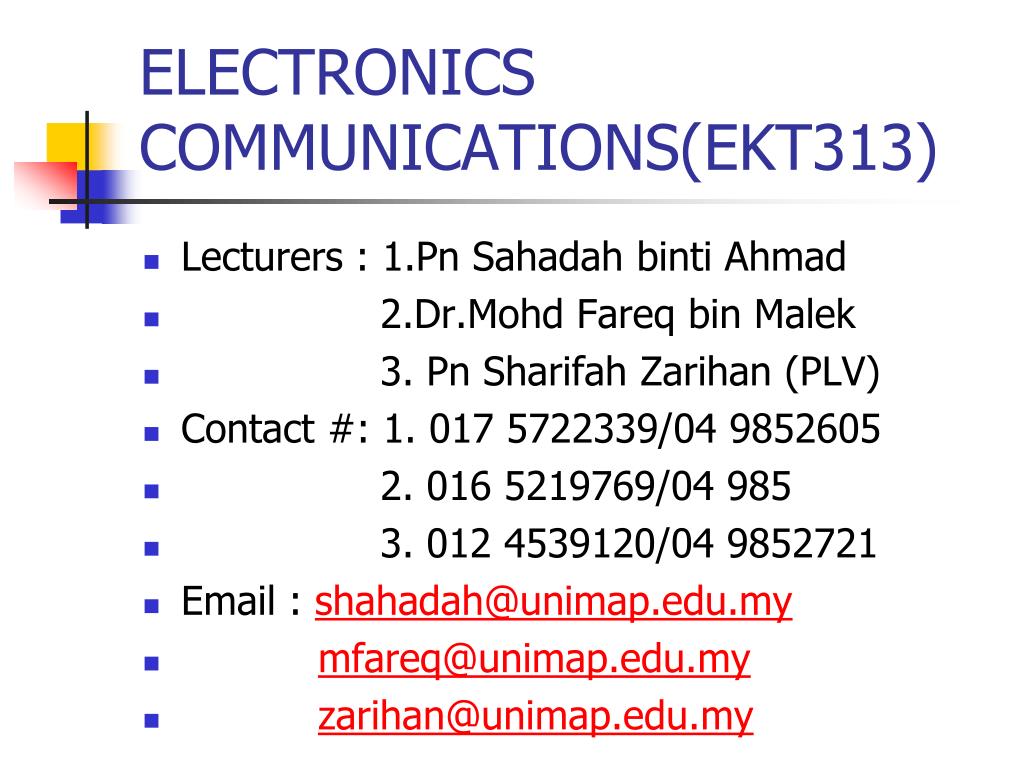

  1. ELECTRONICS COMMUNICATIONS(EKT313) • Lecturers : 1.Pn Sahadahbinti Ahmad • 2.Dr.Mohd Fareq bin Malek • 3. PnSharifahZarihan (PLV) • Contact #: 1. 017 5722339/04 9852605 • 2. 016 5219769/04 985 • 3. 012 4539120/04 9852721 • Email : shahadah@unimap.edu.my • mfareq@unimap.edu.my • zarihan@unimap.edu.my

  2. EKT313 Sem: 1 2011/2012 • Meeting: Lecture 3 Hours @ DK Lab 2 Hours / 2 sessions @ MKR 3 & MKY 7 • Attendance are compulsory!!

  3. Course Outcomes (CO) • CO1: Ability to utilize software and simulation tools in designing systems in communications .  • CO2: Ability to analyze transmission of the signal through channels, noise and modulation.  • CO3: Ability to identify, analyze and design the architecture of radio frequency , amplifiers, mixers, AM and FM modulators and demodulators, transmitter circuits and receiver circuits. •  CO4: Ability to perform measurement, analyze output signal and trouble shoot using laboratory equipments / instruments.

  4. SYNOPSIS • OBJECTIVES: • This subject introduces the students about the design and electronics used in communication system. This includes the design and architecture of radio frequency amplifiers, mixers, AM and FM modulators and demodulators, transmitter circuits and receiver’s circuits. It is also to give introduction to students about how to analyze circuit and its importance in communication electronic field.

  5. SYNOPSIS • TOPICS COVERED ARE: • Introductions to Electronics Communications, • AM& SSB Modulations & AM Circuits, • FM and FM Circuits, • Radio Transmitter and • Communications Receivers • Transmission Lines

  6. SYNOPSIS • Practical: • Designing and constructing of Radio Frequency (RF) Receiver architecture, i.e. modulator, demodulator, oscillator, filters, down converters, etc using software and hardwares. • Software : ADS 2009

  7. ASSESSMENTS • Final exam = 50% • Test 1 & 2 = 20% • Lab = 30% 5% presentation 5% Report 20% Project

  8. List of text books and references • [1] Louis E. Frenzel Jr, Principles of Electronic Communication Systems , 3rd Ed., McGrawHill 2008. (text) • [2] Wayne Tomasi, Electronics Communication Systems, Prentice Hall • [3] Paul Young, Electronics Communications Techniques,

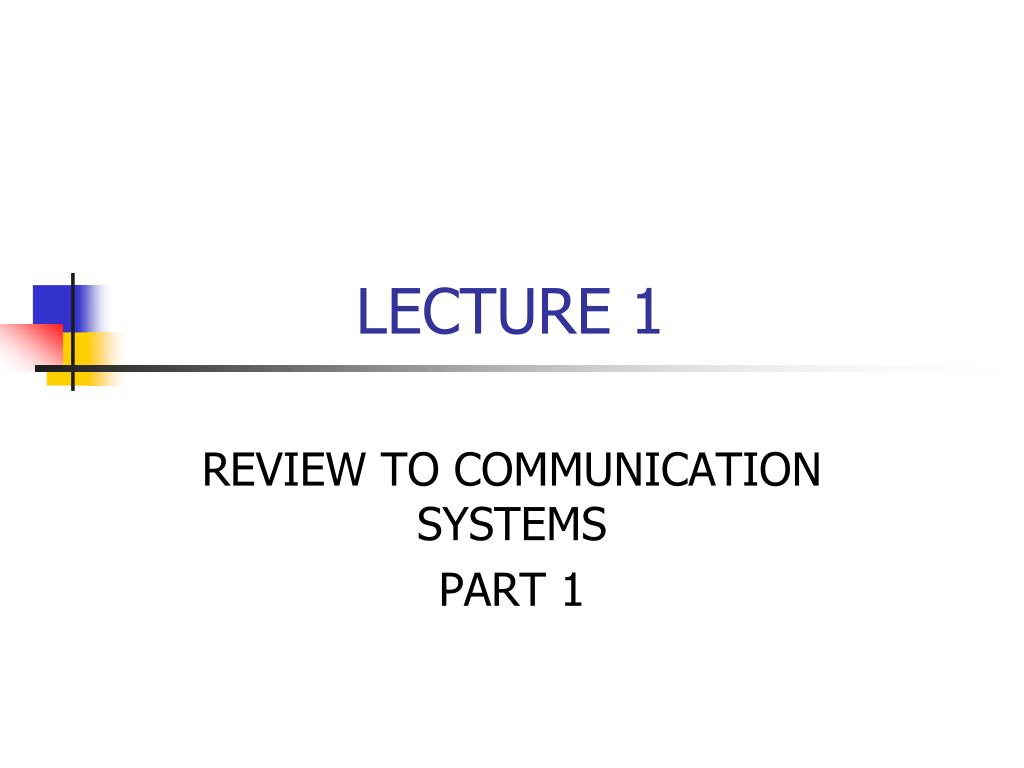

  9. LECTURE 1 REVIEW TO COMMUNICATION SYSTEMS PART 1

  10. WHAT DO YOU UNDERSTAND of COMMUNICATION SYSTEM?

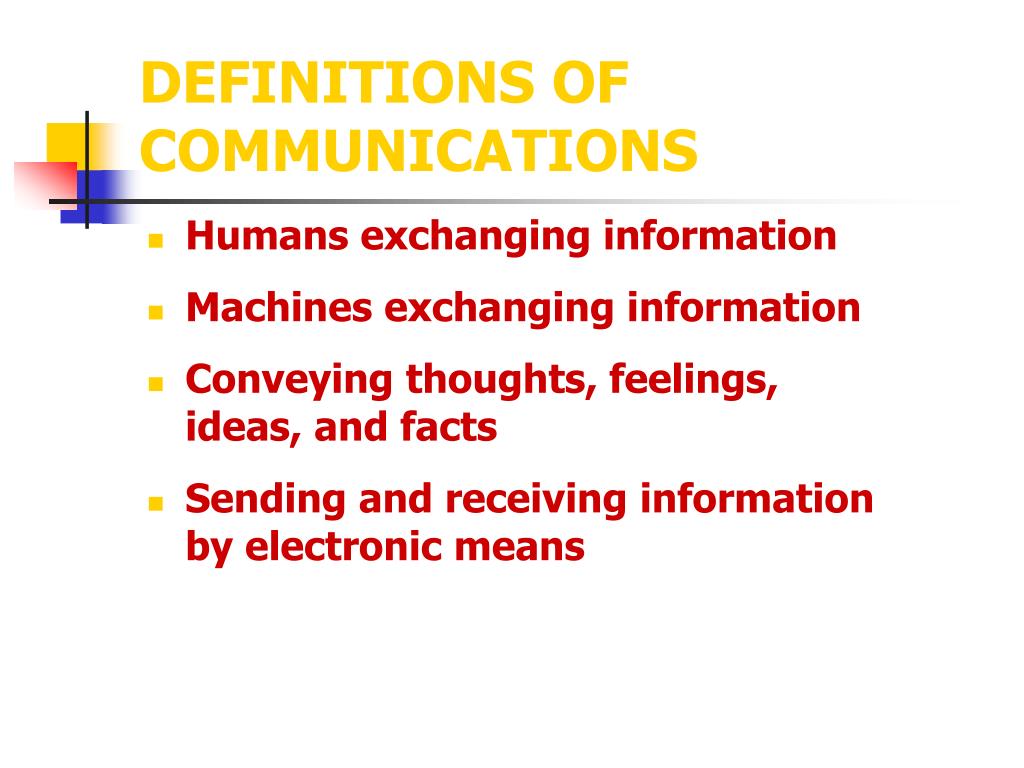

  11. DEFINITIONS OF COMMUNICATIONS • Humans exchanging information • Machines exchanging information • Conveying thoughts, feelings, ideas, and facts • Sending and receiving information by electronic means

  12. BARRIERS TO COMMUNICATIONS • Language: human, computer, or electronic • Distance: space between sending and receiving parties

  13. COMMON FORMS OF COMMUNICATIONS • Human voice: face-to-face conversations, public speakers, actors in plays, etc. • Audio: CDs, tape, records, radio • Body language: non-verbal • Print: newspapers, magazines, books, etc. • Film: still and movie • Video: movies, graphics and animation • Music: personal, concerts

  14. FORMS OF ELECTRONIC COMMUNICATIONS • Radio and TV broadcasting • Telephone, wired and wireless • Fax • Pagers • Computer networks: modem, e-mail, Internet and World Wide Web, wireless • Satellites, radar, radio telescopes

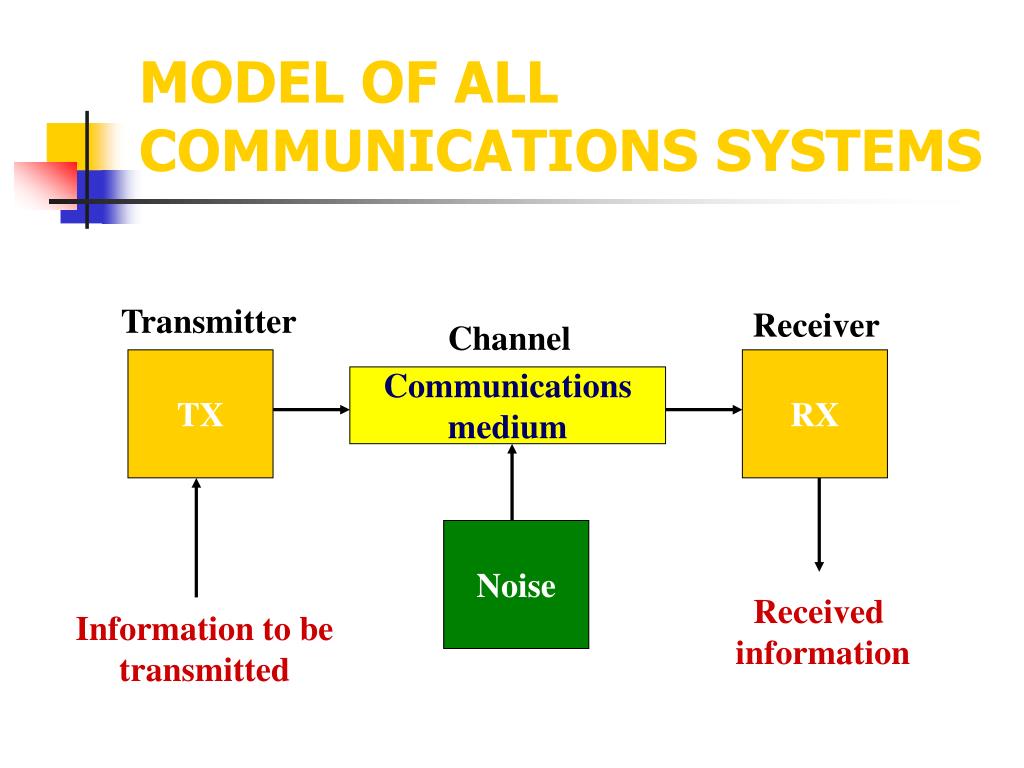

  15. MODEL OF ALL COMMUNICATIONS SYSTEMS Transmitter Receiver Channel TX RX Communications medium Noise Received information Information to be transmitted

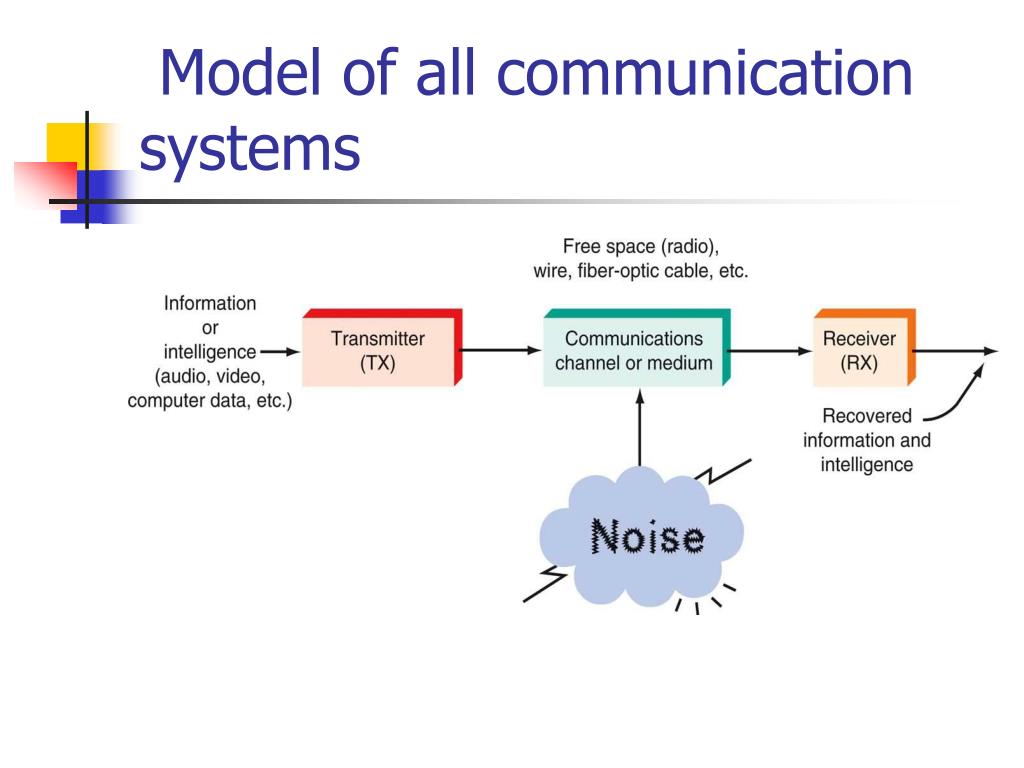

  16. Model of all communication systems

  17. Basic components:  Transmitter  Channel or medium  Receiver  Noisedegrades or interferes with transmitted information.

  18. Communication Systems Transmitter • The transmitter is a collection of electronic components and circuits that converts the electrical signal into a signal suitable for transmission over a given medium. • Transmitters are made up of oscillators, amplifiers, tuned circuits and filters, modulators, frequency mixers, frequency synthesizers, and other circuits.

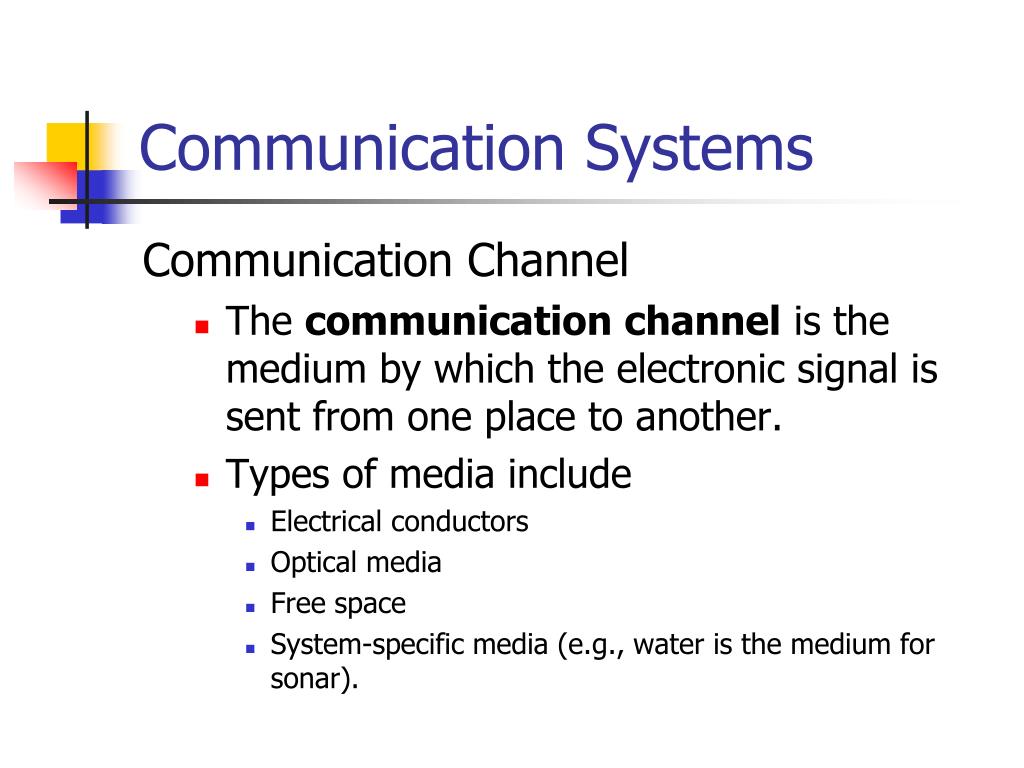

  19. Communication Systems Communication Channel • The communication channel is the medium by which the electronic signal is sent from one place to another. • Types of media include • Electrical conductors • Optical media • Free space • System-specific media (e.g., water is the medium for sonar).

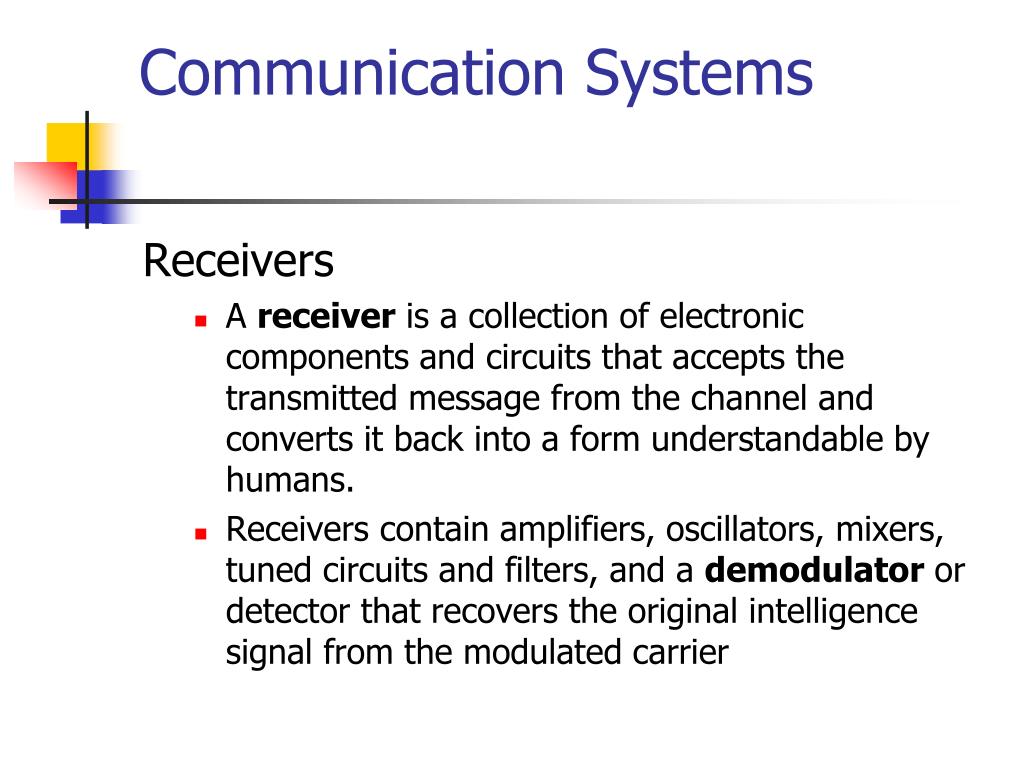

  20. Communication Systems Receivers • A receiveris a collection of electronic components and circuits that accepts the transmitted message from the channel and converts it back into a form understandable by humans. • Receivers contain amplifiers, oscillators, mixers, tuned circuits and filters, and a demodulator or detector that recovers the original intelligence signal from the modulated carrier

  21. Communication Systems Transceivers • A transceiveris an electronic unit that incorporates circuits that both send and receive signals. • Examples are: • Telephones • Fax machines • Handheld CB radios • Cell phones • Computer modems

  22. Communication Systems Noise • Noise is random, undesirable electronic energy that enters the communication system via the communicating medium and interferes with the transmitted message.

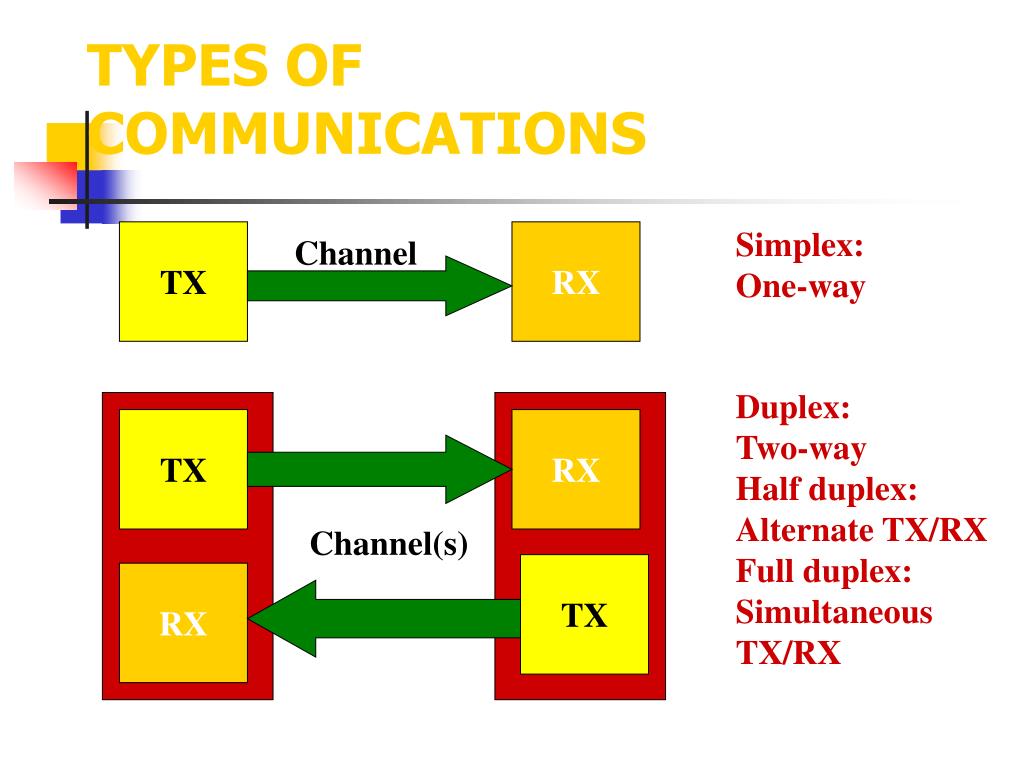

  23. TYPES OF COMMUNICATIONS Simplex: One-way TX RX Channel Duplex: Two-way Half duplex: Alternate TX/RX Full duplex: Simultaneous TX/RX TX RX Channel(s) TX RX

  24. TYPES OF COMMUNICATIONS SIGNALS Analog - smooth and continuous voltage variation. Digital - binary or two voltage levels. Time

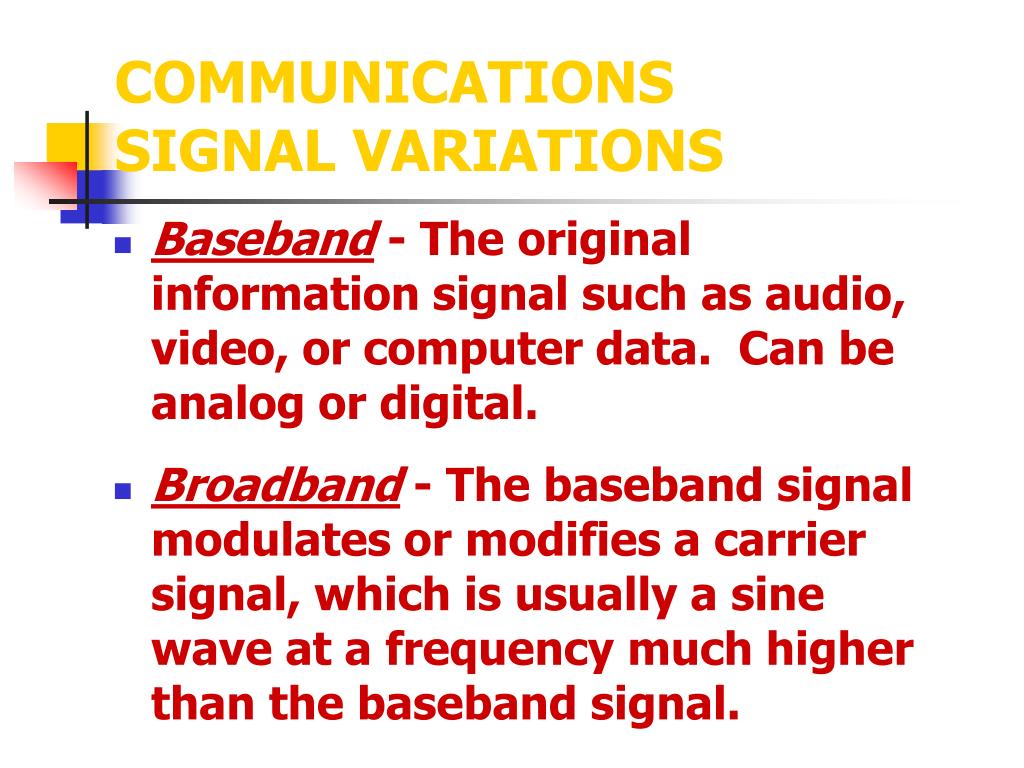

  25. COMMUNICATIONS SIGNAL VARIATIONS • Baseband - The original information signal such as audio, video, or computer data. Can be analog or digital. • Broadband - The baseband signal modulates or modifies a carrier signal, which is usually a sine wave at a frequency much higher than the baseband signal.

  26. MODULATION • An electronic technique in which a baseband information signal modifies a carrier signal (usually a sine wave) for the purpose of frequency translation and carrying the information signal via radio. • The common types of modulation are amplitude, frequency and phase.

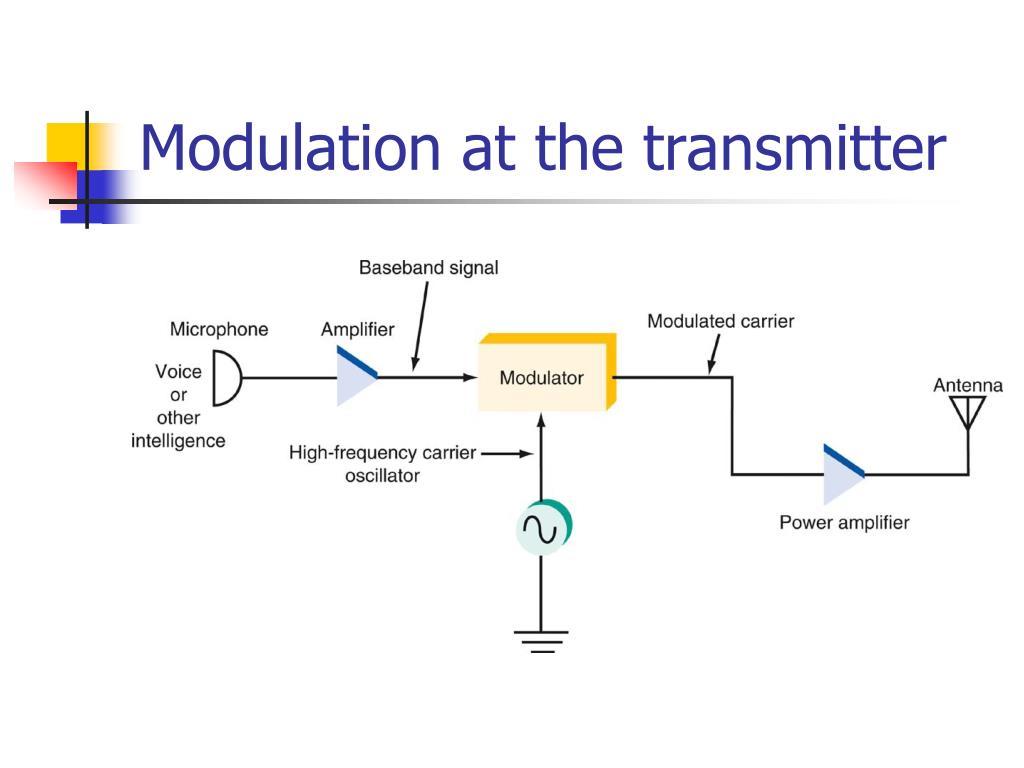

  27. Modulation at the transmitter

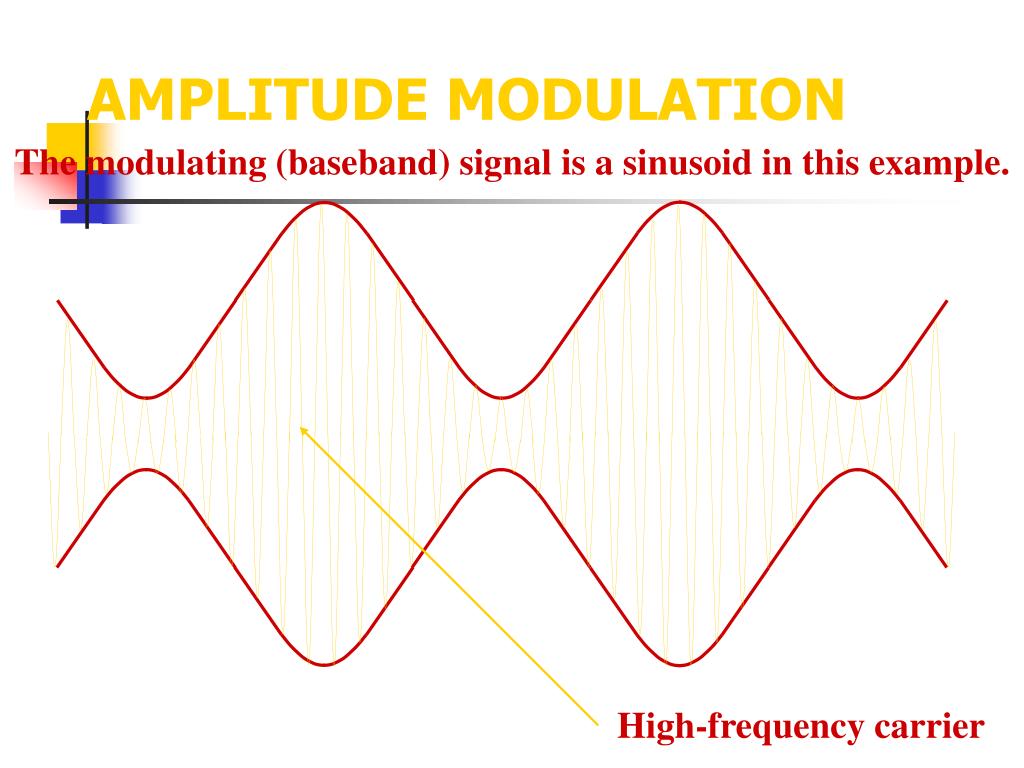

  28. High-frequency carrier AMPLITUDE MODULATION The modulating (baseband) signal is a sinusoid in this example.

  29. An AM signal as it usually appears on an oscilloscope The carrier frequency is normally much higher than the baseband frequency.

  30. FREQUENCY MODULATION The baseband signal controls the carrier’s frequency and the carrier’s amplitude remains constant.

  31. Increasing fc Decreasing fc Increasing fc Resting fc Resting fc FM Modulating signal Carrier

  32. MULTIPLEXING • Multiplexing (MUX or MPX) - the process of simultaneously transmitting two or more baseband information signals over a single communications channel. • Demultiplexing (DEMUX or DMPX) - the process of recovering the individual baseband signals from the multiplexed signal.

  33. Single communications channel (radio or cable) Recovered baseband information signals Original baseband information signals MULTIPLEXING AND DEMULTIPLEXING MUX DEMUX

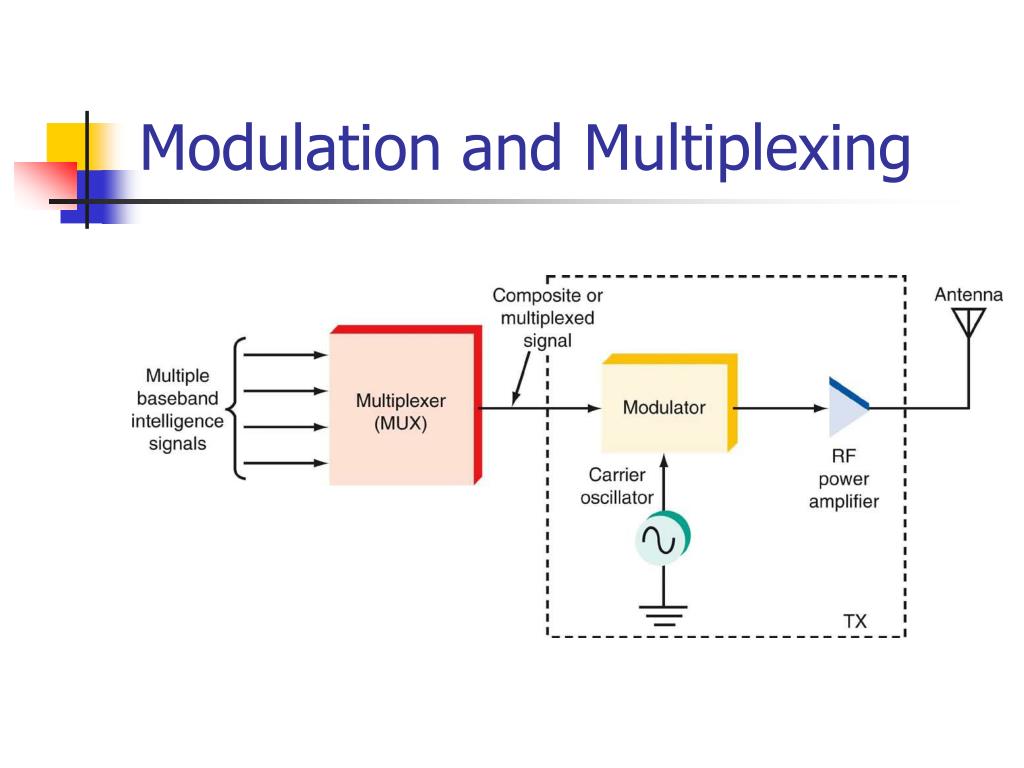

  34. Modulation and Multiplexing

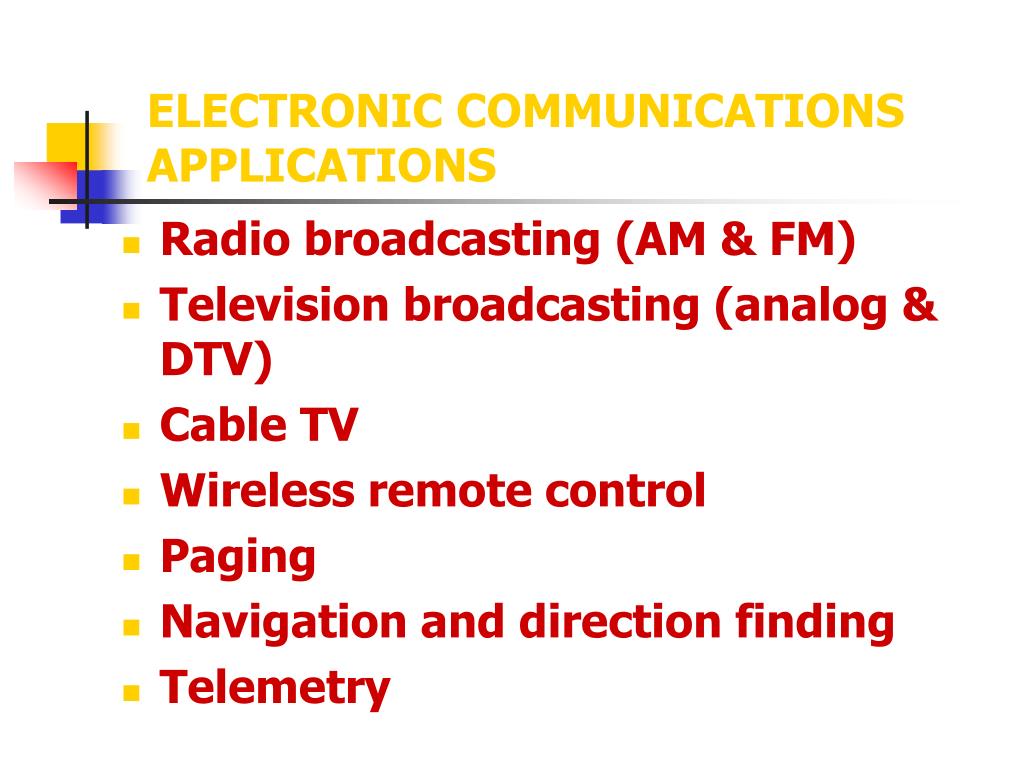

  35. ELECTRONIC COMMUNICATIONS APPLICATIONS • Radio broadcasting (AM & FM) • Television broadcasting (analog & DTV) • Cable TV • Wireless remote control • Paging • Navigation and direction finding • Telemetry

  36. ELECTRONIC COMMUNICATIONS APPLICATIONS (Continued) • Radio astronomy • Surveillance • RF identification (ID) • Music services • Telephones (wired, cordless, cellular) • Facsimile • Two-way radio

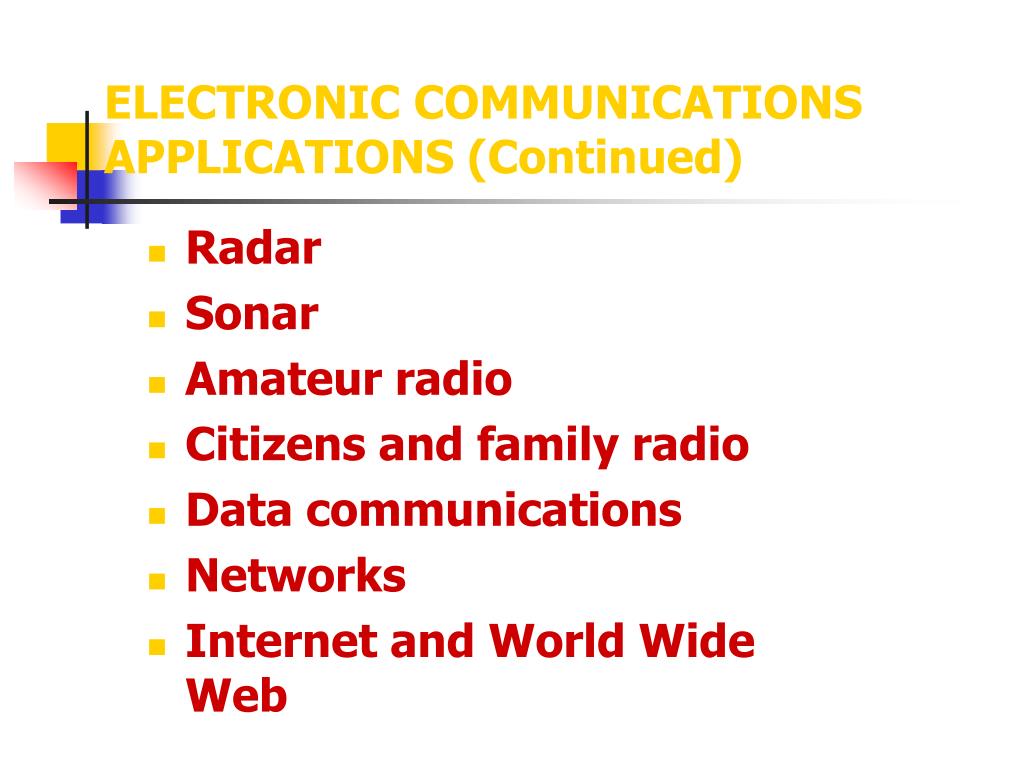

  37. ELECTRONIC COMMUNICATIONS APPLICATIONS (Continued) • Radar • Sonar • Amateur radio • Citizens and family radio • Data communications • Networks • Internet and World Wide Web

  38. FREQUENCYANDWAVELENGTH • Cycle - One complete occurrence of a repeating wave (periodic signal) such as one positive and one negative alternation of a sine wave. • Frequency - the number of cycles of a signal that occur in one second. • Period- the time distance between two similar points on a periodic wave. • Wavelength - the distance traveled by an electromagnetic (radio) wave during one period.

  39. T = One period One cycle PERIOD AND FREQUENCY COMPARED time Frequency = f = 1/T

  40. Frequency and wavelength compared T  + 0 time f = 1/T distance

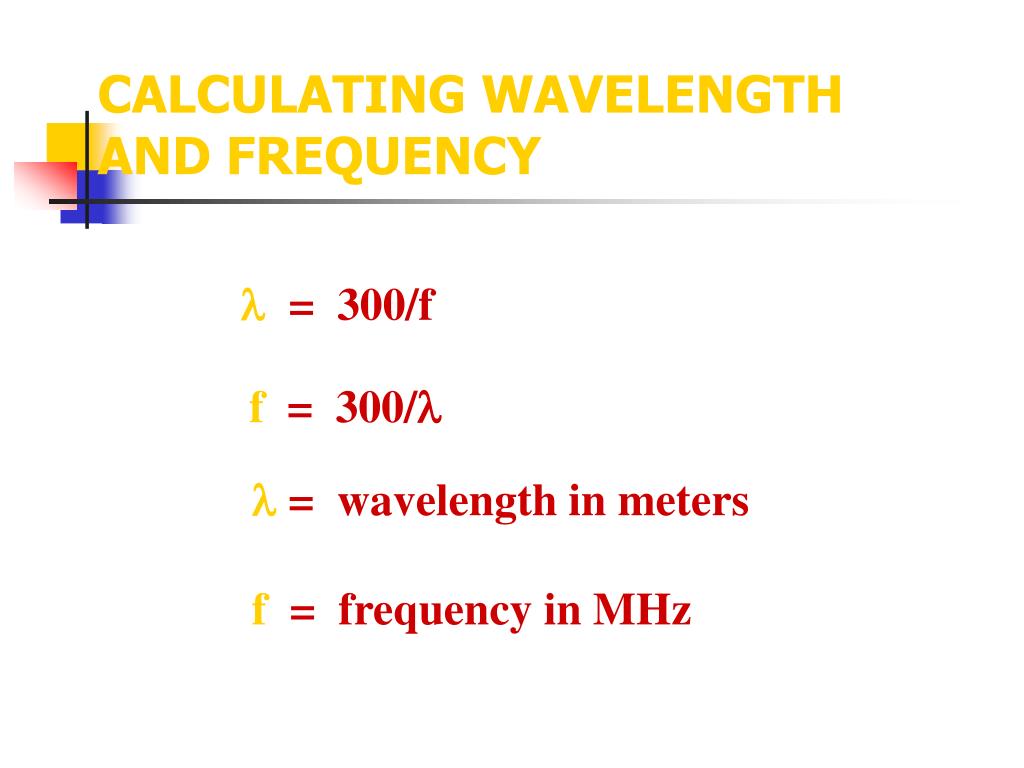

  41. CALCULATING WAVELENGTH AND FREQUENCY  = 300/f f = 300/  = wavelength in meters f = frequency in MHz

  42. Wavelength Frequency THE ELECTROMAGNETIC SPECTRUM FROM 30 HZ TO 300 GHZ ( = 300/f) 10-1 m 10-2 m 10-3 m 10-4 m 106 m 105 m 104 m 103 m 102 m 107 m 10 m 1 m Millimeter waves ELF VLF LF MF HF VHF UHF SHF EHF VF 3 kHz 30 Hz 3 GHz 3 MHz 30 kHz 300 Hz 30 GHz 300 kHz 30 MHz 300 GHz 300 MHz (f = 300/)

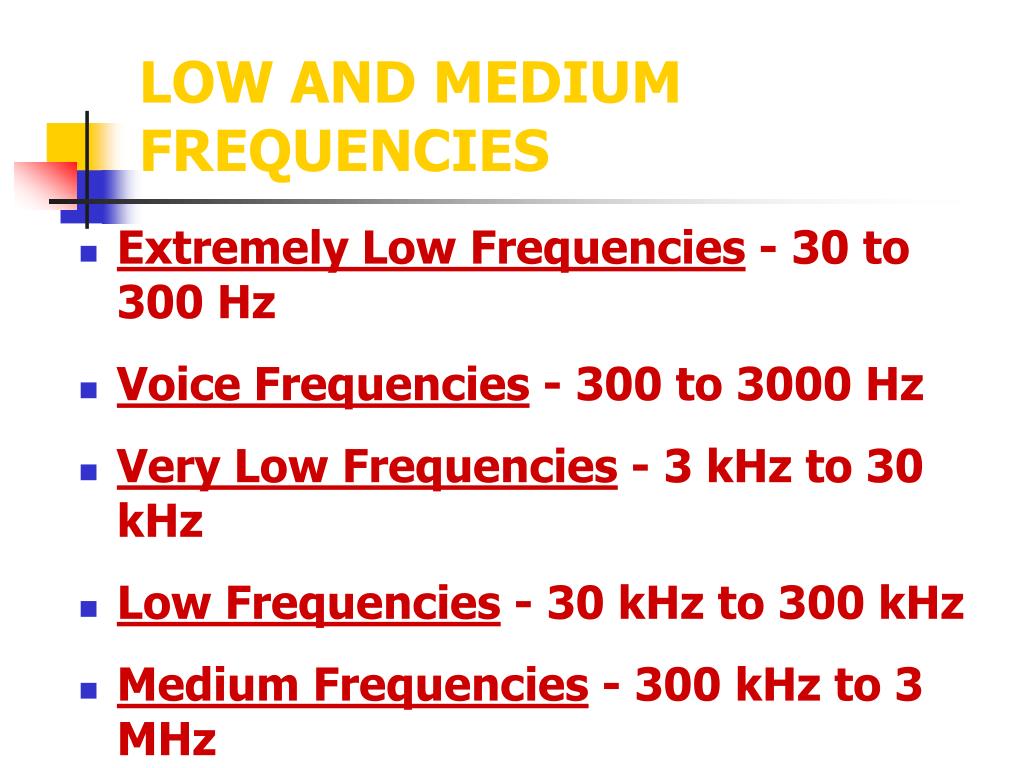

  43. LOW AND MEDIUM FREQUENCIES • Extremely Low Frequencies - 30 to 300 Hz • Voice Frequencies - 300 to 3000 Hz • Very Low Frequencies - 3 kHz to 30 kHz • Low Frequencies - 30 kHz to 300 kHz • Medium Frequencies - 300 kHz to 3 MHz

  44. HIGH FREQUENCIES • High Frequencies - 3 MHz to 30 MHz • Very High Frequencies - 30 MHz to 300 MHz • Ultra High Frequencies - 300 MHz to 3 GHz (1 GHz and above = microwaves) • Super High Frequencies - 3 GHz to 30 GHz • Extremely High Frequencies - 30 GHz to 300 GHz

  45. THE ELECTROMAGNETIC SPECTRUM ABOVE 300 GHZ Wavelength 0.8 x 10-6 m 0.4 x 10-6 m 10-5 m 10-3 m 10-4 m Millimeter waves Ultraviolet X-rays Infrared Gamma rays Visible Cosmic rays 300 GHz

  46. OPTICAL FREQUENCIES • Infrared - 0.7 to 10 micron • Visible light - 0.4 to 0.8 micron • Ultraviolet - Shorter than 0.4 micron Note: A micron is one millionth of a meter. Light waves are measured and expressed in wavelength rather than frequency.

  47. Noise, interference and distortion • Noise:unwanted signals that coincide with the desired signals. Noise is random, undesirable electric energy. • Two type of noise:internal and external noise. • Internal noise: Caused by internal devices/components in the circuits. • External noise:noise that is generated outside the circuit. Eg: atmospheric noise,solar noise, cosmic noise, man made noise. • Interference-one type of external noise • Distortion: signal being distorted

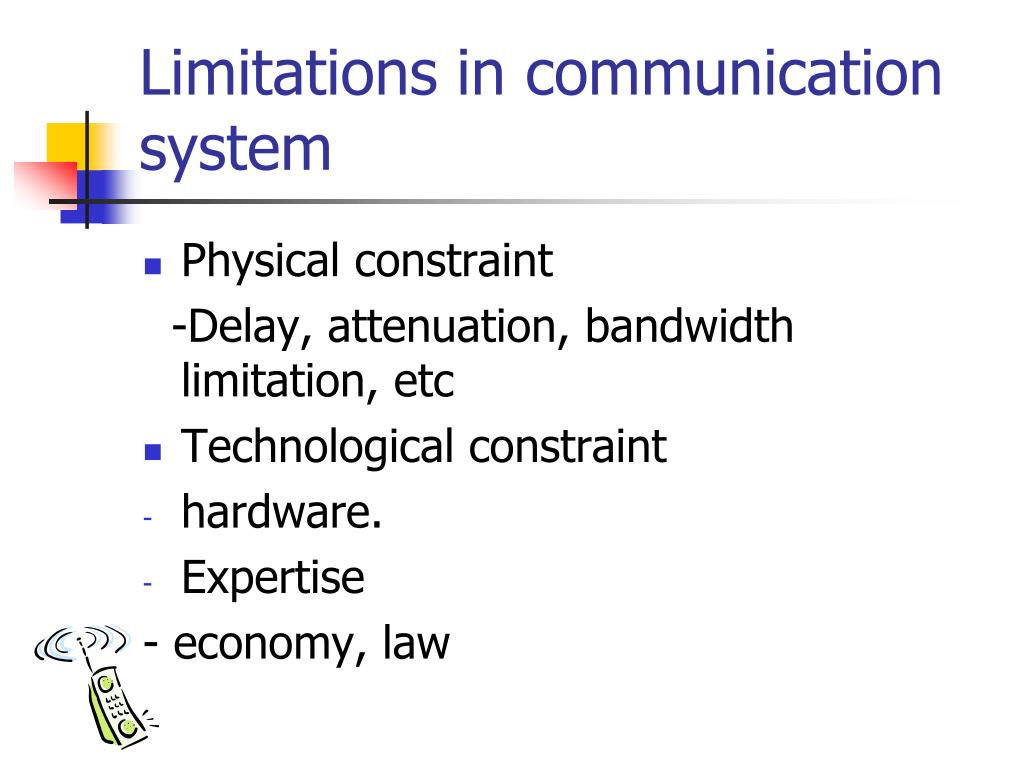

  48. Limitations in communication system • Physical constraint -Delay, attenuation, bandwidth limitation, etc • Technological constraint • hardware. • Expertise - economy, law
