Microsoft SQL Server 2008

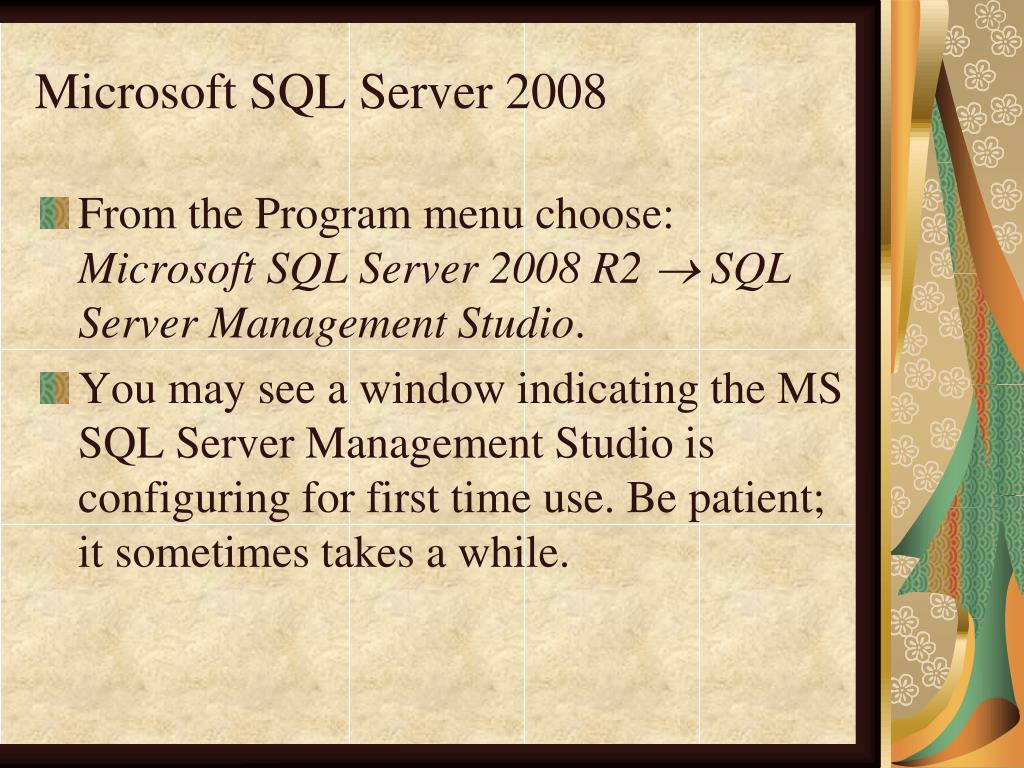

1. Microsoft SQL Server 2008 • From the Program menu choose: Microsoft SQL Server 2008 R2SQL Server Management Studio. • You may see a window indicating the MS SQL Server Management Studio is configuring for first time use. Be patient; it sometimes takes a while.

2. In the Connect to Server window, select or enter: • Database Engine for the Server type • ICSD for the server name • Windows Authentication for Authentication. • Then press the connect button. • In the Object Explorer pane, expand Databases. • If you don’t see an Object Explorer pane, select it from the View menu.

3. For this course there are four databases (identified by folders): • CS451 Family • CS451 Packers • CS451 Supplier • CS451 University • You should have read-only access to each one. I will use these during the semester.

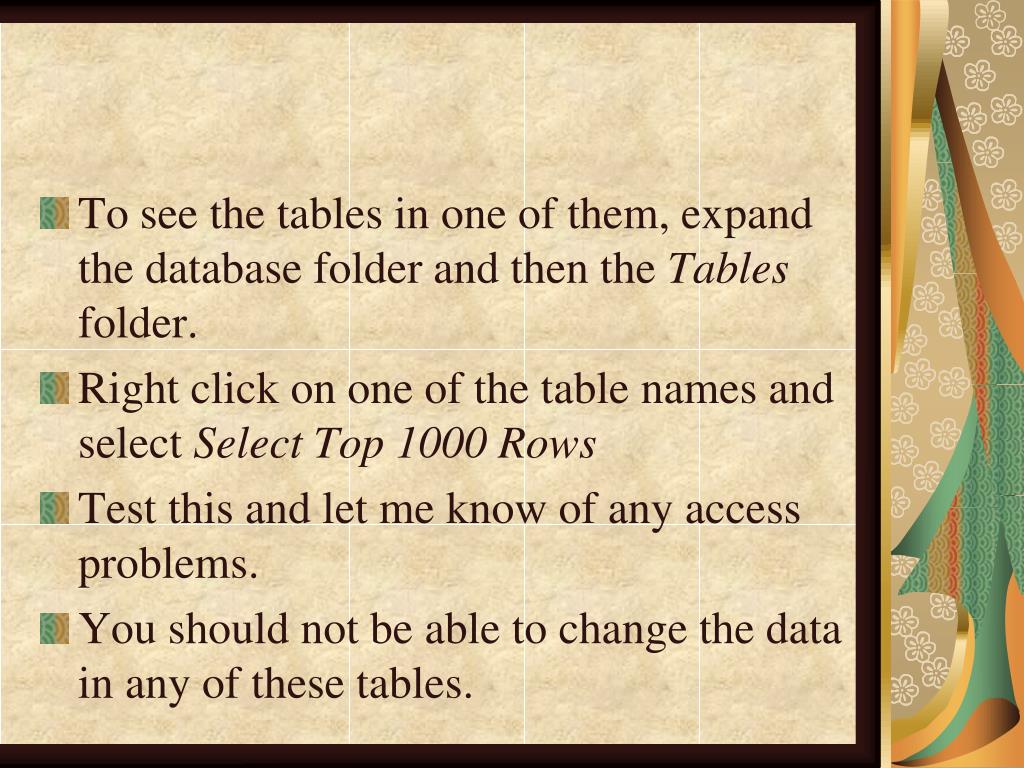

4. To see the tables in one of them, expand the database folder and then the Tables folder. • Right click on one of the table names and select Select Top 1000 Rows • Test this and let me know of any access problems. • You should not be able to change the data in any of these tables.

5. If you want tables you can edit, you can create tables in your group database or copy (import) them from one of the existing databases. • Subsequent slides show how to do both.

6. Creating Tables in SQL Server • Your group databases are named CS451 G1(or G2, G3, G4, etc.) • Expand the folder for the database assigned to you and right click on the Tables folder • select New Table.

7. In the resulting window you can specify column names, types, length, and whether null values are allowed. • A column that has no value may be assigned null. • Any comparison with data involving that column will ALWAYS evaluate to false. • Create some columns using whatever names and types you want.

8. To create a primary key (unique identifier): • highlight the appropriate column(s) by clicking in the area to the left of the column name. • You can select more than one column (composite key) by using the Shift key while selecting additional columns • With the column(s) highlighted, right click and select Set Primary Key to specify the highlighted column(s) as the primary key.

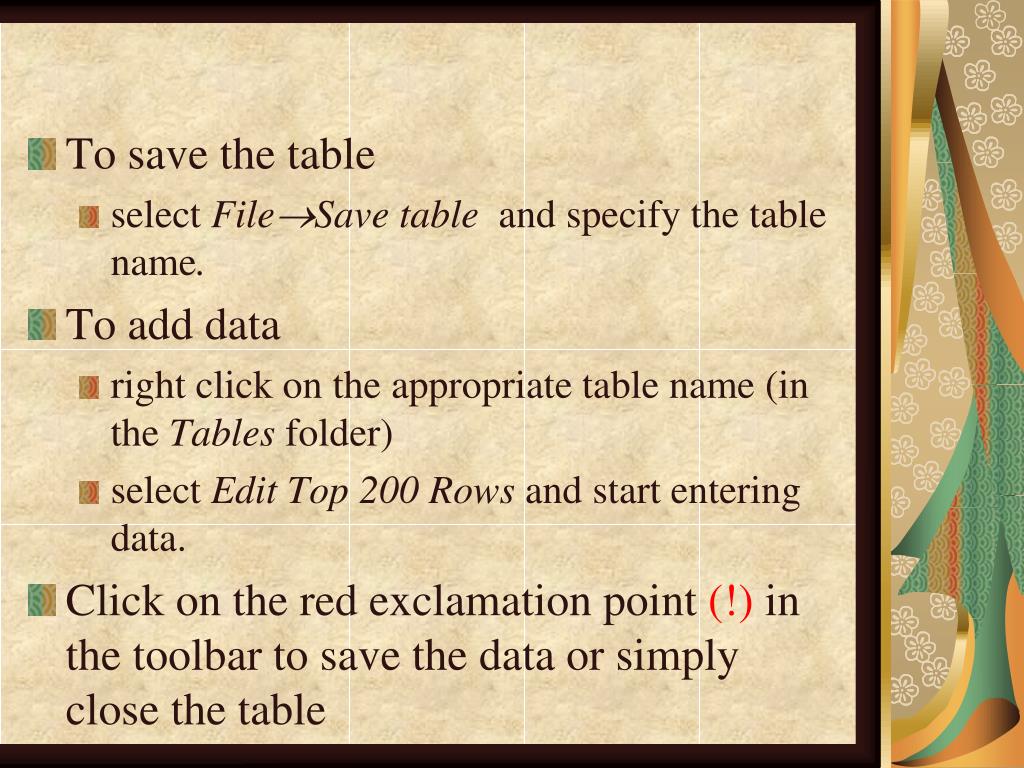

9. To save the table • select FileSave table and specify the table name. • To add data • right click on the appropriate table name (in the Tables folder) • select Edit Top 200 Rows and start entering data. • Click on the red exclamation point (!) in the toolbar to save the data or simply close the table

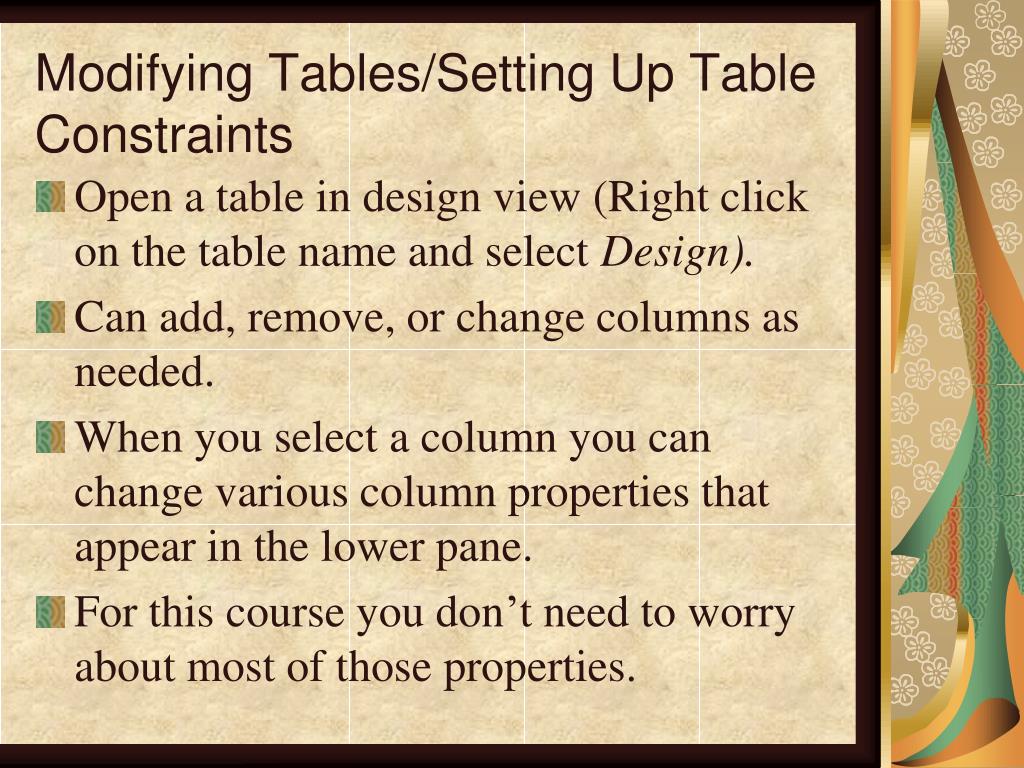

10. Modifying Tables/Setting Up Table Constraints • Open a table in design view (Right click on the table name and select Design). • Can add, remove, or change columns as needed. • When you select a column you can change various column properties that appear in the lower pane. • For this course you don’t need to worry about most of those properties.

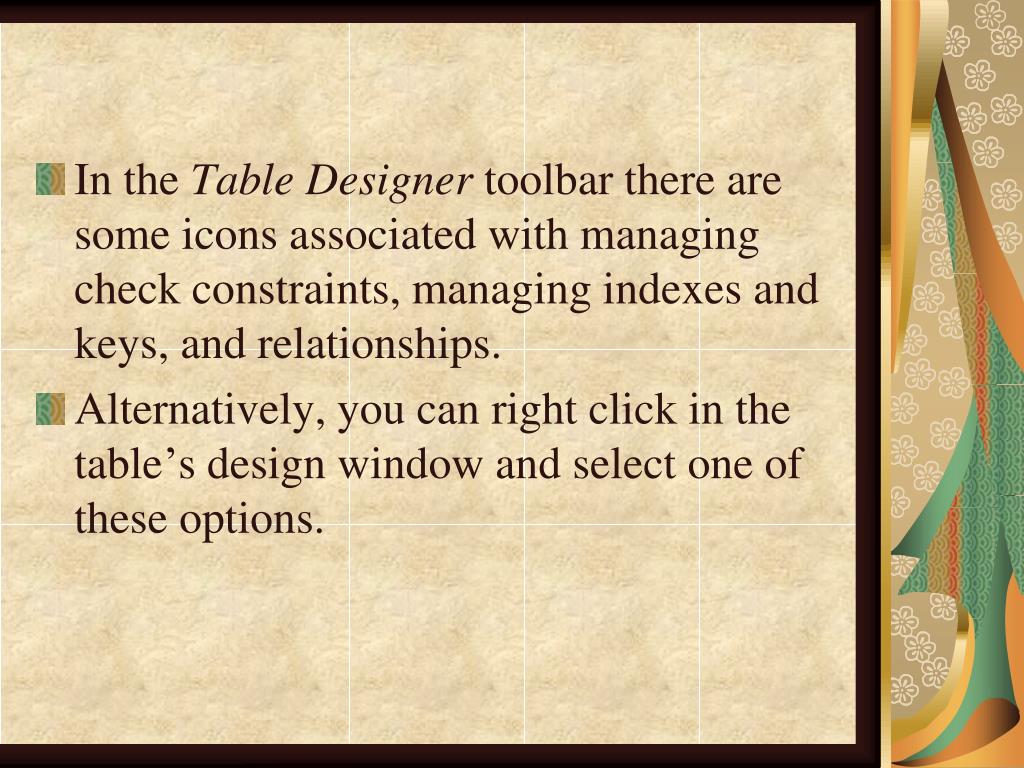

11. In the Table Designer toolbar there are some icons associated with managing check constraints, managing indexes and keys, and relationships. • Alternatively, you can right click in the table’s design window and select one of these options.

12. To put constraints on specific fields • Select a column • Right click and select Check Constraints. • Click on the Add button. • Each constraint has a default name. You can provide your own in the (Name) textbox. • Enter an expression that defines a constraint for a specific attribute. • Save the table. • The next slide has some examples.

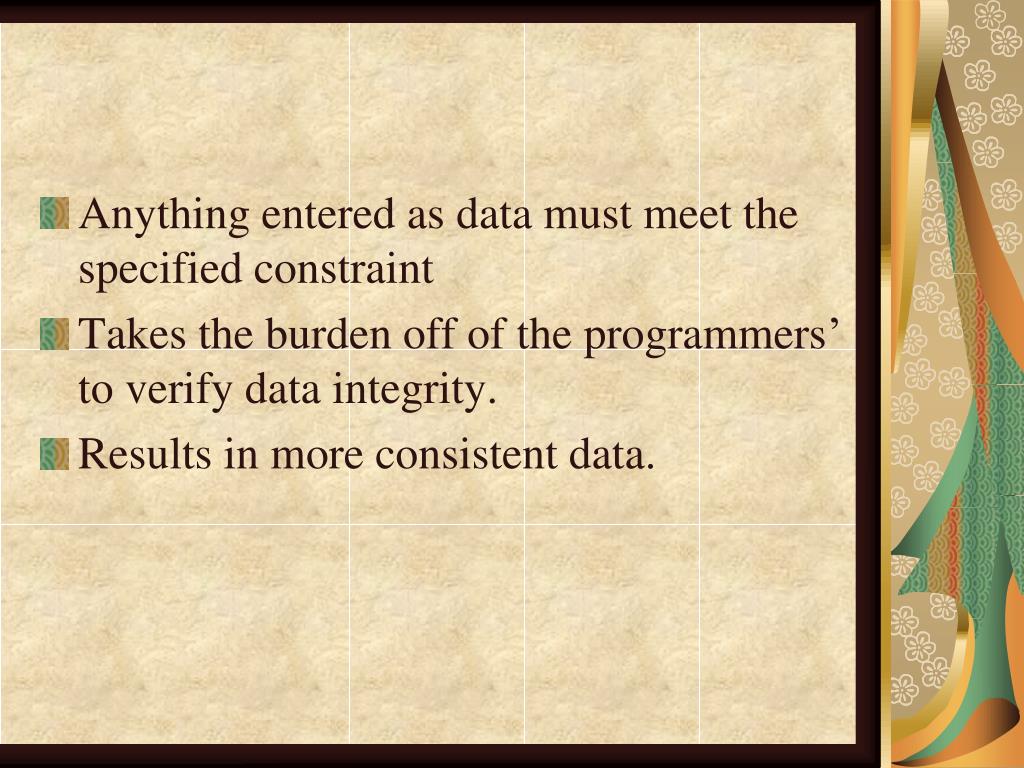

14. Anything entered as data must meet the specified constraint • Takes the burden off of the programmers’ to verify data integrity. • Results in more consistent data.

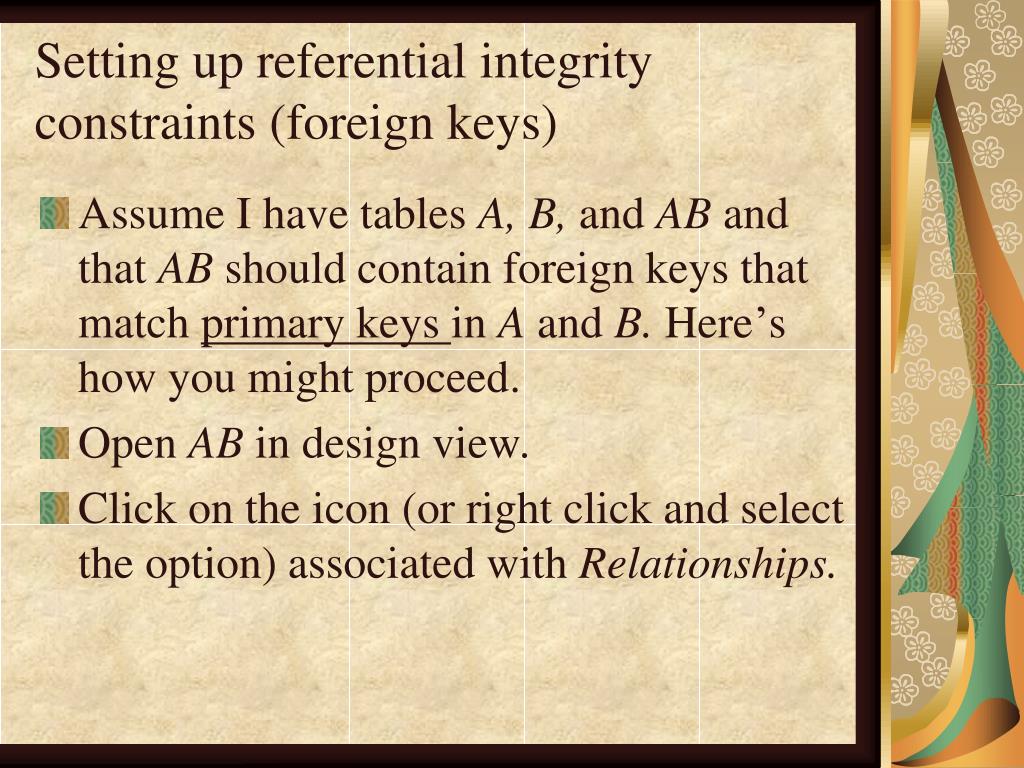

15. Setting up referential integrity constraints (foreign keys) • Assume I have tables A, B, and AB and that AB should contain foreign keys that match primary keys in A and B. Here’s how you might proceed. • Open AB in design view. • Click on the icon (or right click and select the option) associated with Relationships.

16. As before click on the Add buttonand provide a name for the constraint. • Look for an option Tables and Columns Specification and click the ellipsis button (…) associated with it.

17. In the menu associated with Primary Key Table choose table A • Below that, choose the appropriate column. Make sure that column is a primary key for A. • Under the Foreign key Table specification, choose the foreign key field from table AB

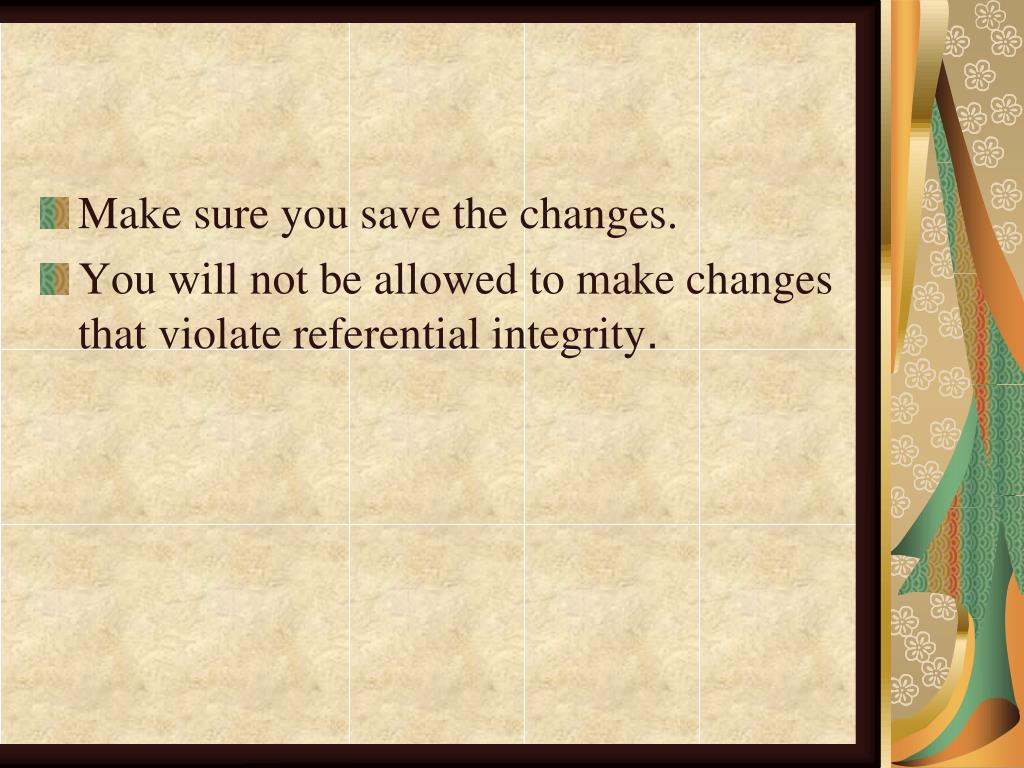

18. Make sure you save the changes. • You will not be allowed to make changes that violate referential integrity.

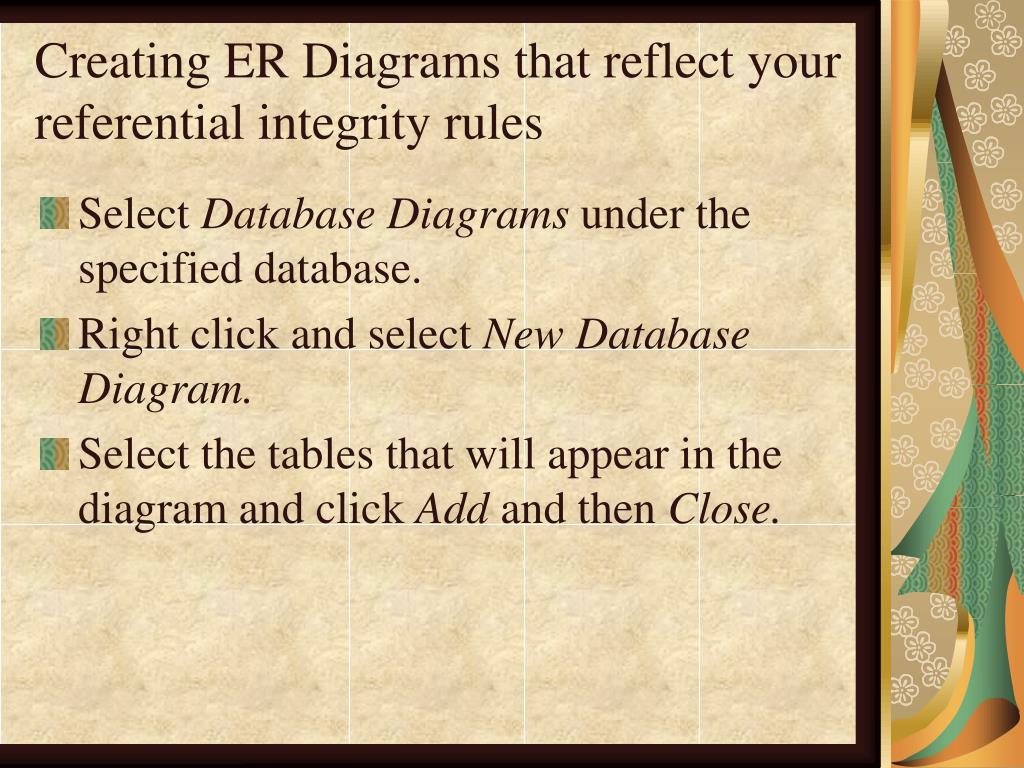

19. Creating ER Diagrams that reflect your referential integrity rules • Select Database Diagrams under the specified database. • Right click and select New Database Diagram. • Select the tables that will appear in the diagram and click Add and then Close.

20. The diagram appears and reflects the referential integrity rules you defined in the database constraints. • Save the diagram and give it a name.

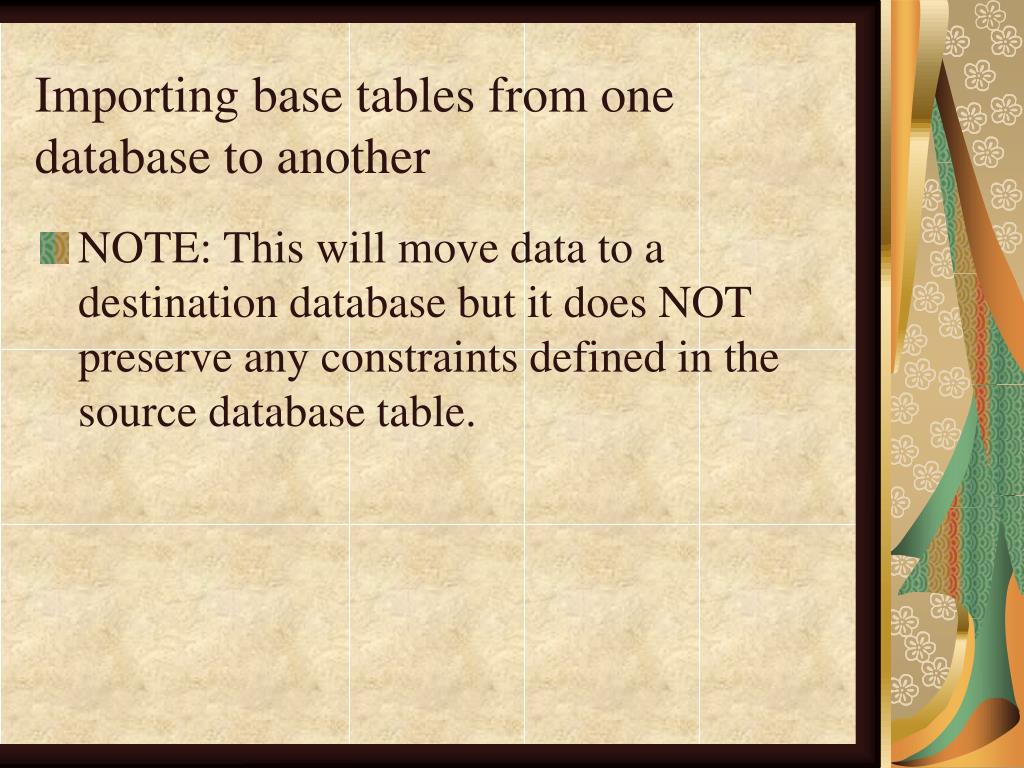

21. Importing base tables from one database to another • NOTE: This will move data to a destination database but it does NOT preserve any constraints defined in the source database table.

22. Right Click on the destination database (your group database) and select tasks  Import Data. • An import Wizard will be activated. • Click Next.

23. Make the following selections to define the source database before clicking Next: • Under Data Source select Microsoft OLE DB Provider for SQL Server. • Under Server name select ICSD. If you don’t see it, just type it in • Select the Use Windows Authentication radio button. • Under Database select the database you want to copy. For example: CS451 Supplier. • Click Next.

24. Make/verify the following selections for your destination database: • Under Destination select Microsoft OLE DB Provider for SQL Server. • Under Server select (or type)ICSD. • Select the Use Windows Authentication radio button. • Under Database select the database you want to copy to. For example: CS451_G1. • Click Next.

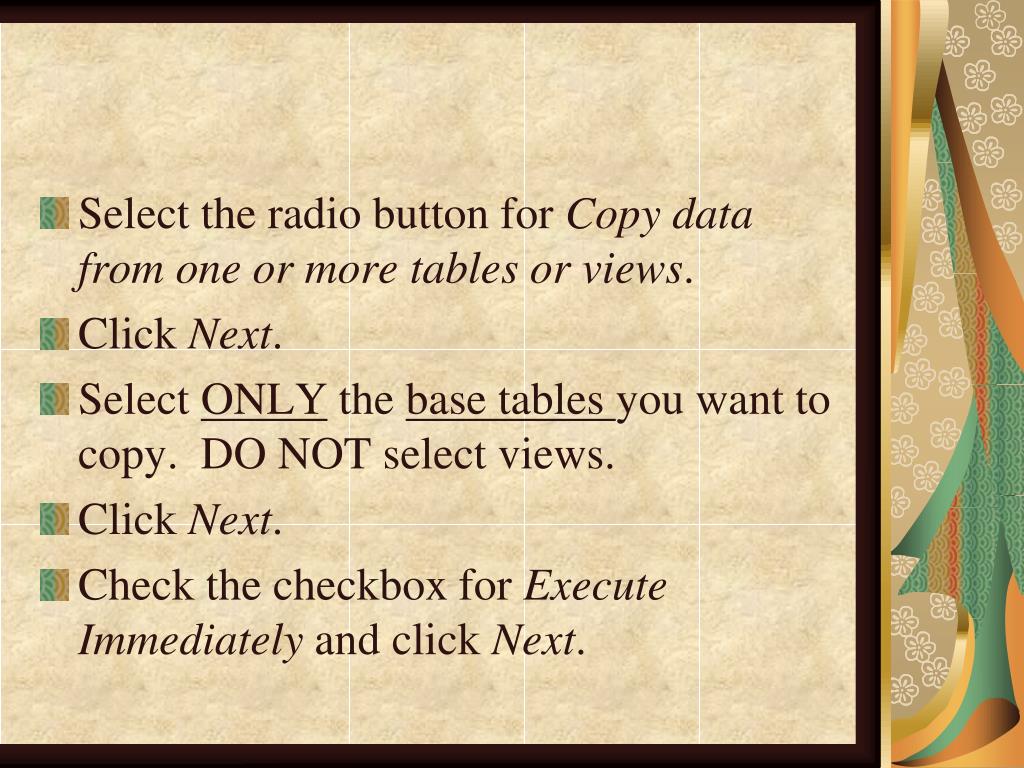

25. Select the radio button for Copy data from one or more tables or views. • Click Next. • Select ONLY the base tables you want to copy. DO NOT select views. • Click Next. • Check the checkbox for Execute Immediately and click Next.

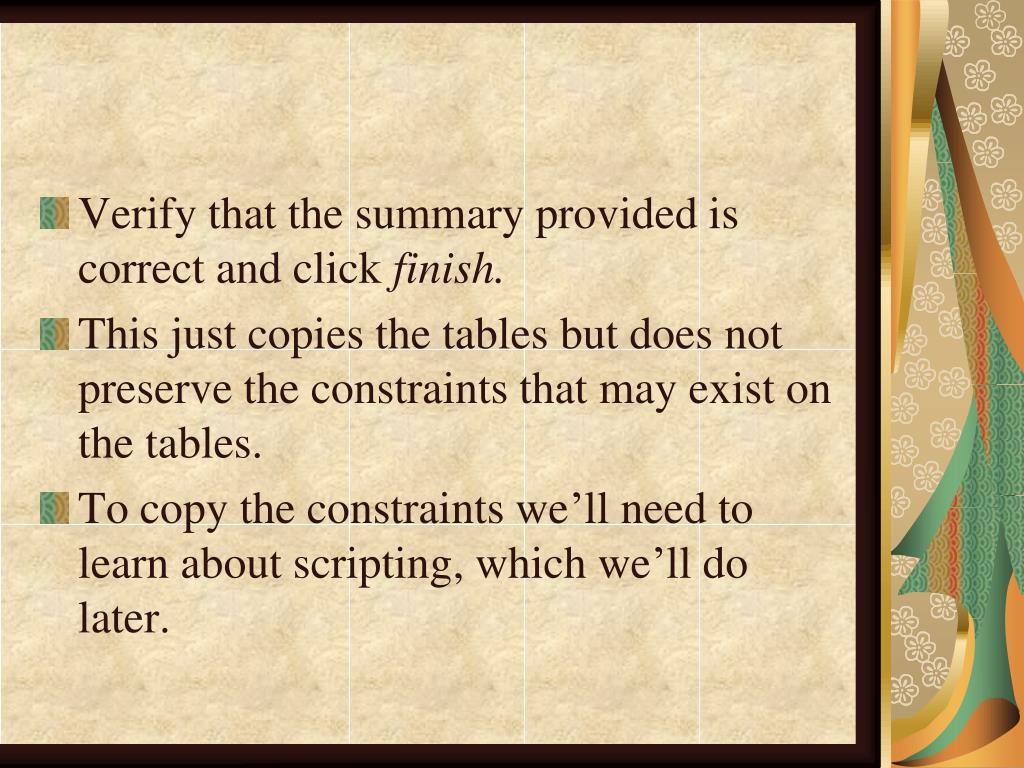

26. Verify that the summary provided is correct and click finish. • This just copies the tables but does not preserve the constraints that may exist on the tables. • To copy the constraints we’ll need to learn about scripting, which we’ll do later.

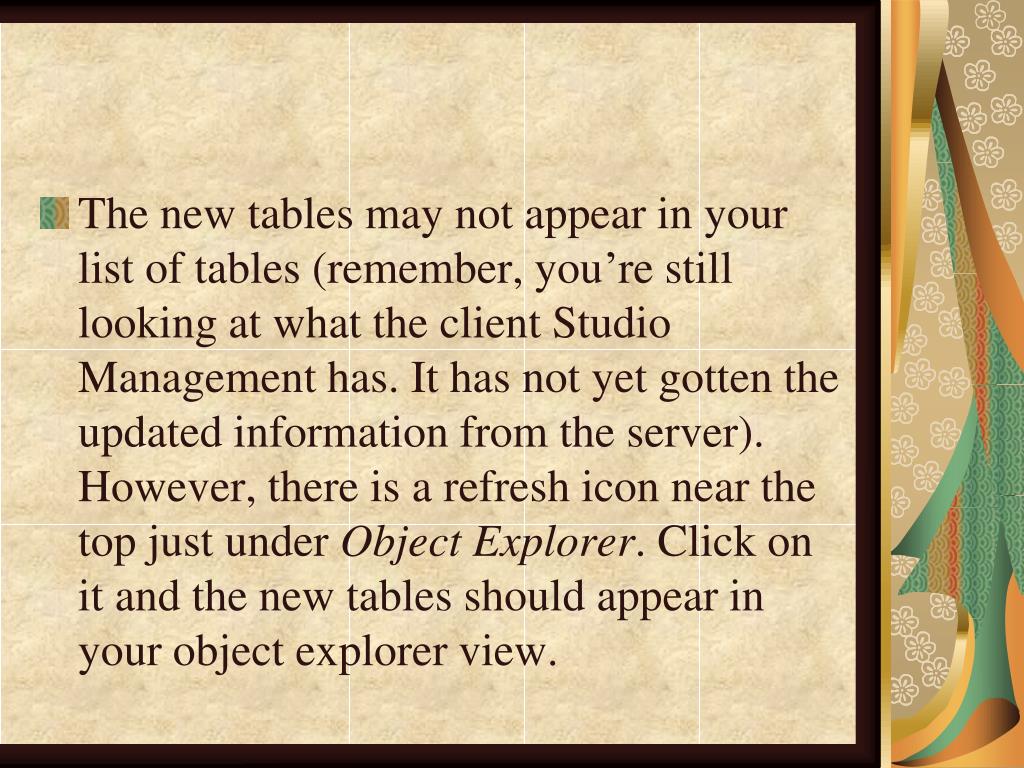

27. The new tables may not appear in your list of tables (remember, you’re still looking at what the client Studio Management has. It has not yet gotten the updated information from the server). However, there is a refresh icon near the top just under Object Explorer. Click on it and the new tables should appear in your object explorer view.
