  1. Sony Machine Vision Line Up 2014 XCG Line up

  2. XCG Series • Standard • ExViewHad II • VGA～5M • High Quality • High resolution • High Speed • High Sensitivity • XCG-V60E • XCG-SX99E • XCG-U100E • XCG-U100CR • XCG-5005E • XCG-5005CR • XCG-H280E • XCG-H280CR

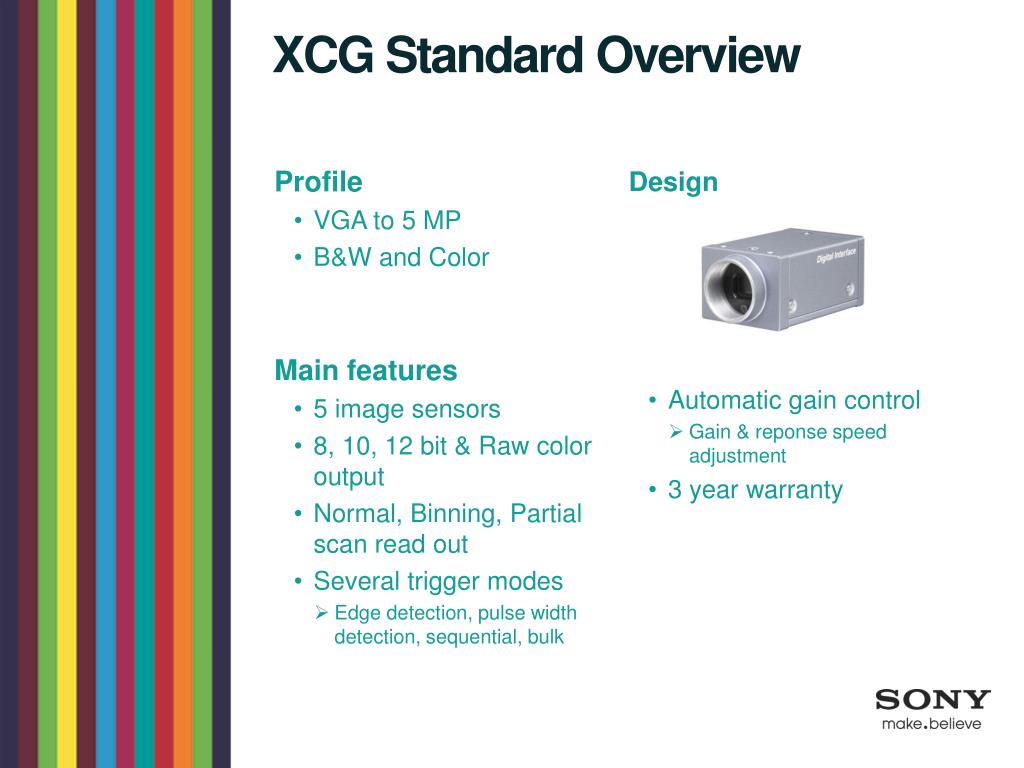

  3. XCG Standard Overview Profile • VGA to 5 MP • B&W and Color Main features • 5 image sensors • 8, 10, 12 bit & Raw color output • Normal, Binning, Partial scan read out • Several trigger modes • Edge detection, pulse width detection, sequential, bulk Design • Automatic gain control • Gain & reponse speed adjustment • 3 year warranty

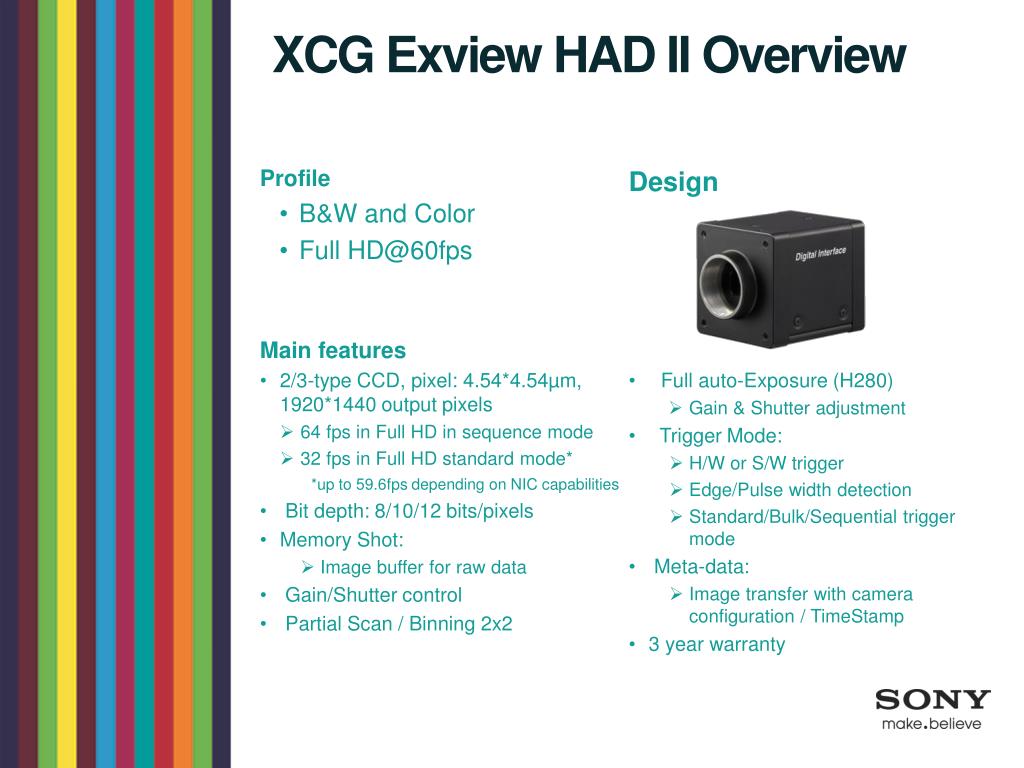

  4. XCG Exview HAD II Overview Profile • B&W and Color • Full HD@60fps Main features • 2/3-type CCD, pixel: 4.54*4.54µm, 1920*1440 output pixels • 64 fps in Full HD in sequence mode • 32 fps in Full HD standard mode* *up to 59.6fps depending on NIC capabilities • Bit depth: 8/10/12 bits/pixels • Memory Shot: • Image buffer for raw data • Gain/Shutter control • Partial Scan / Binning 2x2 Design Full auto-Exposure (H280) • Gain & Shutter adjustment • Trigger Mode: • H/W or S/W trigger • Edge/Pulse width detection • Standard/Bulk/Sequential trigger mode • Meta-data: • Image transfer with camera configuration / TimeStamp • 3 year warranty

  5. Resolutions & Frame Rates Frame Rate XCG-H280E/CR 90 fps XCG-V60E B&W 50 fps B&W CR XCG-SX99E 27 fps B&W CR XCG-U100CR XCG-SX97E B&W 16 fps B&W B&W 15 fps CR XCG-U100E XCG-5005E/CR SXGA UXGA Full HD 5Mp VGA Resolution

  6. Features Hightlight Image Sensor High Speed Acquisition (Partial San) Binning Gain Control Sensitivity control (XCG-H280) White Balance (Color models) Trigger modes Auto Exposure Chunk Data (XCG-H280) LUT Memory Channel SDRAM data Flow for packet resending

  7. Image Sensor (Standard) Image Sensor The XCG-U100CR and the XCG-5005CR incorporates highly renowned and widely adopted Sony’s “Super HAD CCD” sensor and achieves high frame rate at high resolution(XCG-U100CR : 27fps @ 2Mega pixels, XCG- 5005CR : 15fps @5Mega pixels) without decreasing the picture quality. By activating the sensor in high frame rate, the influence of smear is reduced and it is helpful for outdoor application.

  8. XCG-H280E/CR (ExView HAD II) • 2/3-type CCD, pixel: 4.54*4.54µm, 1920*1440 output pixels • 64 fps in Full HD in sequence mode • 32 fps in Full HD, standard free run mode* *up to 59.6fps depending on NIC capabilities EXview HAD CCD Ⅱ EXview HAD CCD Super HAD CCD Ⅱ = + EXview HAD II technology Technology to improve sensitivity

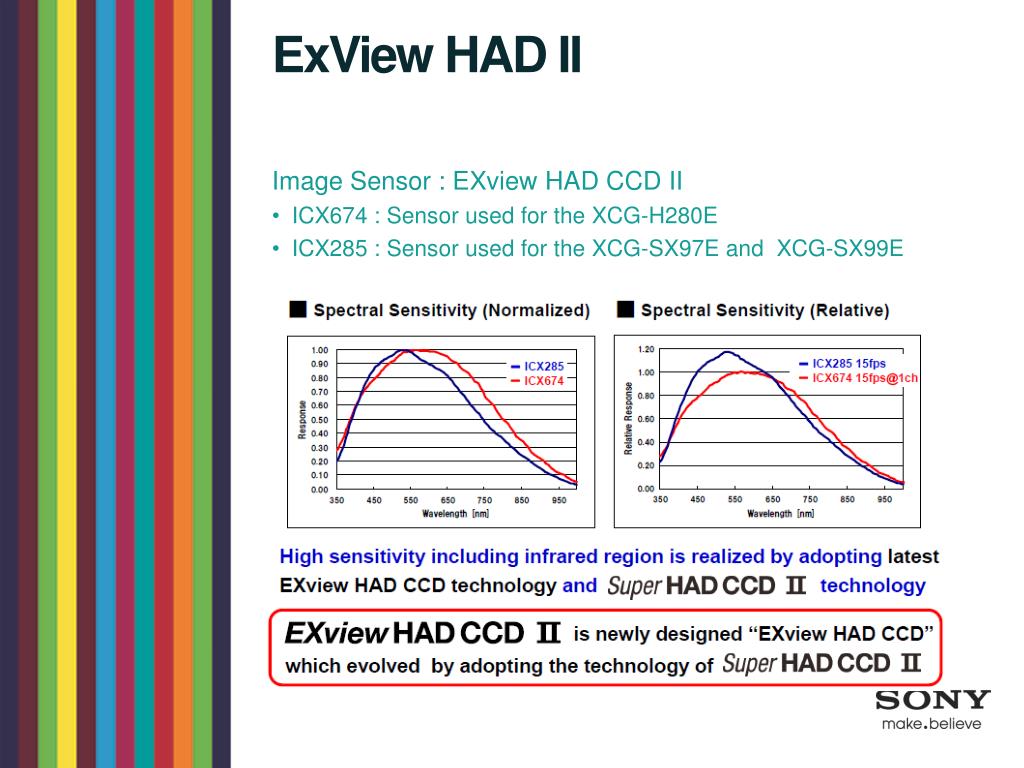

  9. ExView HAD II Image Sensor : EXview HAD CCD II • ICX674 : Sensor used for the XCG-H280E • ICX285 : Sensor used for the XCG-SX97E and XCG-SX99E

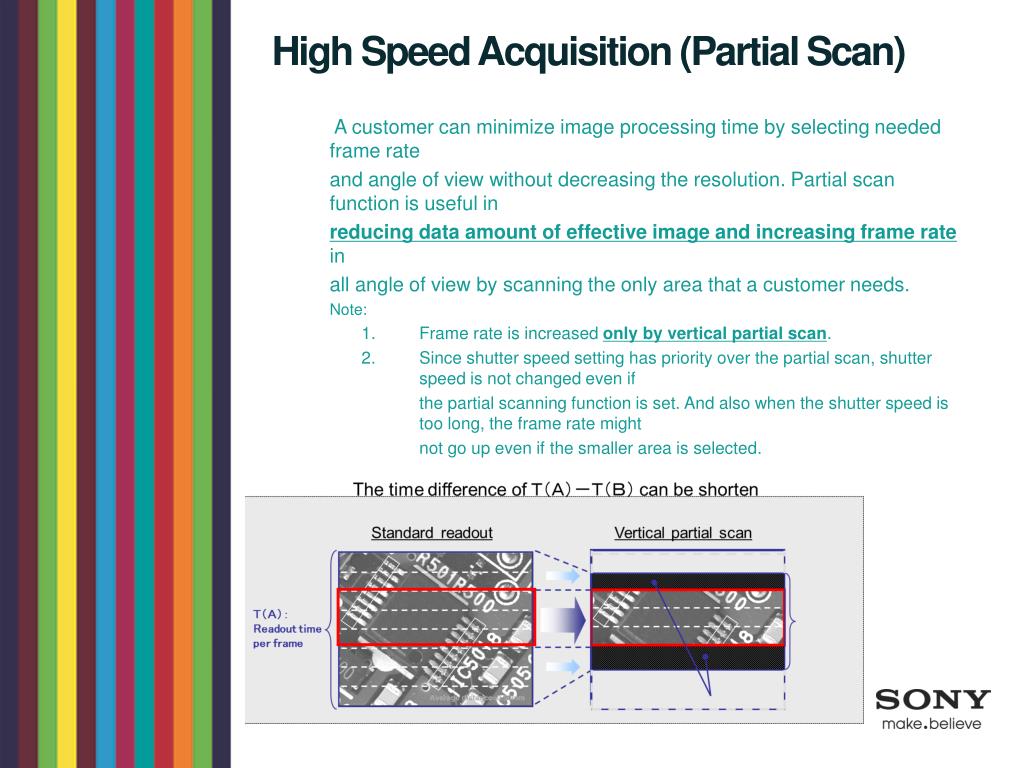

  10. High Speed Acquisition (Partial Scan) A customer can minimize image processing time by selecting needed frame rate and angle of view without decreasing the resolution. Partial scan function is useful in reducing data amount of effective image and increasing frame rate in all angle of view by scanning the only area that a customer needs. Note: • Frame rate is increased only by vertical partial scan. • Since shutter speed setting has priority over the partial scan, shutter speed is not changed even if the partial scanning function is set. And also when the shutter speed is too long, the frame rate might not go up even if the smaller area is selected.

  11. Parameter: “Offset X” Parameter: “Width” Parameter: “Offset Y” Parameter: “Height” High Speed Acquisition (Partial Scan) Partial scan function for the GigE Vision camera the XCG and the is to partly clip specified position of angle and fixes number of pixels and lines by setting four parameters (Offset X/Y and Width/Height). Four parameters

  12. Binning Combines 2/4 pixels together with the following benefits • Sensitivity increase • Readout noise reduction • Data reduction with same field of view as full resolution image • Frame rate increase with vertical binning Ex : XCG-H280

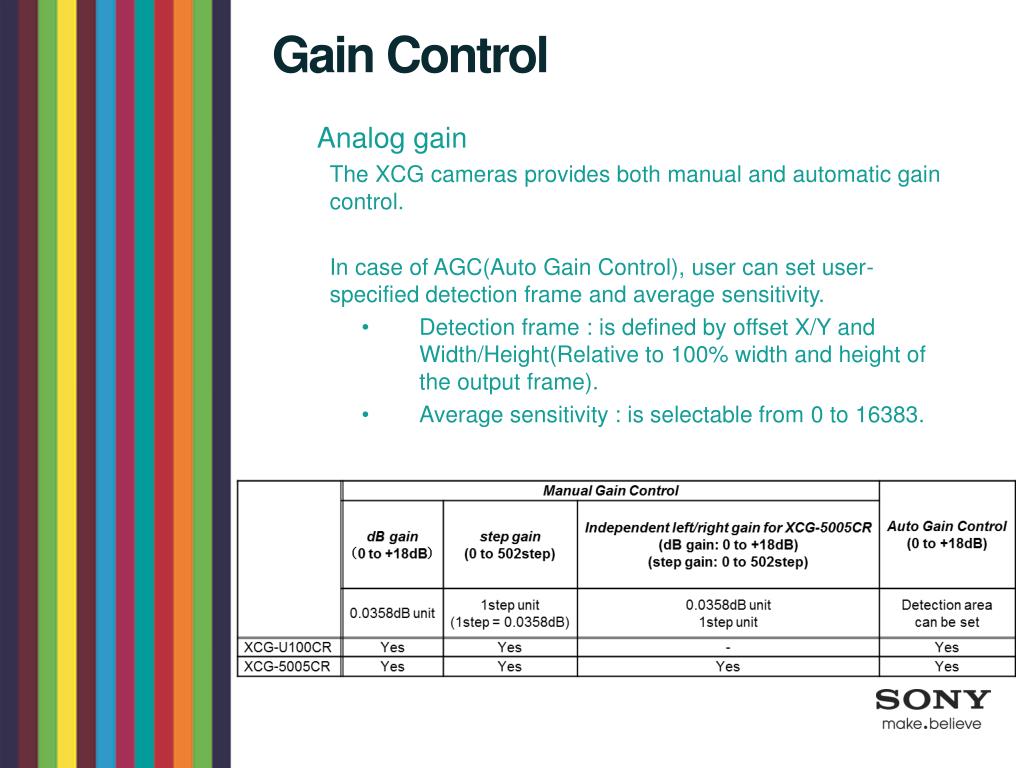

  13. Gain Control Analog gain The XCG cameras provides both manual and automatic gain control. In case of AGC(Auto Gain Control), user can set user-specified detection frame and average sensitivity. • Detection frame : is defined by offset X/Y and Width/Height(Relative to 100% width and height of the output frame). • Average sensitivity : is selectable from 0 to 16383.

  14. Gain Control Digital Gain The XCG camera provides a digital gain function and the value is variable from 1x to 2x(0.015625x step). This digital gain is useful to increase the sensitivity without increasing noise which is not visible when analog gain is set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Analog gain : +18dB Digital gain : 1x . . . Analog gain : 0dB Digital gain : 1x .

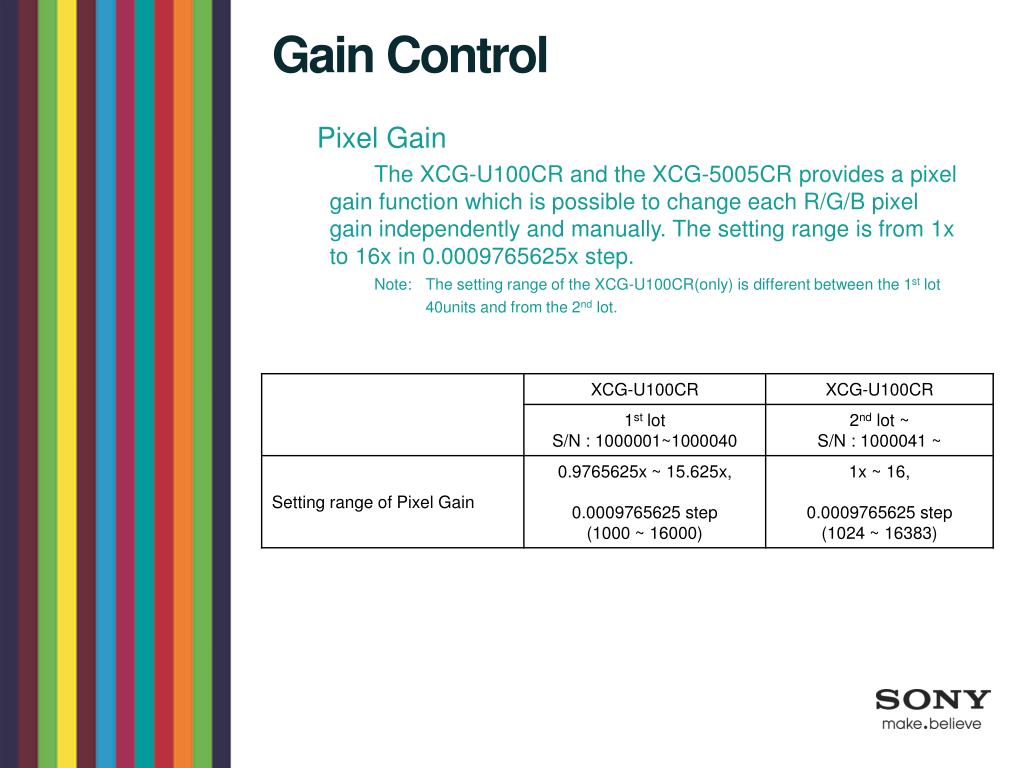

  15. Gain Control Pixel Gain The XCG-U100CR and the XCG-5005CR provides a pixel gain function which is possible to change each R/G/B pixel gain independently and manually. The setting range is from 1x to 16x in 0.0009765625x step. Note: The setting range of the XCG-U100CR(only) is different between the 1st lot 40units and from the 2nd lot.

  16. Sensitivity ControlHW – XCG-H280 Wavelength ：～380nm UV: Ultra Violet ⇒Surface check Wavelength ： 380nm～760nm “Visible area” Wavelength ：760nm～ IR：Infrared ⇒ Internal check

  17. Sensitivity ControlHW XCG-H280 CCD substrate bias voltage adjustment • By adjusting the substrate bias, the saturation signal charge can be increased or decreased • Increasing the saturation signal charge improves the sensitivity • Decreasing the saturation signal charge reduced the smearing • Easy hardware modification required Smear Smear reduction Sensitivity improvement

  18. White Balance (CR) The XCG color models provide One-push White Balance which is possible to adjust white balance by controlling R gain and B gain corresponding to the G gain for a user-specified detection frame ONCE upon executing the command. The detection frame is defined by offset X/Y and Width/Height(Relative to 100% width and height of the output frame) as well as analog gain setting.

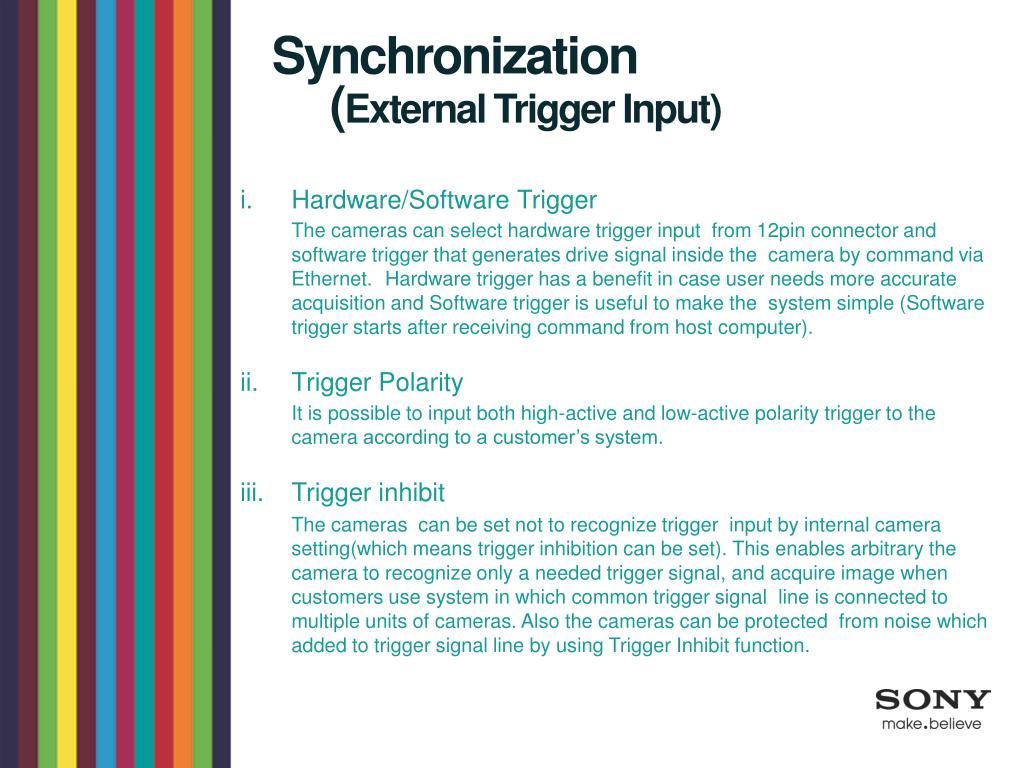

  19. Synchronization(External Trigger Input) • Hardware/Software Trigger The cameras can select hardware trigger input from 12pin connector and software trigger that generates drive signal inside the camera by command via Ethernet.Hardware trigger has a benefit in case user needs more accurate acquisition and Software trigger is useful to make the system simple (Software trigger starts after receiving command from host computer). • Trigger Polarity It is possible to input both high-active and low-active polarity trigger to the camera according to a customer’s system. • Trigger inhibit The cameras can be set not to recognize trigger input by internal camera setting(which means trigger inhibition can be set). This enables arbitrary the camera to recognize only a needed trigger signal, and acquire image when customers use system in which common trigger signal line is connected to multiple units of cameras. Also the cameras can be protected from noise which added to trigger signal line by using Trigger Inhibit function.

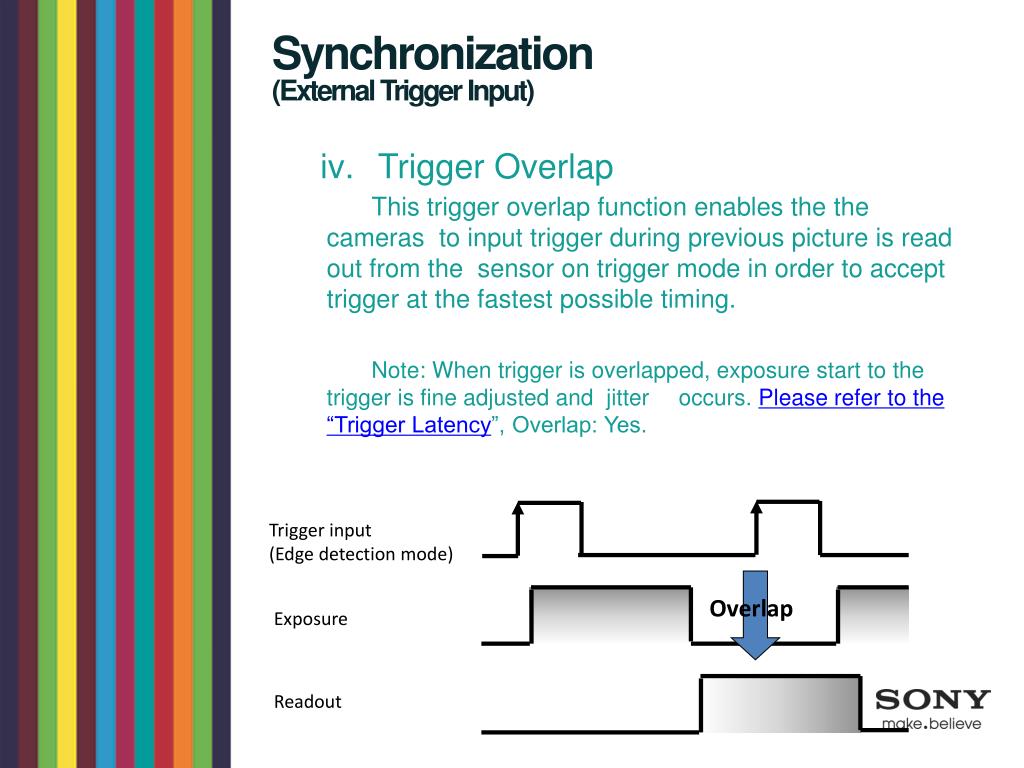

  20. Synchronization(External Trigger Input) • Trigger Overlap This trigger overlap function enables the the cameras to input trigger during previous picture is read out from the sensor on trigger mode in order to accept trigger at the fastest possible timing. Note: When trigger is overlapped, exposure start to the trigger is fine adjusted and jitter occurs. Please refer to the “Trigger Latency”, Overlap: Yes. Trigger input (Edge detection mode) Overlap Exposure Readout

  21. Standard Trigger Modes Edge detection Pulse width Configurable trigger delay Configurable trigger delay

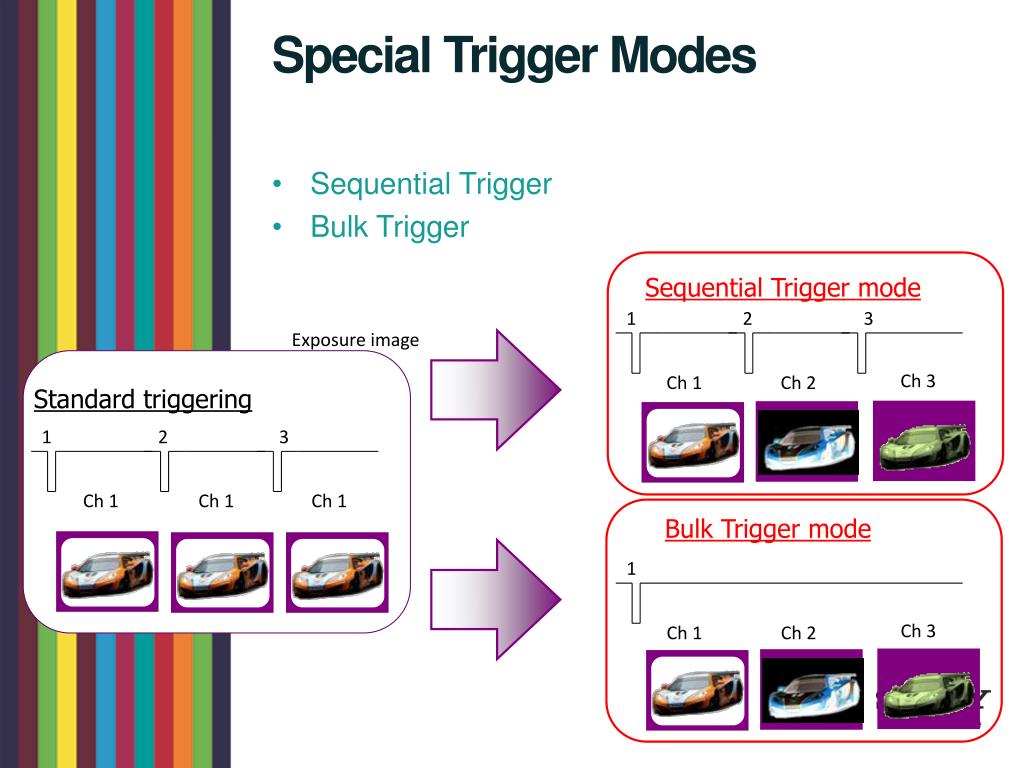

  22. Special Trigger Modes Sequential Trigger Bulk Trigger • Sequential Trigger mode 1 2 3 Exposure image Ch 3 Ch 1 Ch 2 Standard triggering 1 2 3 Ch 1 Ch 1 Ch 1 • Bulk Trigger mode 1 Ch 3 Ch 1 Ch 2

  23. Illustration of response speed adjustment Auto Exposure Combines Auto Gain and Auto Shutter control • Auto Gain only / Auto Shutter only / Auto Exposure (Gain + Shutter) Operations • Dark: increase shutter time until Max Shutter then increase Gain • Bright: decrease Gain until Min Gain then decrease shutter time Parameters • Same target luminance value (14bit) • Same detection area • Max / Min Gain adjustable • Max / Min Shutter speed adjustable • Adjustable response speed

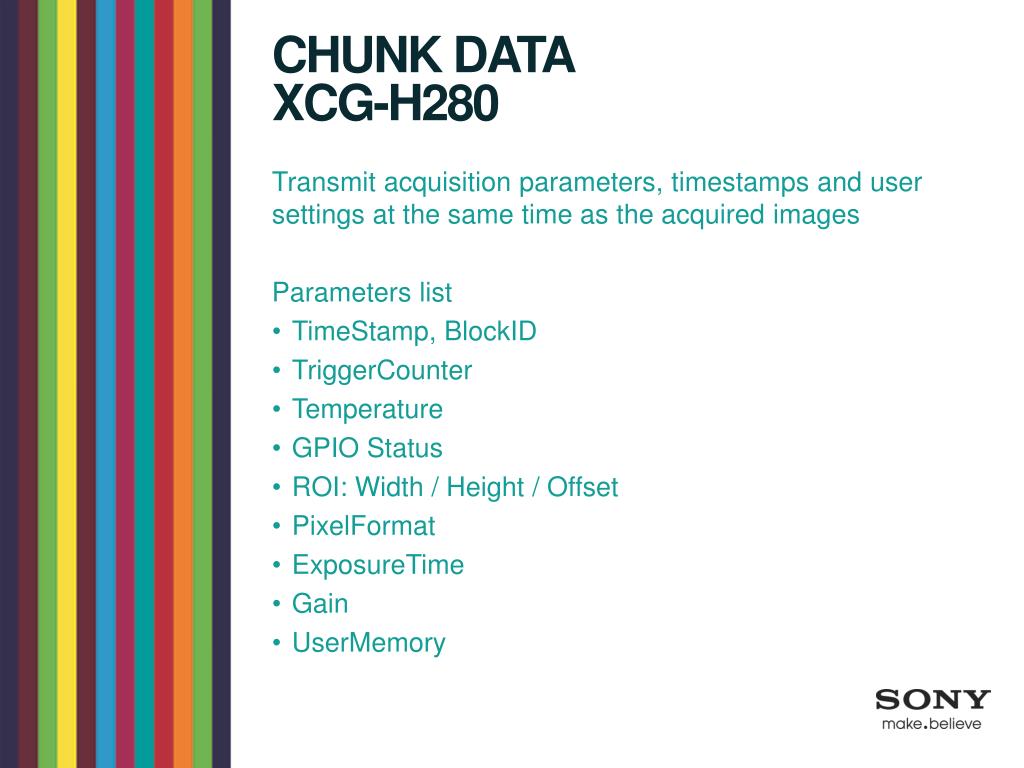

  24. CHUNK DATA XCG-H280 Transmit acquisition parameters, timestamps and user settings at the same time as the acquired images Parameters list • TimeStamp, BlockID • TriggerCounter • Temperature • GPIO Status • ROI: Width / Height / Offset • PixelFormat • ExposureTime • Gain • UserMemory

  25. Lookup Table (LUT) • LUT：Transform the input data into more desirable output format • Input signal (luminance signal) • Output signal (Digital data) • Look Up Table • 4 presets setting • 　★Mode • ⑤ User setting • (IN:12bit、Out:12bit) • ④Linear interpolation • ③Binarization • ② Negative • ① Linear（default）

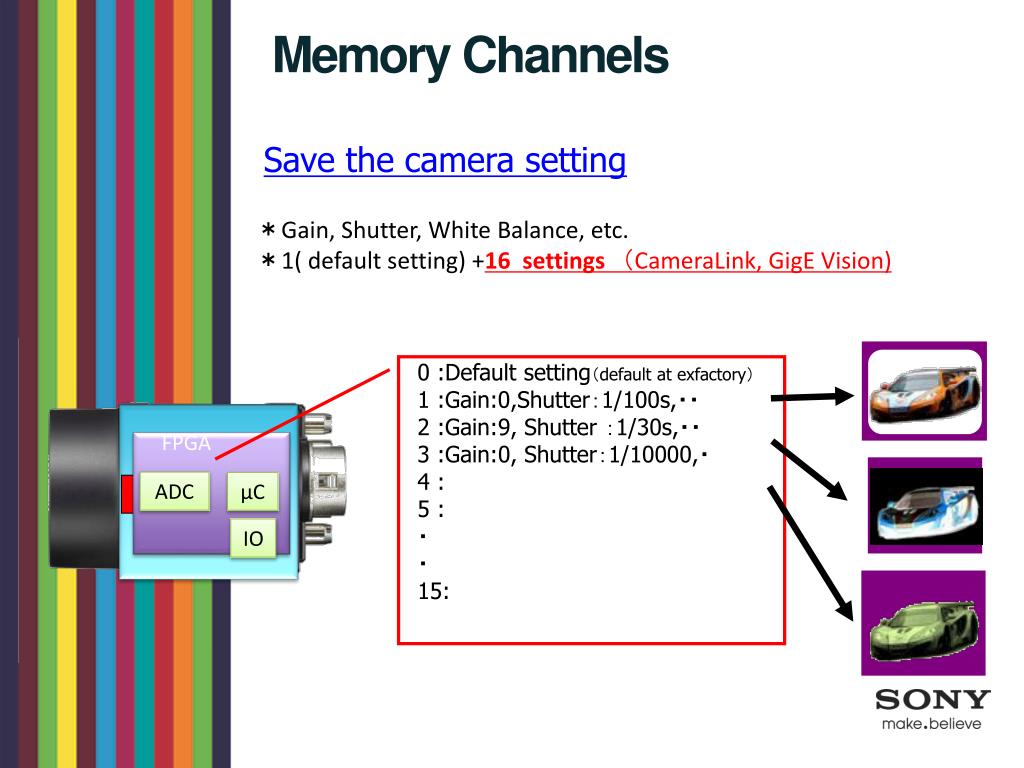

  26. 0 :Default setting（default at exfactory） 1 :Gain:0,Shutter：1/100s,・・ 2 :Gain:9, Shutter：1/30s,・・ 3 :Gain:0, Shutter：1/10000,・ 4 : 5 : ・ ・ 15: Memory Channels • Save the camera setting ＊Gain, Shutter, White Balance, etc. ＊1(default setting) +16 settings　（CameraLink,GigE Vision) FPGA ADC μC IO

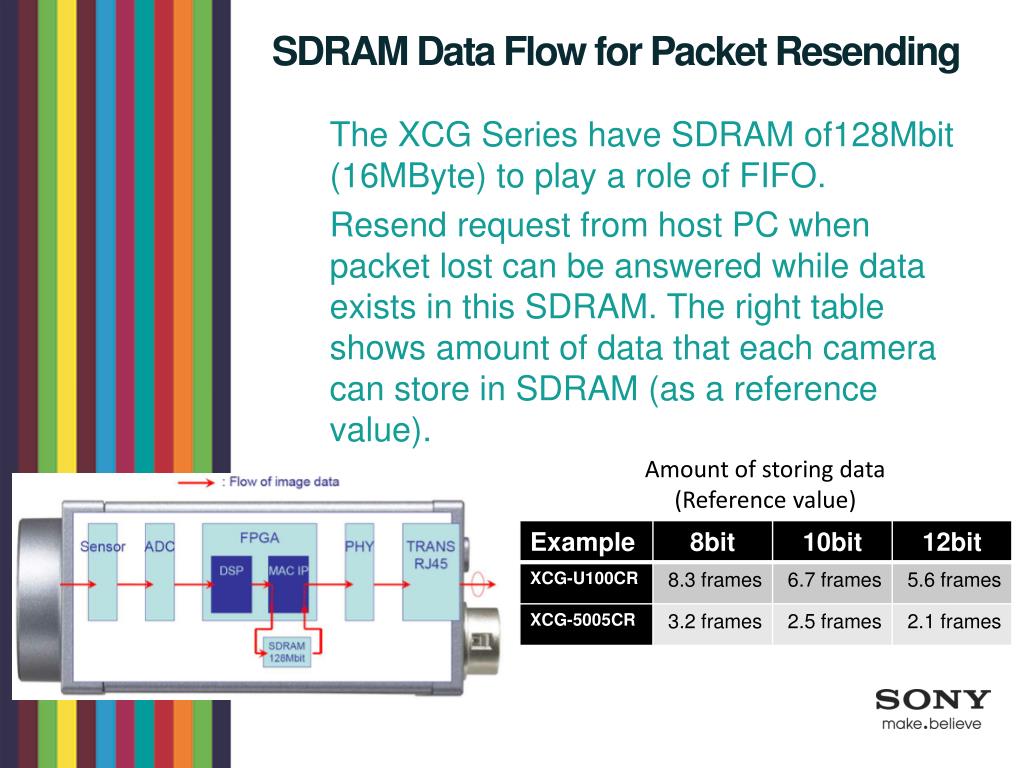

  27. SDRAM Data Flow for Packet Resending The XCG Series have SDRAM of128Mbit (16MByte) to play a role of FIFO. Resend request from host PC when packet lost can be answered while data exists in this SDRAM. The right table shows amount of data that each camera can store in SDRAM (as a reference value). Amount of storing data (Reference value)

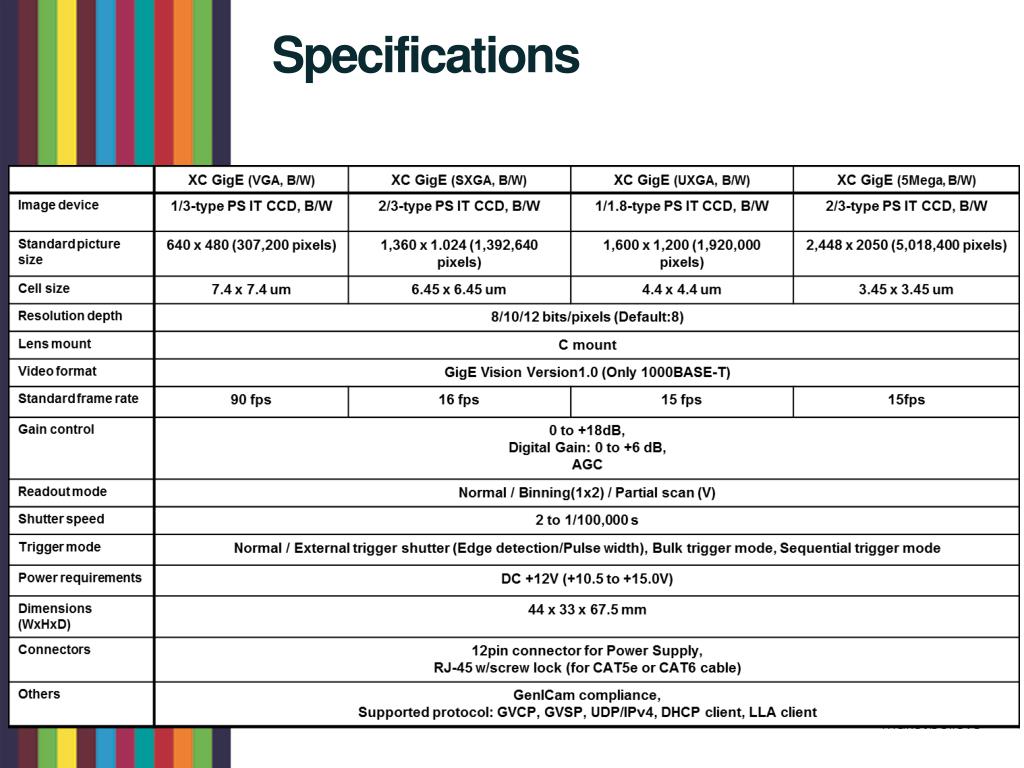

  28. Specifications

  29. Specifications

  30. thank you
