Development of SiTCP: A High-Speed TCP/IP Processing Hardware for Front-End Devices

This paper presents the development of SiTCP, a dedicated TCP/IP processing hardware designed for front-end devices with constraints related to size, power consumption, and data transfer speeds. SiTCP offers high flexibility and connectivity through Ethernet technologies, achieving a line utilization ratio of around 95%. Implemented on an FPGA, it operates at a low power level of less than 730 mW. We detail the implementation, measurement setups, and test results, demonstrating that SiTCP meets the performance needs essential for modern front-end systems.

wes
Télécharger la présentation

Development of SiTCP: A High-Speed TCP/IP Processing Hardware for Front-End Devices

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

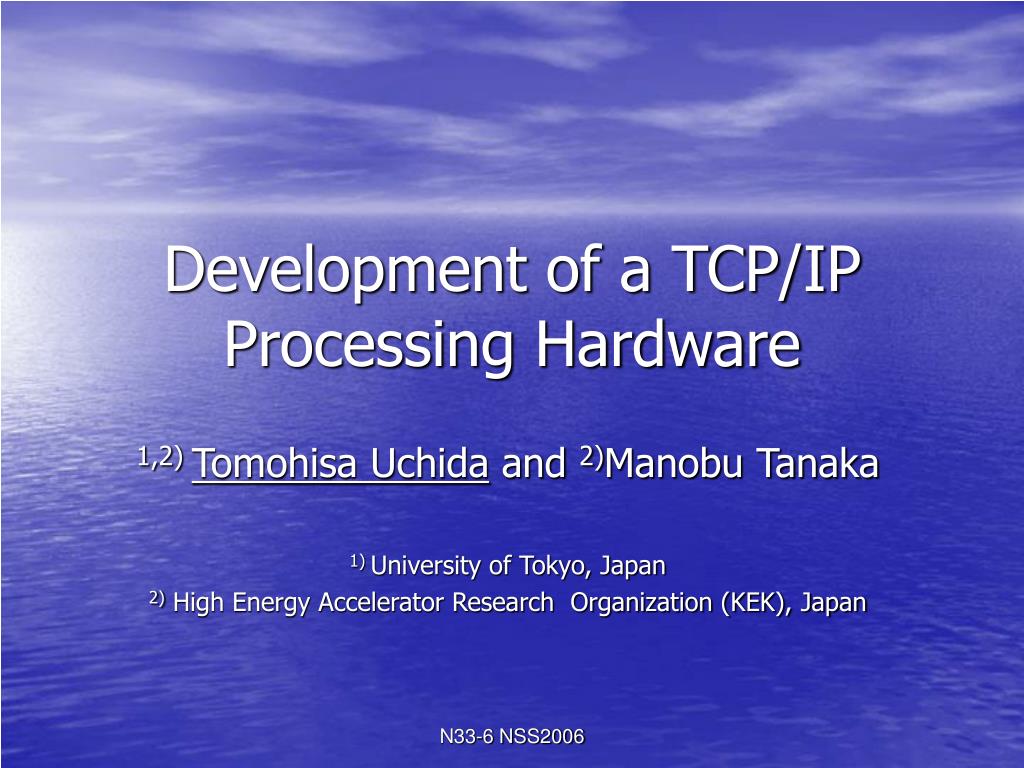

  1. Development of a TCP/IP Processing Hardware 1,2) Tomohisa Uchida and 2)Manobu Tanaka 1) University of Tokyo, Japan 2) High Energy Accelerator Research Organization (KEK), Japan N33-6 NSS2006

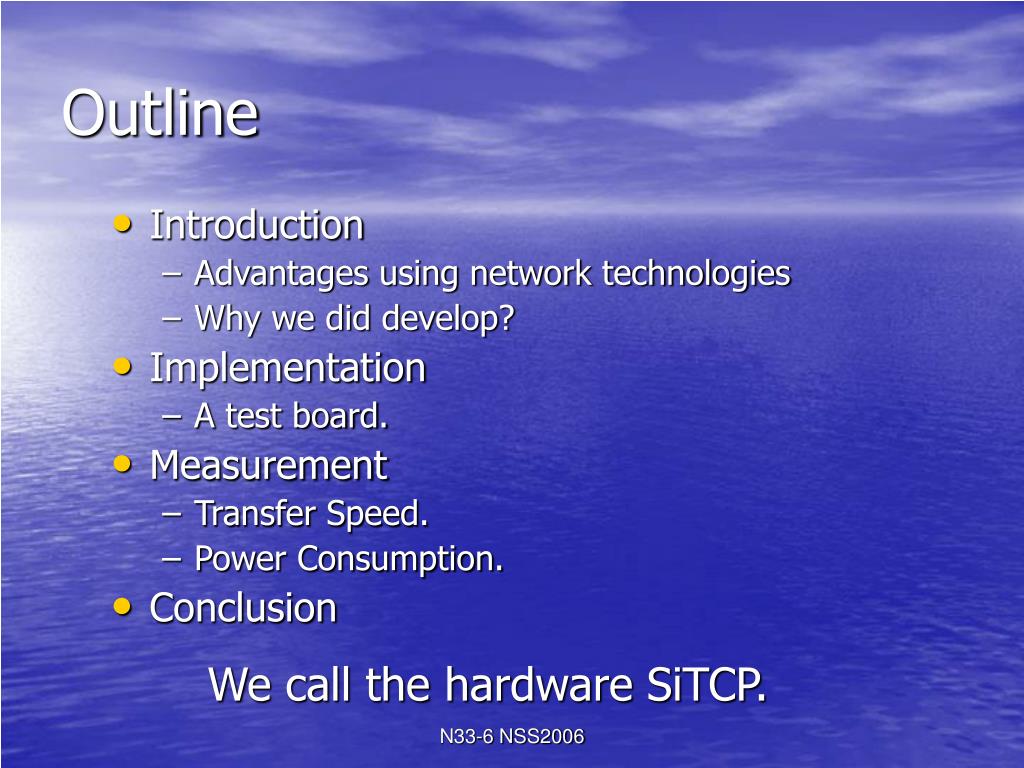

  2. Outline • Introduction • Advantages using network technologies • Why we did develop? • Implementation • A test board. • Measurement • Transfer Speed. • Power Consumption. • Conclusion We call the hardware SiTCP. N33-6 NSS2006

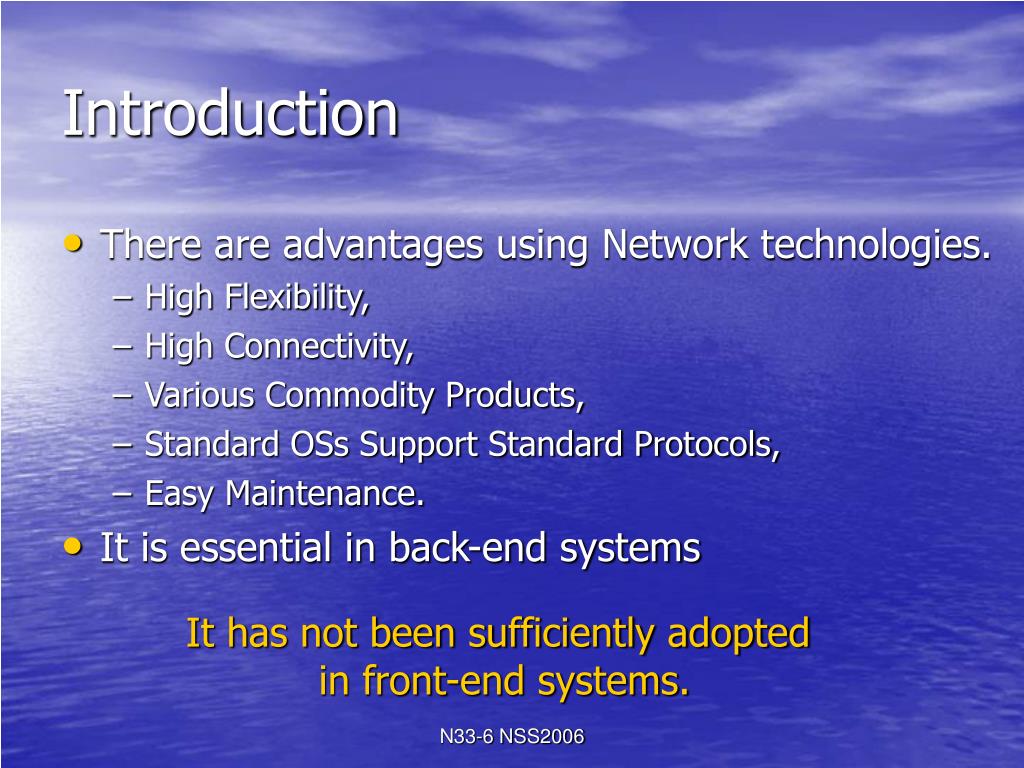

  3. Introduction • There are advantages using Network technologies. • High Flexibility, • High Connectivity, • Various Commodity Products, • Standard OSs Support Standard Protocols, • Easy Maintenance. • It is essential in back-end systems It has not been sufficiently adopted in front-end systems. N33-6 NSS2006

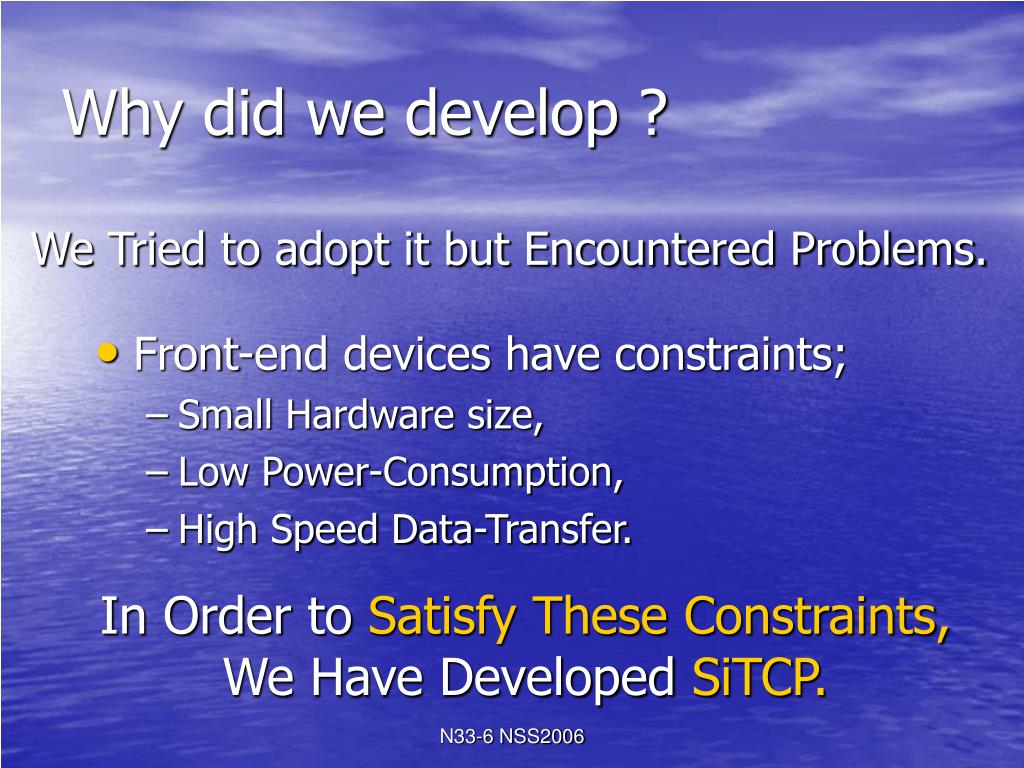

  4. Why did we develop ? • Front-end devices have constraints; • Small Hardware size, • Low Power-Consumption, • High Speed Data-Transfer. We Tried to adopt it but Encountered Problems. In Order to Satisfy These Constraints, We Have Developed SiTCP. N33-6 NSS2006

  5. Features • Small Hardware size • Implemented on an FPGA • Small Power Consumption • < 730mW • System Clock is 25MHｚ with 100BAST-T. • High Transfer-Speed • Line Utilization of TCP data is about 95%. • Reach to The Theoretical Limit. • Simple External Interface • Like a Sync. FIFO-Memory-device. N33-6 NSS2006

  6. Implementation In order to measure performance, We developed a Test board. Ethernet PHY SMSC LAN83C185 FPGA SiTCP on It Xilinx XC3S500E RJ45 ~2,000 Slices (40% logic resources) are used Test Board Small Size N33-6 NSS2006

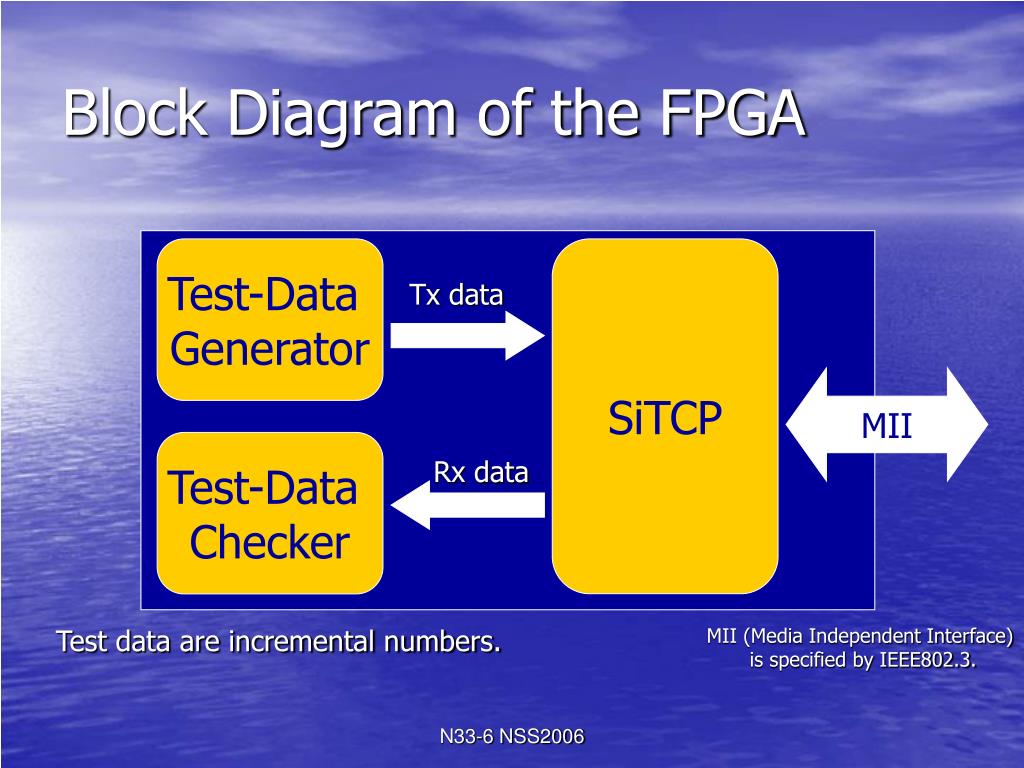

  7. Block Diagram of the FPGA Test-Data Generator SiTCP Tx data MII Test-Data Checker Rx data Test data are incremental numbers. MII (Media Independent Interface) is specified by IEEE802.3. N33-6 NSS2006

  8. Measurement • Confirmed capability to communicate a PC • Using a Linux OS. • With a Simple Application Program • Using Standard SOCKT() functions • Receiving only • Measured Transfer Speed • From a SiTCP (Test board) to a PC N33-6 NSS2006

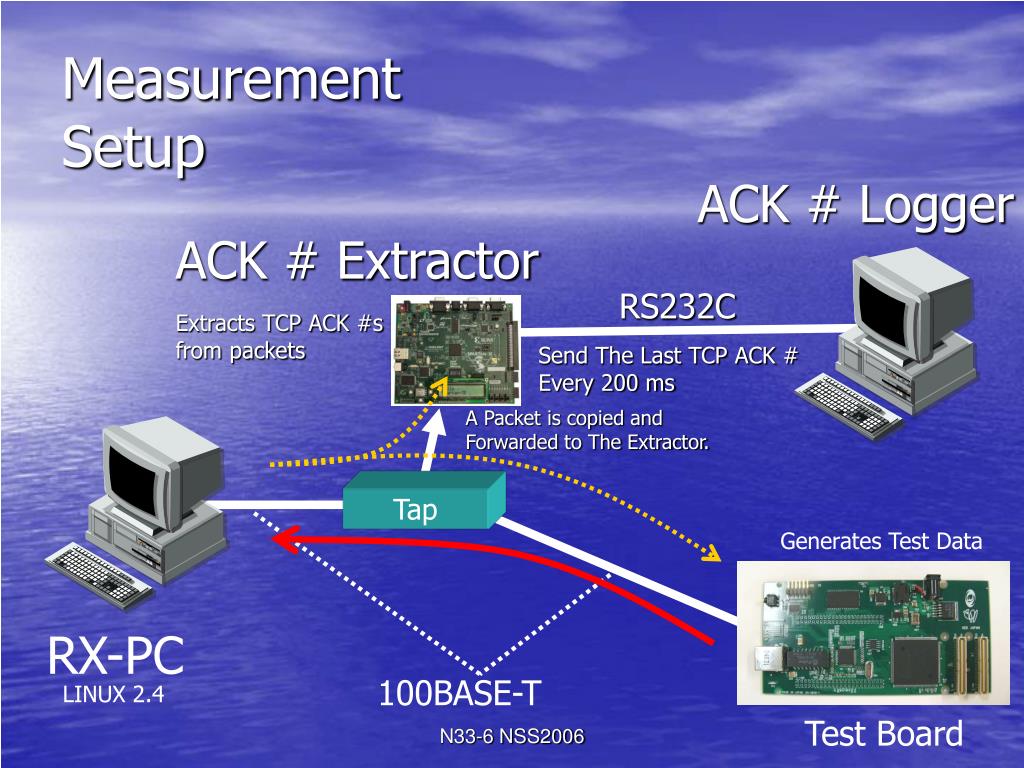

  9. MeasurementSetup ACK # Logger ACK # Extractor RS232C Extracts TCP ACK #s from packets Send The Last TCP ACK # Every 200 ms A Packet is copied and Forwarded to The Extractor. Tap Generates Test Data RX-PC 100BASE-T LINUX 2.4 N33-6 NSS2006 Test Board

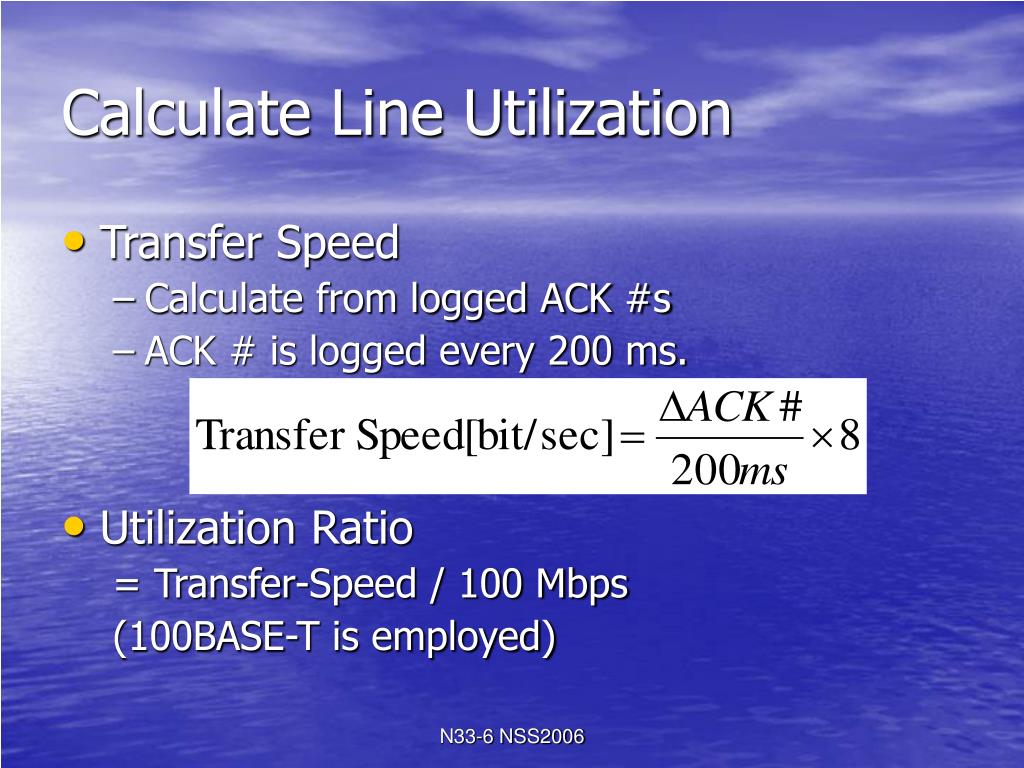

  10. Calculate Line Utilization • Transfer Speed • Calculate from logged ACK #s • ACK # is logged every 200 ms. • Utilization Ratio = Transfer-Speed / 100 Mbps (100BASE-T is employed) N33-6 NSS2006

  11. Result Reaches The Theoretical Limit Theoretical Limit Utilization Ratio (%) Power Consumption < 730 mW (The whole board) N33-6 NSS2006

  12. Conclusion We have developed the TCP/IP processing hardware (SiTCP). • Enough Performance for Front-end Devices • High-Speed Data Transfers • 95% (Line Utilization of TCP data) • Small Hardware Size • 41% logic resources are used of XC3S500E • Low Power Consumption • < 730 mW (The Whole Board) SiTCP enables Front-end devices to adopt Network-technologies. N33-6 NSS2006

  13. Supplemental Slides N33-6 NSS2006

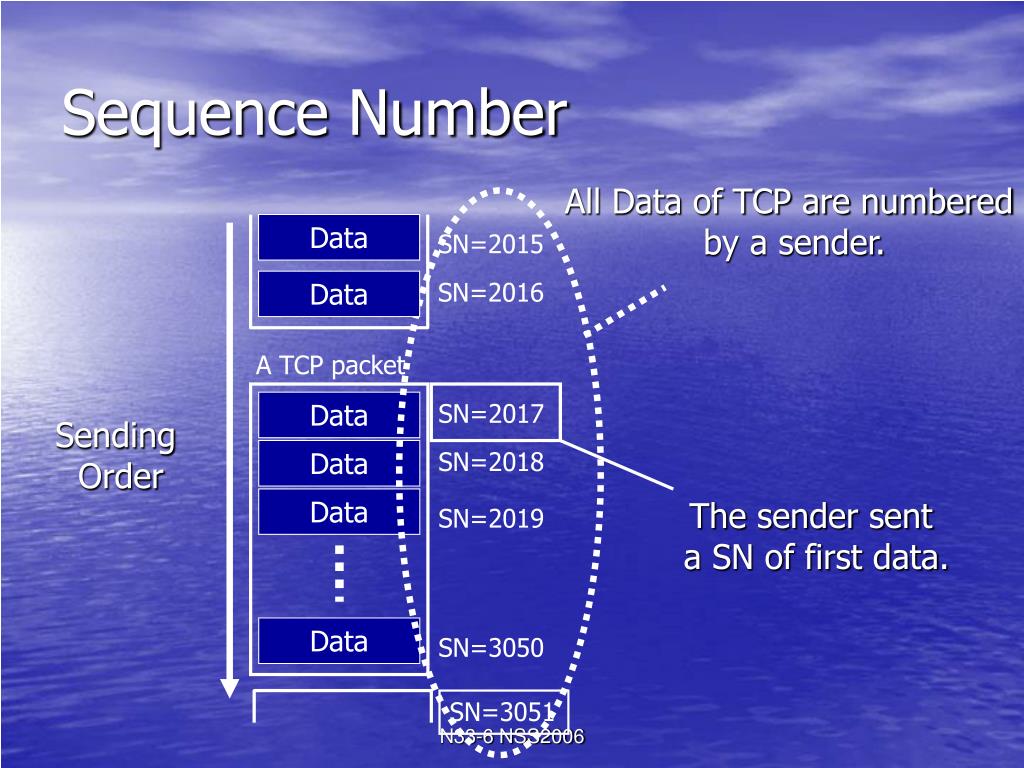

  14. Sequence Number All Data of TCP are numbered by a sender. Data SN=2015 Data SN=2016 A TCP packet Data SN=2017 Sending Order Data SN=2018 Data The sender sent a SN of first data. SN=2019 Data SN=3050 SN=3051 N33-6 NSS2006

  15. Acknowledge Number Data SN=2015 The Receiver is Expecting Data SN=2016 A TCP packet Data SN=2017 Receiving Order Check the SN. Data SN=2018 Data SN=2019 The Receiver sent back the expecting next SN As ACK #. Data SN=3050 SN=3051 ACK # = 3051 N33-6 NSS2006

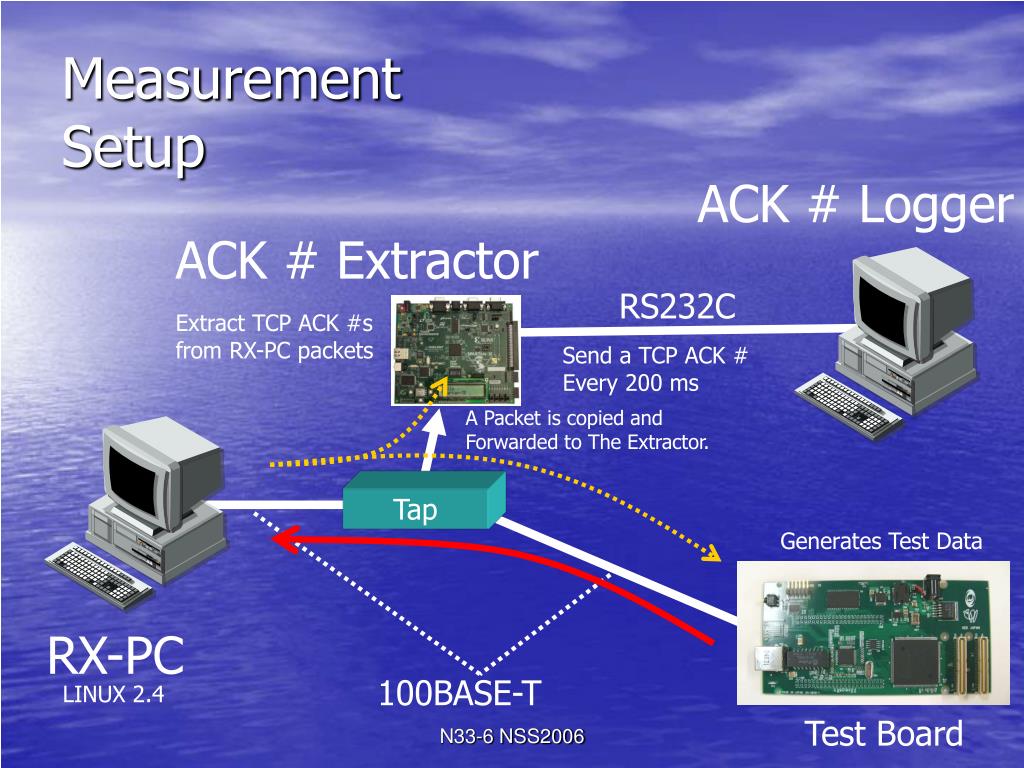

  16. MeasurementSetup ACK # Logger ACK # Extractor RS232C Extract TCP ACK #s from RX-PC packets Send a TCP ACK # Every 200 ms A Packet is copied and Forwarded to The Extractor. Tap Generates Test Data RX-PC 100BASE-T LINUX 2.4 N33-6 NSS2006 Test Board

  17. Transfer Capability TestTransfer Rates of Both Directions • Measured Transfer Speed • Between SiTCPs • Both directions • Simultaneously N33-6 NSS2006

  18. Capability TestTransfer Data of Both Directions ACK # Logger RS232C ACK # Extractor X 2 Ethernet Tap TCP Server 100BASE-T TCP Client N33-6 NSS2006

  19. Line Utilization between SiTCPs Avg. Utilization ~ 95% (95 Mbps) Stable Server→ Client Client → Server N33-6 NSS2006

  20. Comparison toA Standard Implementation • An Standard Implementation • Using an FPGA • Protocols are processed • on an FPGA, • Using an Embedded CPU, • With a Standard OS • Linux • SUZAKU board • One of the standard implementations. N33-6 NSS2006

  21. SUZAKU board • A Product of Atmark Techno Inc. ,Japan • FPGA • XC3S1000 (Xilinx Inc.) • CPU • Microblaze, Xilinx Inc. • Embedded in an FPGA • uClinux Consists of an FPGA, an Ethernet Controller chip, a Flash Memory, a DRAM. N33-6 NSS2006

  22. Setup ACK # Logger ACK # Extractor RS232C Ethernet Hub Ethernet Tap 100BASE-T RX PC N33-6 NSS2006 SUZAKU board

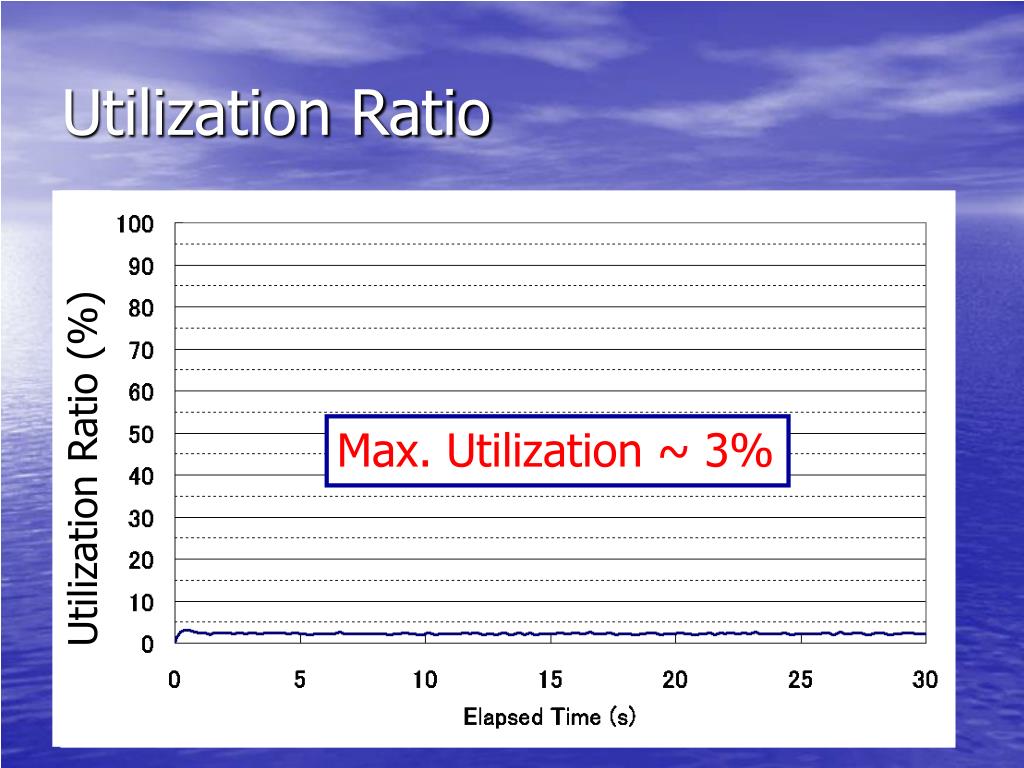

  23. Utilization Ratio Max. Utilization ~ 3% Utilization Ratio (%) N33-6 NSS2006
