  1. Mechanisms Some Basic Orgo I Reactions

  2. Understanding the basics… • Mechanisms are the most mind-boggling part of organic chemistry. • Students, generally speaking, have spent their time memorizing their way through science courses. • Mechanisms require a student to UNDERSTAND the fundamentals of electron flow…

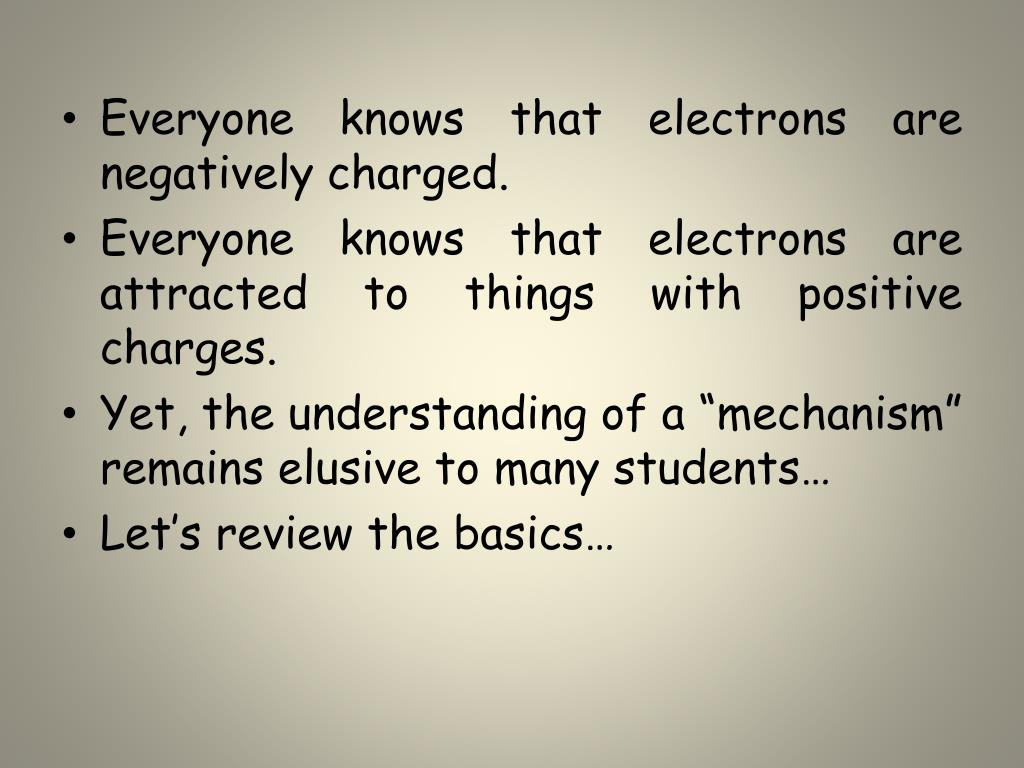

  3. Everyone knows that electrons are negatively charged. • Everyone knows that electrons are attracted to things with positive charges. • Yet, the understanding of a “mechanism” remains elusive to many students… • Let’s review the basics…

  4. Electron flow is always from the electron-rich to the electron-poor species. • The electron-rich species is a Lewis Base (must have a lone pair) and is called the “nucleophile”. • The electron-poor species is a Lewis Acid (must have empty orbital) and is called the “electrophile”.

  5. Examples of Nucleophiles: • Examples of Electrophiles:

  6. SO – electron flow is always from nucleophile to electrophile, electron-rich to electron-poor… • Watch the direction of your arrows • from lone pairs to carbocation…

  7. from anion to cation… • from anion to partial positive charge…

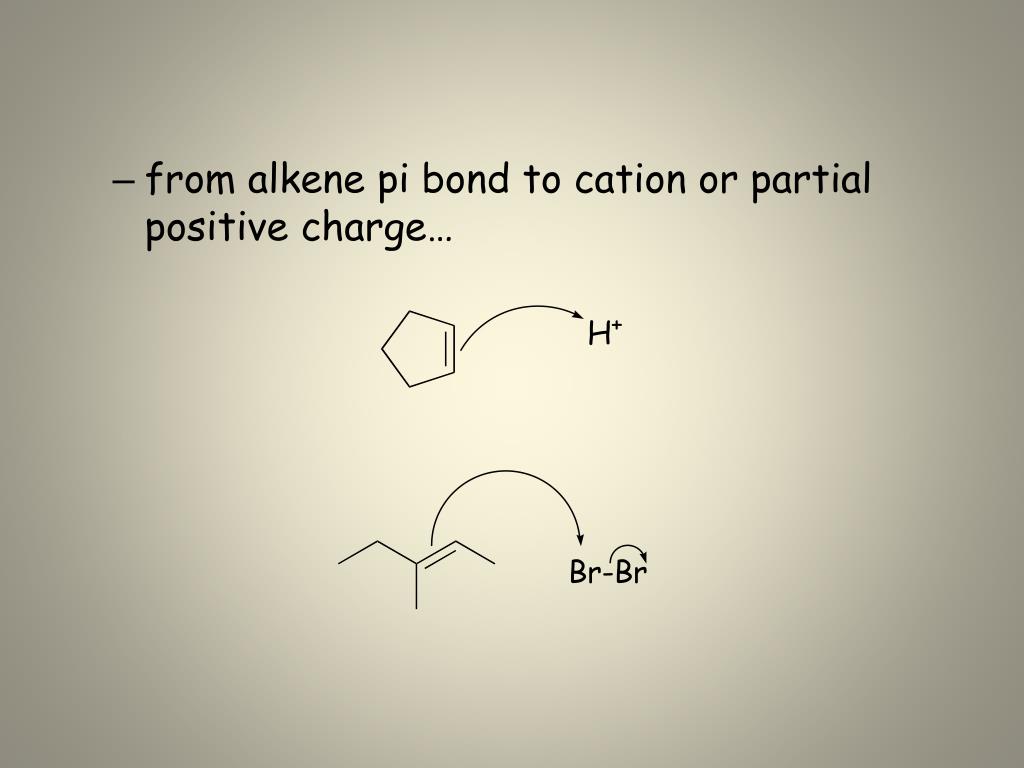

  8. from alkene pi bond to cation or partial positive charge…

  9. When working through a mechanism, the goal is NOT to memorize the steps of a mechanism of a SPECIFIC molecule. When you do that, typically you become too focused on the structures provided in a single example. • If that happens, you will get confused when the next mechanism problem has a DIFFERENT structure.

  10. What you want to do is make a game plan - break down the steps of the mechanism, into little parts or steps. • The basic little steps are easier to remember. • By knowing the steps, you know how the mechanism progresses, regardless of the structure you are given to work with. • SO – break them down…

  11. Dehydration of Alcohols Identify this mechanism – Starts with alcohol, ends with alkene… losing water… Dehydration, Acid-catalyzed… H+ from sulfuric or phosphoric acid…

  12. Dehydration of Alcohols Steps Involved: • Convert –OH to H2O (use that acid!) • Loss of H2O and carbocation formation • Removal of H+, resulting in formation of pi bond to complete the conversion to alkene • E1 mechanism – think Zaitsev and Trans!

  13. Dehydration of Alcohols Step 1: Convert –OH to H2O

  14. Dehydration of Alcohols Step 2: Loss of H2O (“spontaneous dissociation”) to form carbocation

  15. Dehydration of Alcohols Step 3: Removal of H+, resulting in formation of pi bond to complete conversion to alkene

  16. Dehydration of Alcohols - Again Try another example: Alcohol to alkene (using acid) = dehydration (make water, lose water, form alkene)

  17. Dehydration of Alcohols - Again Step 1: Convert –OH to H2O Remember the soul purpose for the acid is to turn the –OH into a water molecule. Now it wants to leave…

  18. Dehydration of Alcohols - Again Step 2: Make the leaving group leave – “spontaneous dissociation” occurs:

  19. Dehydration of Alcohols - Again Step 3: Form the pi bond, make an alkene Find the beta-H on the more substituted side (Zaitsev!)… use your water as a Lewis Base and pull that H+ off, forming a pi bond… Done!

  20. Dehydration of Alcohols – And Again Try one more example: Do the steps… and check that your arrows and intermediates look like those you’re about to see…

  21. Dehydration of Alcohols – And Again Step 1: Convert –OH to H2O Always draw the arrow from electron rich (lone pairs!) to electron poor (positive charge!)

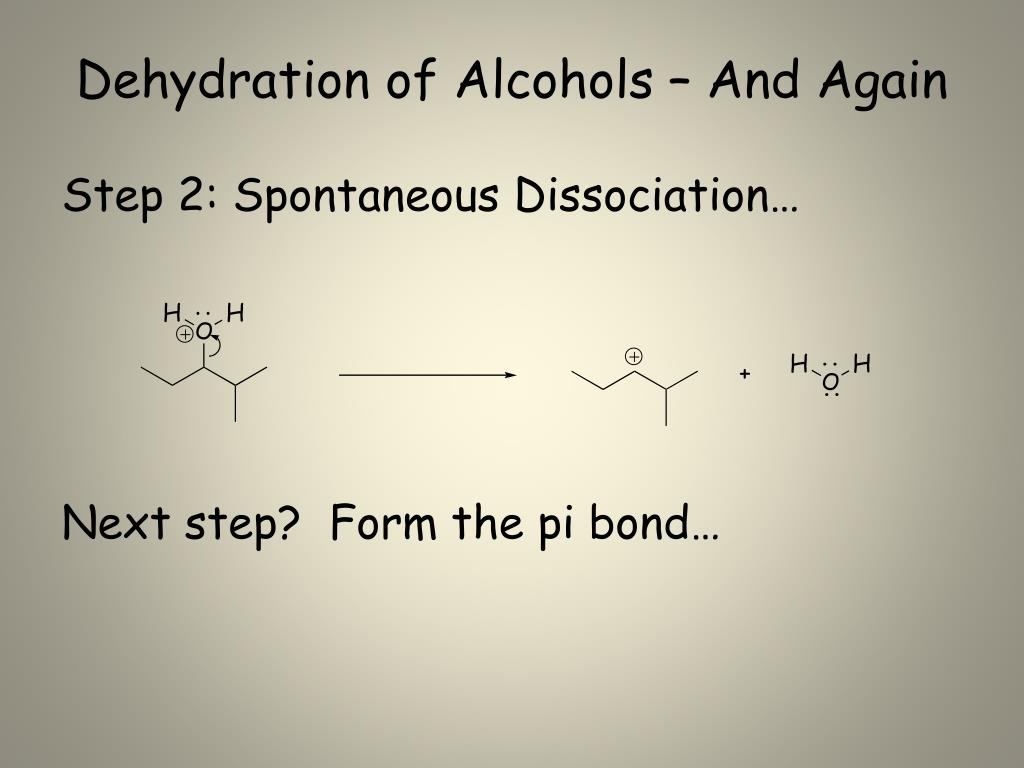

  22. Dehydration of Alcohols – And Again Step 2: Spontaneous Dissociation… Next step? Form the pi bond…

  23. Dehydration of Alcohols – And Again Step 3: Form the pi bond, make an alkene Find the beta-H on the more substituted side that has an H… use your water and pull it off, forming a pi bond… Done!

  24. Acid-Catalyzed Hydration Identify this mechanism – Starts with alkene, ends with alcohol…

  25. Acid-Catalyzed Hydration Steps Involved: • Reaction of pi bond with H+ (acid catalyst!) resulting in Markovnikov carbocation formation • Addition of H2O (this is where the OH is coming from) • Removal of extra proton (H+) to finish formation of –OH.

  26. Acid-Catalyzed Hydration Step 1: Reaction of pi bond with H+(acid cat.) resulting in Carbocation formation

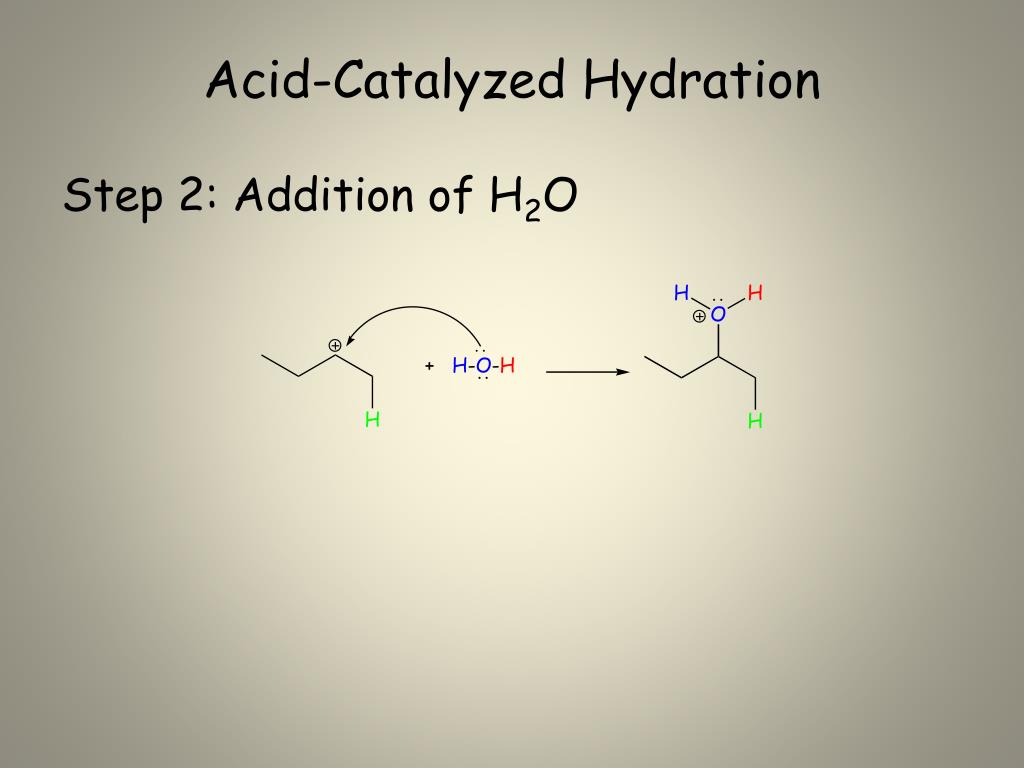

  27. Acid-Catalyzed Hydration Step 2: Addition of H2O

  28. Acid-Catalyzed Hydration Step 3: Removal of extra proton (H+) to finish formation of –OH.

  29. Acid-Catalyzed Hydration - Again Try Again… Identify the mechanism – alkene to alcohol, using acid and water…

  30. Acid-Catalyzed Hydration - Again Step 1: React the pi bond with H+and form that carbocation: We don’t have to show this new H but make sure you are drawing the Markovnikov carbocation!

  31. Acid-Catalyzed Hydration - Again Step 2: Add the H2O (the green H is still there, just didn’t show it in the second structure) Now - Finish it off… pull the extra proton…

  32. Acid-Catalyzed Hydration - Again Step 3: Removal of extra proton (H+) to finish formation of –OH.

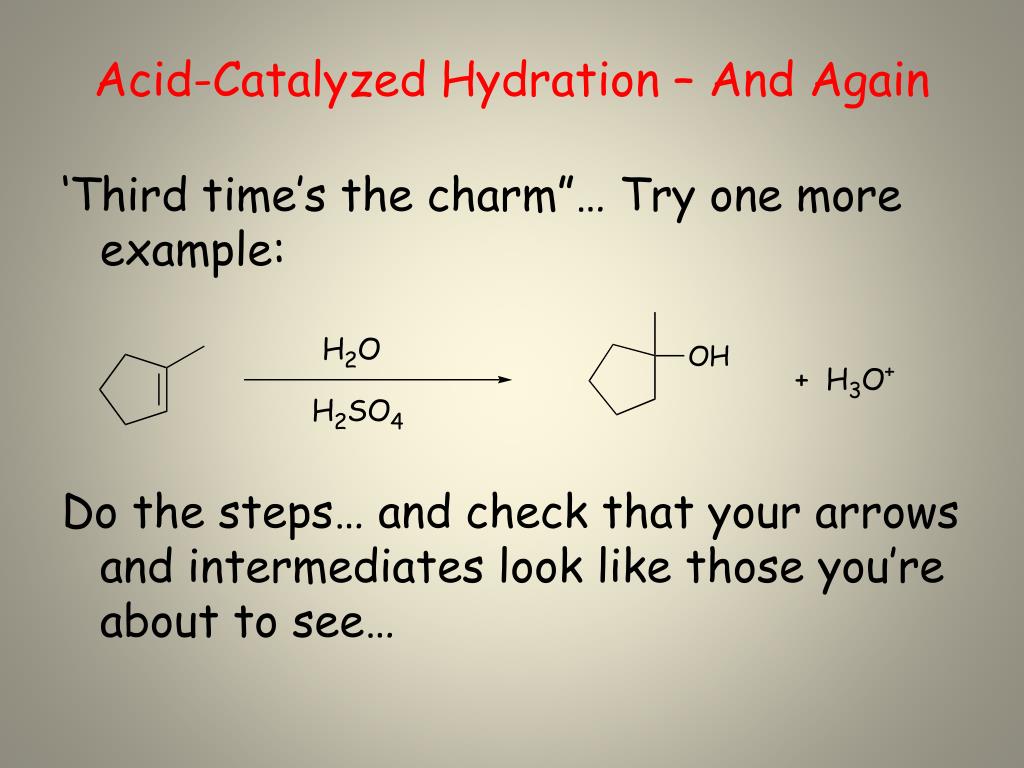

  33. Acid-Catalyzed Hydration – And Again ‘Third time’s the charm”… Try one more example: Do the steps… and check that your arrows and intermediates look like those you’re about to see…

  34. Acid-Catalyzed Hydration – And Again Step 1: React that nucleophilic pi bond with the proton H+: We don’t have to show this new H but make sure you are drawing the Markovnikov carbocation!

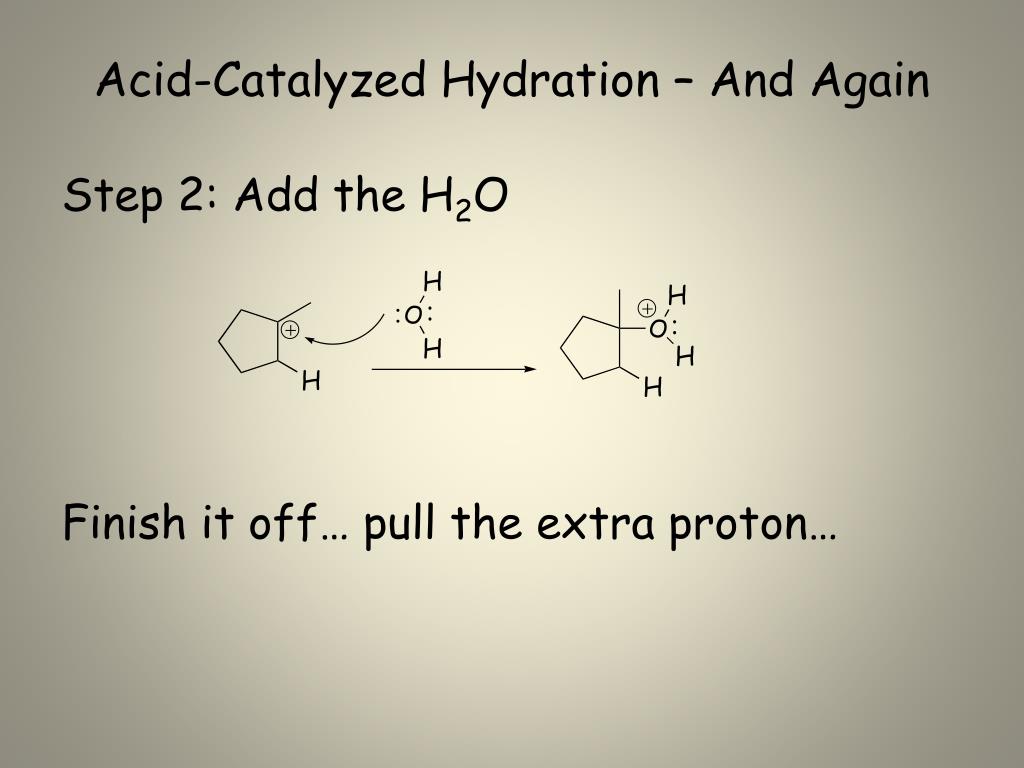

  35. Acid-Catalyzed Hydration – And Again Step 2: Add the H2O Finish it off… pull the extra proton…

  36. Acid-Catalyzed Hydration – And Again Step 3: Removal the extra proton (H+) to finish formation of –OH.

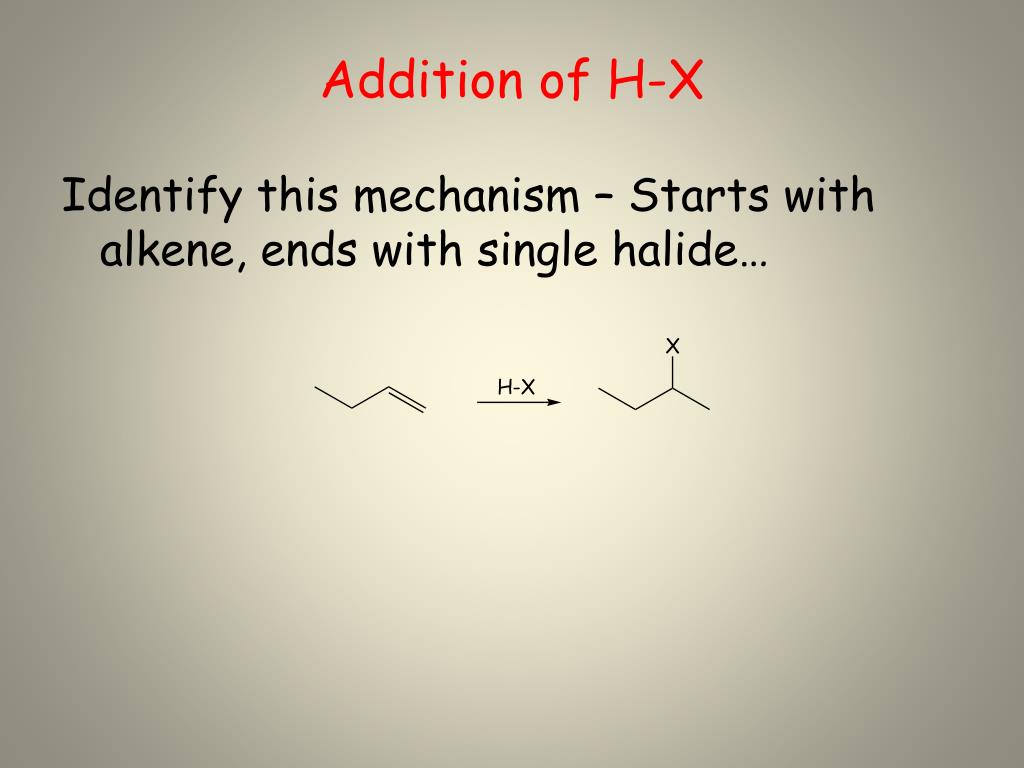

  37. Addition of H-X Identify this mechanism – Starts with alkene, ends with single halide…

  38. Addition of H-X Steps Involved: • Reaction of pi bond with H+ (of H-X), concurrent separation of X- , and formation of Markovnikov carbocation intermediate. • Attack on carbocation by X- to finish formation of product

  39. Addition of H-X Step 1: Reaction of pi bond with H+ (of H-X), concurrent separation of X-, and formation of carbocation intermediate.

  40. Addition of H-X Step 2: Attack of X- to finish formation of product.

  41. Addition of H-X - Again Try it again… Identify the mechanism… Adding an Br and an H to an alkene…

  42. Addition of H-X - Again Step 1: Reaction of pi bond with H+ (of H-X), concurrent separation of X-, and formation of carbocation intermediate.

  43. Addition of H-X - Again Step 2: Attack of X- to finish formation of product.

  44. Addition of HX – Once Again Try it again… Identify the mechanism… Adding a chloride (and an H, not drawn in) to an alkene…

  45. Addition of HX – Once Again Step 1: React the pi bond with H+ (of H-X), separate off the X-, form the more substituted carbocation intermediate.

  46. Addition of HX – Once Again Step 2: Attack of X- to finish formation of product.

  47. Addition of X2 Identify this mechanism – Starts with alkene, ends with two halides…

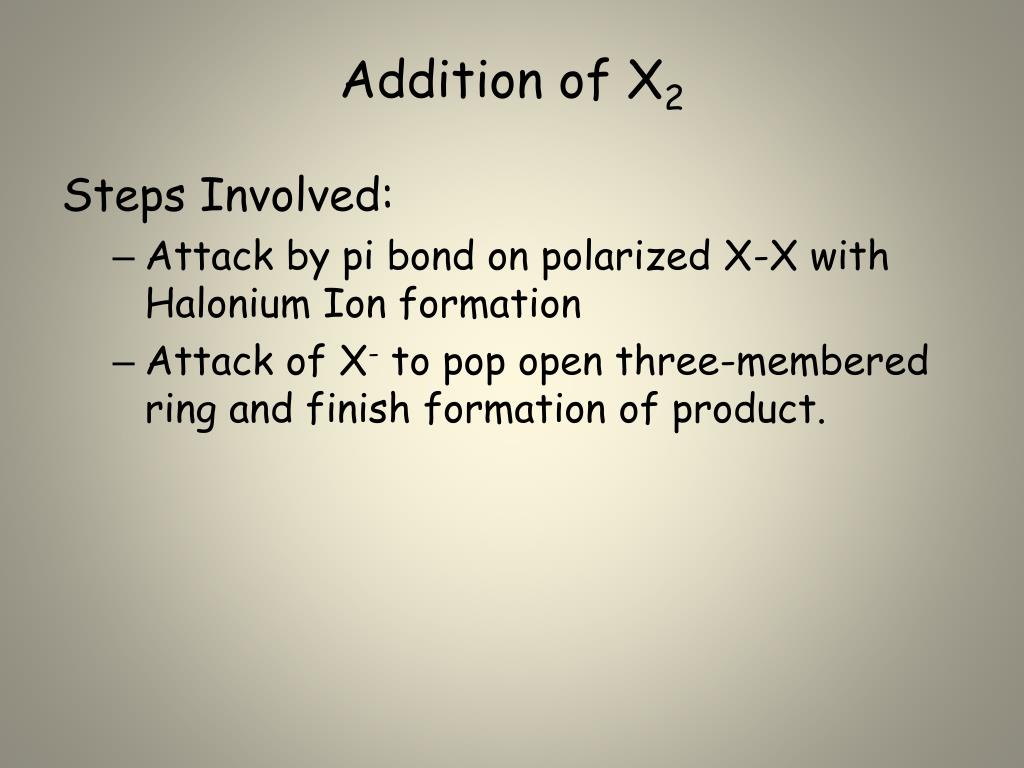

  48. Addition of X2 Steps Involved: • Attack by pi bond on polarized X-X with Halonium Ion formation • Attack of X- to pop open three-membered ring and finish formation of product.

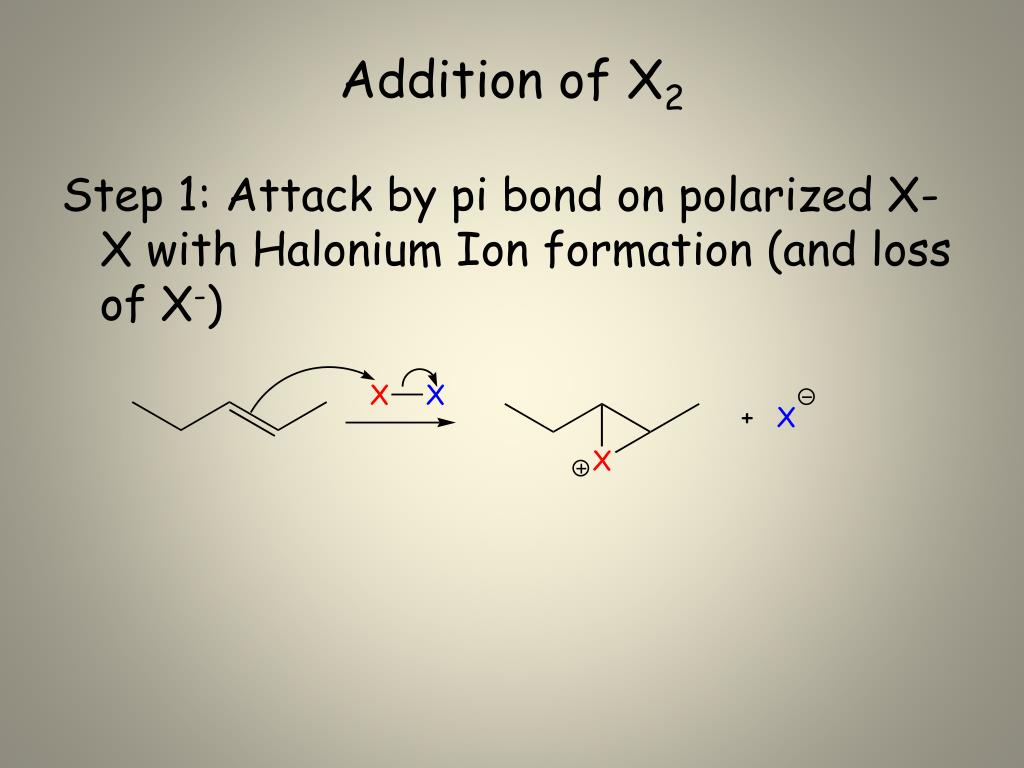

  49. Addition of X2 Step 1: Attack by pi bond on polarized X-X with Halonium Ion formation (and loss of X-)

  50. Addition of X2 Step 2: Attack of X- to pop open three-membered ring and finish formation of product.
