  1. Galaxy Color Matchingin Catalogs Bryce Kalmbach University of Washington

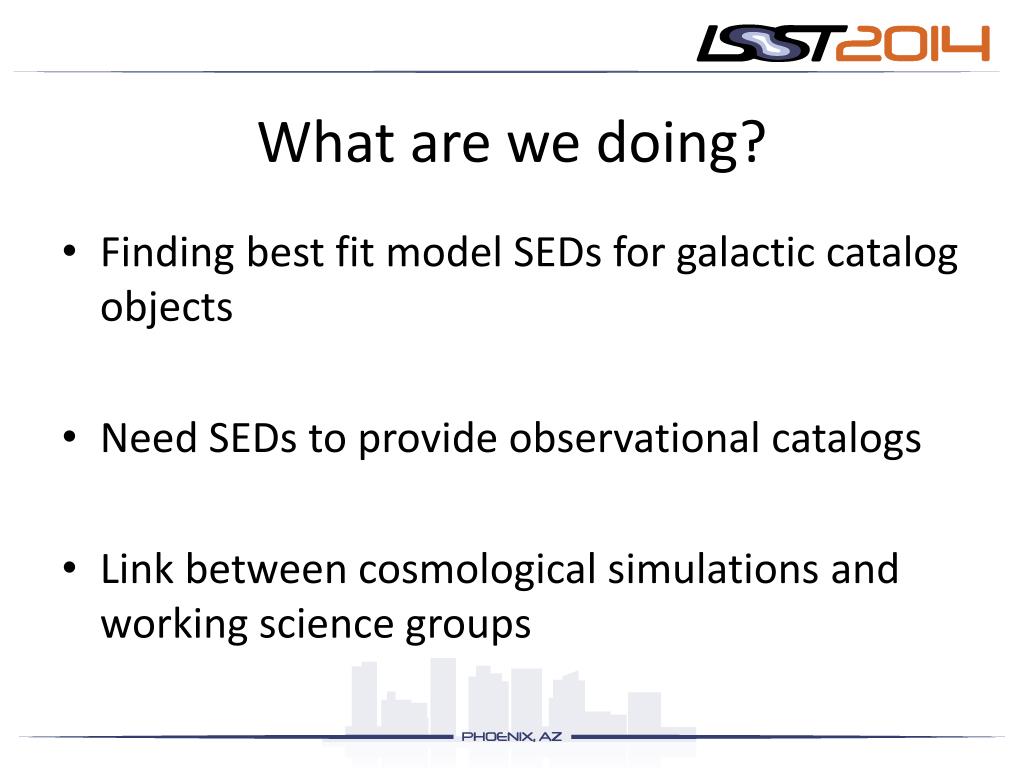

  2. What are we doing? • Finding best fit model SEDs for galactic catalog objects • Need SEDs to provide observational catalogs • Link between cosmological simulations and working science groups

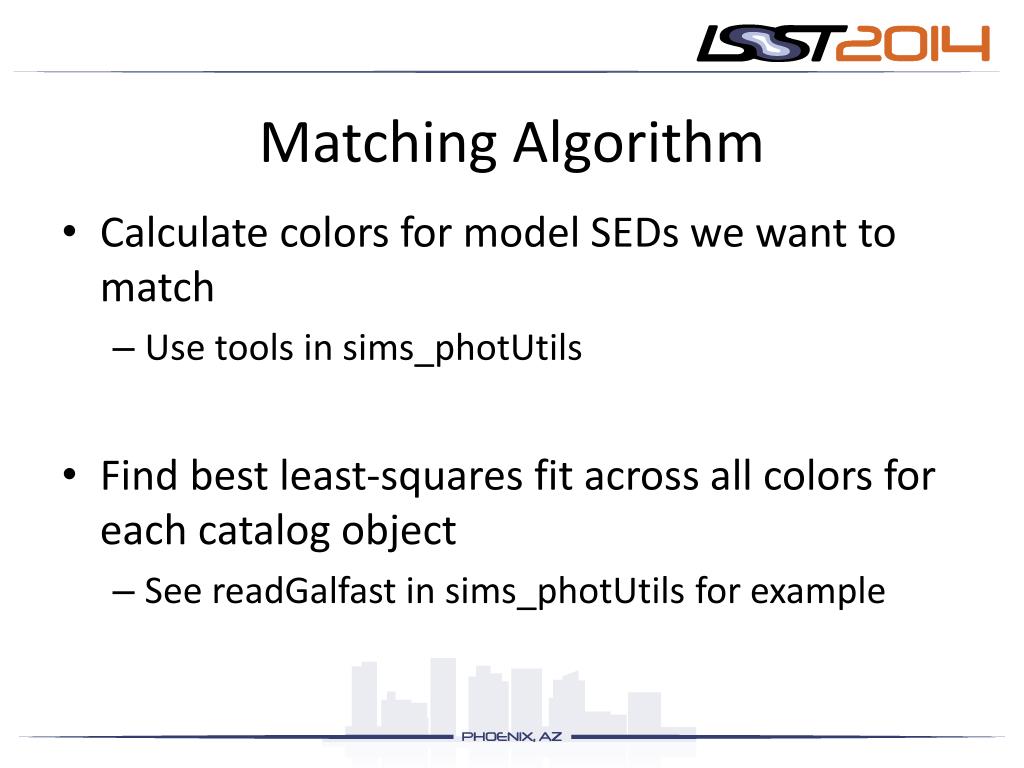

  3. Matching Algorithm • Calculate colors for model SEDs we want to match • Use tools in sims_photUtils • Find best least-squares fit across all colors for each catalog object • See readGalfast in sims_photUtils for example

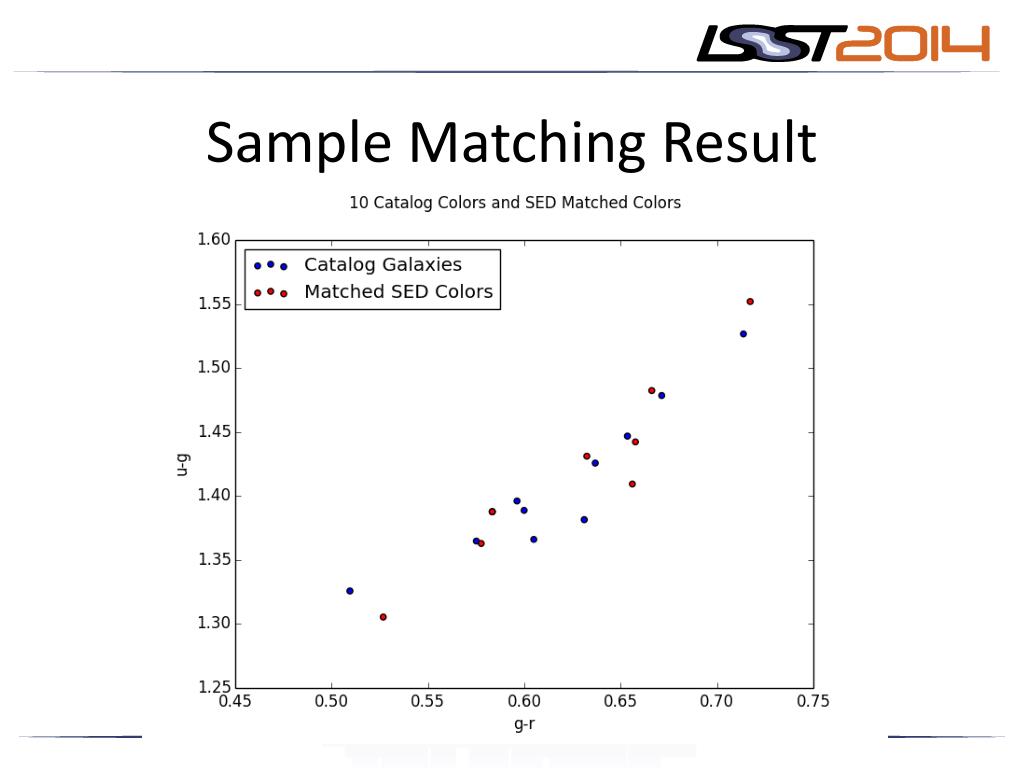

  4. Sample Matching Result

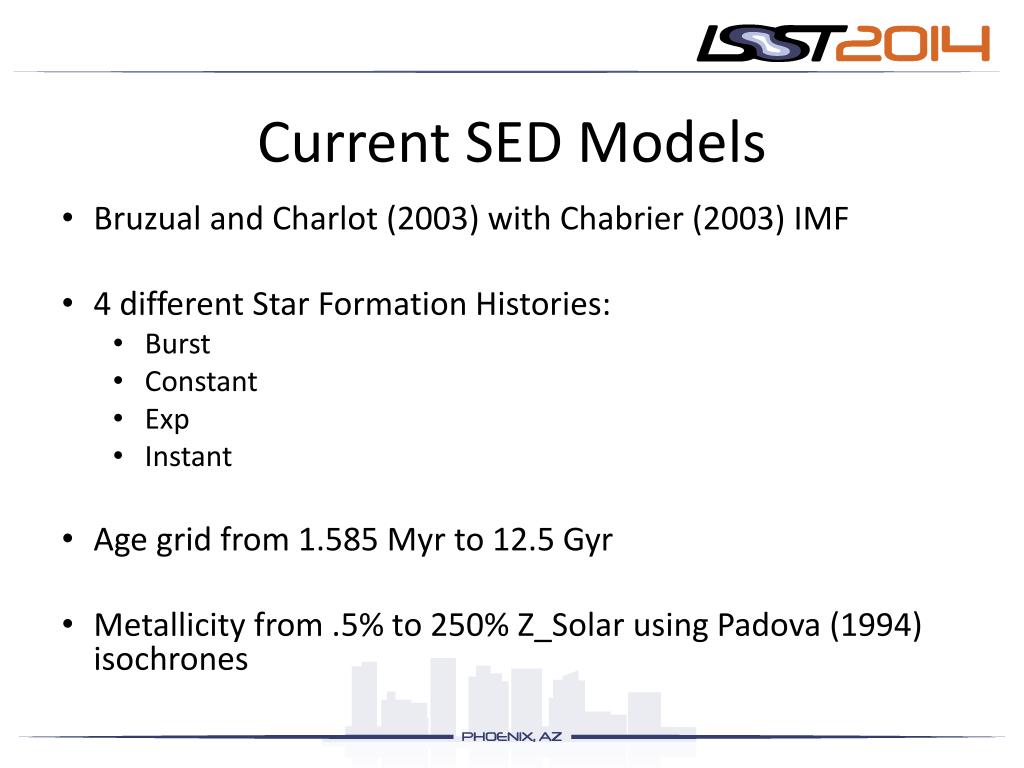

  5. Current SED Models • Bruzual and Charlot (2003) with Chabrier (2003) IMF • 4 different Star Formation Histories: • Burst • Constant • Exp • Instant • Age grid from 1.585 Myr to 12.5 Gyr • Metallicity from .5% to 250% Z_Solar using Padova (1994) isochrones

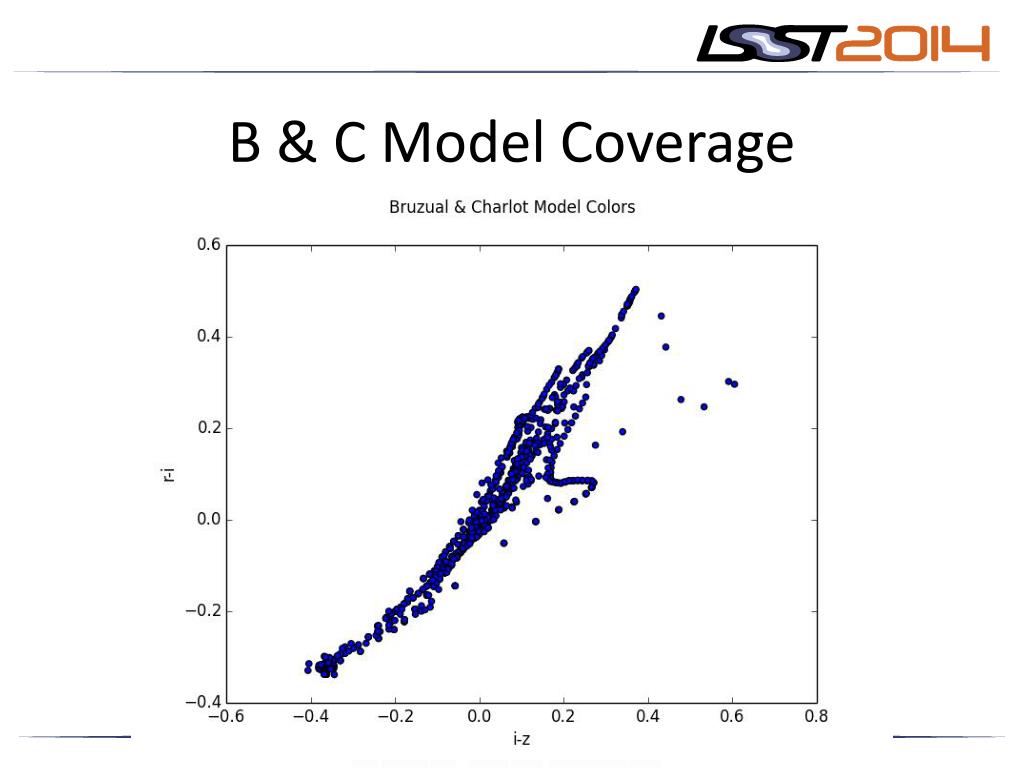

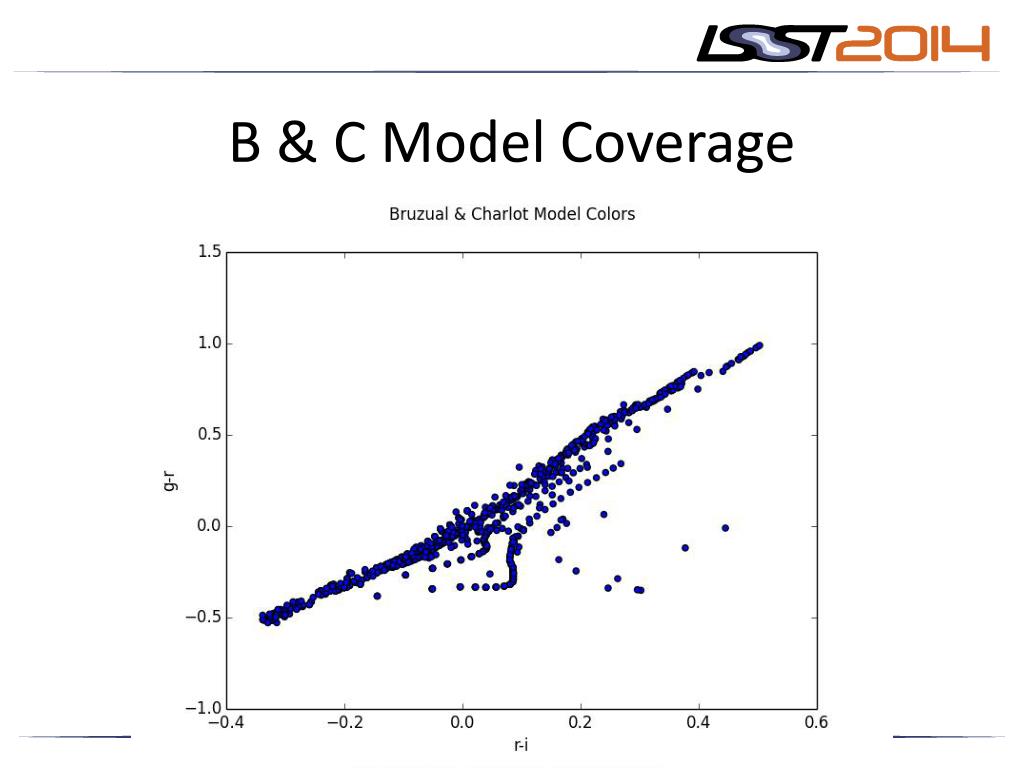

  6. B & C Model Coverage

  7. B & C Model Coverage

  8. B & C Model Coverage

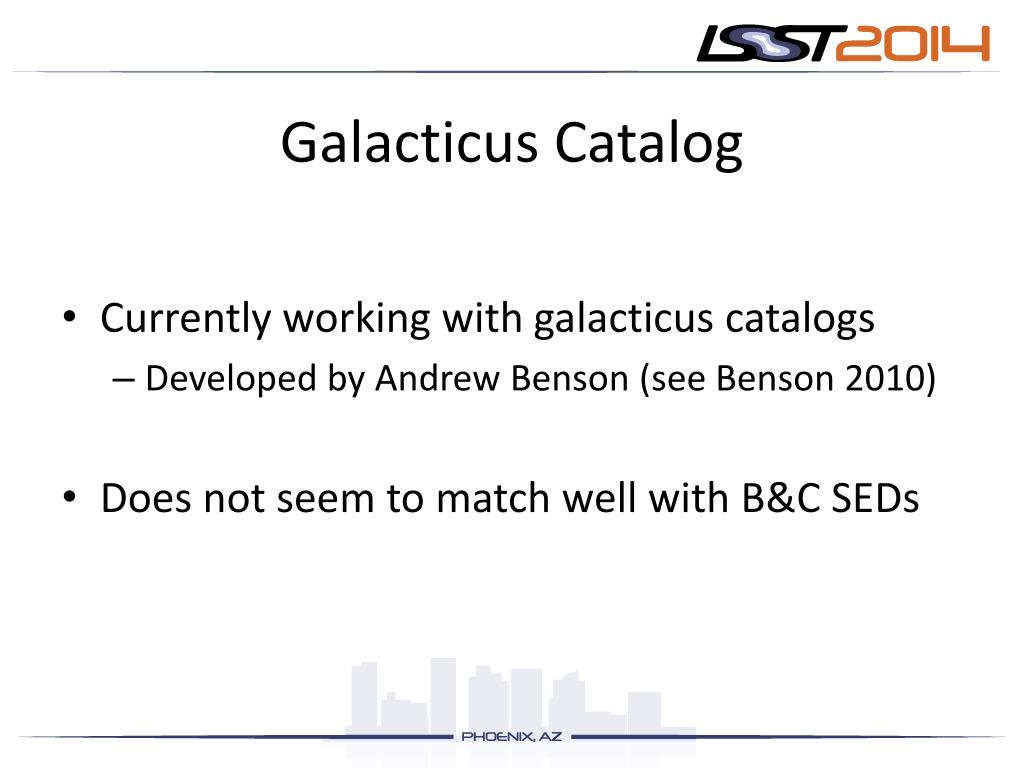

  9. Galacticus Catalog • Currently working with galacticuscatalogs • Developed by Andrew Benson (see Benson 2010) • Does not seem to match well with B&C SEDs

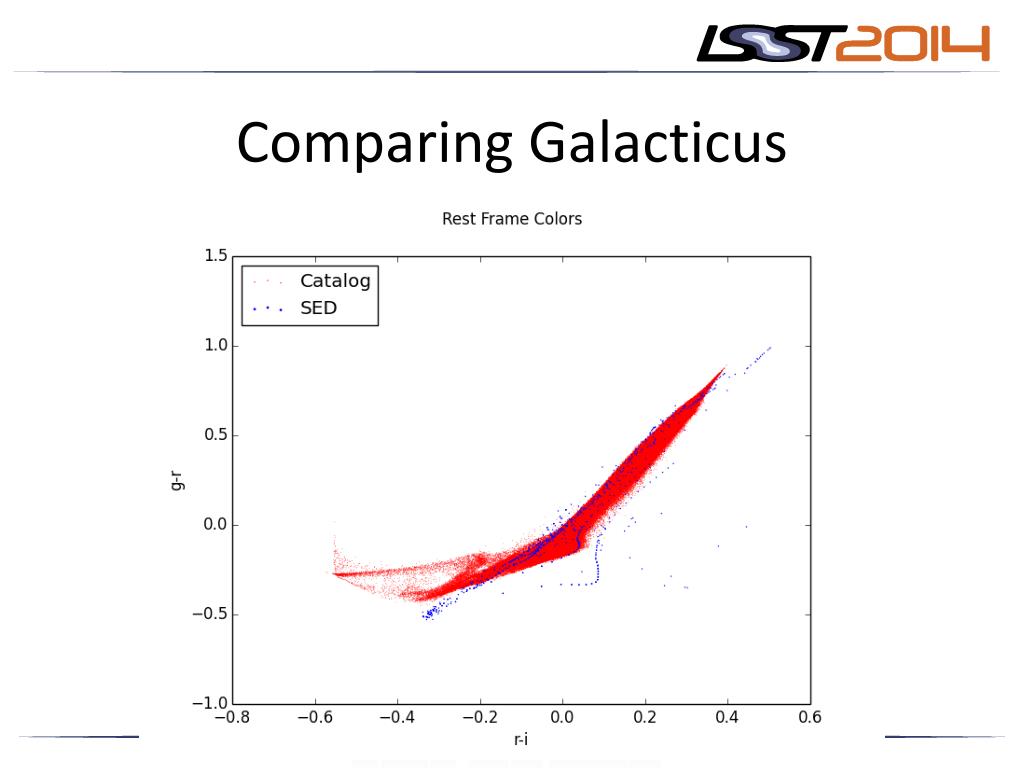

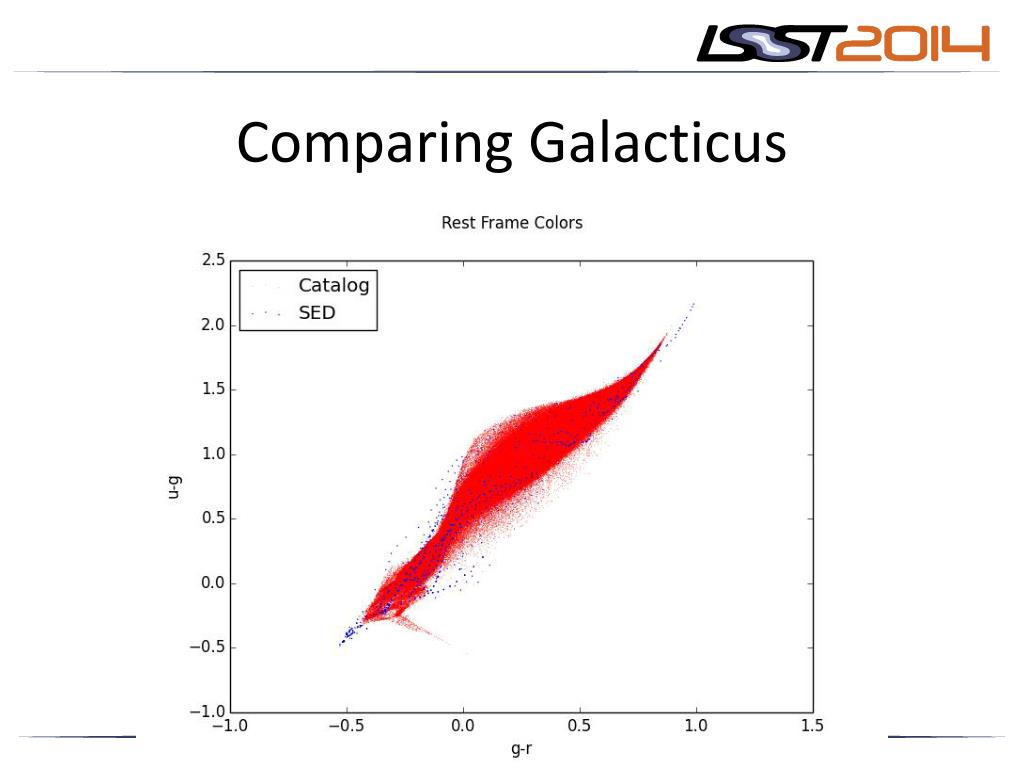

  10. Comparing Galacticus

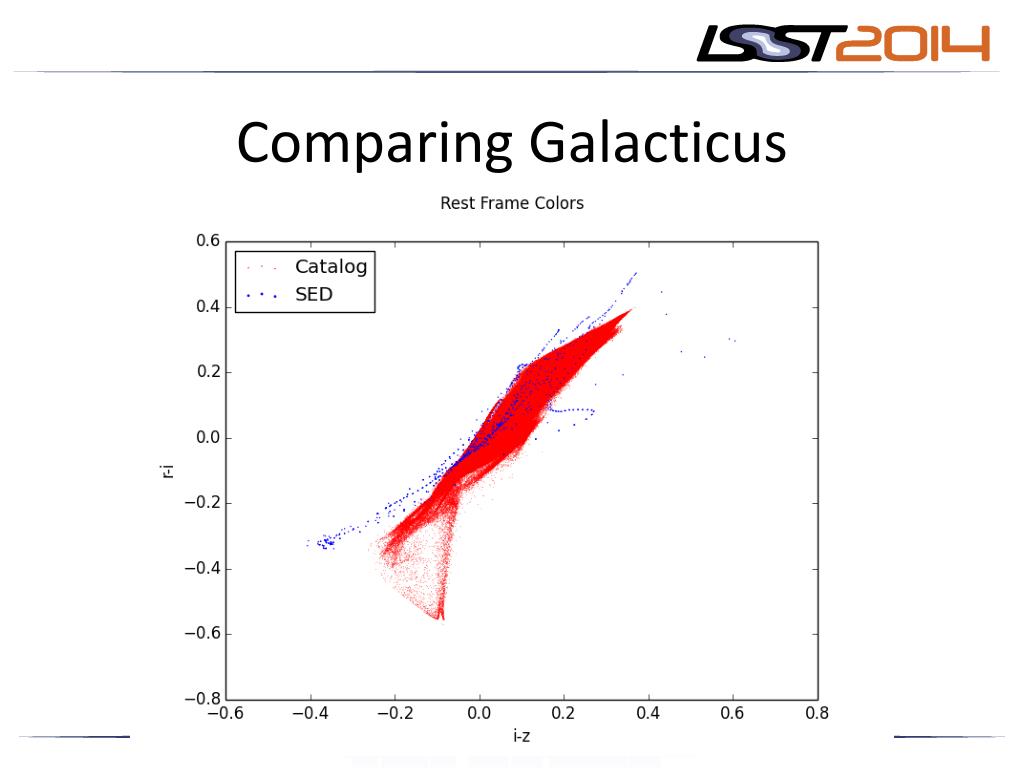

  11. Comparing Galacticus

  12. Comparing Galacticus

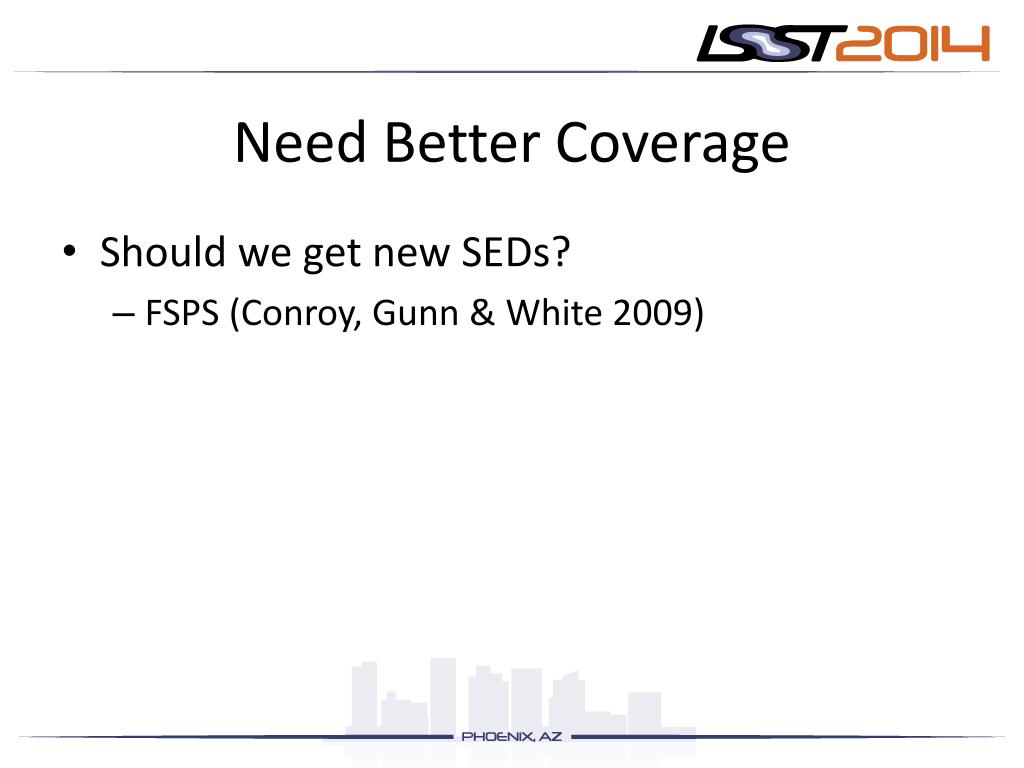

  13. Need Better Coverage • Should we get new SEDs? • FSPS (Conroy, Gunn & White 2009)

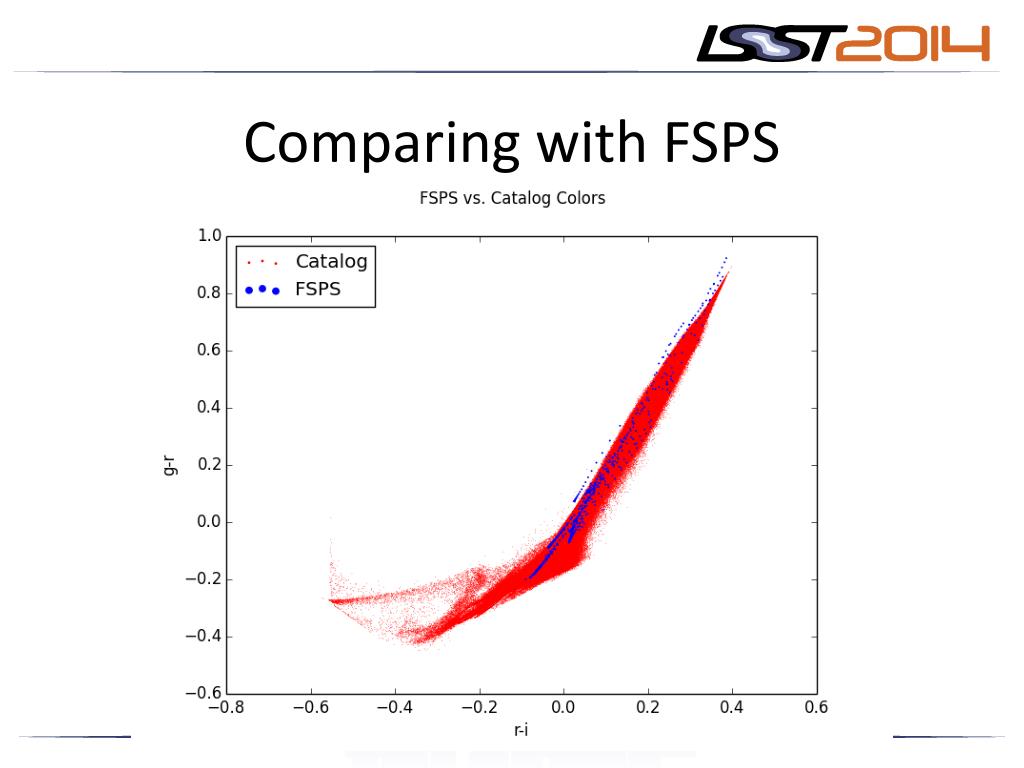

  14. Comparing with FSPS

  15. Comparing with FSPS

  16. Comparing with FSPS

  17. Need Better Coverage • Should we get new SEDs? • FSPS (Conroy, Gunn & White 2009) • Refine the coverage of our grid?

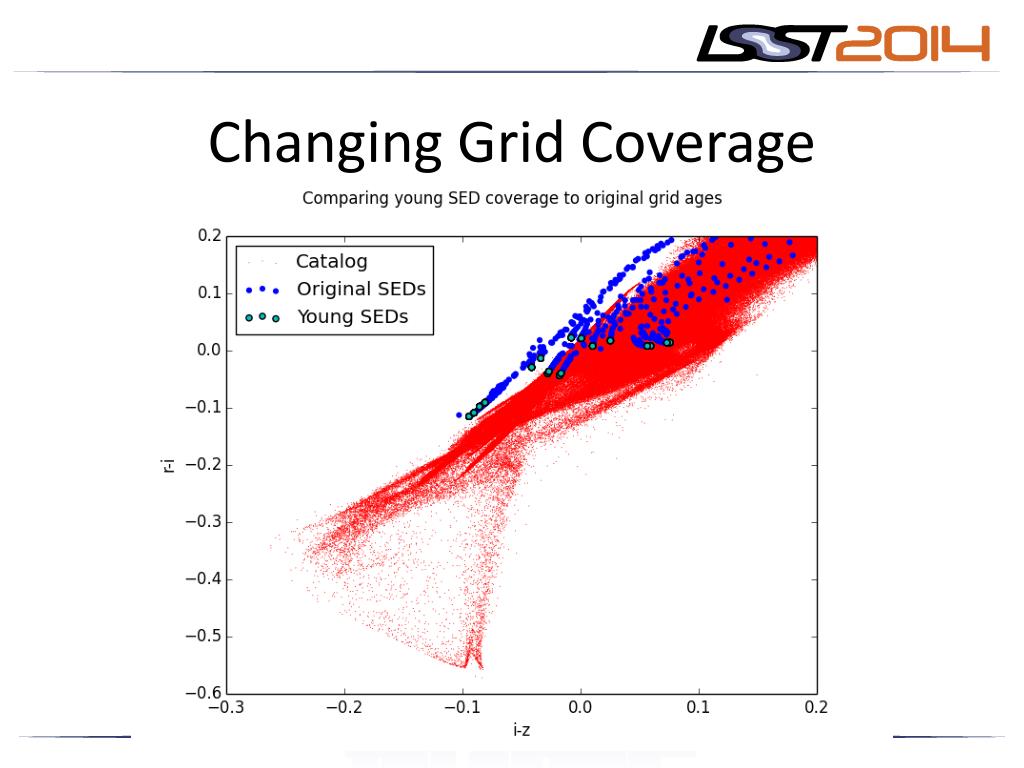

  18. Changing Grid Coverage

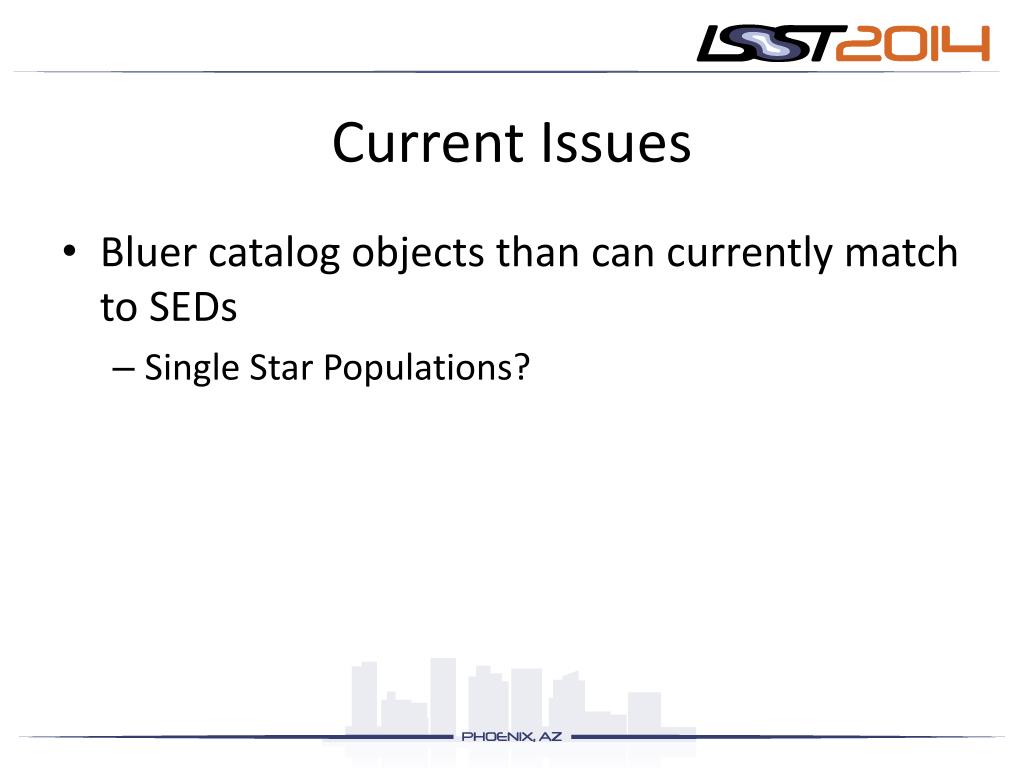

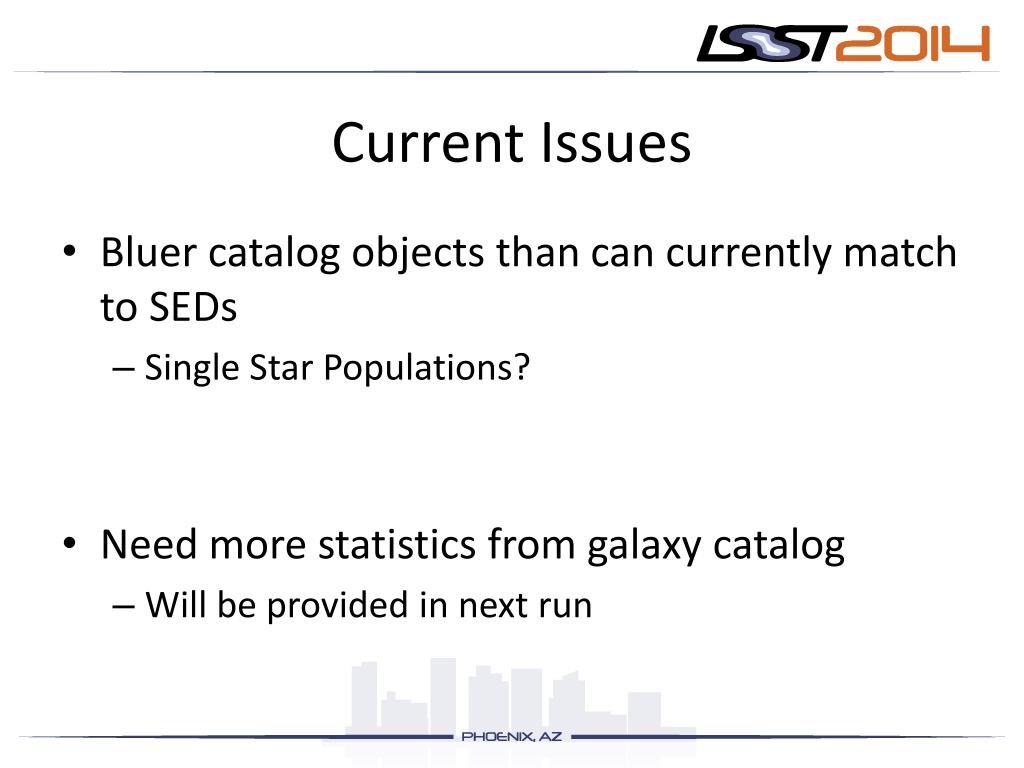

  19. Current Issues • Bluer catalog objects than can currently match to SEDs • Single Star Populations?

  20. Individual Stars 10Myr (J. Dalcanton)

  21. Current Issues • Bluer catalog objects than can currently match to SEDs • Single Star Populations? • Need more statistics from galaxy catalog • Will be provided in next run

  22. Future Work • PCA (Principal Component Analysis) • Determine axes of maximum variance and use these as new basis vectors • Reduce Dimensionality • Storage Savings

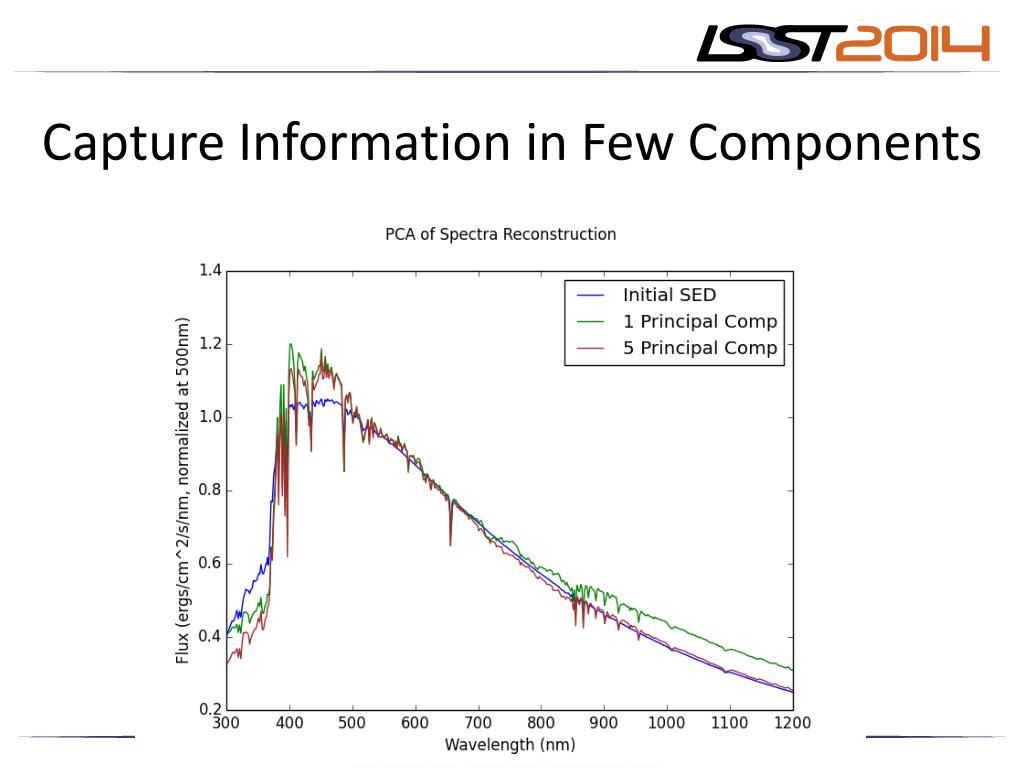

  23. Capture Information in Few Components

  24. Capture Information in Few Components

  25. Capture Information in Few Components

  26. 99.8% Information in 10 Principal Components…but…

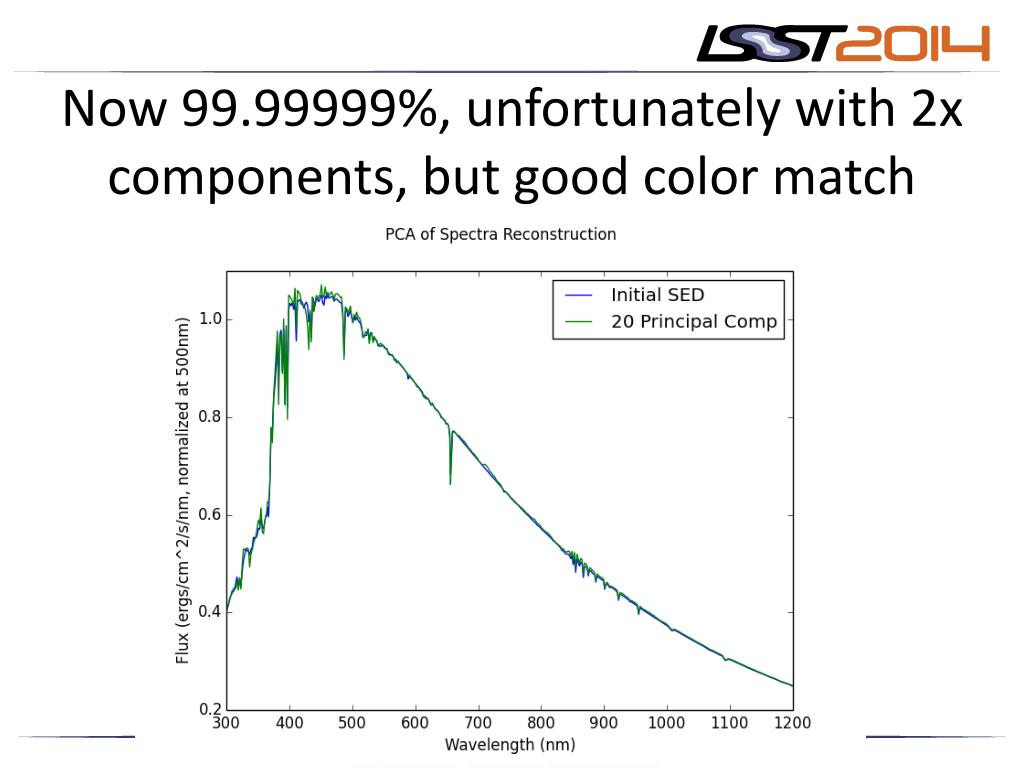

  27. Now 99.99999%, unfortunately with 2x components, but good color match

  28. Future Work • PCA (Principal Component Analysis) • Determine axes of maximum variance and use these as new basis functions • Reduce Dimensionality • Storage Savings • Challenge: What is the minimum number of components we can get the maximum amount of accuracy from?

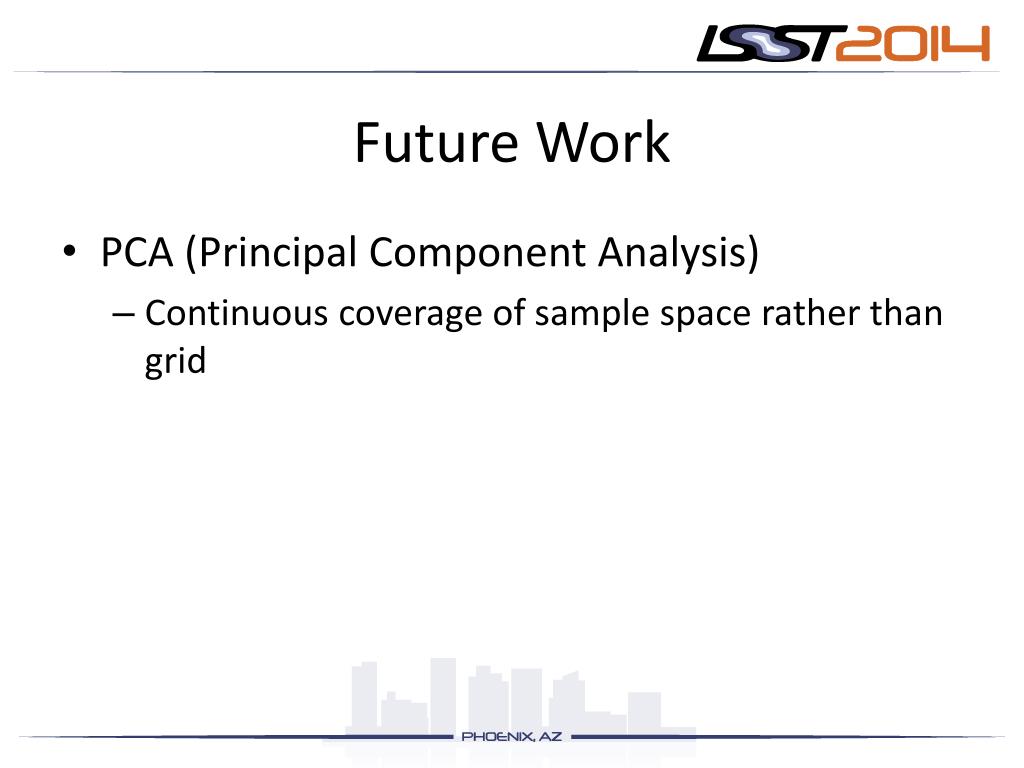

  29. Future Work • PCA (Principal Component Analysis) • Continuous coverage of sample space rather than grid

  30. PCA will provide continuum

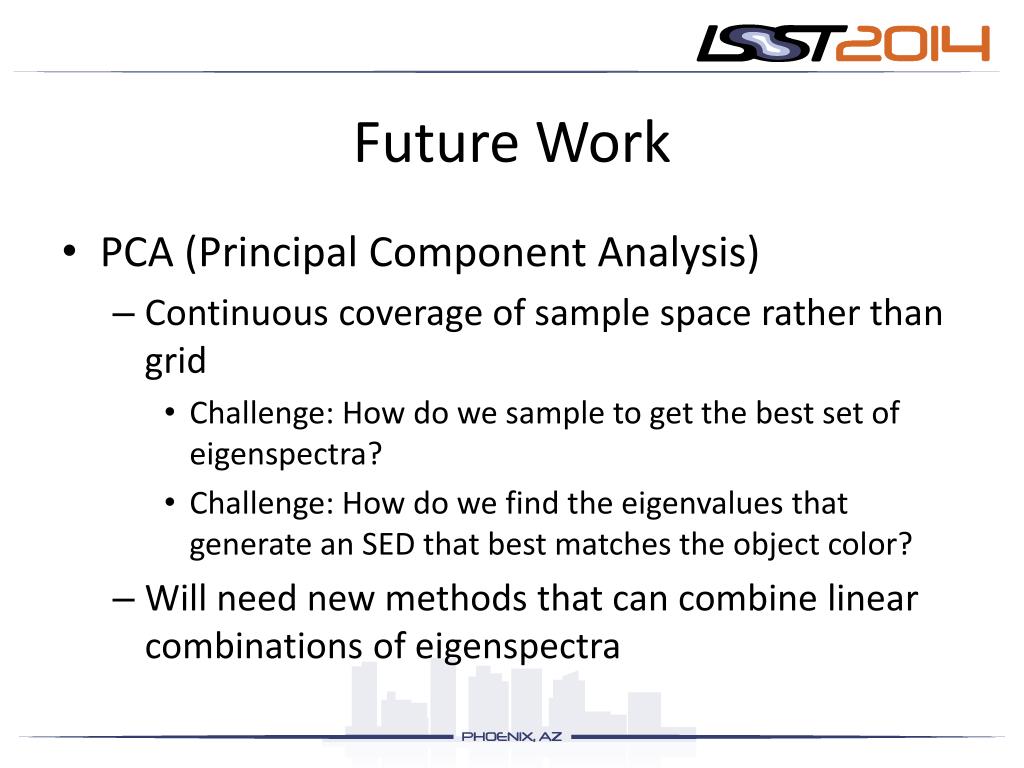

  31. Future Work • PCA (Principal Component Analysis) • Continuous coverage of sample space rather than grid • Challenge: How do we sample to get the best set of eigenspectra? • Challenge: How do we find the eigenvalues that generate an SED that best matches the object color? • Will need new methods that can combine linear combinations of eigenspectra

  32. Thank You!Contact: brycek@uw.edu
