  1. Solid Edge Version 14 Mark ThompsonDoug Stainbrook Solid Edge Technical Marketing

  2. Solid Edge V14 Draft

  3. Here’s what’s new! • Usability Enhancements • Drawing View Property Enhancements • Query Select • Display Reference Parts • Enhanced Rotated Views • Broken-out Section Views • Translate View Port Layers • Broken View Makeover

  4. Usability Enhancements • What are the Enhancements? • Fit to drawing view command on the Drawing View short cut menu – The fit will include dimensions placed on the drawing view. • Double Click annotations to open the properties dialog • Callout, Surface Texture, Weld Symbol and Feature Control Frame.

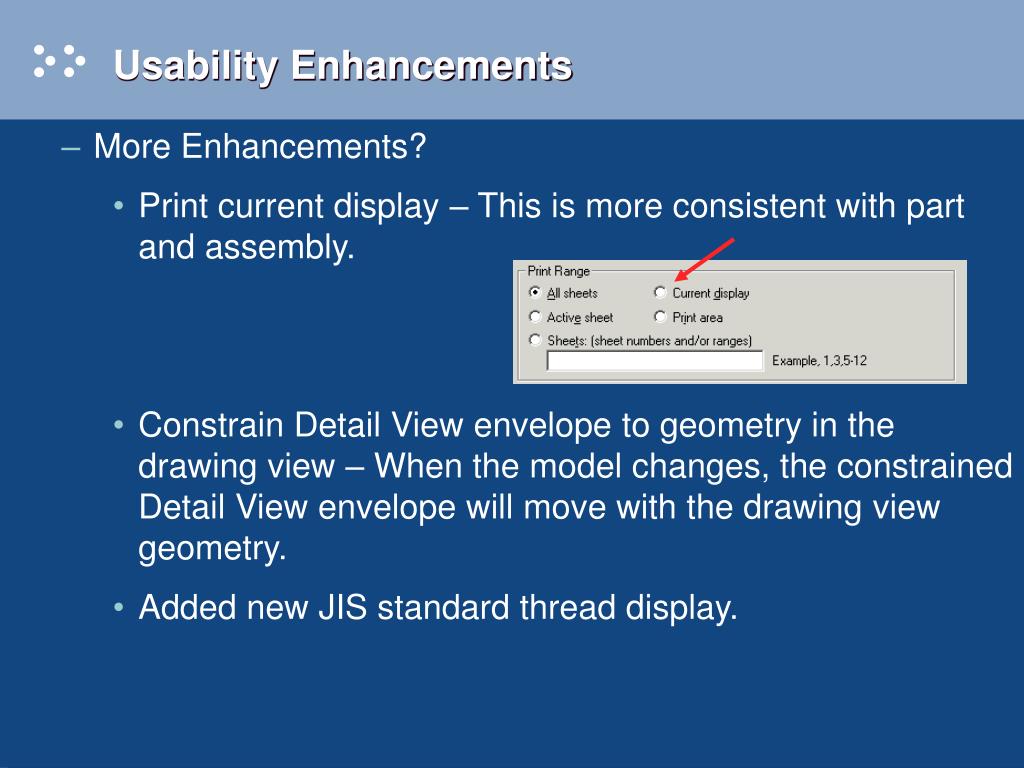

  5. Usability Enhancements • More Enhancements? • Print current display – This is more consistent with part and assembly. • Constrain Detail View envelope to geometry in the drawing view – When the model changes, the constrained Detail View envelope will move with the drawing view geometry. • Added new JIS standard thread display.

  6. Drawing View Property Enhancements V12 • What are the changes? V14

  7. Drawing View Property Enhancements • A closer look • New bitmaps in the Tree View make the list more intuitive • The UI has been made more intuitive by splitting up the Show, Hide, and Section radio group • Enhance user feedback by giving status on parts in drawing view properties V12 V14

  8. Drawing View Property Enhancements • More Enhancements? • Enhance section views by allowing the fill style to be set on parts individually in assembly section views

  9. Drawing View Property Enhancements • More Enhancements? • V12 offered no independent control of Revolved Section views segments. This made it difficult if not impossible to control what was displayed in the section view Revolved Section V12 – No Control

  10. Drawing View Property Enhancements • V14 has Enhanced the Revolved Section views by giving independent display control to each segment of the revolved section view through the property dialog V14 – Full Control

  11. Drawing View Property Enhancements • Key Benefits • Unmatched control of drawing view display

  12. Query Select • What is it? • The Draft Query tool will provide a way for a user to select files based on property information. Once the files are selected, the user can then use existing functionality to apply display settings and styles to the selected files in a draft view • How does it work? • A user can create a new query from the Queries tab on Edgebar or through the “Properties” dialog under the “Display” tab New Query

  13. Query Select continued • Once the “New Query” is selected, the following dialog will appear • Fill out the Query Criteria • Select the OK buttonto create the query Property Criteria Match All/Match Any of the following criteria

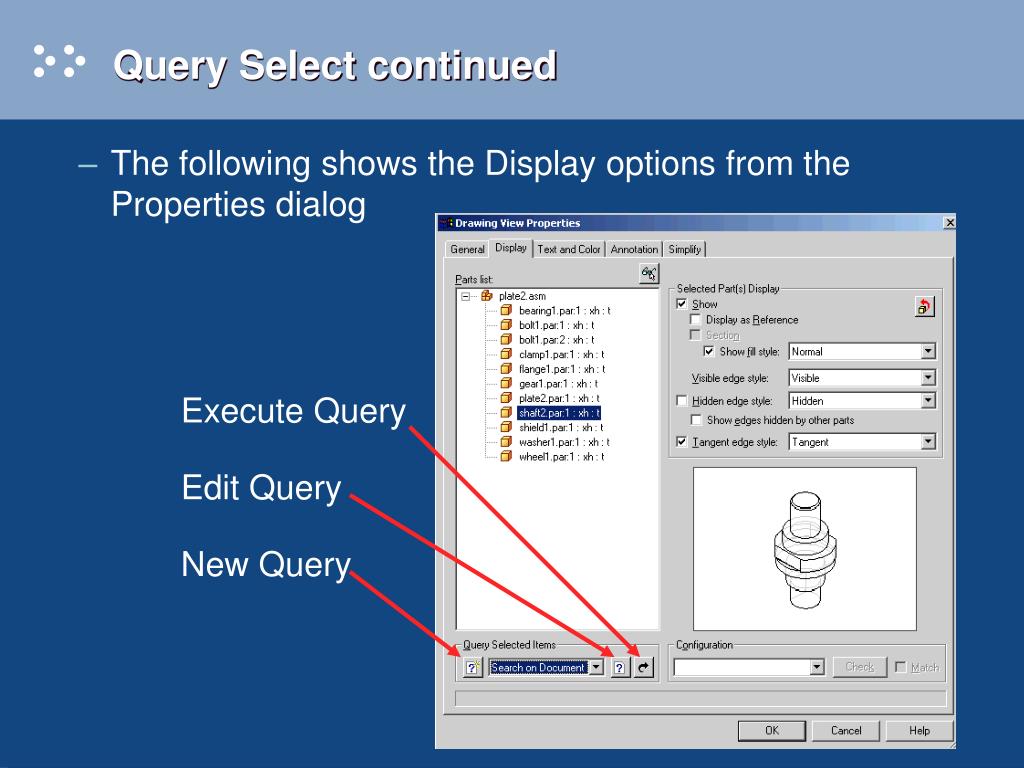

  14. Query Select continued • The following shows the Display options from the Properties dialog Execute Query Edit Query New Query

  15. Query Select continued • FYI • A user can only run the “Execute Query” from the properties dialog which differs slightly from the Assembly environment Query tool • The only query option that can be done from Edgebar is to create a new query • Once they are created a user can rightclick and get to the other options shown

  16. Query Select continued • Key Benefits • Gives the capability to use part properties to define classes of parts and easily control their display in drawing views. • Gives the capability to use drawing view properties to query parts in the drawing view to make display changes. • For example: Query for all parts with a custom property that defines them to be hardware (bolts, washers). Turning off the hardware improves drawing view create and update performance.

  17. Display Reference Parts • What is it? • A user will have the ability to identify parts or sub-assemblies as being reference geometry in respect to the overall assembly and display this geometry differently on drawings. • How does it work? • Parts can be identified as reference geometry during or after view placement through the View Properties dialog. • Select the view that you want to set geometry as reference, right click and select “Properties”

  18. Display Reference Parts continued • When the dialog appears, the user can select the parts or sub-assemblies that need to be reference geometry. Notice the icon changes when a part is marked as reference geometry

  19. Display Reference Parts continued • After view placement, notice the reference geometry placed around the plate • A user can change the reference geometry at any time by right clicking on the view and selecting the “Properties” option

  20. Display Reference Parts continued • A user has an option to turn off sectioning for reference geometry through the properties dialog. Uncheck the box on highlighted parts that you do not want to section

  21. Display Reference Parts continued • Changes have been made to the Tools->Options->Edge Display dialog. Three combo boxes have been added to the dialog. These combo boxes define the default Visible, Tangent, and Hidden line styles to use for reference parts.

  22. Display Reference Parts continued • A few rules to understand: • By default no parts are reference. • Derived and folded views take on the same reference part display as the original view. • If an assembly or a sub-assembly is selected in the assembly tree, checking the “Reference” option will make all parts in the assembly or sub-assembly reference. • All display options work on reference parts just like they do on real parts. • Reference parts will be sectioned just like real parts.

  23. Display Reference Parts continued • A few more rules: • Un-checking the visible property can hide reference parts. The “Visible” property refers to the property that will show/hide parts in V14 with the Display Properties Changes. • Reference Parts will hide other reference parts. • Reference parts will not hide real parts. • Real parts will hide reference parts.

  24. Display Reference Parts continued • Key Benefits: • Enhance drawing view display by providing real reference part calculation. Reference parts are not just an overlay of the parts marked as reference. • Reference parts will appear to be transparent with respect to non-reference parts. • Non-reference parts will show through reference parts and non-reference parts will hide reference parts behind them. • Full control of display is given to reference parts. • Reference parts can use line styles defined specifically for the display of reference parts. The user can modify these line styles to suit their display needs. • Not dependent on a changes to the assembly to make parts reference in drawings.

  25. Example: V14Draft.dft

  26. Enhanced Rotated Views • What is it? • Rotated views have been enhanced such that a rotated view will behave more like a non-rotated view. • What are the Enhancements? • The rotation angle for a drawing view can now be specified in the drawing view properties dialog or by using the rotate command. Properties Dialog General tab Rotate command

  27. Enhanced Rotated Views continued • More Enhancements • Drawing views can be folded from rotated drawing views • Broken views can be created from rotated drawing views

  28. Enhanced Rotated Views continued • More Enhancements • Section views and auxiliary views can now be derived from a rotated drawing view. • Rotated Drawing Views can be used as input for the Cutting Plane and Auxiliary View commands • Rotating the parent view will not rotate the geometry displayed in the detail view

  29. Enhanced Rotated Views continued • More Enhancements • In this example Section A-A was rotated 45 deg and then Section B-B was created from the rotated Section A-A view • Dimensions can be retrieved on rotated drawing views

  30. Enhanced Rotated Views continued • Key Benefits • Enhancements made to the Rotate View command has greatly increased the usability of the command as well as make the Draft environment more competitive.

  31. Broken-out Section Views • What is it? • A Broken Out Section View is a drawing view that has a portion of the model cut away to expose internal features of the model. A closed profile is drawn on an existing view to define the area of the view to be cut away. When the cut is applied to the view, the model is cut down to a specified depth to reveal internal components of the model.

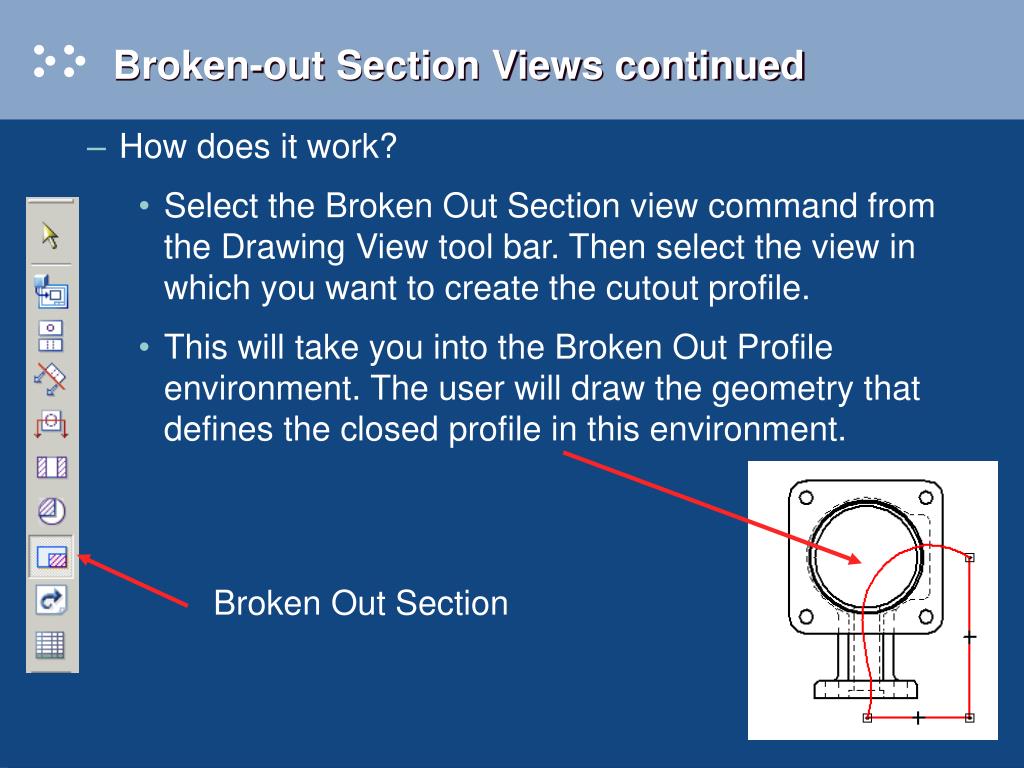

  32. Broken-out Section Views continued • How does it work? • Select the Broken Out Section view command from the Drawing View tool bar. Then select the view in which you want to create the cutout profile. • This will take you into the Broken Out Profile environment. The user will draw the geometry that defines the closed profile in this environment. Broken Out Section

  33. Broken-out Section Views continued • Next the user will either key in the depth for the cut or select geometry in the drawing views that defines the depth for the cutout. • The user can either select the Finish button to apply the cutout to the same view the profile was drawn on or select another view to apply the cutout. Dynamic selection for depth

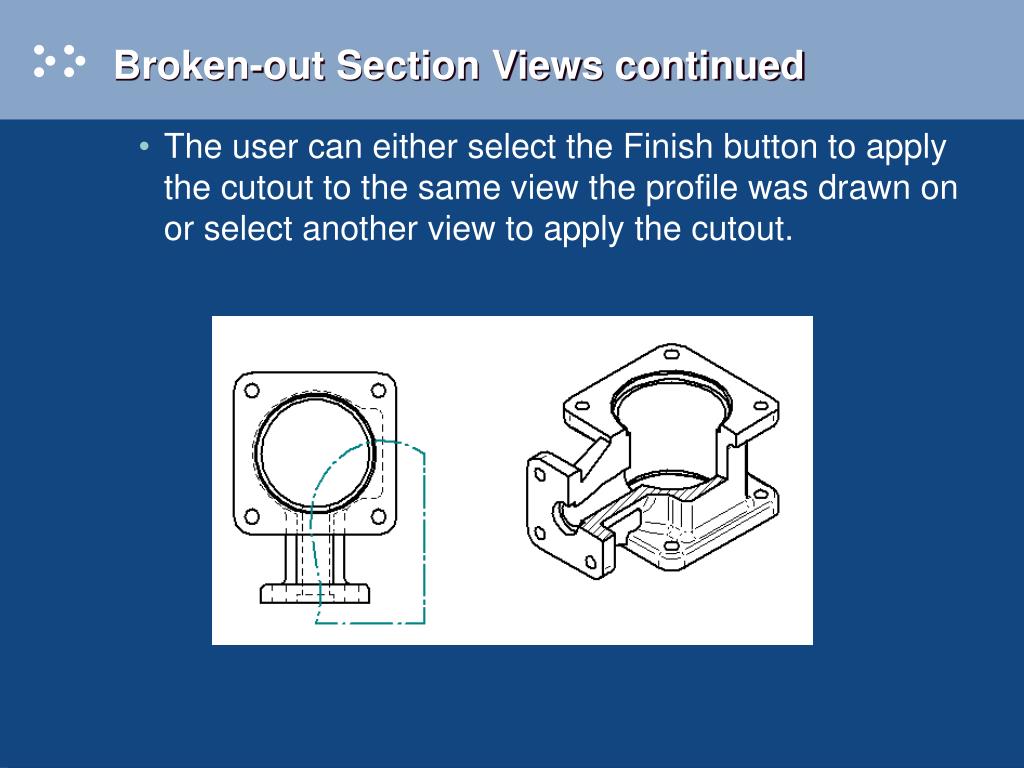

  34. Broken-out Section Views continued • The user can either select the Finish button to apply the cutout to the same view the profile was drawn on or select another view to apply the cutout.

  35. Broken-out Section Views continued • If the user needs to make a change to the profile or depth, they can select the profile from the view and the Smart Step ribbon bar will appear. • From this menu a user can suppress the cutout, edit the profile, or change the depth of the cutout.

  36. Broken-out Section Views continued • The following are examples of profiles that define a Broken Out View

  37. Broken-out Section Views continued • The following are rules that apply to profiles • The profile can contain 2D geometry and dimensions and must define one closed area. • Geometry is drawn on a view to define the area to be broken away. This geometry is selected and used when the cutout is applied to define the closed profile. • If the cutout on the view is edited, the profile will be displayed again during the edit. • The range of the closed profile must intersect the range of a view to be valid. This is the source view and defines the direction of the cutout.

  38. Broken-out Section Views continued • More rules that apply to profiles • Multiple closed profiles can be used to produce multiple cuts. The multiple profiles can overlap. • The cut from a Broken Out Profile can be suppressed without having to delete the Broken Out Profile.

  39. Broken-out Section Views continued • A user can display Broken Out View profiles by selecting the option in the Drawing View Properties dialog

  40. Broken-out Section Views continued • Key Benefits • Eliminates a competitive disadvantage. • Create a competitive advantage with the ability to select a view other than the view the profile is drawn on to apply the cutout.

  41. Translate View Port Layers • What is it? • Solid Edge now provides the ability to independently control layers per drawing view. Until now this has been a problem when translating files into Solid Edge. In particular are the ACAD files with view ports where geometry is overlapped by geometry from all view ports. • How does it work? • A user can control layers per drawing view through Edgebar with the Show/Hide option

  42. Translate View Port Layers continued • Identify the Drawing View in which you want to turn off specific layers • Expand the Drawing view by selecting the “+” sign, then use the Show/Hide option on each layer

  43. Translate View Port Layers continued • In the following Drawing view, you will notice there several geometries overlapping each other. • Show/Hide options allow the user can clean up the view

  44. Translate View Port Layers continued • Key benefits • Enhances translation of Mechanical Desktop files. • Resolves the ACAD view port layer issues. • Enhances translation of IDEAS and UG Drawing files through DXF. • Resolves cases where geometry would not translate into Solid Edge Draft.

  45. Broken View Makeover • What is it? • There have been some major enhancements to the Broken View command • What has changed? • When a user right clicks on a drawing view the command name on the pulldown menu has changed from “Add broken View regions” to “Add Break Lines”. • A user will now define what to break away when creating a broken view, not what to keep.

  46. Broken View Makeover • A user will now define what to break away when creating a broken view, not what to keep. Only 2 lines required instead of 4

  47. Broken View Makeover continued Horizontal • A view can now be broken in both directions. Vertical ***All Break lines must be placed in the un-broken state. If a user places more than one break, they must be placedat the same time.

  48. Broken View Makeover continued • Added break line types: Straight Break, Cylindrical (S-Curve) Break, Short Break, and Long Break • Each Break style providesHeight & Pitch options • A user can fold broken views from broken views

  49. Broken View Makeover continued • How to edit a Broken View • Select the Broken View, then click on the “Show Broken View” button on the ribbon bar. • This will take you to the unbroken state • Select one of the Break Lines to activate the toolbar for that broken view so edits can be made • To add another broken View, right click on the view and re-select the “Add Break Lines” command • Multiple Broken Views can only be added in the un-broken view state • After edits are made, select the source view, then select the “Show Broken View” button on the ribbon bar.

  50. Broken View Makeover continued • Key Benefits • The new options for Broken Views provides a more robust command allowing the user to accomplish their tasks easier and with more options that satisfy Broken View requirements
