  1. B-Trees

  2. Motivation • When data is too large to fit in the main memory, then the number of disk accesses becomes important. • A disk access is unbelievably expensive compared to a typical computer instruction (mechanical limitations). • One disk access is worth 200,000 computer instructions. • The number of disk accesses will dominate the running time.

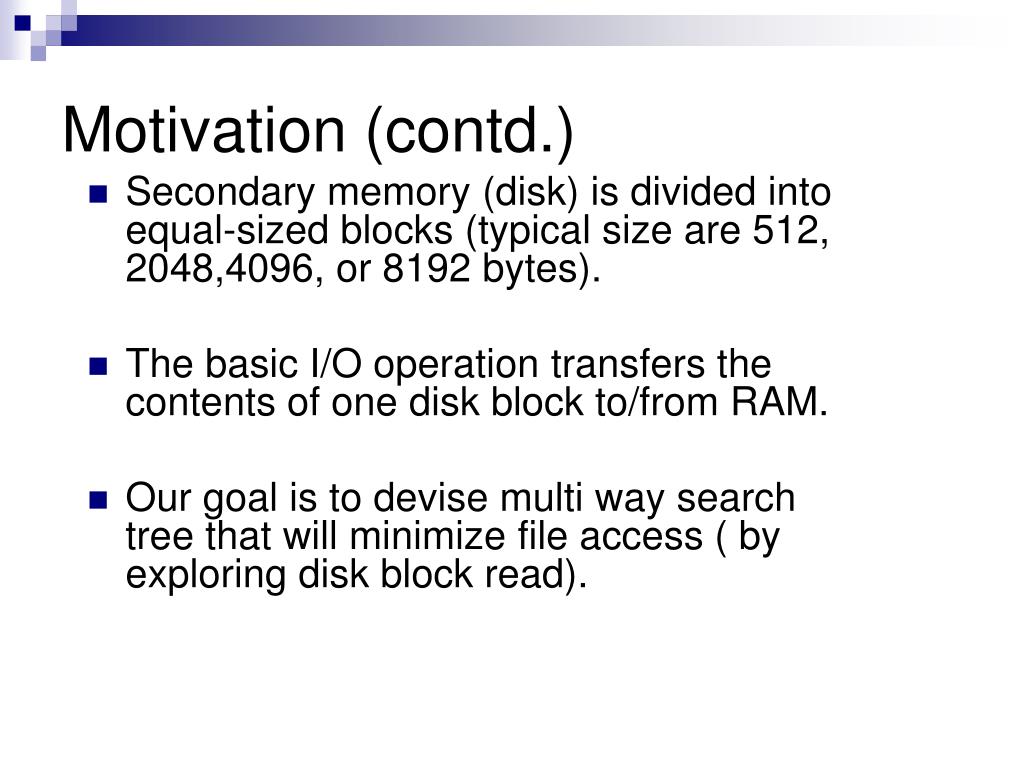

  3. Motivation (contd.) • Secondary memory (disk) is divided into equal-sized blocks (typical size are 512, 2048,4096, or 8192 bytes). • The basic I/O operation transfers the contents of one disk block to/from RAM. • Our goal is to devise multi way search tree that will minimize file access ( by exploring disk block read).

  4. Multi way search trees(of order m) • A generalization of Binary Search Trees. • Each node has at most m children. • If k ≤ m is the number of children, then the node has exactly k-1 keys. • The tree is ordered.

  5. B-Trees • A B-tree of order m is m-way search tree. • B-Trees are balanced search trees designed to work well on direct access secondary storage devices. • B-Trees are similar to Red-Black Trees, but are better at minimizing disk I/O operations. • All leaves are at the same level.

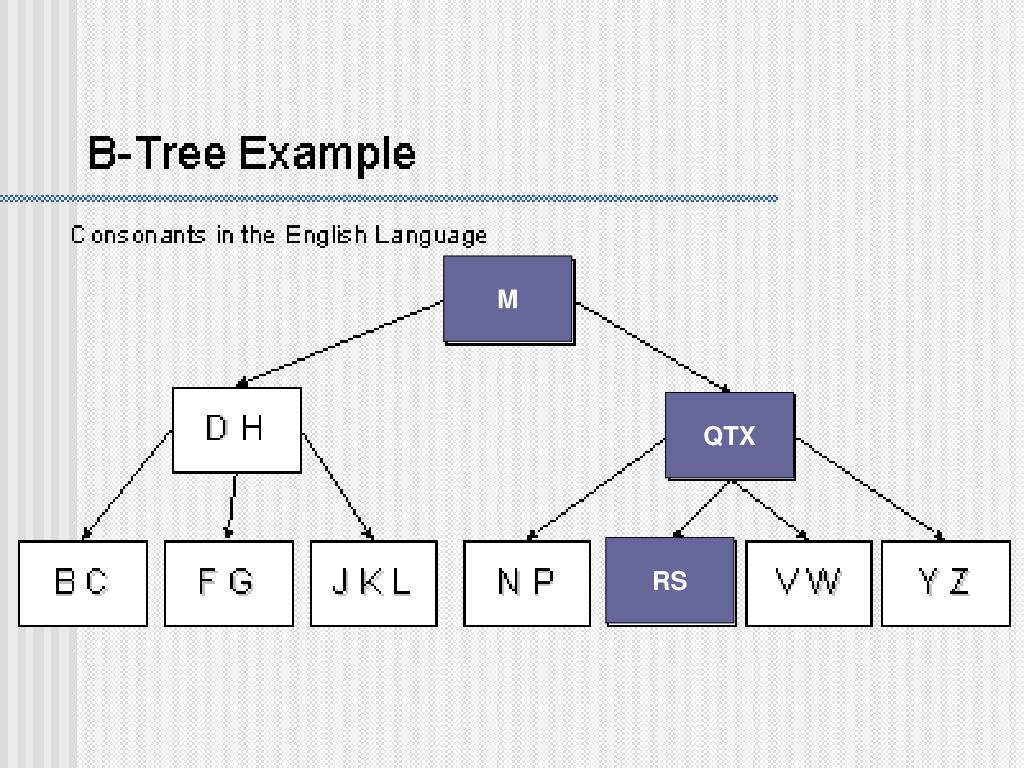

  6. M QTX RS

  7. Height h = 4 2-leaves at depth 2 2-leaves at depth 3 1-leaf at depth 4

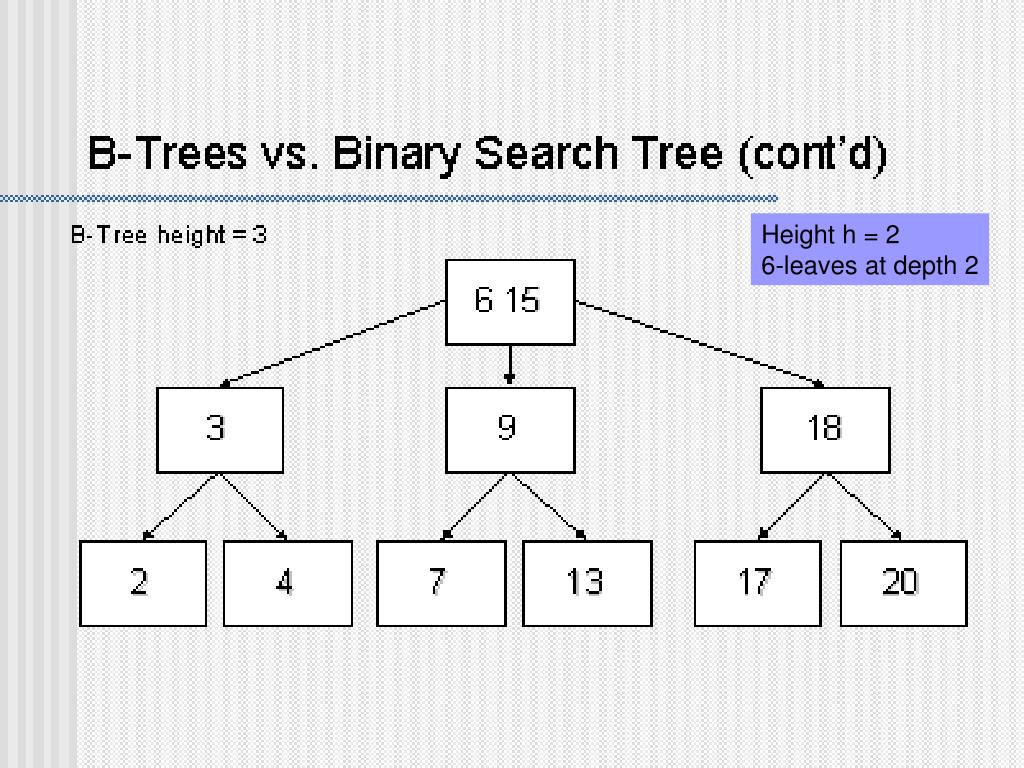

  8. Height h = 2 6-leaves at depth 2

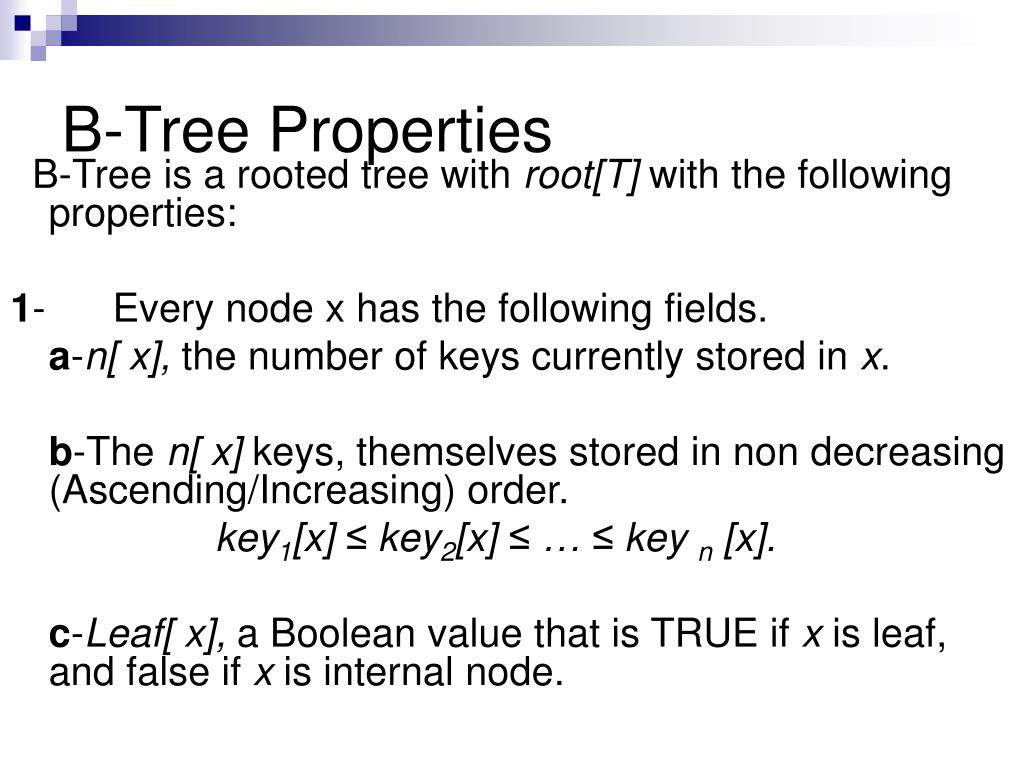

  9. B-Tree Properties B-Tree is a rooted tree with root[T] with the following properties: 1- Every node x has the following fields. a-n[ x], the number of keys currently stored in x. b-The n[ x] keys, themselves stored in non decreasing (Ascending/Increasing) order. key1[x] ≤ key2[x] ≤ … ≤ key n [x]. c-Leaf[ x], a Boolean value that is TRUE if x is leaf, and false if x is internal node.

  10. Properties Contd… 2- if x is an internal node, it also contains n[ x]+1 pointers to its children. Leaf node contains no children. 3- The keys keyi[ x] separate the range of keys stored in each sub tree : if k1 is any key stored in the sub tree with root c1[ x], then: k1≤key1[x] ≤ k2 ≤ key2[x] ≤…key n[ x] [ x] ≤ kn[x]+1 4- Each leaf has the same depth, which is the height of the tree h.

  11. Properties Contd… 5- There are lower and upper bound on the number of keys a node can contain. These bounds can be expressed in terms of a fixed integer t ≥2, called the minimum degree of B-Tree. Why t cant be 1?

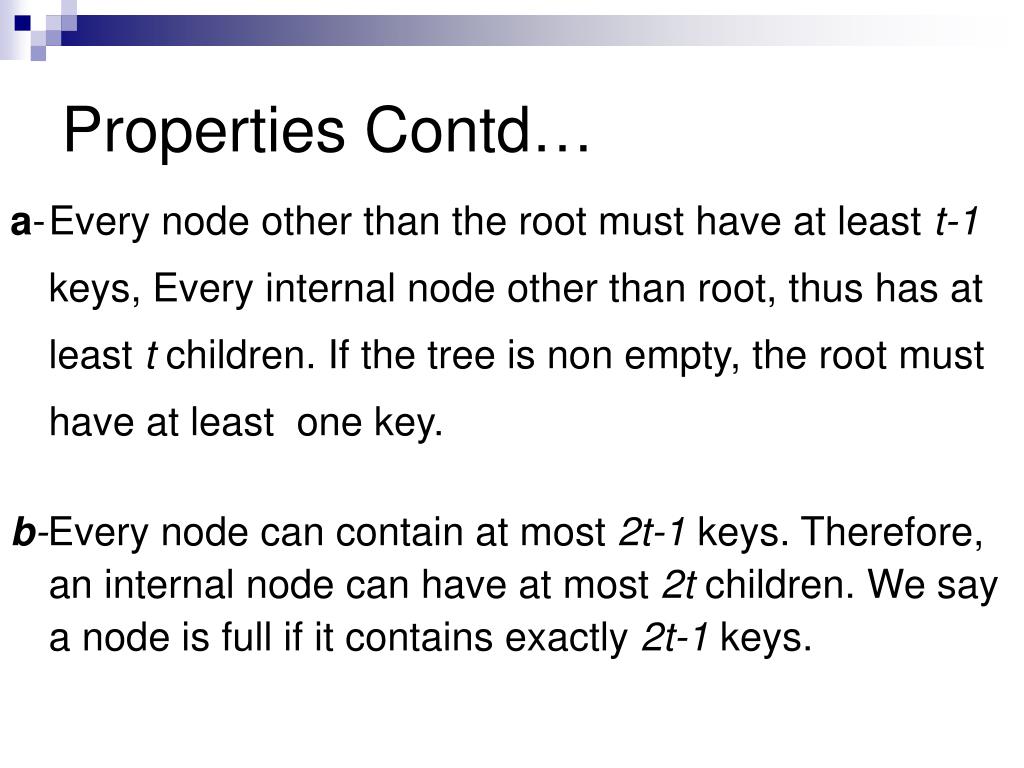

  12. Properties Contd… a- Every node other than the root must have at least t-1 keys, Every internal node other than root, thus has at least t children. If the tree is non empty, the root must have at least one key. b-Every node can contain at most 2t-1 keys. Therefore, an internal node can have at most 2t children. We say a node is full if it contains exactly 2t-1 keys.

  13. Height of a B-Tree • What is the maximum height of a B-Tree with N entries? • This question is important, because the maximum height of a B-Tree will give an upper bound on the number of disk accesses.

  14. Height of a B-Tree If n ≥ 1, than for any n-key B-Tree T of height h and minimum degree t ≥ 2,

  15. root[T] # of nodes 1 1 t-1 t-1 2 t t t-1 t-1 t-1 t-1 2t t t t t t-1 t-1 t-1 t-1 t-1 t-1 t-1 t-1 2t2 A B-Tree of height 3 containing minimum possible keys

  16. Proof • Number of nodes is minimized, when root contains one key and all other nodes contain t-1 keys. • 2 nodes at depth 1, 2t nodes at depth 2, 2t2nodes at depth 3 and so on. • At depth h, there are 2th-1 nodes.

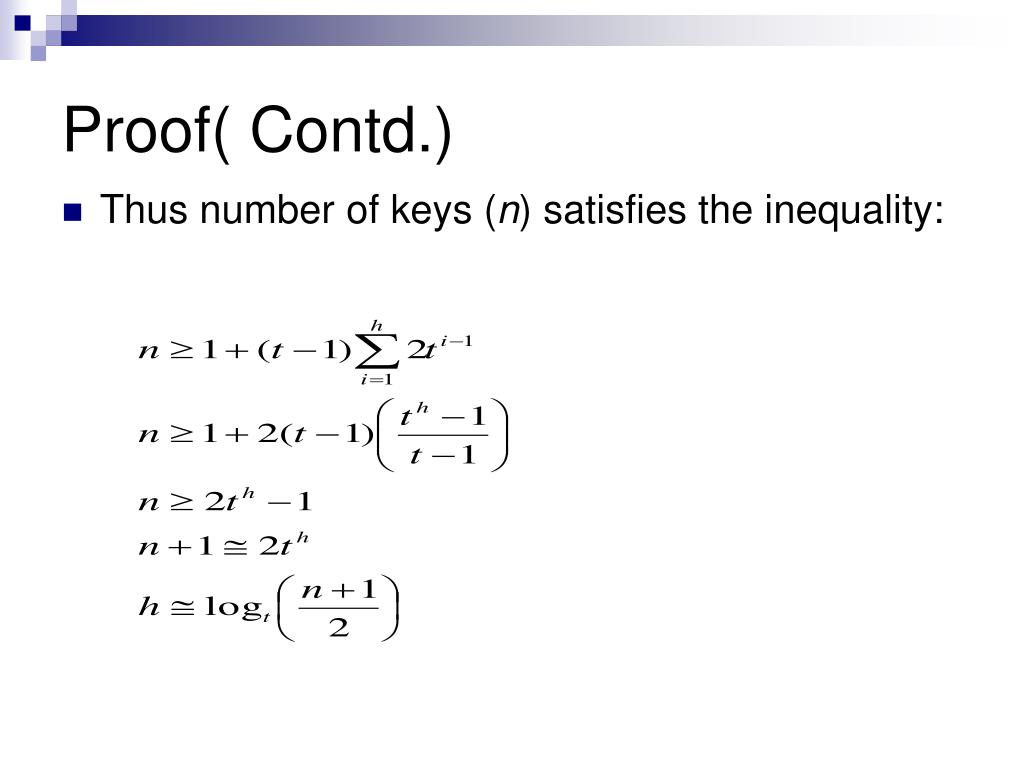

  17. Proof( Contd.) • Thus number of keys (n) satisfies the inequality:

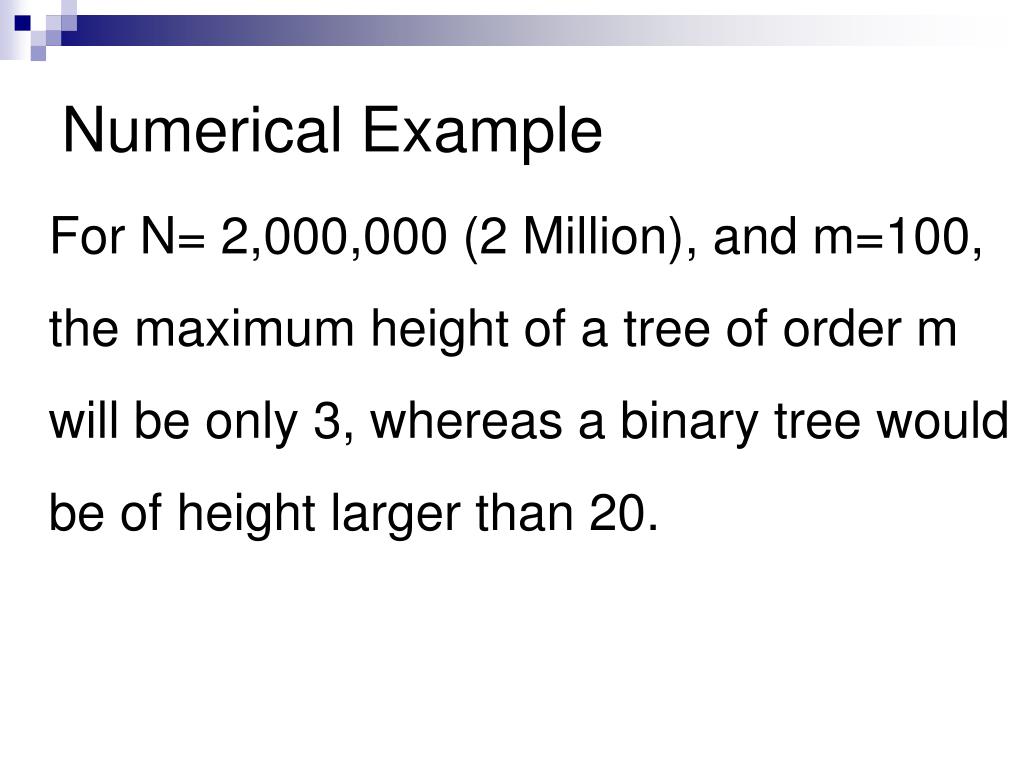

  18. Numerical Example For N= 2,000,000 (2 Million), and m=100, the maximum height of a tree of order m will be only 3, whereas a binary tree would be of height larger than 20.

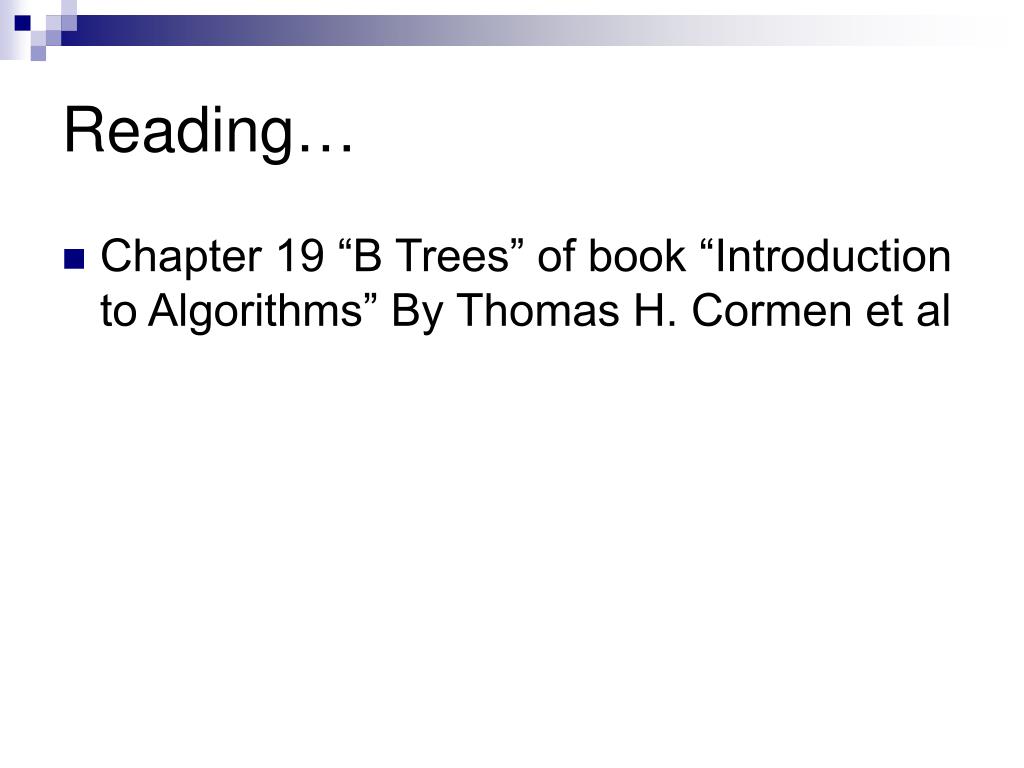

  19. Reading… • Chapter 19 “B Trees” of book “Introduction to Algorithms” By Thomas H. Cormen et al
