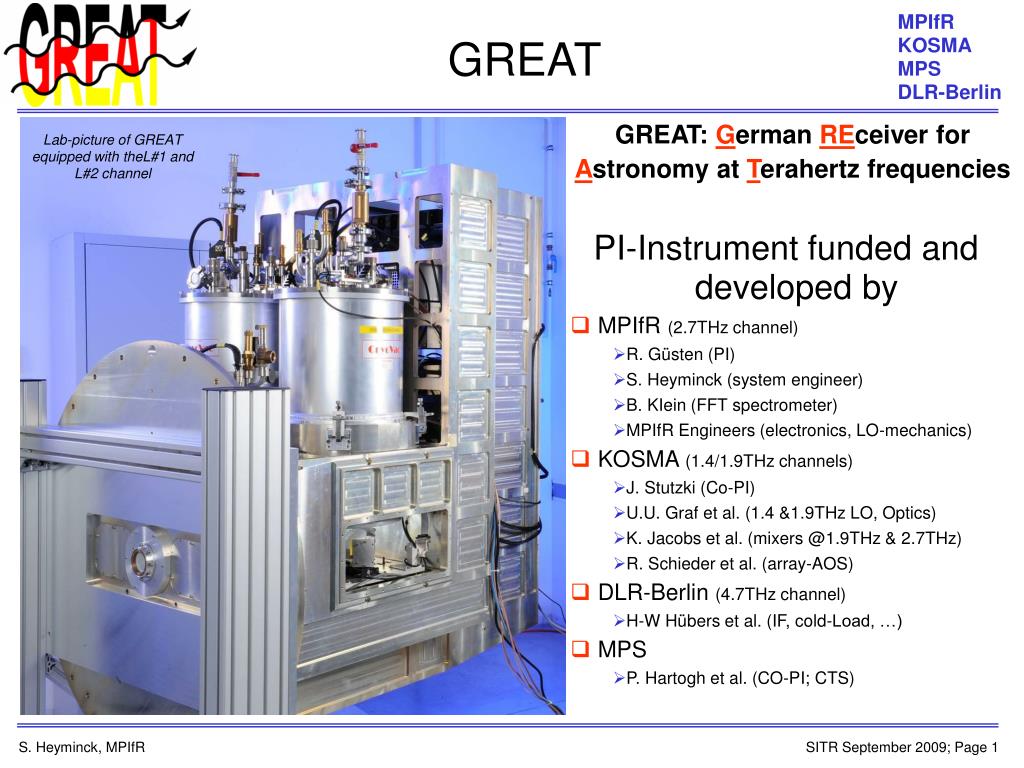

GREAT. GREAT: G erman RE ceiver for A stronomy at T erahertz frequencies. Lab-picture of GREAT equipped with theL#1 and L#2 channel. PI-Instrument funded and developed by MPIfR (2.7THz channel) R. Güsten (PI) S. Heyminck (system engineer) B. KIein (FFT spectrometer)

whitney
Télécharger la présentation

GREAT

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. GREAT GREAT: German REceiver for Astronomy at Terahertz frequencies Lab-picture of GREAT equipped with theL#1 and L#2 channel • PI-Instrument funded and developed by • MPIfR (2.7THz channel) • R. Güsten (PI) • S. Heyminck (system engineer) • B. KIein (FFT spectrometer) • MPIfR Engineers (electronics, LO-mechanics) • KOSMA (1.4/1.9THz channels) • J. Stutzki (Co-PI) • U.U. Graf et al. (1.4 &1.9THz LO, Optics) • K. Jacobs et al. (mixers @1.9THz & 2.7THz) • R. Schieder et al. (array-AOS) • DLR-Berlin (4.7THz channel) • H-W Hübers et al. (IF, cold-Load, …) • MPS • P. Hartogh et al. (CO-PI; CTS)

  2. Early-Science Configurations GREAT flight configurations: • baseline: simultaneous observations with 2 low-frequency channels • goal: fly mid-frequency channel at the earliest possible • upgrade: operate 4.7 THz channel (not in short and basic science) Short science configuration: • baseline configuration (2 low-frequency channels) Basic science configuration: • goal configurations (combinations of the mid and low-frequency channels)

  3. Stoplight-chart GREAT L-L configuration passed its PSR in Dec. 2008 and is ready for shipment SOFIA schedule is still slipping fast  GREAT is in sleep mode now: only technology development for THz LO-sources and for mixers no further testing / development activities on GREAT • Comments: • M-Band Solid-State-LO technical risk (not short science) SOFIA schedule

  4. KOSMA THz-HEB development • overcoming isolator by using a Caltech LNA (S. Weinreb et al., Rev. Sci. Instrum. 80, 044702 (2009) ) • increased IF-bandwidth • good stability (~30s total power Allan-times) • new HEB-design for better performance 1.9 THz waveguide mixer block new BIAS-T

  5. IF roll-off @ 1.4THz mixer gain roll-off IF-bandwidth so far TREC - TIF/GMIX

  6. M-Band channel • optics and cryostat are ready • two LO-systems under development • VDI solid-state LO (ordered) • output power-level not demonstrated so far • Photonics LO-system • good performance up to 1.1 THz demonstrated • scaling to 2.7 THz looks promising • first 2.7THz tests are ongoing

  7. Schedule towards S/S flights • GREAT team needs about 24 weeks prior to short science for • re-testing the first flight configuration(as accepted in PSR Dec. 2008) • additional testing of mixers • shipment • post-shipment test in Palmdale • integration test aboard SOFIA (incl. EMI-test) (see also IMS for details of the GREAT milestones)
