  1. Semiconductor Test Laboratory Improvements for High Temperature, Low Temperature, and High Frequency with Electronically Switchable Load Group 2 JomahFangonilo Shawn Hughes Shawn Sickel Antony Stabile Dr. VikramKapoor Dr. KalpathySundaram

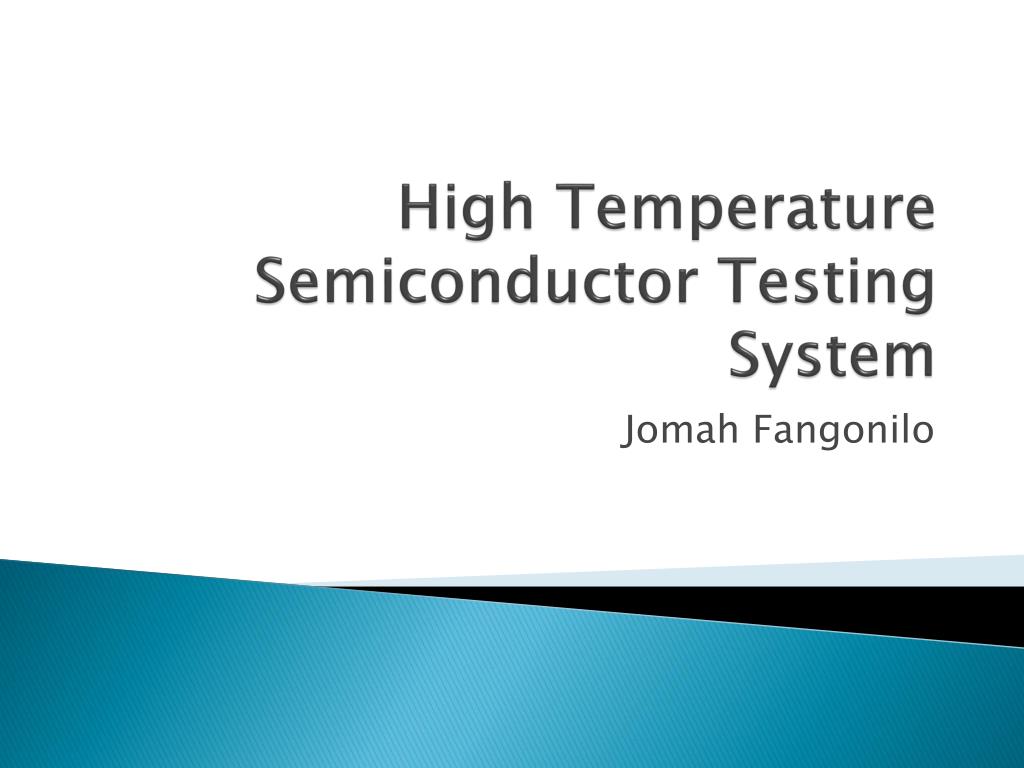

  2. High Temperature Semiconductor Testing System JomahFangonilo

  3. Motivation • Specifically – to add additional testing capabilities to the existing lab setup • Current setup only allows for tests under room temperature • In general – many applications exist in the fields of environmental testing, performance improvement, failure analysis

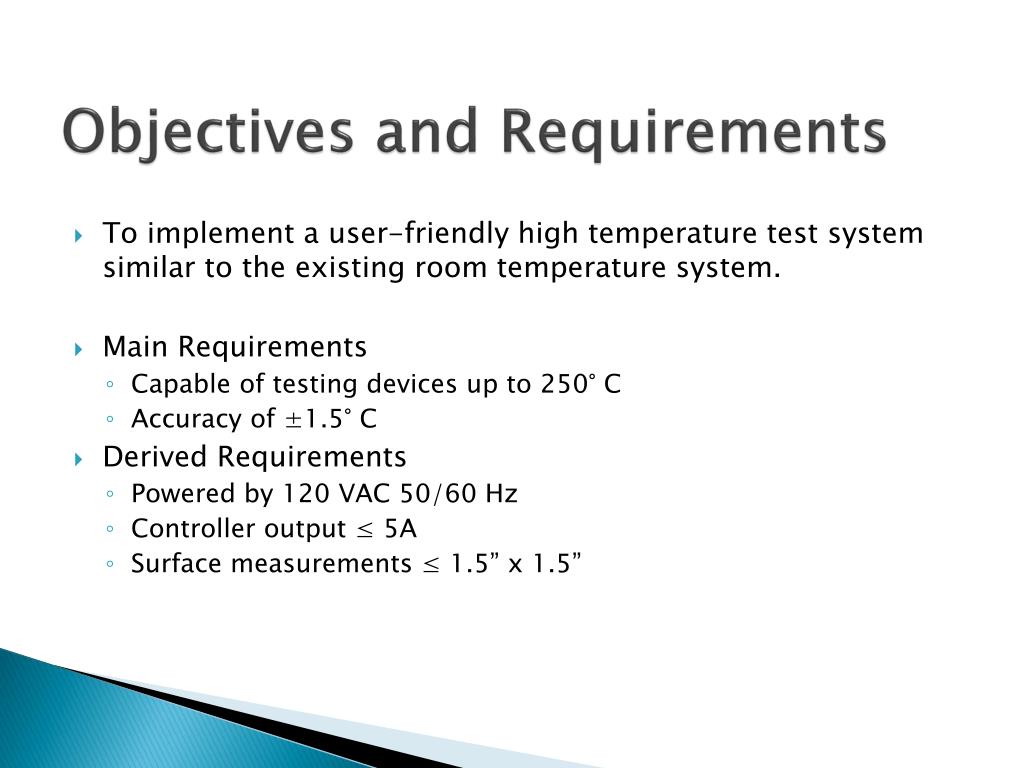

  4. Objectives and Requirements • To implement a user-friendly high temperature test system similar to the existing room temperature system. • Main Requirements • Capable of testing devices up to 250° C • Accuracy of ±1.5° C • Derived Requirements • Powered by 120 VAC 50/60 Hz • Controller output ≤ 5A • Surface measurements ≤ 1.5” x 1.5”

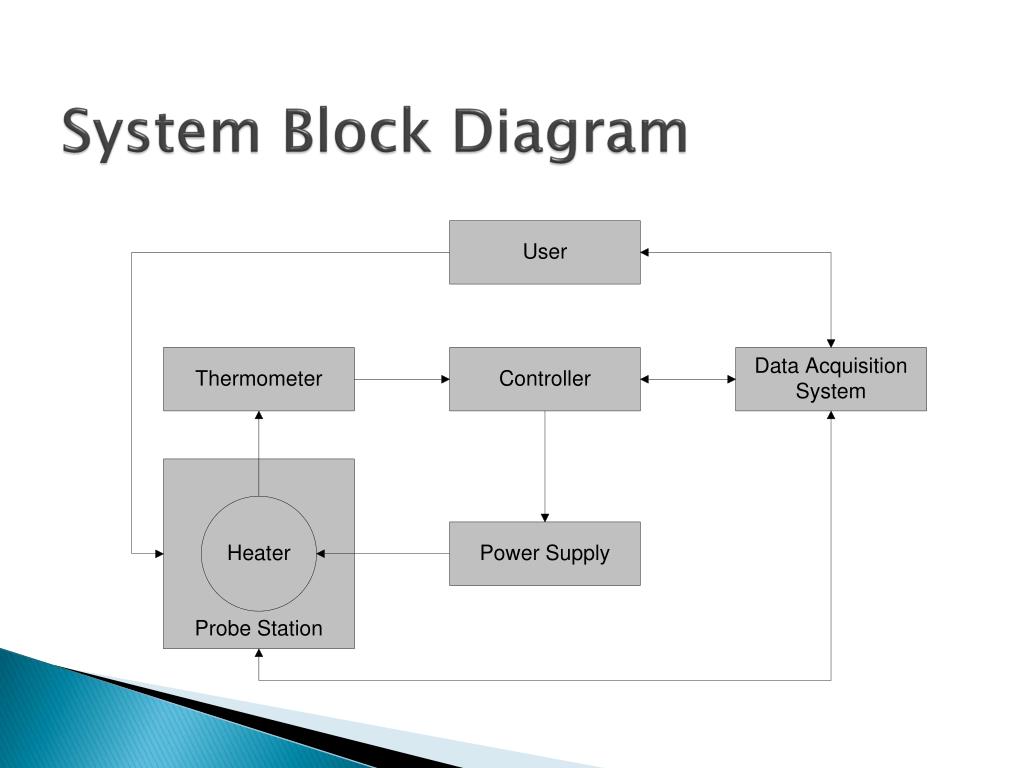

  5. System Block Diagram

  6. Chromalox A-10 Disc Heater 1.5” x 1.5”)

  7. CN7533 Controller (Relay) • 100-240 VAC • 5A load max • 3-wire Pt100 RTD or Thermocouple • PID control • Ramp/Soak • Free software • RS485 • 28,400 baud max • Cost efficient

  8. Speco RS232 to RS485 Converter DB9 female connector for RS232 to two wire Terminal Block for RS485 Auto switching baud rate, speed up to 115,200 baud over a distance of 3,900 ft. Two wire, different signals, half duplex Passive operation Units connected together in RS-485 multidrop operation RoHS compliant. $30.80

  9. Omega SA1-RTD-B • 100 Ohm Thin Film DIN Platinum Class “B” (±0.12 Ohms, ±0.30°C at 0°C) Accuracy Standard • ±1.5° C at 250° • Silicone Adhesive rated to 260°C (500°F) • Temperature Range; -73C to 260°C Continuous, 290°C (554°F) Short Term Operation When Installed with OMEGABOND Air Set Cements • Sold in Convenient 3-Packs ($95) • Relatively low cost compared to other RTD and thermocouple options

  10. Test Results 300 µA 25° C 50° C 100° C 150° C 200 µA 200° C 100 µA 0 µA 0 V 1 V 2 V 3 V 4 V 5 V High Temperature Test Results

  11. Budget

  12. Cryogenic Testing System Sean Hughes

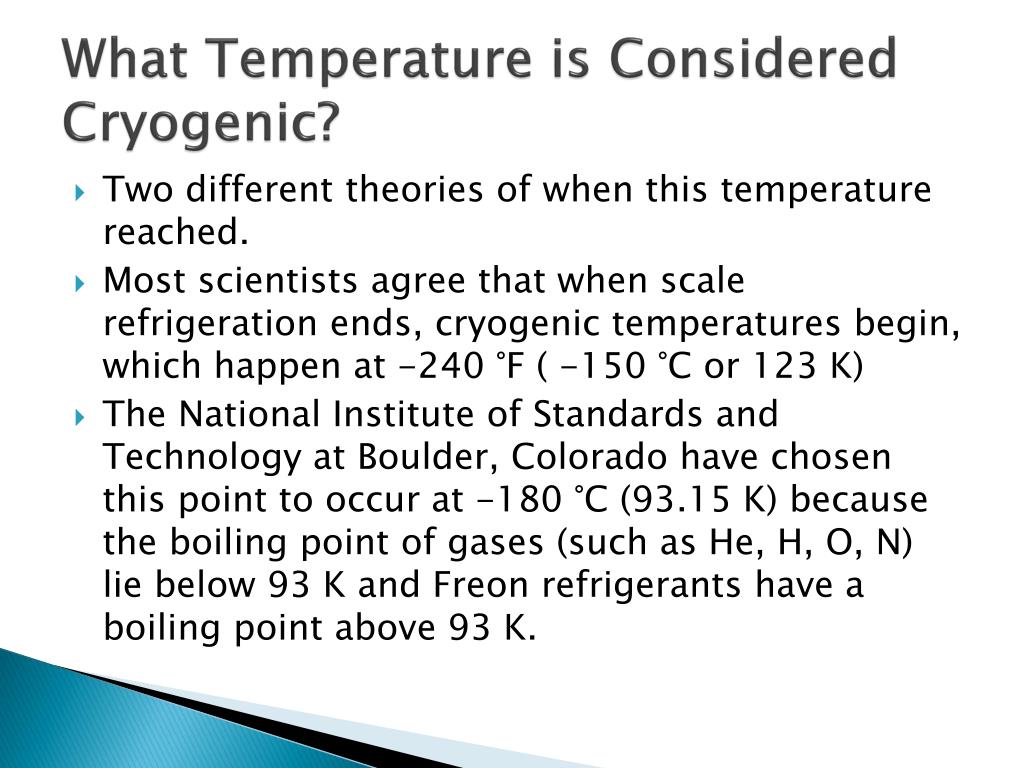

  13. What Temperature is Considered Cryogenic? • Two different theories of when this temperature reached. • Most scientists agree that when scale refrigeration ends, cryogenic temperatures begin, which happen at -240 °F ( -150 °C or 123 K) • The National Institute of Standards and Technology at Boulder, Colorado have chosen this point to occur at -180 °C (93.15 K) because the boiling point of gases (such as He, H, O, N) lie below 93 Kand Freon refrigerants have a boiling point above 93 K.

  14. Reason for Testing at Low Temperatures • Industries often tests devices at Extreme Temperatures • Largely due to environmental conditions • Electronics operate at increased rates at low temperatures • MOSFETs • Increased gain and speed at lower input voltages • Less Current Leakage • Semiconductors Characteristics Change at Extreme Lows • Freeze-Out – Silicon in the MOSFET begins to break down and there will no longer be a connection between the gate and the other components of the device and can happen at 80K

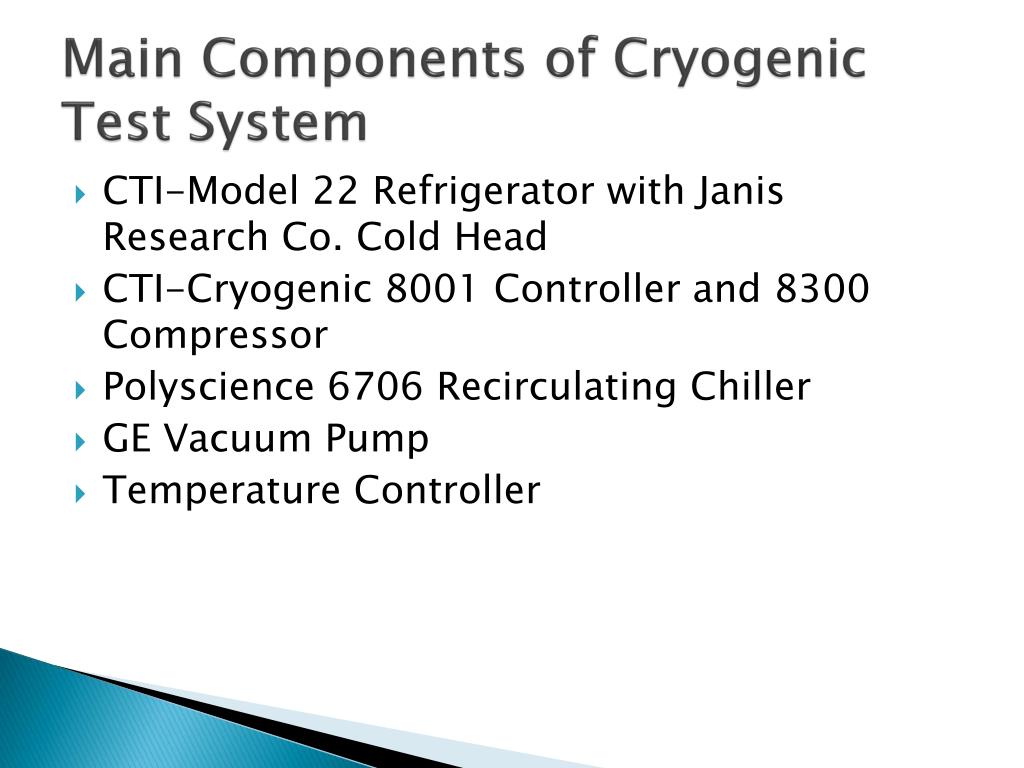

  15. Main Components of Cryogenic Test System • CTI-Model 22 Refrigerator with Janis Research Co. Cold Head • CTI-Cryogenic 8001 Controller and 8300 Compressor • Polyscience 6706 Recirculating Chiller • GE Vacuum Pump • Temperature Controller

  16. CTI-Model 22 Refrigerator or Cold Head Cold Head – Houses Semiconductor device, or any other packaged device being tested. Provides a environment capable of temperatures between 10K – 20K. • Device is wired to the platform via copper probes to connect to external testing equipment. • 4145B Semicond. Parameter Analyzer • 4142A Impedance Analyzer • 577 Curve Tracer

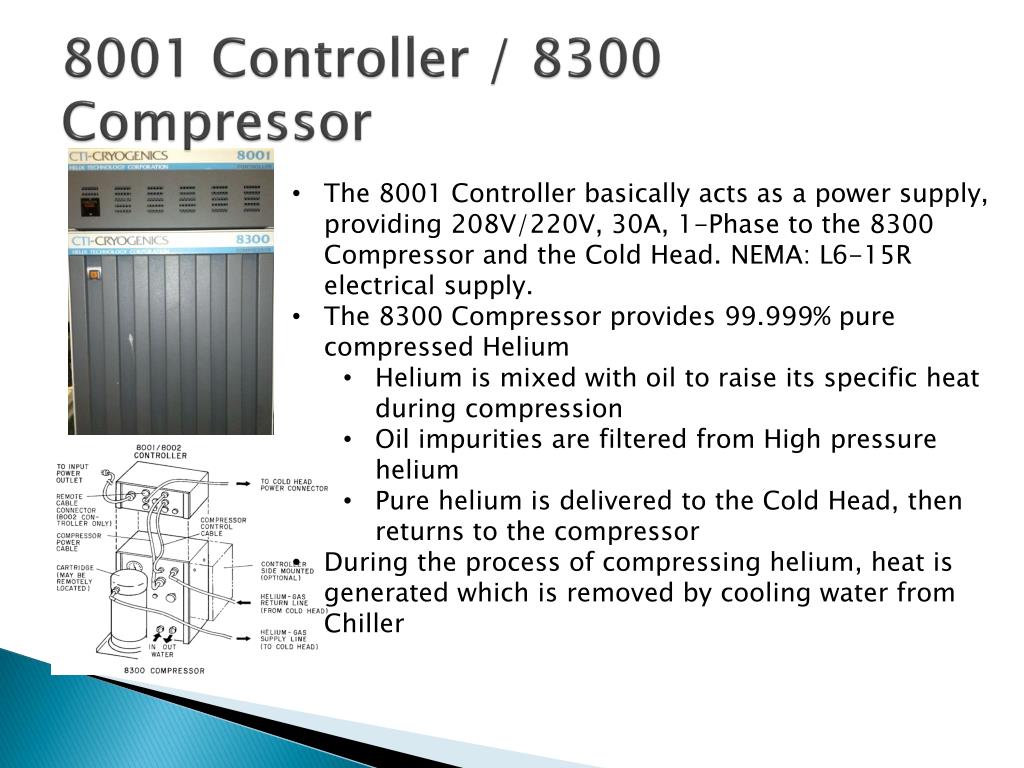

  17. 8001 Controller / 8300 Compressor • The 8001 Controller basically acts as a power supply, providing 208V/220V, 30A, 1-Phase to the 8300 Compressor and the Cold Head. NEMA: L6-15R electrical supply. • The 8300 Compressor provides 99.999% pure compressed Helium • Helium is mixed with oil to raise its specific heat during compression • Oil impurities are filtered from High pressure helium • Pure helium is delivered to the Cold Head, then returns to the compressor • During the process of compressing helium, heat is generated which is removed by cooling water from Chiller

  18. PS 6705 Recirculating Chiller • 2 gallon capacity cooling water (tap) • Cooling water cycles through the 8300 Compressor, dissipating excess heat • Water into compressor: ~70°F • Water out: ~80°F • ~1.67kW of energy removed • Accomplished by fans passing air over aluminum fins. • 208/220V 20A, 1-phase NEMA:6-30P

  19. Aluminum Doped Zinc Oxide [ZnO:Al] • Tested resistivity at temperatures ranging from ~300K down to 60K, samples proved to have poor thermal stabilityat low temperatures

  20. Indium Tin Oxide (ITO) • High Thermal Stability • Maintained resistance when testing samples from 300K down to 20K • Resistance ranged from 54.211Ω at 300K to 57.747 Ω at 20K

  21. General JFET (2N7000) • 2N7000 is an N-Channel enhancement mode FET • Testing at low temperatures show an improvement in performance. • Vgs stepped from 3V to 10V Room Temperature 300K Low Temperature 80K

  22. N-Channel MOSFET • Increase in Drain Current with the same Gate Voltage applied, leading to an increase in transconductance from 300K (pictured left) to 50K (pictured right) Low Temperature 50K Room Temperature 300K

  23. High Frequency Testing System Shawn Sickel

  24. Goals: • Complete interface to Data Acquisition System • Export the data in a compatible format for further analysis in Advanced Design Systems (ADS) • Specification: • Read High Frequency Response within the range of 130 MHz to 18 GHz

  25. HP 8720B Vector Network Analyzer

  26. Block diagram

  27. Specifications of VNA • 20+ years old • RF range of 130 MHz to 20 GHz • Incident power level from -10 to -65 dBm • Dynamic range of 85 dB • Needs to be calibrated before each use

  28. RF Devices Power Splitter / Combiner High Pass Filter Microwave Transistor Amplifier

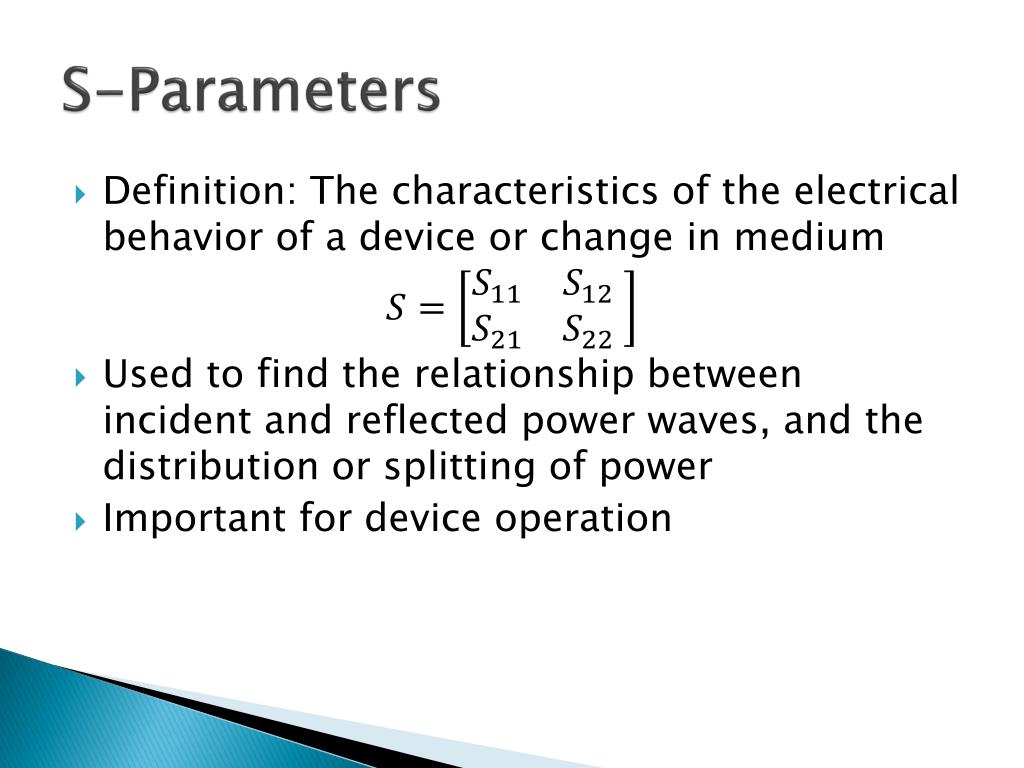

  29. S-Parameters • Definition: The characteristics of the electrical behavior of a device or change in medium • Used to find the relationship between incident and reflected power waves, and the distribution or splitting of power • Important for device operation

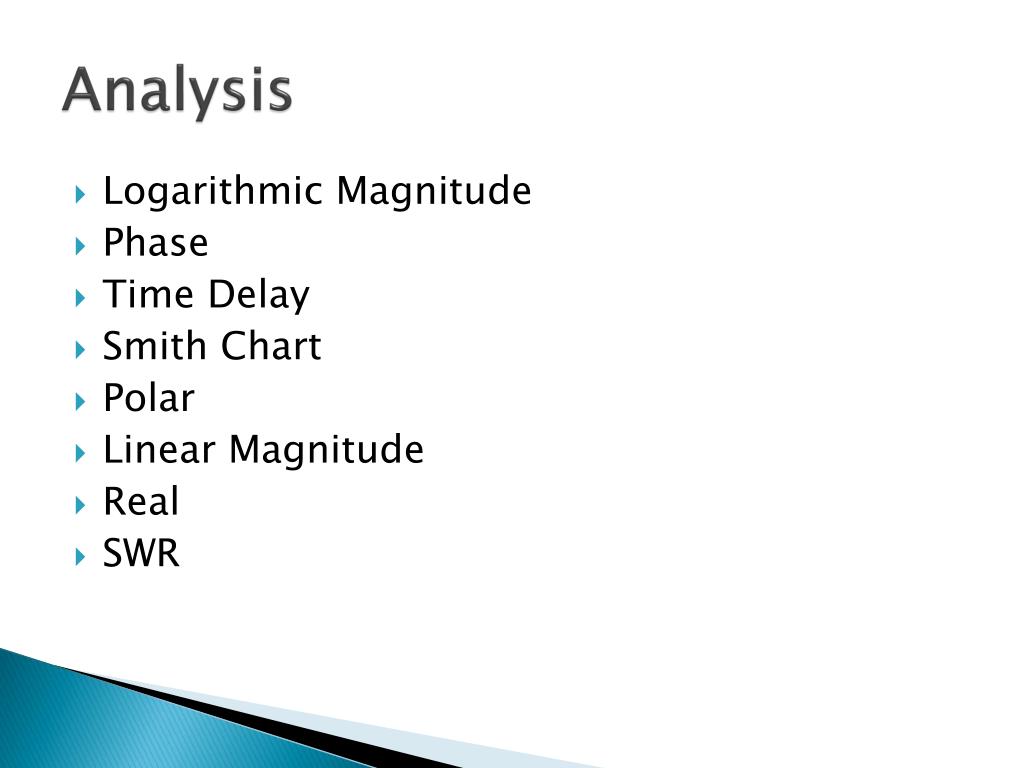

  30. Analysis • Logarithmic Magnitude • Phase • Time Delay • Smith Chart • Polar • Linear Magnitude • Real • SWR

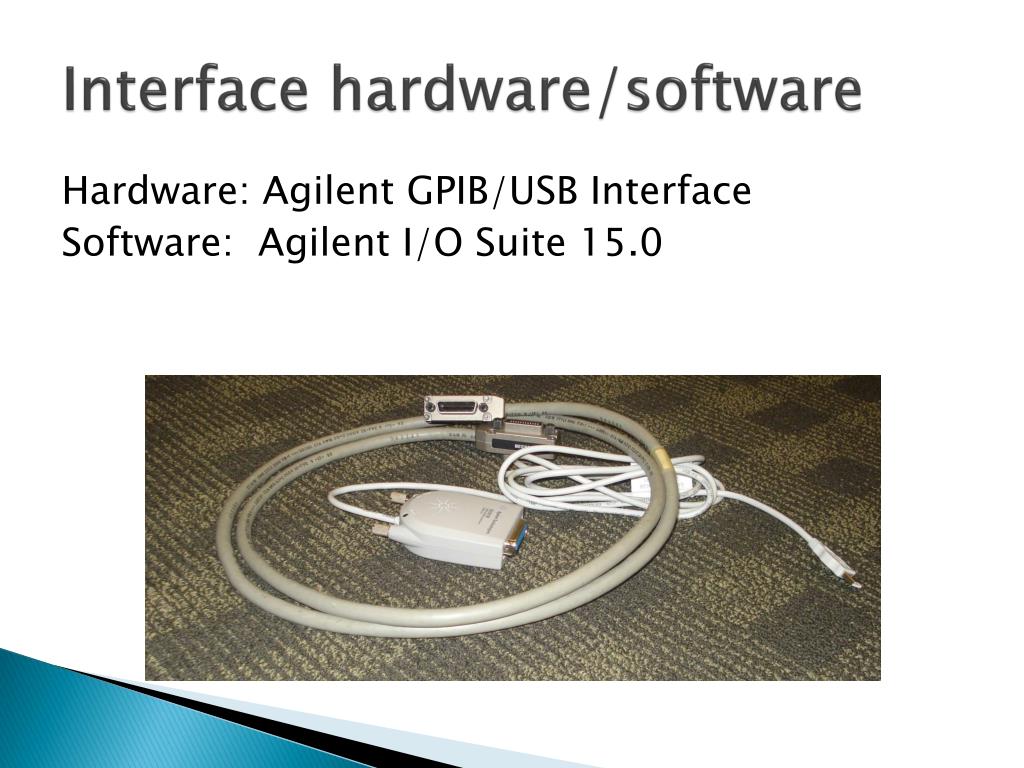

  31. Interface hardware/software Hardware: Agilent GPIB/USB Interface Software: Agilent I/O Suite 15.0

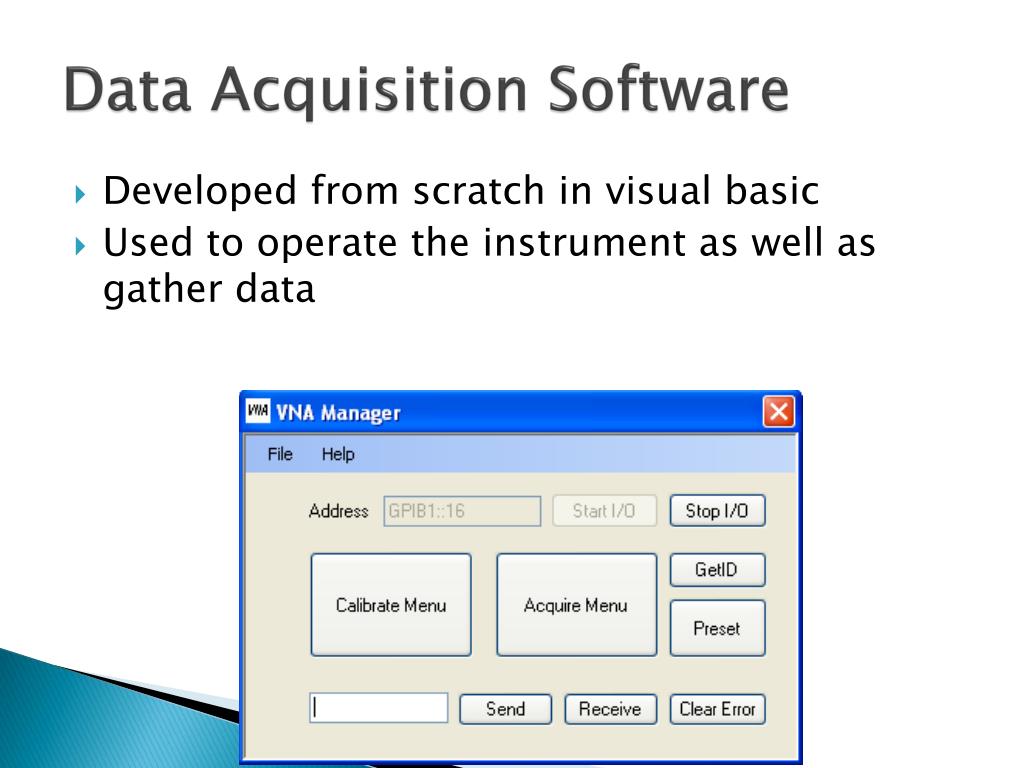

  32. Data Acquisition Software • Developed from scratch in visual basic • Used to operate the instrument as well as gather data

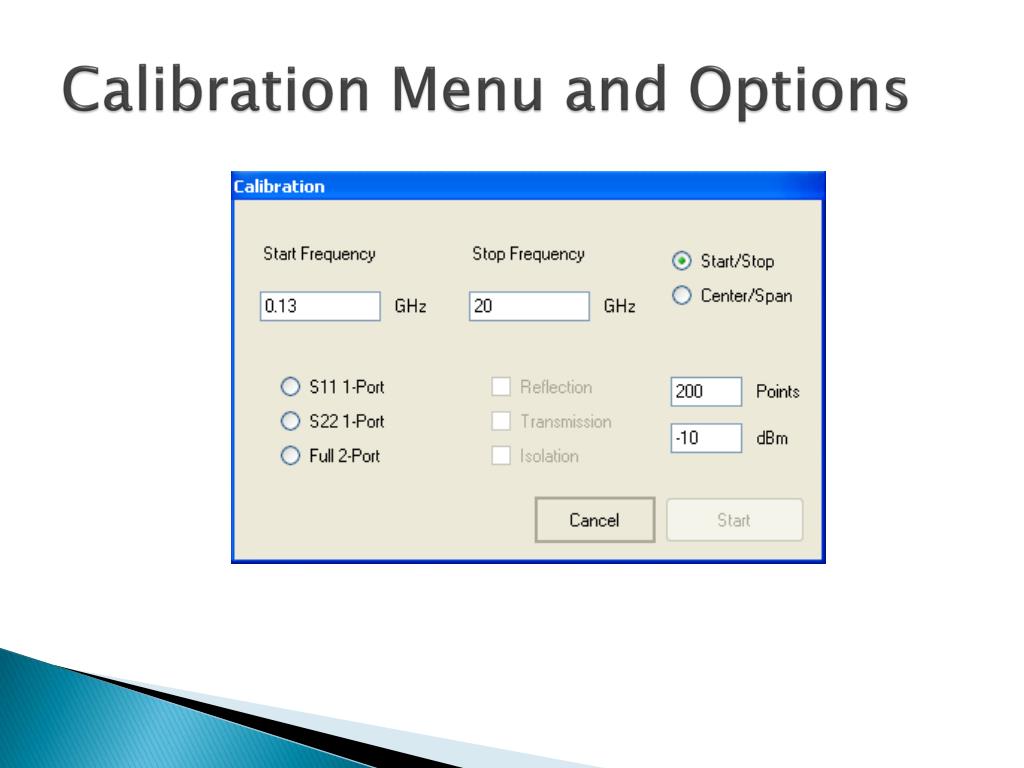

  33. Calibration Menu and Options

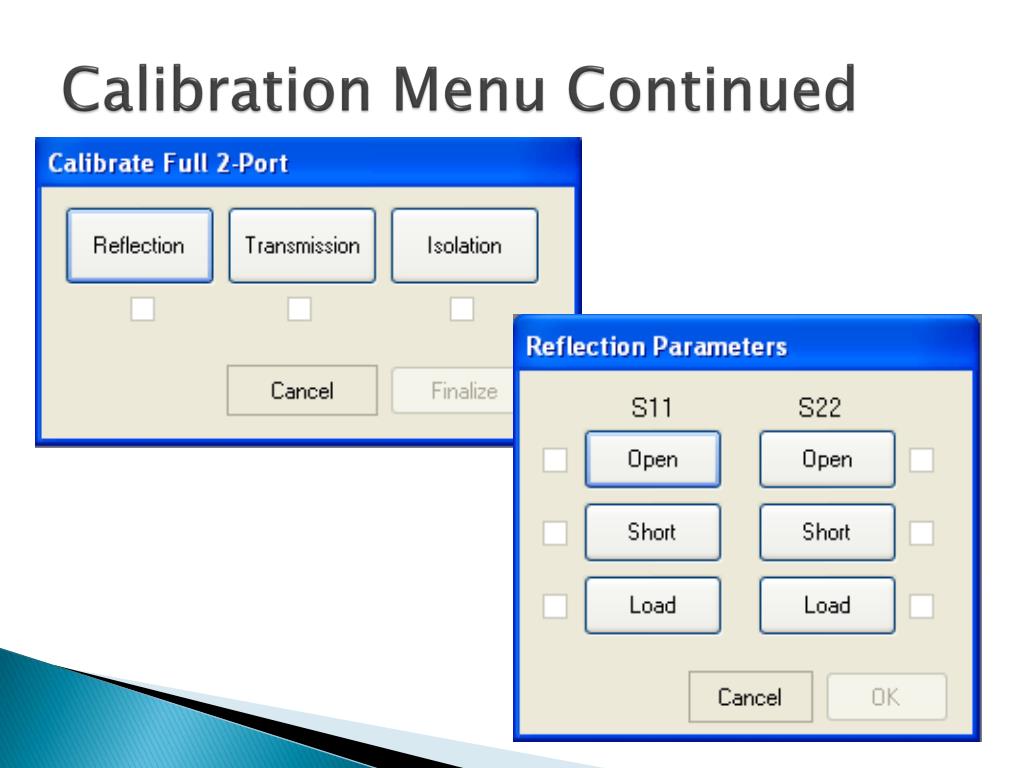

  34. Calibration Menu Continued

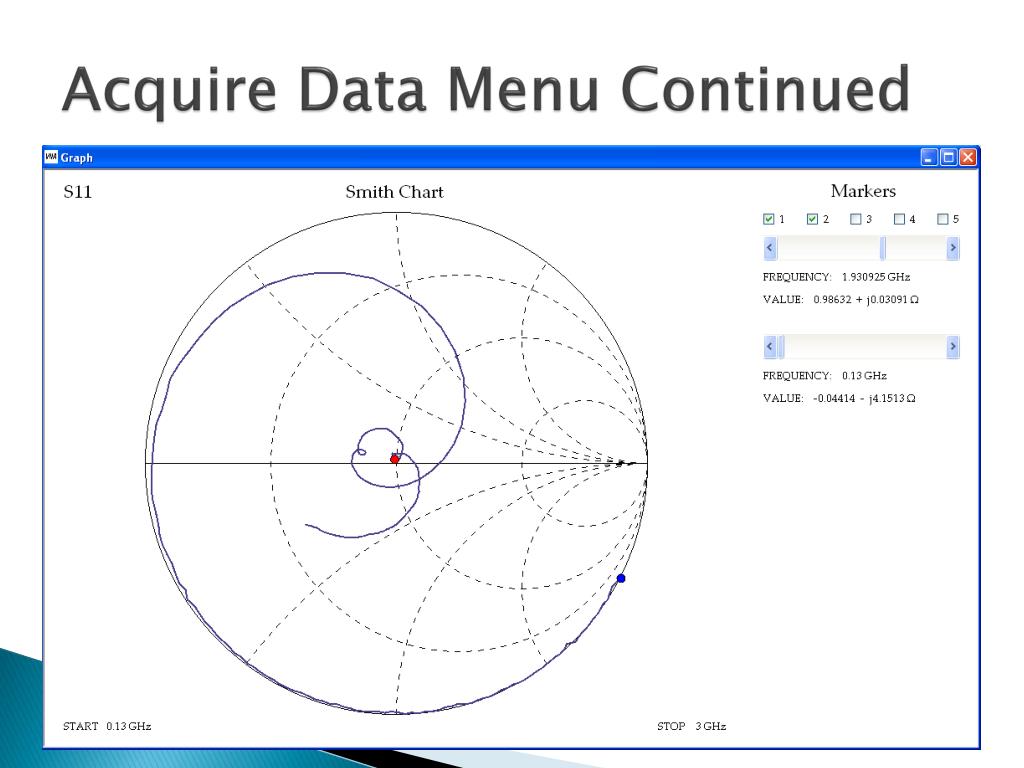

  35. Acquire Data Menu

  36. Acquire Data Menu Continued

  37. Power Splitter Results From Device Datasheet: 1 GHz -6.03 dB 2 GHz -5.95 dB 3 GHz -6.12 dB From Acquired Data: 1 GHz -6.104 dB 2 GHz -6.311 dB 3 GHz -6.406 dB

  38. ADS Analysis Using exported .s2p file Datasheet

  39. Microwave Transistor Amplifier Results Data from UCF RF & Antennas Lab: S21 1 GHz 17.125 dB From Acquired Data: S21 1 GHz 17.172 dB

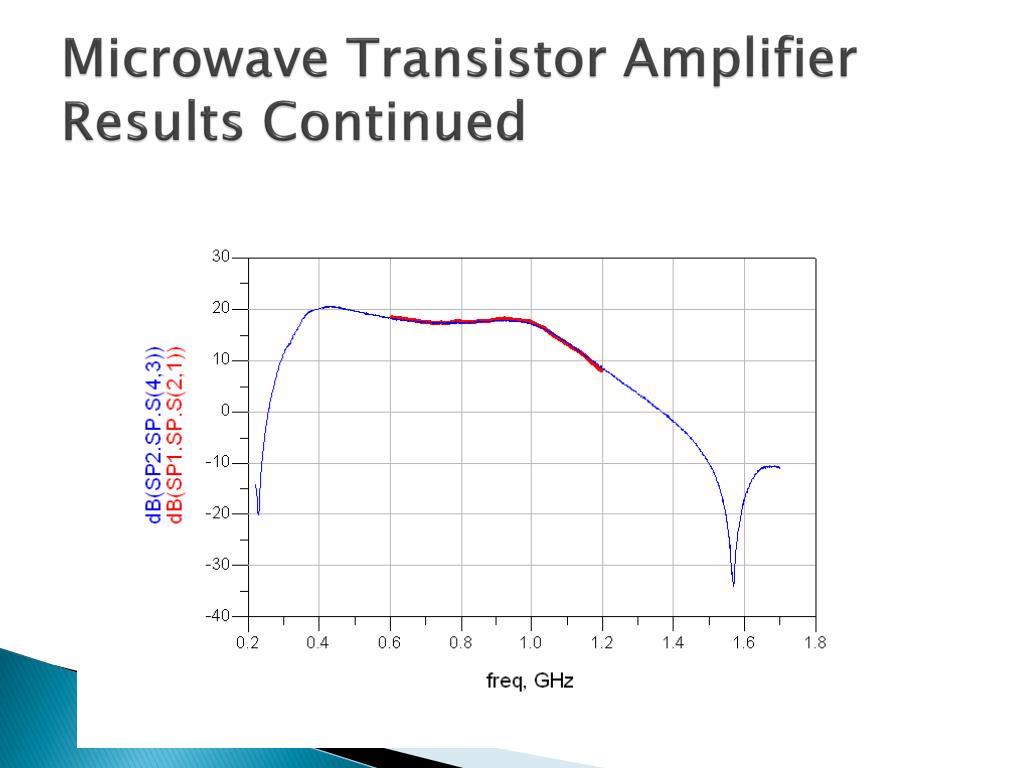

  40. Microwave Transistor Amplifier Results Continued

  41. Importance UCF’s High Frequency Testing labs require approval and Graduate Student Assistant accompaniment

  42. Electronically Switchable Load Antony Stabile

  43. Design Goals • Must be portably powered • Assembled on a printed circuit board • Must contain a load indicator • Stable switchable interface • Minimal Cost

  44. Design Specification • Must switch between at least four loads • 50 ohm matched impedance • Cut-off frequency greater than 2 GHz • Coaxial connection to connect to spectrum analyzer

  45. Design Components

  46. Analog Multiplexer • CMOS switches • High attenuation about ~300 MHz • Inductive Relay • High power draw • MEMS Relay • Newest technology, high cost Decision – Omron G6Z MEMS relay

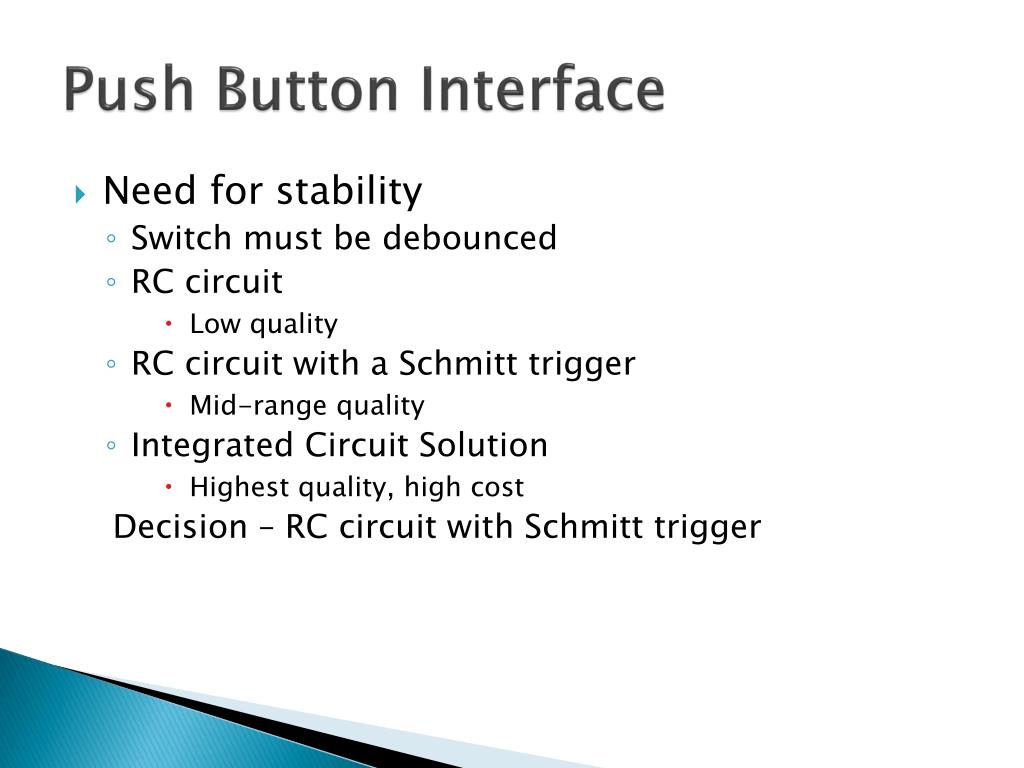

  47. Push Button Interface • Need for stability • Switch must be debounced • RC circuit • Low quality • RC circuit with a Schmitt trigger • Mid-range quality • Integrated Circuit Solution • Highest quality, high cost Decision – RC circuit with Schmitt trigger

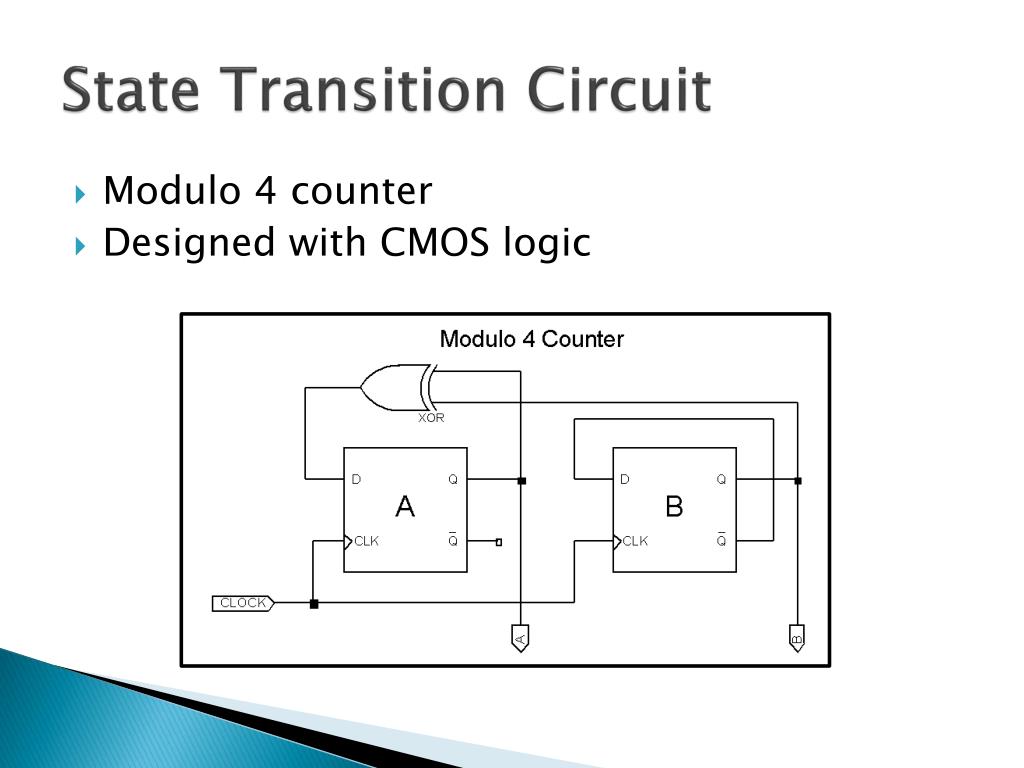

  48. State Transition Circuit • Modulo 4 counter • Designed with CMOS logic
