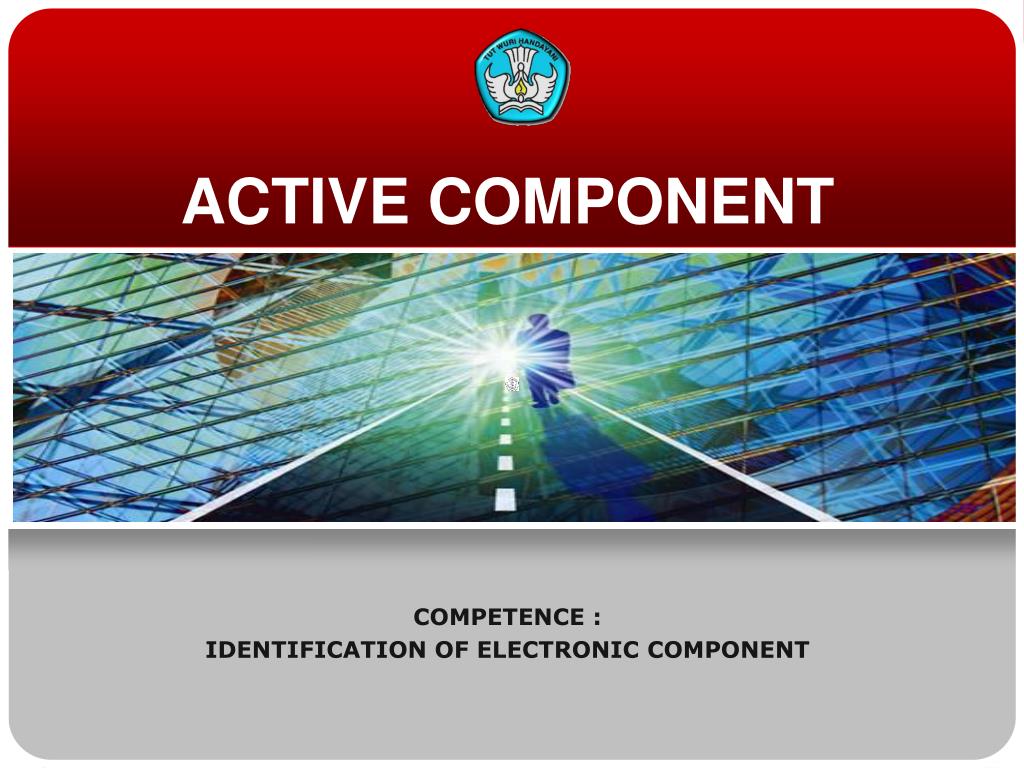

  1. ACTIVE COMPONENT COMPETENCE : IDENTIFICATION OF ELECTRONIC COMPONENT

  2. OBJECTIVE TO IDENTIFY KIND OF ACTIVE COMPONENT Teknologi dan Rekayasa

  3. TRANSISTOR Is active component made from semiconductore substance Bipolar transistor type NPN and PNP Transistor a lot of used for example as : Switch Amplifier Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  4. Unit Junction Transistor (UJT) UJT a lot of used for oscillator high frequency TeknologidanRekayasa By. SETYO SMK MUH.3 YOGYA

  5. Field Effect Transistor (FET) / Junction Field Effect Transistor (JFET) FET or JFET can be used for : Switch Amplifier Multiplexer Choppers AGC Buffer Fuse Drain Gate Source Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  6. Metal Oxide Semiconductor Field Effect Transistor (MOSFET) MOSFET can be used for : High Speed Switch Inverter Sample & HoldAmplifier DC Amplifier Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  7. THYRISTOR Component which often weared as censor. 1. DIAC DIAC can continue the triger signal from electrode 1 to electrode 2 or on the contrary aplication IN 5758 Controlingelectromotor to turn around left / right for example at weared Lift network. Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  8. Silicon Controll Rectifier (SCR) Usable SCR as tension rectifier for the activator of big powered DC motor or servo motor, by including voltage to Gate G A K Anoda Katoda Gate Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  9. G ECG 5629 1 2 3. TRIAC TRIAC much the same to by DIAC, the difference at TRIAC hence triger signal passing Gate. There no current stream from 1 to 2 or on the contrary if no triger signal. aplication Usable TRIAC control the motor DC or AC turn around left / right by sinyal control passing Gate. 2 1 G Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  10. DIODA Linear active component owning two electrode is Anoda and Catoda 1. RECTIFIER DIODA Aplication for rectifier Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  11. 2. ZENER DIODA Katoda Anoda Aplication for regulator A K Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  12. 3. VARACTOR DIODA VaractorDioda is like capacitor which capacitancy arranged by voltage aplication In TV Device In FM Radio Device In komunication Device which high freqwency Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  13. THE END THANKS YOU Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA
