  1. ESVT: A Toolkit Facilitating Use of DETER Lunquan Li, Jiwu Jing, Peng Liu, TJ, Jisheng, George Kesidis, David Miller Penn State University September 28, 2005 Newport Beach, CA

  2. Motivation • Specific testbeds need specific tools • EMIST tools are DETER specific • Tools are a vehicle to make the evaluation methods developed by EMIST available to experimenters • EMIST tools make DETER experiments easier • EMIST tools save the experimenters’ time and energy DETER Experimenter EMIST tools General purpose tools

  3. EMIST Tool Effort • PSU ESVT toolkit • UCD NTGC network traffic generation and control tool • ICSI/PSU worm scale-down equations • UCD emulated worm attack generation tool • PSU KMSim Slammer-like attack generator • SRI/UCD worm simulation tools • UCD XML worm specification tool • UCD BGP routing data viz tool • PSU NTD traffic data mining tool • Purdue scriptable event system • Purdue sys info logging tool • SPARTA/McAfee DDOS trace analysis and viz scripts • Purdue data analysis and viz scripts

  4. ESVT: Status • ESVT 1.0 -- May 2004 • Windows platform • C++ • User manual • Sample DETER experiment package • ESVT 2.0 -- May 2005 • 34,494 lines of C++ code • ESVT made open source in July 2005 Downloads: ESVT 1.0 Executable: 70 times ESVT 2.0 Executable: 26 times ESVT 2.0 Source code: 12 times Download  http://emist.ist.psu.edu

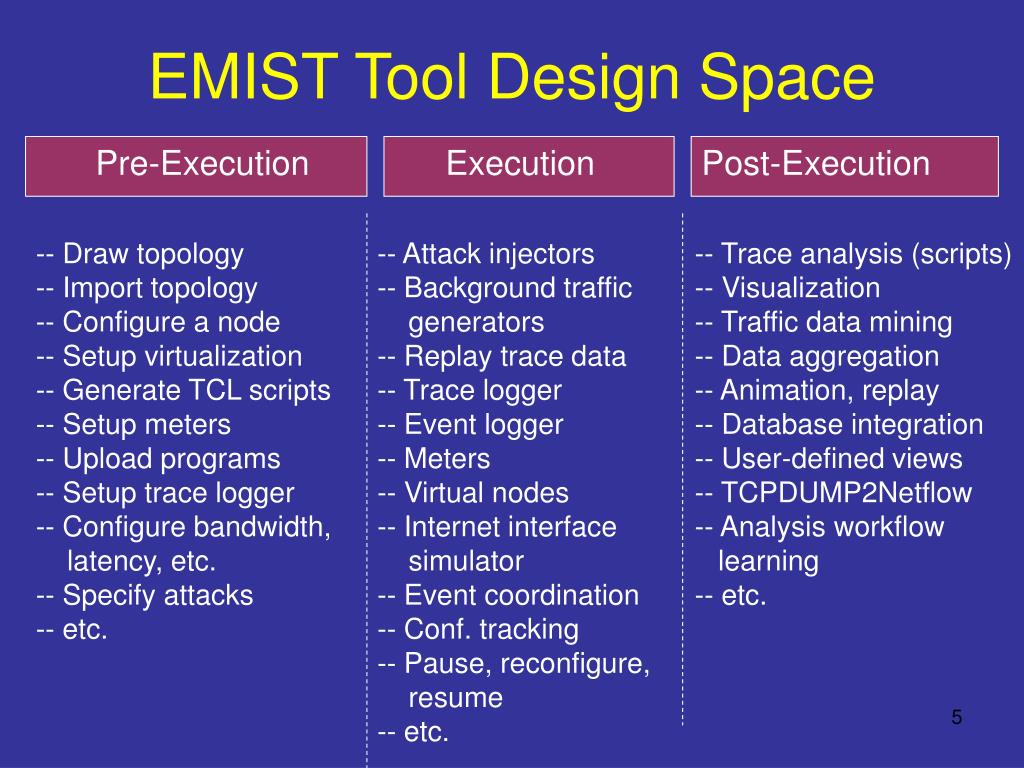

  5. EMIST Tool Design Space Pre-Execution Execution Post-Execution -- Draw topology -- Import topology -- Configure a node -- Setup virtualization -- Generate TCL scripts -- Setup meters -- Upload programs -- Setup trace logger -- Configure bandwidth, latency, etc. -- Specify attacks -- etc. -- Attack injectors -- Background traffic generators -- Replay trace data -- Trace logger -- Event logger -- Meters -- Virtual nodes -- Internet interface simulator -- Event coordination -- Conf. tracking -- Pause, reconfigure, resume -- etc. -- Trace analysis (scripts) -- Visualization -- Traffic data mining -- Data aggregation -- Animation, replay -- Database integration -- User-defined views -- TCPDUMP2Netflow -- Analysis workflow learning -- etc.

  6. ESVT Overview -- May 2004: Version 1.0 -- May 2005: Version 2.0 Pre-Execution Execution Post-Execution -- Draw topology -- Import topology -- Configure a node -- Setup virtualization -- Generate TCL scripts -- Configure bandwidth, latency, etc. -- Specify attacks -- Attack packet injectors* (KMSim) -- Trace logger* -- Virtual nodes* -- Internet interface simulator* -- Visualization -- Traffic data mining* -- Data aggregation -- Animation, replay -- Database integration -- User-defined views -- TCPDUMP2Netflow * To be integrated.

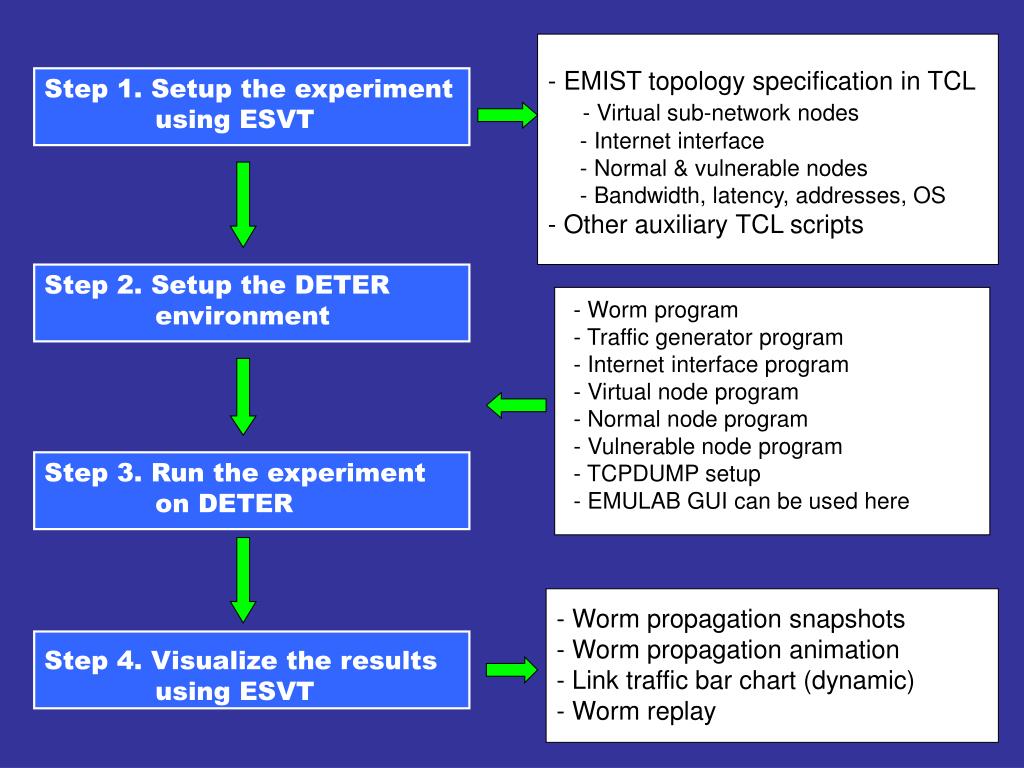

  7. EMIST topology specification in TCL • - Virtual sub-network nodes • - Internet interface • - Normal & vulnerable nodes • - Bandwidth, latency, addresses, OS • Other auxiliary TCL scripts Step 1. Setup the experiment using ESVT Step 2. Setup the DETER environment - Worm program - Traffic generator program - Internet interface program - Virtual node program - Normal node program - Vulnerable node program - TCPDUMP setup - EMULAB GUI can be used here Step 3. Run the experiment on DETER • Worm propagation snapshots • Worm propagation animation • Link traffic bar chart (dynamic) • Worm replay Step 4. Visualize the results using ESVT

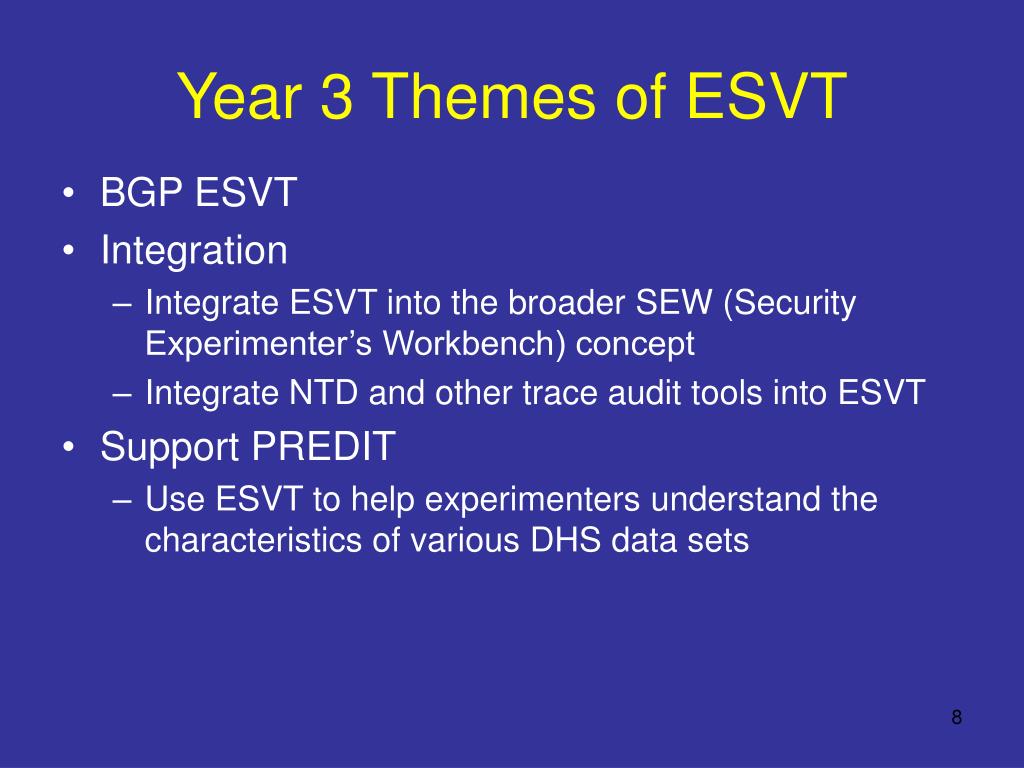

  8. Year 3 Themes of ESVT • BGP ESVT • Integration • Integrate ESVT into the broader SEW (Security Experimenter’s Workbench) concept • Integrate NTD and other trace audit tools into ESVT • Support PREDIT • Use ESVT to help experimenters understand the characteristics of various DHS data sets

  9. ESVT Screenshots Demo: this afternoon

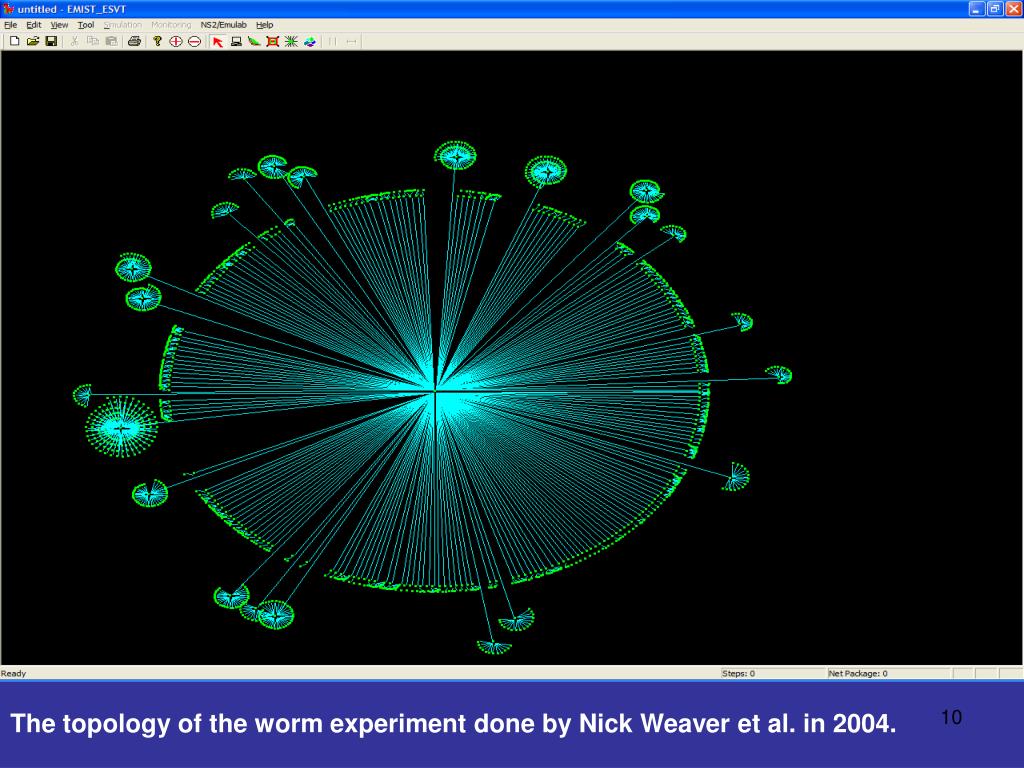

  10. The topology of the worm experiment done by Nick Weaver et al. in 2004.

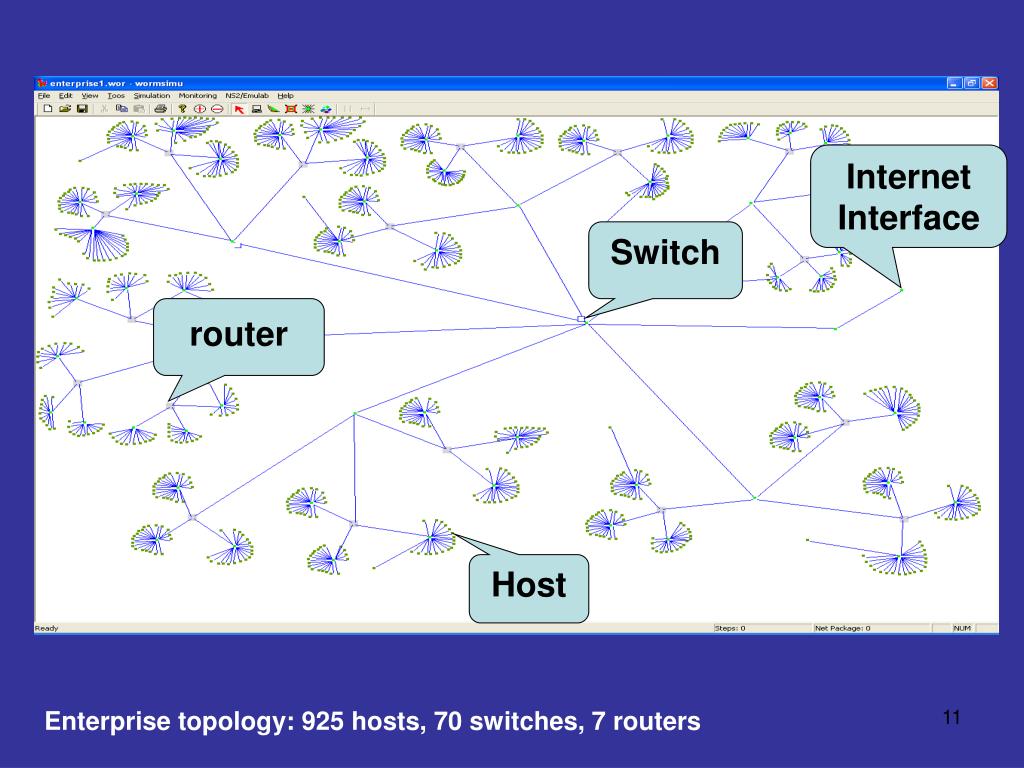

  11. router Internet Interface Switch Host Enterprise topology: 925 hosts, 70 switches, 7 routers

  12. A topology imported from GT-ITM format.

  13. Node configuration in a zoomed-in topology.

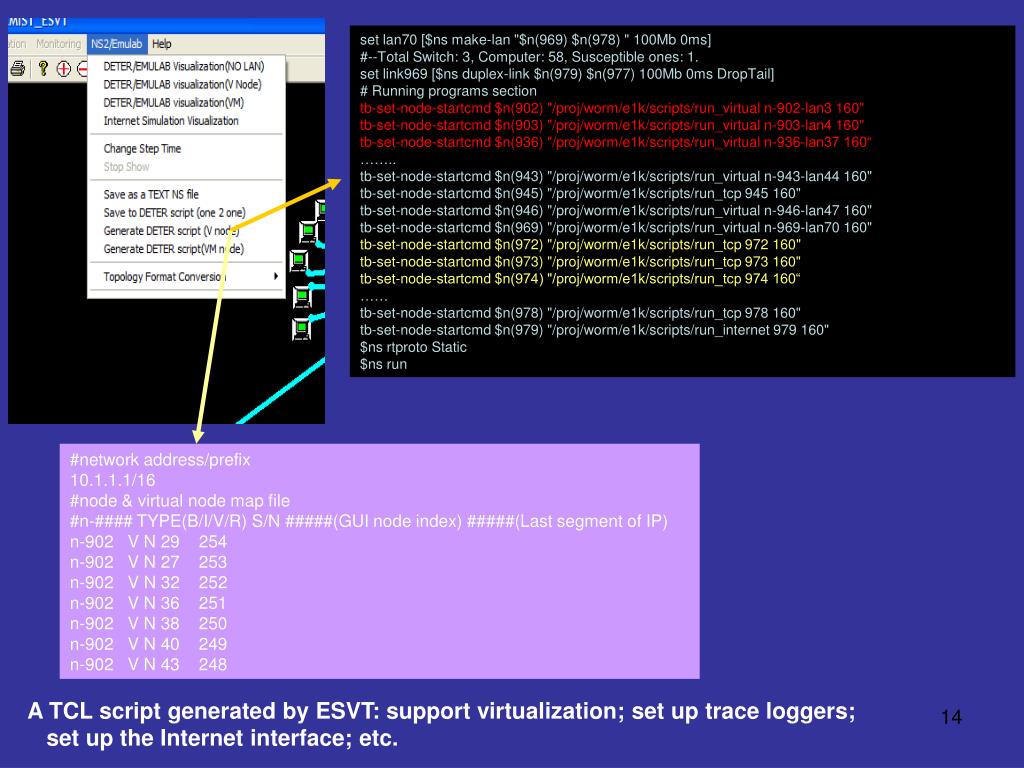

  14. set lan70 [$ns make-lan "$n(969) $n(978) " 100Mb 0ms] #--Total Switch: 3, Computer: 58, Susceptible ones: 1. set link969 [$ns duplex-link $n(979) $n(977) 100Mb 0ms DropTail] # Running programs section tb-set-node-startcmd $n(902) "/proj/worm/e1k/scripts/run_virtual n-902-lan3 160" tb-set-node-startcmd $n(903) "/proj/worm/e1k/scripts/run_virtual n-903-lan4 160" tb-set-node-startcmd $n(936) "/proj/worm/e1k/scripts/run_virtual n-936-lan37 160“ …….. tb-set-node-startcmd $n(943) "/proj/worm/e1k/scripts/run_virtual n-943-lan44 160" tb-set-node-startcmd $n(945) "/proj/worm/e1k/scripts/run_tcp 945 160" tb-set-node-startcmd $n(946) "/proj/worm/e1k/scripts/run_virtual n-946-lan47 160" tb-set-node-startcmd $n(969) "/proj/worm/e1k/scripts/run_virtual n-969-lan70 160" tb-set-node-startcmd $n(972) "/proj/worm/e1k/scripts/run_tcp 972 160" tb-set-node-startcmd $n(973) "/proj/worm/e1k/scripts/run_tcp 973 160" tb-set-node-startcmd $n(974) "/proj/worm/e1k/scripts/run_tcp 974 160“ …… tb-set-node-startcmd $n(978) "/proj/worm/e1k/scripts/run_tcp 978 160" tb-set-node-startcmd $n(979) "/proj/worm/e1k/scripts/run_internet 979 160" $ns rtproto Static $ns run #network address/prefix 10.1.1.1/16 #node & virtual node map file #n-#### TYPE(B/I/V/R) S/N #####(GUI node index) #####(Last segment of IP) n-902 V N 29 254 n-902 V N 27 253 n-902 V N 32 252 n-902 V N 36 251 n-902 V N 38 250 n-902 V N 40 249 n-902 V N 43 248 A TCL script generated by ESVT: support virtualization; set up trace loggers; set up the Internet interface; etc.

  15. -- Use a SQL query to instrument a network-wide traffic view. -- MySQL database integration.-- Support both TCPDUMP and NetFlow formats.

  16. Data sources for link visualization are defined by a SQL query

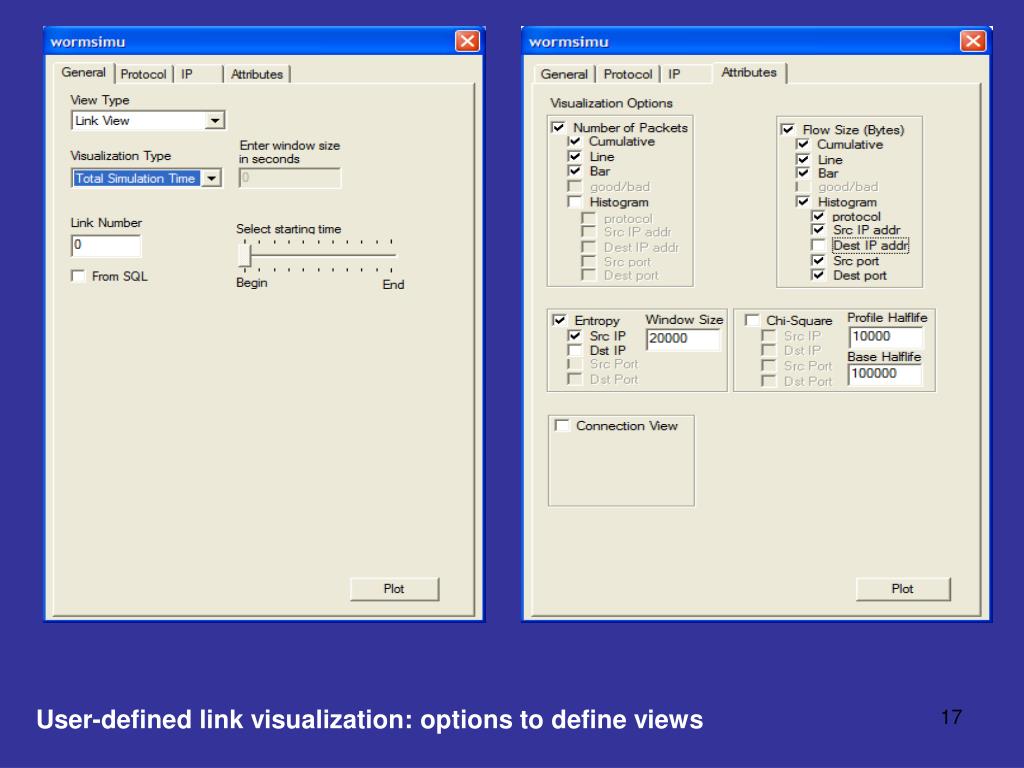

  17. User-defined link visualization: options to define views

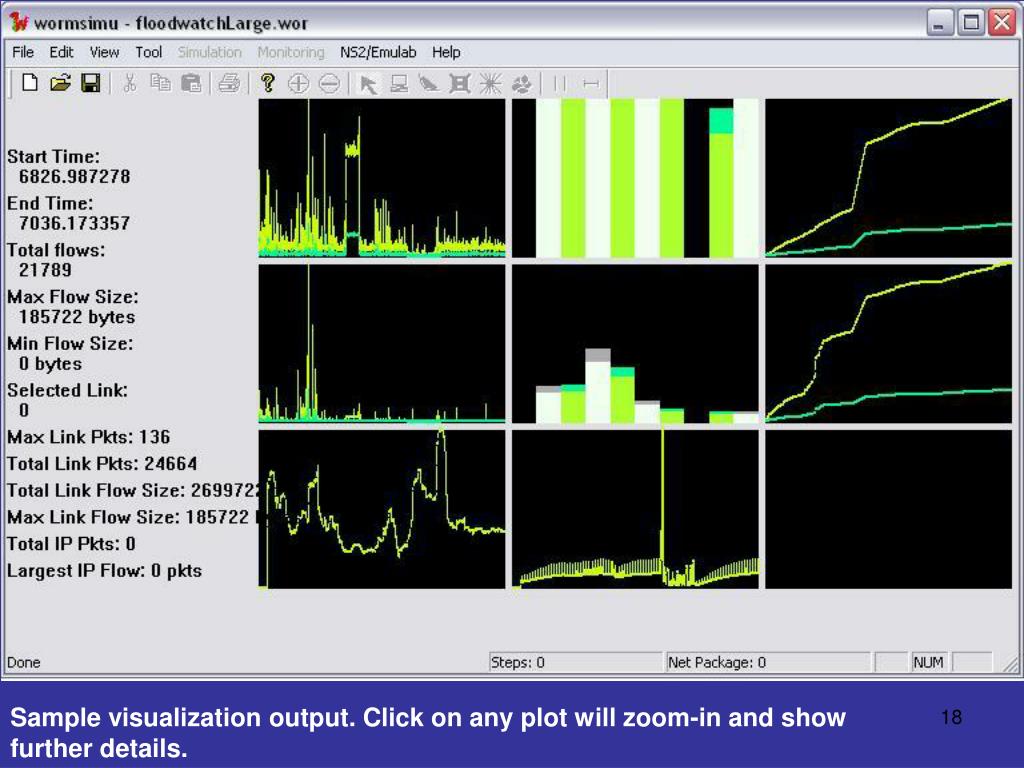

  18. Sample visualization output. Click on any plot will zoom-in and show further details.

  19. Animation: the network event replay toolbar with a pop-up link traffic chart.

  20. BGP ESVT – the first shot.

  21. Questions?

  22. PSU KMSim Slammer-like Attack Generator • KMSim is a simulation code, consisting of coupled Kermack-McKendrick epidemic equations, to model the spread of a bandwidth-limited, randomly scanning Internet worm • Benefit: a family of worms can be flexibly simulated by tuning few parameters

  23. PSU NTD Traffic Data Mining Tool • This tool can detect the significant clusters, i.e., clusters whose traffic is greater than a threshold (either in terms of packet number or bytes) • Cluster definition: source IP, destination IP, source port, destination port or protocol • NTD is an efficient implementation of that described by Estan et al. in SIGCOMM ’03 • NTD is offline • A tool for efficient mining of the multidimensional traffic cluster hierarchy for digesting, visualization, and modeling

  24. EMIST Tool Effort • ICSI/PSU worm scale-down equations • PSU ESVT toolkit* • PSU KMSim Slammer-like attack generator* • PSU NTD traffic data mining tool* • Purdue scriptable event system* • Purdue sys info logging tool* • Purdue data analysis and viz scripts* • SPARTA/McAfee DDOS trace analysis and viz scripts • SRI/UCD worm simulation tools • UCD emulated worm attack generation tool • UCD NTGC network traffic generation and control tool • UCD XML worm specification tool • UCD BGP routing data viz tool • * Officially released

  25. Purdue Scriptable Event System • During a DETER experiment, many events may happen • time events, cmd events, etc. • Although local event response can be pre-programmed on a single test machine, synchronized event response among a set of test machines cannot be pre-programmed • This tool allows runtime coordinated event response via a coordinator-participant model • Each test machine can run a participant stub that communicates with the coordinator to report events and receive response instructions • The global event response plan can be flexibly scripted by the experimenter

  26. Purdue Sys Info Logging Tool • This tool logs system level statistics associated with a certain network interface timestamp, bytes_per_sec, pack_per_sec, bytes_per_sec_up,pack_per_sec_up, memtotal, memused, uptime, idletime, established TCP connections, half open TCP connections,TCPSlowStartRetrans count,TCPAbortOnTimeout count,errs on the device drivers, drops on the device drivers

  27. UCD Emulated Worm Attack Generation • All nodes host a worm generation daemon. • Nodes wait for worm attack “instructions”. • Propagation behavior of worm is varied by varying the “instructions”. • An XML specification of worm propagation serves as the instructions.

  28. Filtering • Address Remapping • Scale up/ down • Duplicate • Remove Raw trace 1 Connection Data ………………… Traffic Analyzer Traffic Filter • Reconstruct TCP connections • Generate flow data • Merge traces • Timestamp normalization Flow Data • Address Remapping rules. • Topology file Raw trace n Configuration File Generator UCD Network Traffic Generation and Control (NTGC)
