ebXML Messaging Version 3.0 Parts 1, Part 2 and AS4

1. ebXML Messaging Version 3.0 Parts 1, Part 2 and AS4

2. Overview • Part 1: Core Specification – Summary • AS4 – Introduction • Part 2: Advanced Features – Overview and examples

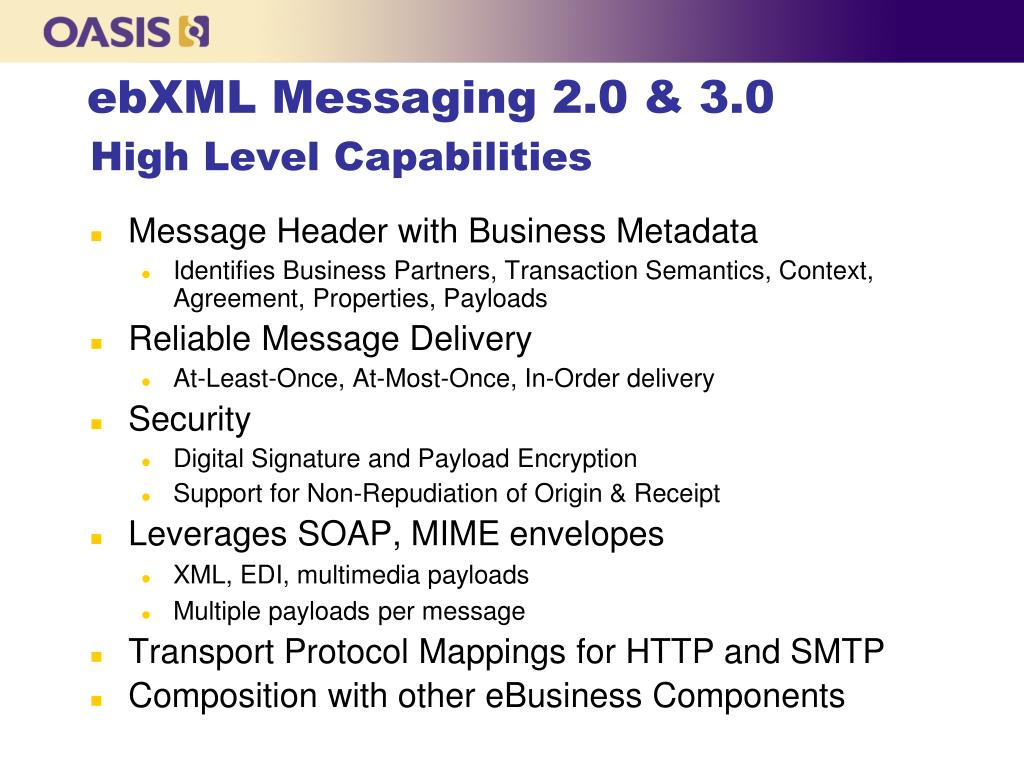

3. ebXML Messaging 2.0 & 3.0 High Level Capabilities • Message Header with Business Metadata • Identifies Business Partners, Transaction Semantics, Context, Agreement, Properties, Payloads • Reliable Message Delivery • At-Least-Once, At-Most-Once, In-Order delivery • Security • Digital Signature and Payload Encryption • Support for Non-Repudiation of Origin & Receipt • Leverages SOAP, MIME envelopes • XML, EDI, multimedia payloads • Multiple payloads per message • Transport Protocol Mappings for HTTP and SMTP • Composition with other eBusiness Components

4. ebXML Messaging Version 3.0Part 1: Core Specification

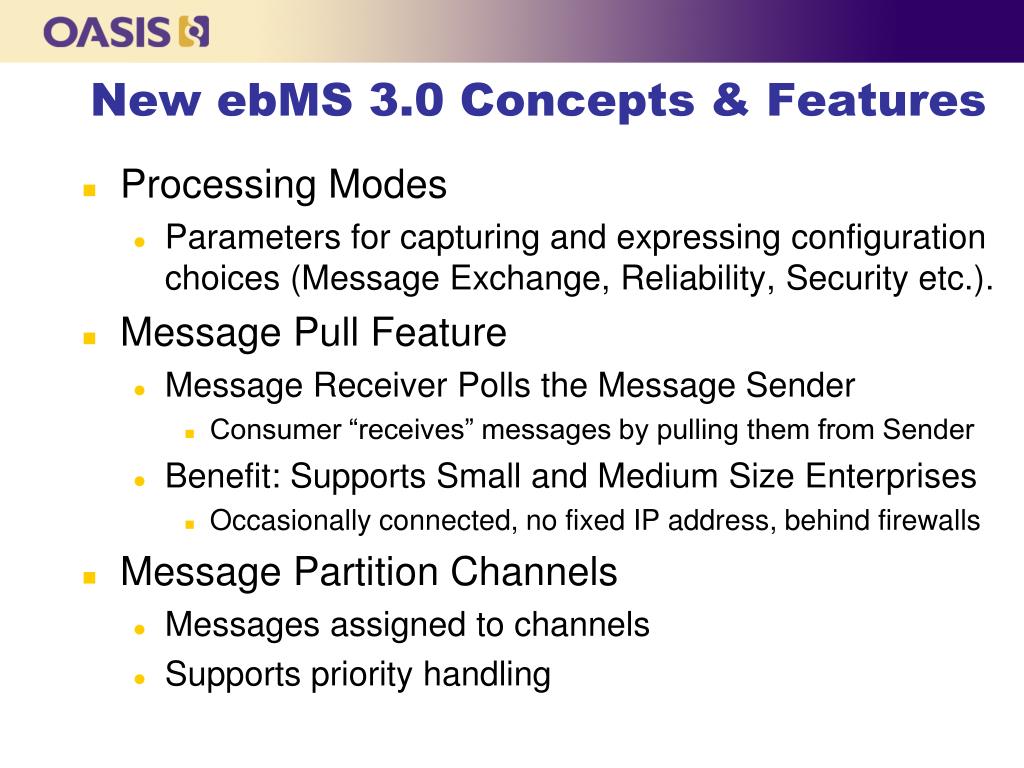

5. New ebMS 3.0 Concepts & Features • Processing Modes • Parameters for capturing and expressing configuration choices (Message Exchange, Reliability, Security etc.). • Message Pull Feature • Message Receiver Polls the Message Sender • Consumer “receives” messages by pulling them from Sender • Benefit: Supports Small and Medium Size Enterprises • Occasionally connected, no fixed IP address, behind firewalls • Message Partition Channels • Messages assigned to channels • Supports priority handling

7. AS4 Profile

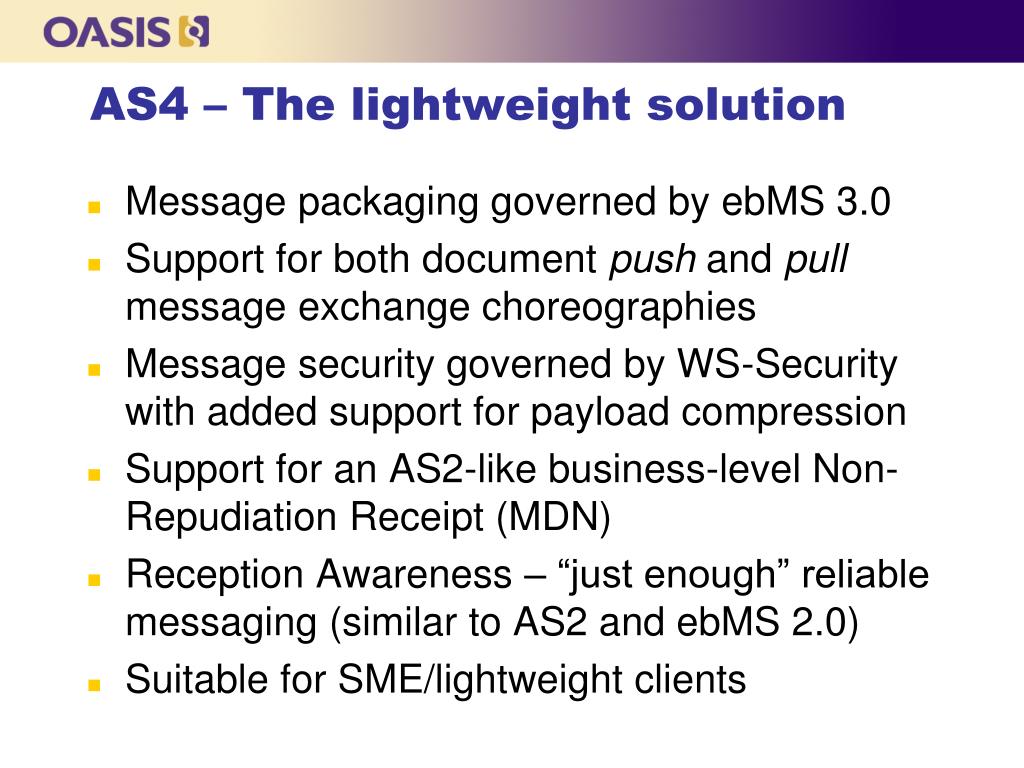

8. AS4 – The lightweight solution • Message packaging governed by ebMS 3.0 • Support for both document push and pull message exchange choreographies • Message security governed by WS-Security with added support for payload compression • Support for an AS2-like business-level Non-Repudiation Receipt (MDN) • Reception Awareness – “just enough” reliable messaging (similar to AS2 and ebMS 2.0) • Suitable for SME/lightweight clients

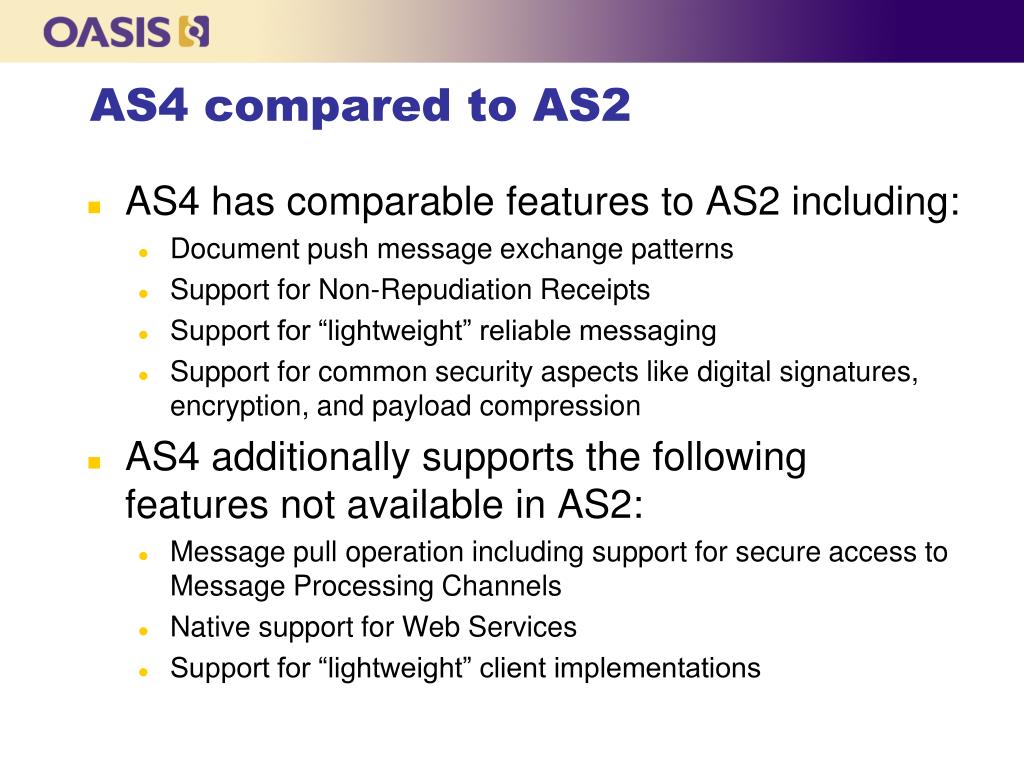

9. AS4 compared to AS2 • AS4 has comparable features to AS2 including: • Document push message exchange patterns • Support for Non-Repudiation Receipts • Support for “lightweight” reliable messaging • Support for common security aspects like digital signatures, encryption, and payload compression • AS4 additionally supports the following features not available in AS2: • Message pull operation including support for secure access to Message Processing Channels • Native support for Web Services • Support for “lightweight” client implementations

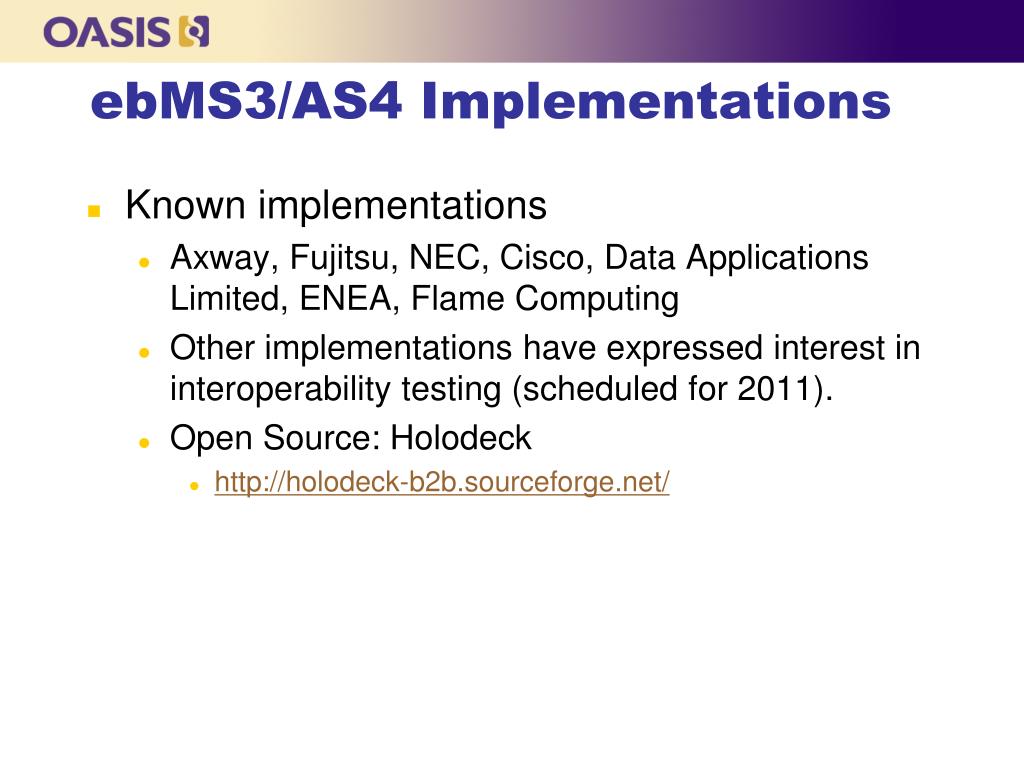

10. ebMS3/AS4 Implementations • Known implementations • Axway, Fujitsu, NEC, Cisco, Data Applications Limited, ENEA, Flame Computing • Other implementations have expressed interest in interoperability testing (scheduled for 2011). • Open Source: Holodeck • http://holodeck-b2b.sourceforge.net/

11. Industry Endorsement • RosettaNet MMS • http://www.rosettanet.org/Standards/RosettaNetStandards/MultipleMessagingServices/tabid/474/Default.aspx • Japan Electronics and Information Technologies Association (JEITA) • http://ec.jeita.or.jp/eng/modules/contents01/index.php?id=3 • HL7 Version 3 Standard: Transport Specification - ebXML • http://www.hl7.org/v3ballot/html/infrastructure/transport/transport-ebxml.htm • Aerospace industry in Europe • http://www.edibasics.co.uk/edi-resources/messaging-protocols/index.htm • OASIS Energy Interoperability TC • http://www.oasis-open.org/committees/download.php/37925/energyinterop-1%200-spec-wd-12.pdf • Textile, clothing, footwear industry in Europe • eBIZ project http://www.ebiz-tcf.eu/

12. ebXML Messaging 3.0 Part 2: Advanced Features OASIS ebXML Messaging TC

13. Multihop: ebMS Messaging Across Intermediaries

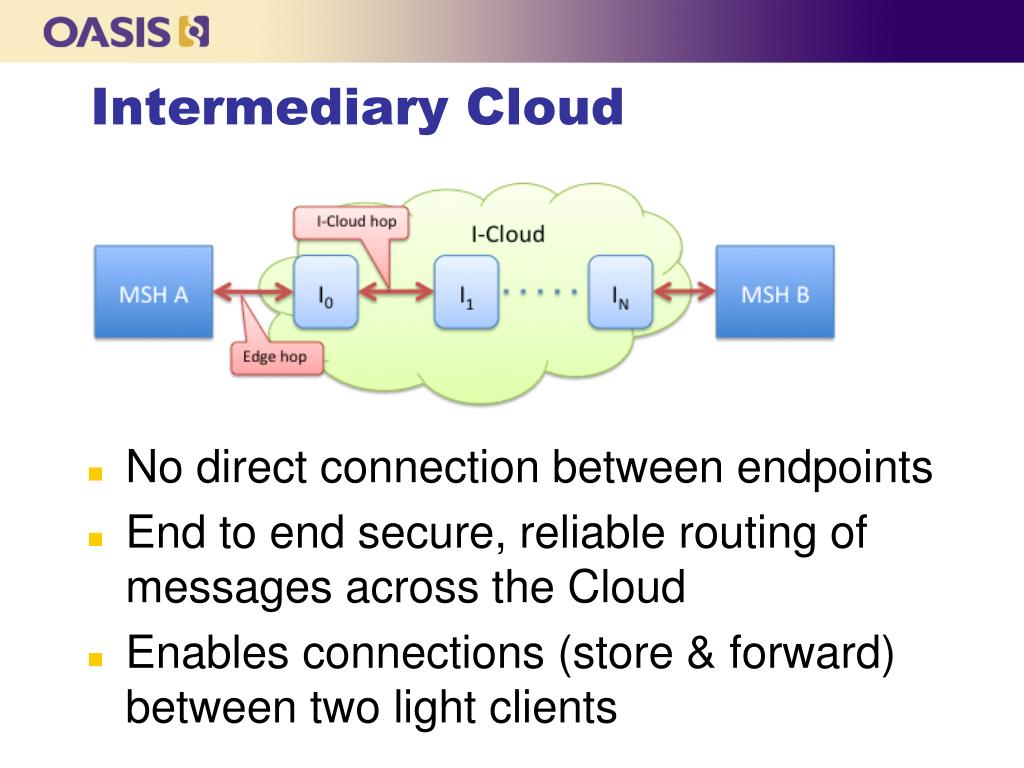

14. Intermediary Cloud • No direct connection between endpoints • End to end secure, reliable routing of messages across the Cloud • Enables connections (store & forward) between two light clients

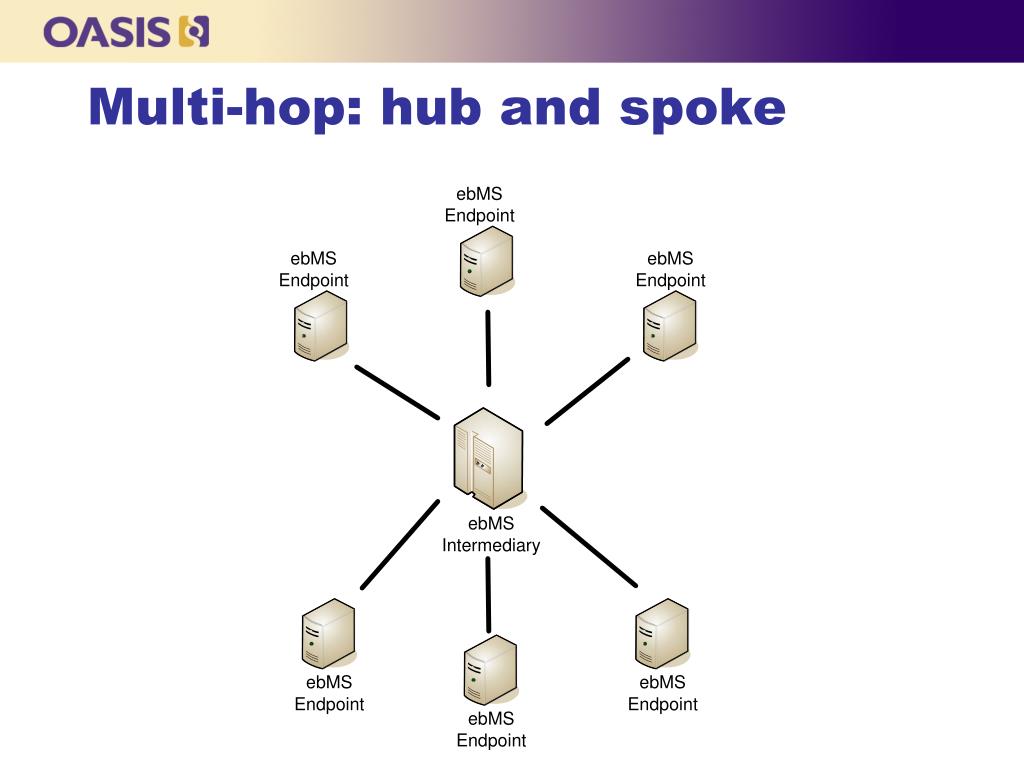

15. Multi-hop: hub and spoke

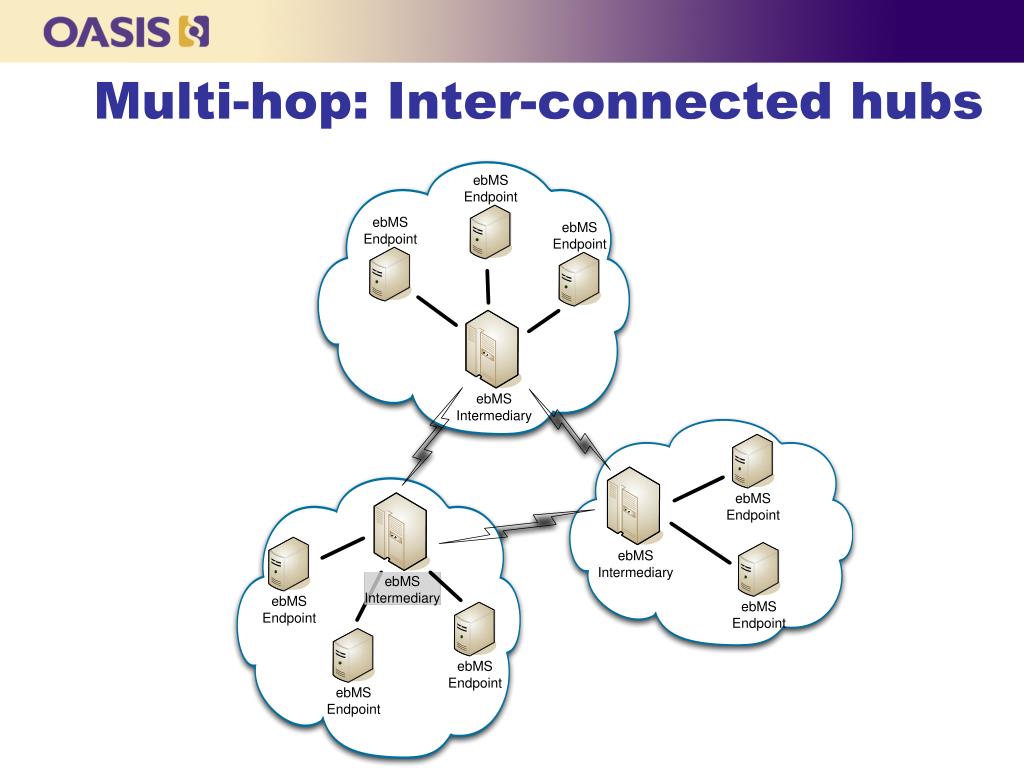

16. Multi-hop: Inter-connected hubs

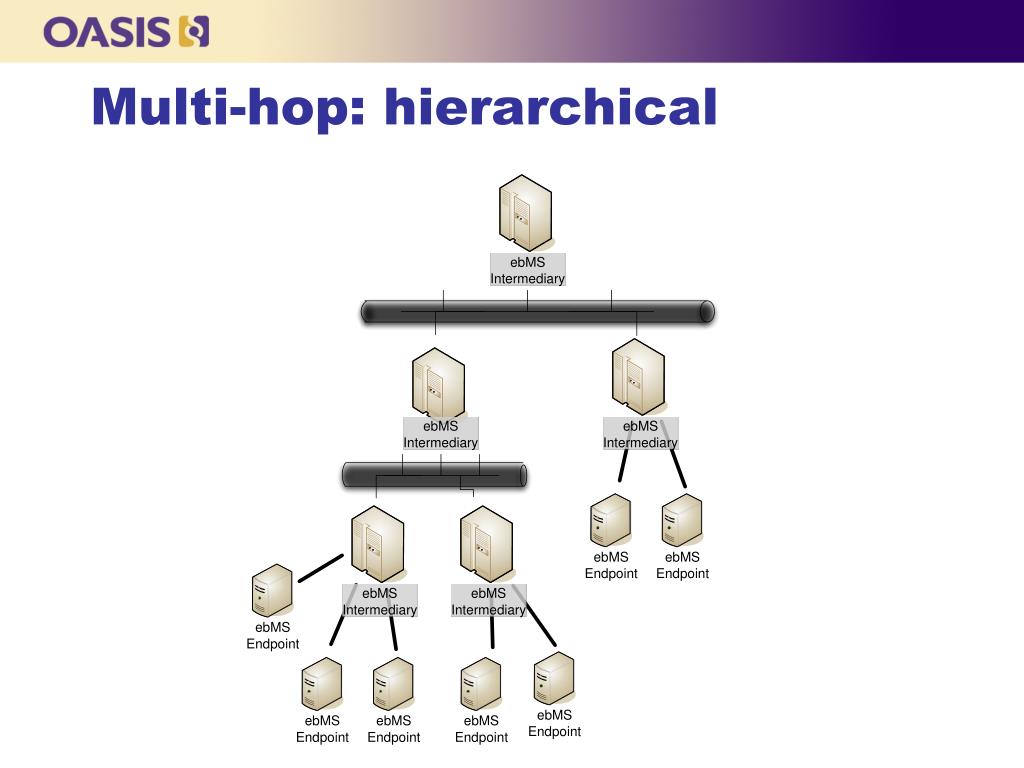

17. Multi-hop: hierarchical

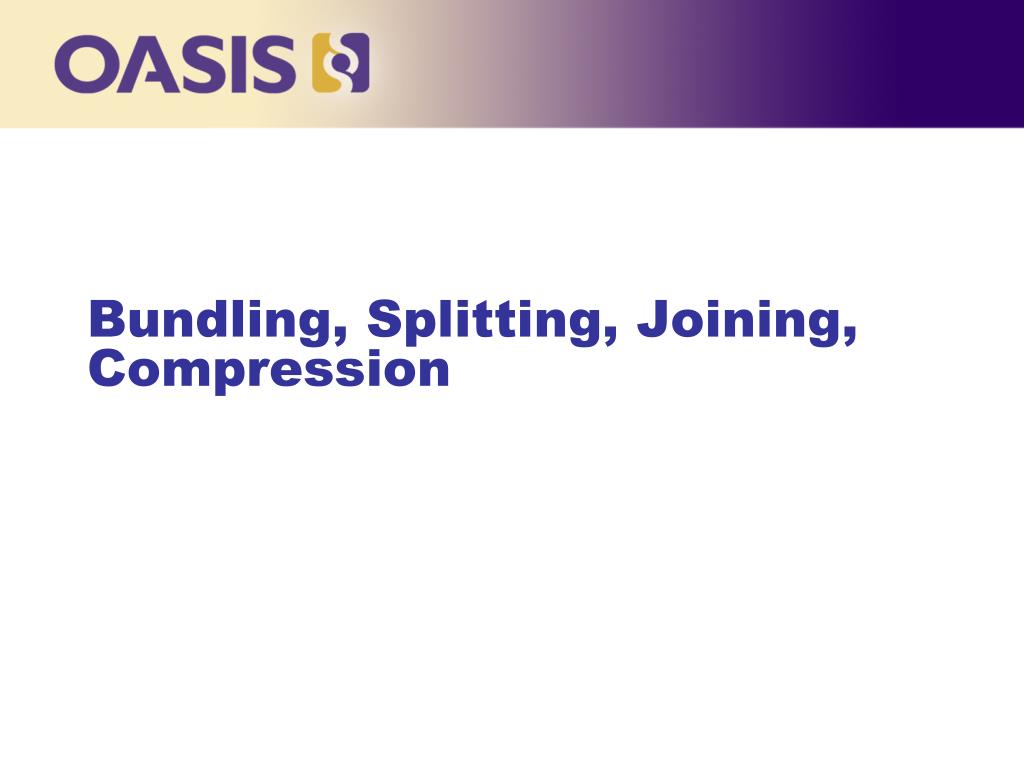

18. Bundling, Splitting, Joining, Compression

19. Bundle, Split, Compress • Decouple “logical” from “physical” message • Many small messages with same destination, submitted in a short interval, are more efficiently sent as a single ebMS SOAP message bundle • A (very) big message is more effectively sent as a series of smaller message fragments • Reduce data to send by using message compression • Applies to large messages and to bundles • Also covers message headers • Composes well with multi-hop intermediary features

20. Application Scenarios • Bundling • High volume, non real-time transactions involving small payloads • Event reporting and data synchronization • Any legacy batch application • Splitting • Messages with large payloads, or with many payloads • Compression • Payloads and message headers

21. Compression Case Studies • Comparison with payload compression: • Best case 14%; worst case 25% • Use bundle, split and compress to “optimize” message sizes

22. Summary

23. ebMS 3.0 (and AS4) • ebMS 3.0 Core Specification • WS-* based, WS-I profiles compliant • Functional superset of ebMS 2.0 • Important extensions for Small and Medium-Size businesses • AS4 • Profile of Core Specification • Functional superset of AS2 • Adds payload compression, Non-Repudiation of Receipt, Reception Awareness

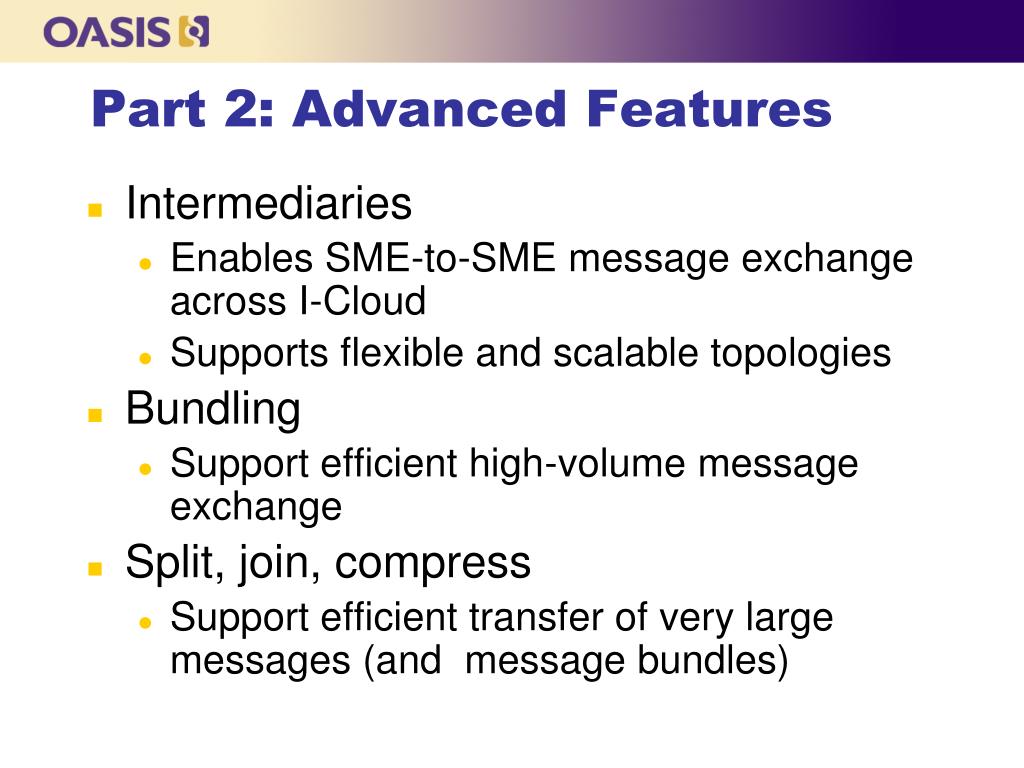

24. Part 2: Advanced Features • Intermediaries • Enables SME-to-SME message exchange across I-Cloud • Supports flexible and scalable topologies • Bundling • Support efficient high-volume message exchange • Split, join, compress • Support efficient transfer of very large messages (and message bundles)

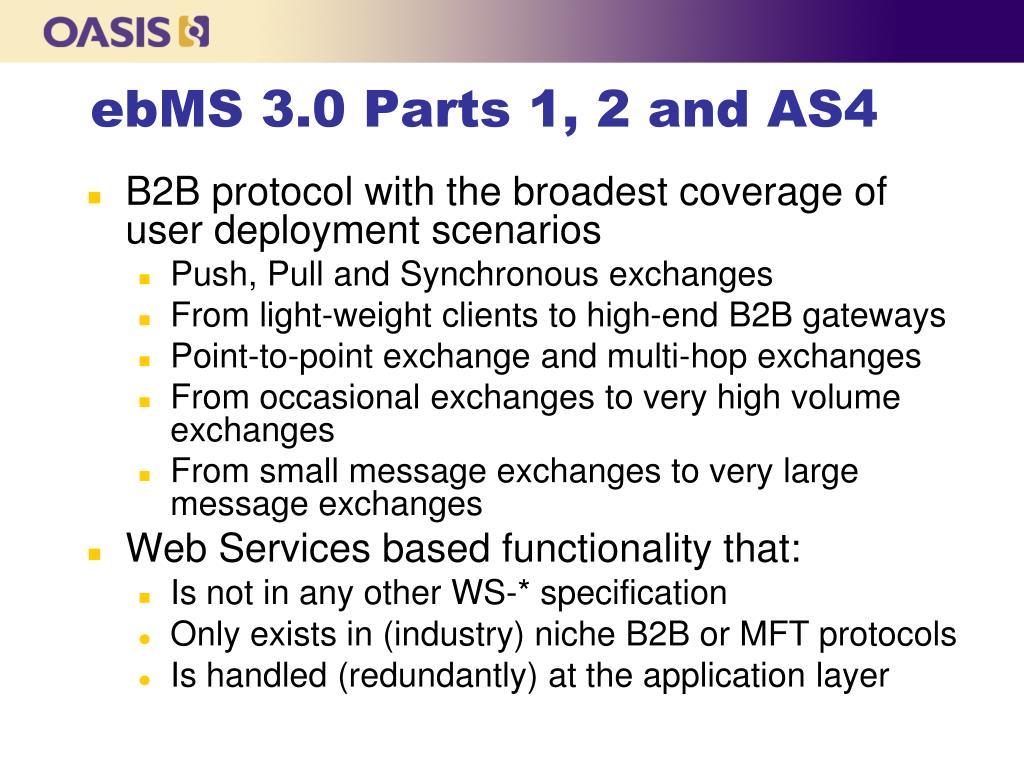

25. ebMS 3.0 Parts 1, 2 and AS4 • B2B protocol with the broadest coverage of user deployment scenarios • Push, Pull and Synchronous exchanges • From light-weight clients to high-end B2B gateways • Point-to-point exchange and multi-hop exchanges • From occasional exchanges to very high volume exchanges • From small message exchanges to very large message exchanges • Web Services based functionality that: • Is not in any other WS-* specification • Only exists in (industry) niche B2B or MFT protocols • Is handled (redundantly) at the application layer

26. Q & A • ……….

27. Transparent Multihop • End-to-end Business Agreements • Service, action, identification, document schemas • End-to-end Security • Non-repudiation of origin and receipt • Confidentiality • End-to-end Reliability • Retries, acknowledgments • ebMS intermediaries interconnect the I-Cloud • Service, action, identification, content schemas • Routing • Based on Business Identifiers and Services • Storage • Store-and-forward (push), store-and-collect (pull) Receiver Sender • Point-to-point Techical Configuration for Edge Hops • Transport Protocol Binding (HTTP, SMTP) • Transport Security (SSL/TLS) • Transport Channel Binding (Push, Pull) • Inter-hop Configuration within the I-Cloud • Transport Protocol Binding (HTTP, SMTP) • Transport Security (SSL/TLS) • Transport Channel Binding (Push, Pull) • Store-and-forward or streaming

28. Implementation Flexibility • Specification concerns interoperability only • Configuration parameters constrain what (not) to bundle, size/timing parameters, policy .. • Allows for optimization and differentiation • No impact to users: • Can be handled within MSH, no change to submission/delivery • Simple features that compose with other ebMS3 functionality • Pull, push, reliable messaging, security … • Backup

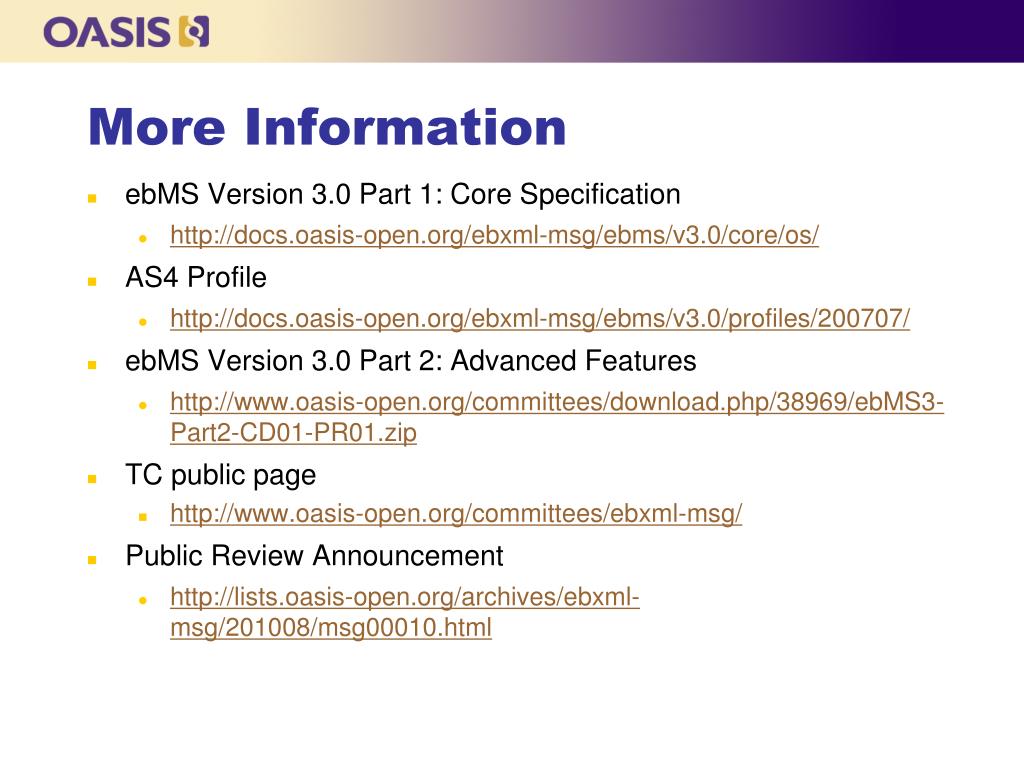

29. More Information • ebMS Version 3.0 Part 1: Core Specification • http://docs.oasis-open.org/ebxml-msg/ebms/v3.0/core/os/ • AS4 Profile • http://docs.oasis-open.org/ebxml-msg/ebms/v3.0/profiles/200707/ • ebMS Version 3.0 Part 2: Advanced Features • http://www.oasis-open.org/committees/download.php/38969/ebMS3-Part2-CD01-PR01.zip • TC public page • http://www.oasis-open.org/committees/ebxml-msg/ • Public Review Announcement • http://lists.oasis-open.org/archives/ebxml-msg/201008/msg00010.html

30. Backup

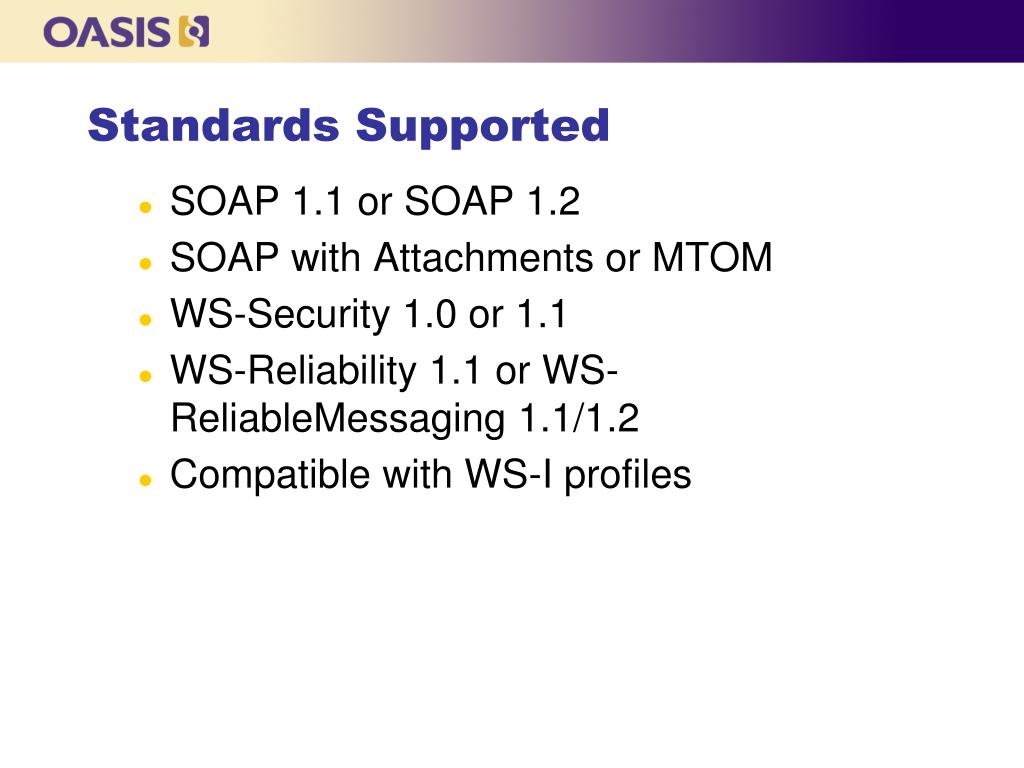

31. Standards Supported • SOAP 1.1 or SOAP 1.2 • SOAP with Attachments or MTOM • WS-Security 1.0 or 1.1 • WS-Reliability 1.1 or WS-ReliableMessaging 1.1/1.2 • Compatible with WS-I profiles
