Reusing RICH Prototype for Cosmic Rays Setup: A Didactic Approach

This project explores the repurposing of the RICH prototype for a cosmic rays detection system, showcasing its applications during test beams in TCC8 from 2007 to 2009. The setup incorporates aerogel bricks as a radiator and adapts the spherical mirror for a proximity focusing Cherenkov detector. With minimal modifications required, most components, including electronics, are readily available, providing a hands-on learning experience for students. The initiative aims to reconstruct cosmic rays-induced Cherenkov rings while effectively recycling existing equipment for educational purposes.

winona
Télécharger la présentation

Reusing RICH Prototype for Cosmic Rays Setup: A Didactic Approach

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. A RICH-likecosmicrayssetup M.Lenti

  2. The RICH prototype • The RICH prototypewasused in 2007 and 2009 test beams in TCC8 • 2 NIM papers out ofthem, p-mseparationdemonstrated • RICH prototype vessel reused in NA62 • Whataboutall the rest (PM flanges, Mirror, mirrorsupport, electronics, etc.)? M.Lenti

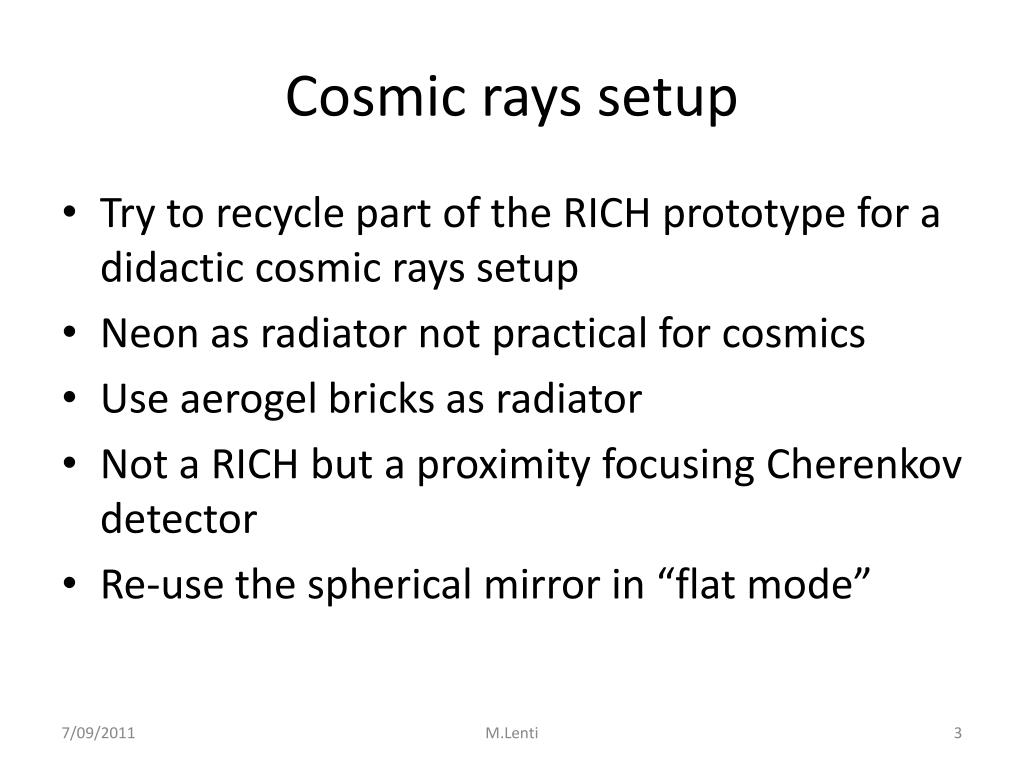

  3. Cosmicrayssetup • Trytorecycle part of the RICH prototypefor a didacticcosmicrayssetup • Neon asradiatornotpracticalforcosmics • Useaerogelbricksasradiator • Not a RICH but a proximityfocusingCherenkov detector • Re-use the sphericalmirror in “flat mode” M.Lenti

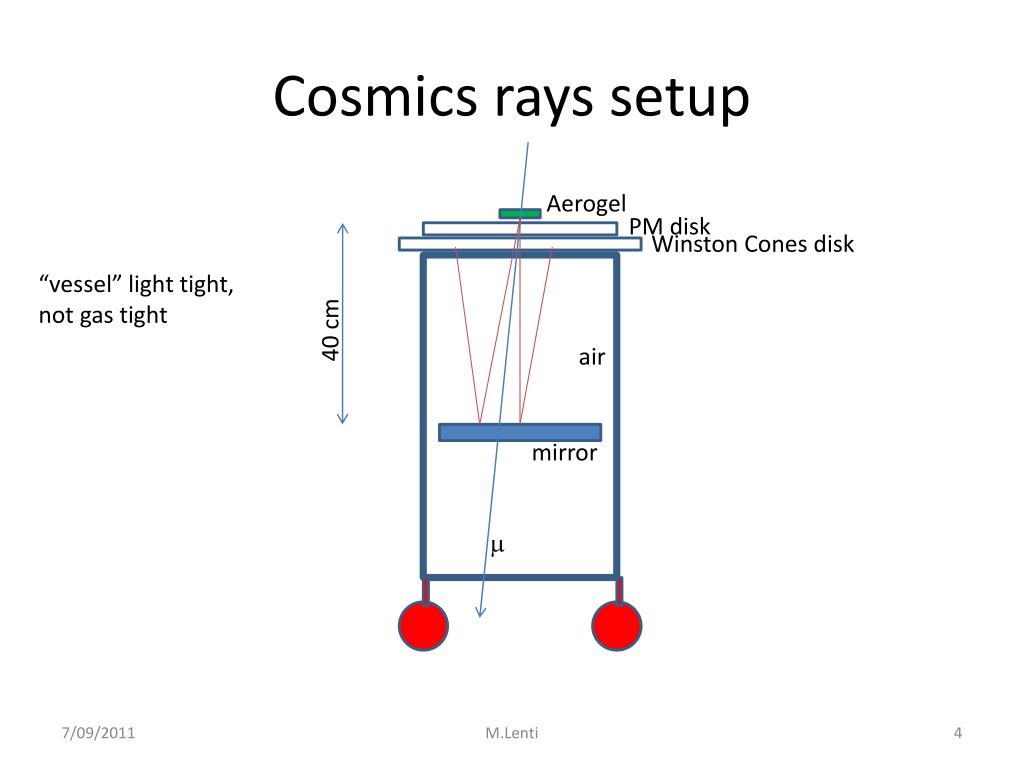

  4. Cosmicsrayssetup Aerogel PM disk Winston Cones disk “vessel” light tight, not gas tight 40 cm air mirror m M.Lenti

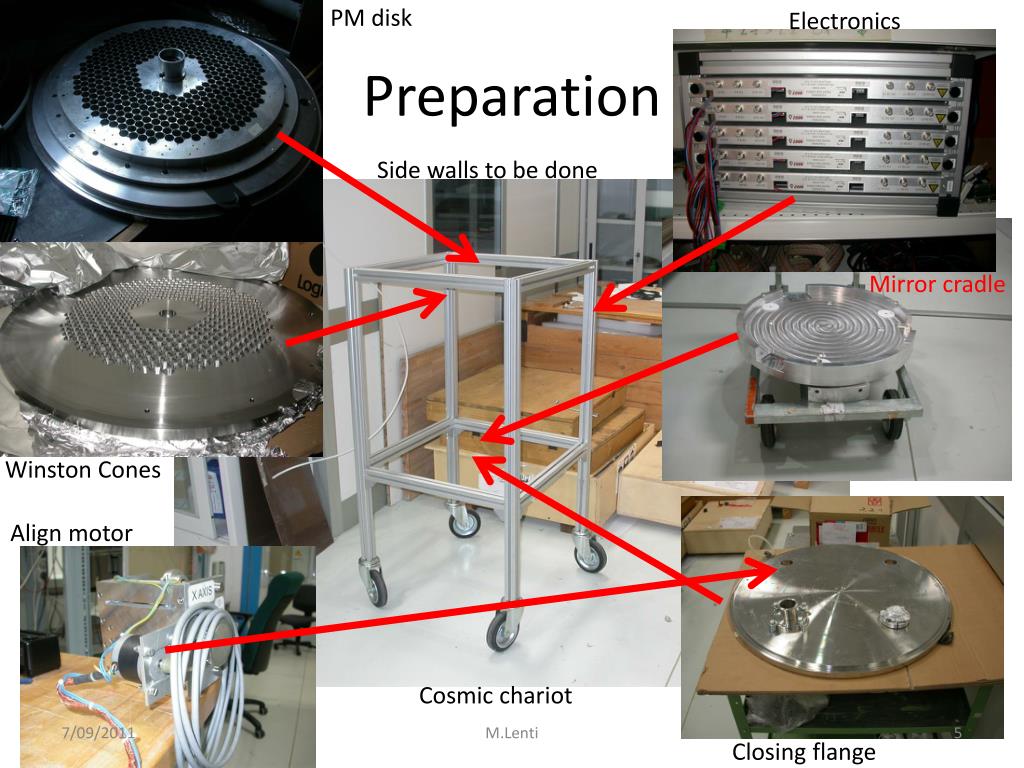

  5. PM disk Electronics Preparation Side wallstobedone Mirrorcradle Winston Cones Align motor Cosmicchariot M.Lenti Closing flange

  6. Aerogel • Matsushita SP-30 (courtesyof Clara MatteuzzifromLHCb), nothydrophobic • 3 bricksof 12x12x1 cm3 each • n=1.03 (qmax = 250 mrad, pm(thesh)=430 MeV/c) • Distaerogel-mirror 40 cm • Rring = 2x40x0.250 = 20 cm (as in test beam) • Nhit 8-10 per cosmicevent M.Lenti

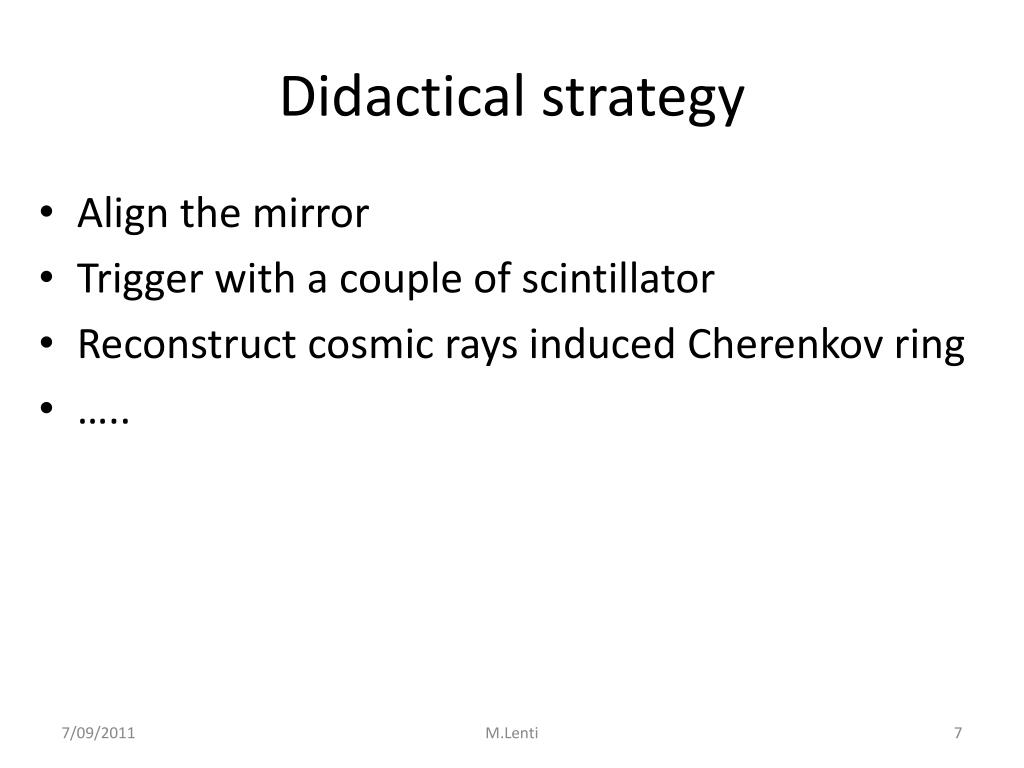

  7. Didacticalstrategy • Align the mirror • Trigger with a coupleofscintillator • ReconstructcosmicraysinducedCherenkov ring • ….. M.Lenti

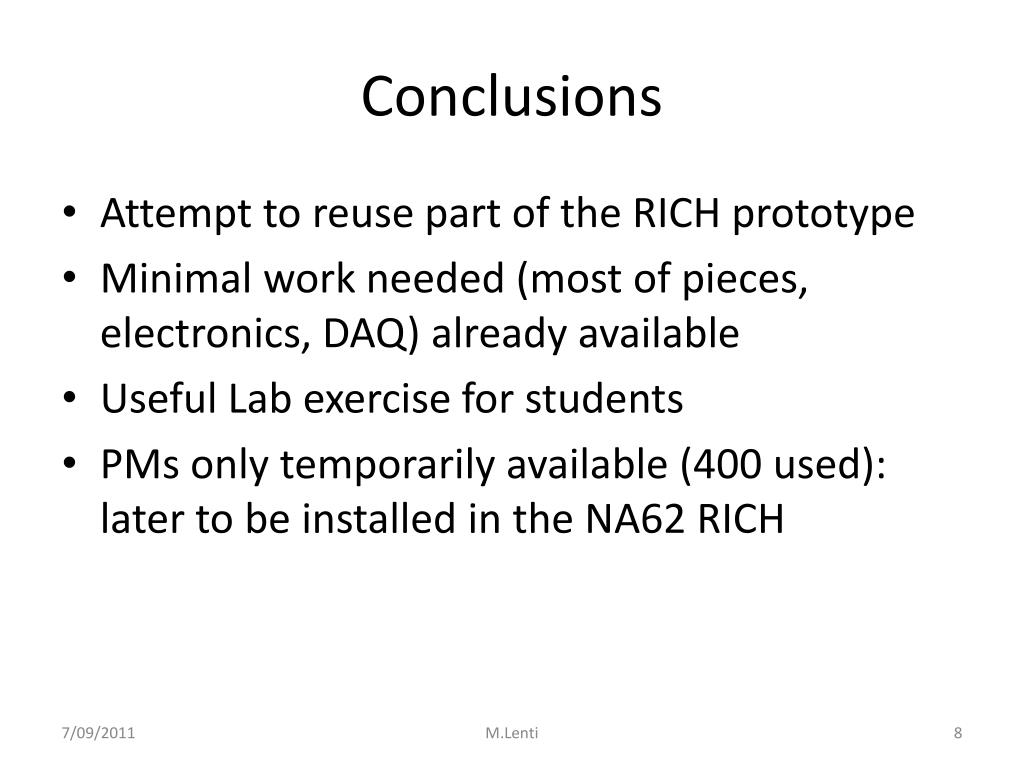

  8. Conclusions • Attempttoreuse part of the RICH prototype • Minimal work needed (mostofpieces, electronics, DAQ) alreadyavailable • UsefulLabexerciseforstudents • PMsonlytemporarilyavailable (400 used): latertobeinstalled in the NA62 RICH M.Lenti
