  1. Proprioception Testing Device Lee C. Groeneweg, EGR Thomas A. Farley, EGR Steve Brodnicki, SPT Ryane Eno, SPT Mike Terrell, SPT

  2. Definition of Proprioception • Joint position sense without visual input • Measurements help inform physical therapist of patient’s ability to determine limb location in space • Also helpful in determining whether therapy interventions are necessary

  3. Measurement of Proprioception • Blind fold individual • Place the limb into a test position • Hold in test position for a few seconds • Record angle of test position • Return to starting position • Patient places limb into the testing position • Record angle of repeated attempt

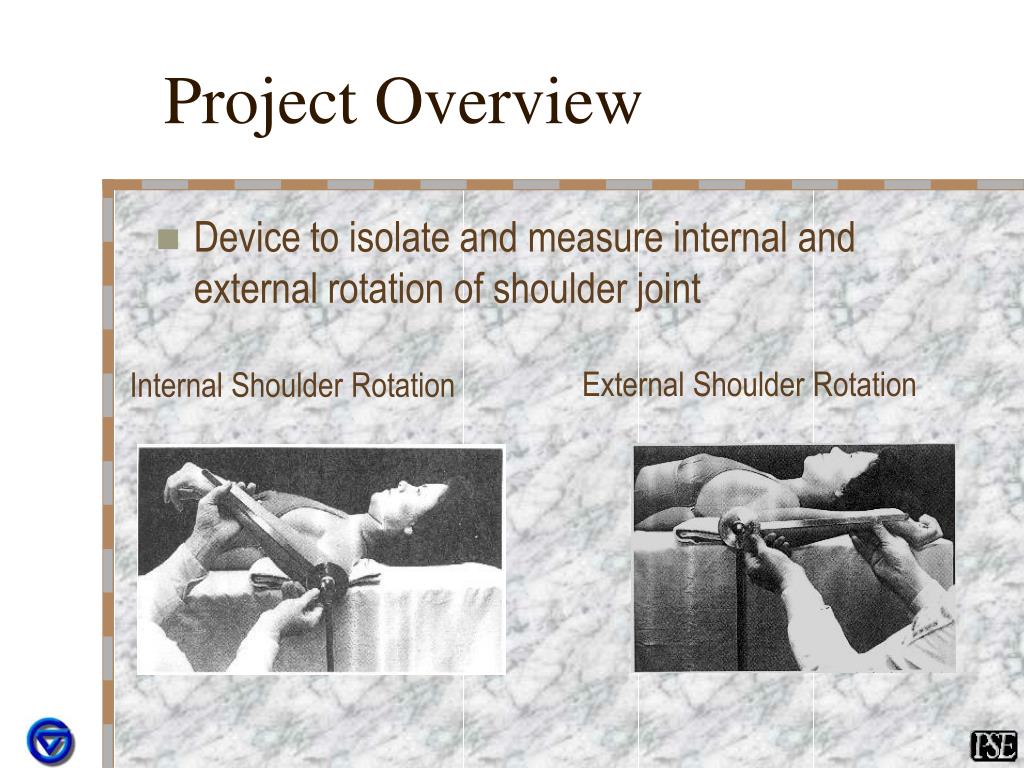

  4. Project Overview • Device to isolate and measure internal and external rotation of shoulder joint External Shoulder Rotation Internal Shoulder Rotation

  5. Statement of Need • Device to isolate and measure internal and external rotation of shoulder joint • Must measure degrees similar to physical therapist’s goniometer • Test position must be self restraining (Locking)

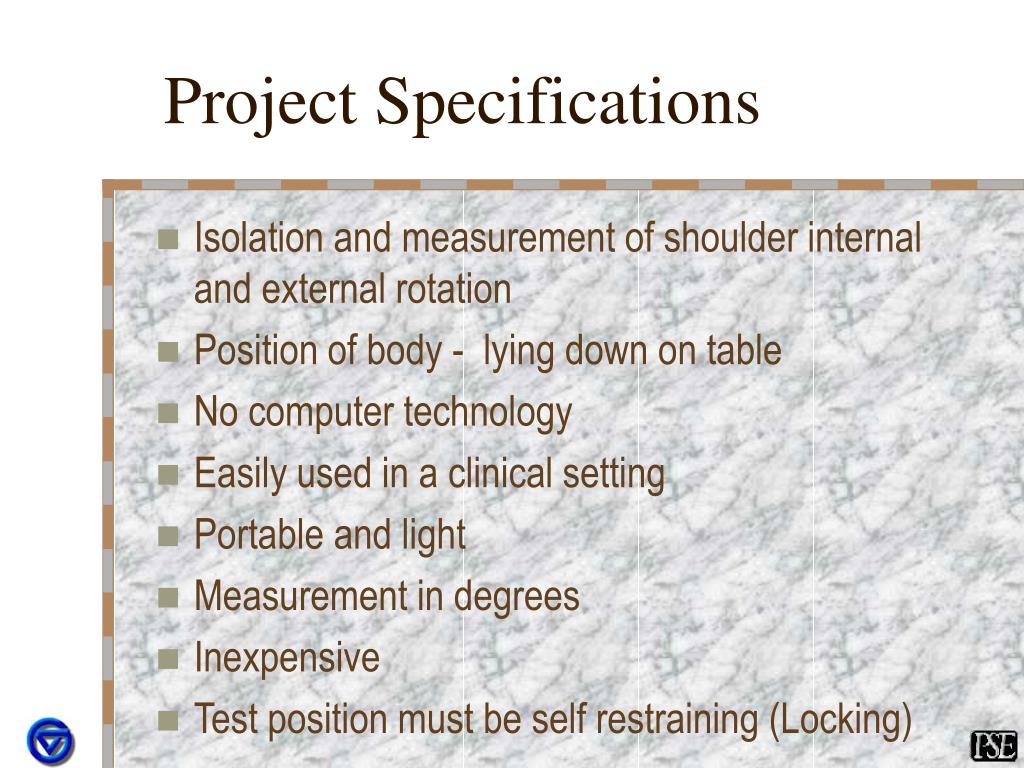

  6. Project Specifications • Isolation and measurement of shoulder internal and external rotation • Position of body - lying down on table • No computer technology • Easily used in a clinical setting • Portable and light • Measurement in degrees • Inexpensive • Test position must be self restraining (Locking)

  7. Design Constraints • Patient positioned lying on back • Shoulder blade must be immobilized • Upper arm positioned 90° to body • restrained • allowing longitudinal motion • in a resting position • Elbow must be positioned 90° to upper arm

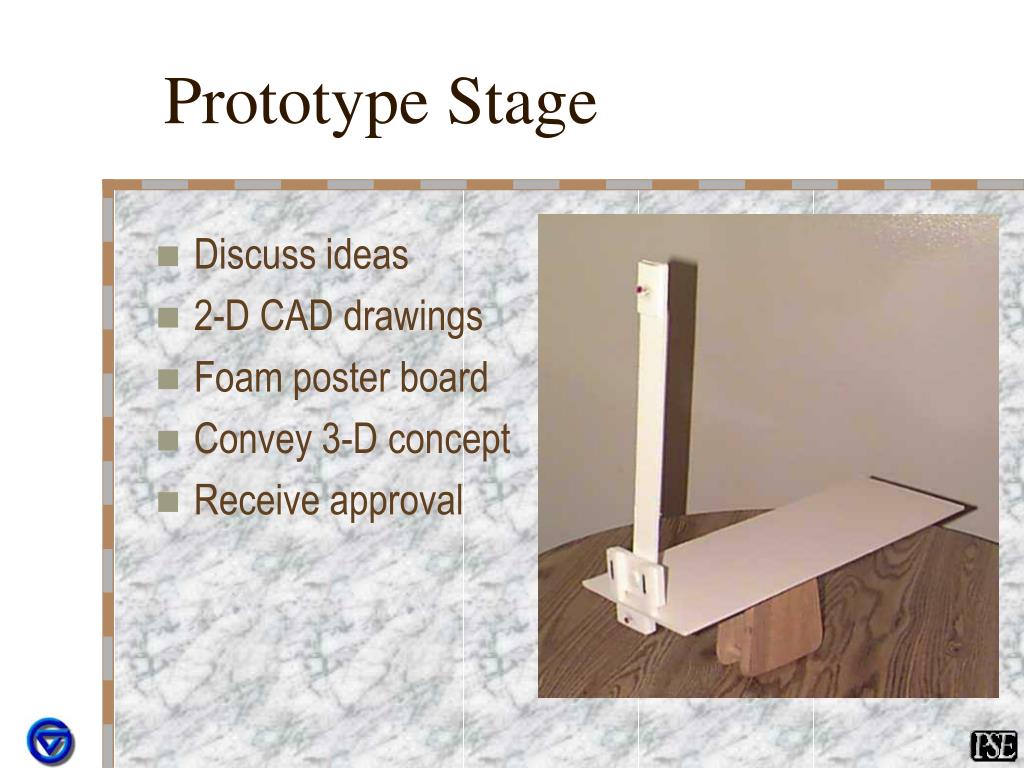

  8. Prototype Stage • Discuss ideas • 2-D CAD drawings • Foam poster board • Convey 3-D concept • Receive approval

  9. Materials of Choice • Aluminum • Plastic • Standard Fasteners • Camera Tripod • Mini Laser Pointers • Ergonomic Knob

  10. Manufacturing Process Plan • Plate • band saw, vertical mill, disk grinder • Risers • vertical mill, hand-tapped threads • Slider bracket • vertical mill • Plastic laser pen holders • band saw, drill press • Tripod support plate • band saw, vertical mill, hand-tapped threads

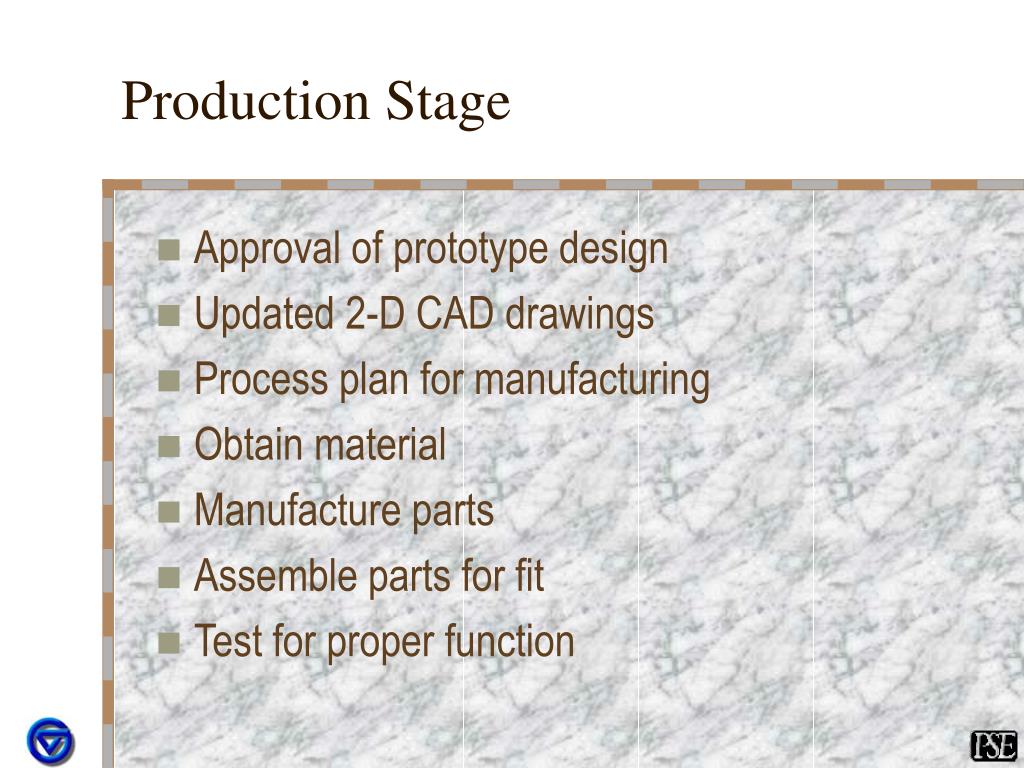

  11. Production Stage • Approval of prototype design • Updated 2-D CAD drawings • Process plan for manufacturing • Obtain material • Manufacture parts • Assemble parts for fit • Test for proper function

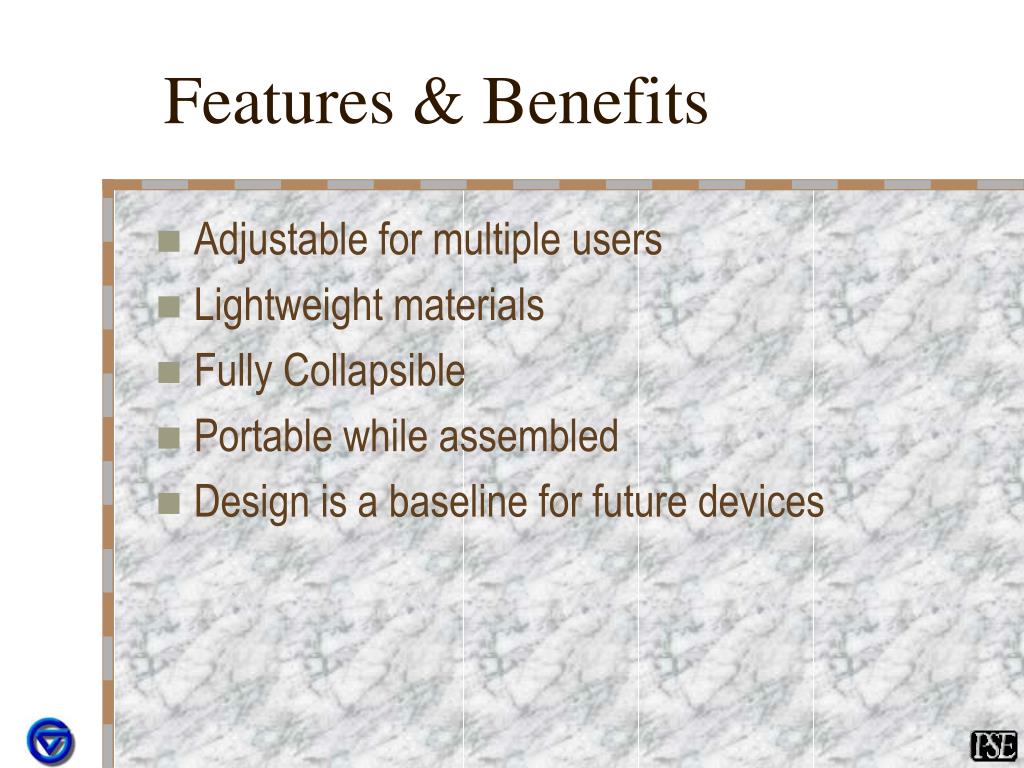

  12. Features & Benefits • Adjustable for multiple users • Lightweight materials • Fully Collapsible • Portable while assembled • Design is a baseline for future devices

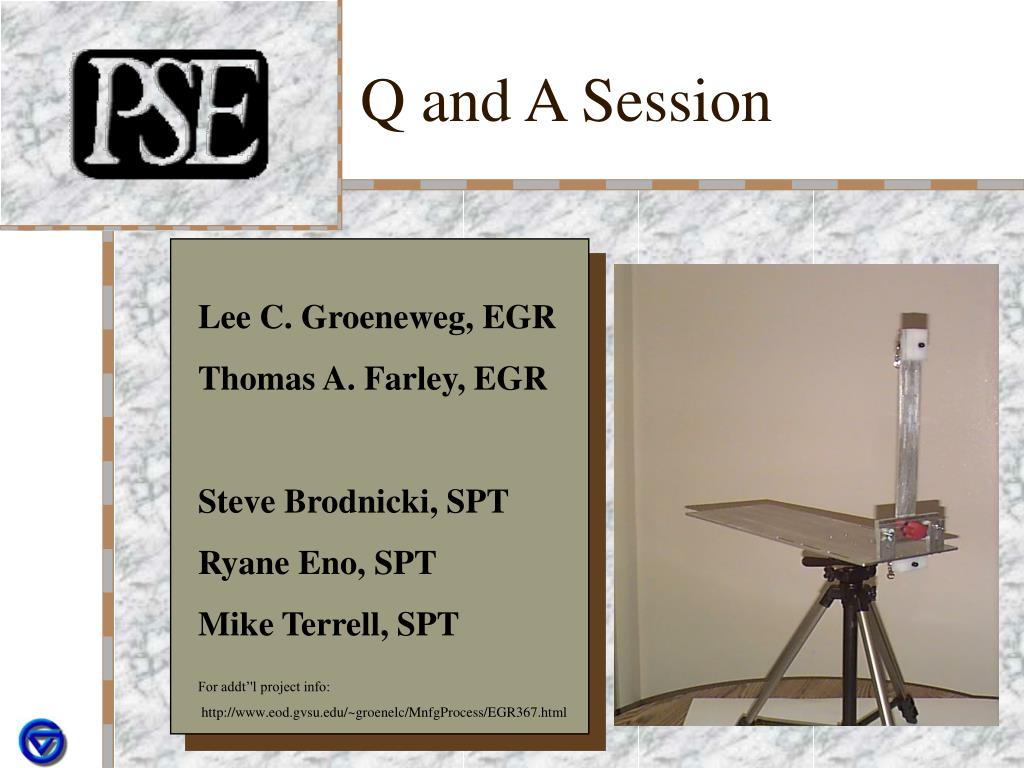

  13. Q and A Session Lee C. Groeneweg, EGR Thomas A. Farley, EGR Steve Brodnicki, SPT Ryane Eno, SPT Mike Terrell, SPT For addt’'l project info: http://www.eod.gvsu.edu/~groenelc/MnfgProcess/EGR367.html
