Automation of Knowledge-Based CAD Models: A Case Study in Resource Savings and Efficiency

This thesis explores the automation of CAD modeling through Knowledge-Based Engineering (KBE) methods. It addresses the industry's growing adoption of KBE, particularly among late adopters facing slow change and bureaucratic challenges. The research focuses on conducting a cost-benefit analysis to determine if the resource savings from CAD automation justify its development costs. Interviews with industry professionals reveal significant potential for improved efficiency, reduced modeling inconsistencies, and better design iterations, thereby promoting wider KBE adoption in engineering sectors.

wood
Télécharger la présentation

Automation of Knowledge-Based CAD Models: A Case Study in Resource Savings and Efficiency

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

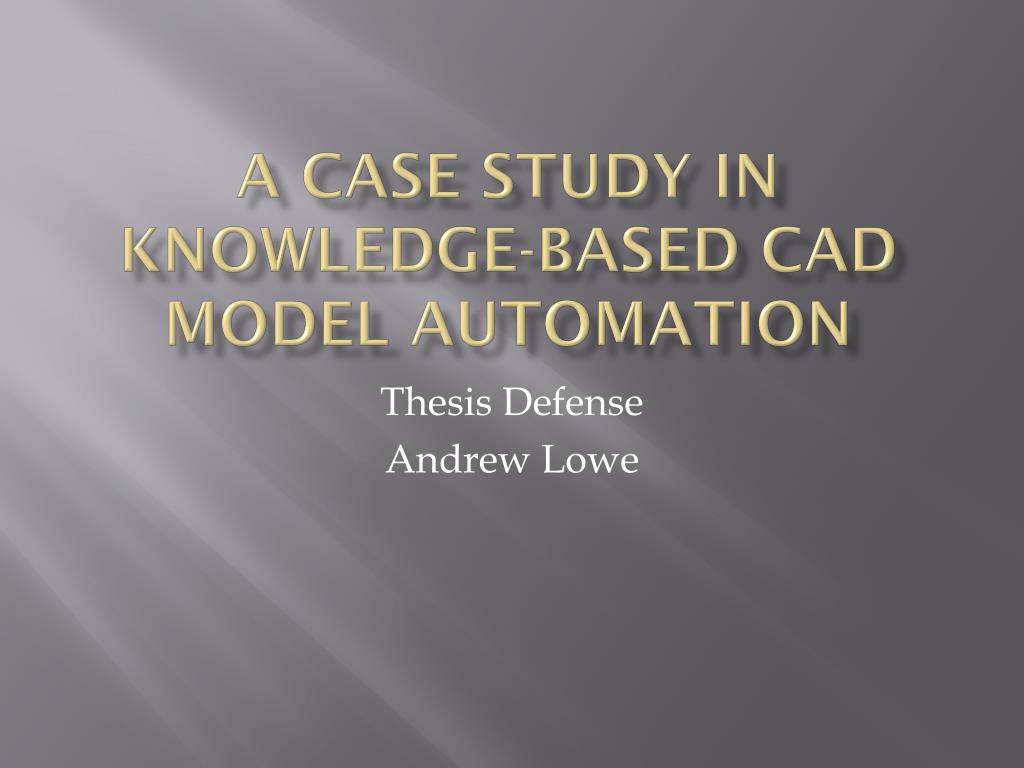

  1. A CASE STUDY IN KNOWLEDGE-BASED CAD MODEL AUTOMATION Thesis Defense Andrew Lowe

  2. Background • What is Knowledge-Based Engineering? • Growing industry adoption • Late Adopters • Large bureaucracies, slow change • No direct contribution to revenue stream

  3. Background and Research Question • What is Knowledge-Based Engineering? • Growing industry adoption • Late Adopters • Large bureaucracies, slow change • No direct contribution to revenue stream • Does a cost-benefit analysis of CAD modeling automation yield a high enough resource savings relative to the resources invested in the application’s development to justify its use in industry?

  4. Significance • Great potential for saved resources in partner company • Possible impetus for greater KBE focus in partner company • Possible impetus for more widespread KBE adoption in similar companies. • Cost of automation relative to benefits not quantified

  5. Literature Summary • KBE • Basic principles, industry implementation • No discussion of financial savings or cost • CBA • Basic formula, breakdown of formula • Identification/estimation of intangible benefits • Eliciting expert knowledge • Complex Surfaces • Mathematical basis and troubleshooting errors

  6. Research Type • Two phase project • Development of application • Analysis of implementation • Resource savings • Surveys/Interviews • Cost-Benefit Analysis

  7. Development Methodology • Project specs already in place • Solid creation/validation • Additional features • Cyclic design/validation scheme • Development time recorded

  8. CBA Methodology • Once effected areas are identified, benefit to those areas must be quantified • More use of interviews and questionnaires • Many tangential effects will in intangible in the context of CBA • Sum total benefit and total costs

  9. Progamming: GUI • Overarching goal: Simplicity and supportability • Inputs grouped into required/optional file input and text input • Optional groups collapsed by default • Execution buttons not active until required values entered

  10. Programming: File Parsing • ASCII files with Cartesian points • Organization different for each file type • Blade file • Surface normal file • Flowpath file/spline reference file • Differing format forces additional complexity in code • Only similarity in code for opening file • Loops for organizing data into usable format vastly different with little code reuse

  11. Programming: Geometry • Three geometry types • Blade/Splitter • Surface Normals • Flowpath/Spline reference • Blade Geometry • Input points organized by face • Splines made for forward three faces, trailing edge • Surfaces made from splines • Surfaces knit into solid • Individual face surfaces made for FEA integration

  12. Geometry (cont’d) • Surface normals • Points organized by pressure side/suction side • Subdivided by hub/tip • Splines made between hub/tip on each side • Flowpath/Spline reference • Simple list of points • Spline made from points

  13. Programming: Ancillary Features • Variety of text and numeric embedded data • Simple coding • Similar to variable declaration

  14. Programming: Documentation • Fully-commented code • More in-depth than typical commenting • Targeted toward novice users • Detailed flowchart • Short overview/introduction document

  15. Data Collection: Participant Identification • Initial interview PLM project manager • Overview of impeller design process • Identified where application would affect process • Areas finalized in follow-up interview • Prospective participants approached by company point of contact • Positive respondents forwarded to researcher • Final participants: 3 modelers, 5 engineers, 1 analysis integration expert, 1 project manager

  16. Data Collection: Interviews • With one exception, interviews conducted over the phone • Interviews started with explanation of application and a few basic questions • How do you see this affecting your area? • How would you use the application? • How would the application save or cost you time? • Additional questions based off their responses • Follow up interviews conducted after receiving new information from other participants

  17. Modeler Interviews • Focused mainly on modeling consistency • Large amounts of wasted time troubleshooting unfamiliar models • Get called away from current work to troubleshoot their own models • Only about 1 hour per iteration in direct labor savings • Much larger time savings from not having to reconstruct adjacent geometry with each iteration

  18. Engineer Interviews • Reduced idle/wait time • More process control • More design iterations • 3-5 total currently, 15-20 possible in one night with automation • Higher quality • More in-spec options for customers • Confirmation of modelers modeling consistency concerns

  19. Analyst Interviews • Analysis integration process • Automated meshing • Allows for batch modeling/FEA runs • Time savings data for both • Provided proprietary document confirming and expounding upon their points • Confirmed modeler/engineer concerns and data

  20. Project Manager Interviews • Wide-view design process information • Participant identification • Go-between with high-level non-participants • Employment cost data • Other financial data • New information for follow-up interviews

  21. Data Analysis: CBA • Total Benefit = Gross Benefit – Gross cost • Gross Benefit = Quantifiable Benefit + Intangible benefit (A) • Gross Cost = Quantifiable Cost + Intangible Cost (A)

  22. CBA: Cost • Four ways of interpreting quantifiable cost • Interviews yielded no information hinting at additional real or intangible costs

  23. CBA: Benefit • Three ways of evaluating benefit: • Current process with dumb solid macro • Frequently-used process with spline creation automated • Completely manual process • Numbers calculated using time savings estimates from participants and company’s $100/hr average cost of employment

  24. CBA: Intangible Benefits • Many intangibles lacked data for proper estimation • Lower error cost from modeling inconsistency • Higher quality/more customer options from multiple iterations • Lower operating costs running batch at night • Decreased time to market

  25. Intangible Benefits (cont’d) • Decrease in overall project time from elimination of engineering/FEA/modeling bottlenecks • Possibly greater than two weeks • Estimated based on publicly available defense contracts • 40% share in $2.4 billion, 6.5 year project • IDA estimated 11% profit margin • $356,000 per-day savings • $3.56 million two-week savings

  26. CBA: Results • Analysis without intangible benefits:

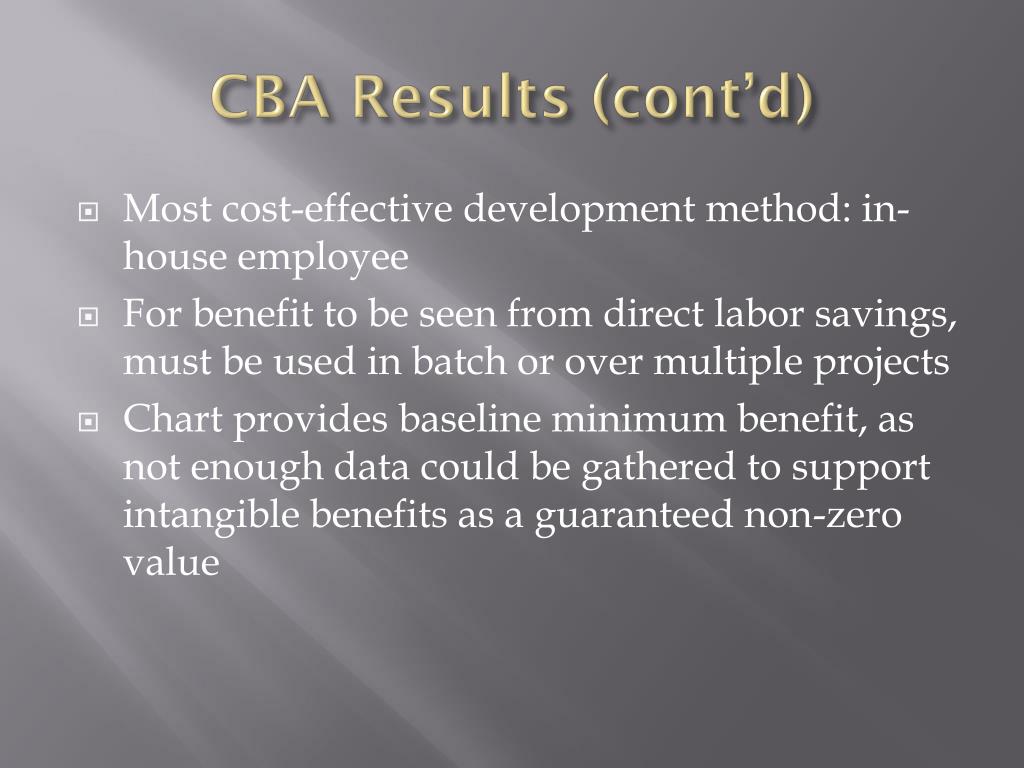

  27. CBA Results (cont’d) • Most cost-effective development method: in-house employee • For benefit to be seen from direct labor savings, must be used in batch or over multiple projects • Chart provides baseline minimum benefit, as not enough data could be gathered to support intangible benefits as a guaranteed non-zero value

  28. CBA Results (cont’d) • Intangible benefits potentially dwarf quantifiable benefits • Application has high potential to provide net benefit • Could pay for most expensive development cost in a few hours of reduced project time • Time savings over three days delivers an order of magnitude ROI on its own • Does not take into account the other non-estimable intangibles. • Due to lack of information, intangibles cannot be assumed to be non-zero, should be stated in a 0-maximum format

  29. Conlusions • Does CAD automation show a high enough cost/benefit ratio to merit wider industry implementation? • Yes • Tangible cost data was for single project • Re-use over multiple projects compounds savings and provides net benefit from direct labor savings alone

  30. Conclusions (cont’d) • Factoring in intangible benefits, total savings becomes massive • Potential order-of magnitude ROI • These savings compound over multiple projects as well, potentially reaching two orders of magnitude ROI • Thesis evaluated a single automation routine for a fraction of a single part, use of automation on multiple parts could increase potential benefits even higher.

  31. A CASE STUDY IN KNOWLEDGE-BASED CAD MODEL AUTOMATION Thesis Defense Andrew Lowe
