  1. How many computers can fit into a drop of water? Udi Shapiro Ehud Shapiro

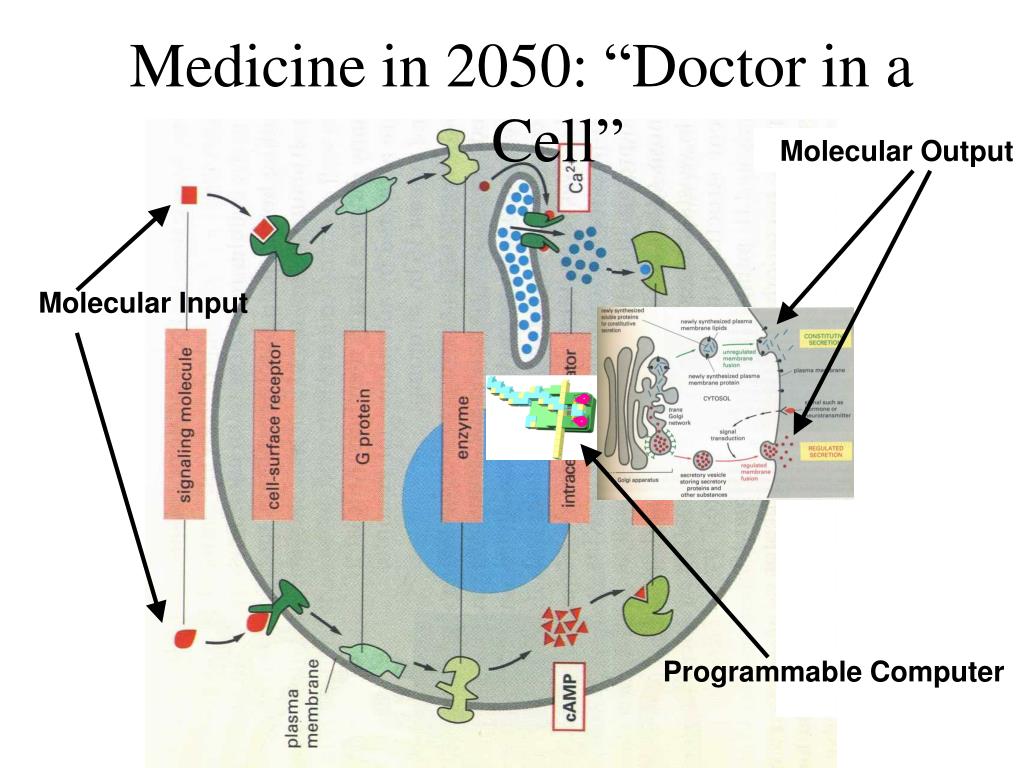

  2. Medicine in 2050: “Doctor in a Cell” Molecular Output Molecular Input Programmable Computer

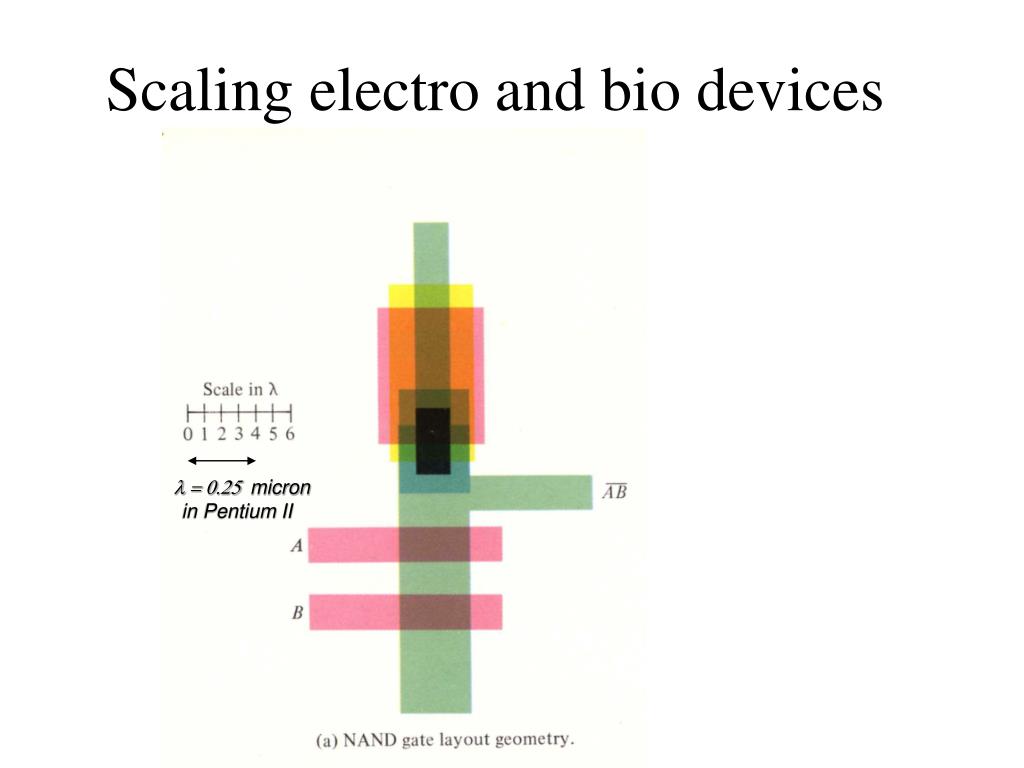

  3. Scaling electro and bio devices  = 0.25 micron in Pentium II

  4. 1 micron E. Coli Scaling electro and bio devices  = 0.25 micron in Pentium II

  5. E. Coli

  6. E. Coli internals (1Mbyte)

  7. Ribosomes in operation Ribosomes translate RNA to Proteins RNA Polymerase transcribes DNA to RNA

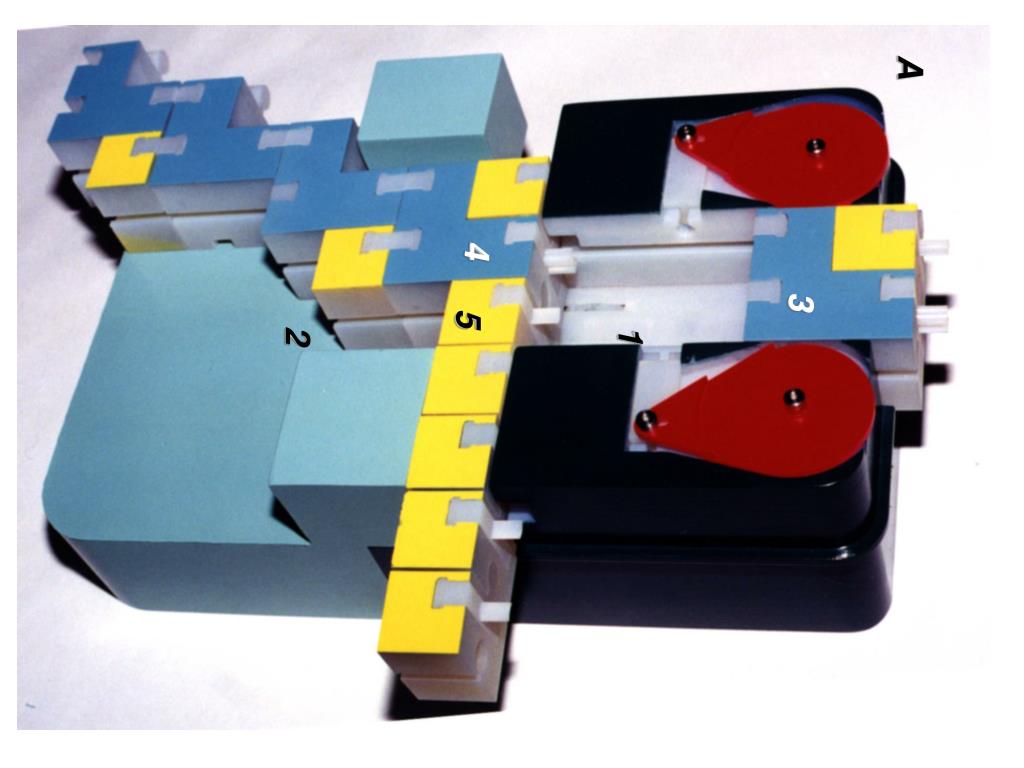

  8. A mechanical computer

  9. A 4 3 5 2 1

  10. B 1a 2a 3a 1b 2b 4a 3a 5a 4a 5a 4b 3b 5b 5b 3b 4b Front Back

  11. Medicine in 2050: “Doctor in a Cell” Programmable Computer

  12. Automaton A1 accepting inputs with an even number of b ’s a a b S0 S1 b A1: even number of b’s

  13. Turing Machine and Finite Automaton

  14. Example Computation

  15. An example computation over abaaba S0-abaaba (S0 S0) S0-baaba (S0 S1) S1-aaba (S1 S1) S1-aba (S1 S1) S1-ba (S1 S0) S0-a (S0 S0) S0 (final state) The input is accepted

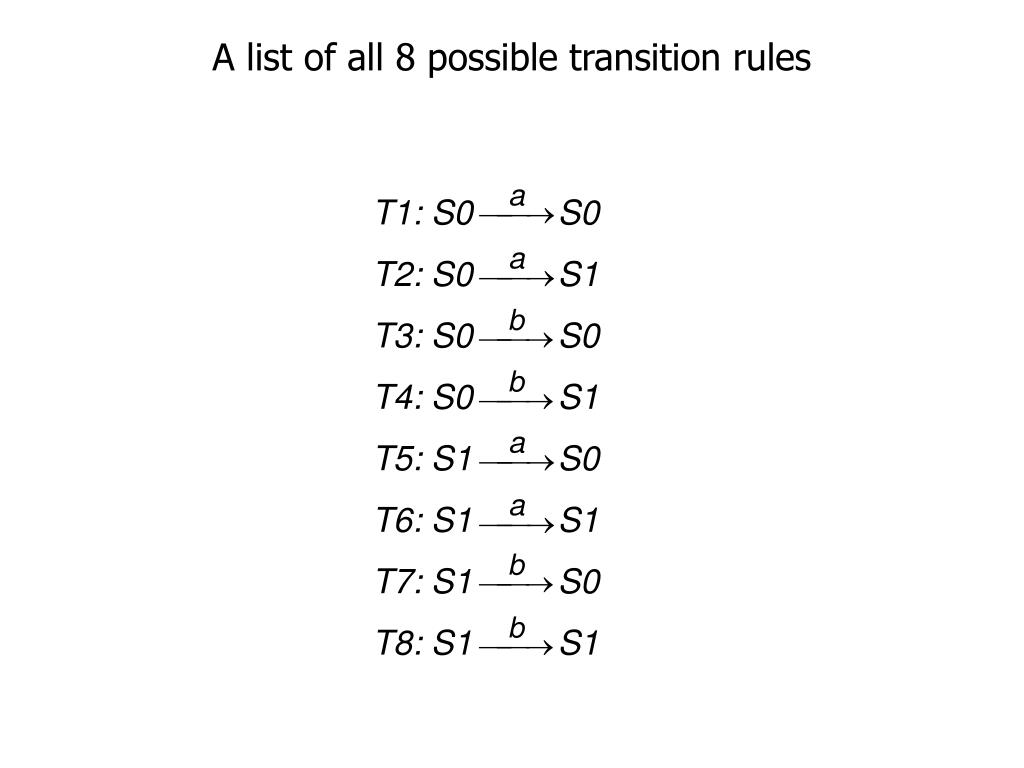

  16. A list of all 8 possible transition rules T1: S0 S0 T2: S0 S1 T3: S0 S0 T4: S0 S1 T5: S1 S0 T6: S1 S1 T7: S1 S0 T8: S1 S1

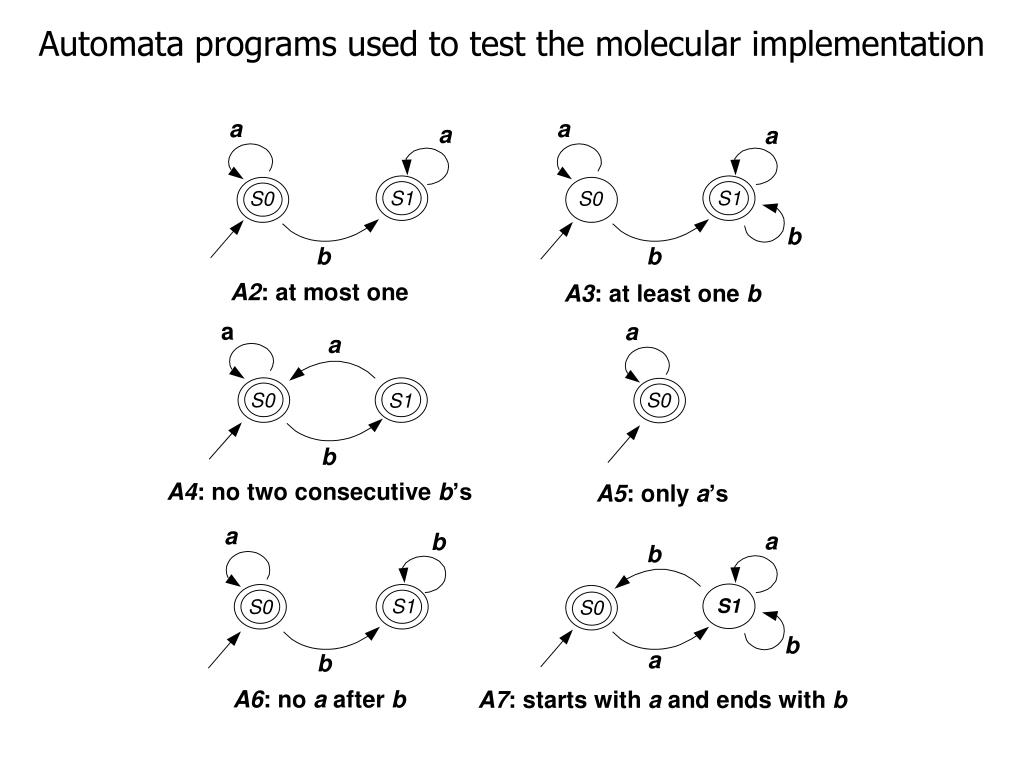

  17. Automata programs used to test the molecular implementation

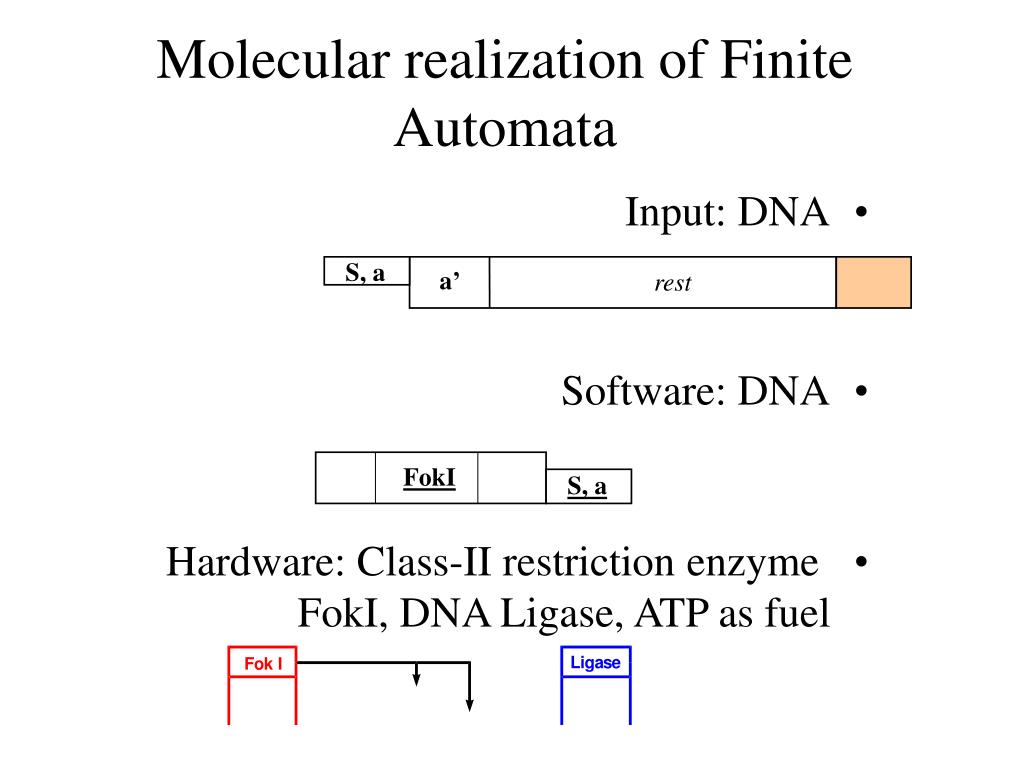

  18. Input: DNA S, a a’ rest • Software: DNA FokI S, a • Hardware: Class-II restriction enzyme FokI, DNA Ligase, ATP as fuel Molecular realization of Finite Automata
