  1. doc.: IEEE 15-12-0635-00-0led Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title:[Active LED-ID Standardization based on IEEE 802.15.7] Date Submitted: [November, 2012] Source:[Yeong Min Jang, Tuan Nguyen, and Ratan Kumar Mondal] [KookminUniversity] Address [Kookmin University, Seoul, Korea] Voice:[82-2-910-5068], FAX: [82-2-910-5068], E-Mail:[yjang@kookmin.ac.kr] Re: [] Abstract: [Active LED-ID standardization based on IEEE 802.15.7] Purpose:[Contribution to IEEE 802.15 IG-LED] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Yeong Min Jang, Kookmin University

  2. Goals • Revision directions for active LED-ID standardization • Conclusions doc.: IEEE 15-12-0635-00-0led Contents Yeong Min Jang, Kookmin University

  3. Need to standardize active LED-ID system for low-cost implementations • Need to apply to indoor LBS applications doc.: IEEE 15-12-0635-00-0led Goals Yeong Min Jang, Kookmin University

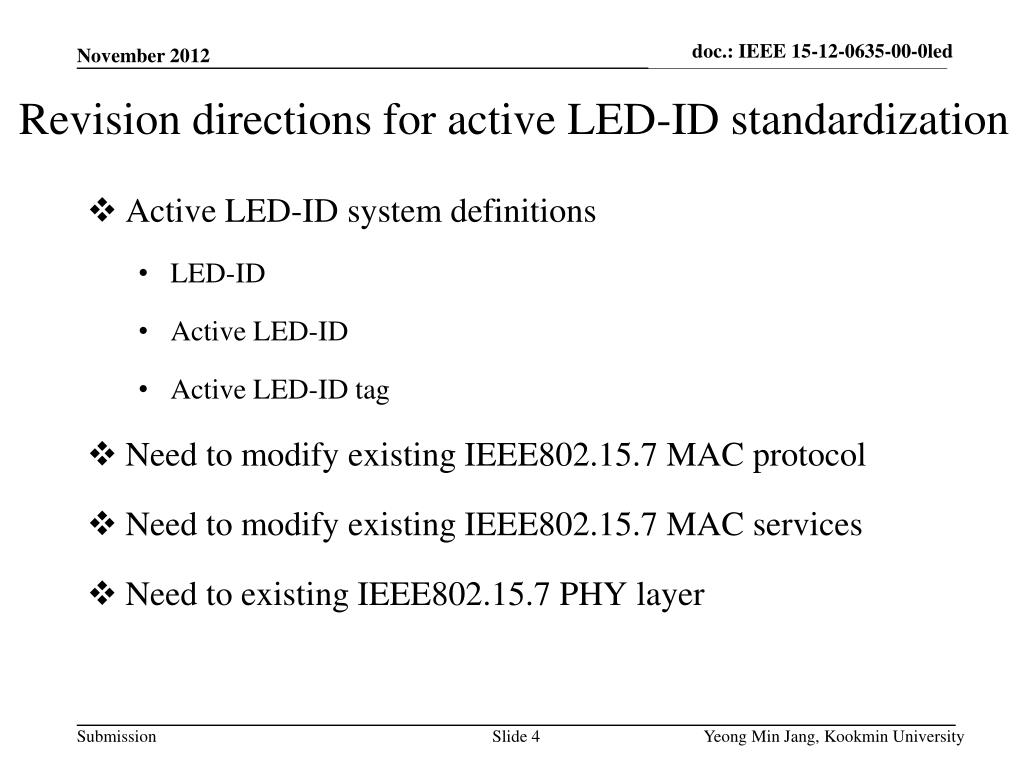

  4. Active LED-ID system definitions • LED-ID • Active LED-ID • Active LED-ID tag • Need to modify existing IEEE802.15.7 MAC protocol • Need to modify existing IEEE802.15.7 MAC services • Need to existing IEEE802.15.7 PHY layer doc.: IEEE 15-12-0635-00-0led Revision directions for active LED-ID standardization Yeong Min Jang, Kookmin University

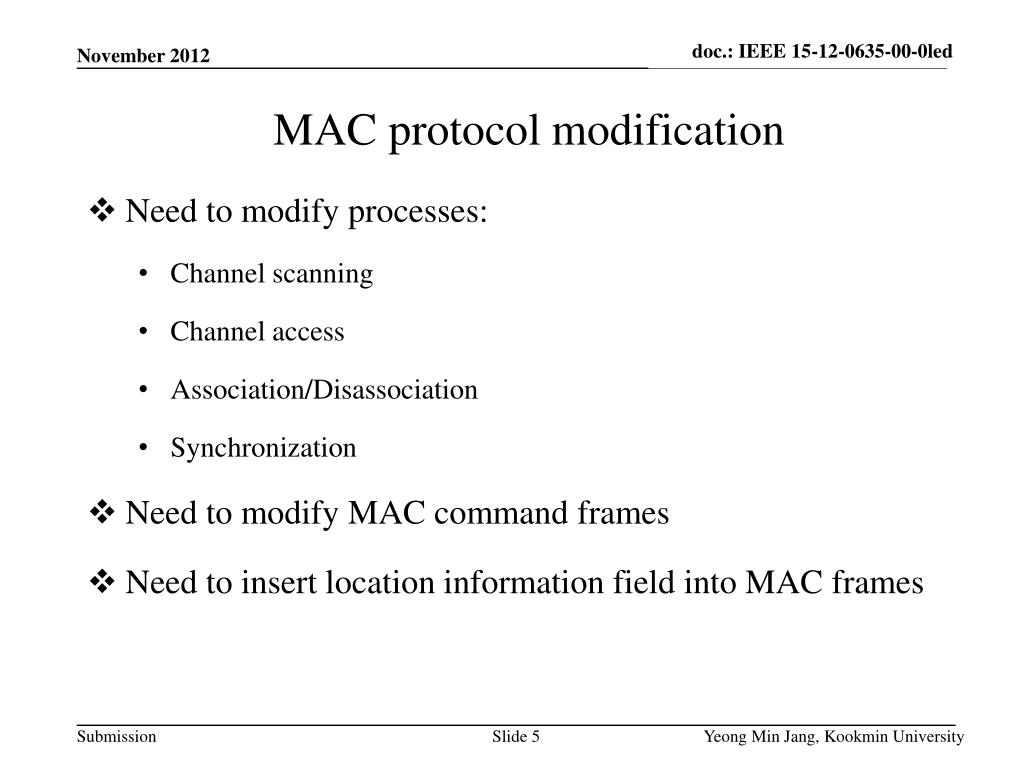

  5. Need to modify processes: • Channel scanning • Channel access • Association/Disassociation • Synchronization • Need to modify MAC command frames • Need to insert location information field into MAC frames doc.: IEEE 15-12-0635-00-0led MAC protocol modification Yeong Min Jang, Kookmin University

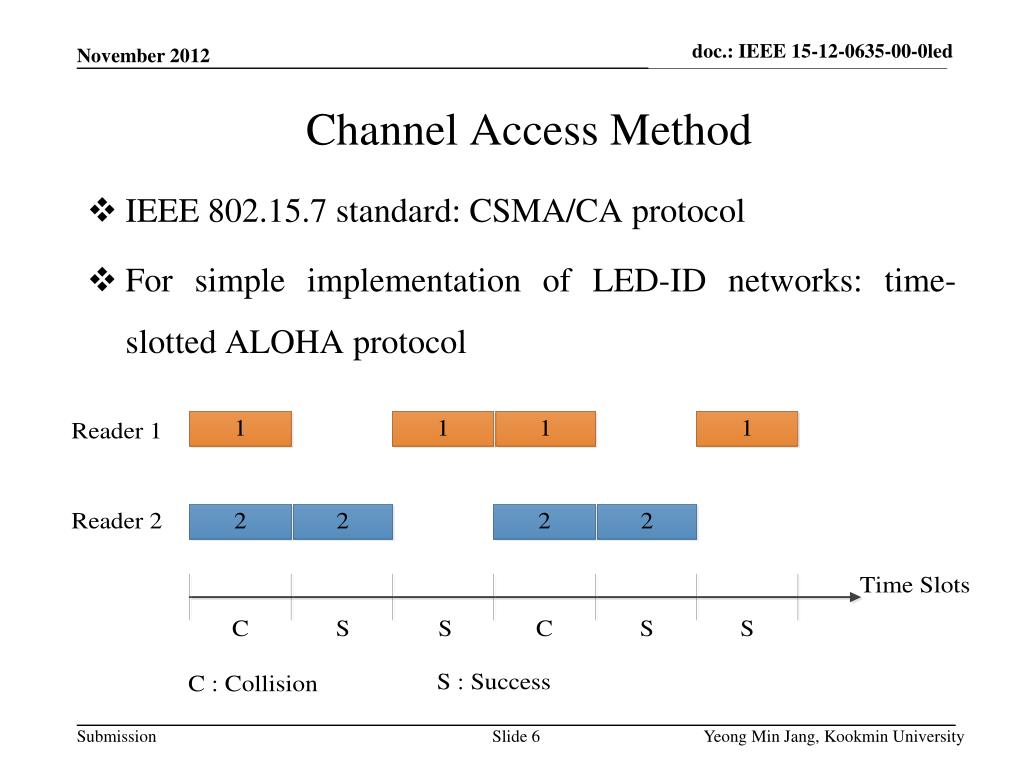

  6. IEEE 802.15.7 standard:CSMA/CA protocol • For simple implementation of LED-ID networks: time-slotted ALOHA protocol doc.: IEEE 15-12-0635-00-0led Channel Access Method Yeong Min Jang, Kookmin University

  7. doc.: IEEE 15-12-0635-00-0led MAC frame modification • IEEE 802.15.7 MAC frame format • Proposed frame type • Proposed active LED-ID MAC frame format Yeong Min Jang, Kookmin University

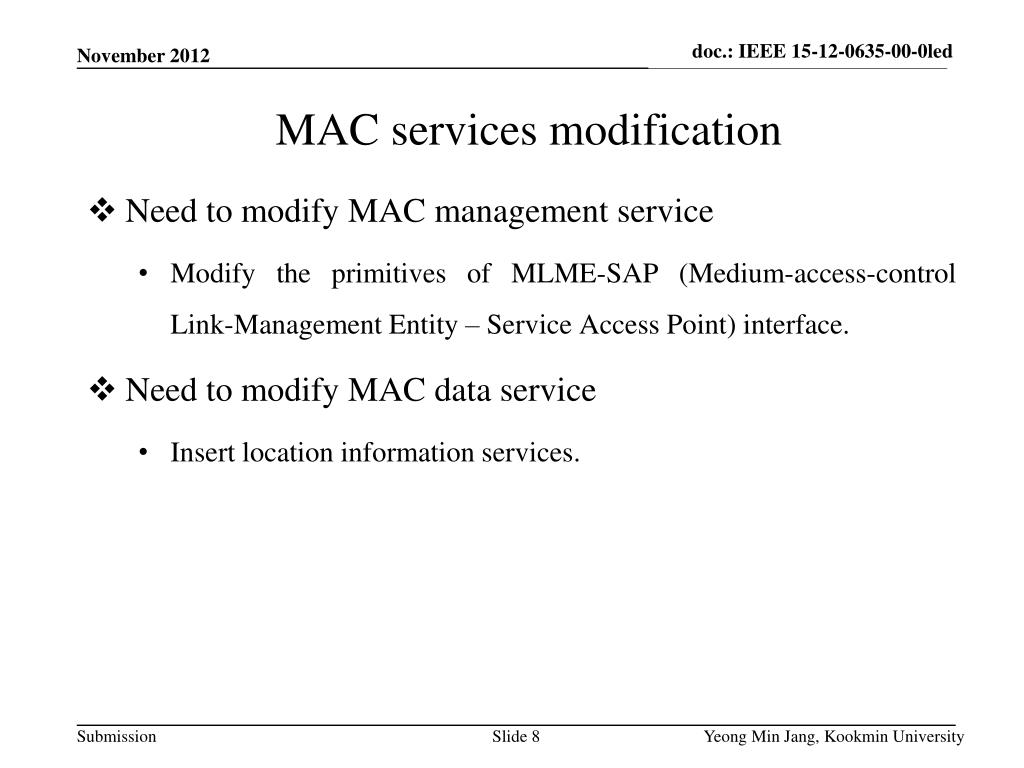

  8. Need to modify MAC management service • Modify the primitives of MLME-SAP (Medium-access-control Link-Management Entity – Service Access Point) interface. • Need to modify MAC data service • Insert location information services. doc.: IEEE 15-12-0635-00-0led MAC services modification Yeong Min Jang, Kookmin University

  9. Current IEEE 802.15.7 standard specifies 3 PHY types: • PHY I: intended for outdoor usage with low data rate applications. • PHY II: intended for indoor usage with moderate data rate applications. • PHY III: intended for moderate data rate applications using CSK that have multiple light sources and detectors. • Need to define(or revise) particular PHY type for LED-ID reader and tag applications. • Need to define(or revise) particular PHY type for indoor LBS applications. doc.: IEEE 15-12-0635-00-0led PHY modification Yeong Min Jang, Kookmin University

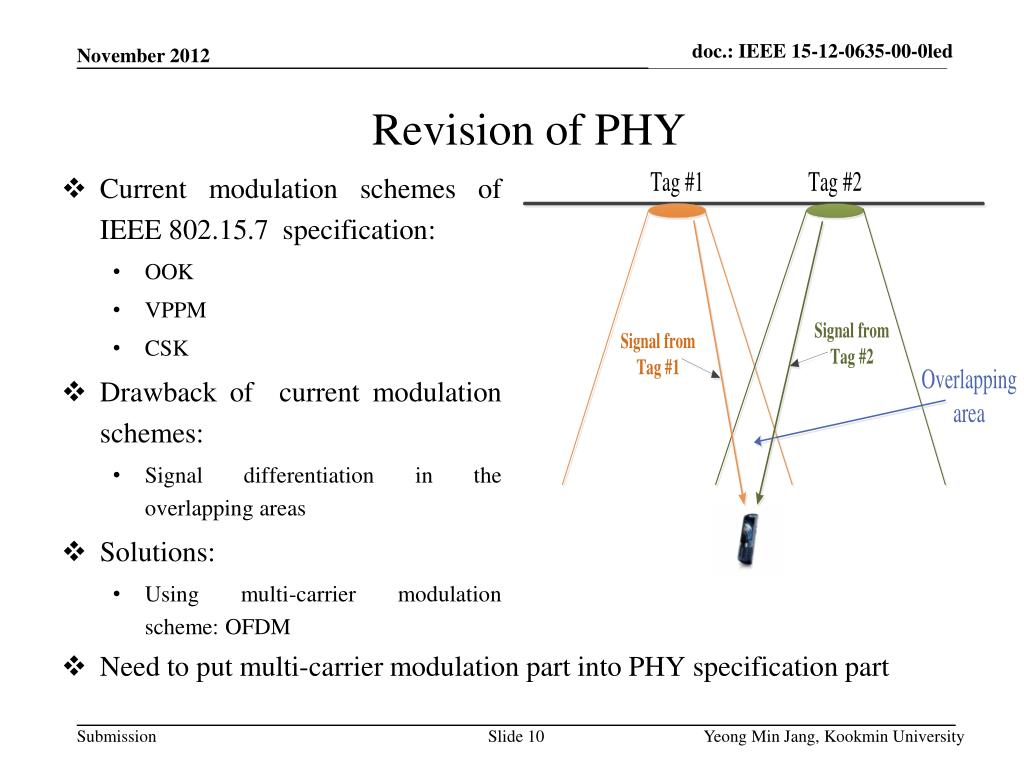

  10. Current modulation schemes of IEEE 802.15.7 specification: • OOK • VPPM • CSK • Drawback of current modulation schemes: • Signal differentiation in the overlapping areas • Solutions: • Using multi-carrier modulation scheme: OFDM doc.: IEEE 15-12-0635-00-0led Revision of PHY • Need to put multi-carrier modulation part into PHY specification part Yeong Min Jang, Kookmin University

  11. Proposing some revision directions for standardizing active LED-ID technology based on IEEE 802.15.7 • Other revision directions • PHY • MAC • Link Management and Link switching • LBS • Simple implementation • A call for contributions in next meeting. doc.: IEEE 15-12-0635-00-0led Conclusions Yeong Min Jang, Kookmin University
