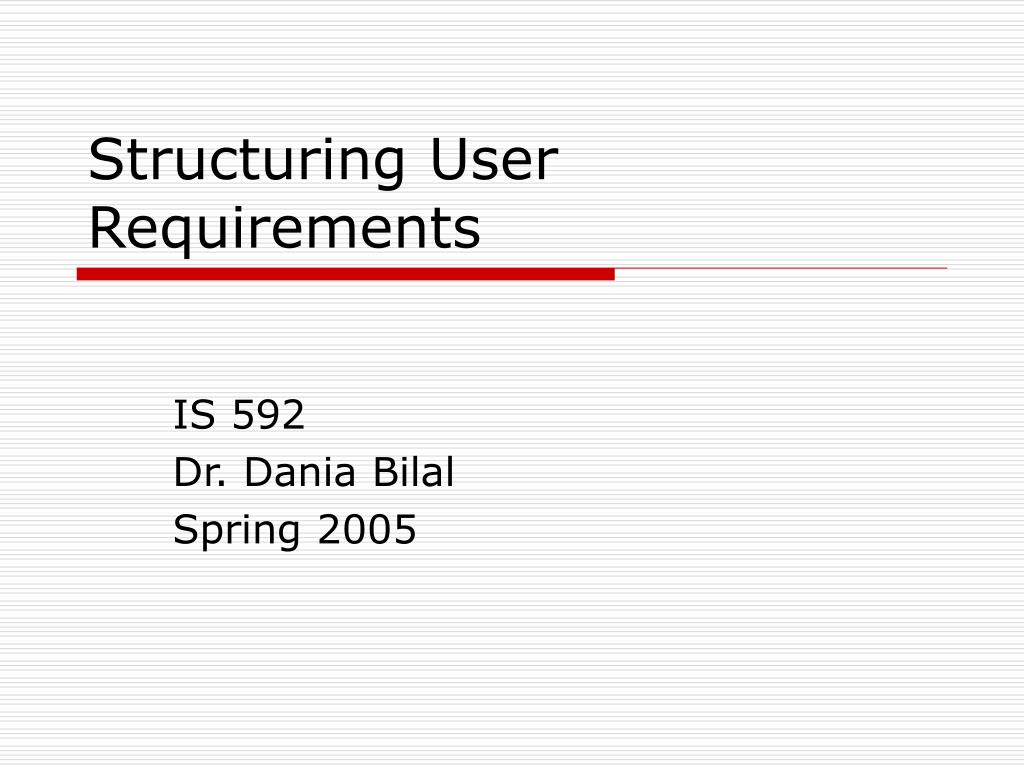

  1. Structuring User Requirements IS 592 Dr. Dania Bilal Spring 2005

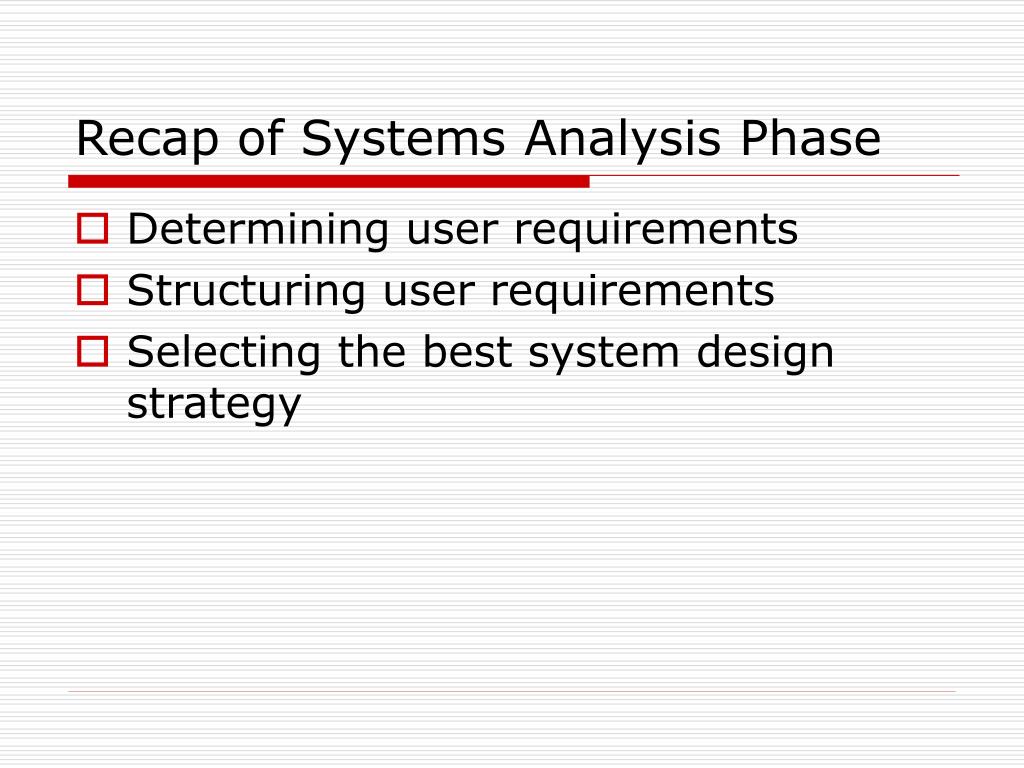

  2. Recap of Systems Analysis Phase • Determining user requirements • Structuring user requirements • Selecting the best system design strategy

  3. Structuring User Requirements • Data Flow Diagrams (DFDs) • Analysis tool to structure user requirements in a system • Graphically represents data movement or flow in an information system and relationships among data flow

  4. DFDs • Show the processes that transform or change data • Focus on movement of data between processes ->DFDs are called process models • Process modeling shows data flow through the system based on an organization’s rules, decisions, and policies

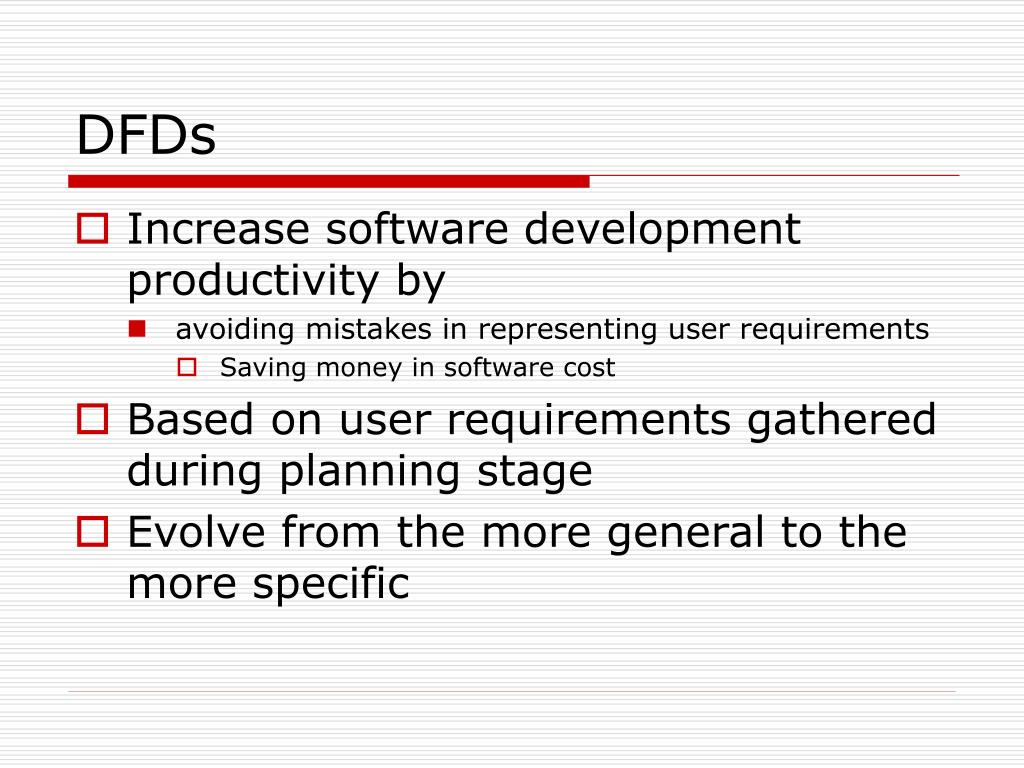

  5. DFDs • Increase software development productivity by • avoiding mistakes in representing user requirements • Saving money in software cost • Based on user requirements gathered during planning stage • Evolve from the more general to the more specific

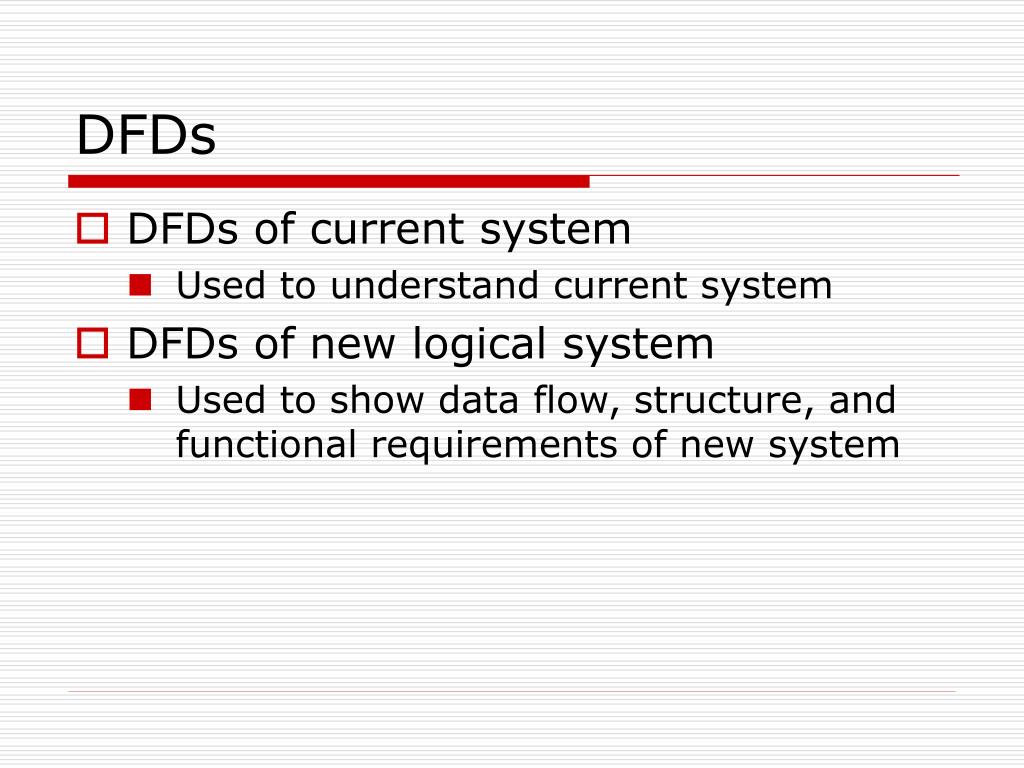

  6. DFDs • DFDs of current system • Used to understand current system • DFDs of new logical system • Used to show data flow, structure, and functional requirements of new system

  7. DFDs Symbols • Flow of data is represented by • Data flow • Data Store • Process • Source (external entities)

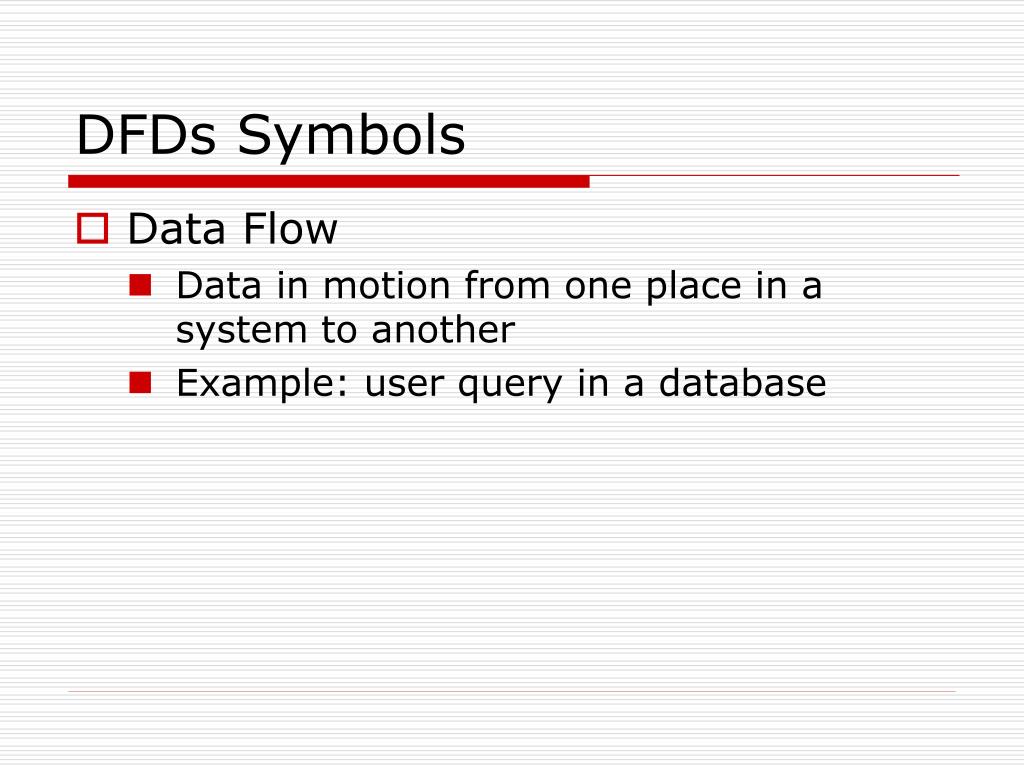

  8. DFDs Symbols • Data Flow • Data in motion from one place in a system to another • Example: user query in a database

  9. DFDs Symbols • Data store • Physical location or various locations of data in an information system • Example: a data store in a circulation system contains data about students, faculty, staff, community users, etc.

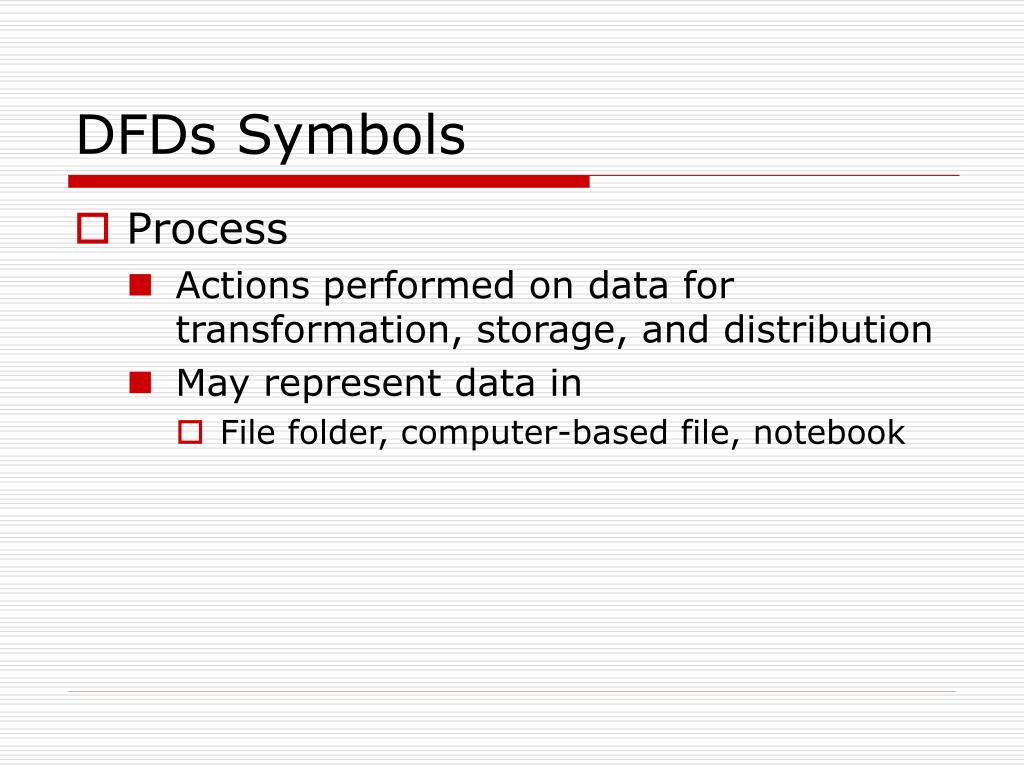

  10. DFDs Symbols • Process • Actions performed on data for transformation, storage, and distribution • May represent data in • File folder, computer-based file, notebook

  11. DFDs Symbols • Source/sink • Depicts the origin and/or destination of data • Referred to a external entity • Another organization or unit that sends and receives information from the system • A person who interacts with the system, inside or outside • Another information system that exchanges information with the system under analysis

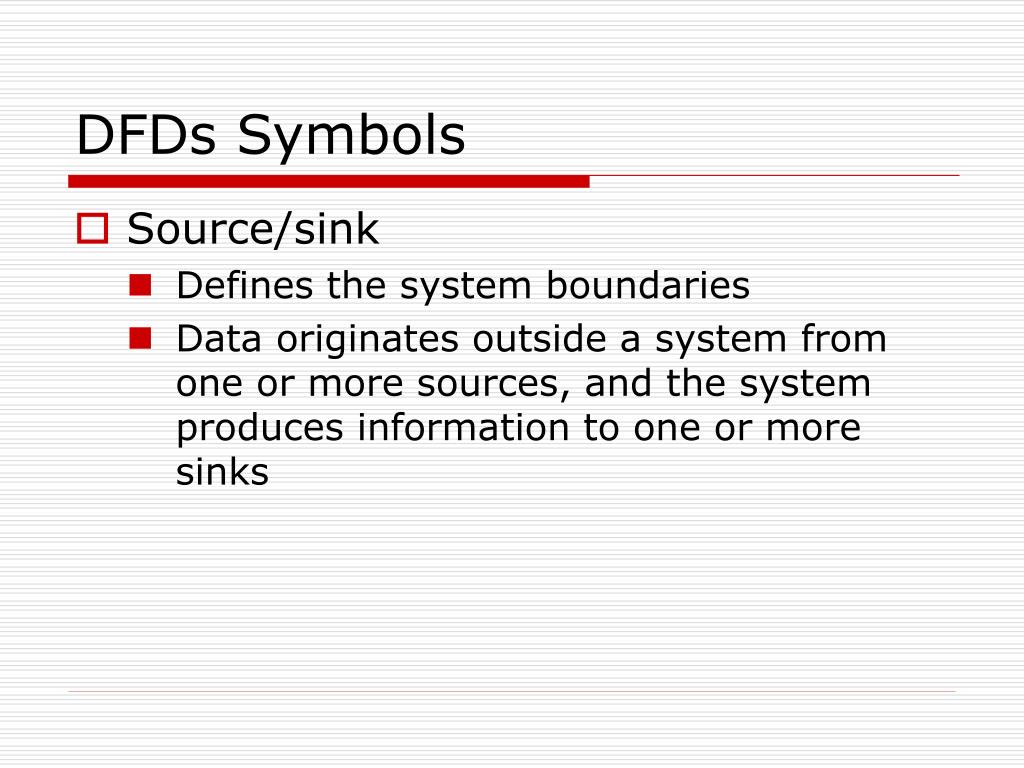

  12. DFDs Symbols • Source/sink • Defines the system boundaries • Data originates outside a system from one or more sources, and the system produces information to one or more sinks

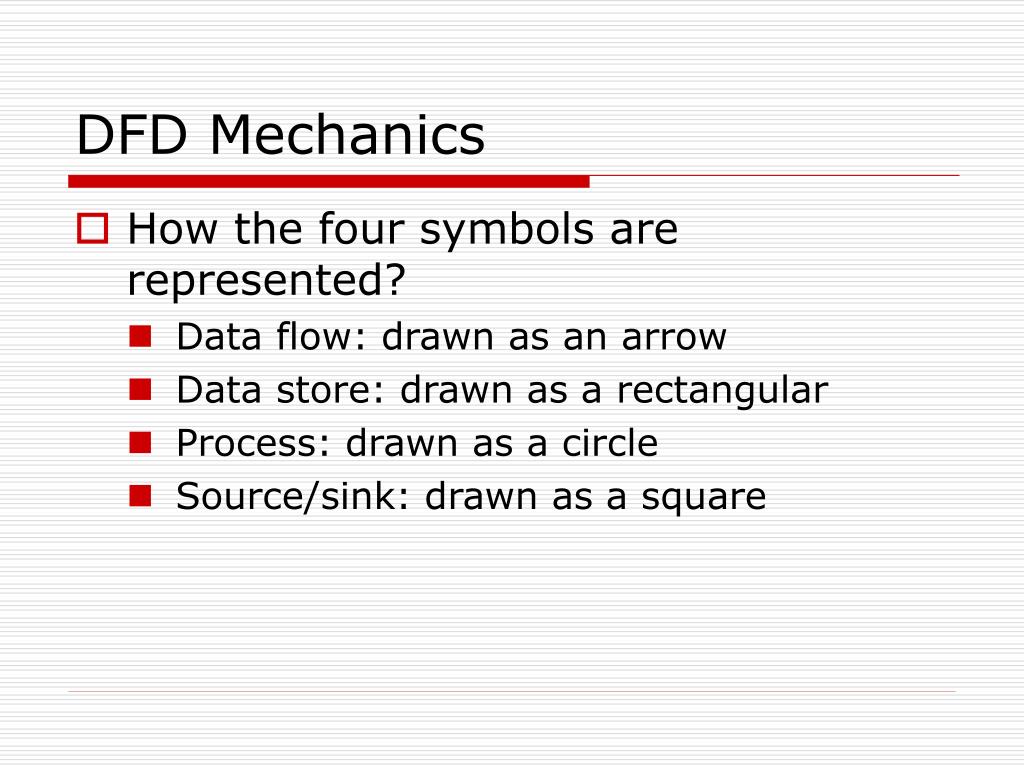

  13. DFD Mechanics • How the four symbols are represented? • Data flow: drawn as an arrow • Data store: drawn as a rectangular • Process: drawn as a circle • Source/sink: drawn as a square

  14. DFD Definitions • Level-0 diagram • Represents a system’s major processes, data flow, and data stores at the highest level of detail • Context diagram • Shows major flow between entities and the system (too general) • Level-N diagram • A DFD that results from a decomposed Level-0 diagram

  15. Types of DFDs • Current logical • Depicts current system • New logical • Has additional functions • Inefficient data flows are reorganized • New physical • Depicts physical implementation of the new system

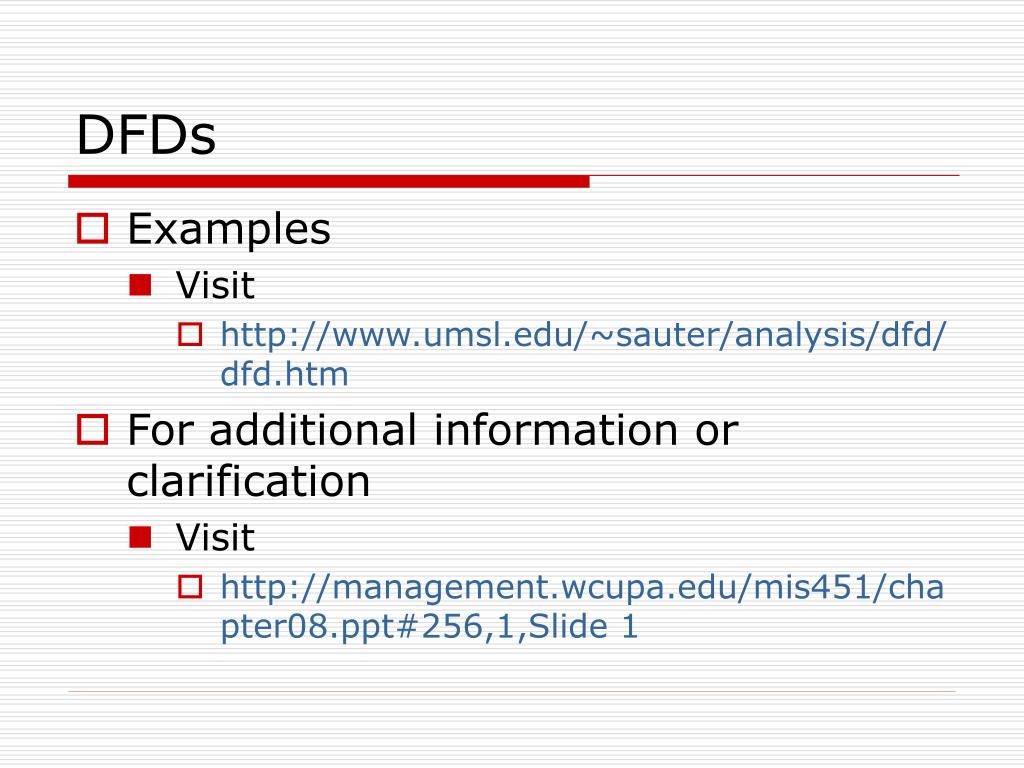

  16. DFDs • Examples • Visit • http://www.umsl.edu/~sauter/analysis/dfd/dfd.htm • For additional information or clarification • Visit • http://management.wcupa.edu/mis451/chapter08.ppt#256,1,Slide 1
