DESCRIPTION

The Vertimaster VMG series features a compact vertical drilling and milling machine designed for precision and efficiency. With a table width ranging from 1250 to 2500 mm and a table length from 2000 to 6000 mm, this machine offers flexibility for various applications. It boasts a powerful 52 kW drive, with a planing disk diameter from 1000 mm to 2800 mm, and an optional third linear axis (Y). Capable of handling workpieces up to 25,000 kg, this machine is ideal for demanding industrial environments.

Download

1 / 8

Apr 28, 2026

Télécharger la présentation

Compact Vertical Drilling and Milling Machine - Vertimaster VMG Series

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

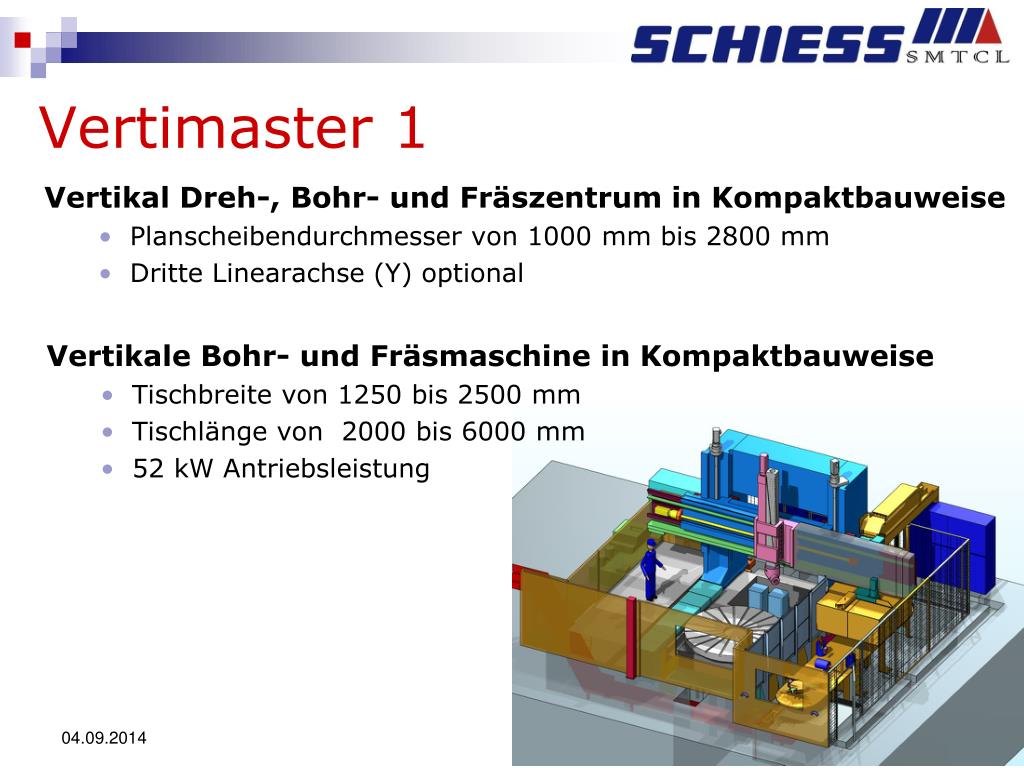

Vertimaster 1 • Vertikale Bohr- und Fräsmaschine in Kompaktbauweise • Tischbreite von 1250 bis 2500 mm • Tischlänge von 2000 bis 6000 mm • 52 kW Antriebsleistung Vertikal Dreh-, Bohr- und Fräszentrum in Kompaktbauweise • Planscheibendurchmesser von 1000 mm bis 2800 mm • Dritte Linearachse (Y) optional
Vertimaster VMG 1.30 PCA Halberstadt Palettendurchmesser 3000 mm max. Werkstückgewicht 25000 kg RAM – Abmessungen 280 x 240 mm 52 kW, 2400 Nm, 3000/min
Vertimaster VMG 6 Alstom Belfort
VMG 6 Alstom Belfort
