  1. Bentley RM Bridge Seismic Design and Analysis Alexander Mabrich, PE, Msc

  2. AGENDA Kobe, Japan (1995)

  3. AGENDA Loma Prieta, California (1989)

  4. RM Bridge Seismic Design and Analysis • Critical infrastructures require: • Sophisticated design methods • Withstand collapse in earthquake occurrences

  5. RM Bridge Seismic Design and Analysis • AASTHO, Simple Seismic Load • Basic concepts for Dynamic Analysis: - Eigenvalues - Eigenshapes • Two non-linear dynamic options: - Response Spectrum - Time-History

  6. AASHTO Bridge Design Specifications • 7% probability of exceedence in 75years • Seismic Design Categories • Soil • Site / location • Importance • Earthquake Resistant System • Demand/Capacity

  7. AASHTO Bridge Design Specifications • Site Location

  8. AASHTO Bridge Design Specifications • Type of Seismic Analysis Required

  9. Static Seismic Load

  10. Equivalent Static Analysis • Uniform Load Analysis • Orthogonal Displacements • Simultaneously • Fundamental mode

  11. Equivalent Static Analysis • Direction, Factor

  12. Fundamental Mode

  13. Results

  14. Basic Concepts used in Dynamic Analysis

  15. Basic Concepts • Vibration of Systems with one or more DOF • Eigen values and Eigen modes • Forced Vibration • Harmonic and Stochastic Simulation • Linear and Non-linear behavior of the structure

  16. Dynamic Vibration

  17. Damped Vibration

  18. damping constant c spring constant k mass m x amplitude x(t) F external Force F(t) Single Mass Oscillator EQUILIBRIUM EQUATION OF MOTION

  19. Damping Ratio c0:

  20. Free Vibration …no damping…and dividing by m… But.. • Solution:

  21. Multi Degree of Freedom System

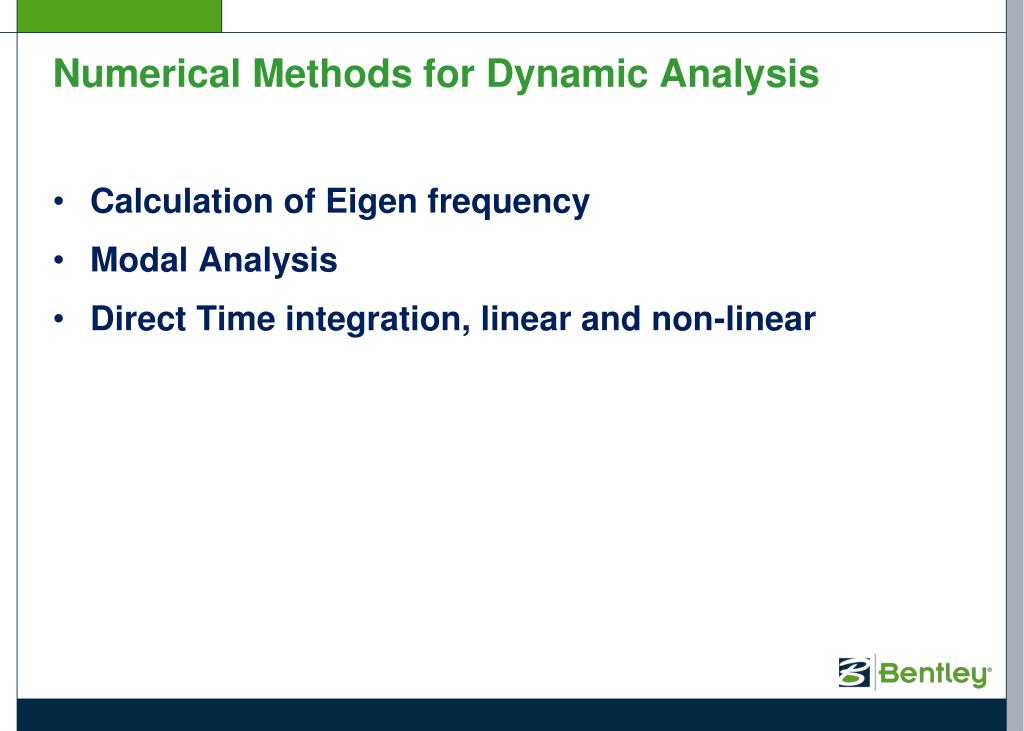

  22. Numerical Methods for Dynamic Analysis • Calculation of Eigen frequency • Modal Analysis • Direct Time integration, linear and non-linear

  23. Modal Analysis • System of dynamic equations : • Free vibration motion: • Non trivial solution:

  24. Eigen Calculation • Eigen values • Eigen shapes • Unique nature • Differential equations

  25. Eigen Shapes

  26. MASS PARTICIPATION FACTORS [%] MODE phi*M*phi X Y Z SUM-X SUM-Y SUM-Z HERTZ ------------------------------------------------------------------------- 1 0.3768E+04 88.33 0.00 3.14 88.33 0.00 3.14 0.905 2 0.1653E+04 2.35 0.00 71.45 90.68 0.00 74.59 1.704 3 0.8292E+03 0.00 5.03 0.04 90.68 5.03 74.63 3.111 4 0.1770E+04 1.14 0.01 0.05 91.82 5.04 74.68 3.809 5 0.1055E+04 0.28 0.01 0.01 92.10 5.05 74.69 5.425 6 0.1101E+04 0.00 57.35 0.01 92.10 62.40 74.69 6.300 7 0.1675E+04 0.43 0.01 7.31 92.54 62.41 82.00 7.145 8 0.9072E+03 0.17 0.00 0.05 92.70 62.41 82.05 9.656 9 0.5307E+04 0.13 0.04 3.98 92.83 62.45 86.03 10.042 10 0.1038E+04 0.06 0.01 0.04 92.90 62.46 86.08 11.795 11 0.1405E+04 0.13 0.01 0.00 93.02 62.47 86.08 11.830 12 0.1671E+04 0.74 0.01 0.03 93.77 62.48 86.10 13.265 13 0.4010E+03 1.74 0.00 0.04 95.51 62.49 86.14 13.321 14 0.8892E+03 0.00 0.43 0.05 95.51 62.92 86.20 13.890 15 0.5452E+04 0.01 0.03 0.25 95.52 62.95 86.45 14.077 16 0.1986E+04 0.08 0.03 0.87 95.59 62.97 87.32 16.719 17 0.6586E+03 0.03 5.91 0.03 95.63 68.88 87.35 16.936 18 0.6484E+03 0.09 3.54 0.00 95.72 72.42 87.35 16.961 19 0.1086E+04 0.00 7.02 0.00 95.72 79.44 87.35 17.275 20 0.1866E+04 0.02 0.01 0.00 95.74 79.45 87.35 18.408 21 0.1310E+04 0.11 0.00 3.47 95.85 79.45 90.82 21.221 22 0.2060E+04 0.06 0.00 0.00 95.91 79.45 90.82 22.277 23 0.1474E+04 0.06 0.00 0.00 95.97 79.45 90.83 24.414 24 0.2324E+04 0.04 0.00 0.00 96.00 79.45 90.83 24.983 25 0.1613E+04 0.00 0.00 0.00 96.01 79.45 90.83 26.843

  27. Response Spectrum Modal Decomposition

  28. Response Spectrum • Combination of natural modes • One mass oscillator • Oscillating loads • Intensity factor • Single contribution • Synchronization by Stochastic Calculation Rules: ABS,SRSS,CQC, etc

  29. Spectral Response Acceleration AASHTO Definition

  30. Solution in Frequency Domain • Solution by combining the contributions of the eigenvectors • Superposition of eigenvectors • Loading has lost information about correlation during conversion • Solution has no information on phase differences between the contributions of different eigenvectorsUse Stochastic methodology • Use Stochastic methodology

  31. Combination Rules • Max/Min results with different rules available: • ABS – Rule (Sum of absolute values) • SRSS – Rule (Square root of sum of sqaures) • DSC – Rule (Newmark/Rosenblueth) • CQC – Rule (Complete quadratic combination) • GENERAL : a lot of other rules exist

  32. Earthquake Load

  33. Response Spectrum in RM Bridge

  34. Time-History Time Integration

  35. Time History • Direct Time Integration • Linear and Non-Linear analysis • Standard event is defined: time-histories of ground acceleration are site specific • Probability of bearable damage • Most accurate method to evaluate structure response under earthquake event.

  36. What Can Be Non-Linear in RM Bridge? Structure-stiffness - Springs - Connections - Materials - Interaction between the substructure and bridge - Large deformations - Cables Mass of structure - Moving vehicle traffic Structure-damping - Raleigh damping effect - Viscous damping Load dependent on time - Change of position, intensity or direction - Time delay of structural elements

  37. Comparison MODAL ANALYSIS • Solution of uncoupled differential equations • Each eigenmode as single mass oscillator • Coupled system of differential equations • Time domain approximated • Static starting condition • Analysis of secondary systems: vehicles, equipment, extra bridge features • All Non-Linearities possible TIME-HISTORY

  38. Element 105 Element 110 Element 125 Element 131 Element 118 40 m 60 m 40 m Application Example

  39. Bentley RM Bridge Seismic Analysis Conclusions

  40. Kobe, Japan (1995)

  41. Akashi-Kaikyo – “Pearl Bridge”

  42. RM Bridge Benefits • Bentley BrIM vision • Bentley portfolio • Intuitive step-by-step calculation • One tool for all: static, modal, time-history • Integrated reports and drawings

  43. Bentley RM Bridge Seismic Design and Analysis Questions

  44. Thank you for your attention! Alex.Mabrich@bentley.com
