Presentation Transcript

  1. Website Design - Review Layout using tables

  2. Table exmaple <table border="1"> <tr> <td rowspan=“2> <imgsrc=“cake.gif” alt=“cake” height=“100” width=“100” /></td> <td>James</td> </tr> <tr> <td>11/08</td> </tr> </table>

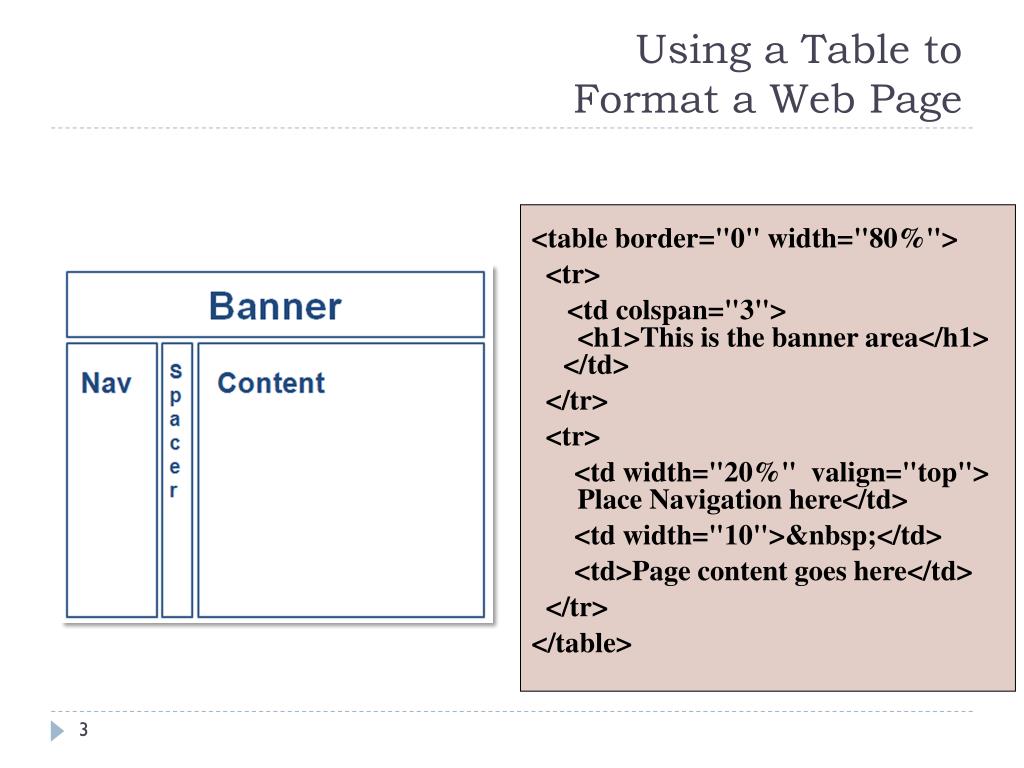

  3. Using a Table toFormat a Web Page <table border="0" width="80%"> <tr> <td colspan="3"> <h1>This is the banner area</h1></td> </tr> <tr> <td width="20%" valign="top"> Place Navigation here</td> <td width="10">&nbsp;</td> <td>Page content goes here</td> </tr> </table>

  4. Additional Table Layouts Try create these examples

  5. Website with Layout – Using Tables <html> <head> <title></title> </head> <body> </body> </html> <table> <tr> </tr> <tr> <td> </td> <td> </td> </tr> <tr> </tr> </table>

  6. Website with Layout – Using Tables <html> <head> <title>WebPage in Layout</title> </head> <body> </body> </html>

  7. Website with Layout – Using Tables <body> <table width="1000" border="0"> <tr> <td colspan="2" style="background-color:#FFA500;" height:100px; valign="middle"> <imgsrc="logo.png" width="100" height="100" alt="Logo Here" style="float: left;" /> <h1> (Write your heading here) </h1> </td> </tr> </table> </body>

  8. Website with Layout – Using Tables <trvalign="top"> <td style="background-color:#FFD700; width:100px;text-align:top;"> <b>Main Menu</b> <br> <a href="page1.html"> Page with image </a> <br> <a href="page2.html"> Information </a> <br> <a href="page3.html"> Others </a> </td> <td style="background-color:#EEEEEE;height:200px;width:400px;text-align:top;"> Content goes here<br> This is our BODY of this webpage we can use to write the information we want. Or to show other information like images.<br> <hr> this is example for a link to go to <a href="http://www.youtube.com"> Youtube </a> </td> </tr>

  9. Website with Layout – Using Tables <td style="background-color:#FFD700; width:100px;text-align:top;"> <b>Main Menu</b> <br> <a href="page1.html"> Page with image </a> <br> <a href="page2.html"> Information </a> <br> <a href="page3.html"> Others </a> </td>

  10. Website with Layout – Using Tables <td style="background-color:#EEEEEE;height:200px;width:400px;text-align:top;"> Content goes here<br> This is our BODY of this webpage we can use to write the information we want. Or to show other information like images.<br> <hr> this is example for a link to go to <a href="http://www.youtube.com"> Youtube </a> </td>

  11. Website with Layout – Using Tables <tr> <td colspan="2" style="backgroundcolor:#FFA500;text-align:center;"> This Webpage is made by YourName. (2013) </td> </tr>
