  1. Group 1Remote Computer Monitoring System

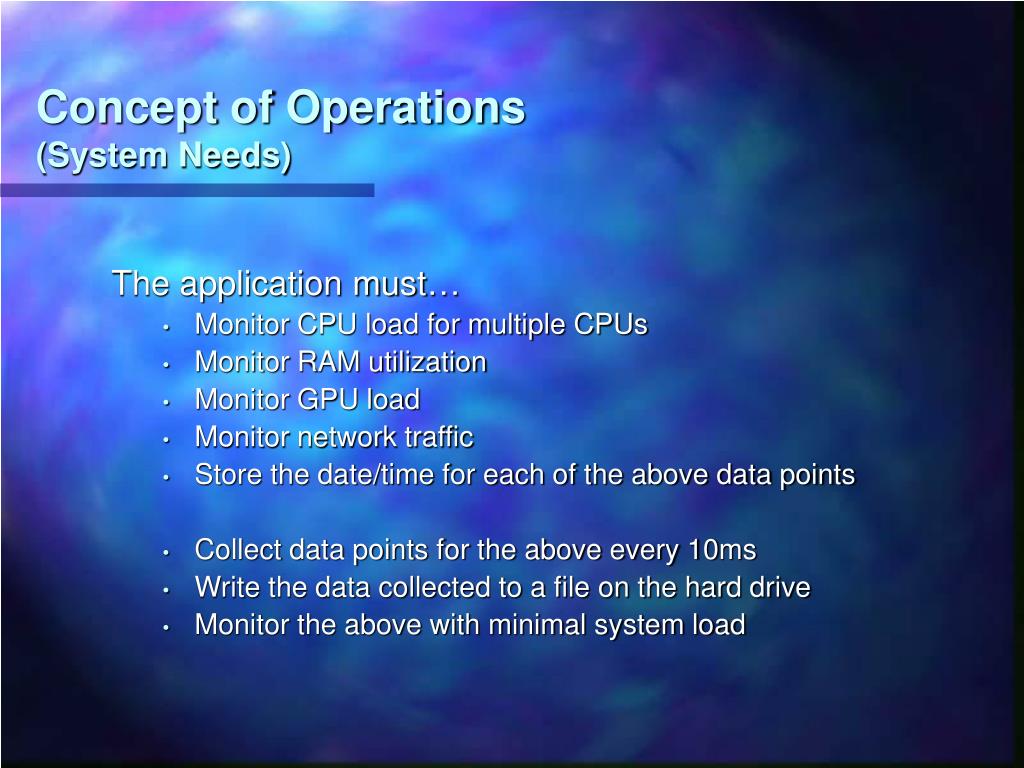

  2. Concept of Operations(System Needs) The application must… • Monitor CPU load for multiple CPUs • Monitor RAM utilization • Monitor GPU load • Monitor network traffic • Store the date/time for each of the above data points • Collect data points for the above every 10ms • Write the data collected to a file on the hard drive • Monitor the above with minimal system load

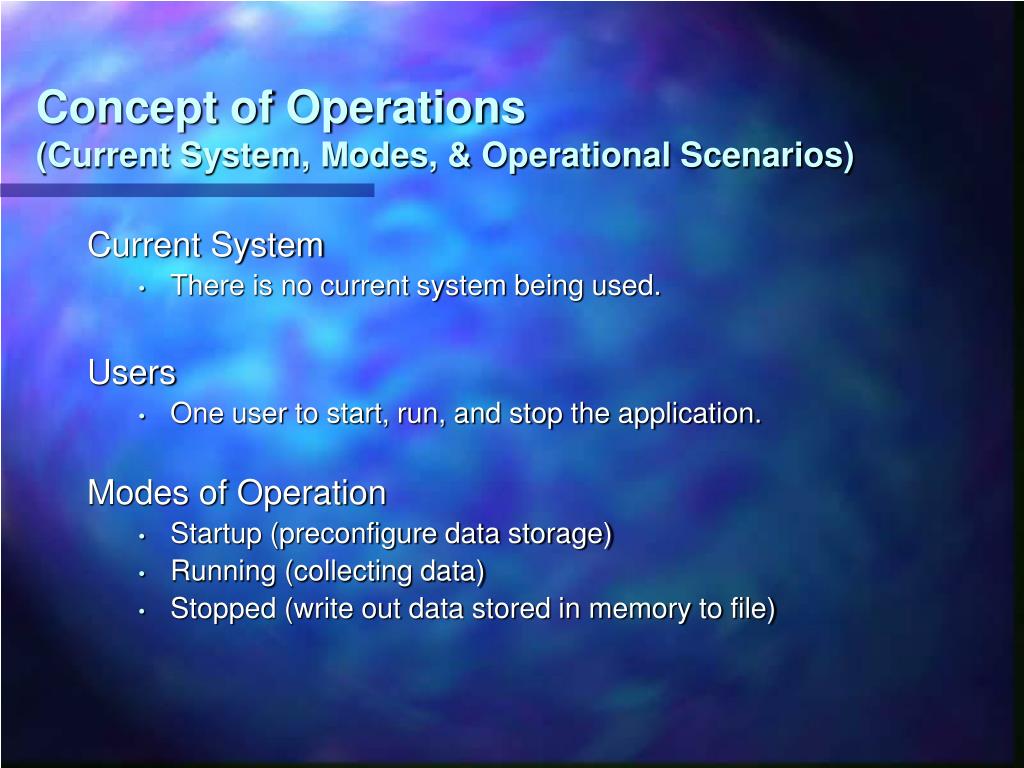

  3. Concept of Operations(Current System, Modes, & Operational Scenarios) Current System • There is no current system being used. Users • One user to start, run, and stop the application. Modes of Operation • Startup (preconfigure data storage) • Running (collecting data) • Stopped (write out data stored in memory to file)

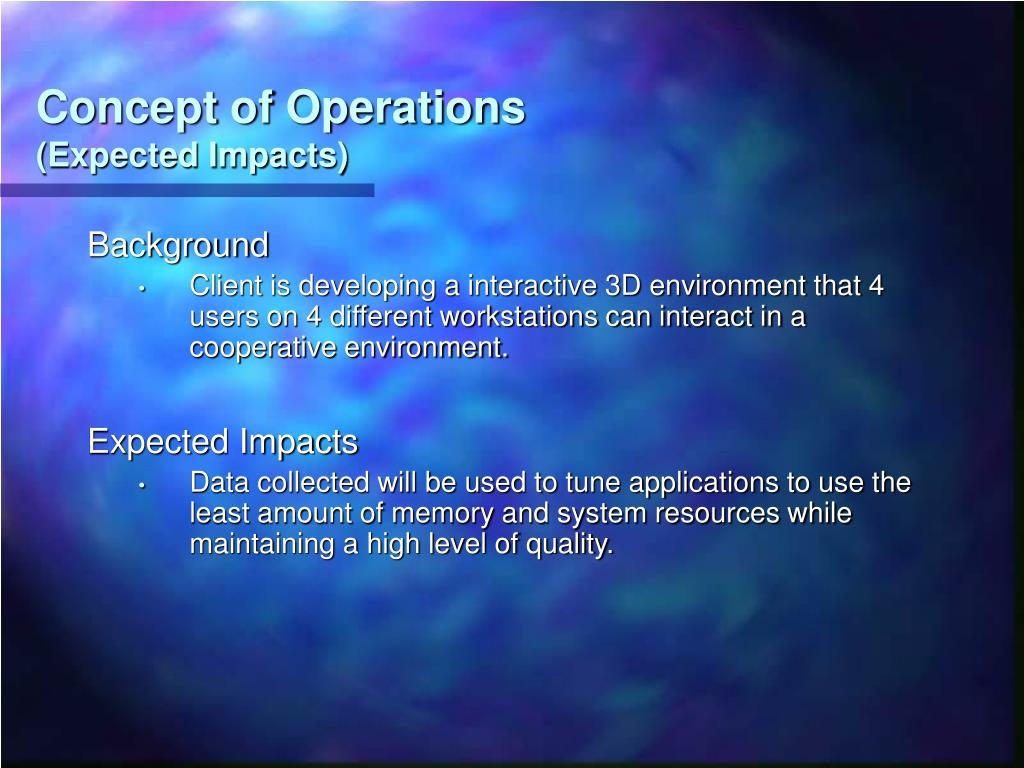

  4. Concept of Operations(Expected Impacts) Background • Client is developing a interactive 3D environment that 4 users on 4 different workstations can interact in a cooperative environment. Expected Impacts • Data collected will be used to tune applications to use the least amount of memory and system resources while maintaining a high level of quality.

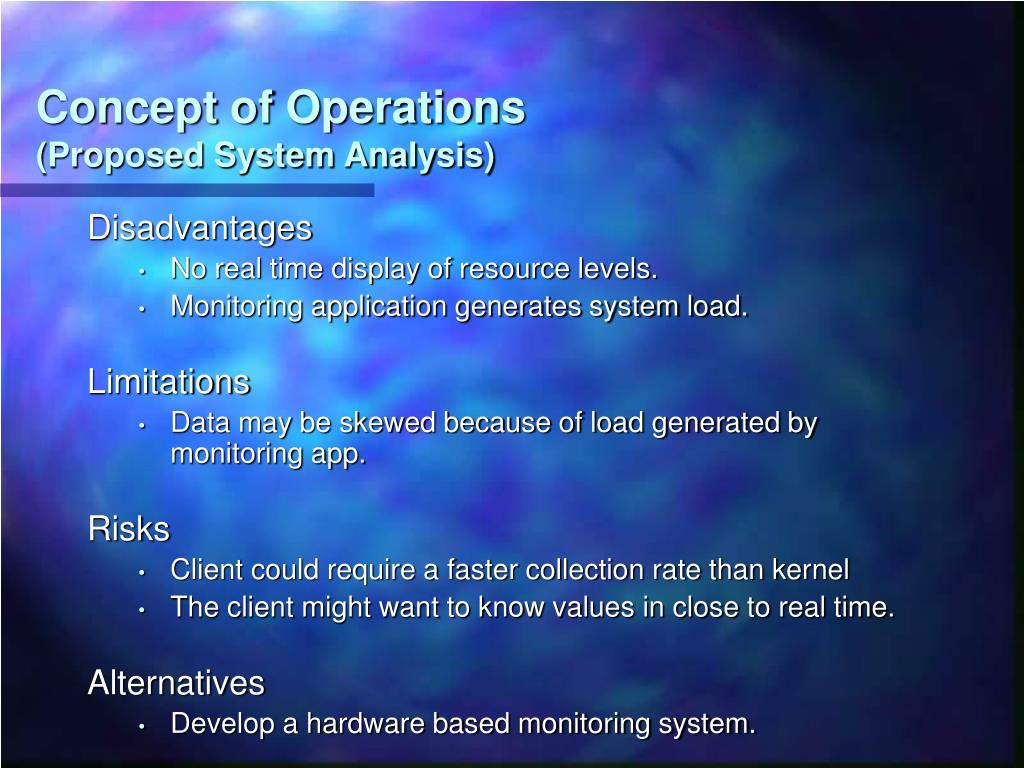

  5. Concept of Operations(Proposed System Analysis) Disadvantages • No real time display of resource levels. • Monitoring application generates system load. Limitations • Data may be skewed because of load generated by monitoring app. Risks • Client could require a faster collection rate than kernel • The client might want to know values in close to real time. Alternatives • Develop a hardware based monitoring system.

  6. Software Requirements Specification(Introduction) Applicable Standards • The system must run on Red Hat 7.2 • Systems will be dual x86 processors w/ 1gb of RAM • The system proc files will be available to be read. Stakeholders • Optical Diagnostics & Applications TeamMr. Felix Hamza-Lup • The RCMS Team

  7. Software Requirements Specification(USE Case Diagram)

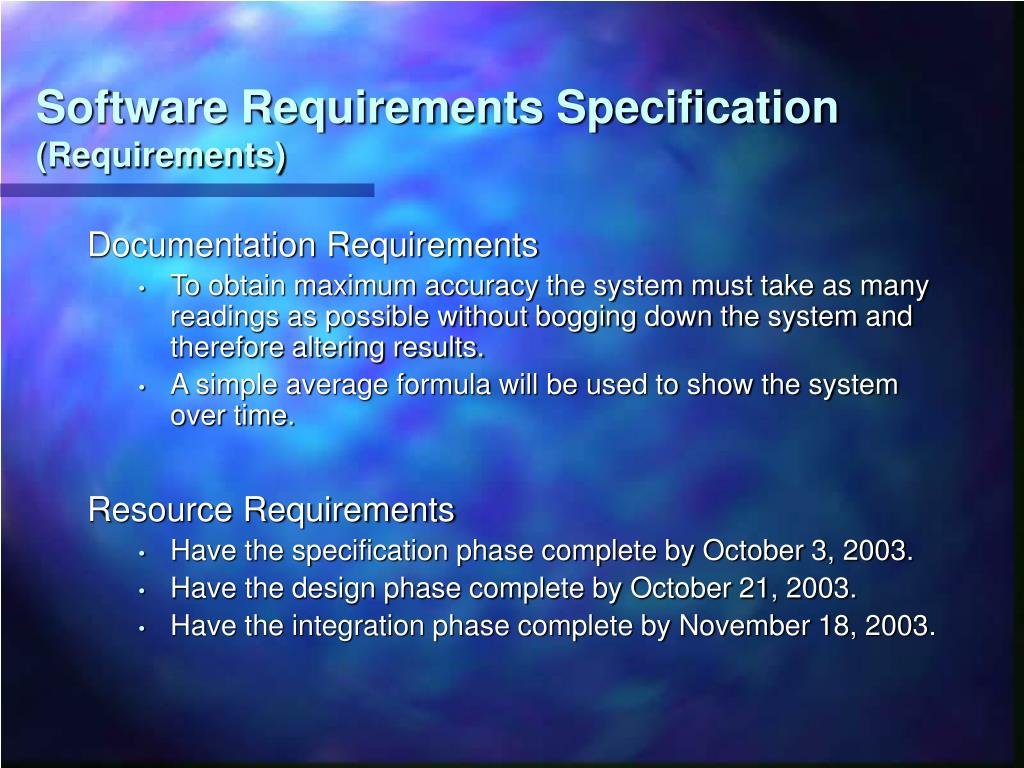

  8. Software Requirements Specification(Requirements) Documentation Requirements • To obtain maximum accuracy the system must take as many readings as possible without bogging down the system and therefore altering results. • A simple average formula will be used to show the system over time. Resource Requirements • Have the specification phase complete by October 3, 2003. • Have the design phase complete by October 21, 2003. • Have the integration phase complete by November 18, 2003.

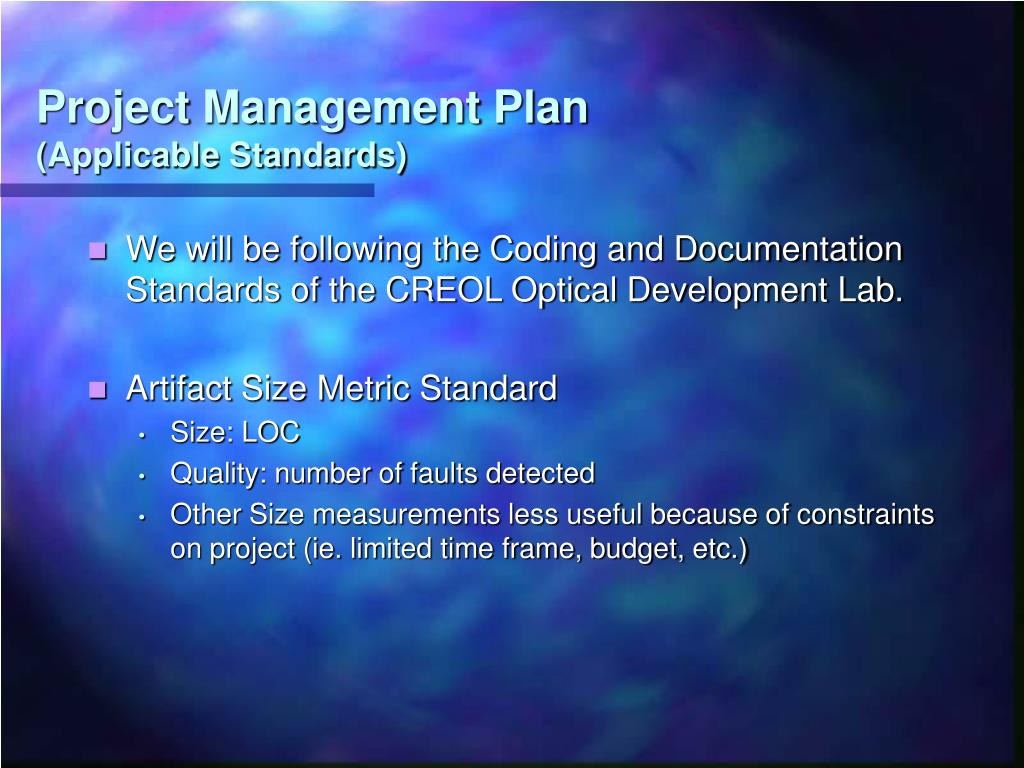

  9. Project Management Plan(Applicable Standards) • We will be following the Coding and Documentation Standards of the CREOL Optical Development Lab. • Artifact Size Metric Standard • Size: LOC • Quality: number of faults detected • Other Size measurements less useful because of constraints on project (ie. limited time frame, budget, etc.)

  10. Project Management Plan(Team Organization) • Development Team: • Doug Lother • Wes Reinhart • Documentation Team: • Nick Conway • James Haggard • Scheduled weekly group and client meetings to increase chances of a successful project.

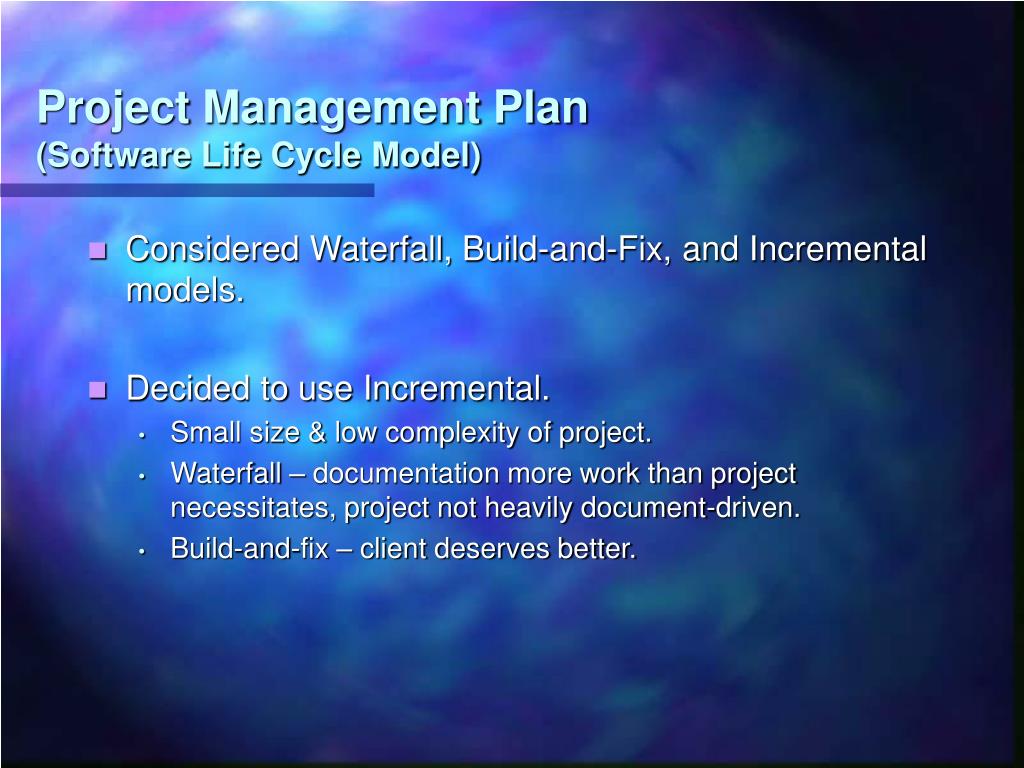

  11. Project Management Plan(Software Life Cycle Model) • Considered Waterfall, Build-and-Fix, and Incremental models. • Decided to use Incremental. • Small size & low complexity of project. • Waterfall – documentation more work than project necessitates, project not heavily document-driven. • Build-and-fix – client deserves better.

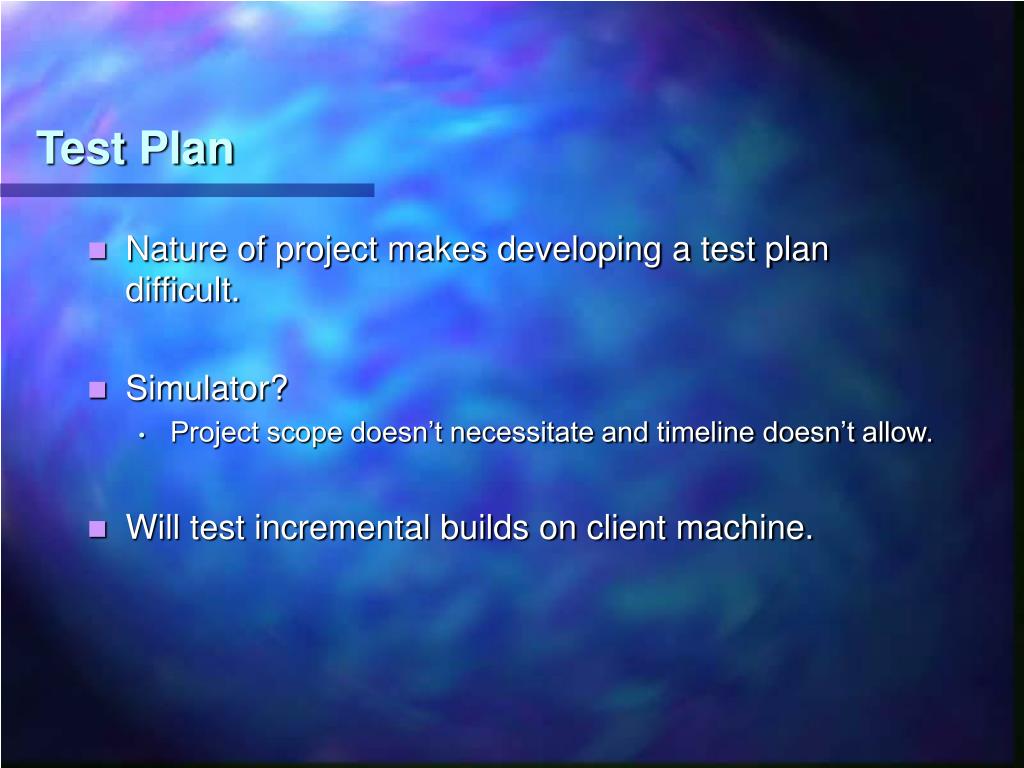

  12. Test Plan • Nature of project makes developing a test plan difficult. • Simulator? • Project scope doesn’t necessitate and timeline doesn’t allow. • Will test incremental builds on client machine.

  13. Questions? Thank you for your time.
