Presentation Transcript

  1. 최상의 고로 운전을 위한 감시시스템 소개 Tuyere Remote Monitoring System EAST SEA CORPORATION ADD.: 982 Daejam-dong, Pohang, Kyungbuk, South Korea TEL: +82-54-282-0151, FAX: +82-54-274-9090 E-mail : esc0502@nate.com

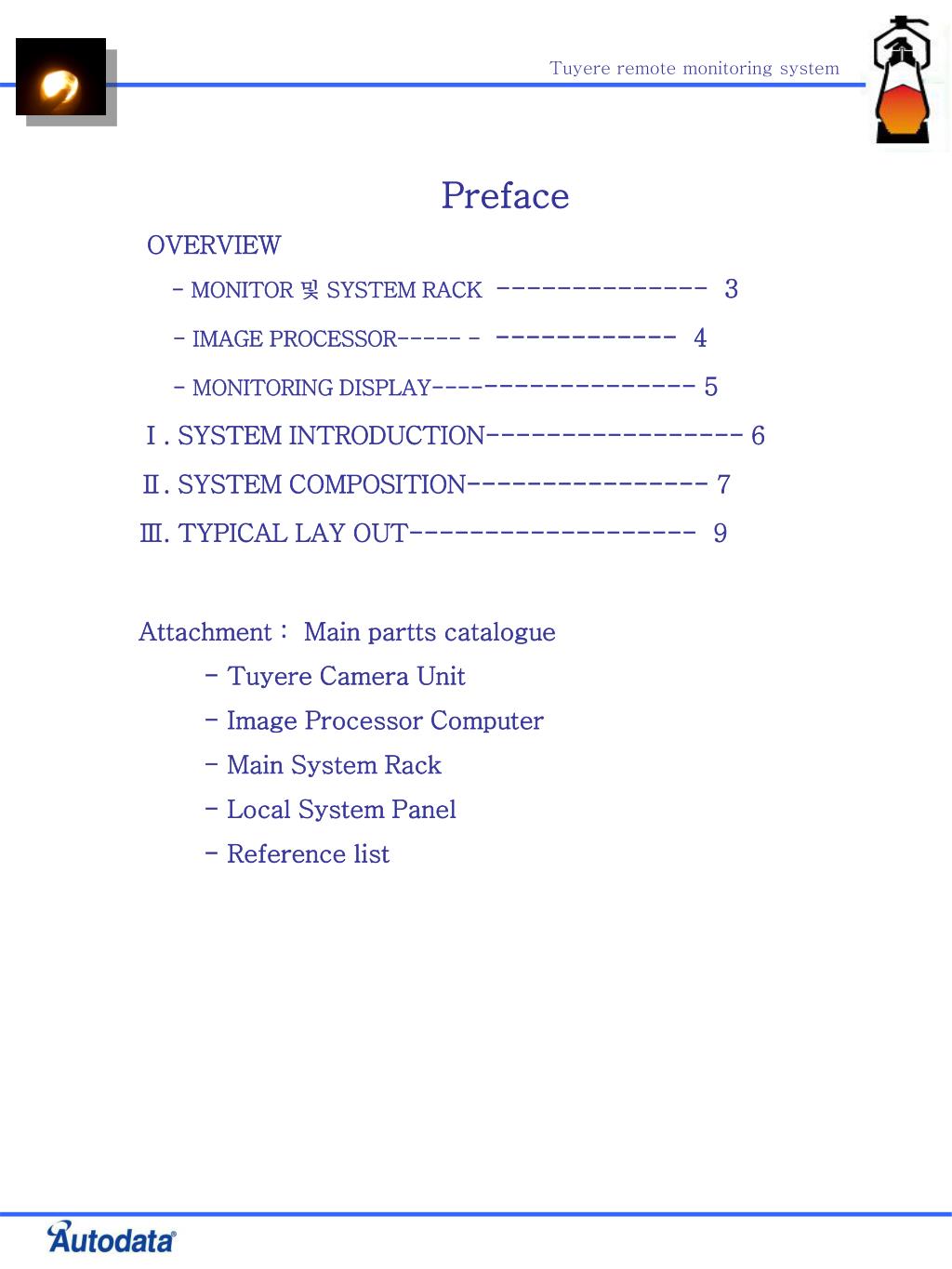

  2. Preface OVERVIEW - MONITOR 및 SYSTEM RACK -------------- 3 - IMAGE PROCESSOR------------------ 4 - MONITORING DISPLAY------------------ 5 Ⅰ. SYSTEM INTRODUCTION----------------- 6 Ⅱ. SYSTEM COMPOSITION---------------- 7 Ⅲ. TYPICAL LAY OUT------------------- 9 Attachment: Main partts catalogue - Tuyere Camera Unit - Image Processor Computer - Main System Rack - Local System Panel - Reference list

  3. 노심COKE 고로 풍구 감시장치 소개

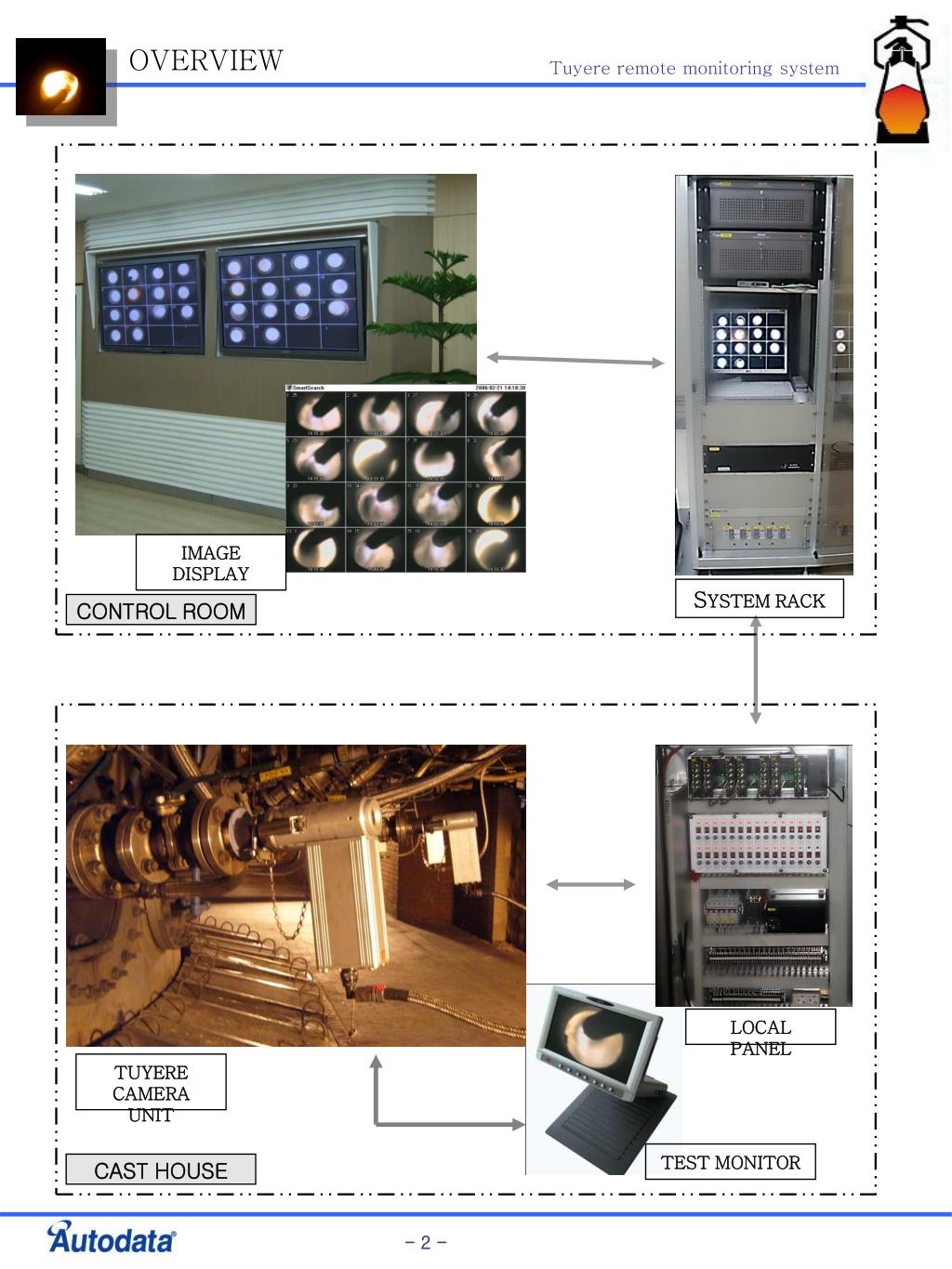

  4. OVERVIEW IMAGE DISPLAY SYSTEM RACK CONTROL ROOM LOCAL PANEL TUYERE CAMERA UNIT TEST MONITOR CAST HOUSE - 2 -

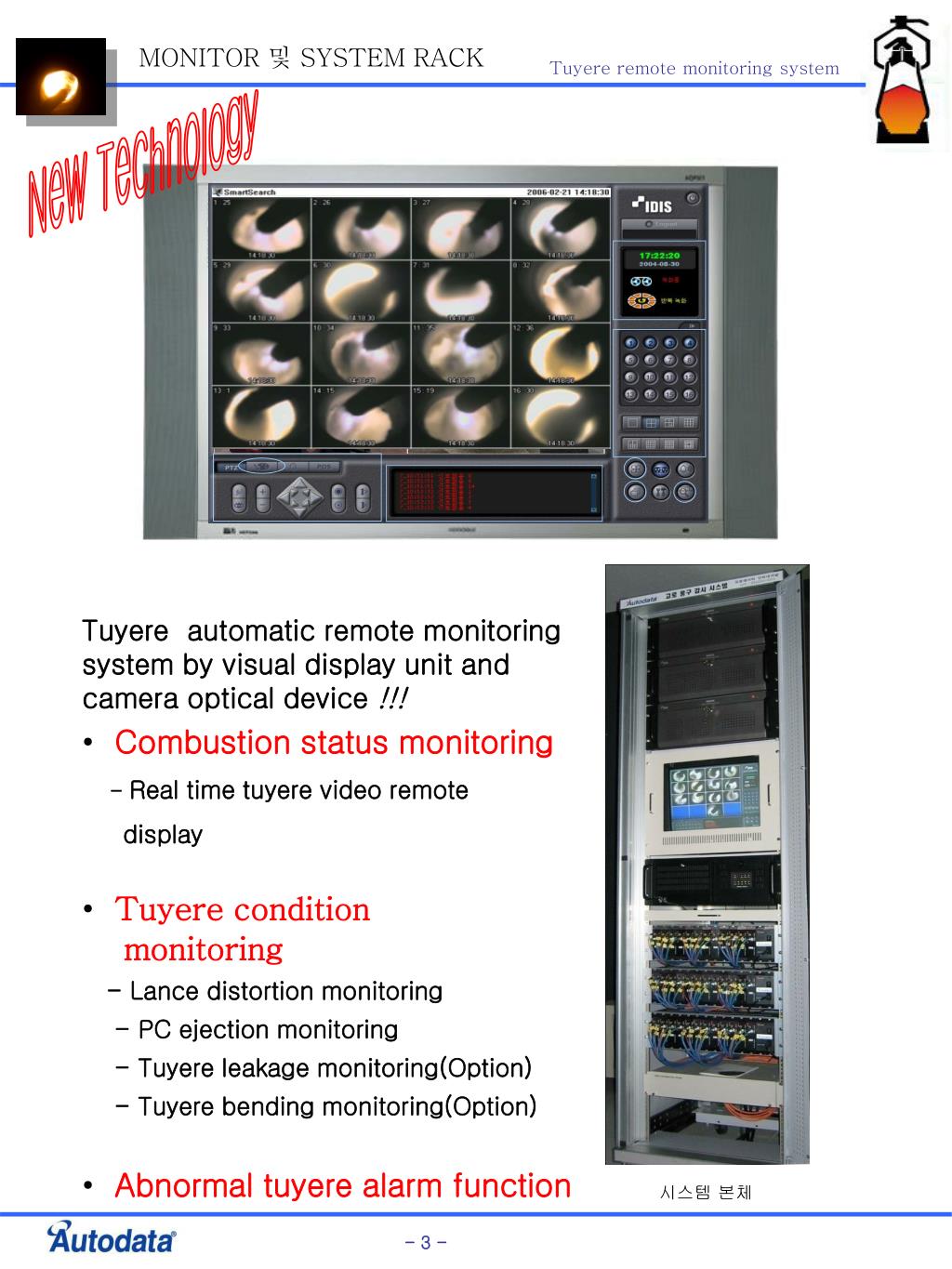

  5. MONITOR 및 SYSTEM RACK New Technology Tuyere automatic remote monitoring system by visual display unit and camera optical device !!! • Combustion status monitoring • - Real time tuyere video remote • display • Tuyere condition • monitoring • - Lance distortion monitoring • - PC ejection monitoring • - Tuyere leakagemonitoring(Option) • - Tuyere bending monitoring(Option) • Abnormal tuyere alarm function 시스템 본체 - 3 -

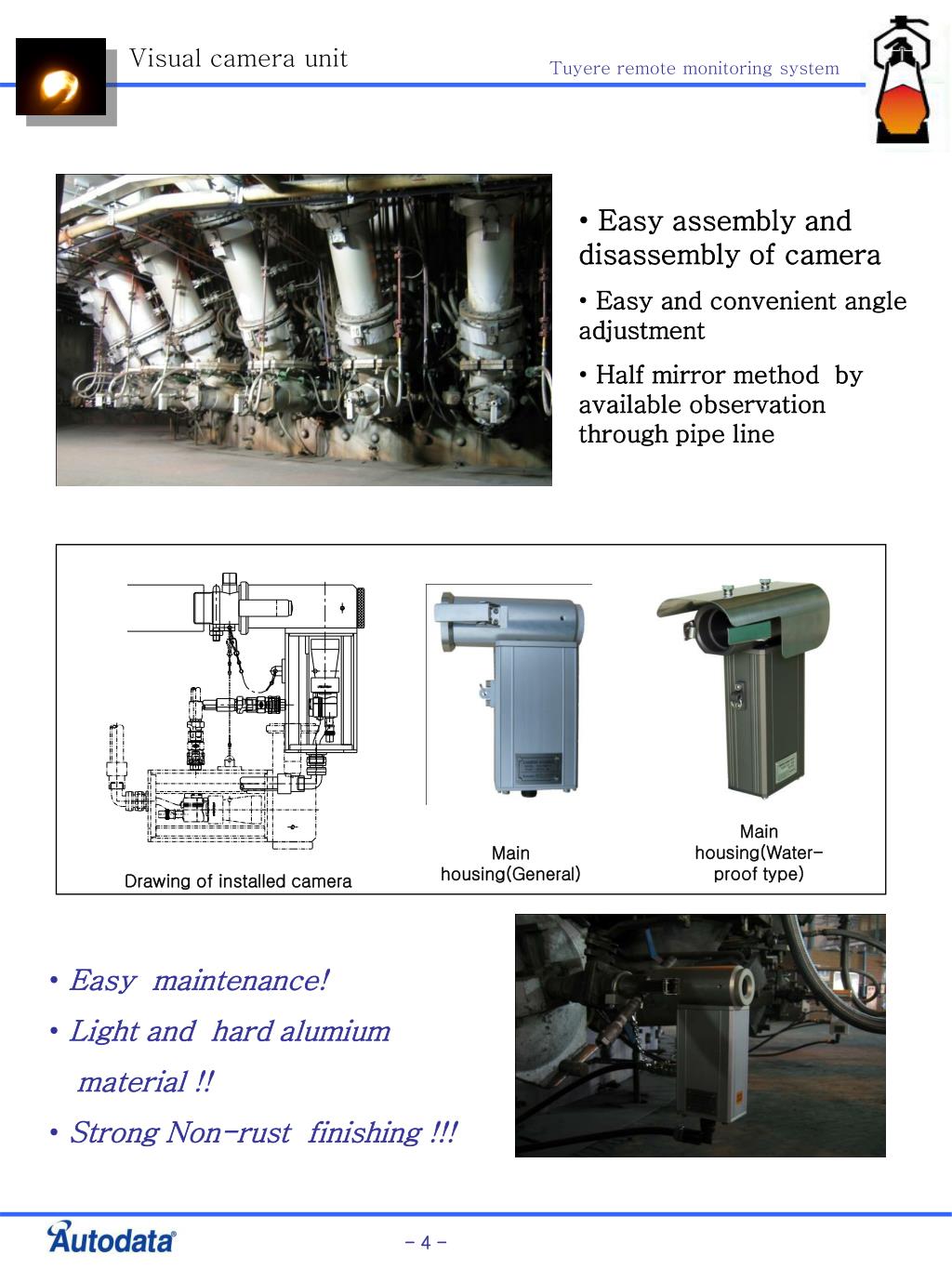

  6. Visual camera unit • Easy assembly and disassembly of camera • Easy and convenient angle adjustment • Half mirror method by available observation through pipe line Main housing(Water-proof type) Main housing(General) Drawing of installed camera • Easy maintenance! • Light and hard alumium • material!! • Strong Non-rust finishing !!! - 4 -

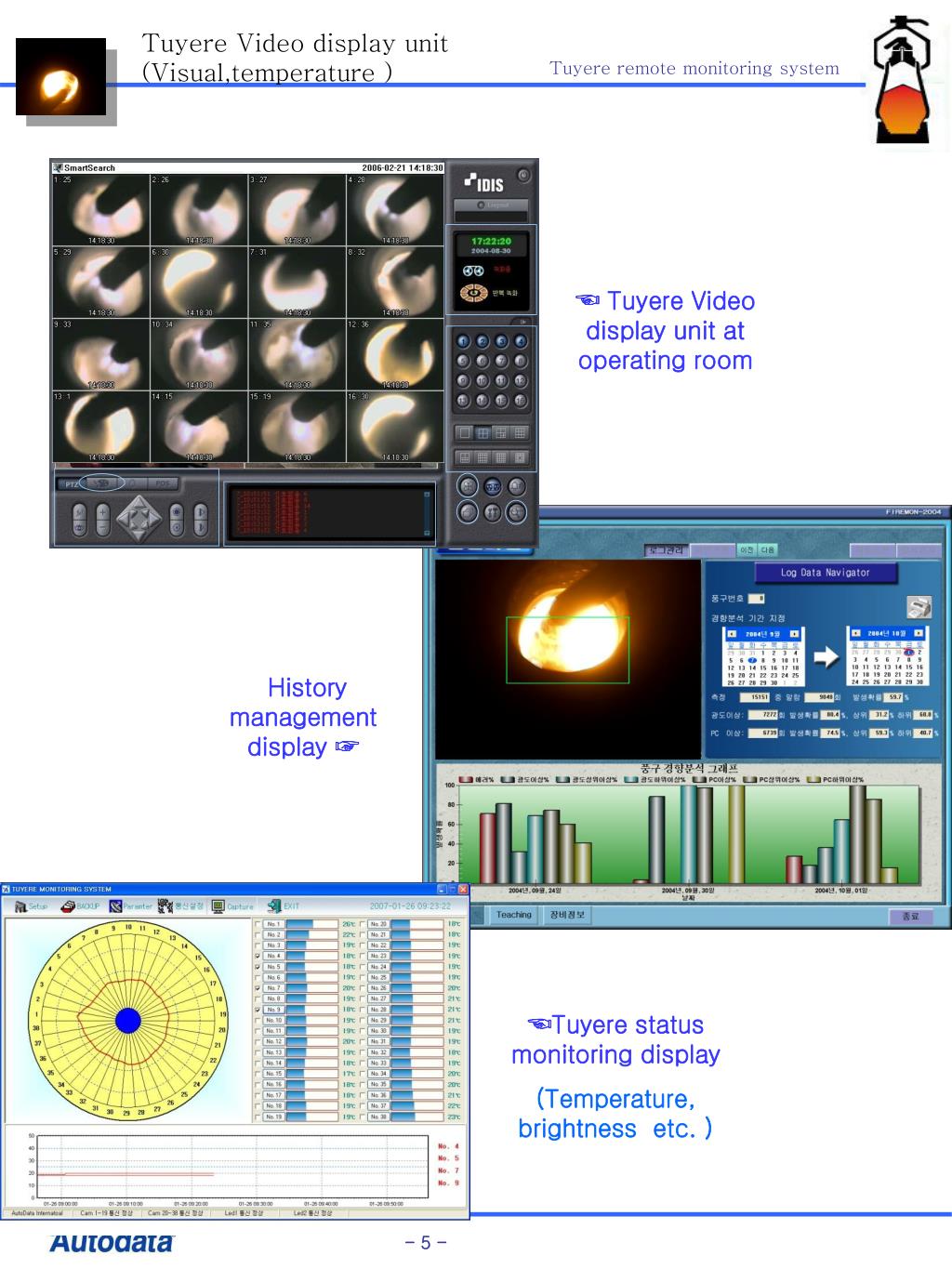

  7. Tuyere Video display unit (Visual,temperature) ☜ Tuyere Video display unit at operating room History management display ☞ ☜Tuyere status monitoring display (Temperature, brightnessetc. ) - 5 -

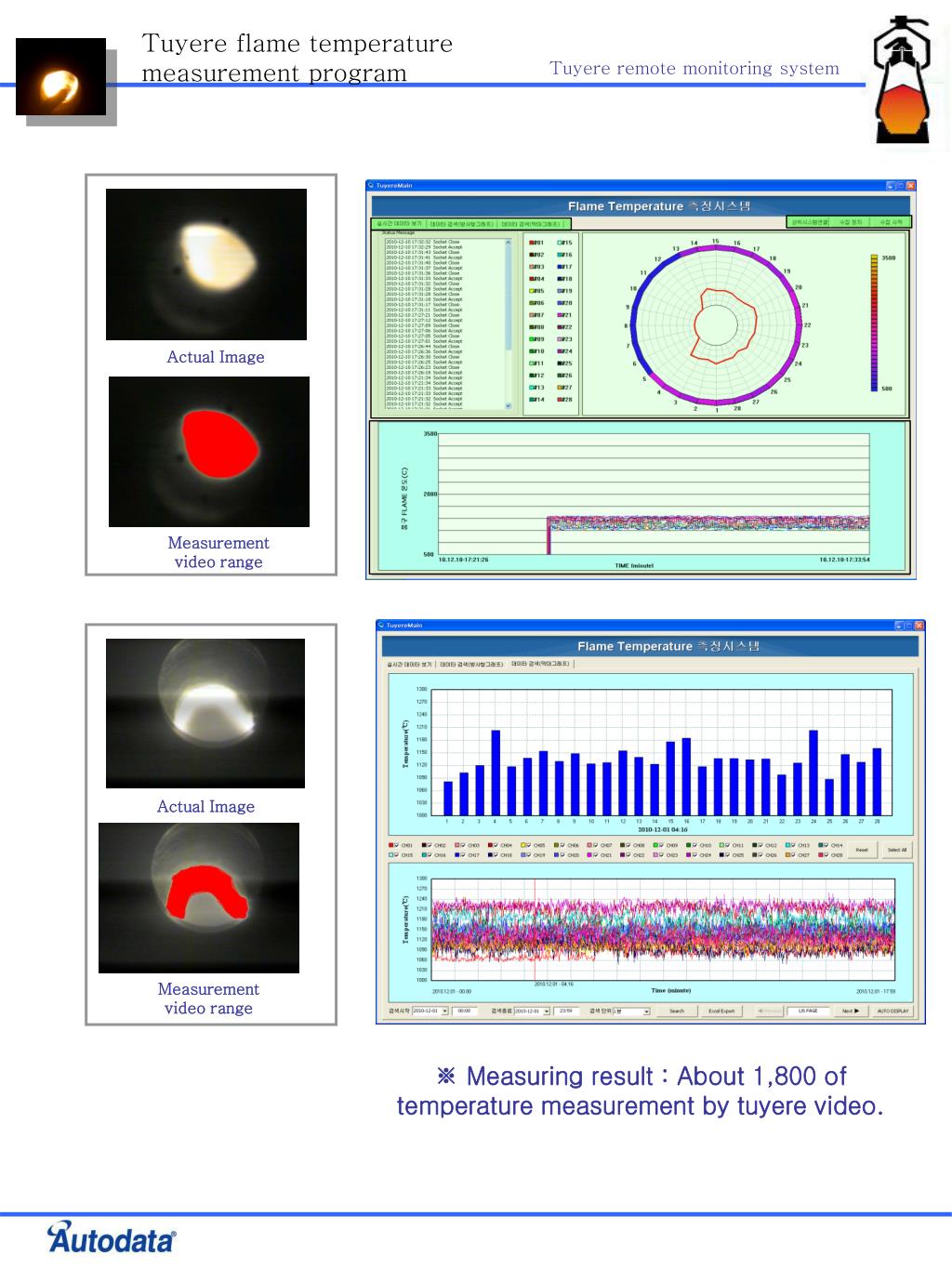

  8. Tuyere flame temperature measurement program Actual Image Measurement video range Actual Image Measurement video range ※ Measuring result : About 1,800 of temperature measurement by tuyere video.

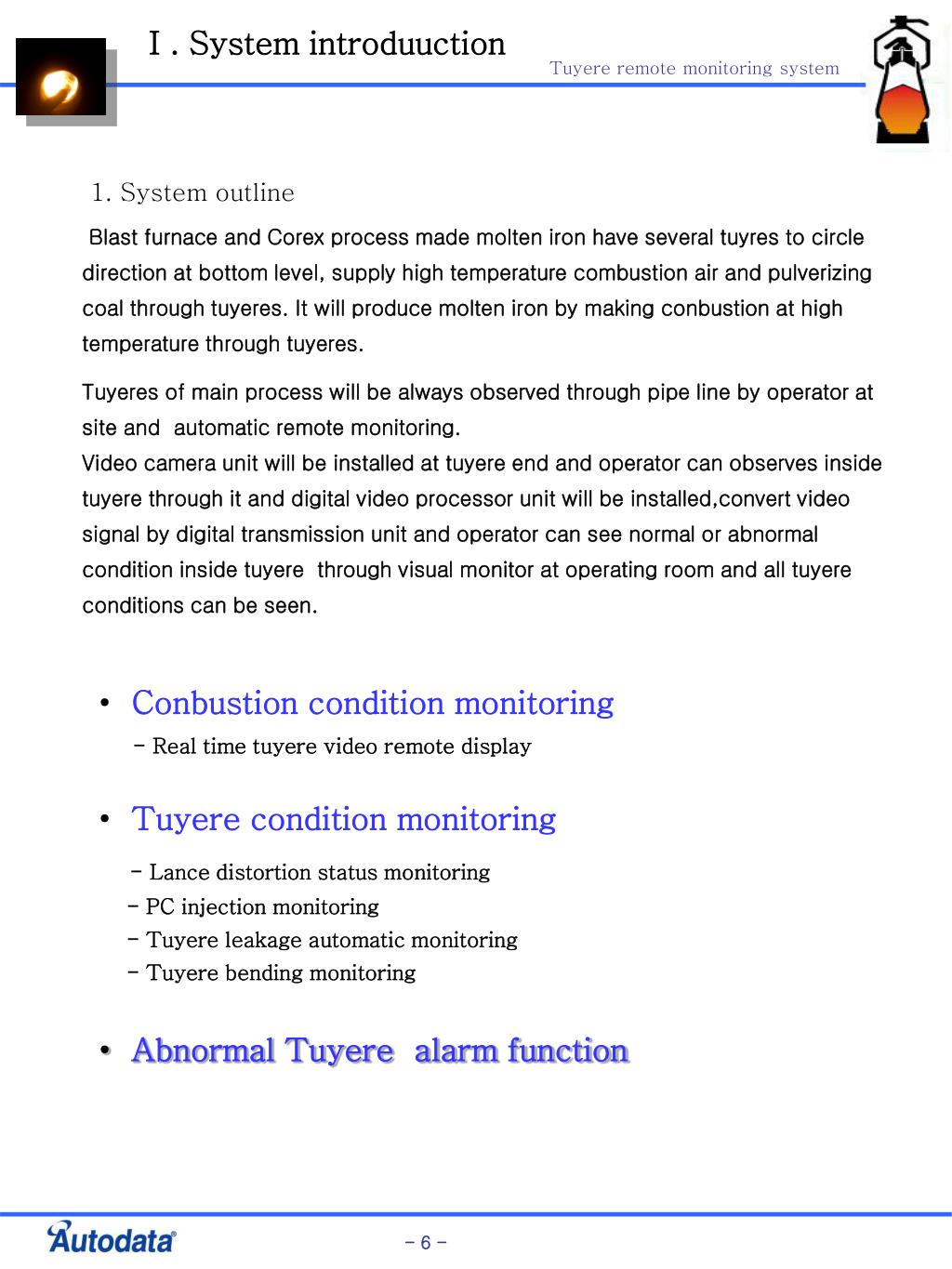

  9. Ⅰ. System introduuction 1. System outline Blast furnace and Corex process made molten iron have several tuyres to circle direction at bottom level, supply high temperature combustion air and pulverizing coal through tuyeres. It will produce molten iron by making conbustion at high temperature through tuyeres. Tuyeres of main process will be always observed through pipe line by operator at site and automatic remote monitoring. Video camera unit will be installed at tuyere end and operator can observes inside tuyere through it and digital video processor unit will be installed,convert video signal by digital transmission unit and operator can see normal or abnormal condition inside tuyere through visual monitor at operating room and all tuyere conditions can be seen. • Conbustion condition monitoring • - Real time tuyere video remote display • Tuyere condition monitoring • - Lance distortion status monitoring • - PC injection monitoring • - Tuyere leakage automatic monitoring • - Tuyere bending monitoring • Abnormal Tuyere alarm function - 6 -

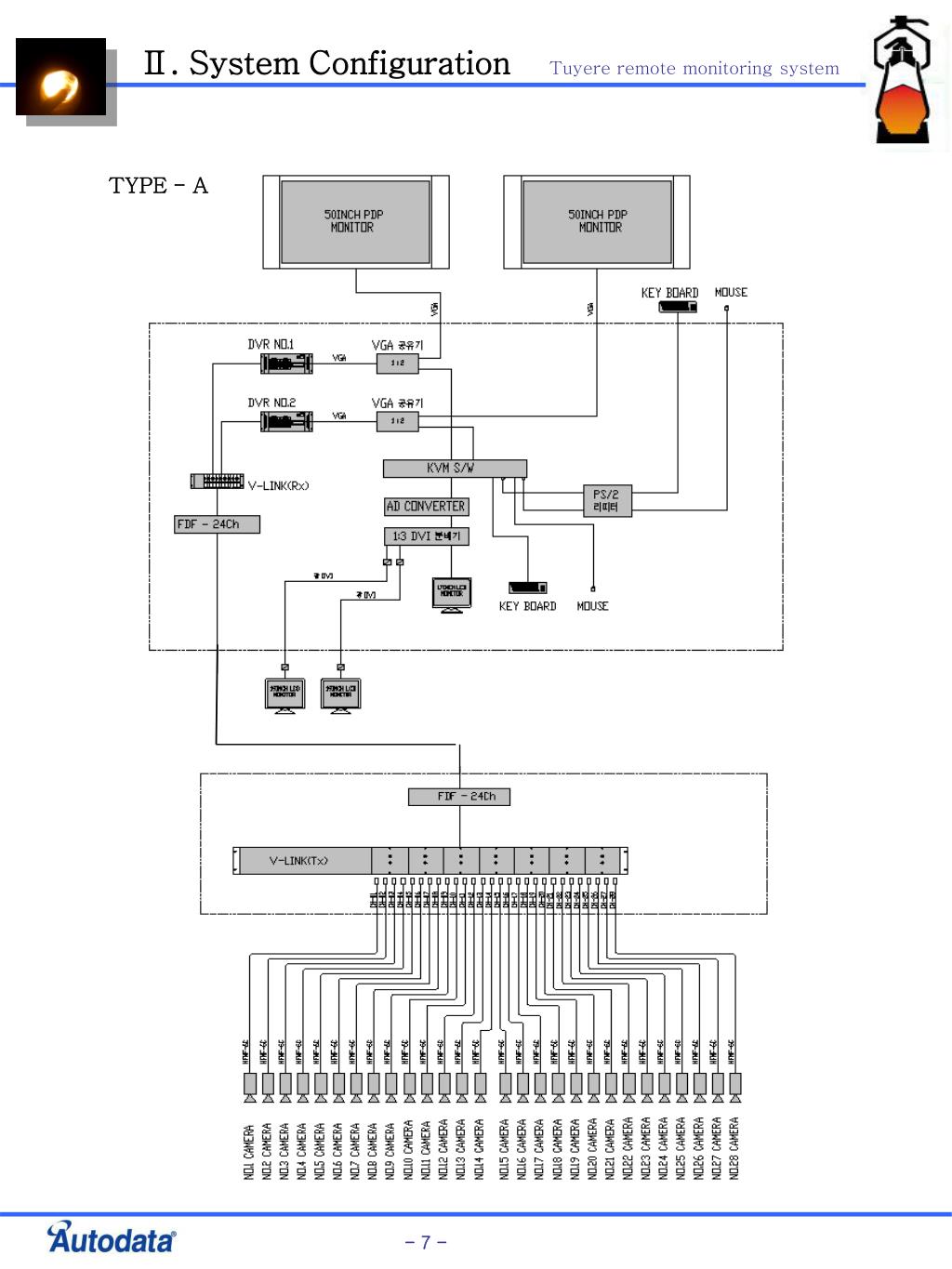

  10. Ⅱ. System Configuration TYPE - A - 7 -

  11. TYPE - B

  12. Ⅲ. Typical Layout ① ② ④ ③ Optical CABLE - 9 -

  13. This system is patent product(20-0417055, 30-0432359).
