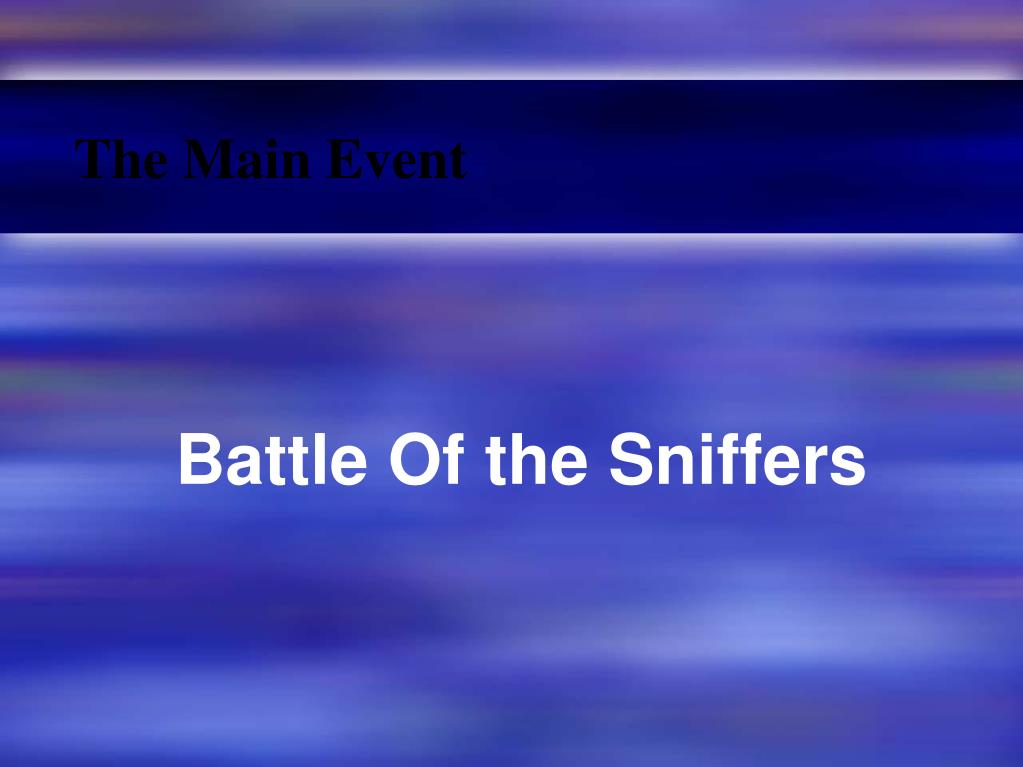

  1. The Main Event Battle Of the Sniffers

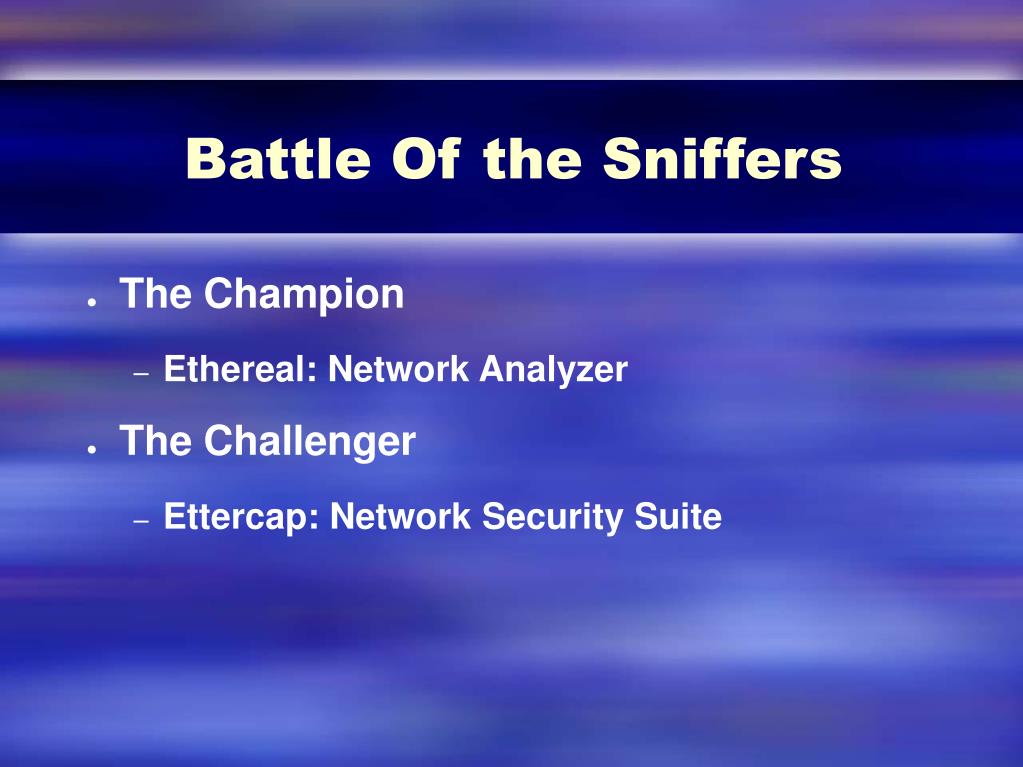

  2. Battle Of the Sniffers • The Champion • Ethereal: Network Analyzer • The Challenger • Ettercap: Network Security Suite

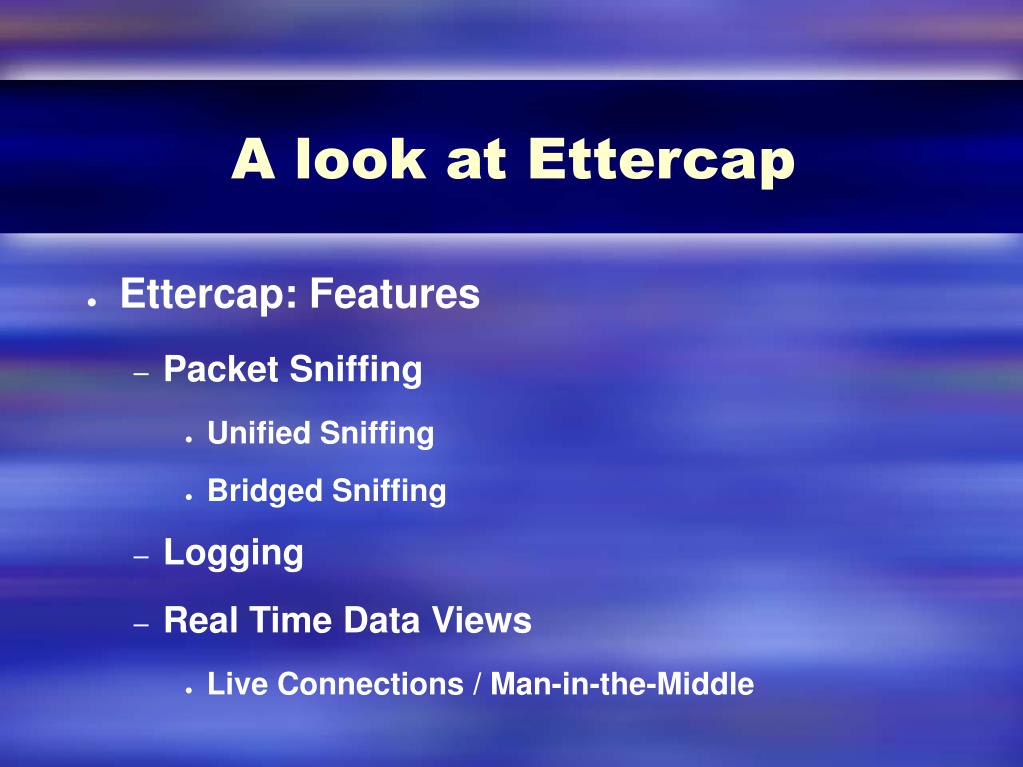

  3. A look at Ettercap • Ettercap: Features • Packet Sniffing • Unified Sniffing • Bridged Sniffing • Logging • Real Time Data Views • Live Connections / Man-in-the-Middle

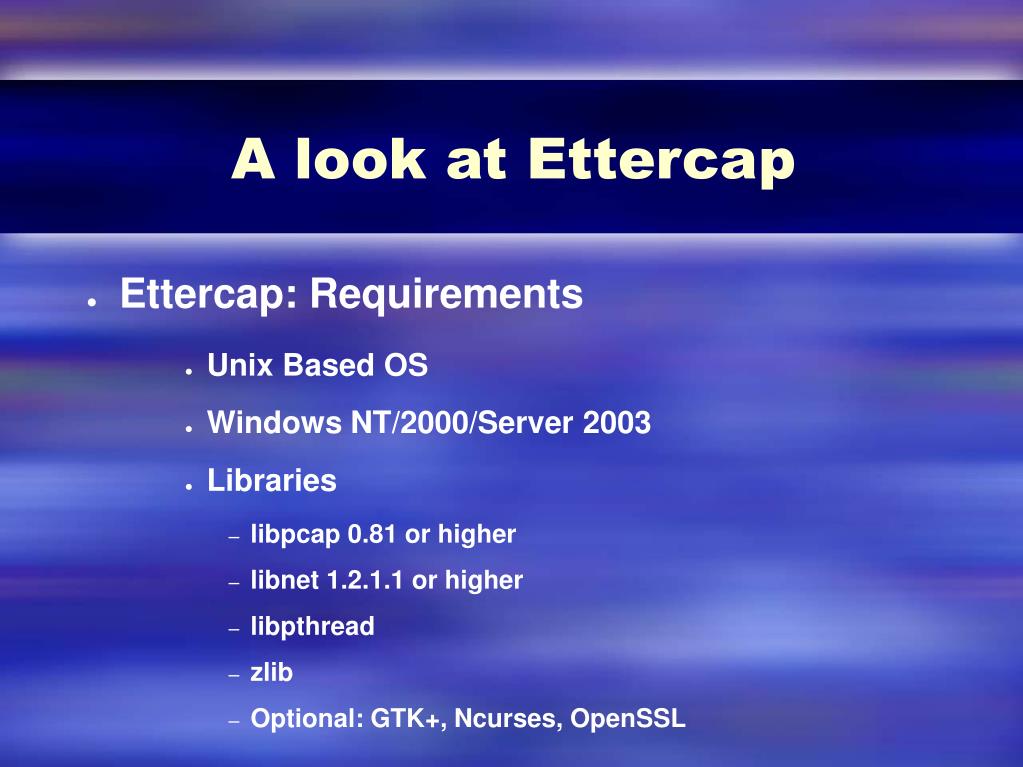

  4. A look at Ettercap • Ettercap: Requirements • Unix Based OS • Windows NT/2000/Server 2003 • Libraries • libpcap 0.81 or higher • libnet 1.2.1.1 or higher • libpthread • zlib • Optional: GTK+, Ncurses, OpenSSL

  5. A look at Ettercap • Ettercap: Installation • Website Download Available at: • http://ettercap.sourceforge.net/ • Linux Installation • Decompress using tar/gzip • ./configure.sh • make • make install

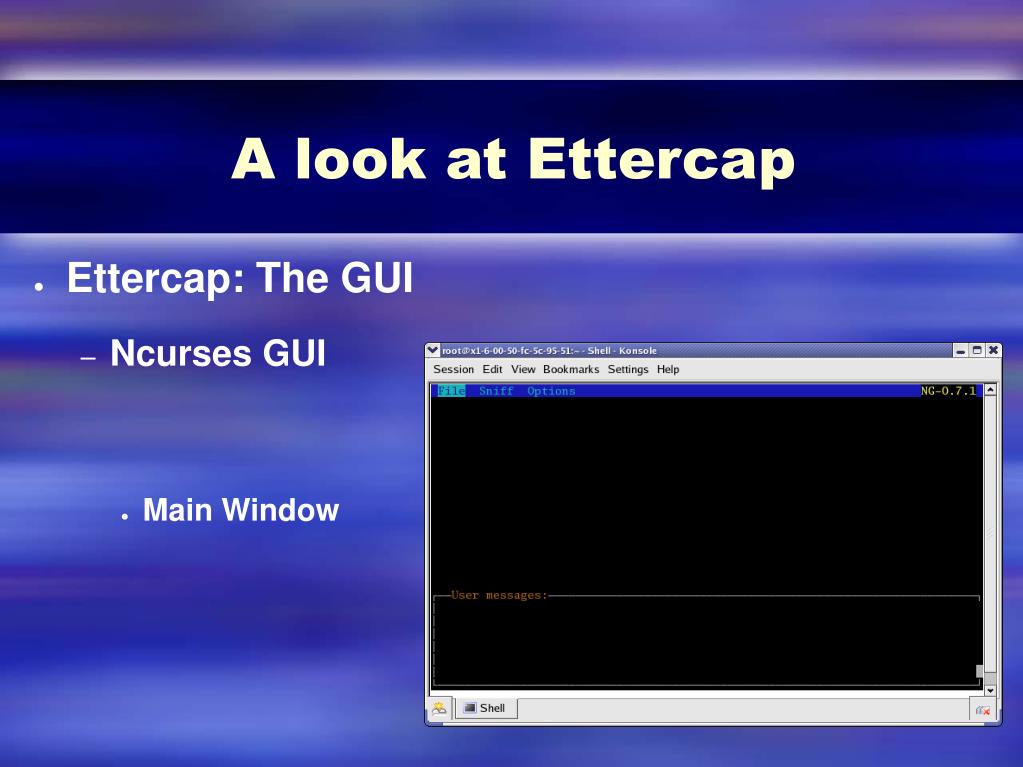

  6. A look at Ettercap • Ettercap: The GUI • Ncurses GUI • Main Window

  7. Using Ettercap • Getting ready to sniff • Select ”Sniff” • Select ”Unified Sniffing”

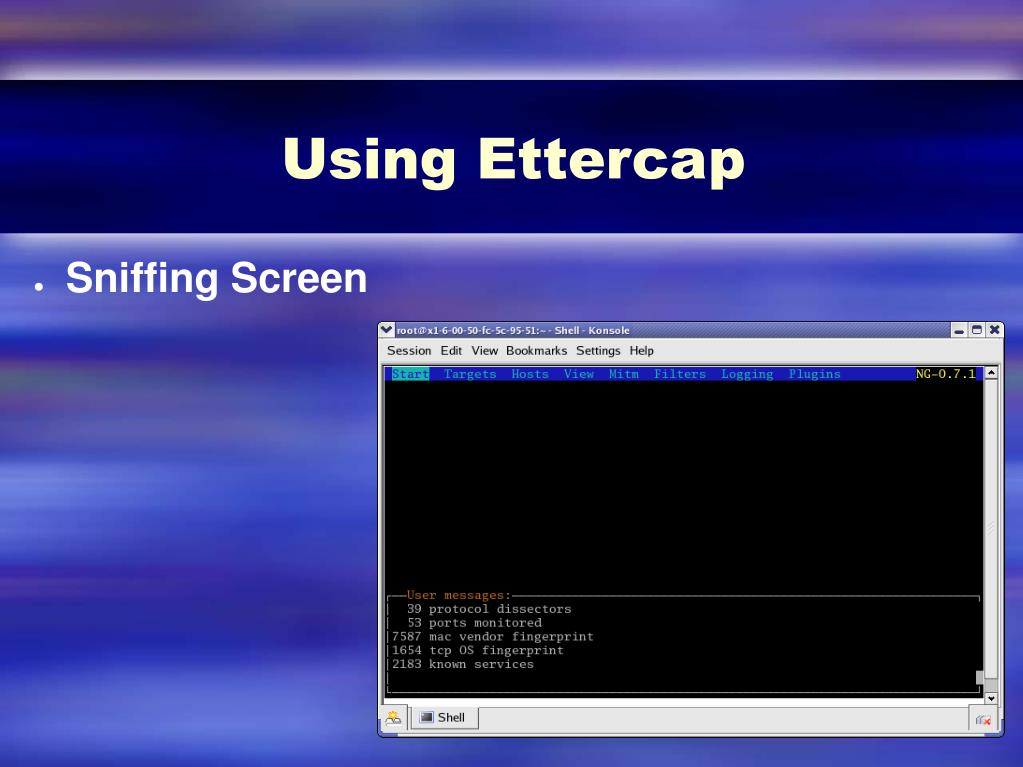

  8. Using Ettercap • Sniffing Screen

  9. Using Ettercap • Performing the Sniff • Select ”Start” • Select ”Start Sniffing” • Press ”ENTER” • Stop the Sniff by selecting ”StopSniffing”

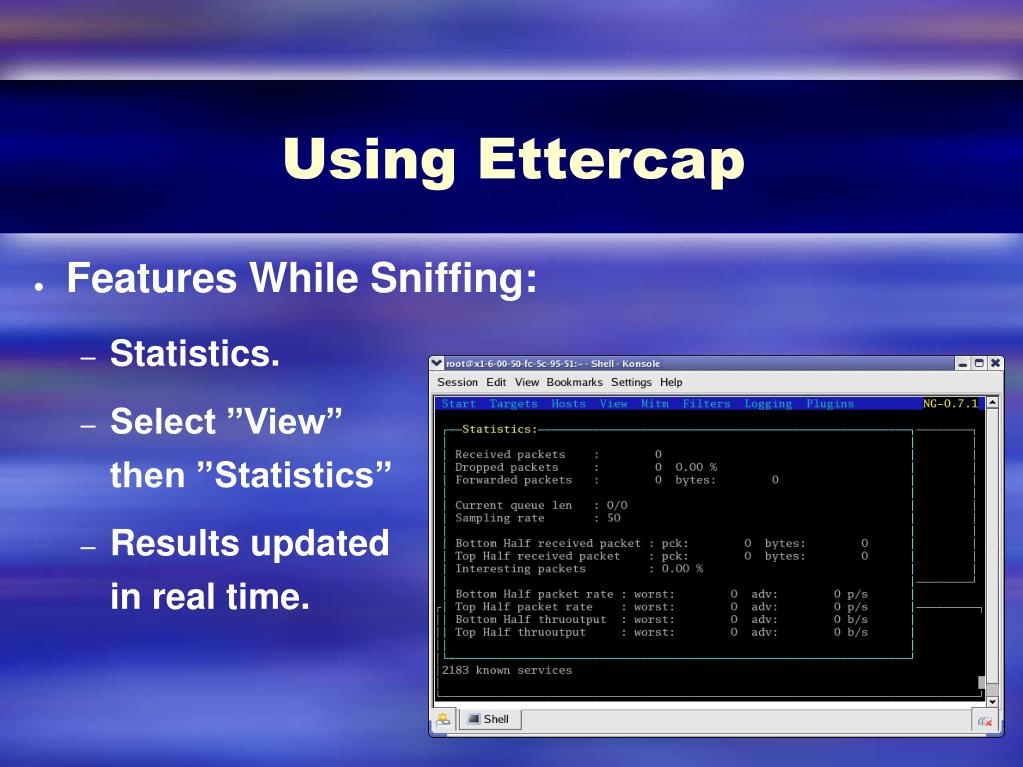

  10. Using Ettercap • Features While Sniffing: • Statistics. • Select ”View” then ”Statistics” • Results updatedin real time.

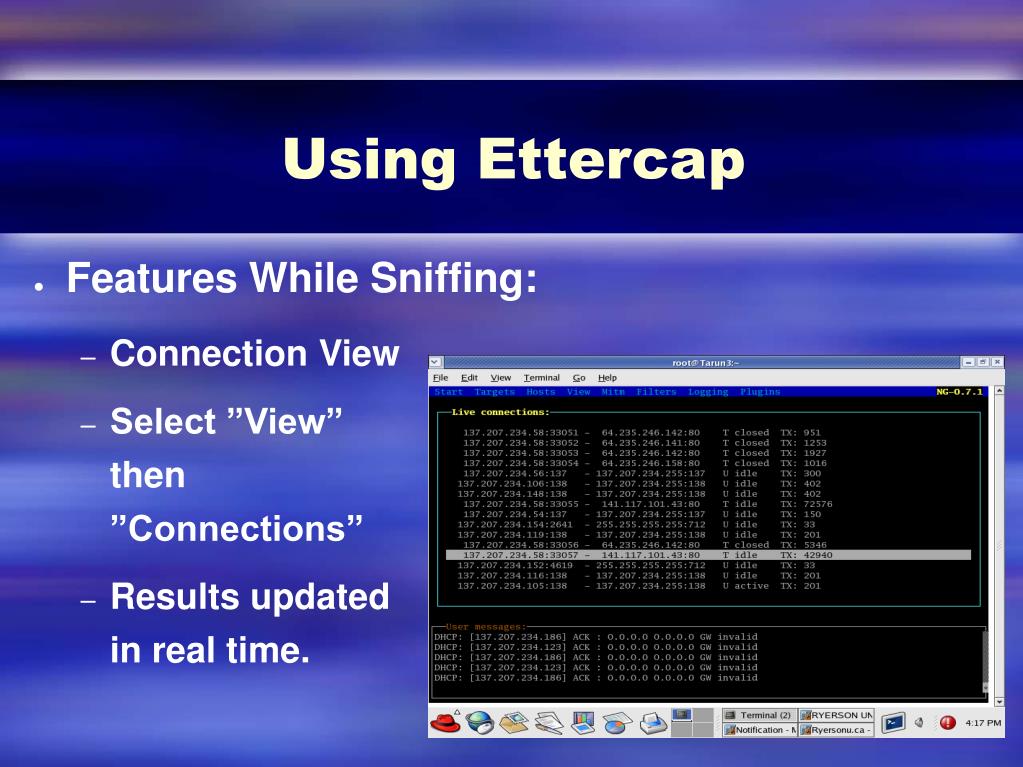

  11. Using Ettercap • Features While Sniffing: • Connection View • Select ”View” then ”Connections” • Results updatedin real time.

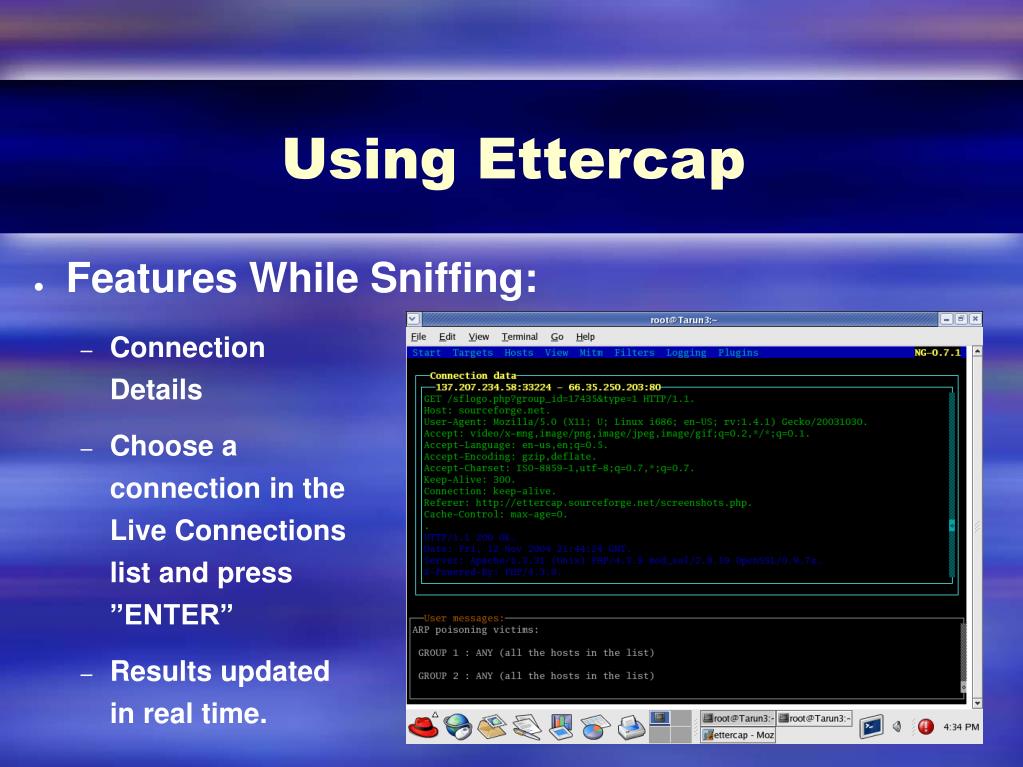

  12. Using Ettercap • Features While Sniffing: • Connection Details • Choose a connection in the Live Connections list and press ”ENTER” • Results updatedin real time.

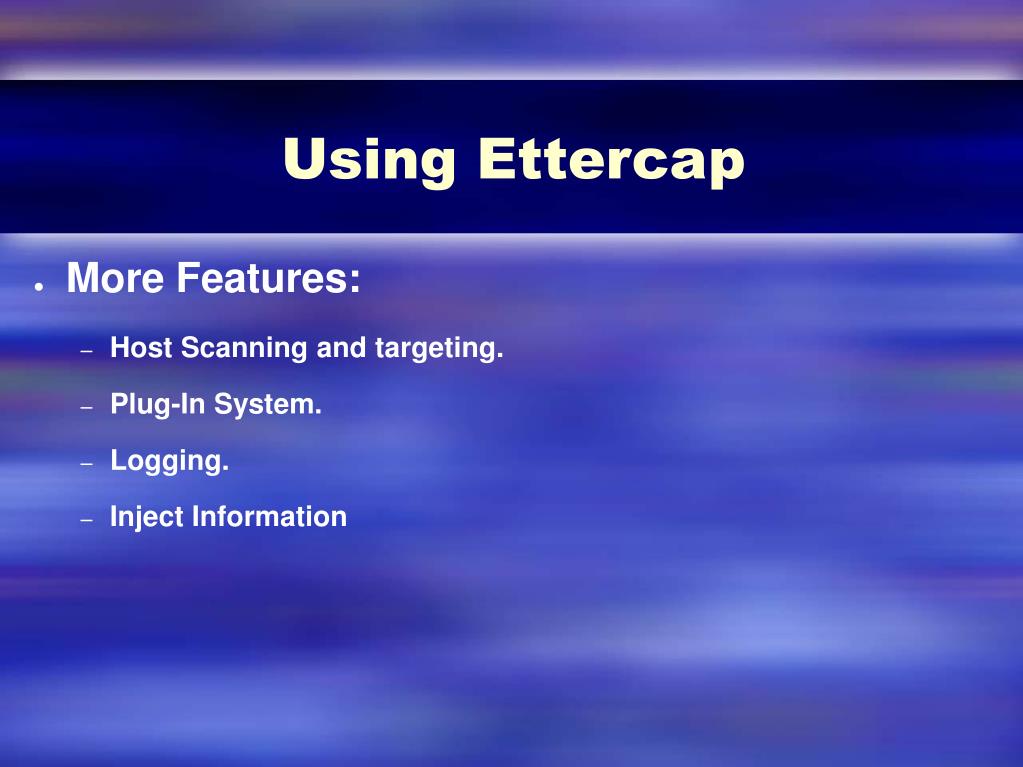

  13. Using Ettercap • More Features: • Host Scanning and targeting. • Plug-In System. • Logging. • Inject Information

  14. The Sniffing Experiment • Three Trials • HTTP Request / Response • Secure HTTP Request / Response • FTP Transaction • Testing Platform • Pentium 3 Linux Computer • Fedora Core 2

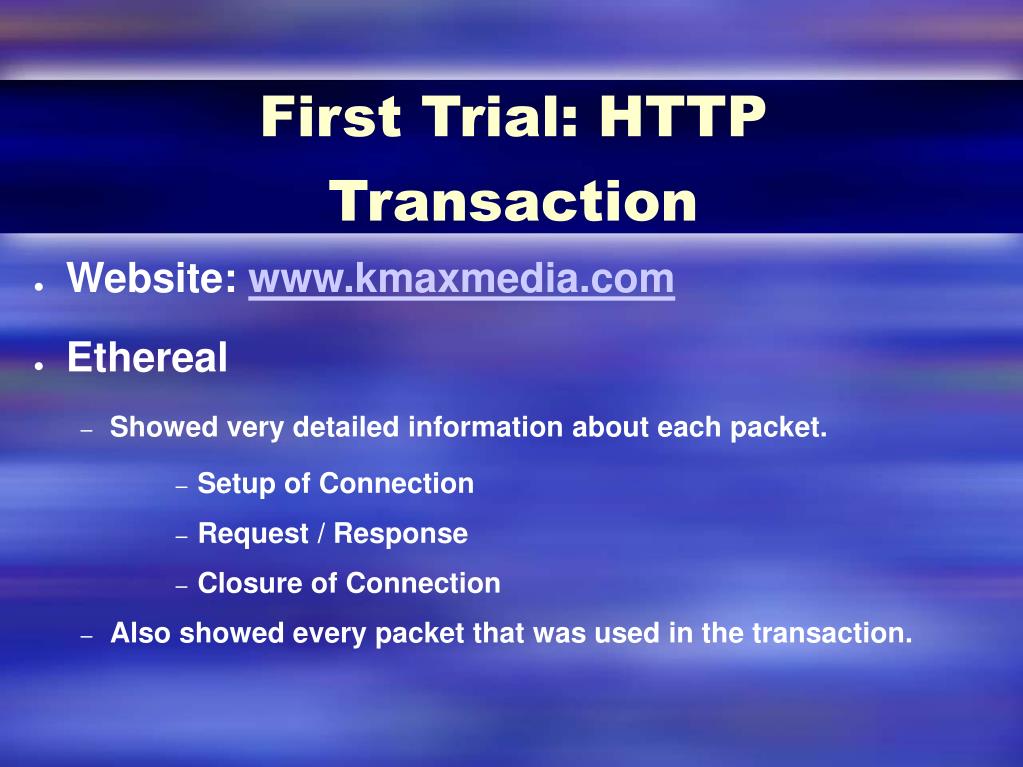

  15. First Trial: HTTP Transaction • Website: www.kmaxmedia.com • Ethereal • Showed very detailed information about each packet. • Setup of Connection • Request / Response • Closure of Connection • Also showed every packet that was used in the transaction.

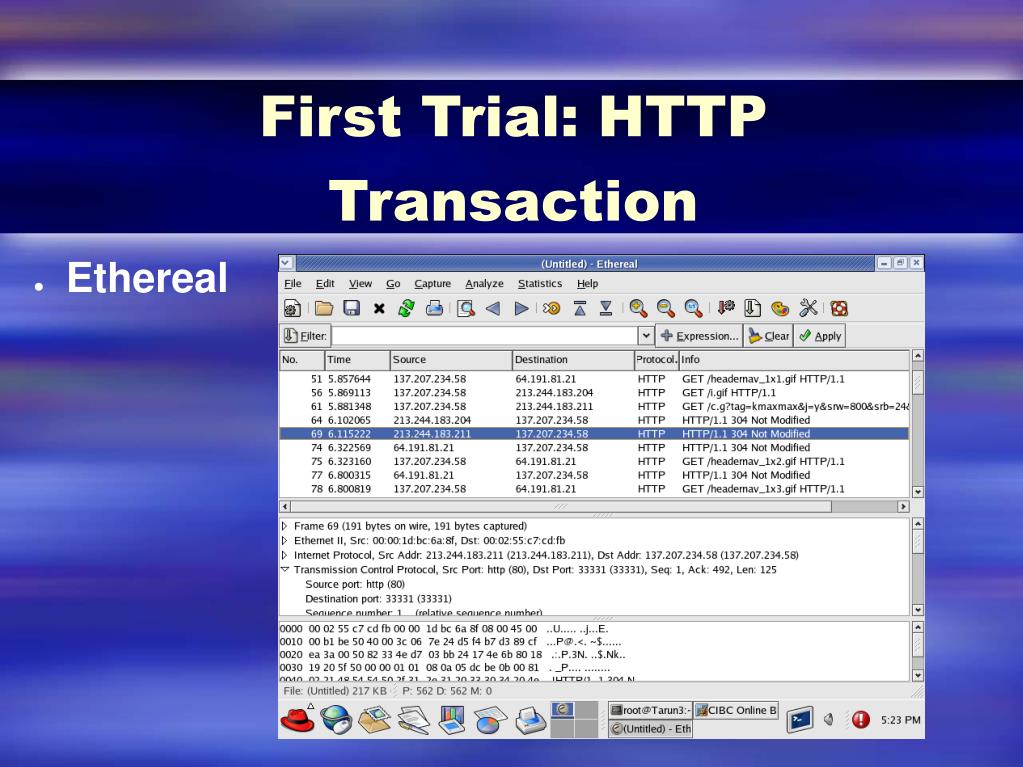

  16. First Trial: HTTP Transaction • Ethereal

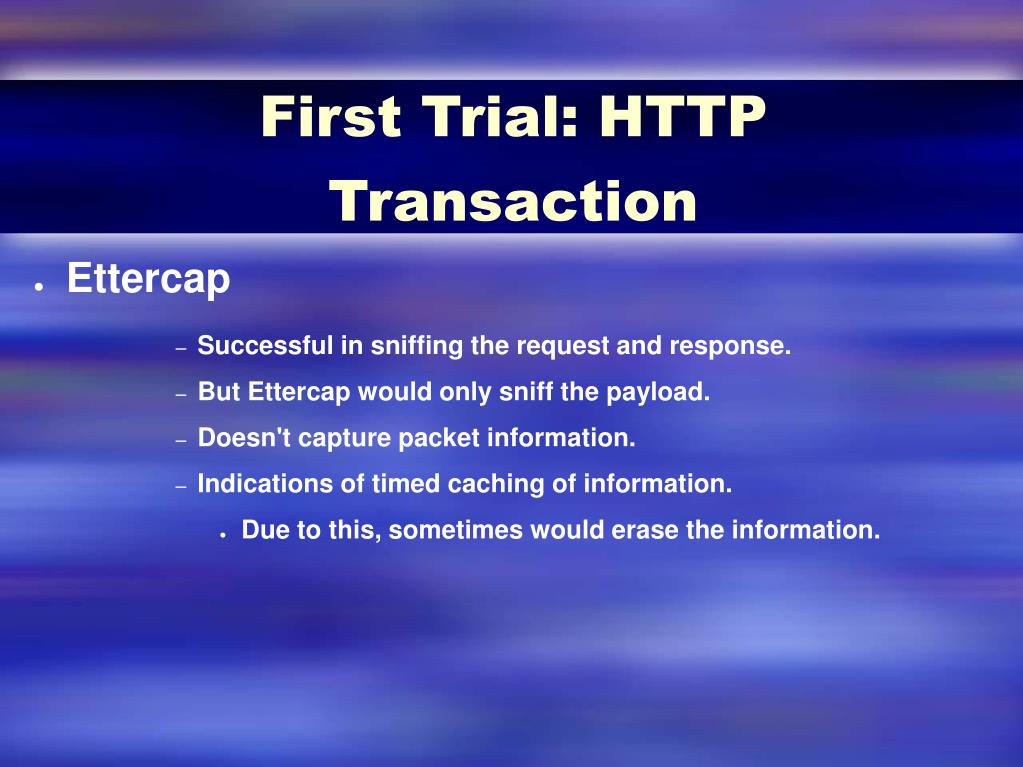

  17. First Trial: HTTP Transaction • Ettercap • Successful in sniffing the request and response. • But Ettercap would only sniff the payload. • Doesn't capture packet information. • Indications of timed caching of information. • Due to this, sometimes would erase the information.

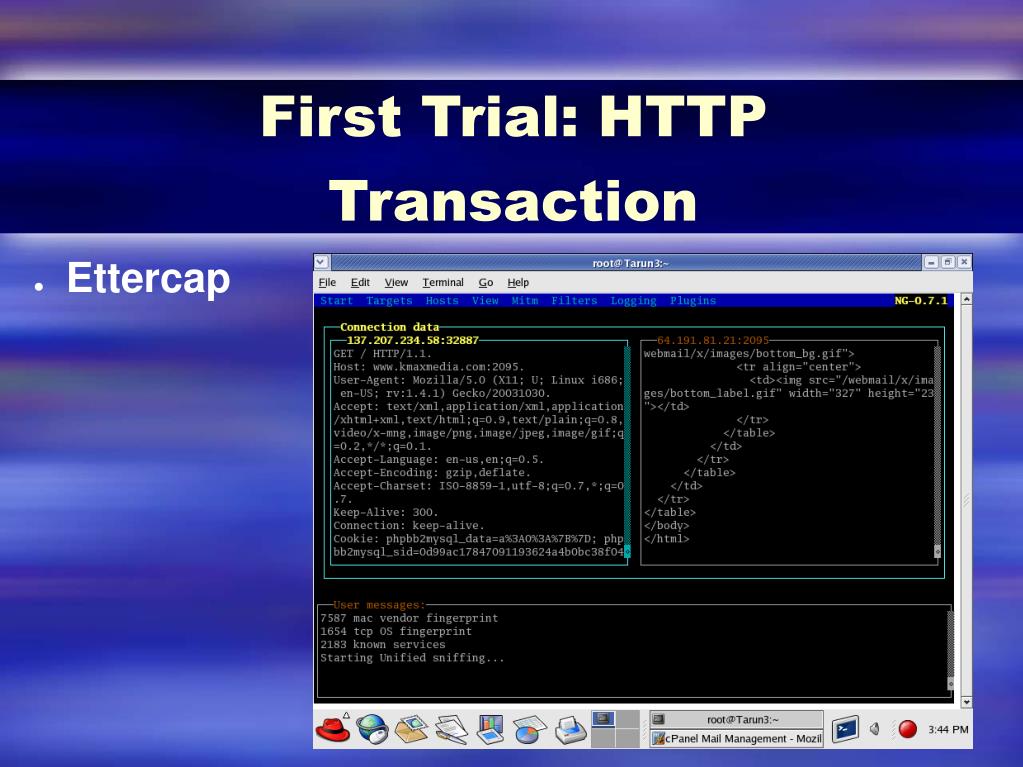

  18. First Trial: HTTP Transaction • Ettercap

  19. Second Trial: HTTPS Transaction • Web Site: CIBCKaleem's Bank Account

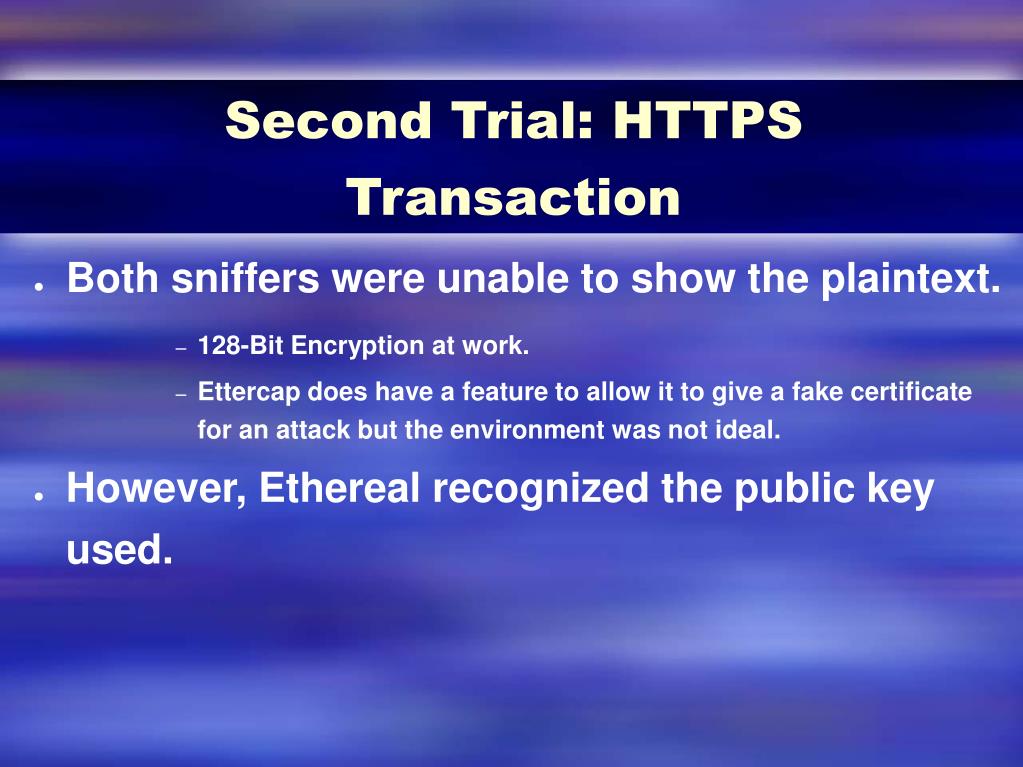

  20. Second Trial: HTTPS Transaction • Both sniffers were unable to show the plaintext. • 128-Bit Encryption at work. • Ettercap does have a feature to allow it to give a fake certificate for an attack but the environment was not ideal. • However, Ethereal recognized the public key used.

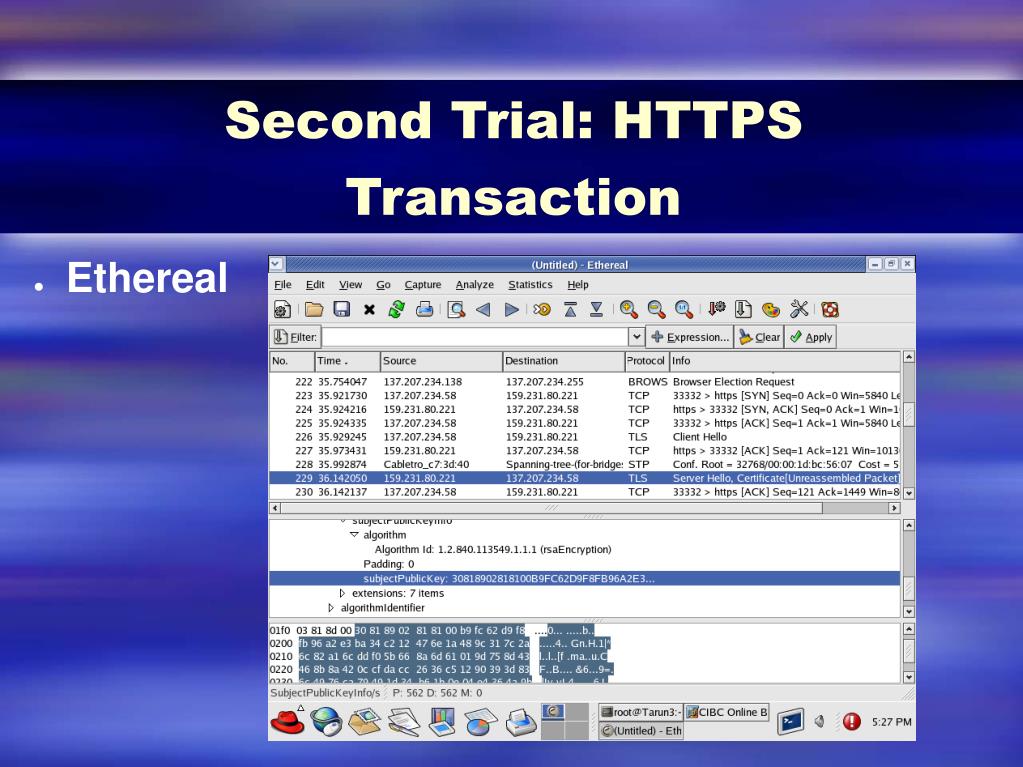

  21. Second Trial: HTTPS Transaction • Ethereal

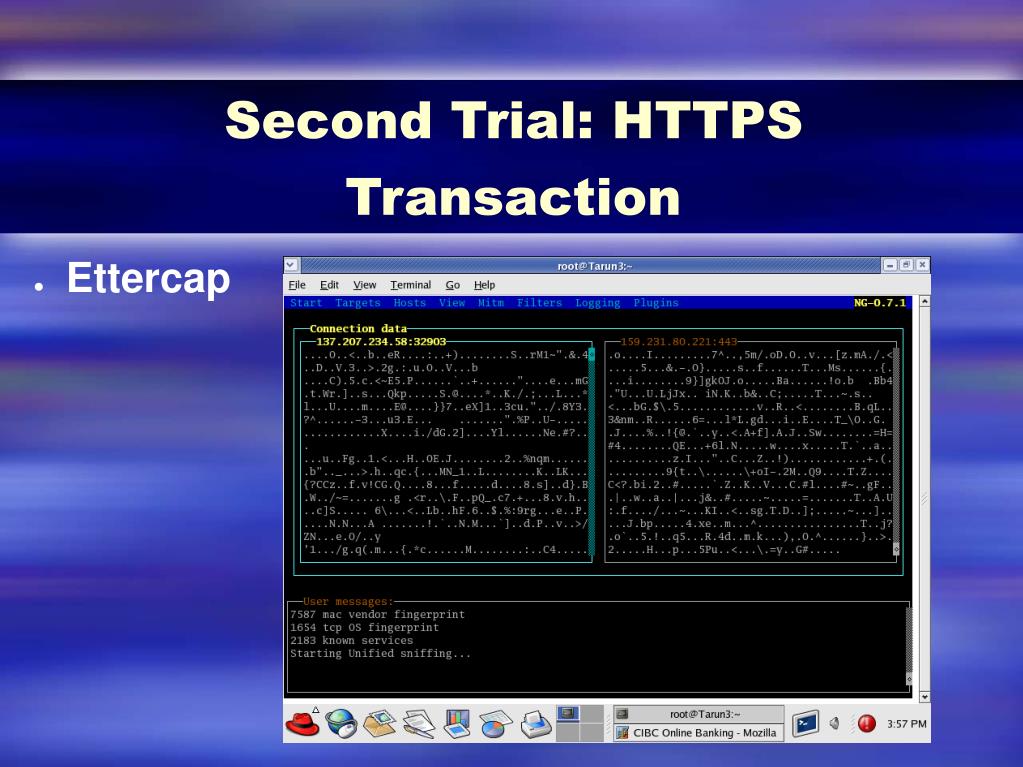

  22. Second Trial: HTTPS Transaction • Ettercap

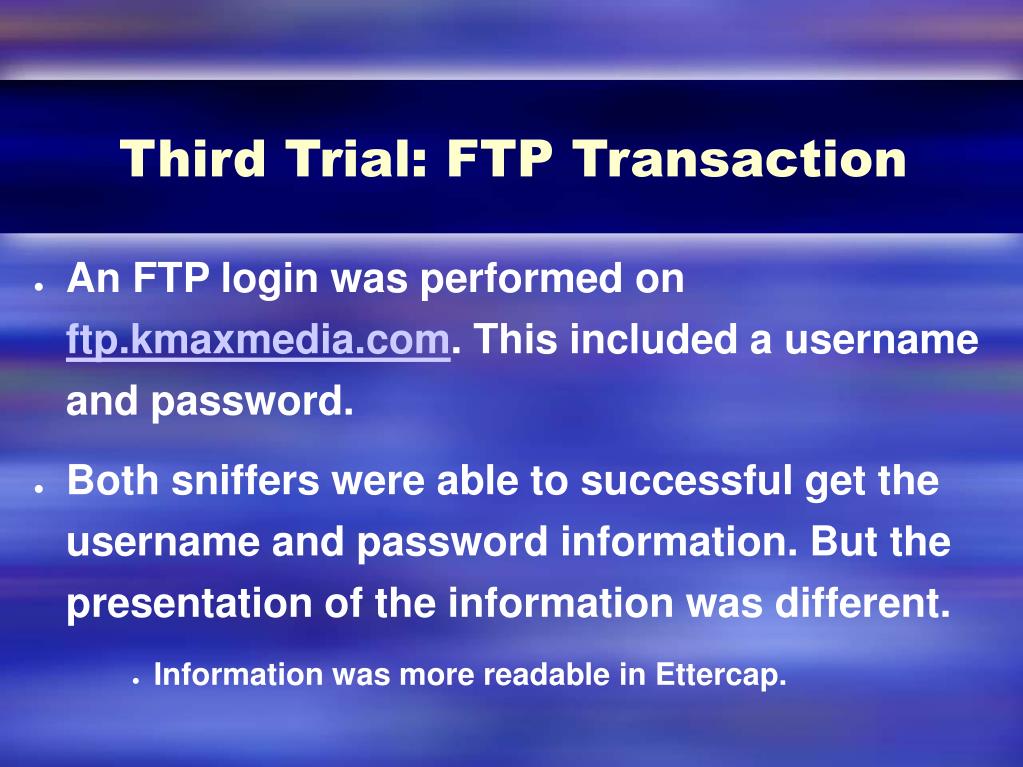

  23. Third Trial: FTP Transaction • An FTP login was performed on ftp.kmaxmedia.com. This included a username and password. • Both sniffers were able to successful get the username and password information. But the presentation of the information was different. • Information was more readable in Ettercap.

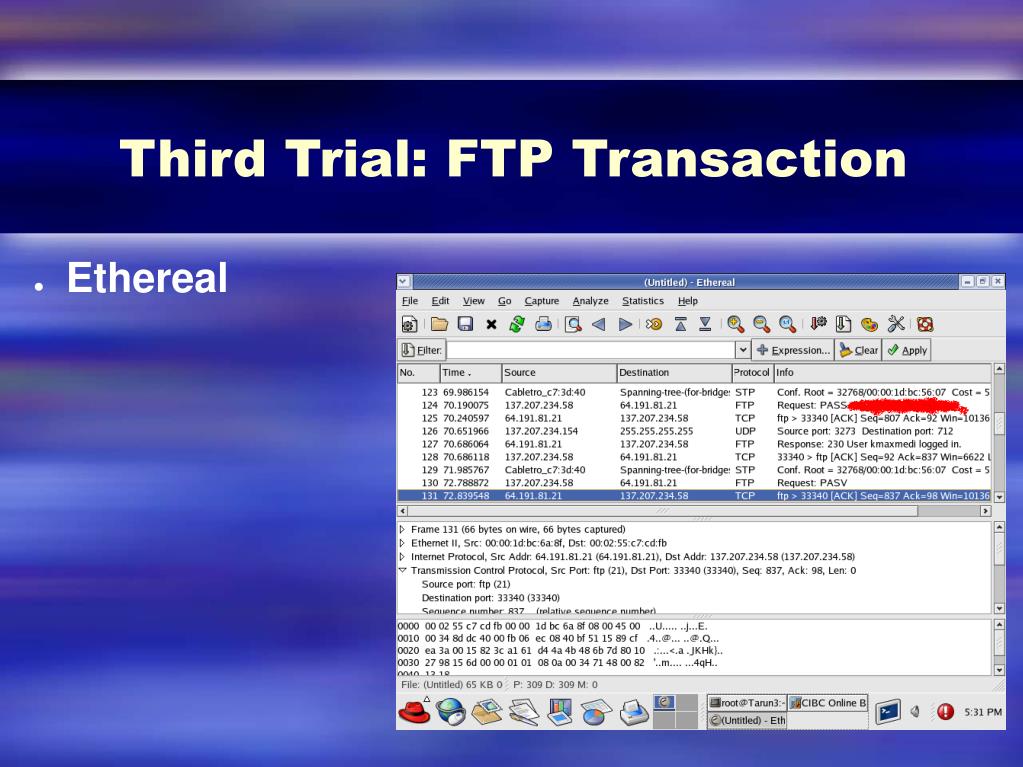

  24. Third Trial: FTP Transaction • Ethereal

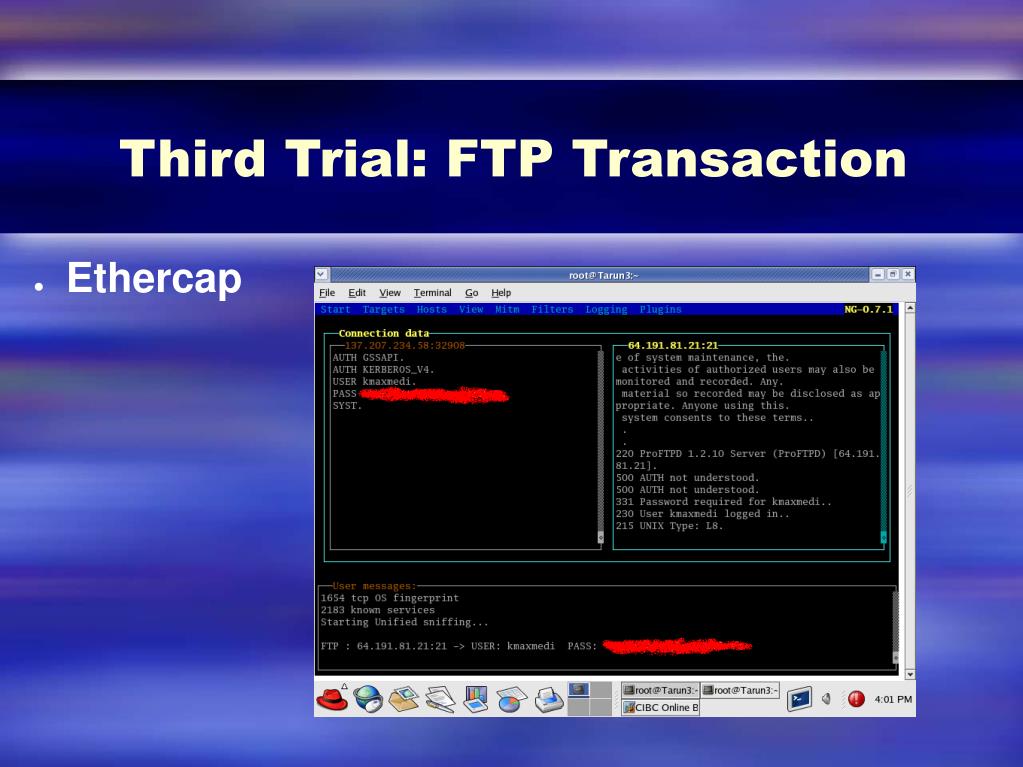

  25. Third Trial: FTP Transaction • Ethercap

  26. The Battle: Some Observations • During the Sniffing • Ethereal would only show statistics on the type of packets sniffed while Ettercap would show statistics, profiles, connections and more in real time. • Any personal authentication information that is heard on the wire, ettercap would notify the user the minute it appears in the user messages section

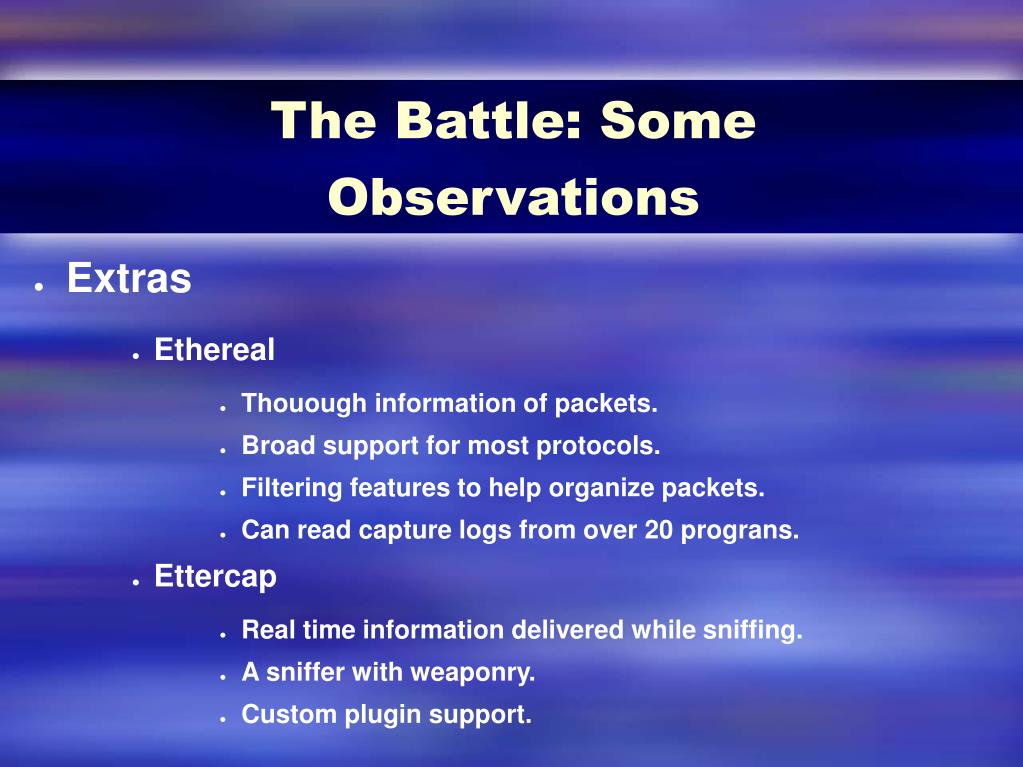

  27. The Battle: Some Observations • Extras • Ethereal • Thouough information of packets. • Broad support for most protocols. • Filtering features to help organize packets. • Can read capture logs from over 20 prograns. • Ettercap • Real time information delivered while sniffing. • A sniffer with weaponry. • Custom plugin support.

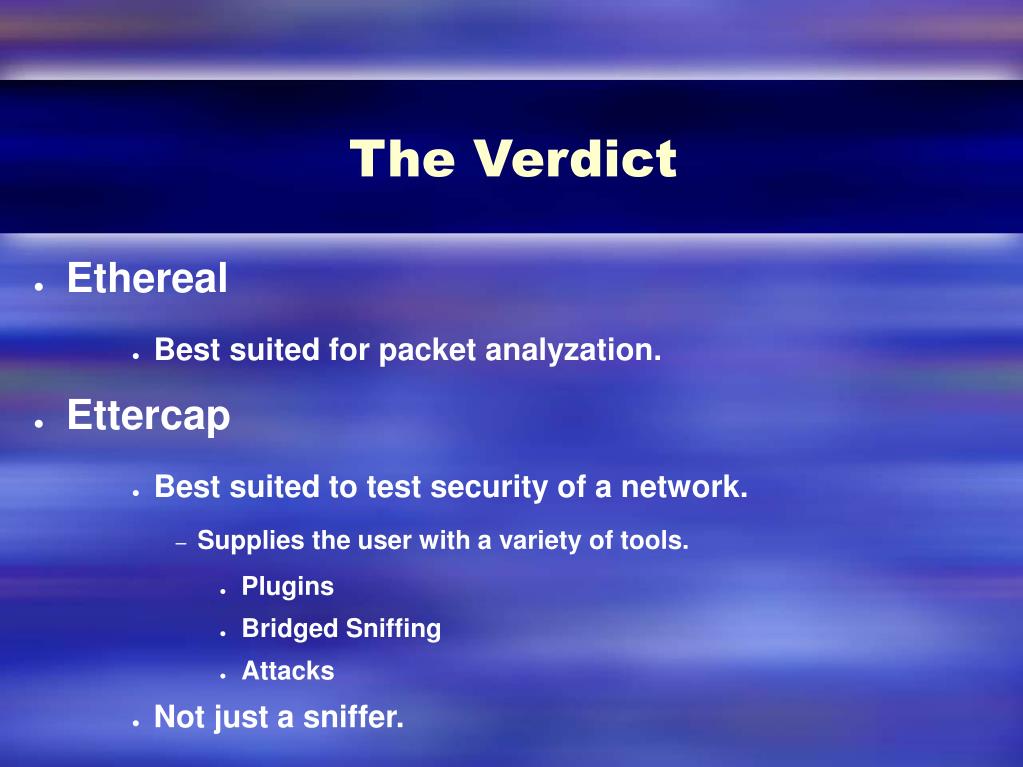

  28. The Verdict • Ethereal • Best suited for packet analyzation. • Ettercap • Best suited to test security of a network. • Supplies the user with a variety of tools. • Plugins • Bridged Sniffing • Attacks • Not just a sniffer.

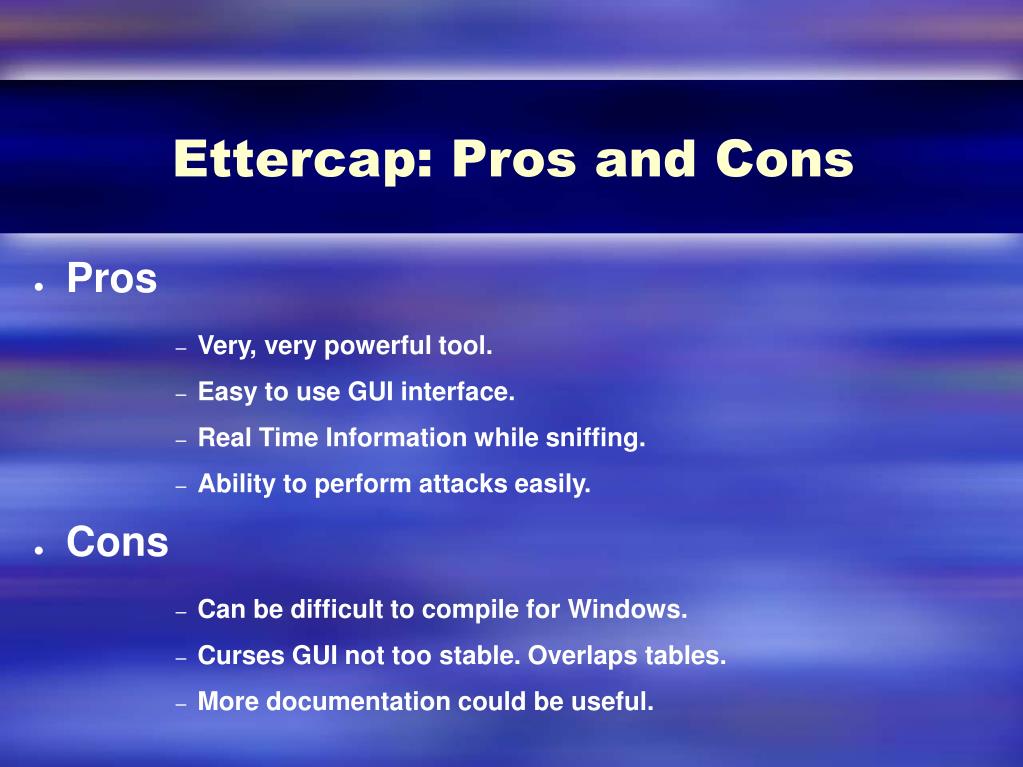

  29. Ettercap: Pros and Cons • Pros • Very, very powerful tool. • Easy to use GUI interface. • Real Time Information while sniffing. • Ability to perform attacks easily. • Cons • Can be difficult to compile for Windows. • Curses GUI not too stable. Overlaps tables. • More documentation could be useful.

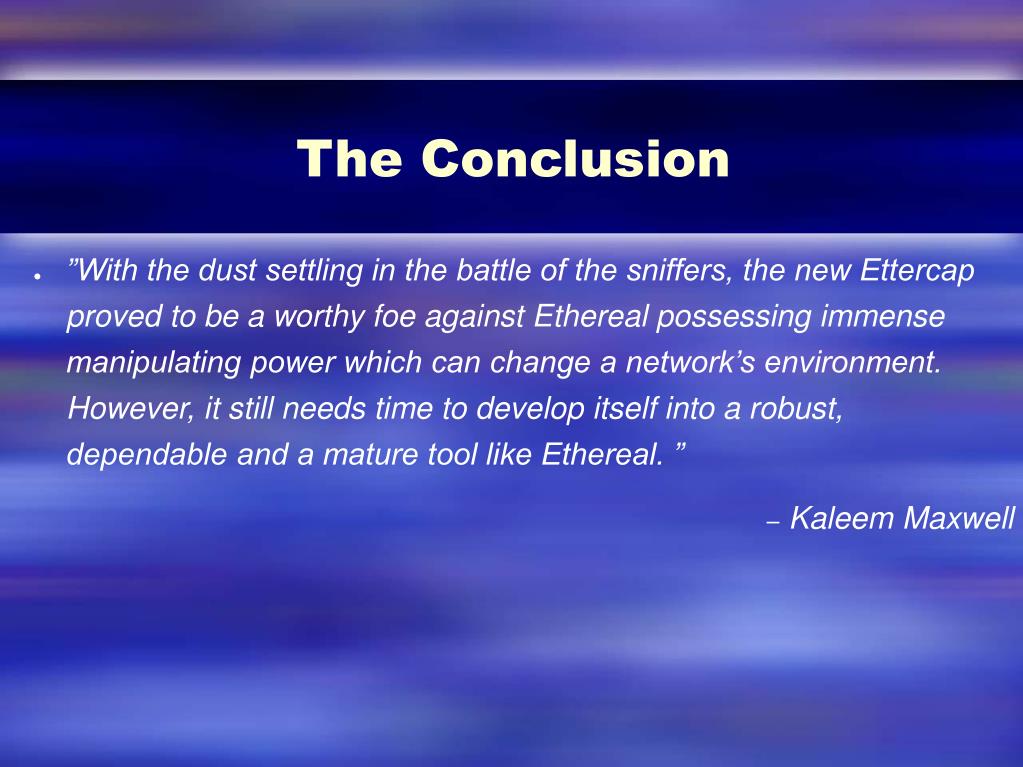

  30. The Conclusion • ”With the dust settling in the battle of the sniffers, the new Ettercap proved to be a worthy foe against Ethereal possessing immense manipulating power which can change a network’s environment. However, it still needs time to develop itself into a robust, dependable and a mature tool like Ethereal. ” • Kaleem Maxwell
