Reducing Temperature Offset in Display Probes: A Calibration Approach

This project addresses the issue of temperature differences between reference probes and display probes. The primary goal is to develop an effective method to minimize this difference. The complexity of the thermal circuit necessitates a detailed approach, as initial findings show a 0.5°C difference. Our results indicate that accurate calibration for each insert orientation is critical and that reliance on simplified thermal circuits may not yield satisfactory outcomes. For practical implementation, we recommend conducting experimentation to achieve precise results. More details and a calculator tool are available at the provided link.

xaviere
Télécharger la présentation

Reducing Temperature Offset in Display Probes: A Calibration Approach

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

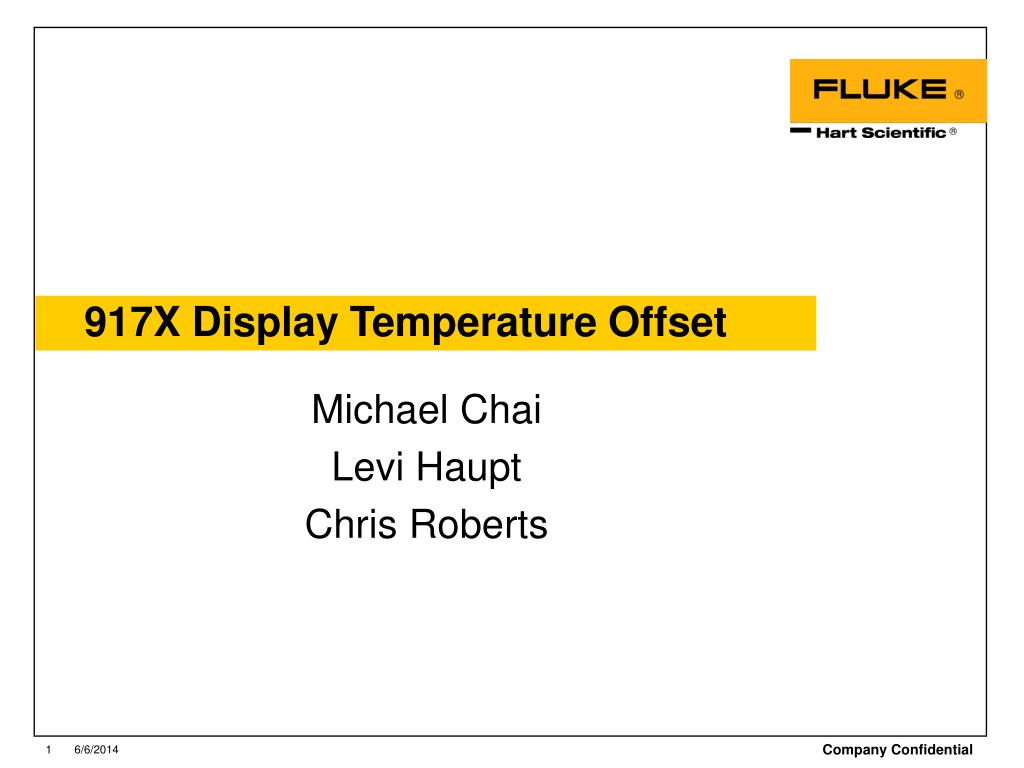

  1. 917X Display Temperature Offset Michael Chai Levi Haupt Chris Roberts

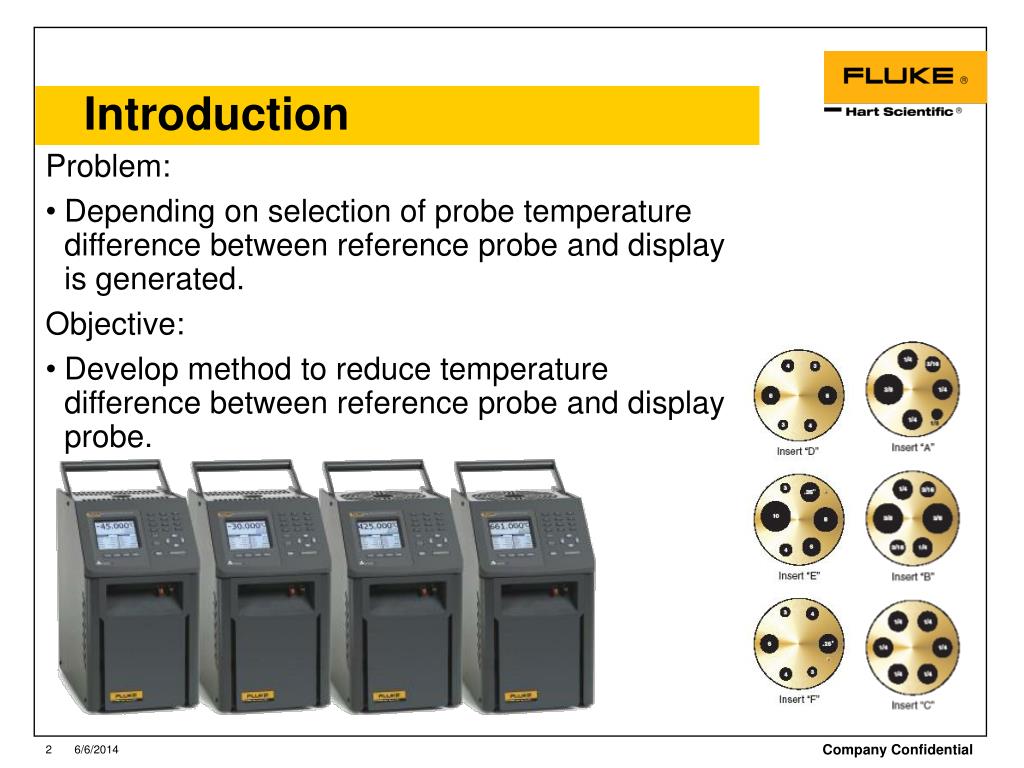

  2. Introduction Problem: • Depending on selection of probe temperature difference between reference probe and display is generated. Objective: • Develop method to reduce temperature difference between reference probe and display probe.

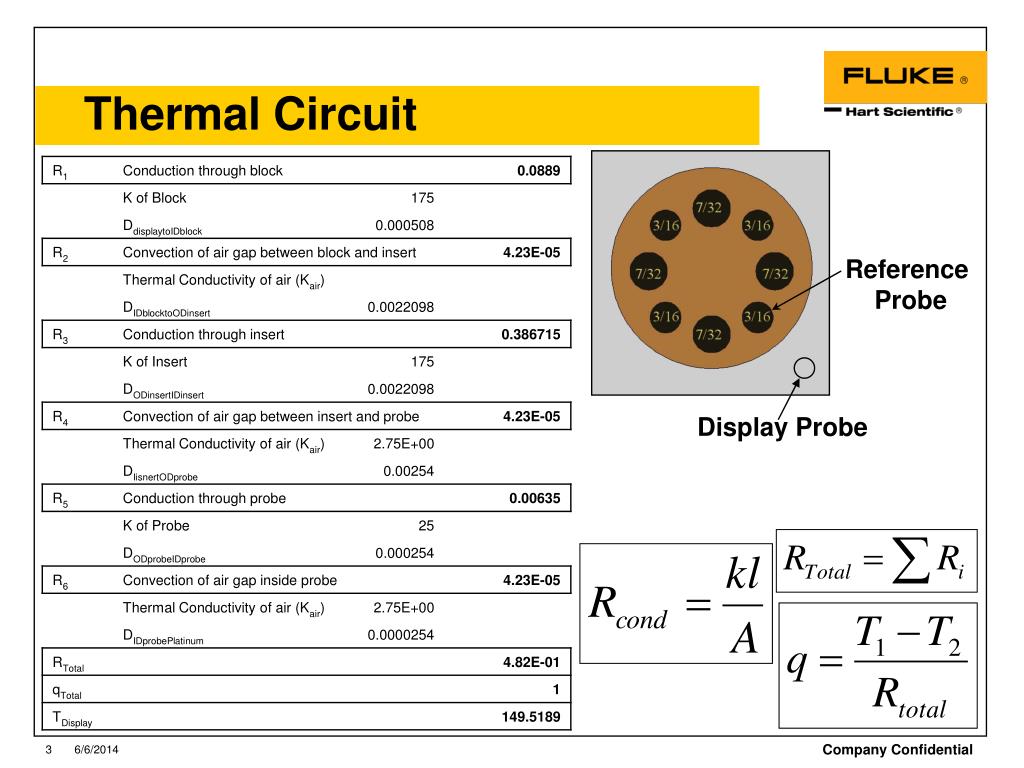

  3. Thermal Circuit Reference Probe Display Probe

  4. Surface Contact Calculator Link to Calculator http://cocoe.sourceforge.net/ Click on “The Project Page”

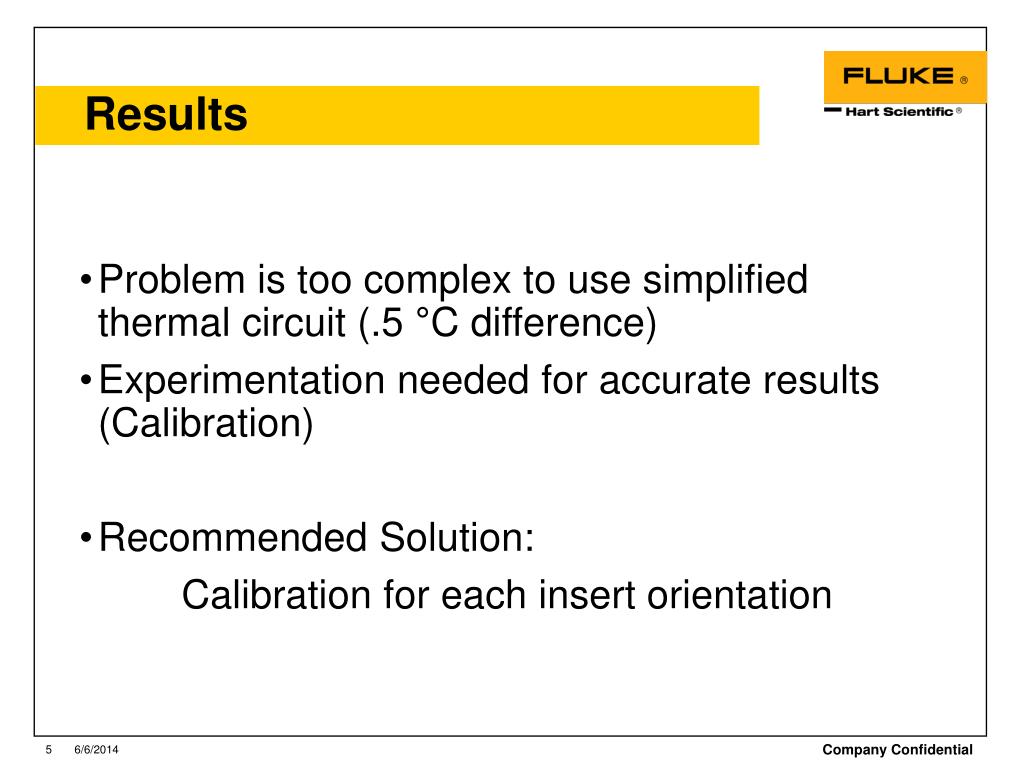

  5. Results • Problem is too complex to use simplified thermal circuit (.5 °C difference) • Experimentation needed for accurate results (Calibration) • Recommended Solution: Calibration for each insert orientation
