  1. Virtualization: Key Tool for the final target Yiannis Koukoutsis IT Architecture Consultant Fujitsu Siemens Computers

  2. Pain + Complexity = Cost Application tier

  3. More Dynamic Business Models Resources Service Level Demands

  4. Business Models that mean…. • We are trying to do more • In more places • In less time • With less resource • For less money • But still providing an improving Quality of Service

  5. you can touch it you can‘t touch it you can see it you can’t see it Virtualization - simple What it is: real virtual simply notthere ! transparent Buzz words: Virtual Machines Hypervisors I/O Virtualization Virtual Desktops Virtual Storage Abstraction Ressource Pooling Workload isolation Workload aggregation& consolidation Workload migration

  6. What is Virtualization • Virtualization breaks the fixed connection between software and the underlying hardware • Virtualization cuts the dependencies between different layers • This Application enables a more flexible control of hardware and software resources • Virtualization enables the freedom to Virtualization layer change resources without the restrictions of layers • HW Resources such as hardware or software can be pooled • Virtualization allows efficient use of resource pools and to decrease the numbers of spare components

  7. Why take virtualizedIT architecture into consideration ? • Increases efficiency • Better utilized hardware reduces the number of physical systems • Equipment and capital cost saving for less hardware • Lower costs for space, energy and cooling in the data center infrastructure • Centralized server & storage management reduces the total cost of ownership • Improved capacity utilization • Increases flexibility • Flexible use of resources • Faster deployment of (new) applications • Easy transportation of virtual instances to other platforms • Raises quality of service • Less scheduled and unplanned downtime • Balancing of workload between systems • Performance requirements solved on demand

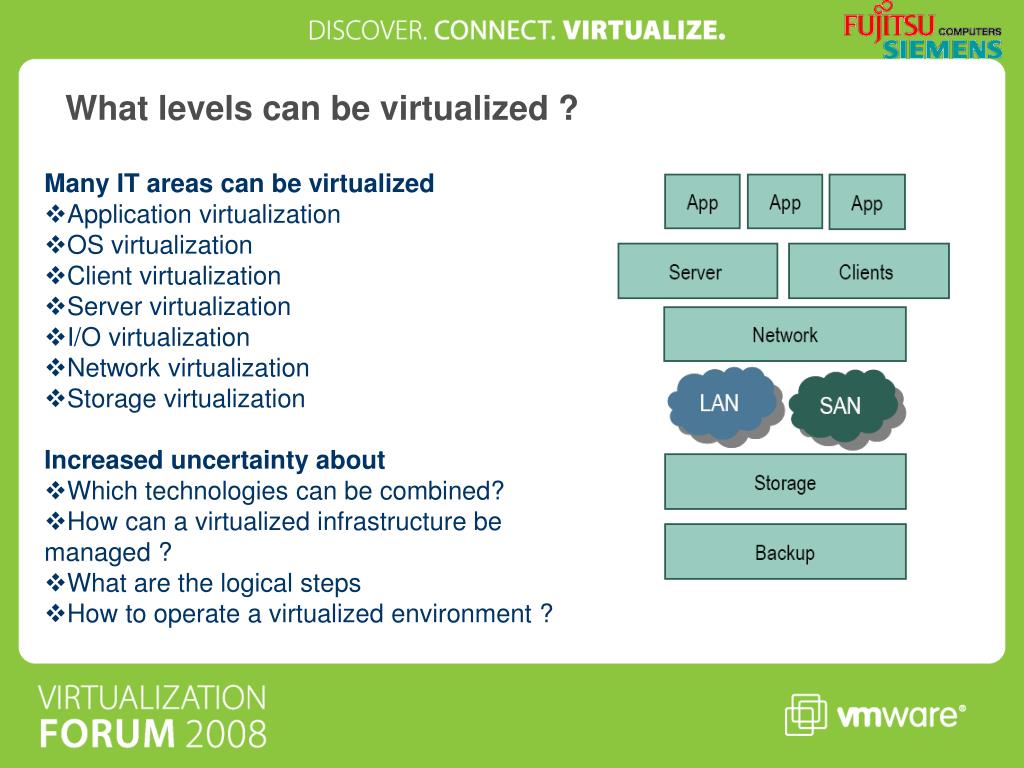

  8. What levels can be virtualized ? • Many IT areas can be virtualized • Application virtualization • OS virtualization • Client virtualization • Server virtualization • I/O virtualization • Network virtualization • Storage virtualization • Increased uncertainty about • Which technologies can be combined? • How can a virtualized infrastructure be managed ? • What are the logical steps • How to operate a virtualized environment ?

  9. Virtual machines: Key features • One server behaves like many servers • Isolation (security, availability) • Partitioning • Multiple OS on 1 HW • Resource sharing (e.g. CPU, RAM) • Failover clustering (affordable) • Encapsulation • VM status saved in files • VM transfer by copying file • HW / SW independence • Legacy compatibility, investment protection App App App OS OS OS VMM HW

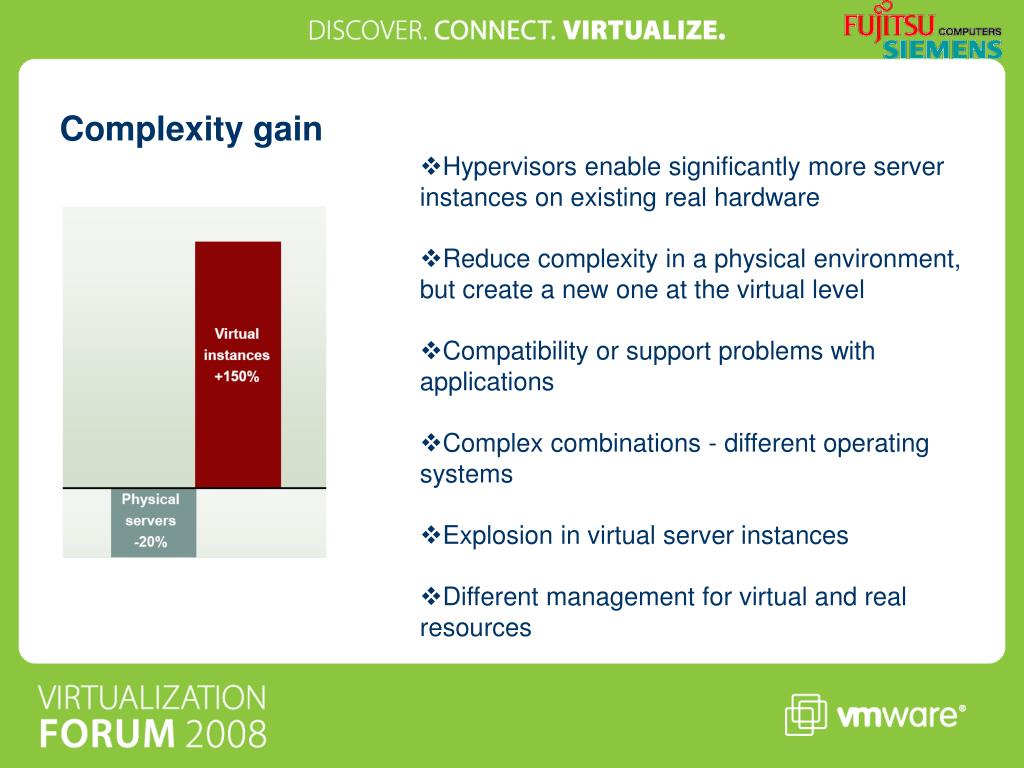

  10. Complexity gain • Hypervisors enable significantly more server instances on existing real hardware • Reduce complexity in a physical environment, but create a new one at the virtual level • Compatibility or support problems with applications • Complex combinations - different operating systems • Explosion in virtual server instances • Different management for virtual and real resources

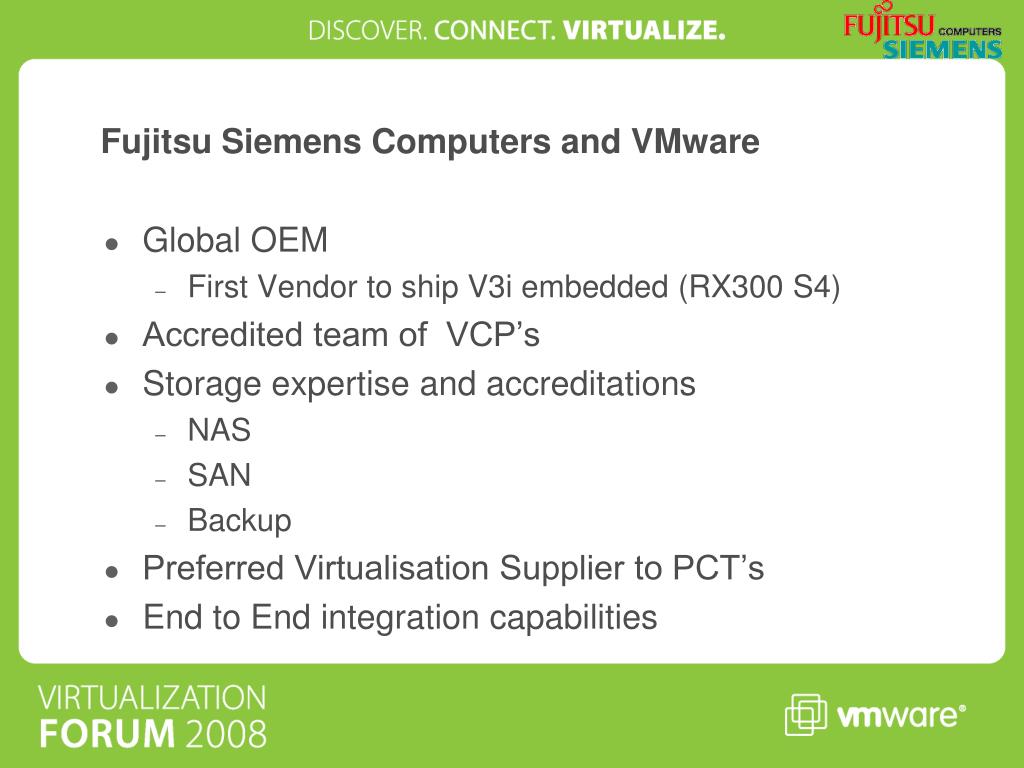

  11. Fujitsu Siemens Computers and VMware • Global OEM • First Vendor to ship V3i embedded (RX300 S4) • Accredited team of VCP’s • Storage expertise and accreditations • NAS • SAN • Backup • Preferred Virtualisation Supplier to PCT’s • End to End integration capabilities

  12. Server Virtualization at HypoVereinsbank • Task • Consolidate 650 servers • Reduce floor space and energy cost • Optimize resources, create flexibility • Solution • Move 15-30 physical servers to 1 single one • 1,400 VM on approx. 55 PRIMERGY BX with VMware ESX 3.5 • Customer benefits • Save 2.0M kWh per year (€200K) • Use computing capacity on demand

  13. “Utility based” Computing

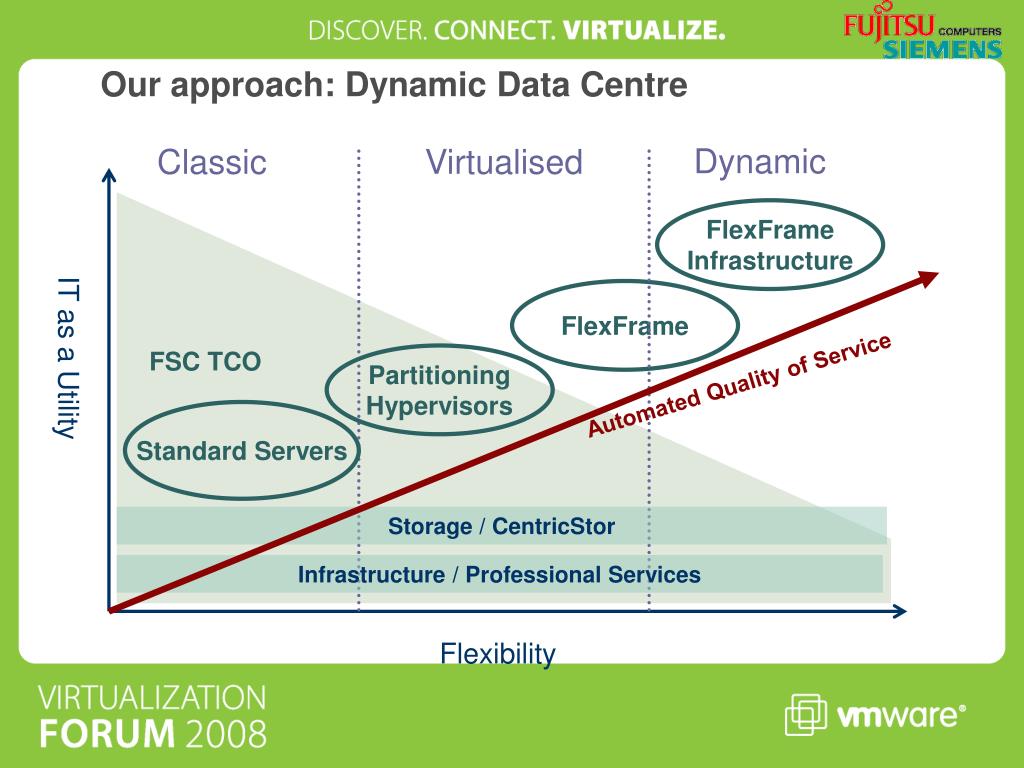

  14. Our approach: Dynamic Data Centre Dynamic Classic Virtualised FlexFrameInfrastructure IT as a Utility FlexFrame FSC TCO PartitioningHypervisors Automated Quality of Service Standard Servers Storage / CentricStor Infrastructure / Professional Services Flexibility

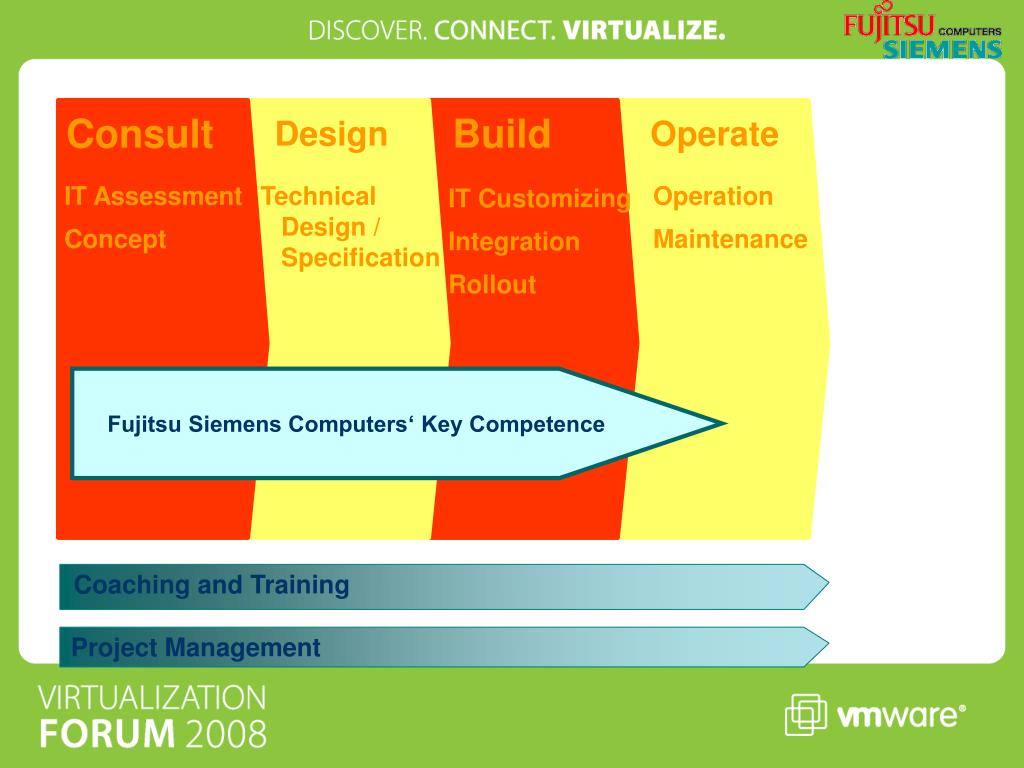

  15. Coaching and Training Project Management Consult Build Design Operate IT Assessment Concept Technical Design / Specification Operation Maintenance IT Customizing Integration Rollout Fujitsu Siemens Computers‘ Key Competence

  16. How can we support you inrealizing your virtualization project? • Fujitsu Siemens Computers provides solutions for all types of virtualization • Virtualized infrastructures for SAP and Oracle • FlexFrame for SAP, FlexFrame for Oracle • Common management of physical and virtual resources • BladeFrame • Support of hypervisors • I/O Virtualization • ServerView Virtual I/O Manager • Client Virtualization • Virtual Workplace • Storage Virtualization • Virtual Tape Appliance CentricStor

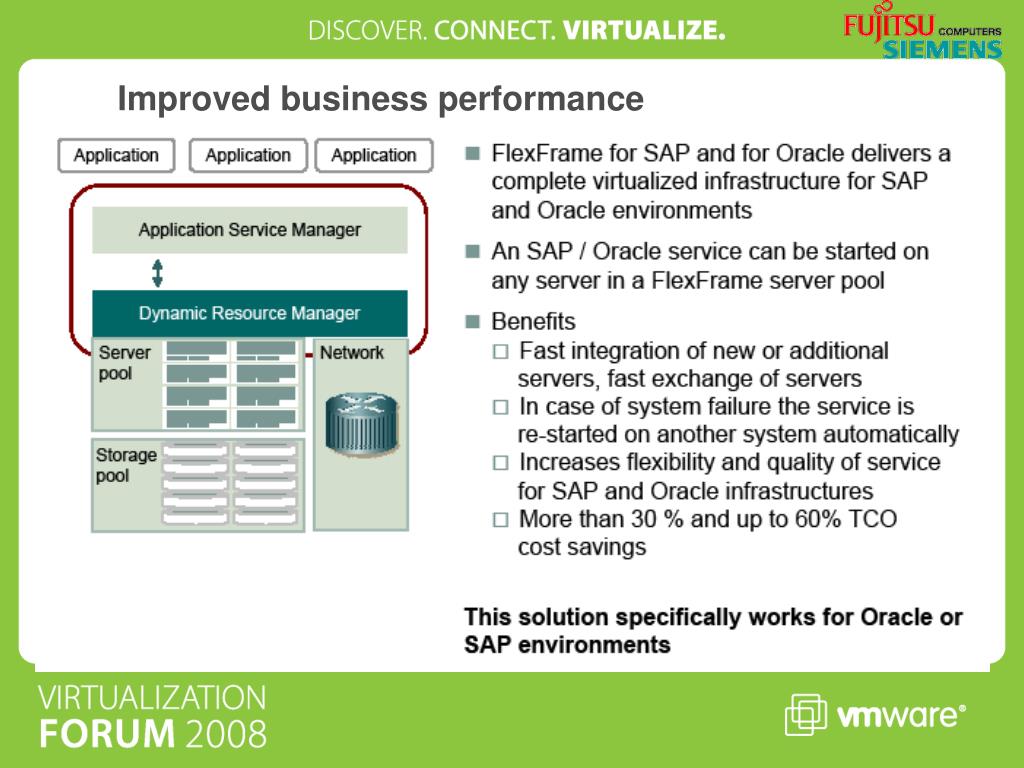

  17. Improved business performance

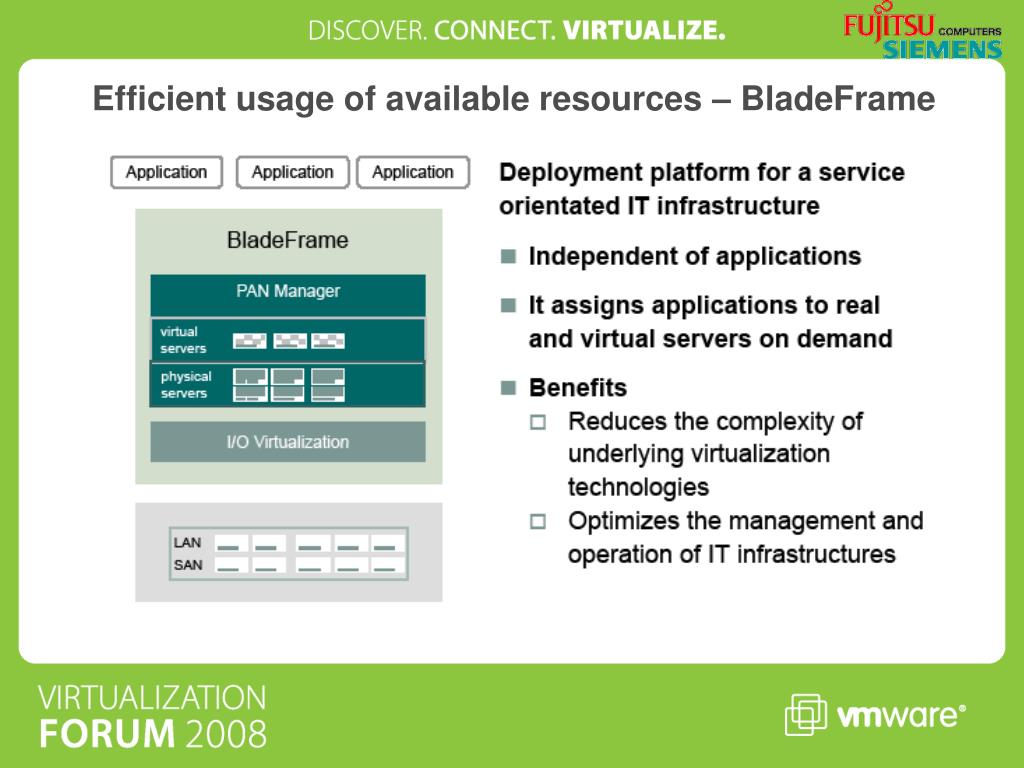

  18. Efficient usage of available resources – BladeFrame

  19. Increased quality of service - Virtual Workplace

  20. Virtualization of Tape Infrastructures - CentricStor

  21. Services for virtualized environments

  22. The next logical step

  23. Desktop as a Service

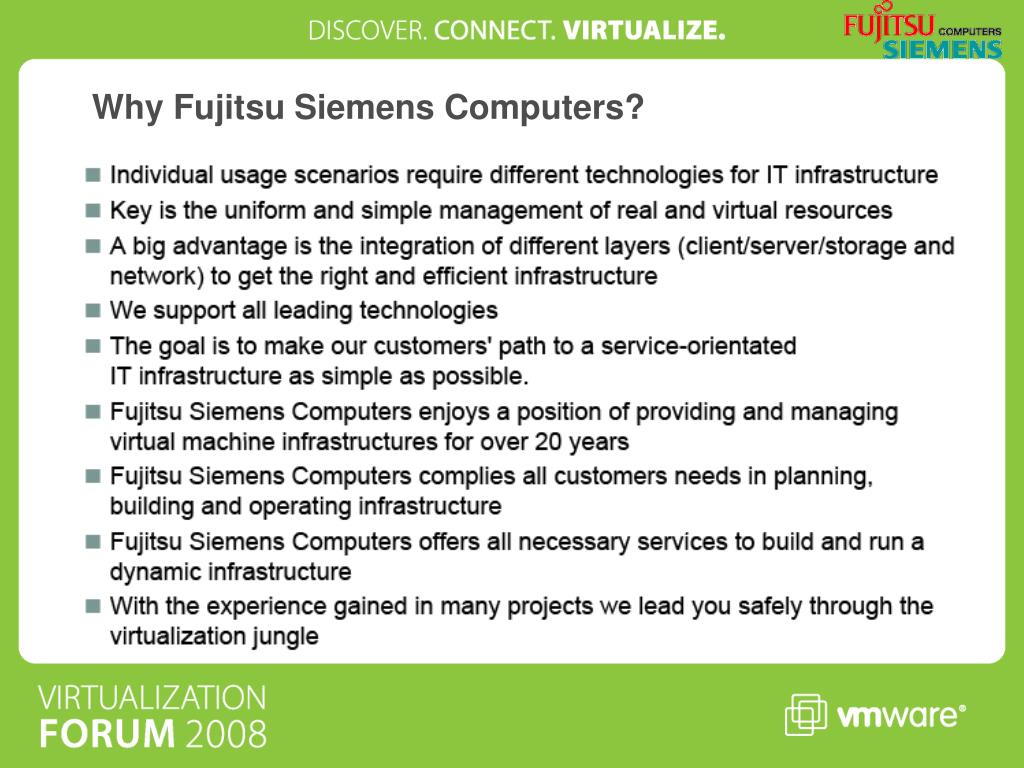

  24. Why Fujitsu Siemens Computers?

  25. Our environmental pioneering and social commitment has long tradition • 1988: Taking back old IT equipment • 1992: Guideline for environmentally conscious design • 1993: First ‘Green PC’ in the market • 1994: First IT manufacturer to receive Blue Angel eco-label • 2002: First ‘green’ mainboard • 2005: First “Green PCs”, 2005: Joining the U.N. Global Compact • 2006: PRIMERGY - Intelligent Power Management • 2006: Power consumption reduced servers • 2007: First “Green Server” PRIMERGY TX120 • 2007: Green Grid, 2007, Climate Savers Computing Initiative Membership • …..more about IT with sense of responsibility please see:http://www.fujitsu-siemens.com/aboutus

  26. Datacenter Virtualization & Automation Power Consumption • Optimize the Infrastructure • Consolidation • Best hardware cooling design • Best Datacenter cooling • Reduce Power Consumption: • Integrate efficient components • The right energy savings • The right Server • Efficient utilization of Resources • Virtualization for higher usage level • Automation of usage dependent on-off switching of components

  27.  If we don’t take care of the customer someone else will ! Expel Any Doubts – Fujitsu style Japan rules: If the customer isn’t 100% satisfied … Sales Manager SystemEngineer CustomerEngineer QualityMngr DesignEngr Down time > 3 hours: 3 Representatives visit the Customer Repeat failure incidents: 4+ Representatives visit the Customer

  28. IT with a sense of responsibility Thank you for your attention
