This paper presents a recursive algorithm for generating fault trees from hardware/software mappings integrated with redundancy. The algorithm effectively traverses the Fault Tree Description Framework (FTDF) graph, systematically building fault trees from outputs to inputs. It handles different actor instances, incorporating various fault types for sensors and actuators while maintaining flexibility for complex systems. Acknowledgments are given for the contributions of the GM Berkeley Labs team and supporting organizations. The work aims to enhance fault analysis in embedded systems.

xuxa
Télécharger la présentation

February 10, 2005

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

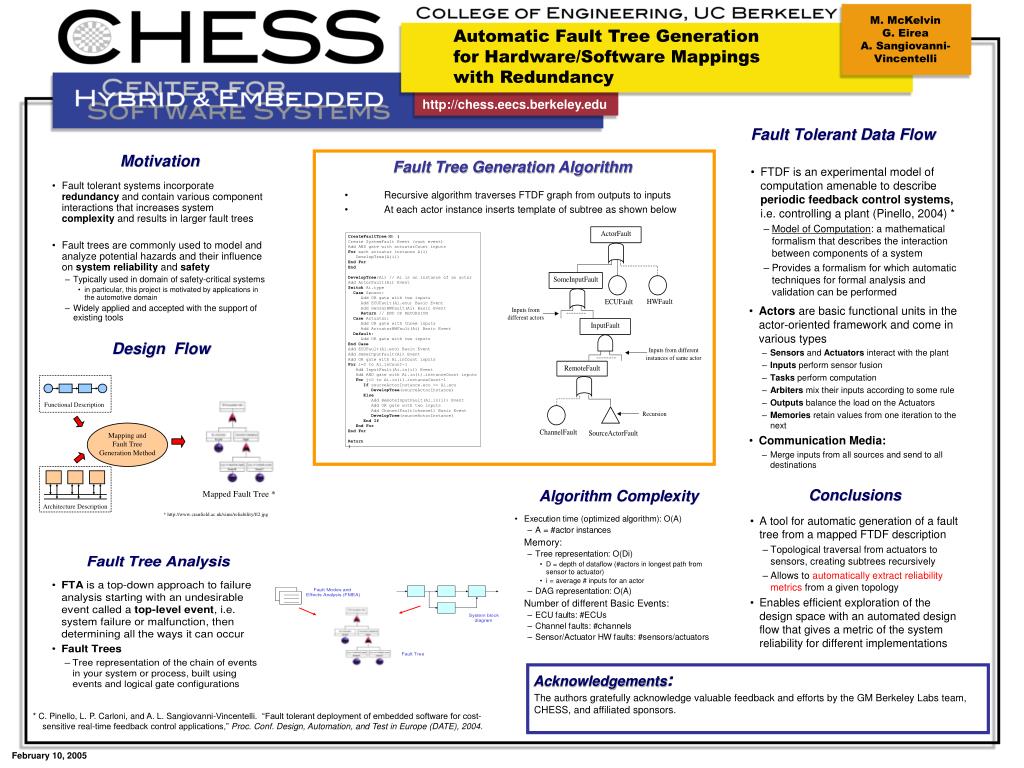

  1. M. McKelvin G. Eirea A. Sangiovanni- Vincentelli Automatic Fault Tree Generationfor Hardware/Software Mappings with Redundancy http://chess.eecs.berkeley.edu Fault Tree Generation Algorithm • Recursive algorithm traverses FTDF graph from outputs to inputs • At each actor instance inserts template of subtree as shown below CreateFaultTree(G) { Create SystemFault Event (root event) Add AND gate with actuatorCount inputs For each actuator instance A(i) DevelopTree(A(i)) End For End DevelopTree(Ai) // Ai is an instance of an actor Add ActorFault(Ai) Event Switch Ai.type Case Sensor: Add OR gate with two inputs Add ECUFault(Ai.ecu) Basic Event Add SensorHWFault(Ai) Basic Event Return // END OF RECURSION Case Actuator: Add OR gate with three inputs Add ActuatorHWFault(Ai) Basic Event Default: Add OR gate with two inputs End Case Add ECUFault(Ai.ecu) Basic Event Add SomeInputFault(Ai) Event Add OR gate with Ai.inCount inputs For i=0 to Ai.inCount-1 Add InputFault(Ai.in(i)) Event Add AND gate with Ai.in(i).instanceCount inputs For j=0 to Ai.in(i).instanceCount-1 If sourceActorInstance.ecu == Ai.ecu DevelopTree(sourceActorInstance) Else Add RemoteInputFault(Ai.in(i)) Event Add OR gate with two inputs Add ChannelFault(channel) Basic Event DevelopTree(sourceActorInstance) End If End For End For Return } Acknowledgements: The authors gratefully acknowledge valuable feedback and efforts by the GM Berkeley Labs team, CHESS, and affiliated sponsors. * C. Pinello, L. P. Carloni, and A. L. Sangiovanni-Vincentelli. “Fault tolerant deployment of embedded software for cost-sensitive real-time feedback control applications,” Proc. Conf. Design, Automation, and Test in Europe (DATE), 2004. February 10, 2005
