  1. Characteristics of Network Delay and Delay Jitter and its Effect on Voice over IP Li Zheng, Liren Zhang, Dong Xu Communications, 2001. ICC 2001. IEEE International Conference Chin-Kai Wu, CS, NTHU

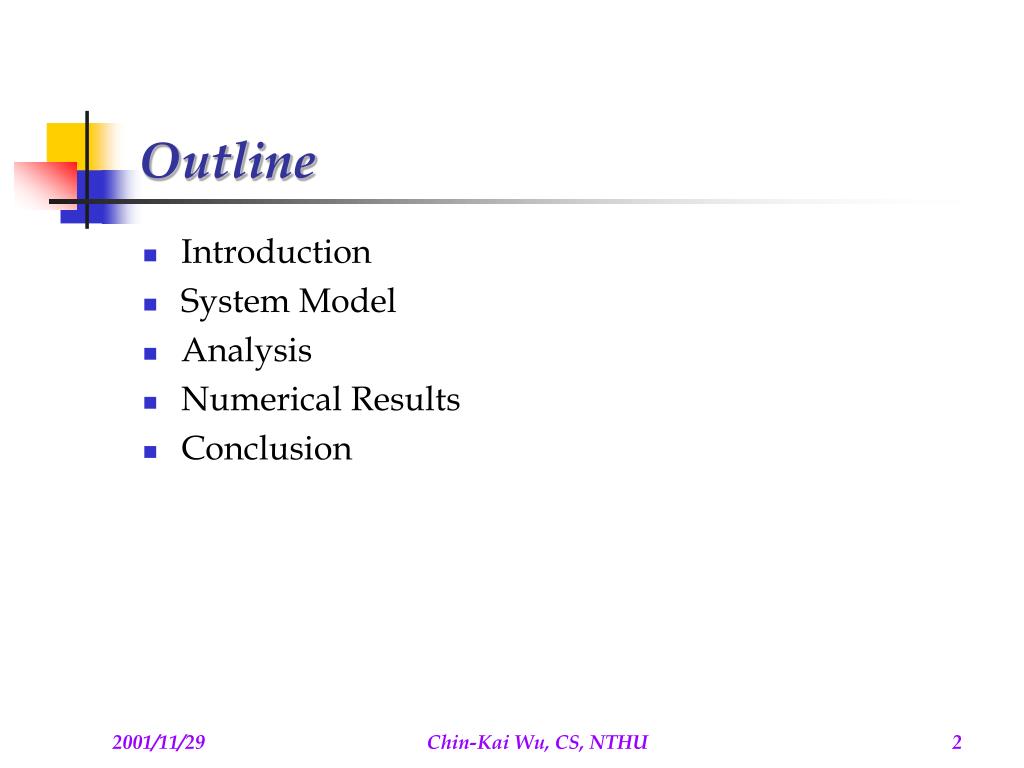

  2. Outline • Introduction • System Model • Analysis • Numerical Results • Conclusion Chin-Kai Wu, CS, NTHU

  3. Introduction • The queueing delay occurs due to multiplexing of packets. The goal of this paper is to study the statistics of delay and delay jitter by means of queueing transient solution. • The main objective of this paper is to examine the relationship between the jitter and the characteristics of the background traffic, such as burstness, traffic load and bursty length. Chin-Kai Wu, CS, NTHU

  4. T-stream B-stream IP Router ( Non-blocking Switching ) System Model • Non-blocking switch • Designed traffic stream (T-stream) • Inter-arrival time between two consecutive packets is independent • Probability density f(k) = P[ inter-arrival time = k slots ] Chin-Kai Wu, CS, NTHU

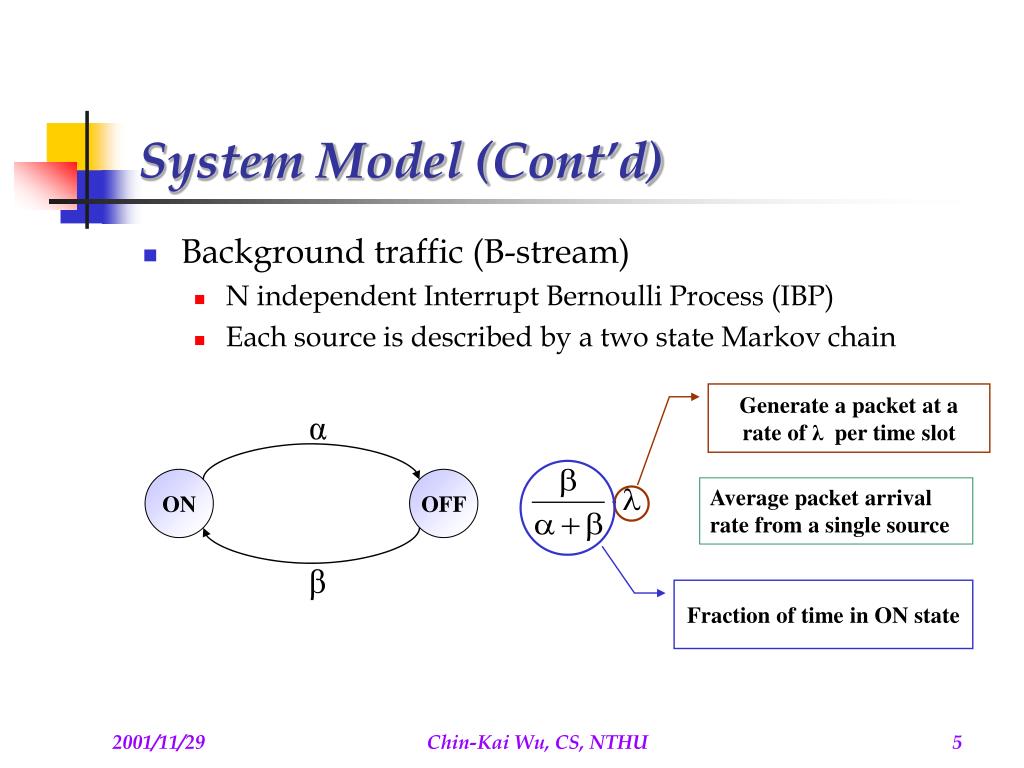

  5. α Generate a packet at a rate of λ per time slot ON OFF β Fraction of time in ON state System Model (Cont’d) • Background traffic (B-stream) • N independent Interrupt Bernoulli Process (IBP) • Each source is described by a two state Markov chain Average packet arrival rate from a single source Chin-Kai Wu, CS, NTHU

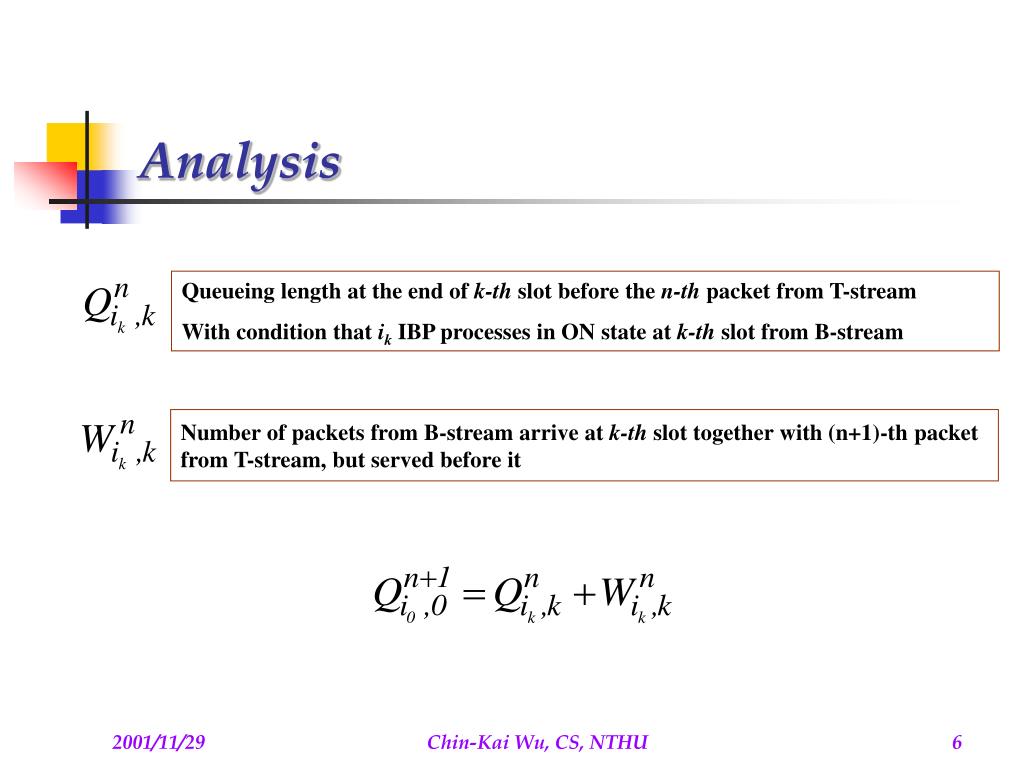

  6. Analysis Queueing length at the end of k-th slot before the n-th packet from T-stream With condition that ik IBP processes in ON state at k-th slot from B-stream Number of packets from B-stream arrive at k-th slot together with (n+1)-th packet from T-stream, but served before it Chin-Kai Wu, CS, NTHU

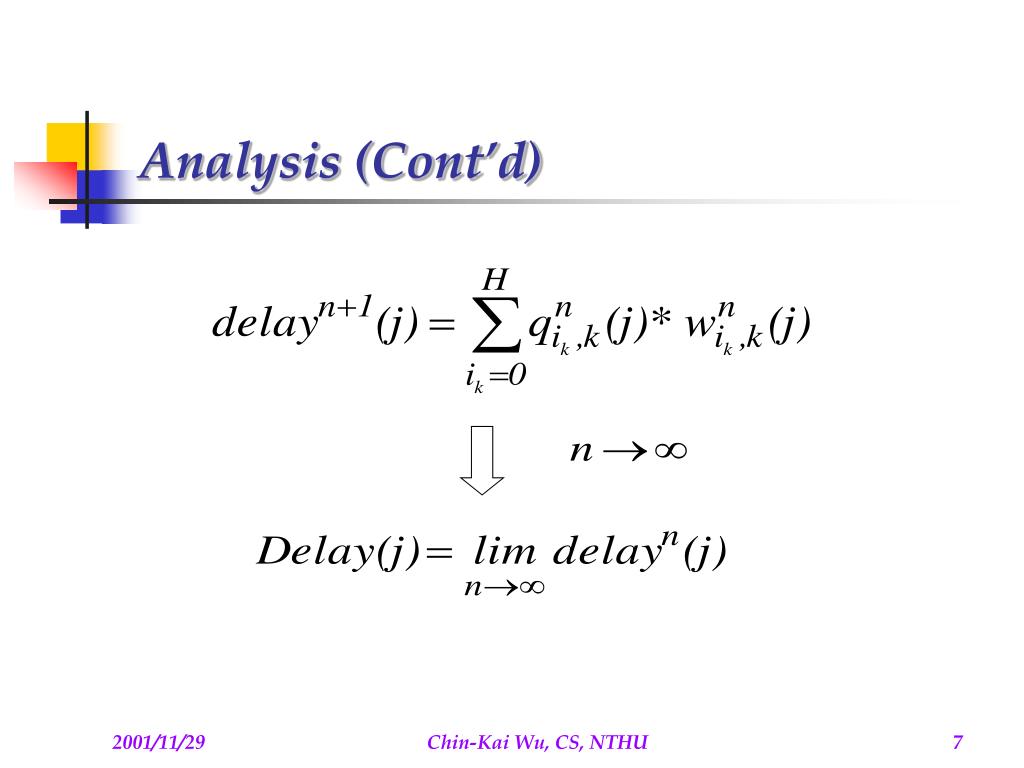

  7. Analysis (Cont’d) Chin-Kai Wu, CS, NTHU

  8. Analysis (Cont’d) • Delay jitter is defined as the variation in delay between the two consecutive packets Chin-Kai Wu, CS, NTHU

  9. Analysis (Cont’d) Chin-Kai Wu, CS, NTHU

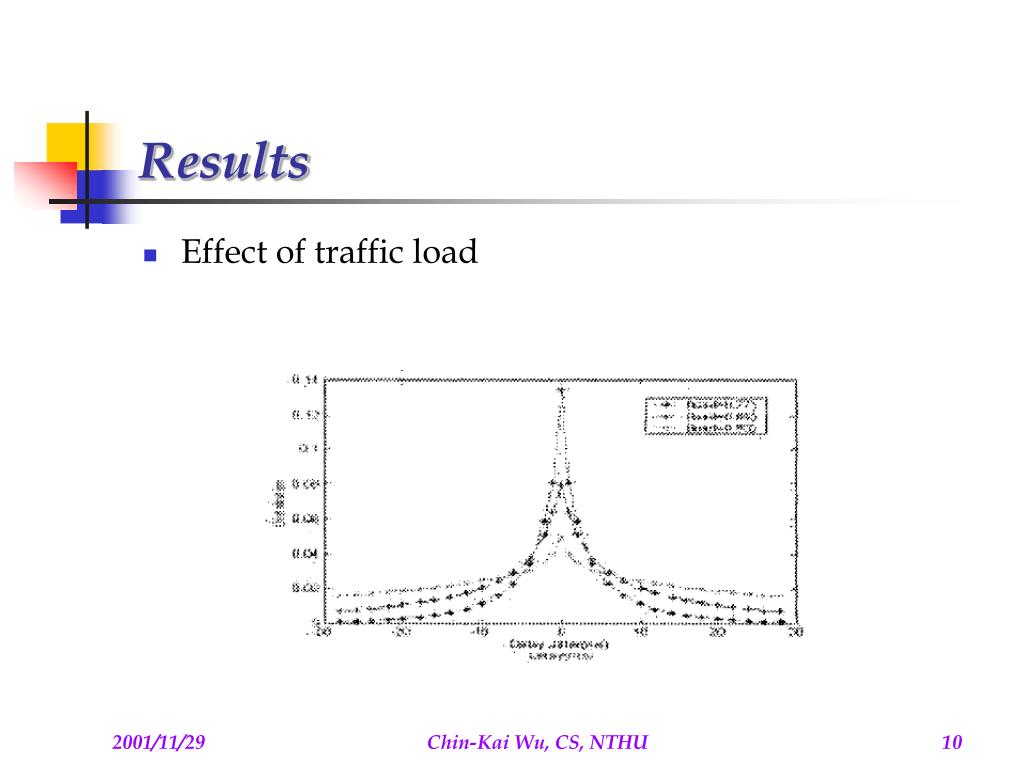

  10. Results • Effect of traffic load Chin-Kai Wu, CS, NTHU

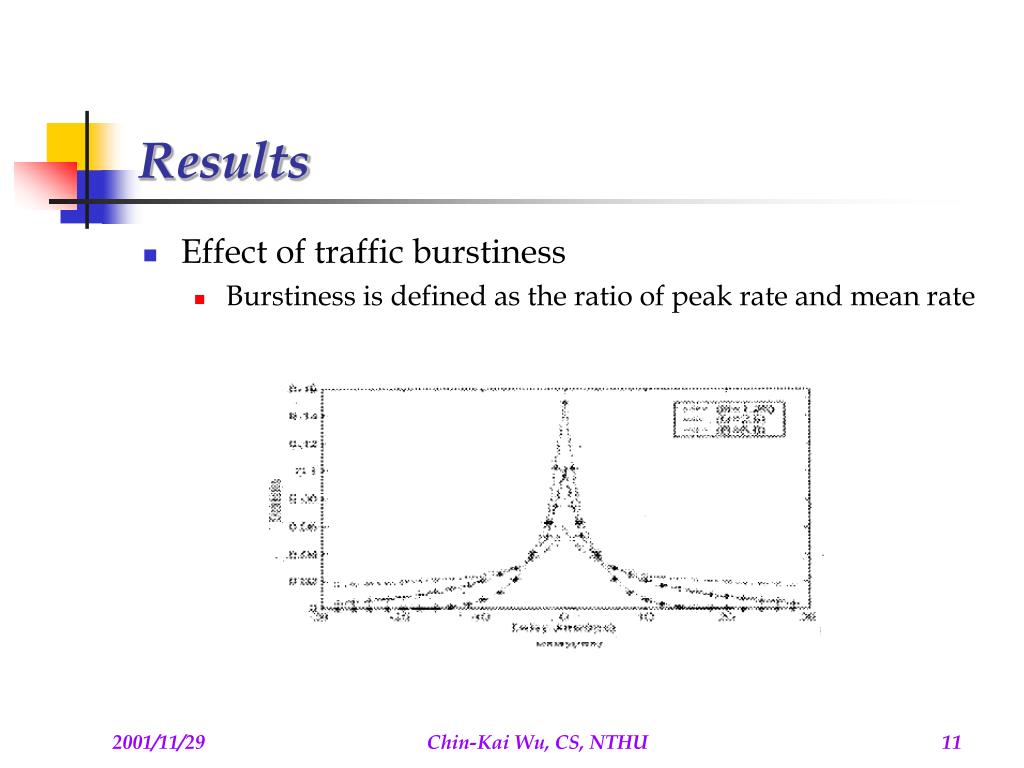

  11. Results • Effect of traffic burstiness • Burstiness is defined as the ratio of peak rate and mean rate Chin-Kai Wu, CS, NTHU

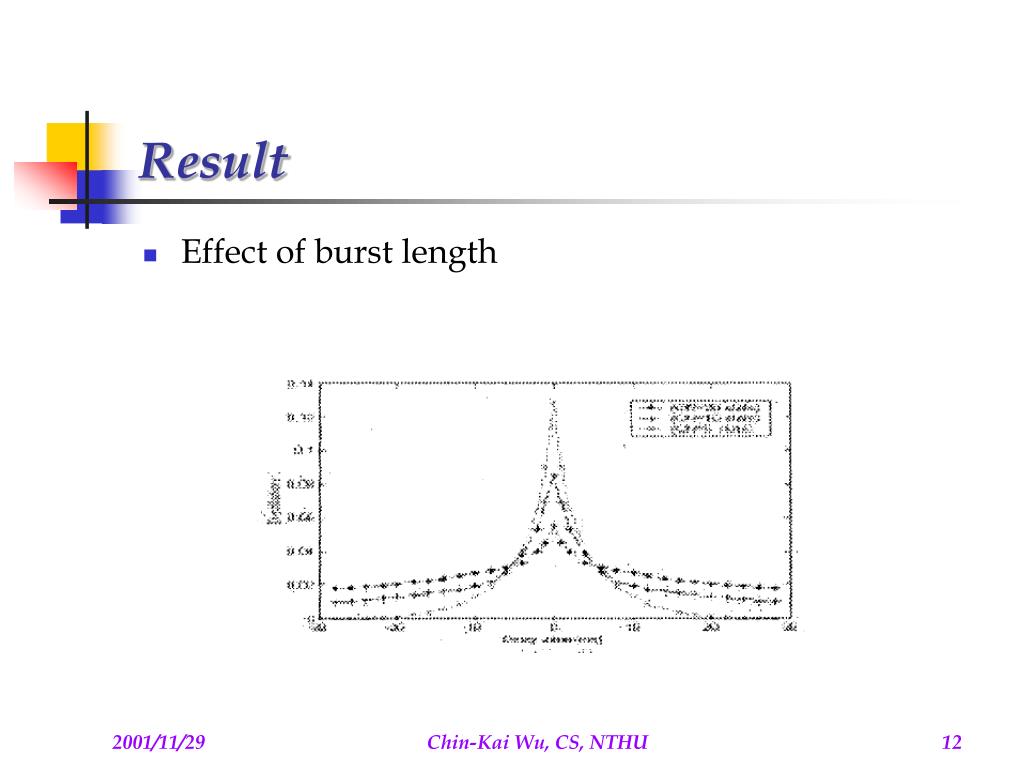

  12. Result • Effect of burst length Chin-Kai Wu, CS, NTHU

  13. Conclusion • A sequence of negative jitter (clustering) can result in packet loss, while positive jitter (dispersion) results in experiencing excessive delay. The jitter pdf provide information of individual jitters. • For a given background traffic, when packet from a stream up to a large number, the transient queueing solution will close to steady state solution. • To solve the jitter problem, a buffer of size much greater than one speech sample interval is needed at the receiver to remove the delay jitter. Chin-Kai Wu, CS, NTHU
