  1. P11228Week 5: System Level Design Review Japh Learn Joseph Corea Tim Monahan Bryan Reinheimer Ed Gliss

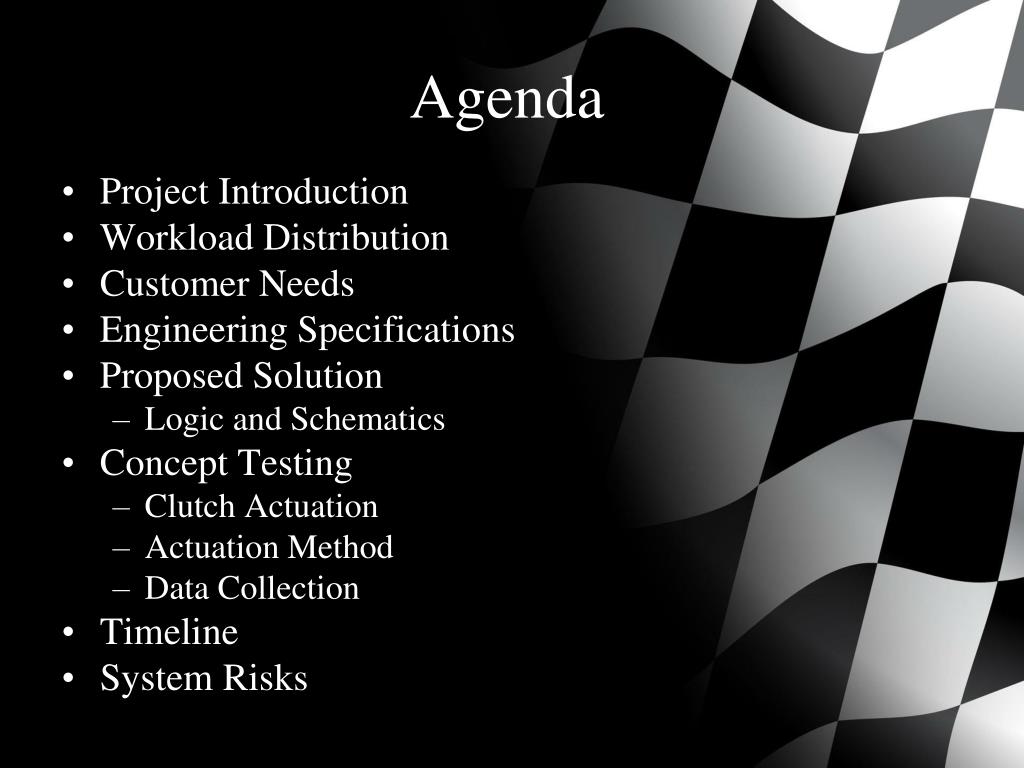

  2. Agenda • Project Introduction • Workload Distribution • Customer Needs • Engineering Specifications • Proposed Solution • Logic and Schematics • Concept Testing • Clutch Actuation • Actuation Method • Data Collection • Timeline • System Risks

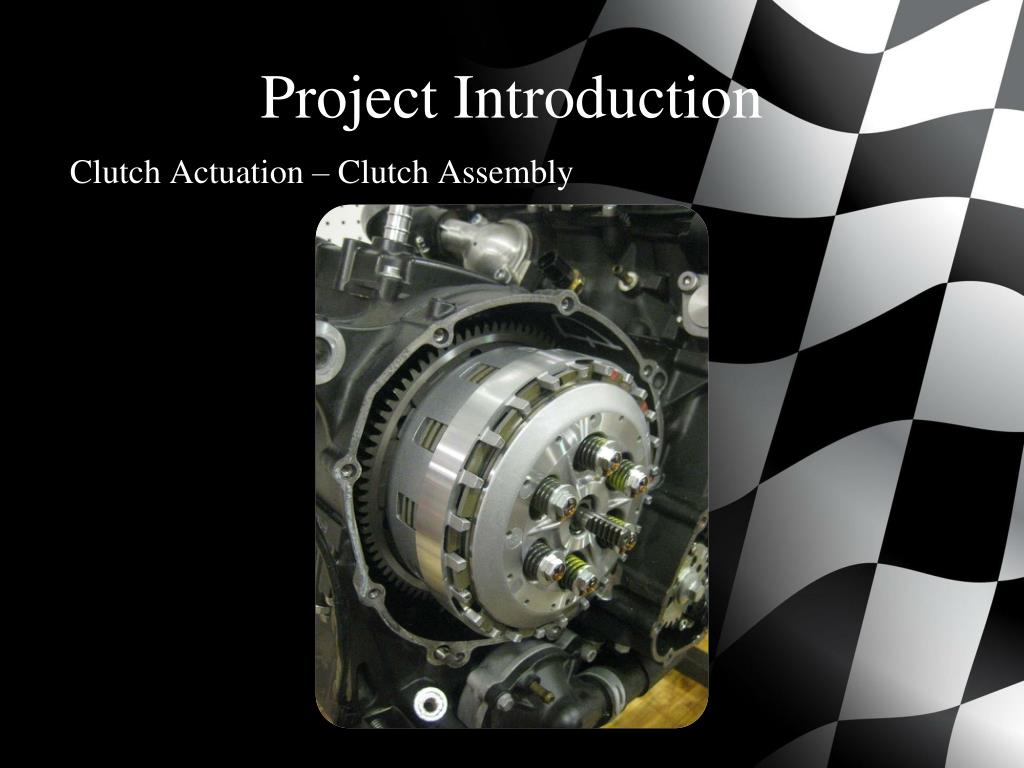

  3. Project Introduction • Clutch Actuation – Clutch Assembly

  4. Workload Distribution

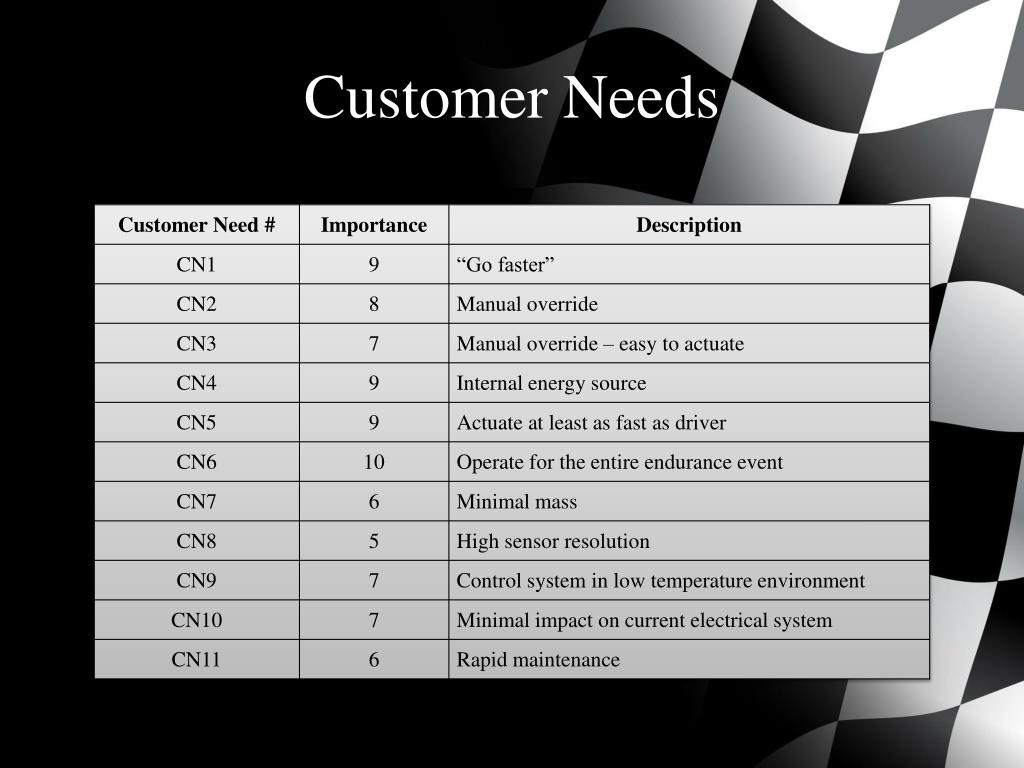

  5. Customer Needs

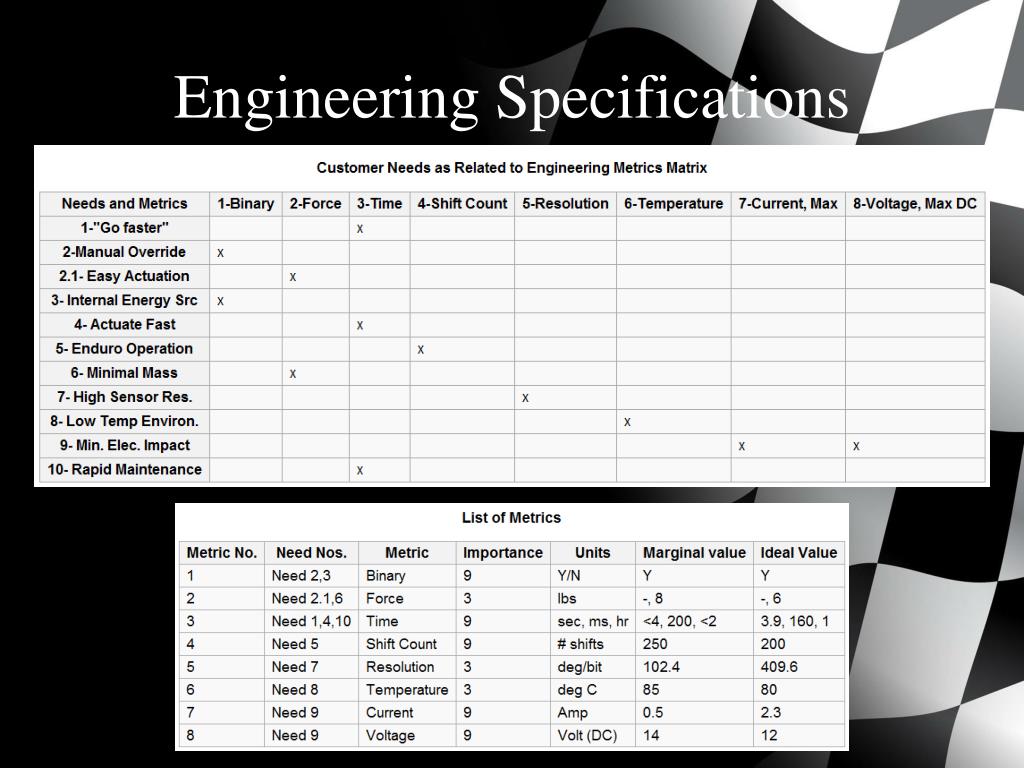

  6. Engineering Specifications

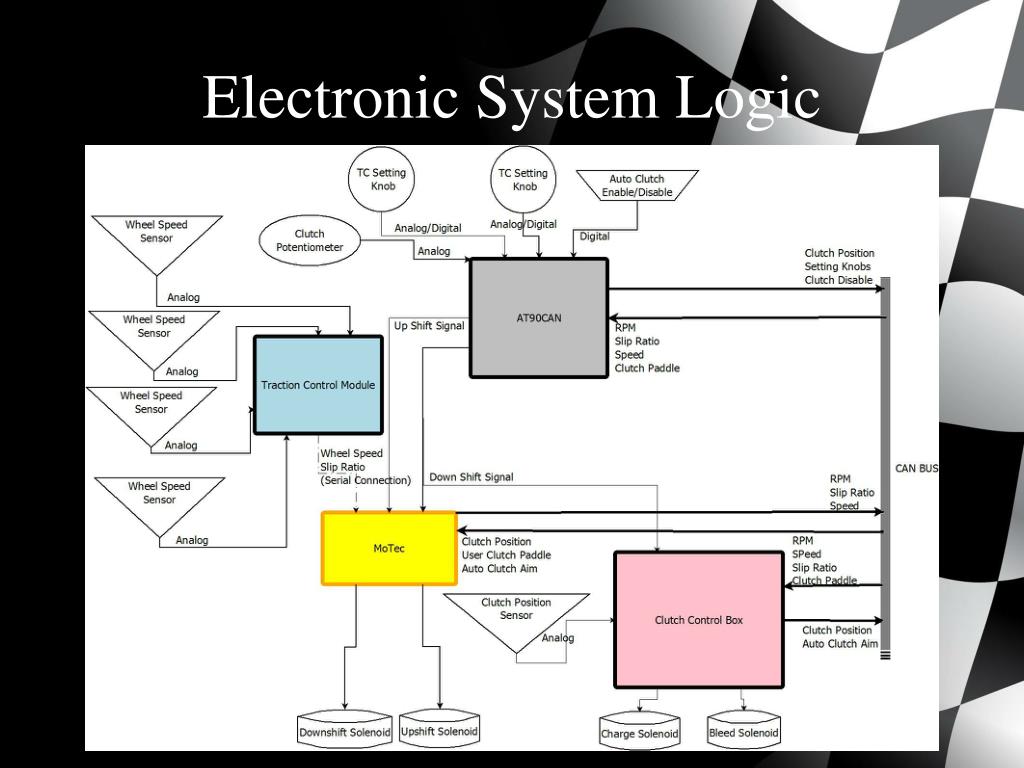

  7. Electronic System Logic

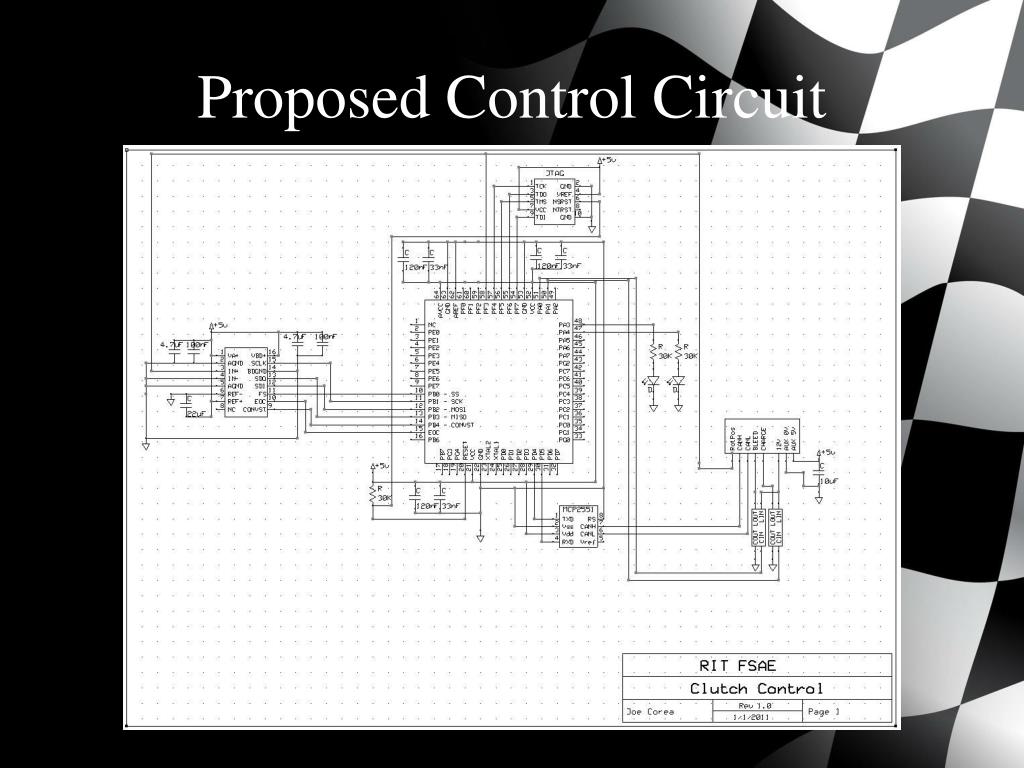

  8. Proposed Control Circuit

  9. Proposed PCB Layout

  10. Proposed Pneumatics

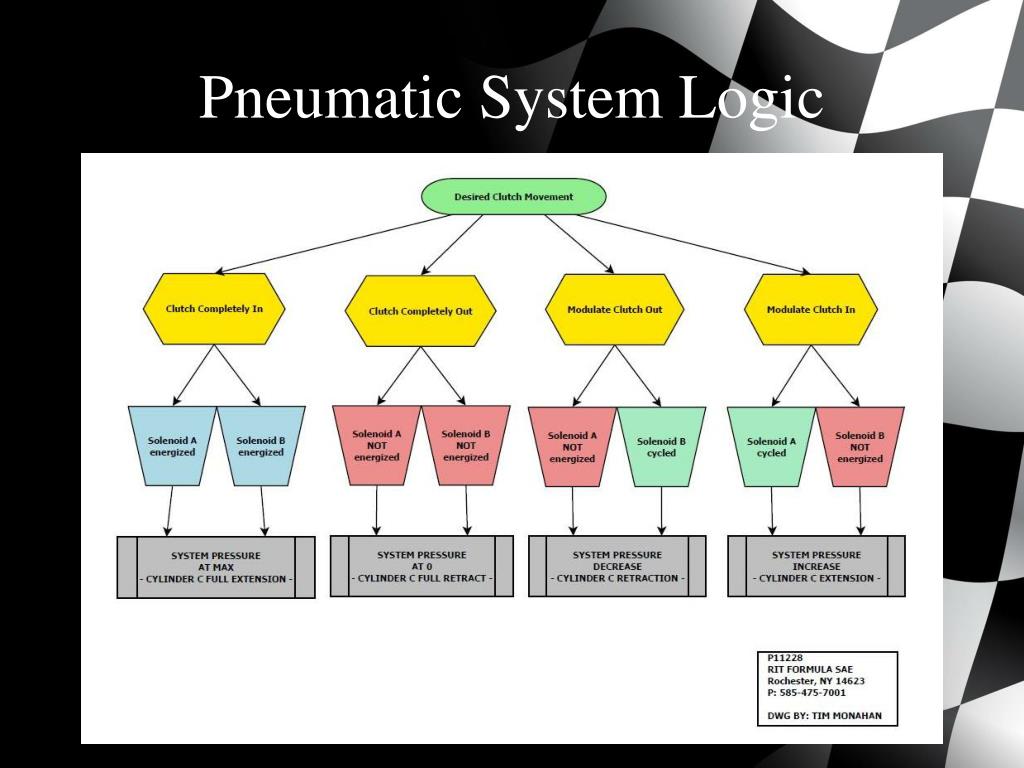

  11. Pneumatic System Logic

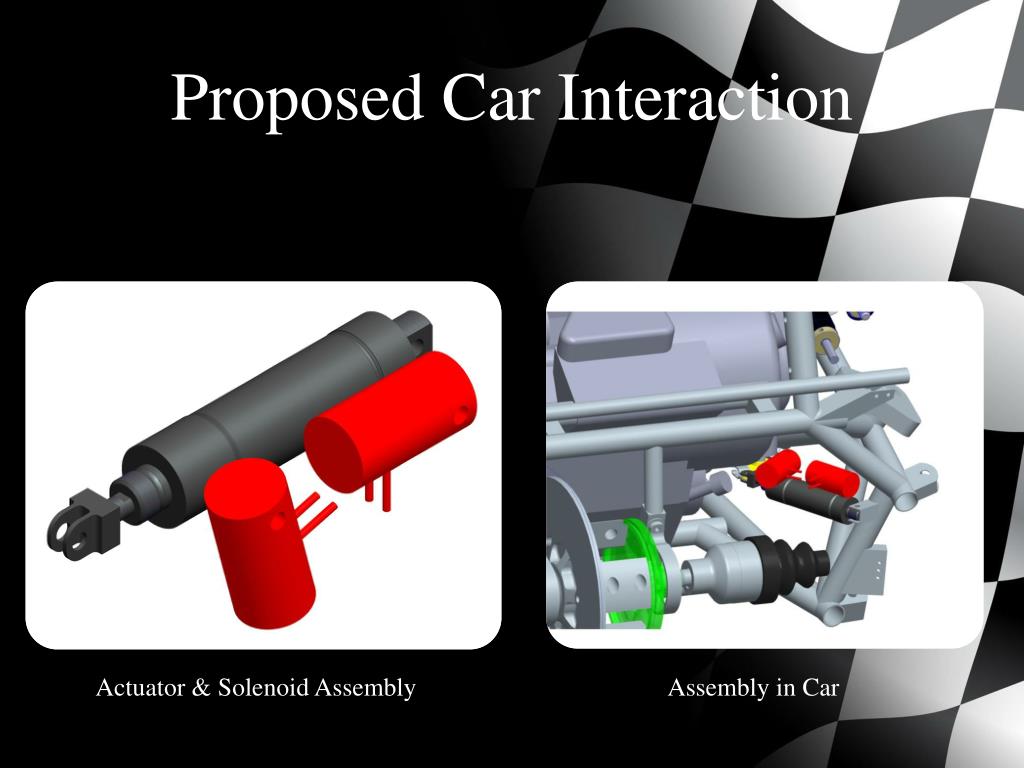

  12. Proposed Car Interaction Actuator & Solenoid Assembly Assembly in Car

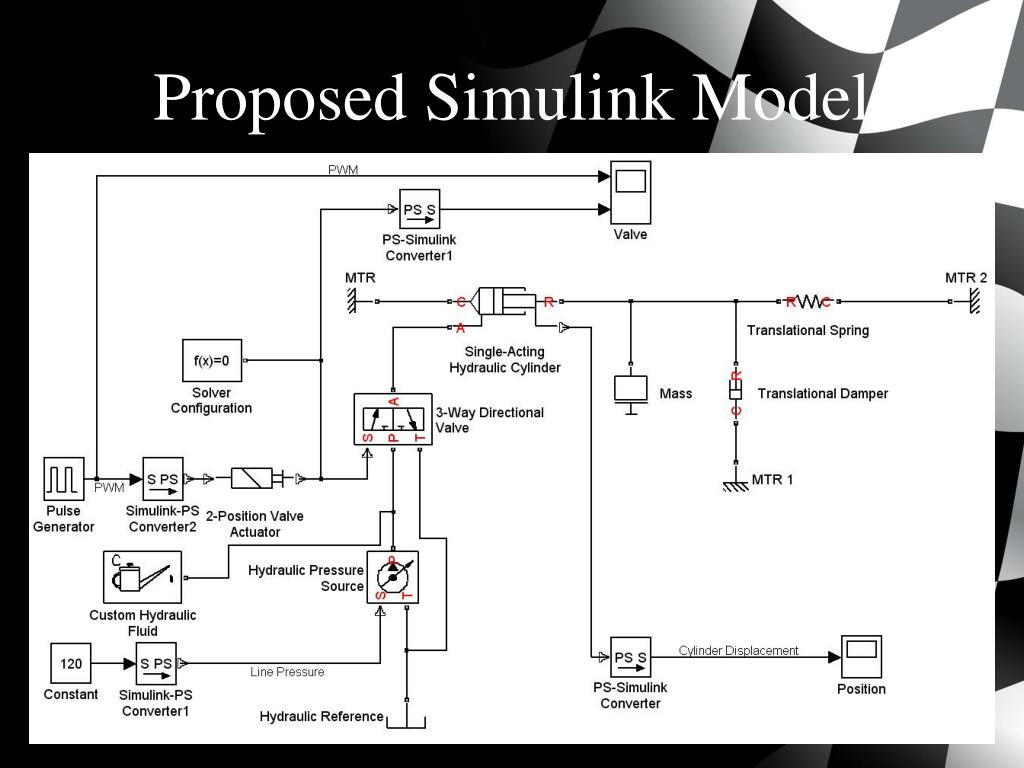

  13. Proposed Simulink Model

  14. Concept Testing • Clutch Actuation – Actuation Force

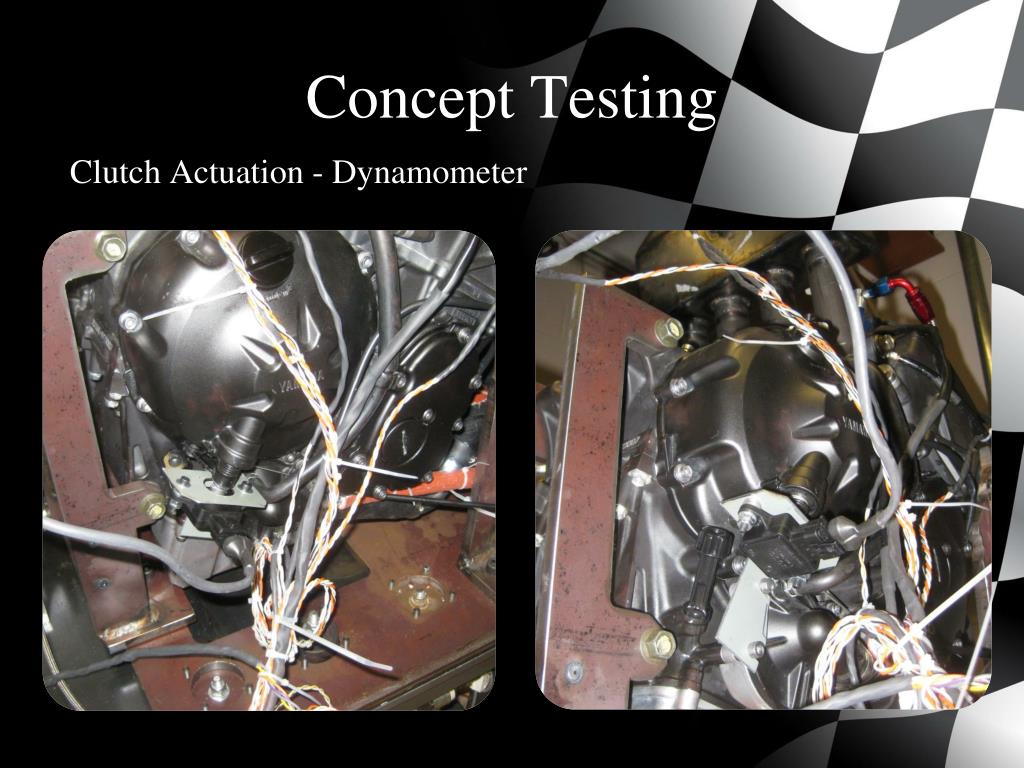

  15. Concept Testing • Clutch Actuation - Dynamometer

  16. Concept Testing • Actuation Method • Spring Testing

  17. Concept Testing • Actuation Method – Testing with MoTeC ECU

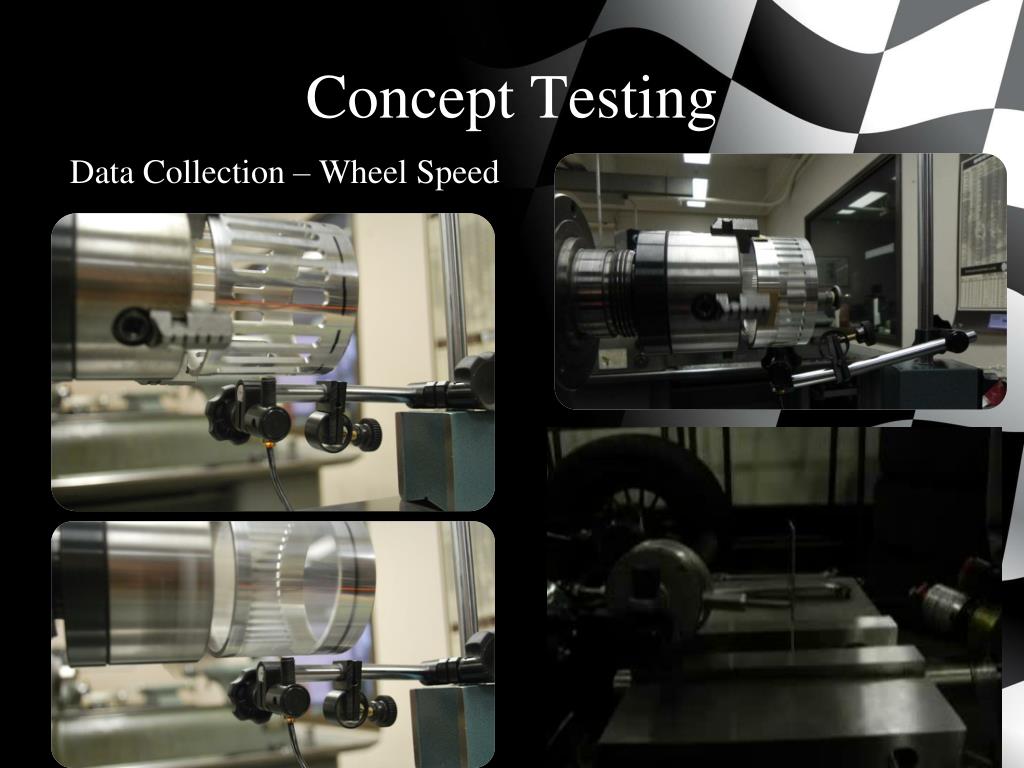

  18. Concept Testing • Data Collection – Wheel Speed

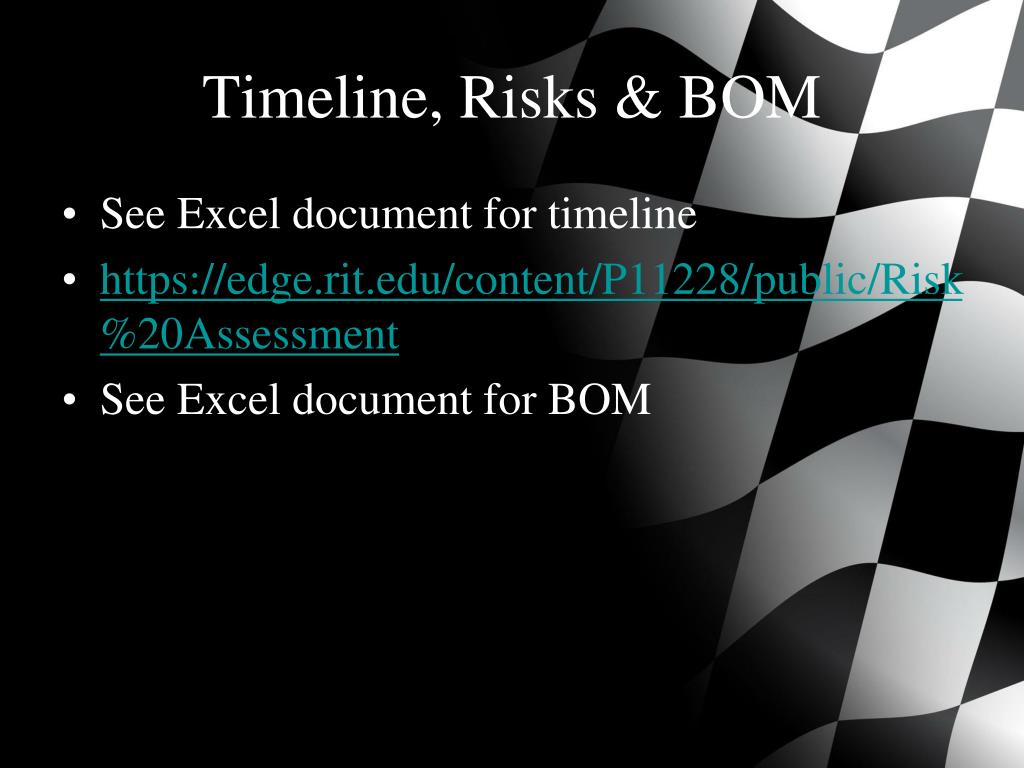

  19. Timeline, Risks & BOM • See Excel document for timeline • https://edge.rit.edu/content/P11228/public/Risk%20Assessment • See Excel document for BOM

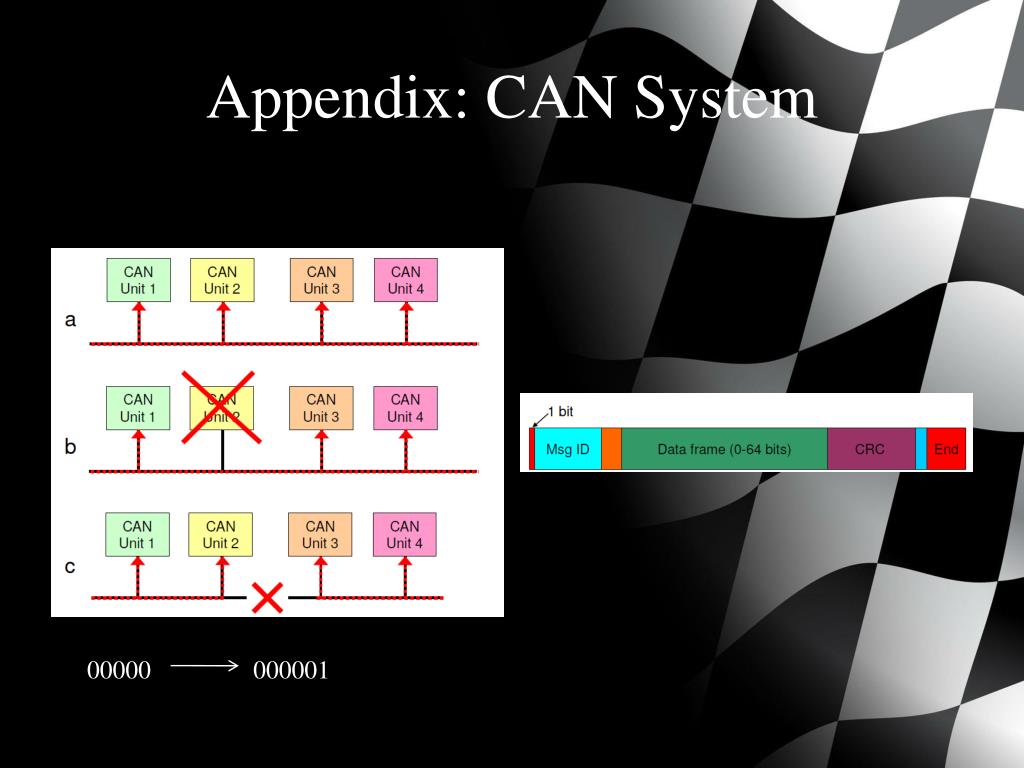

  20. Appendix: CAN System 00000 000001
