  1. CSS: Separating Design and Content Kevin Campbell Katya Sadovsky

  2. What We’ll Do • What is CSS? • View some code and talk basics • Why use CSS? • Advantages to Workflow • Cost Savings • Implementations • Resources

  3. CSS Intro

  4. What are Cascading Style Sheets? • Cascading Style Sheets, or CSS, are a series of instructions that specify how markup elements should appear on a Web page. • Properties: • Separates design elements from structural logic • You get control and maintain the integrity of your data • Reduces HTML complexity • History • Created by HakonWium Lie of MIT in 1994 • Has become the W3C standard for controlling visual presentation of web pages: • 17 dec 1996 CSS1 • 12 may 1998 CSS2 • 19 jul 2007 CSS2.1 • CSS3 on its way • For the purposes of this presentation, I will focus on CSS level 2 specification.

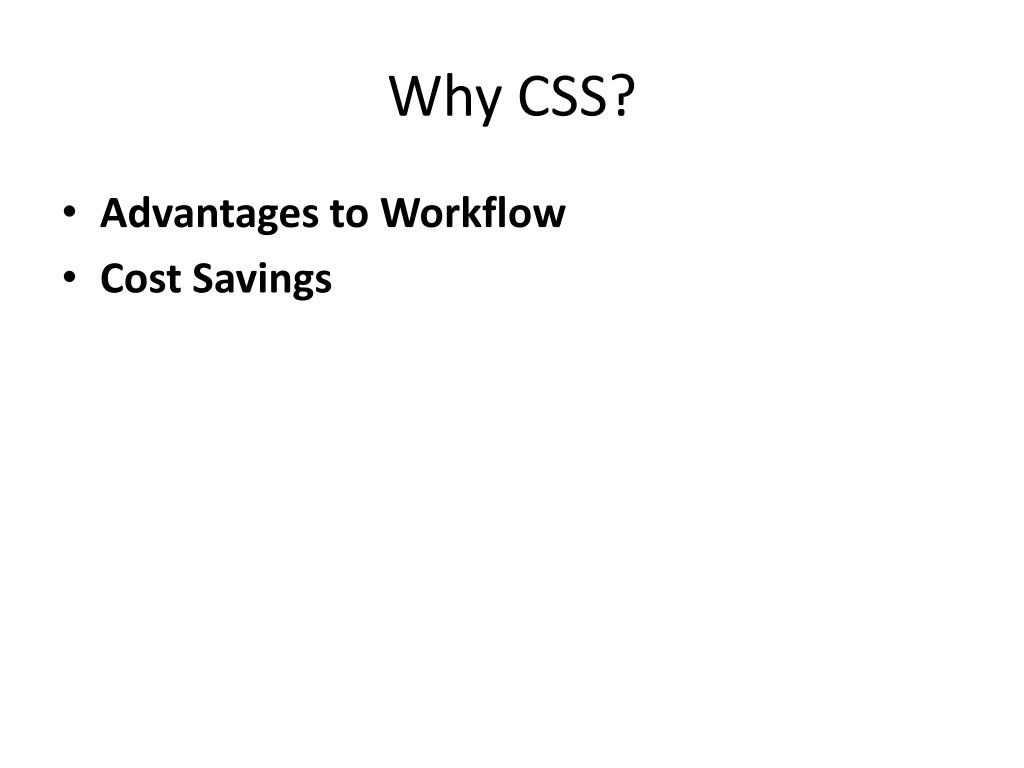

  5. Why CSS? • Advantages to Workflow • Cost Savings

  6. Advantages of CSS • Workflow • Faster downloads • Streamlined site maintenance • Global control of design attributes • Precise control (Advanced) • Positioning • Fluid layouts

  7. Advantages of CSS - Cost Savings • Cost Savings • Reduced Bandwidth Costs • One style sheet called and cached • Higher Search Engine Rankings • Cleaner code is easier for search engines to index • Greater density of indexable content

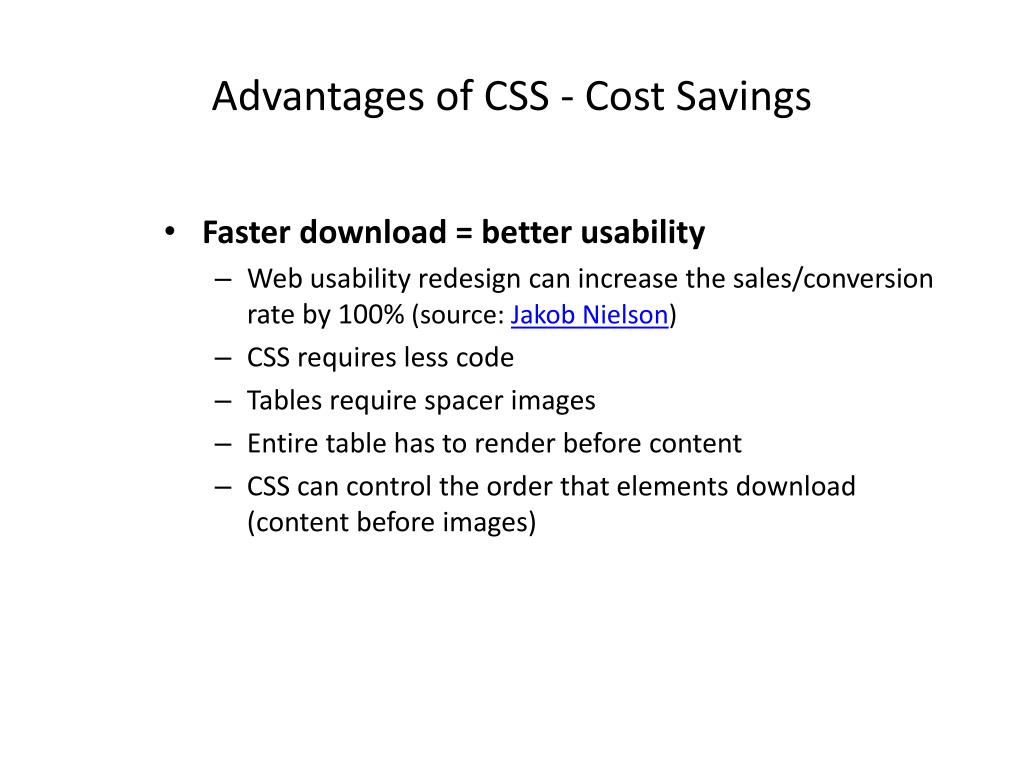

  8. Advantages of CSS - Cost Savings • Faster download = better usability • Web usability redesign can increase the sales/conversion rate by 100% (source: Jakob Nielson) • CSS requires less code • Tables require spacer images • Entire table has to render before content • CSS can control the order that elements download (content before images)

  9. Advantages of CSS - Cost Savings • Increased Reach • CSS website is compatible w/ many different devices • In 2008 an est. 58 Million PDA’s will be sold (Source: eTForecast.com) • 1/3 of the world’s population will own a wireless device by 2010

  10. CSS isn’t perfect (yet) • CSS support in browsers is still uneven • Make sure your CSS properties are supported • Internet Explorer is still not CSS compliant • Some of the areas not supported: • Child selectors • Attribute selectors • Counters

  11. Applying cSS

  12. Linking CSS to your HTML • Embedded style sheets • In the HTML header between <style></style> • Applied for the whole HTML file • External style sheets • Can be applied for multiple HTML files • Element linked style sheets • On location HTML element linking, only applied to the element it is bound to • Similar to the font elements formatting rules • Use the style attribute: <h1 style=“font-size: 20px;”>Intro</h1> • Imported style sheets • In external style sheets multiple style sheets can be linked: • @import url(other.css); • The import has to precede all other CSS elements in the documents

  13. Applying CSS to HTML • Style rules can be applied in 3 ways: Inline Styles: <H1 STYLE=“color: blue; font-size: 20pt;”>A large purple Heading</H1> For individual elements using the STYLE attribute Embedded style sheets: <HTML><HEAD><TITLE>Stylin’!</TITLE> <STYLE TYPE=“text/css”> H1 {color: purple;} P {font-size: 10pt; color: gray;} </STYLE> </HEAD> … </HTML> External style sheets: <HEAD> <LINK REL=stylesheet” TYPE=“text/css” HREF=“styles/mystyles.css”> </HEAD> This is true “separation” of style and content. Keeping all your styles in an external document is simpler

  14. Let’s See Some Code • Sample Style sheet • Rule Structure

  15. Brief overview of the CSS2 syntax Ruleset syntax: selector? '{' S* declaration? [ ';' S* declaration? ]* '}' S* S* = [ \t\r\n\f]+ declaration = property ':' S* value; Example: .uportal-text-small {color : Black;font-family : Verdana, Geneva, Arial, Helvetica;font-size : 10px; } selector declaration property

  16. Selectors • Class Selectors <H1 CLASS=“warning”>Danger!</H1> <P CLASS=“warning”>Be careful…</P> ……. In your HTML code - H1.warning {color: red;} OR to an entire class… .warning {color:red;}

  17. Selectors • Element Selectors – (refer to HTML tags) H1 {color: purple;} H1, H2, P {color: purple;} • Contextual – (refer to HTML, but in context) LI B {color: purple;}

  18. ADVANCED CSS

  19. Selectors & cascading • Selectors are a way to match styles to elements in the document tree • Different types of selectors: • Universal selector • Type selectors • Descendant selectors • Child selectors • Adjacent sibling selectors • Attribute selectors • ID selectors • Pseudo-elements • Pseudo-classes • Spaces matter! • P#myid – selects a P element with id equal to “myid” • P #myid – selects an element with id equal to “myid” that is a descendant of P

  20. Selectors & cascading

  21. Simple example of selection <html> <head> <title>CSS példa</title> <style type="text/css"><!-- h1 { font-size: 20px; color: #a00000; } p { font-size: 12px; color: #00a000; } .fontos { color: #ff0000; } h1.fontos { background: #ffcccc; } #idfontos { color: #ff0000; } --></style> </head><body><h1>Osztály kiválasztás példa</h1><p class="fontos">Ez a bekezdés pirossal fog megjelenni.</p> <p>Ennek a bekezdésnek a betűszíne: #00a000.</p><p class="fontos">Ez szintén piros</p><p>Ez a zöldes árnyalat</p><p>Szintén zöldes árnyalat</p><h1 class="fontos">PIROS!!!</h1><p id=”idfontos">Szintén piros</p></body>

  22. Cascading and Inheritance • When there are multiple rules that could apply to the same element and/or property and media type, sort declarations on (): • Weight (normal, !important) and origin (author, user, user agent)normal: author -> user -> user agent!important: user -> author -> user agentNOTE: user agents supply a “default” style sheet • Selector specificity: more specific selectors have precedence • Order specified: styles specified later in the order have precedence

  23. Imported stylesheet Linked stylesheet STYLE attribute <STYLE> block overrides overrides overrides Cascading and Inheritance • A simplified view of the preceding “formula”:

  24. Logical vs Physical Tags • “Logical” tags convey the structure and semantic information of the document (H1-H6, P, STRONG) • “Physical” tags specify the visual presentation of document elements but do not convey the meaning of the document or its parts (B, U, FONT, BR) • Do not use physical tags to solely describe the visual presentation of content (be mindful of alternative user agents such as speech readers or text-only browsers)

  25. Fonts • Font type - font-family • body { font-family: Arial, Helvetica, sans-serif; } • font-style • body { font-style: italic; } • font-weight • body { font-weight: bold; } • font-size • body { font-size: 14px; } • font • body { font: italic bold 14px Arial, Helvetica, sans- serif; }

  26. Text properties • Color – h1 { color: black; } • Shadow – h1 {text-shadow: 5px 5px 3px #000000; } • Spacing – h1 { letter-spacing: 10px; } • Alignment • h1 { text-align: center; } • .super { vertical-align: super; } • White-space handling – p { white-space: nowrap; } • Word spacing – p { word-spacing: 10px; } • Indentation – p { text-indent: 40px; } • Line height – p { line-height: 20px; } • Transformation – h1 {text-transform: uppercase; }

  27. List handling • For the UL and OL HTML tags • ul { list-style: square inside url(pont.gif) } • ul { list-style-position: inside } • ul { list-style-type: disc } • ul { list-style-image: url(pont.gif) }

  28. Block vs Inline elements • Block-level elements are presented visually as blocks; i.e. they generate a line break before and after themselves (<p>, <ul>, etc) • Can contain other block-level and inline elements • Act as containing blocks for nested elements • All other elements, are inline elements; no line breaks are generated before and after (<span>) • Cannot contain other block-level elements • “Replaced” elements are those that are replaced by the content they point to (<img>, <applet>, etc)

  29. margin padding content border CSS box model Also, see 3D diagram at http://www.hicksdesign.co.uk/journal/3d-css-box-model

  30. Containing & Anonymousblock boxes • Block boxes can serve as containing blocks for child boxes • Note: if a block box has another block box inside it, then they are forced to have only block boxes inside it, by wrapping any inline boxes in an anonymous block box <div> some text <p>paragraph</p> other text</div>

  31. Box properties • Background • background-color: white; • background-image: url(‘hatter.gif’); • backgound-position: top left; • background-attachment: scroll; • background-repeat: repeat; • body { background: white url(hatter.gif) no- repeat fixed center center; } • Margin • p { margin: 0px 1px 2px 3px; } • margin-left: 3px; • margin-top: 0px; • margin-right: 1px; • margin-bottom: 2px; • Border: • p { border: 2px solid blue; } • border-left:1pxsolidred; • border-top:3pxdoubleblue; • border-right:3pxdottedgreen; • border-bottom:3pxdashedblack; • Outline • Does not change the box size • p { outline: 2px solid #000000; } • outline-width:2px; • outline-style:solid; • outline-color:#000000; • Padding • p { padding: 0px 1px 2px 3px; } • padding-left: 3px; • padding-top: 0px; • padding-right: 1px; • padding-bottom: 2px;

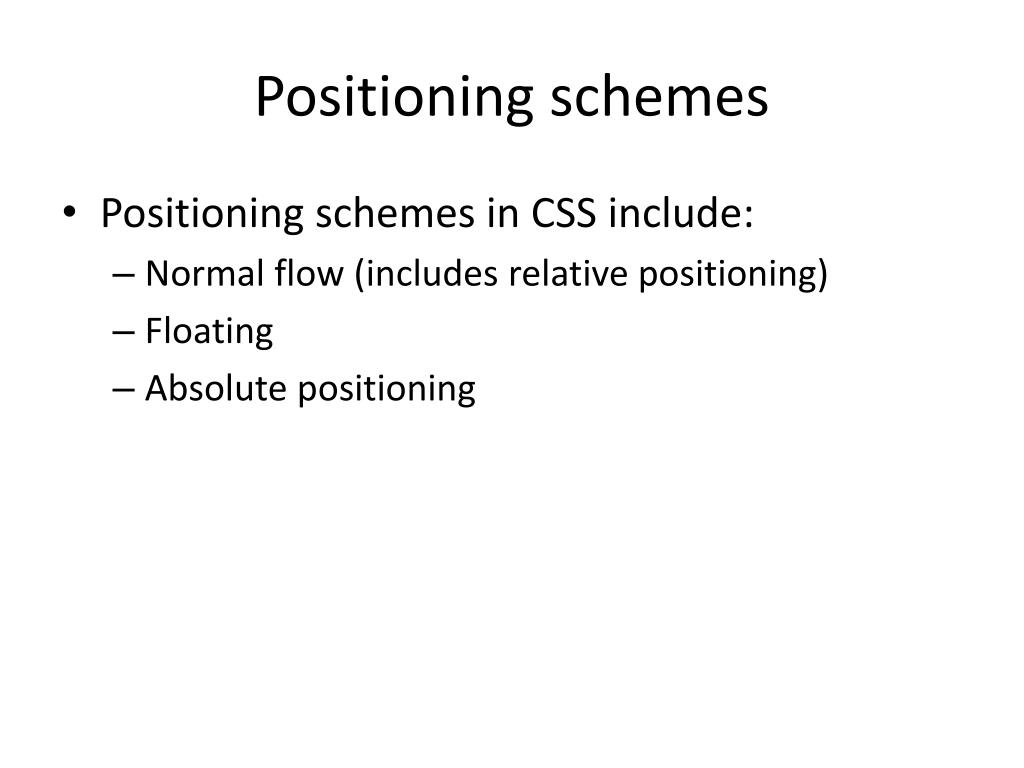

  32. Positioning schemes • Positioning schemes in CSS include: • Normal flow (includes relative positioning) • Floating • Absolute positioning

  33. Floating • float property allows element boxes to be shifted to the right or left on the current line • Floated boxes are block boxes • Floated boxes are “pulled out” of the normal flow and repositioned • Must have explicit width • May overlap other boxes • clear property specifies which side(s) of an element should NOT be adjacent to a floating box that is specified earlier in the document

  34. Relative and AbsolutePositioning • position property: • static – box is positioned according to normal flow • relative – box is positioned relative to where it would have been placed in the normal flow • absolute – box is positioned relative to its containing block; these boxes are taken out of flow • fixed – box is fixed in relation to the viewport (a browser window or a printed page) • z-index property: • #message { z-index: 1; } • 0 by default • Bigger values result in overlapping contents placed in the same position

  35. Element presentation • display property controls what type of box is generated for an element • Visibility: visible|hidden|collapse • Values: inline | block | list-item | run-in | compact | marker | table | inline-table | table-row-group | table-header-group | table-footer-group | table-row | table-column-group | table-column | table-cell | table-caption | none | inherit

  36. Generated content • CSS allows authors to generate content that is not part of the document tree using the following entities: • :before pseudo-element • :after pseudo-element • content property

  37. Unit specifiers • Dimensions: • Relative: px, em, ex are all specified in percentages • px: dependent on the display • em: typographical size • 1em the size of the normal text in the system • Default: 16px • ex: the height of the small „x” in the current font – around half the size of em: 1em~=2ex • Relative sizes could decrease when inherited • Absolute: mm, in, cm, pt, pc • Always result in the same size when displayed • pt: dot = 1/72 inch • pc: pica = 12 dot = 12/72 inch = 1/6 inch • Colors • Named: red, green, blue, aqua, ... • RGB component based: • Hexadecimal notation • #RRGGBB • #000000 – black • #FF0000 – red • #FFFFFF – white • Decimal notation: • rgb(r,g,b) • rgb(0,255,0) – green • Percentage notation: • rgb(r%,g%,b%) • rgb(0%,0%,100%) - blue

  38. Inheritance • Inheritable and non inheritable properties are defined for every html element • Use inherit property to ensure inheritance • For HTTP links: • Inherited properties: • E.g. font-family, font-size • Non inherited properties: • font-color, font-decoration

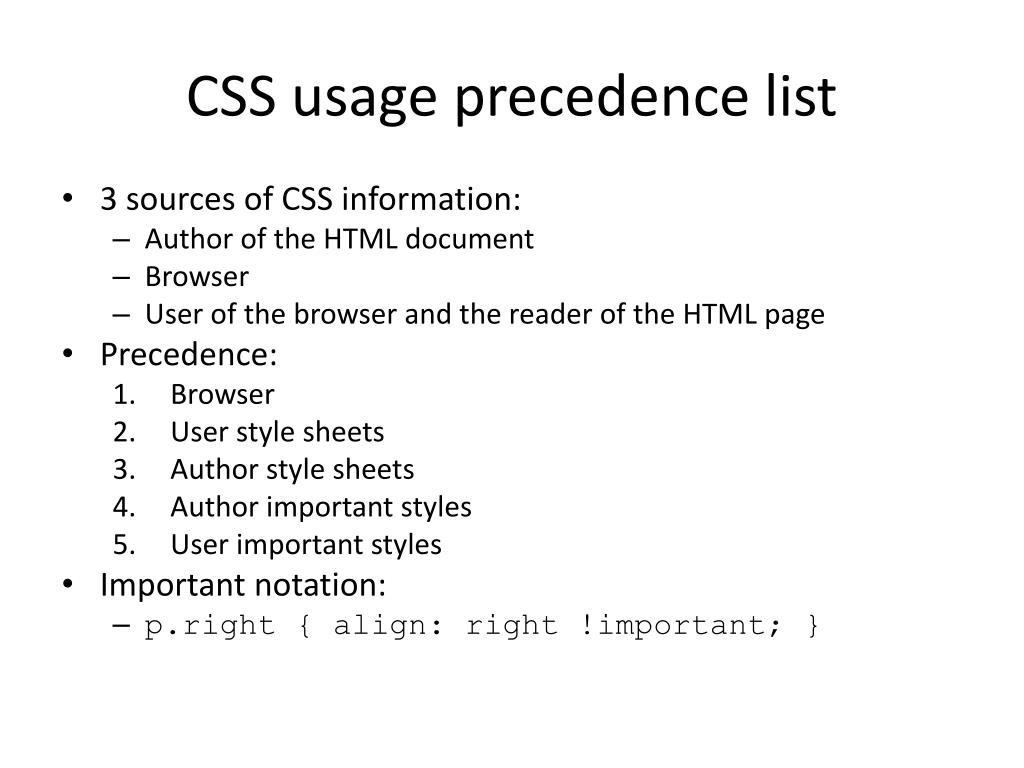

  39. CSS usage precedence list • 3 sources of CSS information: • Author of the HTML document • Browser • User of the browser and the reader of the HTML page • Precedence: • Browser • User style sheets • Author style sheets • Author important styles • User important styles • Important notation: • p.right { align: right !important; }

  40. Useful CSS resources • http://www.w3.org/TR/REC-CSS2/ • http://www.yourhtmlsource.com/stylesheets • http://meyerweb.com/eric/css/ • http://webtips.dantobias.com/logical.html • http://www.bigbaer.com/css_tutorials/css.float.html.tutorial.htm • http://www.w3.org/2005/Talks/11-steven-css-advanced/ • http://www.hicksdesign.co.uk/journal/3d-css-box-model • http://greystate.dk/resources/css-boxmodel/ • http://www.csszengarden.com/?cssfile=062/062.css • http://www.w3schools.com/css/ • http://webmonkey.wired.com/webmonkey/reference/stylesheet_guide • http://css.maxdesign.com.au/
