HSPF Interface Data Model. Nate Johnson CE394K.3 GIS in Water Resources Final Presentation. ArcHydro – HSPF Interface Data Model. Context. Interface Data Models link external models through ArcHydro. HSPF Hydrologic Simulation Program in Fortran.

yakov
Télécharger la présentation

HSPF Interface Data Model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. HSPF Interface Data Model Nate Johnson CE394K.3 GIS in Water Resources Final Presentation

  2. ArcHydro – HSPF Interface Data Model Context • Interface Data Models link external models through ArcHydro HSPF Hydrologic Simulation Program in Fortran Watershed model for rainfall response

  3. HSPF structure Focus on Timeseries ArcHydro – HSPF Interface Data Model Scope • Some models have complete interface developed HSPF is very complex… much too complex for a semester project

  4. MYPROJECT ArcHydro – HSPF Interface Data Model TimeSeries Interface OBJECTIVE:Investigate the potential of ArcHydro to store time series information from HSPF HSPF TimeSeries ArcHydro TimeSeries

  5. Input TimeSeries Precipitation TimeSeries Exchange Output TimeSeries Flow, Groundwater ArcHydro – HSPF Interface Data Model HSPF Brief 3 Main parts of HSPF model PERLND IMPLND RCHRES To ArcHydro…

  6. Watersheds Time Series Rivers ArcHydro – HSPF Interface Data Model HSPF - Interface • Conceptual model in UML (Unified Modeling Language)for interface TSTypeTable HydroJunction

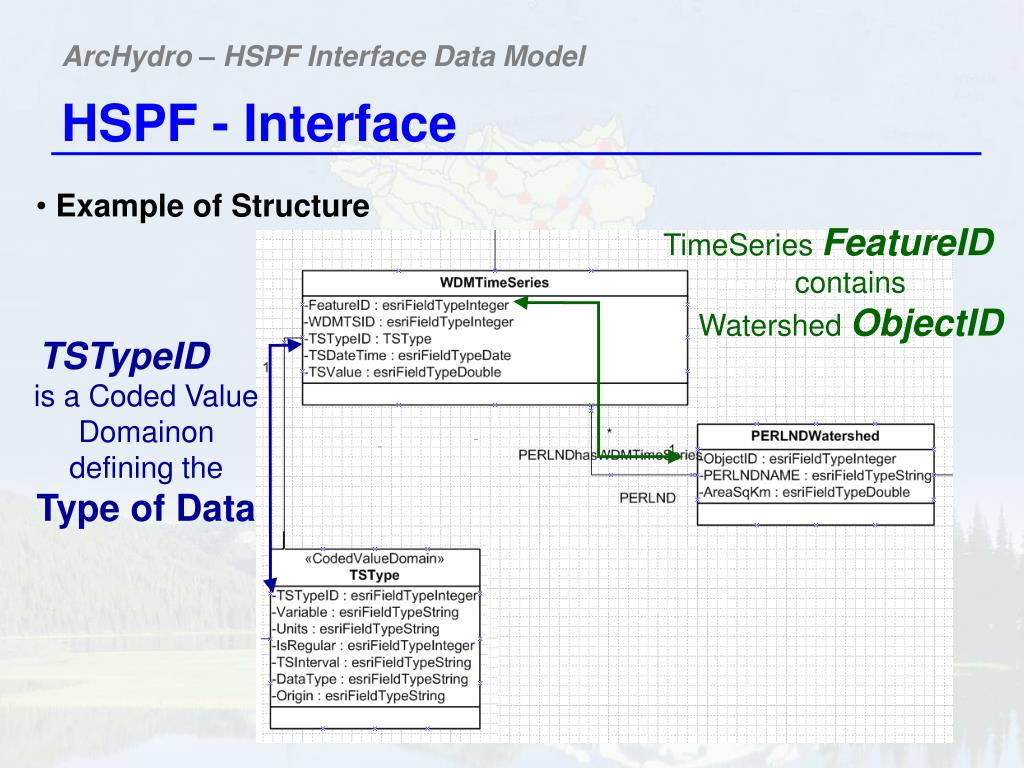

  7. ArcHydro – HSPF Interface Data Model HSPF - Interface • Example of Structure TimeSeries FeatureIDcontainsWatershedObjectID TSTypeIDis a Coded Value Domainon defining the Type of Data
