1. Turbulence and surface-layer parameterizations for mesoscale models Dmitrii V. Mironov German Weather Service, Offenbach am Main, Germany (dmitrii.mironov@dwd.de) Croatian - USA Workshop on Mesometeorology, Ekopark Kraš Resort near Zagreb, Croatia. 18-20 June 2012.

2. Outline • Budget equations for the second-order turbulence moments • Parameterizations (closure assumptions) of the dissipation, third-order transport, and pressure scrambling • A hierarchy of truncated second-order closures – simplicity vs. physical realism • The surface layer • Effects of water vapour and clouds • Stably stratified PBL over temperature-heterogeneous surface – LES and prospects for improving parameterizations • Conclusions and outlook Croatian - USA Workshop on Mesometeorology, Ekopark Kraš Resort near Zagreb, Croatia. 18-20 June 2012.

3. References Mironov, D. V., 2009: Turbulence in the lower troposphere: second-order closure and mass-flux modelling frameworks. Interdisciplinary Aspects of Turbulence, Lect. Notes Phys., 756, W. Hillebrandt and F. Kupka, Eds., Springer-Verlag, Berlin, Heidelberg, 161-221. doi: 10.1007/978-3-540-78961-1 5) Croatian - USA Workshop on Mesometeorology, Ekopark Kraš Resort near Zagreb, Croatia. 18-20 June 2012.

4. Recall a Trivial Fact … Transport equation for a generic quantity f Split the sub-grid scale (SGS) flux divergence Convection (quasi-organised) mass-flux closure Turbulence (quasi-random) ensemble-mean closure

5. Energy Density Spectrum Quasi-organized motions (mass-flux schemes) Quasi-random motions (turbulence closure schemes) ln(E) Resolved scales (-1 is effectively a mesh size) Viscous dissipation Sub-grid scales -1 -1 ln(k) Cut-off at very high resolution (LES, DNS)

6. Second-Moment Budget Equations Reynolds stress Temperature (heat) flux Temperature variance

7. Second-Moment Budget Equations (cont’d) Turbulence kinetic energy (TKE) (Monin and Yaglom 1971)

8. Physical Meaning of Terms Time-rate-of-change, advection by mean velocity Mean-gradient production/destruction Coriolis effects Buoyancy production/destruction) Viscous dissipation Pressure scrambling Third-order transport (diffusion)

9. Closure Assumptions: Dissipation Rates Transport equation for the TKE dissipation rate Simplified (heavily parameterized) ε-equation

10. Closure Assumptions: Dissipation Rates (cont’d) Algebraic diagnostic formulations (Kolmogorov 1941) Closures are required for the dissipation time or length scales!

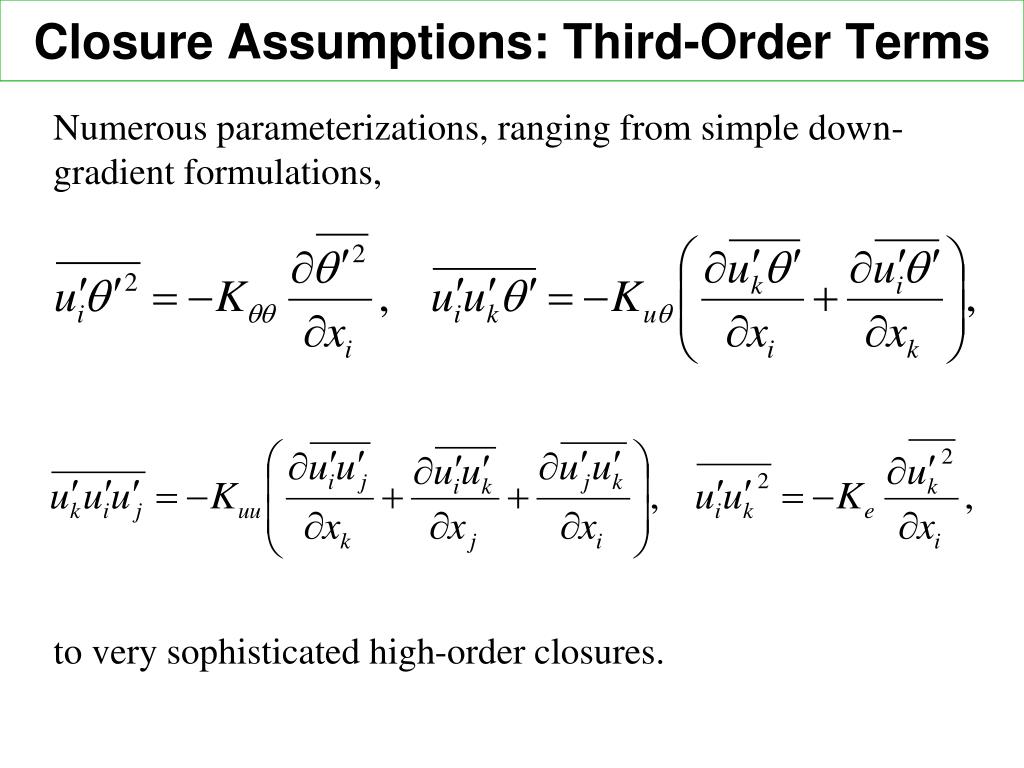

11. Closure Assumptions: Third-Order Terms Numerous parameterizations, ranging from simple down-gradient formulations, to very sophisticated high-order closures.

12. Closure Assumptions: Third-Order Terms (cont’d) An “advanced” model of third-order terms (e.g. Canuto et al. 1994) • take transport equations for all (!) third-order moments involved, • neglect /t and advection terms, • use linear parameterizations for the dissipation and the pressure scrambling terms, • use Millionshchikov (1941) quasi-Gaussian approximation for the forth-order moments, The results is a very complex model (set of sophisticated algebraic relations) that still has many shortcomings.

13. Skewness-Dependent Parameterization of Third-Order Transport Non-gradient term (advection) Down-gradient term (diffusion) Accounts for non-local transport due to coherent structures, e.g. convective plumes or rolls – mass-flux ideas! (Gryanik and Hartmann 2002)

14. Skewness-Dependent Parameterization of Third-Order Transport (cont’d) Plume/roll scale “advection” velocity

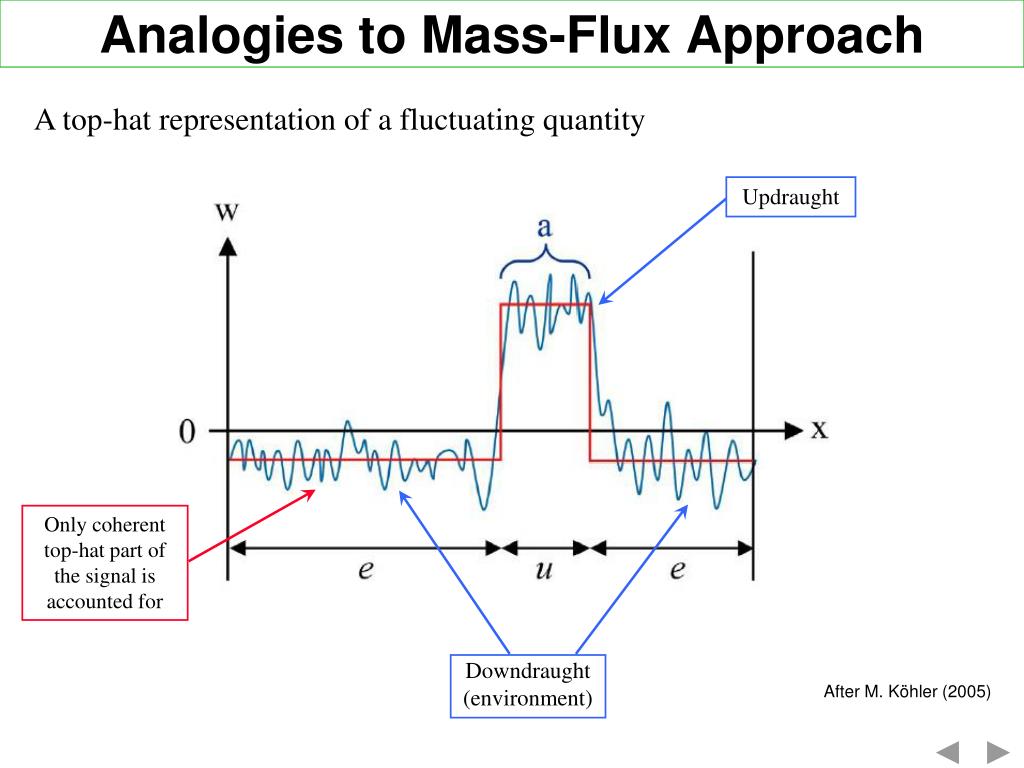

15. A top-hat representation of a fluctuating quantity Analogies to Mass-Flux Approach Updraught Only coherent top-hat part of the signal is accounted for Downdraught (environment) After M. Köhler (2005)

16. Closure Assumptions: Pressure Scrambling Transport equation for the Reynolds stress Transport equation for the temperature (heat) flux For later use we denote the above pressure terms by ij and i

17. Temperature Flux Budget in Boundary-Layer Convection Budget of <u’3’> in the surface buoyancy flux driven convective boundary layer that grows into a stably stratified fluid. The budget terms are estimated on the basis of LES data (Mironov 2001). Red – mean-gradient production/destruction <u’3’><>/x3, green – third-order transport –<u’3u’3’>/x3, black – buoyancy g3<’2>, blue – pressure gradient-temperature covariance <’ p’/x3>. The budget terms are made dimensionless with the Deardorff (1970) convective scales of depth, velocity and temperature. Pressure term Convection with rotation Free convection

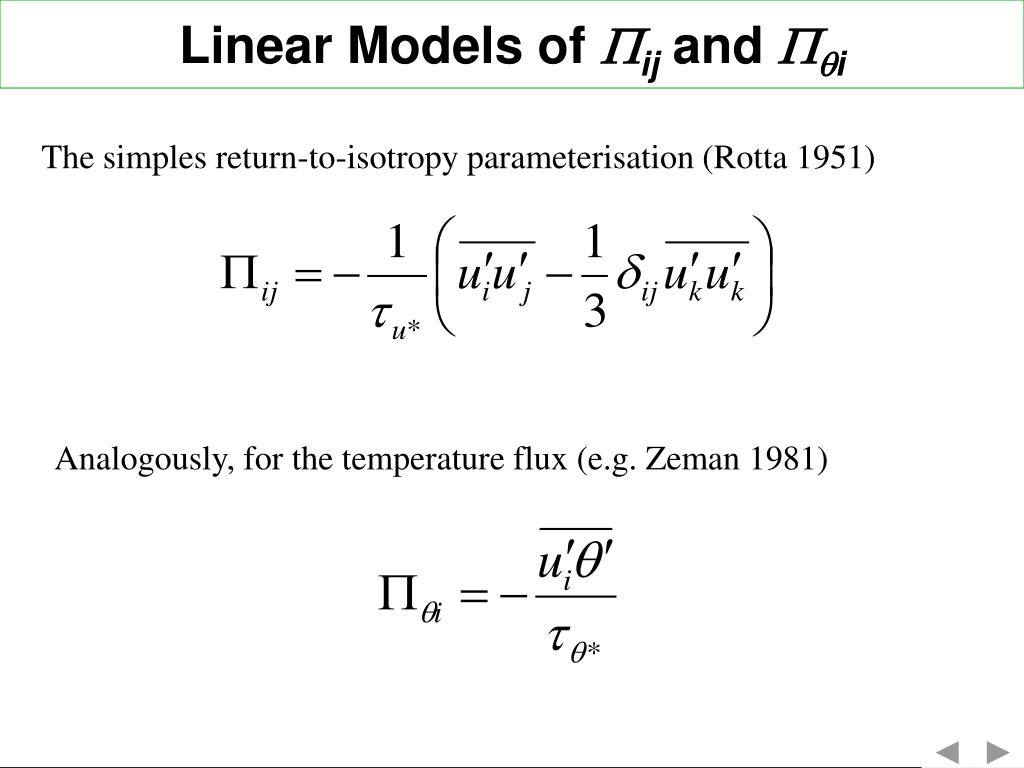

18. The simples return-to-isotropy parameterisation (Rotta 1951) Linear Models of ij and i Analogously, for the temperature flux (e.g. Zeman 1981)

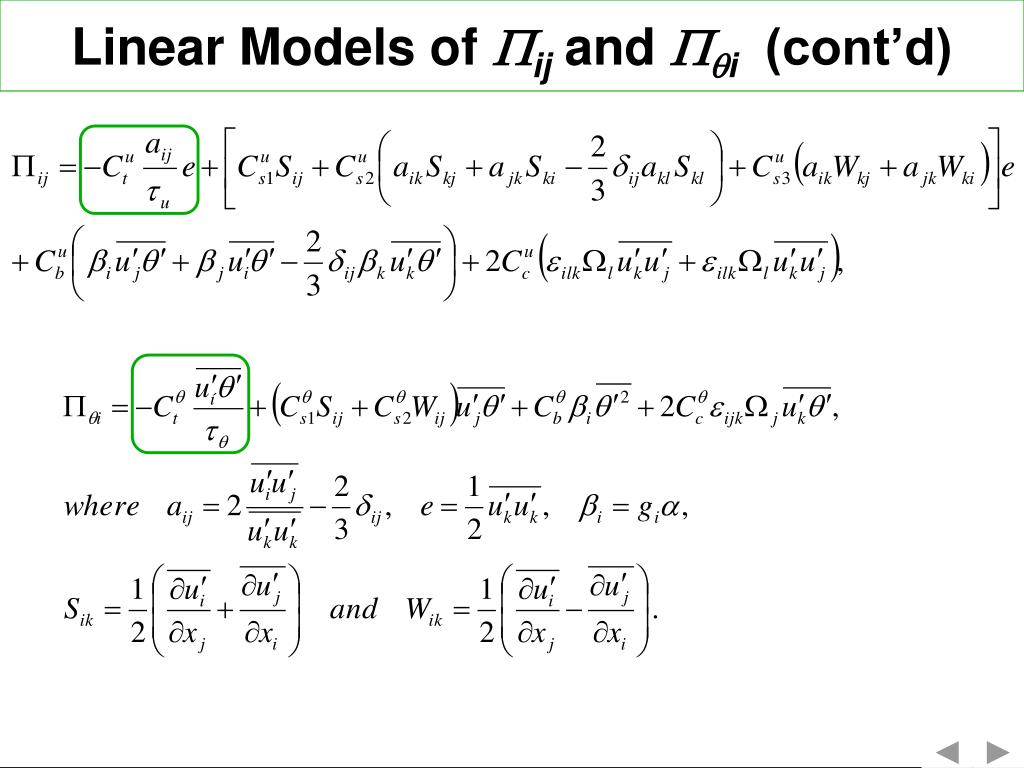

19. Linear Models of ij and i (cont’d)

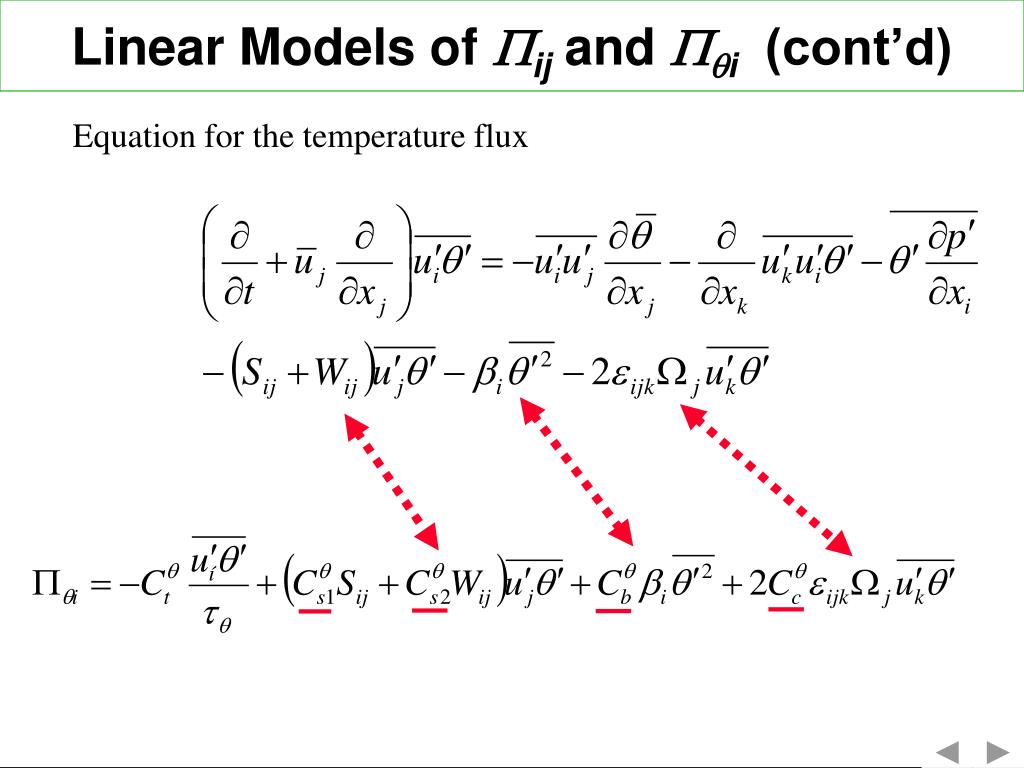

20. Linear Models of ij and i (cont’d) Equation for the temperature flux

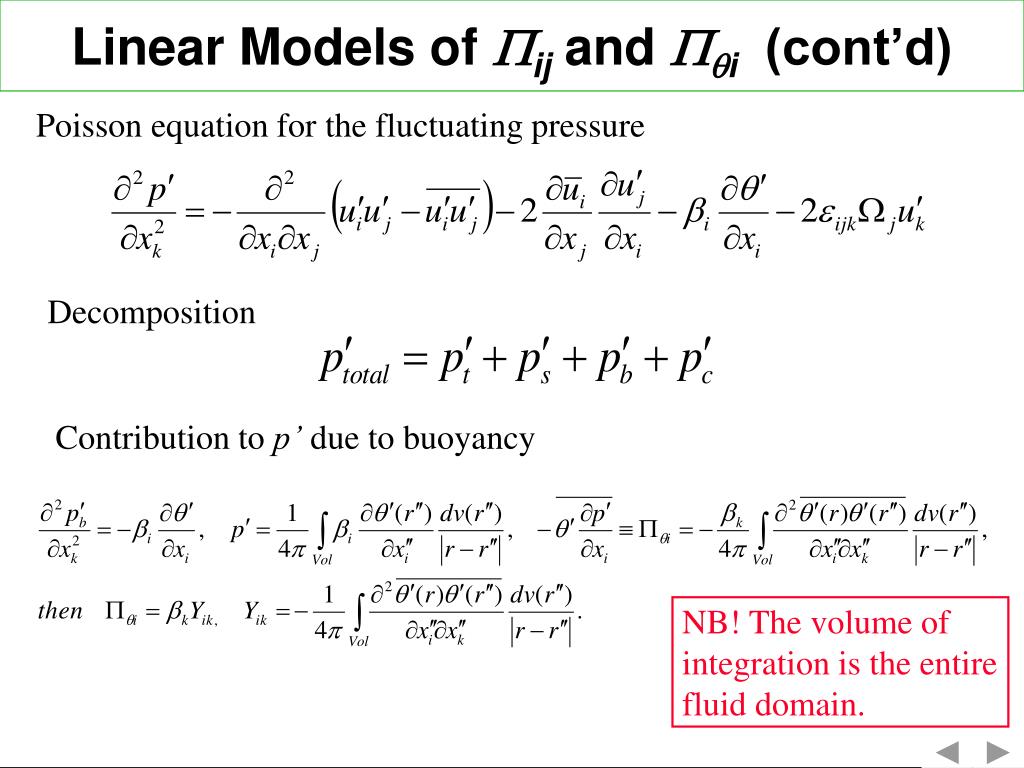

21. Poisson equation for the fluctuating pressure Linear Models of ij and i (cont’d) Decomposition Contribution to p’ due to buoyancy NB! The volume of integration is the entire fluid domain.

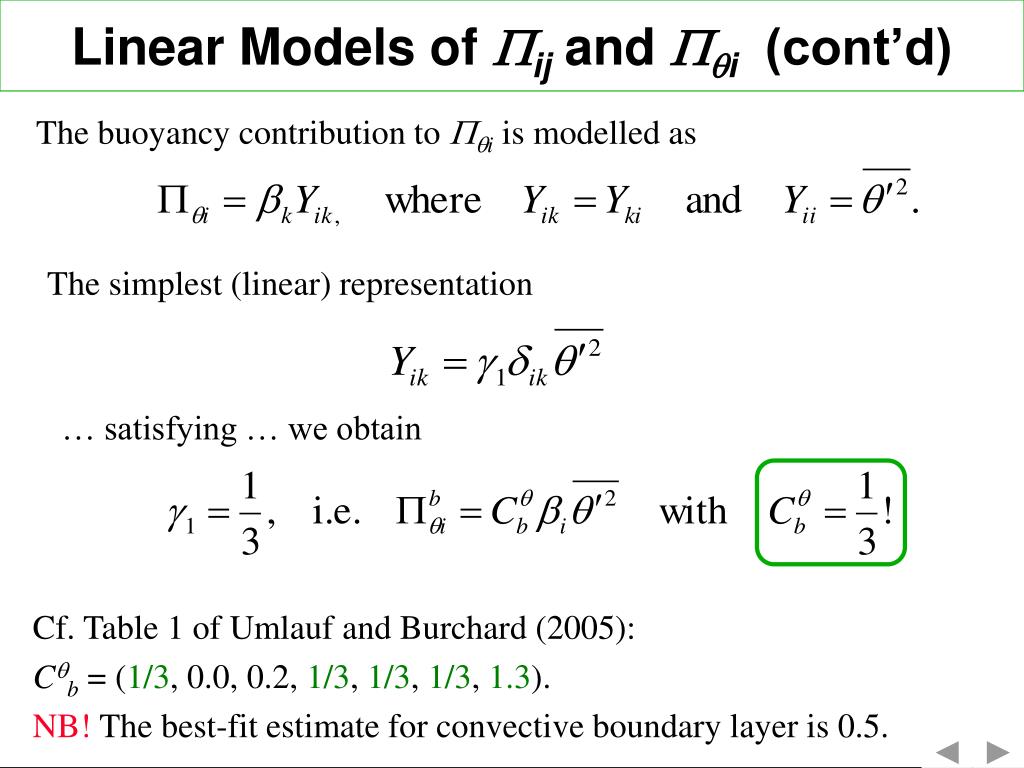

22. The buoyancy contribution to i is modelled as Linear Models of ij and i (cont’d) The simplest (linear) representation … satisfying … we obtain Cf. Table 1 of Umlauf and Burchard (2005): Cb = (1/3, 0.0, 0.2, 1/3, 1/3, 1/3, 1.3). NB! The best-fit estimate for convective boundary layer is 0.5.

23. Similarly for the buoyancy contribution to ij (Reynolds stress equation) Linear Models of ij and i (cont’d) … satisfying … we obtain Table 1 of Umlauf and Burchard (2005): Cub = (0.5, 0.0, 0.0, 0.5, 0.4, 0.495, 0.5). 3/10?

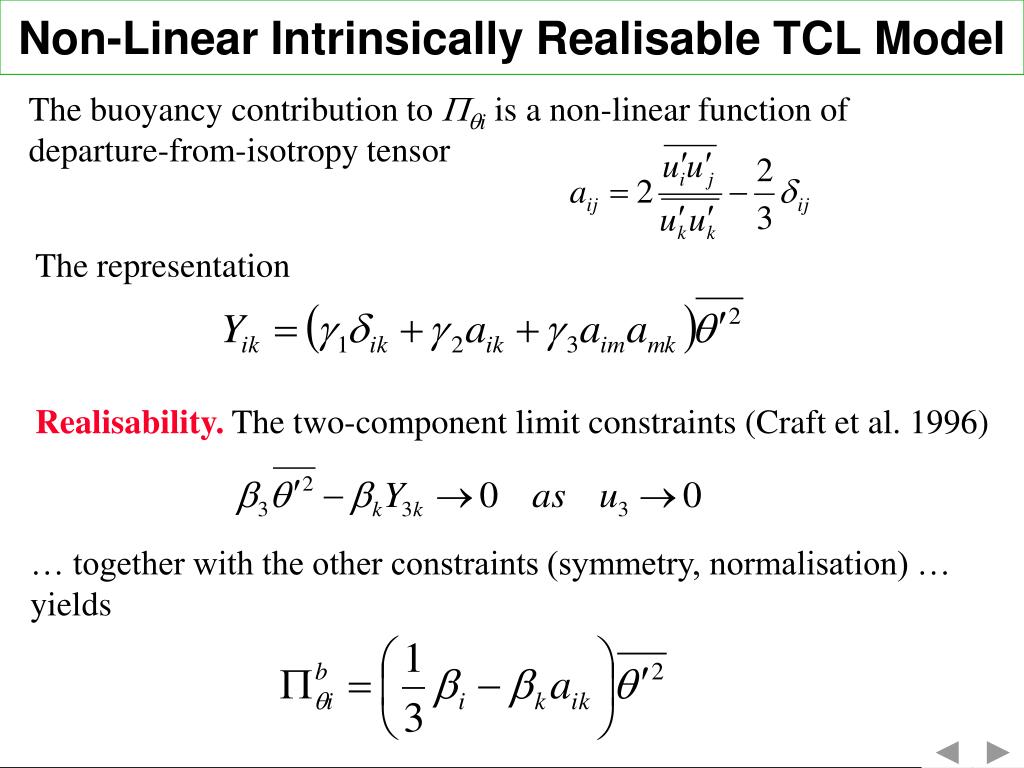

24. The buoyancy contribution to i is a non-linear function of departure-from-isotropy tensor Non-Linear Intrinsically Realisable TCL Model The representation Realisability. The two-component limit constraints (Craft et al. 1996) … together with the other constraints (symmetry, normalisation) … yields

25. Models of i against data Buoyancy contribution to i in convective boundary-layer flows (Mironov 2001). Short-dashed – LES data, solid – linear model with Cb=0.5, long-dashed – non-linear TCL model (Craft et al. 1996). 3 is scaled with the Deardorff (1970) convective scales of depth, velocity and temperature. TCL model (sophisticated and physically plausible) still does not perform well in some important regimes.

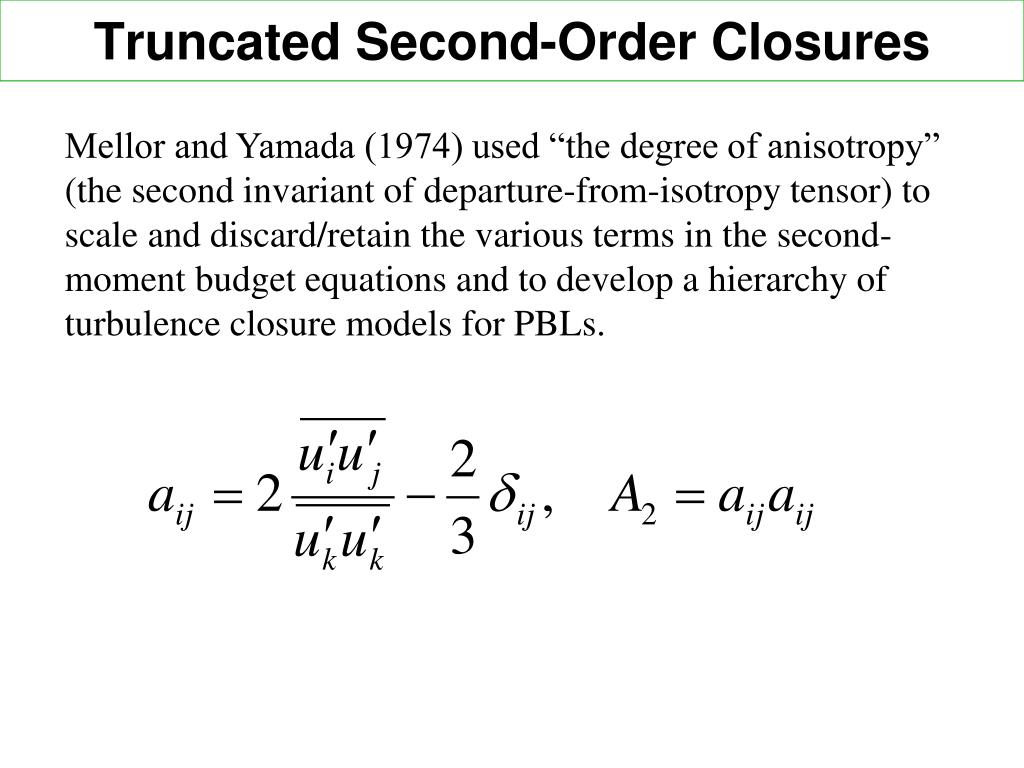

26. Truncated Second-Order Closures Mellor and Yamada (1974) used “the degree of anisotropy” (the second invariant of departure-from-isotropy tensor) to scale and discard/retain the various terms in the second-moment budget equations and to develop a hierarchy of turbulence closure models for PBLs.

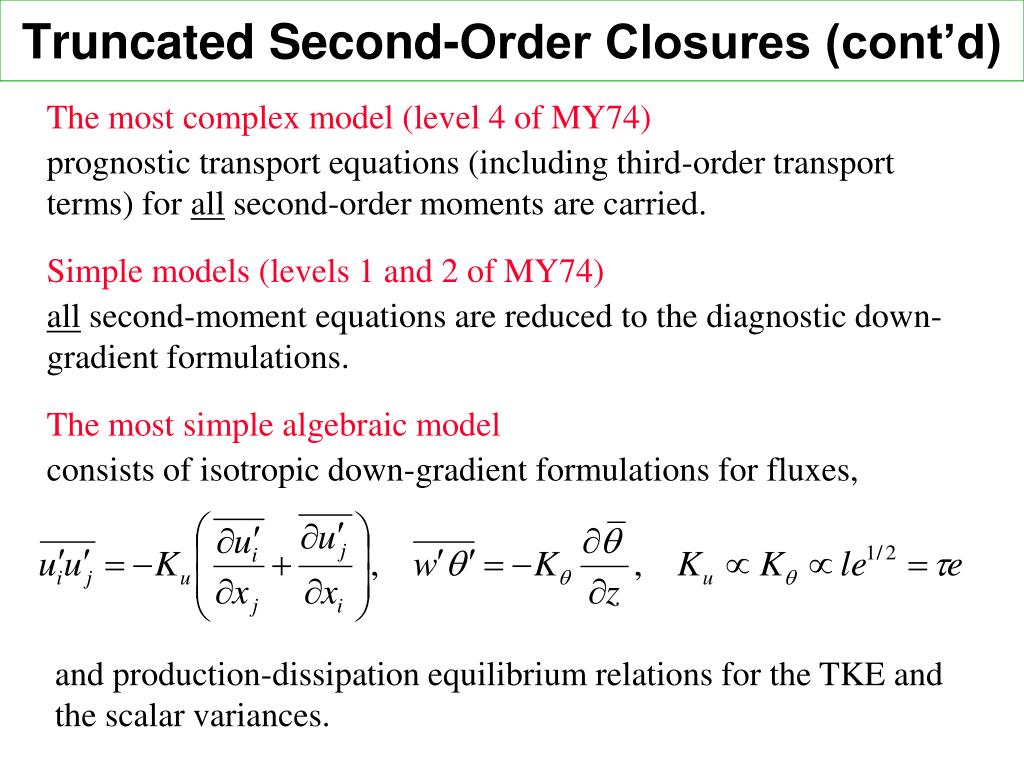

27. Truncated Second-Order Closures (cont’d) The most complex model (level 4 of MY74) prognostic transport equations (including third-order transport terms) for all second-order moments are carried. Simple models (levels 1 and 2 of MY74) all second-moment equations are reduced to the diagnostic down-gradient formulations. The most simple algebraic model consists of isotropic down-gradient formulations for fluxes, and production-dissipation equilibrium relations for the TKE and the scalar variances.

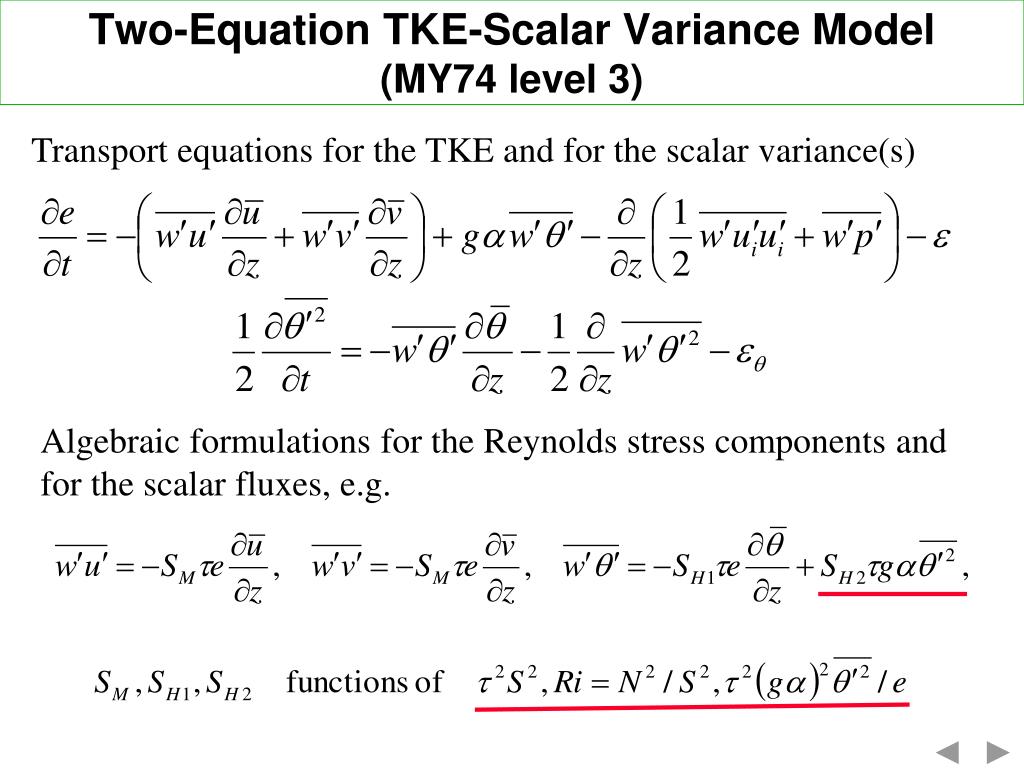

28. Two-Equation TKE-Scalar Variance Model (MY74 level 3) Transport equations for the TKE and for the scalar variance(s) Algebraic formulations for the Reynolds stress components and for the scalar fluxes, e.g.

29. One-Equation TKE Model (MY74 level 2.5) Transport equation for the TKE Diagnostic formulation(s) for the scalar variance(s) Algebraic formulations for the Reynolds stress components and for the scalar fluxes, e.g.

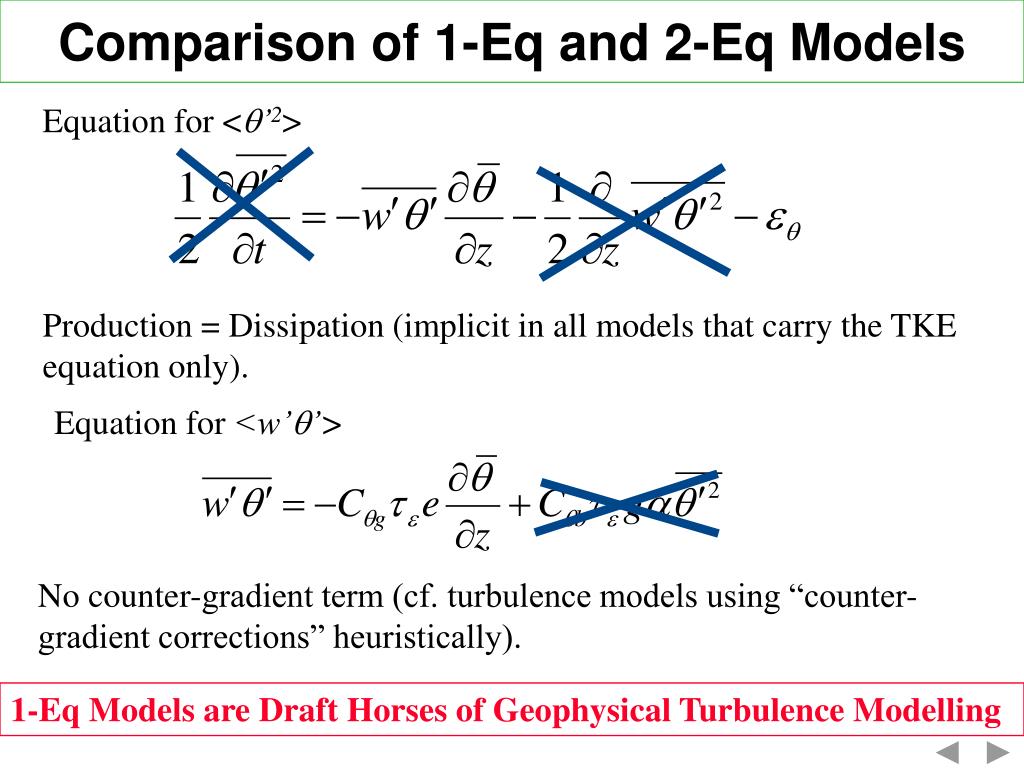

30. Comparison of 1-Eq and 2-Eq Models Equation for <’2> Production = Dissipation (implicit in all models that carry the TKE equation only). Equation for <w’’> No counter-gradient term (cf. turbulence models using “counter-gradient corrections” heuristically). 1-Eq Models are Draft Horses of Geophysical Turbulence Modelling

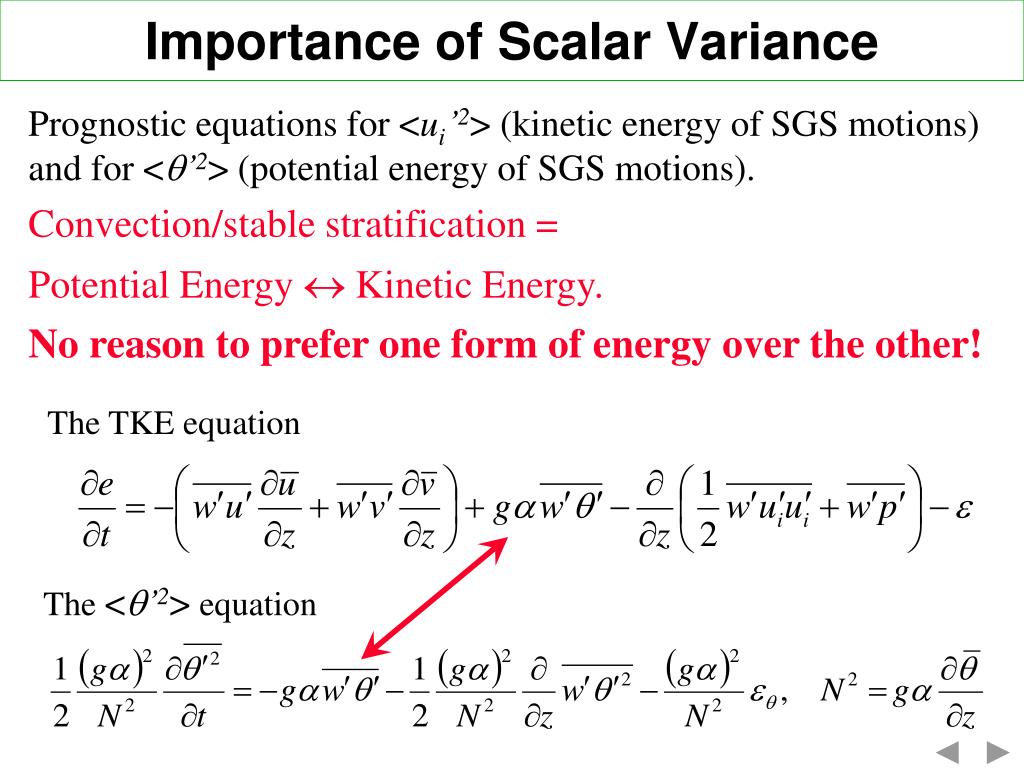

31. Importance of Scalar Variance Prognostic equations for <ui’2> (kinetic energy of SGS motions) and for <’2> (potential energy of SGS motions). Convection/stable stratification = Potential Energy  Kinetic Energy. No reason to prefer one form of energy over the other! The TKE equation The <’2> equation

32. Exercise Given transport equation for the temperature flux, make simplifications and invoke closure assumptions to derive a down-gradient approximation for the temperature flux, (Hint: the dimensions of Kθ is m2/s.)

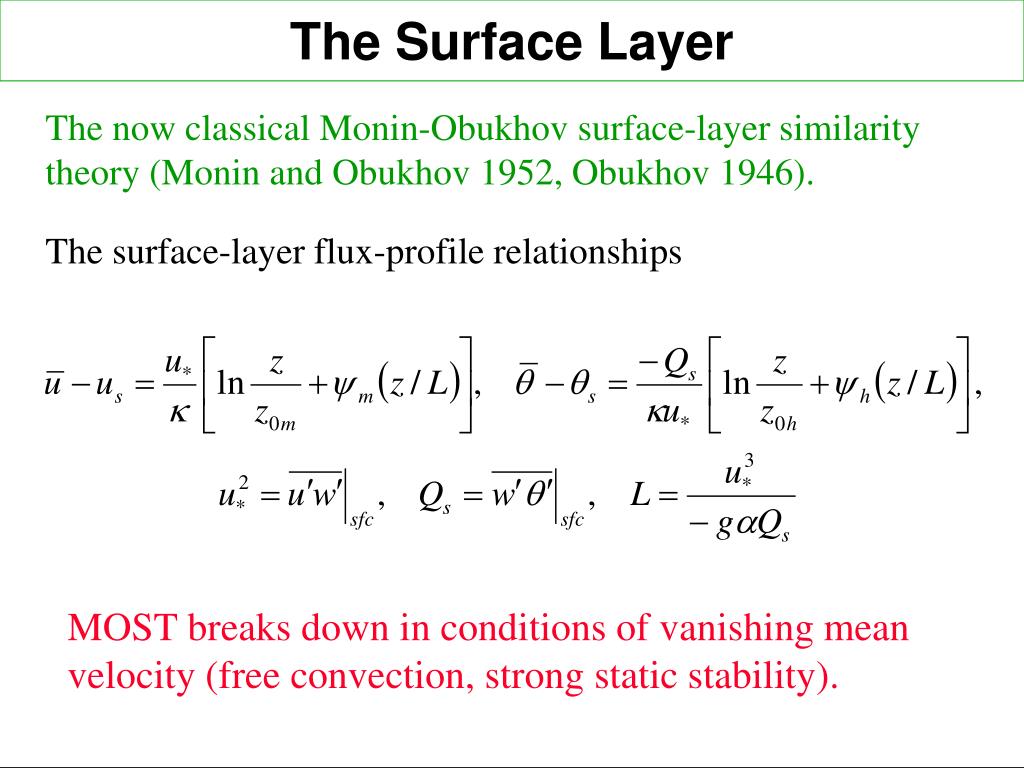

33. The Surface Layer The now classical Monin-Obukhov surface-layer similarity theory (Monin and Obukhov 1952, Obukhov 1946). The surface-layer flux-profile relationships MOST breaks down in conditions of vanishing mean velocity (free convection, strong static stability).

34. The Surface Layer (cont’d) • The MO flux-profile relationships are consistent with the second-moment budget equations. In essence, they represent the second-moment budgets truncated under the surface-layer similarity-theory assumptions • turbulence is continuous, stationary and horizontally-homogeneous, • third-order turbulent transport is negligible, and • changes of fluxes over the surface layer are small as compared to their changes over the entire PBL.

35. Effects of Water Vapour and Clouds Quasi-conservative variables Virtual potential temperature is defined with due regard for the water loading

36. Turbulence and Clouds Neglect SGS fluctuations of temperature and humidity, all-or-nothing scheme qt qt no clouds, C = 0 C = 1 x x Δx Δx Account for humidity fluctuations only Account for temperature and humidity fluctuations qt qt x x Cloud cover 0<C<1, although the grid box is unsaturated in the mean

37. Turbulence and Clouds (cont’d) If PDF of s is known, then cloud cover, cloud condensate = integral over supersaturated part of PDF cloud cover cloud condensate However, PDF is generally not known! SGS statistical cloud schemes assume a functional form of PDF with a small number of parameters. Input parameters (moments predicted by turbulence scheme) → Assumed PDF → Diagnostic estimates of C, , etc. after Tompkins (2002)

38. Turbulence and Clouds (cont’d) Buoyancy flux (a source of TKE), is expressed through quasi-conservative variables, where Aθ and Aq are functions of mean state and cloud cover Aθ = Aθ(C, mean state) Aq = Aq (C, mean state) functional form depends on assumed PDF Aqis of order 200for cloud-free air, but ≈ 800 ÷ 1000 within clouds! Clouds-turbulence coupling: clouds affect buoyancy production of TKE, turbulence affect fractional cloud cover (where accurate prediction of scalar variances is particularly important).

39. LES of Stably Stratified PBL (SBL) • Traditional PBL (surface layer) models do not account for many SBL features (static stability increases  turbulence is quenched  sensible and latent heat fluxes are zero  radiation equilibrium at the surface  too low surface temperature) • No comprehensive account of second-moment budgets in SBL • Poor understanding of the role of horizontal heterogeneity in maintenance of turbulent fluxes (hence no physically sound parameterization) • LES of SBL over horizontally-homogeneous vs. horizontally-heterogeneous surface [the surface cooling rate varies sinusoidally in the streamwise direction such that the horizontal-mean surface temperature is the same as in the homogeneous cases, cf. GABLS, Stoll and Porté-Agel (2009)] • Mean fields, second-order and third-order moments • Budgets of velocity and temperature variance and of temperature flux with due regard for SGS contributions (important in SBL even at high resolution) (Mironov and Sullivan 2010, 2012)

40. Surface Temperature in Homogeneous and Heterogeneous Cases s s1 s = (s1+ s2) homogeneous case heterogeneous case s2 time 8h sampling 9.75h y s1 cold stripe + s x  warm stripe s2

41. Mean Potential Temperature Blue – homogeneous SBL, red – heterogeneous SBL. cf. Stoll and Porté-Agel (2009)

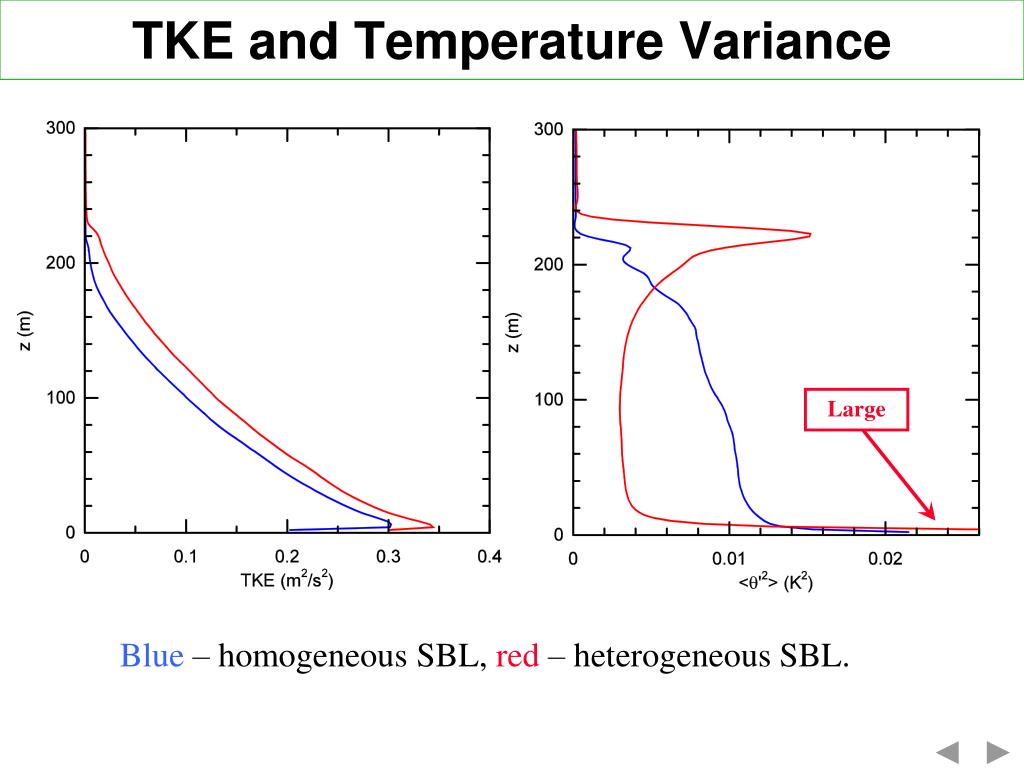

42. TKE and Temperature Variance Blue – homogeneous SBL, red – heterogeneous SBL. Large

43. TKE Budget Left panel – homogeneous SBL, right panel – heterogeneous SBL. Red– shear production, blue – dissipation, black – buoyancy destruction, green – third-order transport, thin dotted black – tendency . Decreased in magnitude

44. Temperature Variance Budget Left panel – homogeneous SBL, right panel – heterogeneous SBL. Red – mean-gradient production/destruction, blue – dissipation, green – third-order transport, black (thin dotted) – tendency . Net source

45. Key Point: Third-Order Transport of Temperature Variance LES estimate of <w’’2> (resolved plus SGS) In heterogeneous SBL, the third-order transport of temperature variance is non-zero at the surface Surface temperature variations modulate local static stability and hence the surface heat flux  net production/destruction of <’2> due to divergence of third-order transport term!

46. Third-Order Transport of Temperature Variance s1 s x s2 z z a s1 s2 a

47. Enhanced Mixing in Horizontally-Heterogeneous SBL An Explanation increased <’2> near the surface  reduced magnitude of downward heat flux  less work against the gravity  increased TKE  stronger mixing Decreased (in magnitude) Increased Increased downward upward

48. In order to describe enhanced mixing in heterogeneous SBL, an increased <’2> at the surface should be accounted for. Elegant way: modify the surface-layer flux-profile relationships. Difficult – not for nothing are the Monin-Obukhov surface-layer similarity relations used for more than 1/2 a century without any noticeable modification! Less elegant way: use a tile approach, where several parts with different surface temperatures are considered within an atmospheric model grid box. Can We Improve SBL Parameterisations?

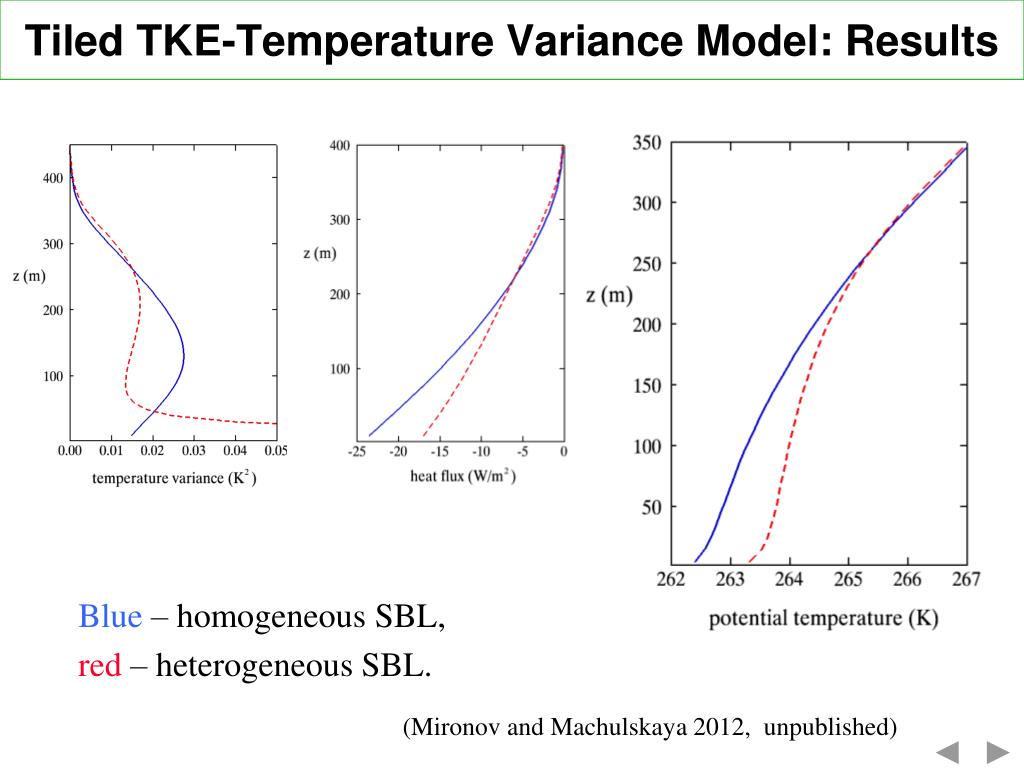

49. Tiled TKE-Temperature Variance Model: Results Blue – homogeneous SBL, red – heterogeneous SBL. (Mironov and Machulskaya 2012, unpublished)

50. Conclusions and Outlook • Only a small fraction of what is currently known about geophysical turbulence is actually used in applications … but we can do better • Beware of limits of applicability! • TKE-Scalar Variance turbulence scheme offers considerable prospects (IMHO) • Improved models of pressure terms • Interaction of clouds with skewed and anisotropic turbulence • PBLs over heterogeneous surfaces Croatian - USA Workshop on Mesometeorology, Ekopark Kraš Resort near Zagreb, Croatia. 18-20 June 2012.
