  1. Microsoft Robotics Developer Studio

  2. Before we start • MSRDS installed ? • OK with Bluetooth? Slides: http://myweb.caece.net/allelujahnissin/091121.ppt Program: http://myweb.caece.net/allelujahnissin/091121.rar

  3. Introduction of MSRDS

  4. NXC NXT-G 程式介面 適用年齡 取得方式 支援其他感應器 上手難易 功能性 除錯 文字式（BrixCC） 12歲以上 免費下載 http://bricxcc.sourceforge.net/ 有 有一定門檻 強大 常常需要 圖像式 8歲以上 依產品附上 有 簡單 中等 幾乎不用 NXC與NXT-G比較

  5. Programming environment 圖像化 文字式 • NXT-G • MicroSoft • Robotic Developer Studio • National Instruments • LabVIEW NXT toolkit NXC RobotC Java Others: PbLua, php…

  6. VPL Environment

  7. Data flow

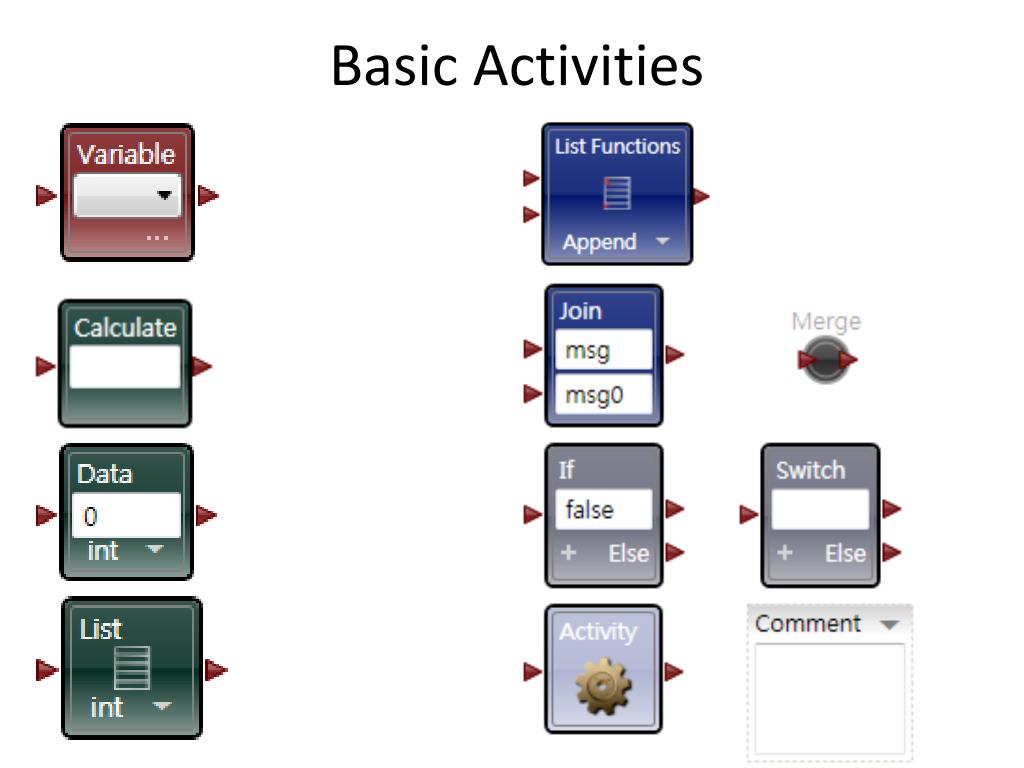

  8. Basic Activities

  9. LEGO NXT Services

  10. We are going to… Practice: • Hello World • Counter • Simulation Hands-on: Simon Says Robot

  11. Hello World

  12. Counter

  13. Simulation

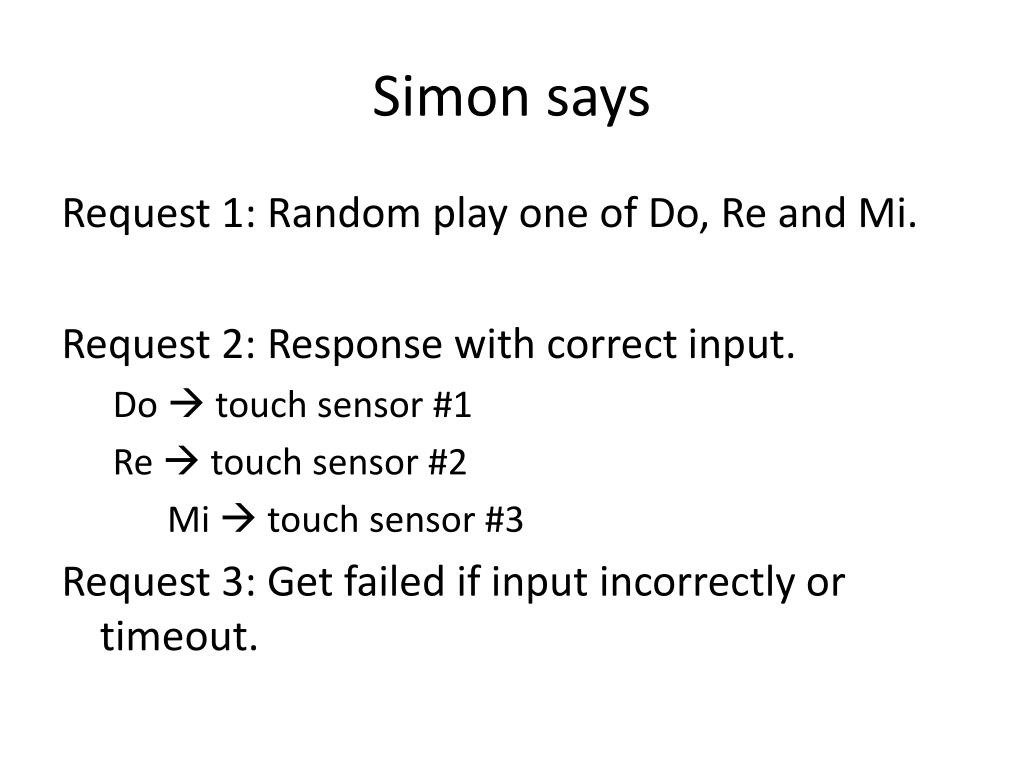

  14. Simon says Request 1: Random play one of Do, Re and Mi. Request 2: Response with correct input. Do  touch sensor #1 Re  touch sensor #2 Mi  touch sensor #3 Request 3: Get failed if input incorrectly or timeout.

  15. Random number

  16. Music instruction

  17. Touch sensor input

  18. Answer correctly within time limit

  19. Put them altogether Try to improve!!
