  1. Small Engine Tools

  2. Categories • Small engine tools can be divided into three categories. • Mechanics tools • Measuring tools • Special tools

  3. Mechanic Tools

  4. Mechanics Tool • Ratchet handle

  5. Mechanics Tool • Standard socket

  6. Mechanics Tool • Deep socket

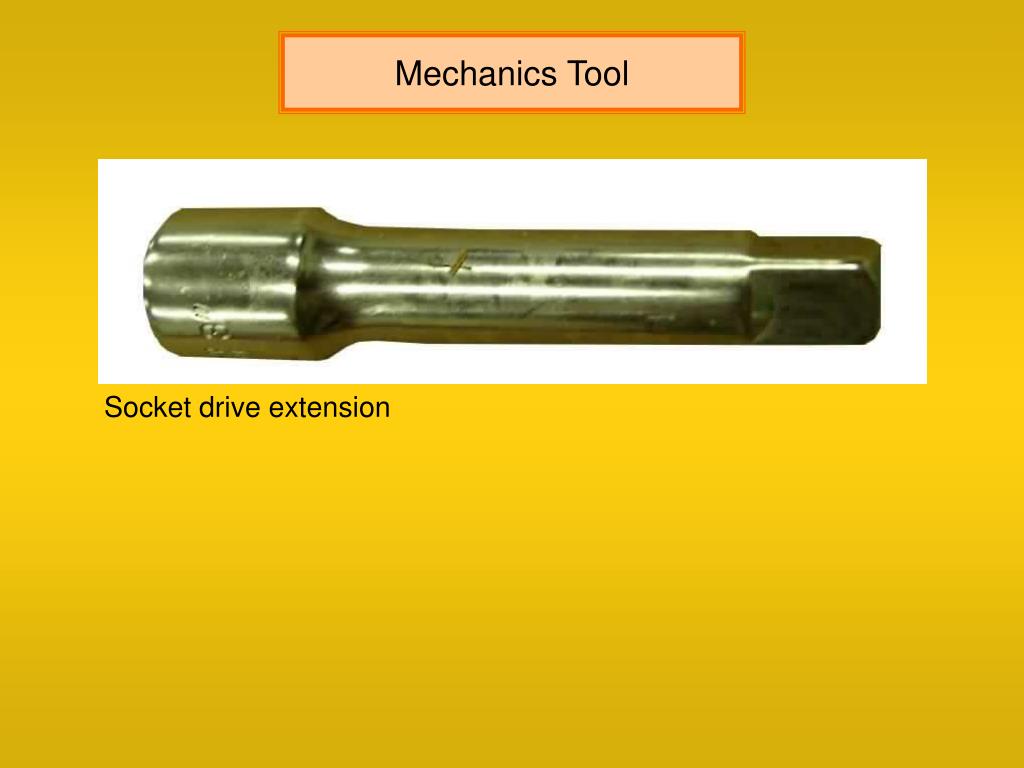

  7. Mechanics Tool • Socket drive extension

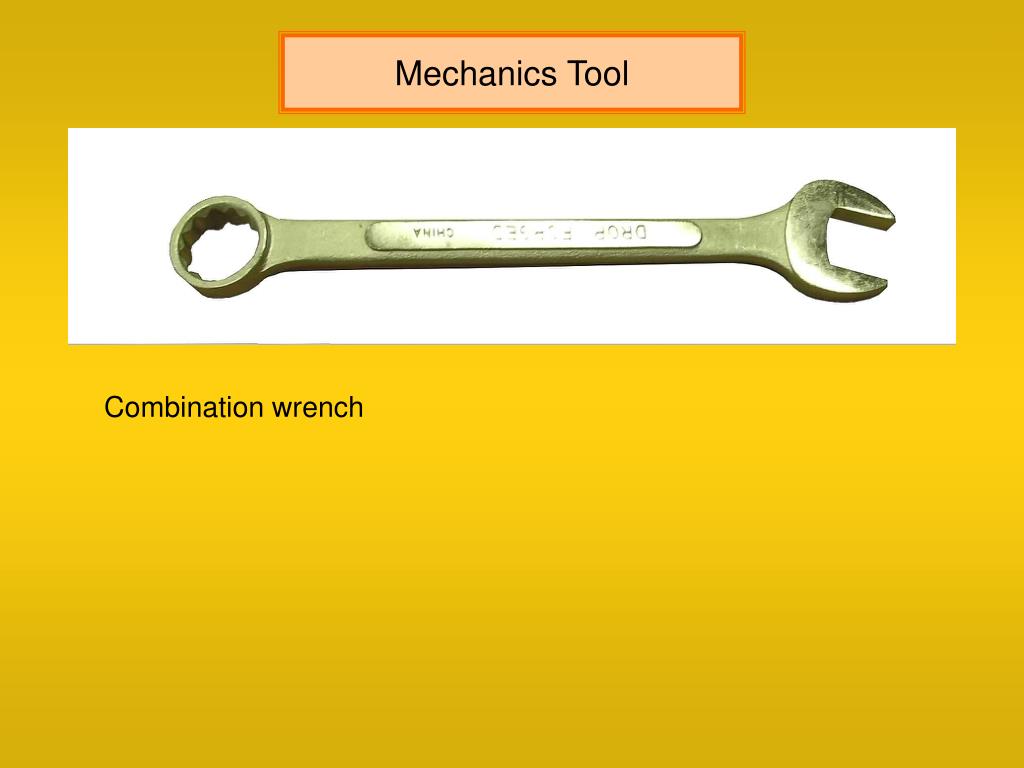

  8. Mechanics Tool • Combination wrench

  9. Mechanics Tool • Offset straight blade screwdriver

  10. Mechanics Tool • Hex wrench

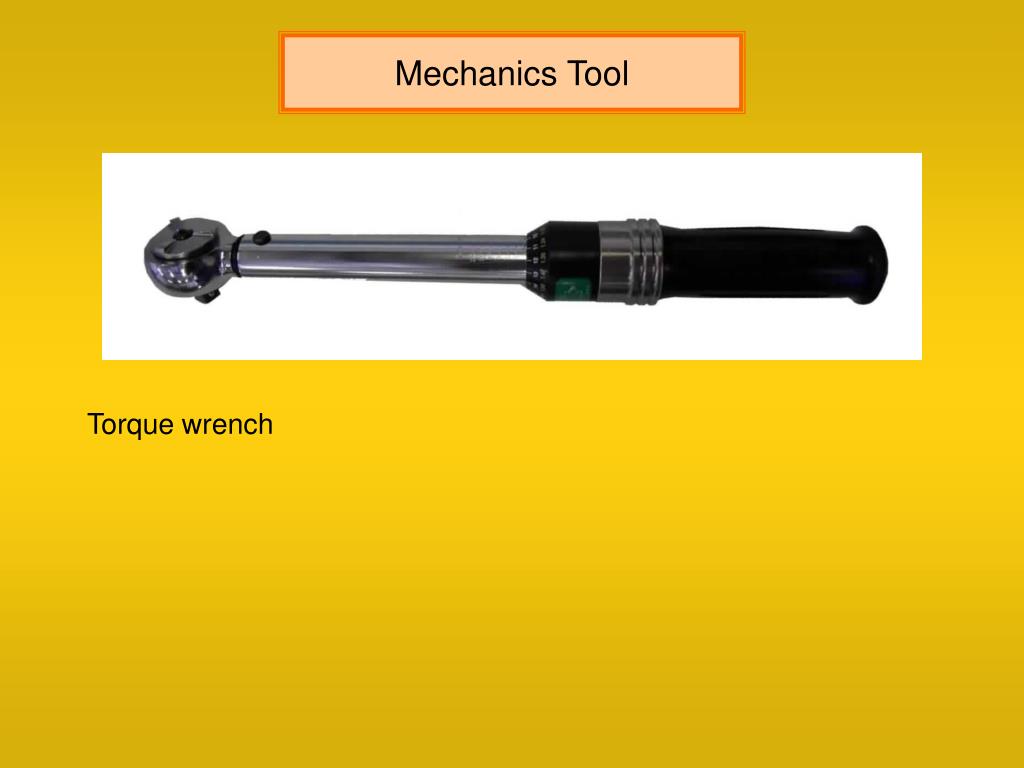

  11. Mechanics Tool • Torque wrench

  12. Measuring Tools

  13. Measuring Tools • Micrometer caliper

  14. Measuring Tools • Depth gage micrometer

  15. Measuring Tools • Inside micrometer

  16. Measuring Tools • Vernier Caliper

  17. Measuring Tools • Thickness gage

  18. Measuring Tools • Dial caliper

  19. Measuring Tools • Plug gage

  20. Measuring Tools • Three leg telescoping gage

  21. Special Tools

  22. Special tools • Engine rotator

  23. Special Tool • Flywheel wrench (Briggs & Stratton)

  24. Special Tool • Piston ring pliers

  25. Special Tool • Flywheel puller

  26. Special Tool • Rewind starter holding tool

  27. Special Tool • Piston ring compressor

  28. Special Tool • Seal protectors

  29. Special Tool • Spark Tester

  30. Special Tool • Rewind starter clutch socket

  31. Special Tool • Valve keeper tool

  32. Special Tool • Valve lapping tool

  33. Special Tool • Valve spring compressor

  34. Special Tool • Spark plug wrench (Briggs & Stratton)
