Small Engine Displacement Calculations

DESCRIPTION

Small Engine Displacement Calculations. Stacey Beacham. Revised May 2007. Bottom Dead Center. Cylinder Head. 3.375” Stroke. 3.25”. Bore. Top Dead Center. Cylinder Head. Combustion Chamber. Formula For A Successful Calculation. Cylinder Displacement= ∏xBore 2 x stroke. 4. 3.375”

1 / 11

Télécharger la présentation

Small Engine Displacement Calculations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Small Engine Displacement Calculations Stacey Beacham Revised May 2007

  2. Bottom Dead Center Cylinder Head 3.375” Stroke 3.25” Bore

  3. Top Dead Center Cylinder Head Combustion Chamber

  4. Formula For A Successful Calculation Cylinder Displacement= ∏xBore2 x stroke 4 3.375” Stroke 3.25” Bore

  5. Formula For A Successful Calculation Example: Cylinder Displacement= 3.14 x 3.252 x 3.375 4 3.375” Stroke 3.25” Bore

  6. Formula For A Successful Calculation Example: Cylinder Displacement (in3)= 3.14 x 3.252 x 3.375 4 3.14 x 10.5625x 3.375 = 4 3.375” Stroke 3.25” Bore 111.93609 = 4

  7. Formula For A Successful Calculation Example: Cylinder Displacement (in3)= 27.984 or 28 cubic inches 28 in3

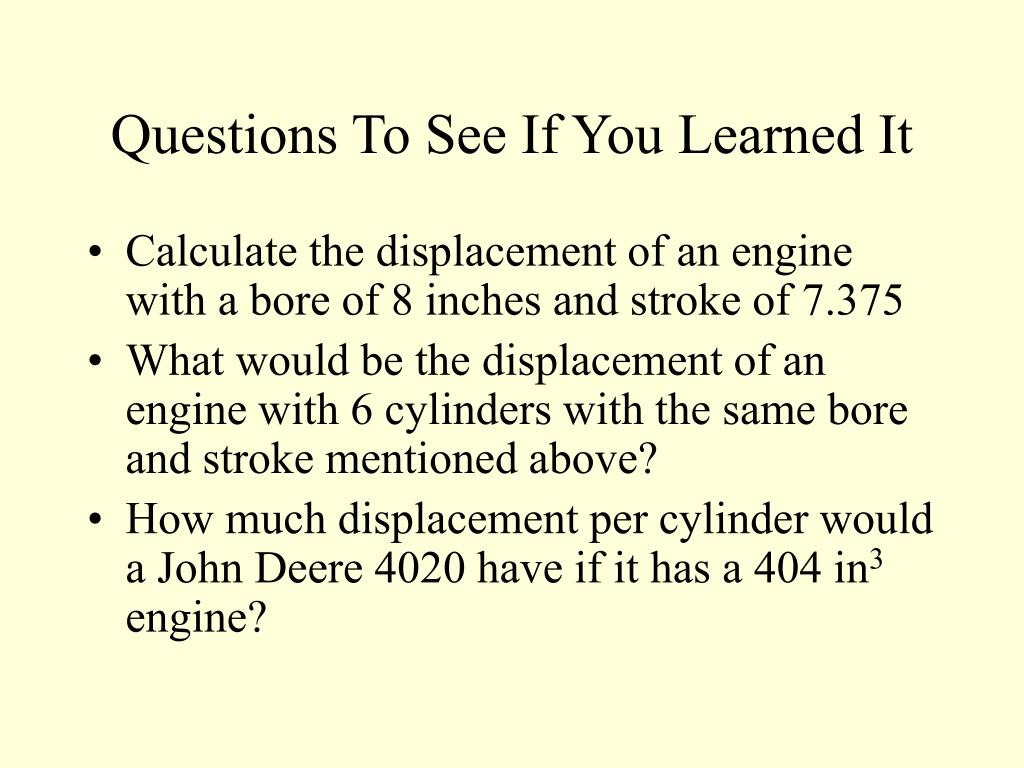

  8. Questions To See If You Learned It • Calculate the displacement of an engine with a bore of 8 inches and stroke of 7.375 • What would be the displacement of an engine with 6 cylinders with the same bore and stroke mentioned above? • How much displacement per cylinder would a John Deere 4020 have if it has a 404 in3 engine?

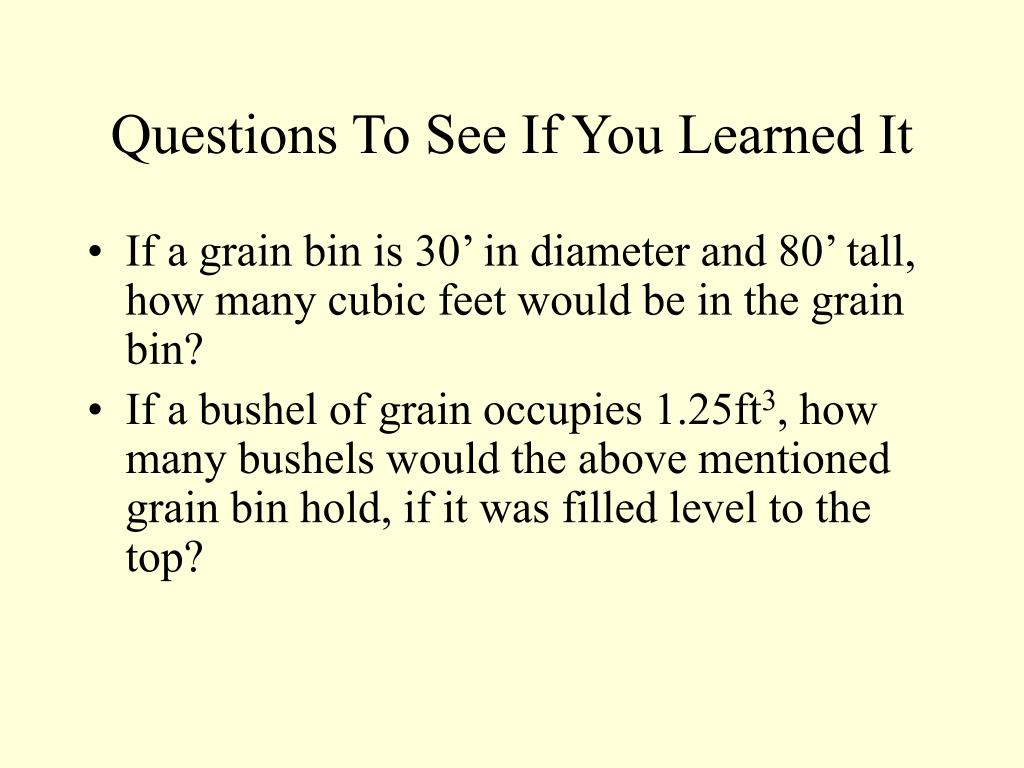

  9. Questions To See If You Learned It • If a grain bin is 30’ in diameter and 80’ tall, how many cubic feet would be in the grain bin? • If a bushel of grain occupies 1.25ft3, how many bushels would the above mentioned grain bin hold, if it was filled level to the top?

  10. Algebra and Ag 28in3 = 3.14 x Bin2 x 3.375 in 4 4 x 28in3 = 3.14 x Bin2 x 3.375 in 112in= B2 10.5975 10.56853= B2 10.56853= B

  11. ANSWER 3.25 in
