Presentation Transcript

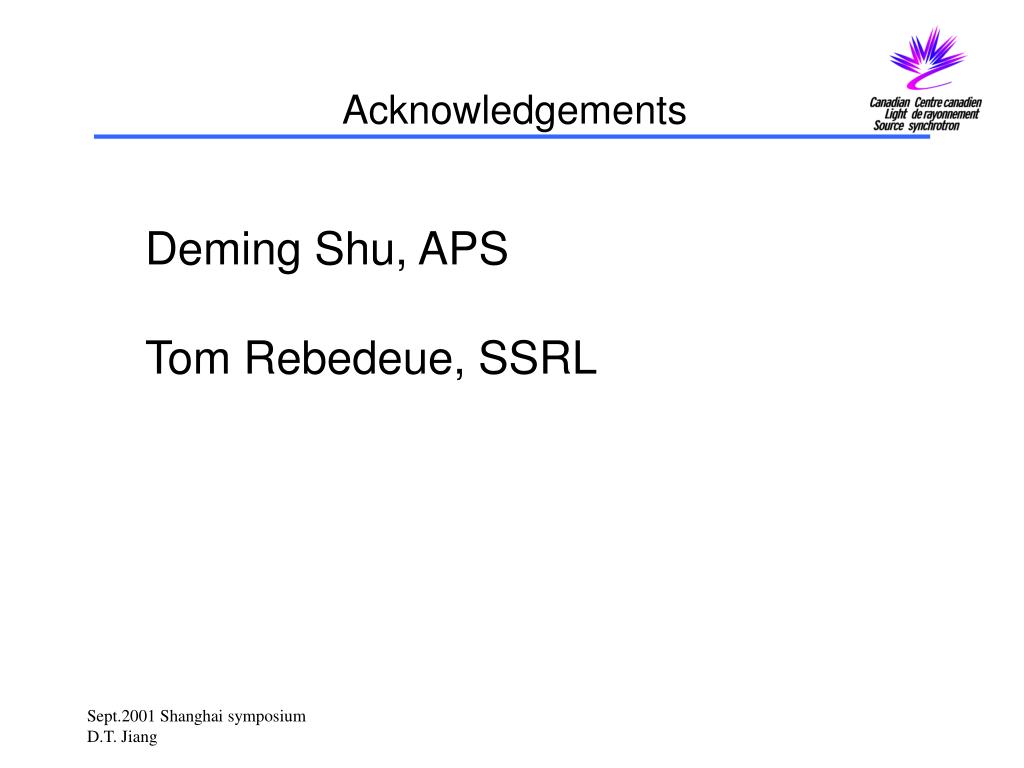

  1. Acknowledgements Deming Shu, APS Tom Rebedeue, SSRL

  2. Canadian Light Source Front Ends • D.T. Jiang and E. Hallin, CLS, Saskatoon, Canada • Outline • Generic Specs of CLS Front Ends • Type of SR Sources • SR Thermal Power Loads • FE Layouts: Two-ID/Straight, One-ID/Straight, BM • SR Ray Tracing • Bremsstrahlung Ray Tracing • Current Design Issues • Summary

  3. CLS Top View

  4. 45mm-U (SGM) 185mm-U (PGM) 75mm-EPU (SPM) 22mm-SGU (PX) WSup33 (Sup-conduct) Period length (cm) 4.5 18.5 7.5 2.2 3.3 Device length (m) 1.189 1.760 1.60 1.610 1.221 Number of periods 26 9 21 74 37 Max. magnetic field B0(T) 0.843 0.751 0.747 0.912 1.917 Critical Ec (keV) - - - - 10.727 Max. deflection parameter, K 3.54 13.0 5.23 1.87 5.91 K/g (mrad) (CLS 1/g = 176 mrad) 623 2291 922 330 1040 Total Power (kW) 2.21 2.51 2.34 3.60 11.95 Peak Power (kW/mrad2) 8.4 2.6 6.0 25.3 27.2 ID-photon shutter distance (m) 10.94 8.785 10.00 8.21* 10.00 Peak heat flux @ shutter (W/mm2) 70 34 60 484 272 Summary of Design Parameters for CLS Insertion Devices

  5. Superconducting Wiggler Brilliance Period = 33 mm, B = 1.9 T, K = 5.91, Length ~1.2 m

  6. Superconduction WigglerHeat Flux at the 1st FE Fixed Mask

  7. SGU Heat Flux Density Map @ FM-1 Max heat flux density 702 W/mm2 This is calculated for a second CLS Small Gap Undulator at the down stream location in a chicaned Two-SGU/Straight.

  8. CLS IDs Ptotal (kW) W/mm2 @FM1 W/mm2 @FM2 W/mm2 @PSH-1 W/mm2 @FM3 W/mm2 @PSH-2 W/mm2 @FM4 33mm1.9T Wiggler (XAFS) 11.73 536 345 - - 273 162 22mm-SGU (PX) 3.60 702 593 466 350 270 176 45mm-U (SGM) & 185mm-U (PGM) 4.72 213 136 - - 108 64 75mm-EPU x 2 4.68 258 162 - - 127 74 BM1 0.070 /H-mrad 29 14 12 6 6 - Thermal Power Loads

  9. Reference APS FE Specifications • APS Undulator A @ 1st fixed mask Ptotal = 6.0 kW, Pdensity=559 W/mm2 . • D. Shu et. al. Nucl. Instrum. & Methods, A 347, 584-590(1994) • 2) APS FE V1.2 would accommodate the total power (>~6 kW) and power density load of 600 W/mm2. • D. Shu et. al. (preprint) • In APS FE V1.5, Ptotal = 9 kW and Pdensity=800 W/mm2, a design targeting at thermal load capacity of 12 kW total power with 1.2 kW/mm2 maximum power density (4.8-meter-long double undulator A with APS operating at 100 mA). • D. Shu et. al. (unpublished)

  10. Schematic of CLS Two-ID/Straight FE

  11. Layout of CLS Two-ID/Straight FE: plan view

  12. Layout of CLS Two-ID/Straight FE: side view

  13. FE Identifier Source/BL Identifier Vertical (mrad) Horizontal (mrad) Duplex ID FE (11ID) 185mm-U (11ID.2, VLS PGM) 0.7 0.7 45mm-U (11ID.1, SGM) 0.140 0.360 Duplex ID FE (10ID) 75mm-EPU (10ID.1 Spectromicroscopy) 0.20 0.20 75mm-EPU (10ID.2, NOT TO BE IMPLEMENTED INNITIALLY) Assumed same as above Assumed same as above Single ID FE (08ID) 22mm-SGU (08ID.1, Protein crystallgraphy) 0.060 0.120 Sing ID FE (07ID) 35mm-Wiggler (XAFS) 0.24 1.60 BM FE (BM1) BM1 0.6 2.0 FE Angular throughput required for phase I CLS beamlines

  14. Dipole Chamber Virtual Aperture for Miss-steered ID SR Rays 1156.4 mm to straight center This neck acts a virtual aperture that limits the allowed miss-steering size along the straight. chamber neck

  15. SR Ray Tracing of Two-ID/Straight FE: vertical

  16. SR Ray Tracing of Two-ID/Straight FE: horizontal Example: SGM/PGM Sector

  17. SR Horizontal trace detail

  18. Bremsstrahlung Ray Tracing for Two-ID/Straight FE: vertical 1st Collimator thickness determined by EGS4 calculation.

  19. Bremsstrahlung Ray Tracing for Two-ID/Straight FE:horizontal

  20. Layout of Single ID/Straight FE: plan view

  21. Layout of Single ID/Straight FE: side view

  22. Shutter:moving box-type mask (D.Shu et al,APS)

  23. Bending Magnet FE (BM1): plan view

  24. Bending Magnet FE (BM1): elevation view

  25. Status of CLS BL FE Construction • Conceptual Designs are completed. The designs are compact, simpler and with the same thermal power load capacity compared to the template APS FE design. • Detail engineering design is in progress (mainly • FEA Analysis confirmation for the results • Extrapolated from the parametric studies of the • APS FE designs). • Tendering process is scheduled to start by the end of 2001.
