  1. DO178C Overview Duncan Brown - Rolls Royce Nick Tudor - QinetiQ

  2. Agenda • Why we need a new document • Structure of the Special Committee • Progress to date • Specific overview of SG6 – Formal Methods

  3. Why we need a new document

  4. The DO-178B / ED-12B • Takes into account the inputs, constraints, requirements from all the stakeholders : • Consensus between Airframe Manufacturers, Equipment suppliers, Certification Authorities • DO-178B / ED-12B was written as much as possible as a “requirements oriented” document • try to stay not prescriptive on the means > less sensitive to technology evolution • DO-178B / ED-12B is a “process oriented” document : • In 1992, we could not imagine to get sufficient assurance on the software product just by assessing it • More than 10 years of use do not reveal major safety flaws

  5. So, why changing ? • Because FAA wants to... • But also because we need it … DO 178B / ED-12B was released in 1992 : • In 1992, Software engineering was 24 years old... • In 2005, Software Engineering is 50% older, as compared to 1992… • Changing for a better consensus, taking into account : • Legacy from the clarification group • Lessons learnt in applying DO-178B / ED-12B • Newly available industrial means

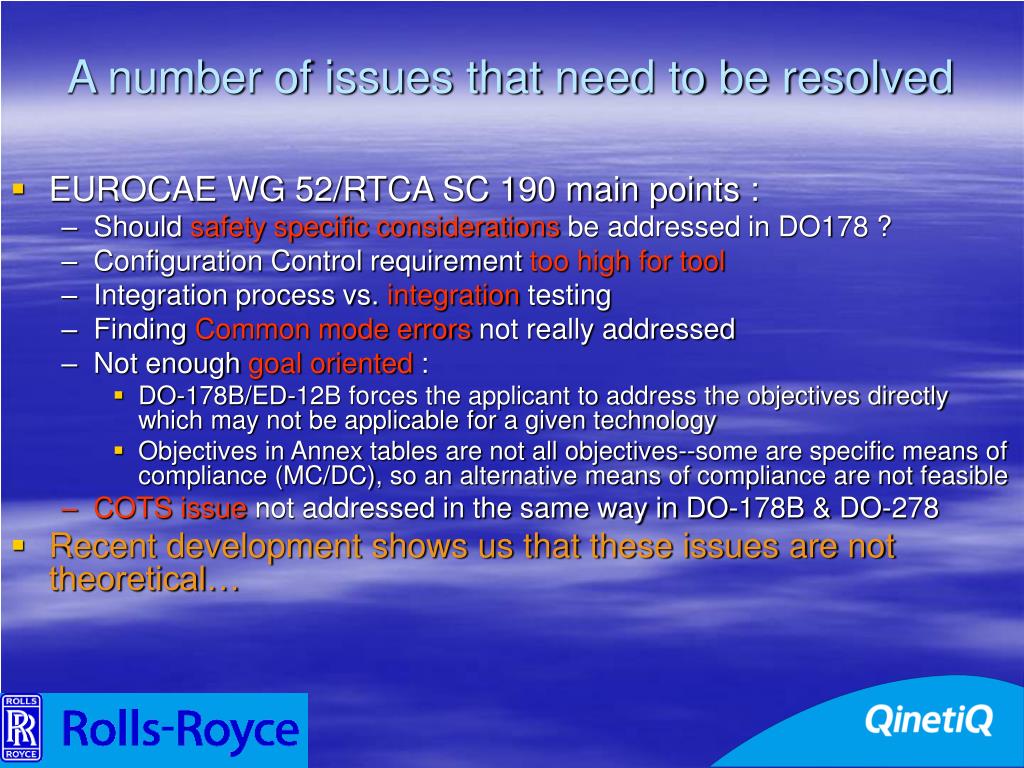

  6. A number of issues that need to be resolved • EUROCAE WG 52/RTCA SC 190 main points : • Should safety specific considerations be addressed in DO178 ? • Configuration Control requirement too high for tool • Integration process vs. integration testing • FindingCommon mode errors not really addressed • Not enough goal oriented : • DO-178B/ED-12B forces the applicant to address the objectives directly which may not be applicable for a given technology • Objectives in Annex tables are not all objectives--some are specific means of compliance (MC/DC), so an alternative means of compliance are not feasible • COTS issue not addressed in the same way in DO-178B & DO-278 • Recent development shows us that these issues are not theoretical…

  7. Fall 2004:RTCA Ad-hoc SW meeting • Ad-hoc SW meeting convened by RTCA in October : • US members : FAA, NASA, Boeing, Honeywell, Rockwell, P&W, United Technologies, Avidyne, Consultants, • European guests (D. Hawken, P. Heller, R. Hannan, G.Ladier) • 161 issues identified on DO-178B • 71 issues : clarification or consistency • 90 issues : new guidance. Helpful or needed for most of them • Amongst the top 20 issues : Need method to validate models, need expressive requirements languages to be used to verify models. Do we now also need guidance on how to build models, validate models, etc. Section 6 of 178B requires "testing". There are now other techniques that are more exhaustive. Analyzing source code using tools. Not clear how to address structural coverage and dead code issues when using such tools. The criteria for development tool qualification is too rigorous. Memory and timing margins, WCET, … difficult to analyze. No "objective" that addresses WCET Consider adding the DO-278 criteria to DO-178[ ] Really needs to be addressed in the safety assessment and ARP 4754/4761 - then flows down to the software. • Model based development • Development tool qualification criteria • Analyzing computer resource usage and WCET • Separate document for CNS/ATM • Security Guidance • Static verification

  8. Terms of reference In American Guidance is stronger than GuidelinesIn French Guidance is Directives, Guidelines are Recommandations • The ad-hoc SW group has proposed to : • Maintain the current objective-based approach for SW assurance. • Modify (minimum changes) DO-178B/ED-12B > DO-178C/ED-12C. • Develop rationale for each objective and package • Develop guidelines that provide information ( DO-248B/ED-94B) • Develop supplements to document technology-specific or method-specific guidance. • Supplements : • May provide alternate means to satisfy DO-178C/ED-12C objectives • Possible supplements : Tool qualification, Model-based development, Object-oriented technology, Formal methods,… • On this basis, RTCA and EUROCAE agreed to commence new committees

  9. Structure of the Special Committee/Working Group Joint between EUROCAE and RTCA

  10. WG-71/SC-205 Structure Joint Chair: Gerard Ladier [Airbus] Joint Chair: Jim Krodel [P&W] Joint Sec: Ross Hannan [Sigma] Joint Sec: Mike DeWalt [CSI] FAA Rep: Barbara Lingberg [FAA] Joint committee WG71/ SC205 Executive Committee SG1: Sub Group Coordination SG2: Issue Review & Rationale Membership from Airframers, avionics suppliers, certification authorities, engine manufacturers, CNS/ATM specialists, Space community, consultants SG3: Tools SG4: Model Based Design SG5: Object Oriented Technology SG6: Formal Methods SG7: Safety CNS/ATM

  11. Progress to date Joint between EUROCAE and RTCA

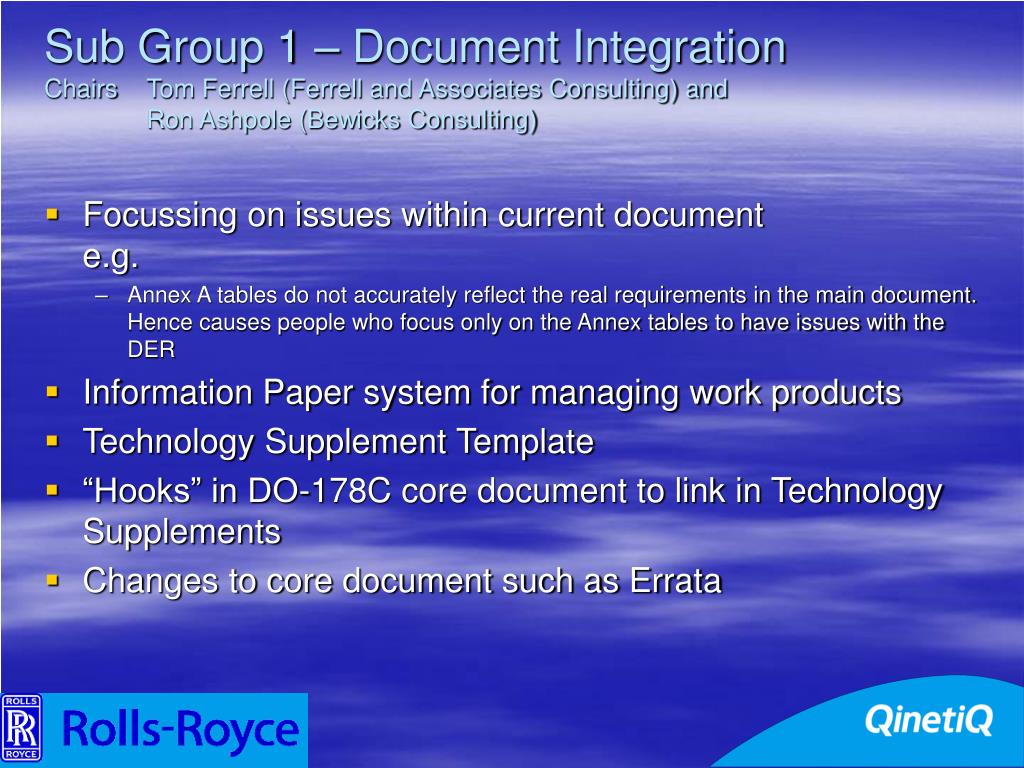

  12. Sub Group 1 – Document IntegrationChairs Tom Ferrell (Ferrell and Associates Consulting) and Ron Ashpole (Bewicks Consulting) • Focussing on issues within current documente.g. • Annex A tables do not accurately reflect the real requirements in the main document. Hence causes people who focus only on the Annex tables to have issues with the DER • Information Paper system for managing work products • Technology Supplement Template • “Hooks” in DO-178C core document to link in Technology Supplements • Changes to core document such as Errata

  13. Sub Group 2 - Issues & Rationale Chairs Will Struck (FAA) Ross Hannan (Sigma Associates) • Believe it or not – they lost the rationale! • Discussion on why we use MCDC (or not) • Will coordinate activities relating to dead deactivated code (different for some technologies?) • Rationale for objectives should be released to WG May 07 • Also new objectives will be set as a result

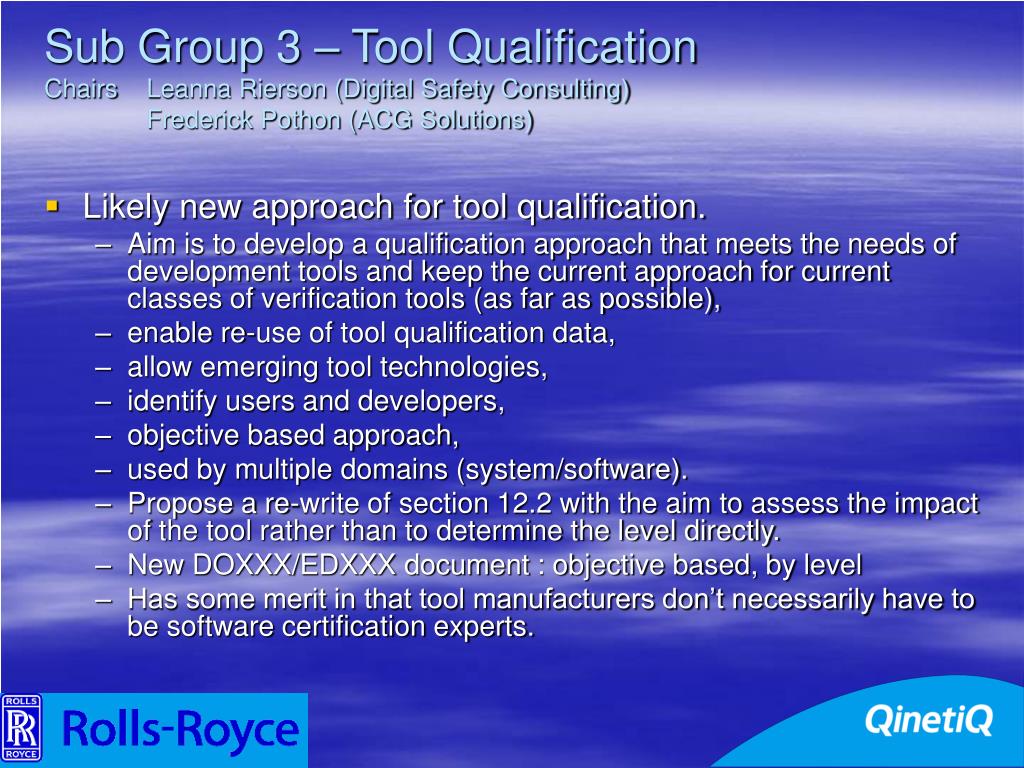

  14. Sub Group 3 – Tool QualificationChairs Leanna Rierson (Digital Safety Consulting) Frederick Pothon (ACG Solutions) • Likely new approach for tool qualification. • Aim is to develop a qualification approach that meets the needs of development tools and keep the current approach for current classes of verification tools (as far as possible), • enable re-use of tool qualification data, • allow emerging tool technologies, • identify users and developers, • objective based approach, • used by multiple domains (system/software). • Propose a re-write of section 12.2 with the aim to assess the impact of the tool rather than to determine the level directly. • New DOXXX/EDXXX document : objective based, by level • Has some merit in that tool manufacturers don’t necessarily have to be software certification experts.

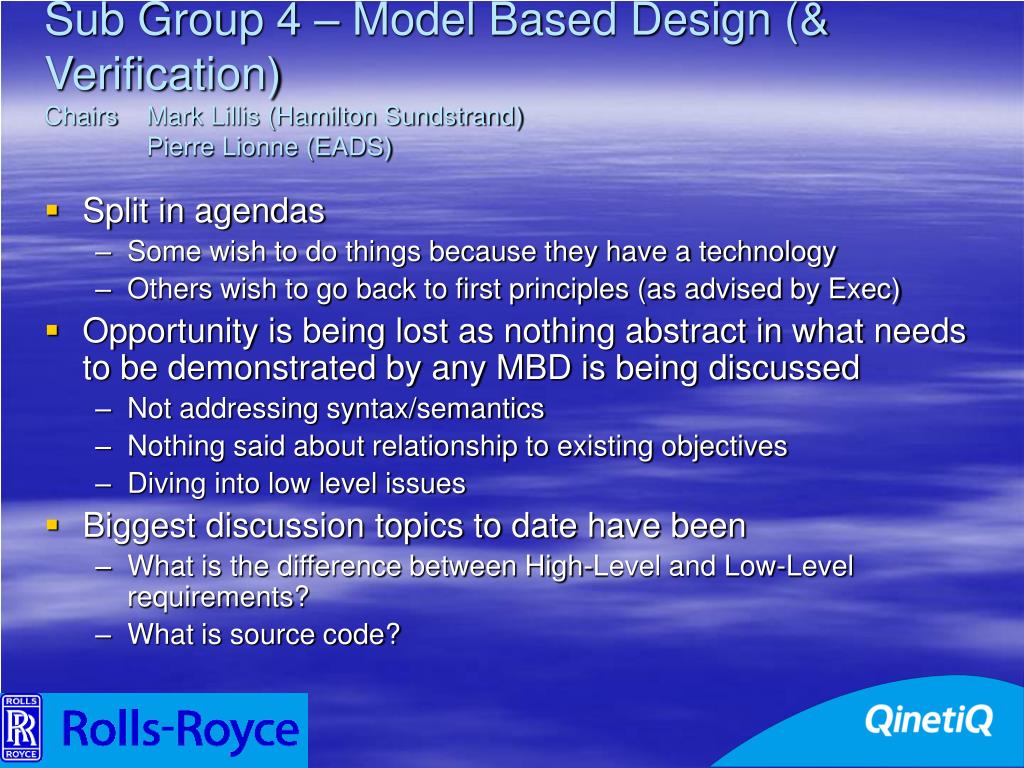

  15. Sub Group 4 – Model Based Design (& Verification)Chairs Mark Lillis (Hamilton Sundstrand) Pierre Lionne (EADS) • Split in agendas • Some wish to do things because they have a technology • Others wish to go back to first principles (as advised by Exec) • Opportunity is being lost as nothing abstract in what needs to be demonstrated by any MBD is being discussed • Not addressing syntax/semantics • Nothing said about relationship to existing objectives • Diving into low level issues • Biggest discussion topics to date have been • What is the difference between High-Level and Low-Level requirements? • What is source code?

  16. Sub Group 5 – OO TechnologiesChairs Jim Chelini (Verocel Inc) Peter Heller (Airbus) • Unlikely to be much new because of FAA OOTiA work • Aim would be to withdraw this following completion of DO-178C and supplements • However not clear if an OO supplement is required • Much initial work was creating FAQs/Discussion Papers for DO-248 and minor changes for DO-178C – This was challenged as the intent of the working group is to consolidate guidance. • Will address some structural coverage issues specific to OO and polymorphism

  17. Sub Group 6 – Formal MethodsChairs Kelly Hayhurst (NASA) Duncan Brown (Rolls-Royce) • Established a definite need for a Formal Methods technology supplement • Decided to separate the case studies and tutorial information into a discussion paper • Proposed rewrite of Section 6 – Verification because it made the use of technology supplements easier

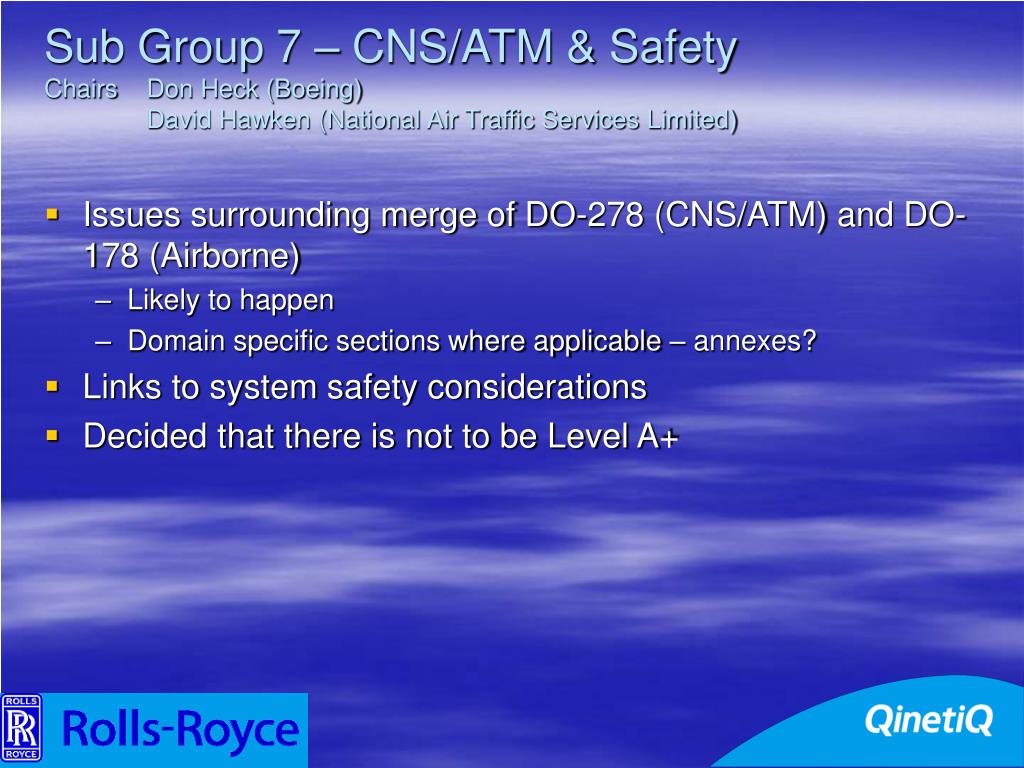

  18. Sub Group 7 – CNS/ATM & SafetyChairs Don Heck (Boeing) David Hawken (National Air Traffic Services Limited) • Issues surrounding merge of DO-278 (CNS/ATM) and DO-178 (Airborne) • Likely to happen • Domain specific sections where applicable – annexes? • Links to system safety considerations • Decided that there is not to be Level A+

  19. Why section 6 must change

  20. The Problem • DO-178B Section 6 calls explicitly for Review, Analysis and Test rather than setting out the objectives for verification and leaving the applicant to create the appropriate verification plan. • However specific methods are deemed the only way to meet specific objectives. • There are issues with specific technologies such as Formal Methods, OO and MBD with respect to how the current section 6 objectives can be met. • The existing material can benefit from additional clarification.

  21. The Proposal • To re-arrange the DO-178B section 6 material according to life cycle data. • To explicitly state the objectives for the verification of each life cycle data item. • To retain the complete testing process under the verification of executable object code. • To generalise the wording to use verification instead of specific methods (Review, Analysis & Test). • To ensure that DO-178C on its own is as forceful with regard to testing as DO-178B.

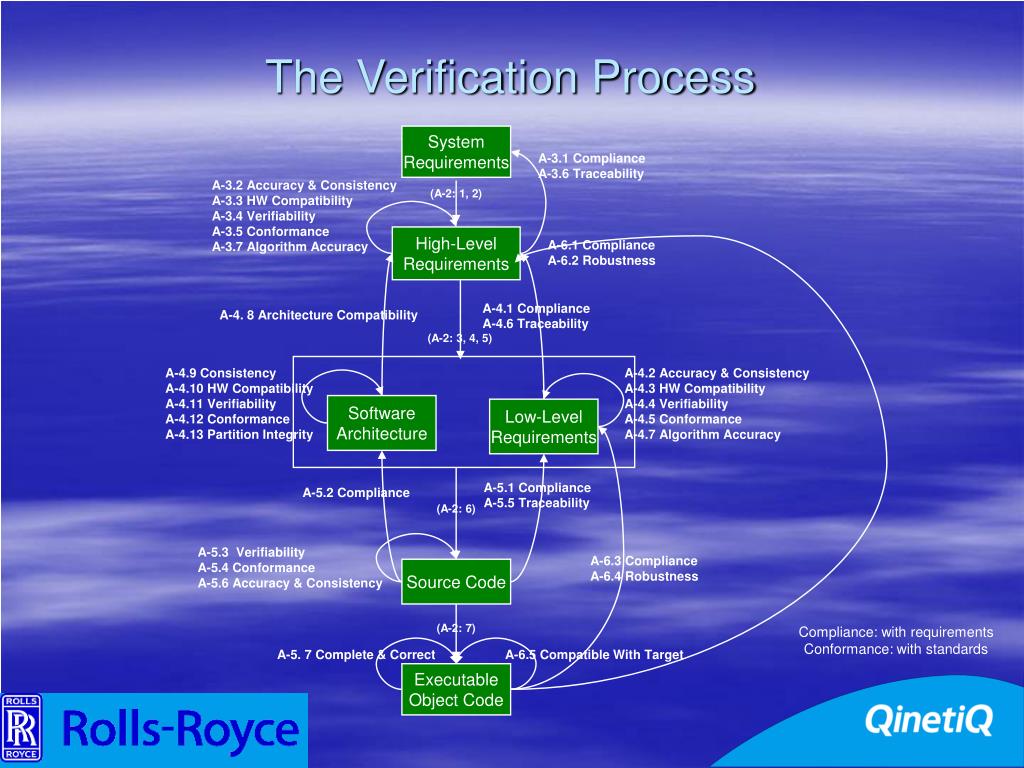

  22. The Verification Process System Requirements A-3.1 Compliance A-3.6 Traceability A-3.2 Accuracy & Consistency A-3.3 HW Compatibility A-3.4 Verifiability A-3.5 Conformance A-3.7 Algorithm Accuracy (A-2: 1, 2) High-Level Requirements A-6.1 Compliance A-6.2 Robustness A-4.1 Compliance A-4.6 Traceability A-4. 8 Architecture Compatibility (A-2: 3, 4, 5) A-4.9 Consistency A-4.10 HW Compatibility A-4.11 Verifiability A-4.12 Conformance A-4.13 Partition Integrity A-4.2 Accuracy & Consistency A-4.3 HW Compatibility A-4.4 Verifiability A-4.5 Conformance A-4.7 Algorithm Accuracy Software Architecture Low-Level Requirements A-5.1 Compliance A-5.5 Traceability A-5.2 Compliance (A-2: 6) A-5.3 Verifiability A-5.4 Conformance A-5.6 Accuracy & Consistency A-6.3 Compliance A-6.4 Robustness Source Code (A-2: 7) Compliance: with requirements Conformance: with standards A-5. 7 Complete & Correct A-6.5 Compatible With Target Executable Object Code

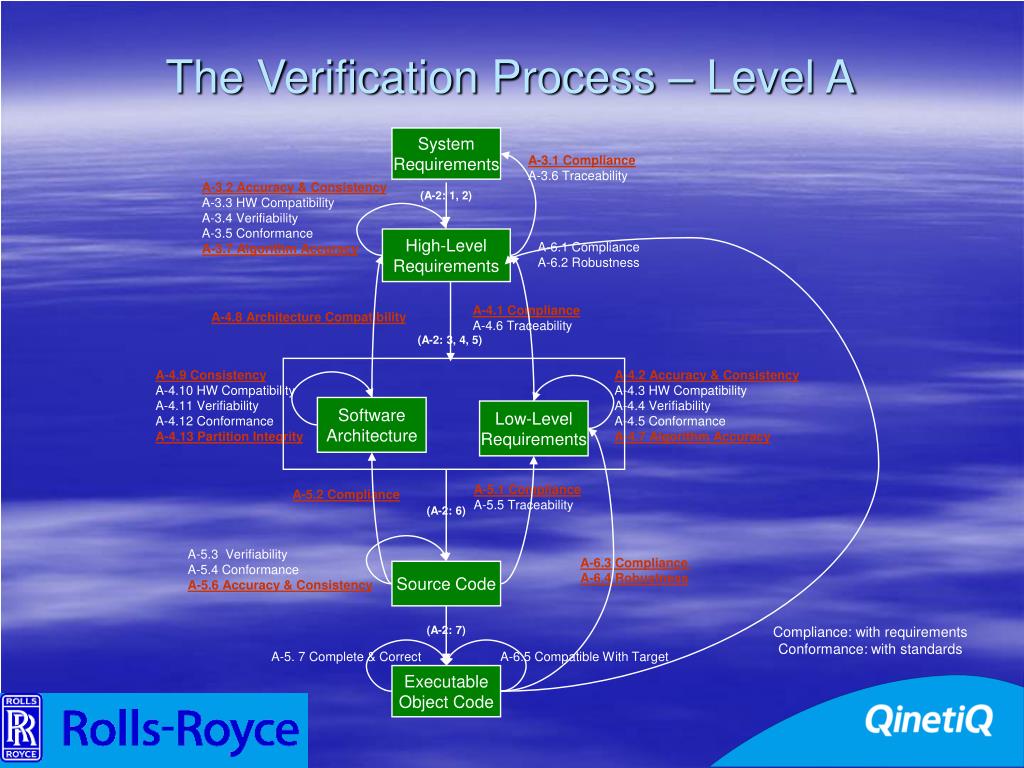

  23. The Verification Process – Level A System Requirements A-3.1 Compliance A-3.6 Traceability A-3.2 Accuracy & Consistency A-3.3 HW Compatibility A-3.4 Verifiability A-3.5 Conformance A-3.7 Algorithm Accuracy (A-2: 1, 2) High-Level Requirements A-6.1 Compliance A-6.2 Robustness A-4.1 Compliance A-4.6 Traceability A-4.8 Architecture Compatibility (A-2: 3, 4, 5) A-4.9 Consistency A-4.10 HW Compatibility A-4.11 Verifiability A-4.12 Conformance A-4.13 Partition Integrity A-4.2 Accuracy & Consistency A-4.3 HW Compatibility A-4.4 Verifiability A-4.5 Conformance A-4.7 Algorithm Accuracy Software Architecture Low-Level Requirements A-5.1 Compliance A-5.5 Traceability A-5.2 Compliance (A-2: 6) A-5.3 Verifiability A-5.4 Conformance A-5.6 Accuracy & Consistency A-6.3 Compliance A-6.4 Robustness Source Code (A-2: 7) Compliance: with requirements Conformance: with standards A-5. 7 Complete & Correct A-6.5 Compatible With Target Executable Object Code

  24. The Verification Process – Level B System Requirements A-3.1 Compliance A-3.6 Traceability A-3.2 Accuracy & Consistency A-3.3 HW Compatibility A-3.4 Verifiability A-3.5 Conformance A-3.7 Algorithm Accuracy (A-2: 1, 2) High-Level Requirements A-6.1 Compliance A-6.2 Robustness A-4.1 Compliance A-4.6 Traceability A-4.8 Architecture Compatibility (A-2: 3, 4, 5) A-4.9 Consistency A-4.10 HW Compatibility A-4.11 Verifiability A-4.12 Conformance A-4.13 Partition Integrity A-4.2 Accuracy & Consistency A-4.3 HW Compatibility A-4.4 Verifiability A-4.5 Conformance A-4.7 Algorithm Accuracy Software Architecture Low-Level Requirements A-5.1 Compliance A-5.5 Traceability A-5.2 Compliance (A-2: 6) A-5.3 Verifiability A-5.4 Conformance A-5.6 Accuracy & Consistency A-6.3 Compliance A-6.4 Robustness Source Code (A-2: 7) Compliance: with requirements Conformance: with standards A-5. 7 Complete & Correct A-6.5 Compatible With Target Executable Object Code

  25. The Verification Process – Level C System Requirements A-3.1 Compliance A-3.6 Traceability A-3.2 Accuracy & Consistency A-3.3HW Compatibility A-3.4 Verifiability A-3.5 Conformance A-3.7 Algorithm Accuracy (A-2: 1, 2) High-Level Requirements A-6.1 Compliance A-6.2 Robustness A-4.1 Compliance A-4.6 Traceability A-4.8 Architecture Compatibility (A-2: 3, 4, 5) A-4.9 Consistency A-4.10 HW Compatibility A-4.11Verifiability A-4.12 Conformance A-4.13 Partition Integrity A-4.2 Accuracy & Consistency A-4.3 HW Compatibility A-4.4 Verifiability A-4.5 Conformance A-4.7 Algorithm Accuracy Software Architecture Low-Level Requirements A-5.1 Compliance A-5.5 Traceability A-5.2 Compliance (A-2: 6) A-5.3Verifiability A-5.4 Conformance A-5.6 Accuracy & Consistency A-6.3 Compliance A-6.4 Robustness Source Code (A-2: 7) Compliance: with requirements Conformance: with standards A-5. 7 Complete & Correct A-6.5 Compatible With Target Executable Object Code

  26. The Verification Process – Level D System Requirements A-3.1 Compliance A-3.6 Traceability A-3.2 Accuracy & Consistency A-3.3HWCompatibility A-3.4 Verifiability A-3.5 Conformance A-3.7AlgorithmAccuracy (A-2: 1, 2) High-Level Requirements A-6.1 Compliance A-6.2 Robustness A-4.1 Compliance A-4.6Traceability A-4.8ArchitectureCompatibility (A-2: 3, 4, 5) A-4.9 Consistency A-4.10 HW Compatibility A-4.11 Verifiability A-4.12Conformance A-4.13 Partition Integrity A-4.2 Accuracy & Consistency A-4.3 HW Compatibility A-4.4 Verifiability A-4.5 Conformance A-4.7AlgorithmAccuracy Software Architecture Low-Level Requirements A-5.1 Compliance A-5.5Traceability A-5.2Compliance (A-2: 6) A-5.3 Verifiability A-5.4 Conformance A-5.6Accuracy&Consistency A-6.3 Compliance A-6.4 Robustness Source Code (A-2: 7) Compliance: with requirements Conformance: with standards A-5. 7Complete&Correct A-6.5 Compatible With Target Executable Object Code

  27. The Verification Process – Level E Executable Object Code

  28. 6.0 SOFTWARE VERIFICATION PROCESS 6.1 Software Verification Process Objectives 6.2 Software Verification Process Activities 6.3 Software Reviews and Analyses 6.3.1 Reviews and Analyses of the High-Level Requirements a. Compliance with system requirements b. Accuracy and consistency c. Compatibility with the target computer d. Verifiability e. Conformance to standards f. Traceability g. Algorithm aspects 6.3.2 Reviews and Analyses of the Low-Level Requirements a. Compliance with high-level requirements b. Accuracy and consistency c. Compatibility with the target computer d. Verifiability e. Conformance to standards f. Traceability g. Algorithm aspects Comparison of Old -> New 6.0 SOFTWARE VERIFICATION PROCESS 6.1 Software Verification Process Objectives 6.2 Software Verification Process Activities 6.3 Detailed Guidance for Verification Activities 6.3.1 Verification Activities for the High-Level Requirements a. Compliance with system requirements b. Accuracy and consistency c. Compatibility with the target computer d. Verifiability e. Conformance to standards f. Traceability g. Algorithm aspects 6.3.2 Verification Activities for the Low-Level Requirements a. Compliance with high-level requirements b. Accuracy and consistency c. Compatibility with the target computer d. Verifiability e. Conformance to standards f. Traceability g. Algorithm aspects

  29. 6.3.3 Reviews and Analyses of the Software Architecture a. Compliance with high-level requirements b. Consistency c. Compatibility with the target computer d. Verifiability e. Conformance to standards f. Partitioning integrity 6.3.4 Reviews and Analyses of the Source Code a. Compliance with low-level requirements b. Compliance with the software architecture c. Verifiability d. Conformance to standards e. Traceability f. Accuracy and consistency 6.3.5 Reviews and Analysis of the Outputs of the Integration Process Comparison of Old -> New 6.3.3Verification Activities for the Software Architecture a. Compliance with high-level requirements b. Consistency c. Compatibility with the target computer d. Verifiability e. Conformance to standards f. Partitioning integrity 6.3.4 Verification Activities for the Source Code a. Compliance with low-level requirements b. Compliance with the software architecture c. Verifiability d. Conformance to standards e. Traceability f. Accuracy and consistency 6.3.5 Verification Activities for the Executable Object Code a. Completeness and correctness b. Compliance with the high-level requirements c. Robustness for high and low-level requirements d. Compliance with the low-level requirements e. Compatibility with the target computer 6.3.5.1 Software Testing 6.3.5.2 Test Environment

  30. 6.3.6 Reviews and Analyses of the Test Cases, Procedures, and Results 6.4 Software Testing Process 6.4.1 Test Environment 6.4.2 Requirements-Based Test Case Selection 6.4.2.1 Normal Range Test Cases 6.4.2.2 Robustness Test Cases 6.4.3 Requirements-Based Testing Methods 6.4.4 Test Coverage Analysis 6.4.4.1 Requirements-Based Test Coverage Analysis 6.4.4.2 Structural Coverage Analysis 6.4.4.3 Structural Coverage Analysis Resolution Comparison of Old -> New 6.3.6 Verification Activities for the Analyses, Test Cases, Procedures and Results a. Analysis and Test cases b. Analysis and Test procedures c. Analysis and Test results 6.3.6.1 Coverage Analysis 6.3.6.1.1 Requirements Coverage Analysis 6.3.6.1.2 Structural Coverage Analysis 6.3.6.1.3 Structural Coverage Analysis Resolution {Transferred to section 6.3.5.1} {Transferred to section 6.3.5.2} {Transferred to 6.3.5} {Transferred to 6.3.5} {Transferred to 6.3.5} {Transferred to 6.3.5} {Transferred to section 6.3.6.1} {Transferred to section 6.3.6.1.1} {Transferred to section 6.3.6.1.2} {Transferred to section 6.3.6.1.3}

  31. Major Comments Raised • The paper lowers the bar for testing significantly (To zero!) • Review and analysis are the only applicable methods for verification of higher level life cycle data. • Testing is the only applicable method for meeting the verification of the executable object code.

  32. Summary • Latest Revision of Paper emphasises the reliance on testing where there are no other accepted means for verification. • DO-178C used alone needs to be as forceful in the need for testing as DO-178B • It now says that “…testing is necessary to ensure that the executable object code is compatible with the target computer” • Only the use of approved guidance in conjunction with DO-178C could alter the amount of testing required. • Paper to be agreed by SG6 at interim meeting mid-year. • Plenary consensus to be sought in Vienna in the Autumn. • There is “significant” backing for this paper. • This provides a way to use Formal Methods as part of certification – The technology supplement will provide the “How”

  33. IP 601 Rev B (Draft)
