  1. Bluetooth Simulator Eran Cohen Ran Zavhon Instructor - Gil Zusman

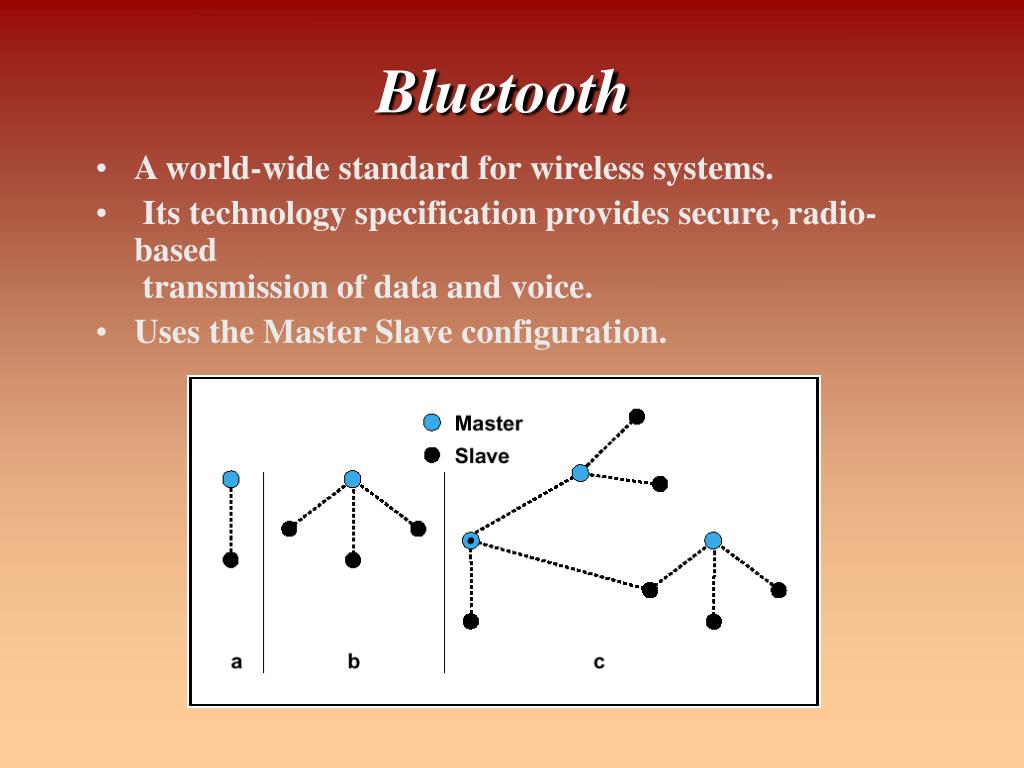

  2. A world-wide standard for wireless systems. Its technology specification provides secure, radio-based transmission of data and voice. Uses the Master Slave configuration. Bluetooth

  3. Project Goal • Simulating the Bluetooth protocol in a software environment . • Checking the Bluetooth scheduling methods with a numerous • scheduling algorithms : • Round Robin (the method exist on BT devices today). • Exhaustive • Gated • Globally Gated • Other Priorities algorithms

  4. Bluetooth Scheduling Problem Once a master polls a slave , the next slot is reserved for the slave irrespective of whether the slave has data to send or not . The approximately throughput in the scenario is 75% .

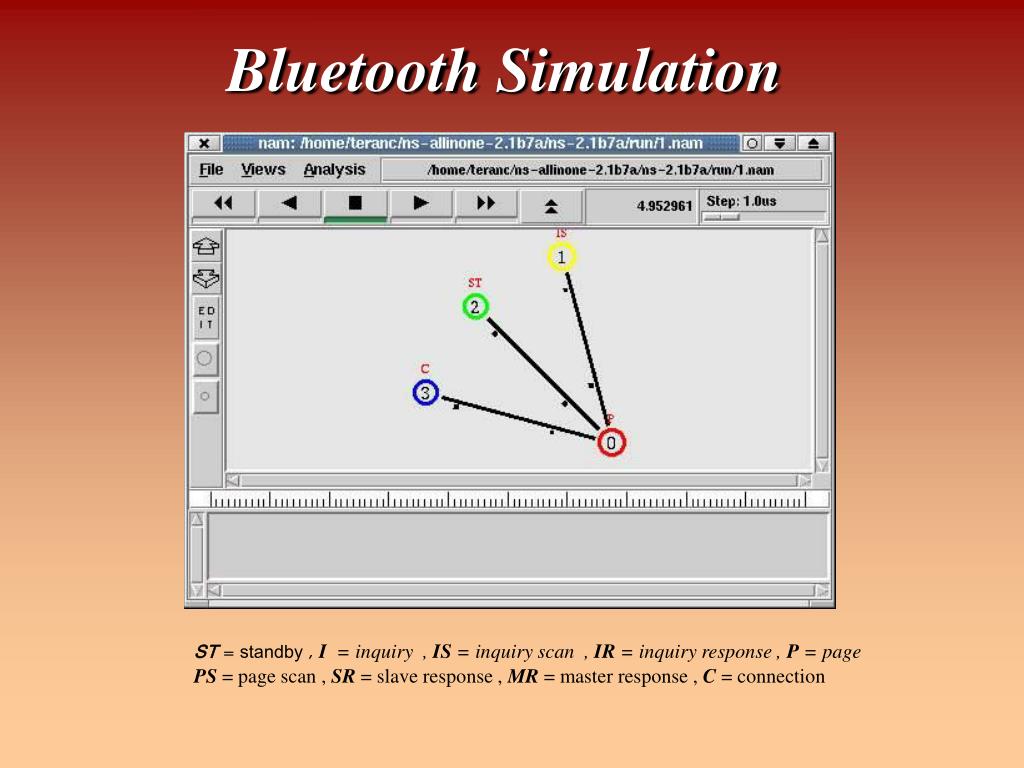

  5. Bluetooth Simulation • ST = standby , I = inquiry , IS = inquiry scan , IR = inquiry response , P = page • PS = page scan , SR = slave response , MR = master response , C = connection
